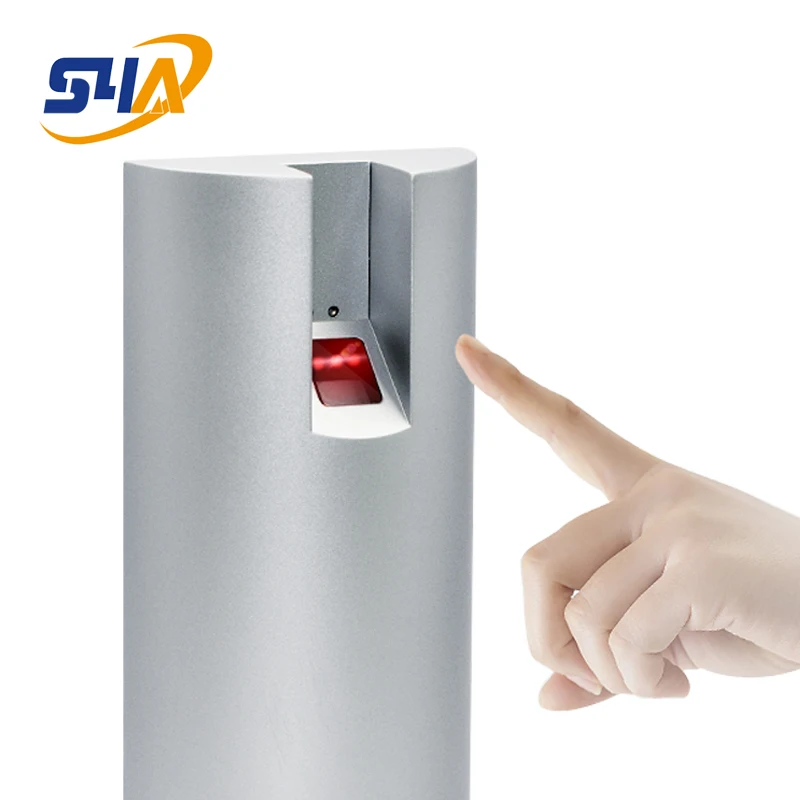

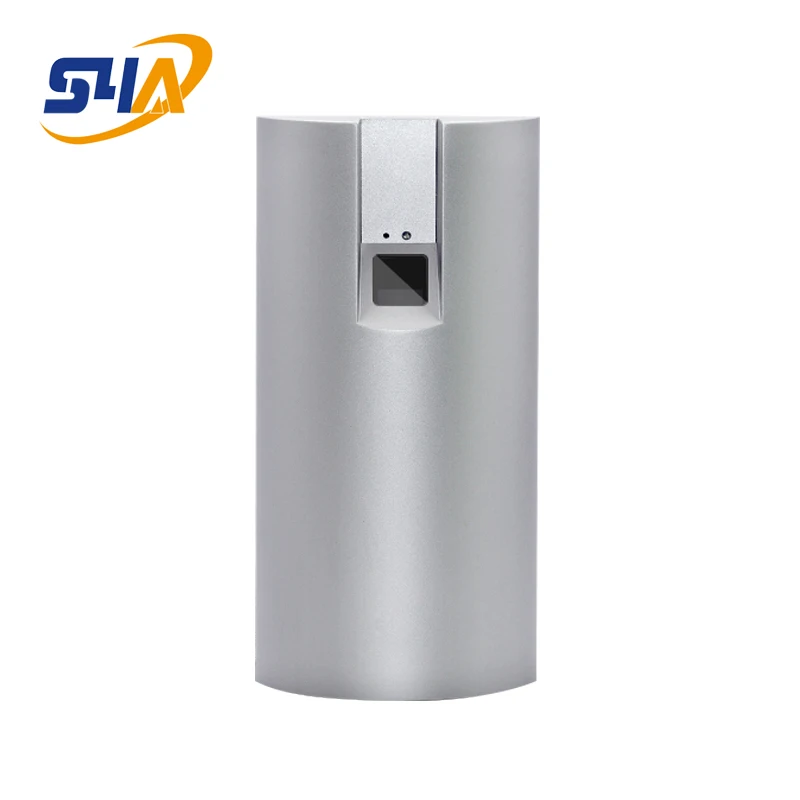

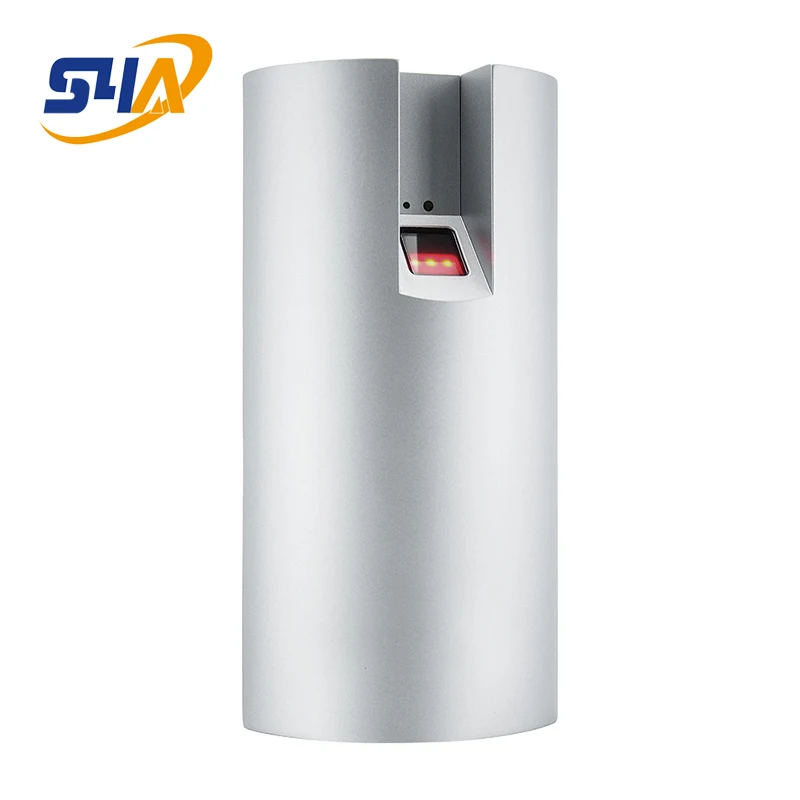

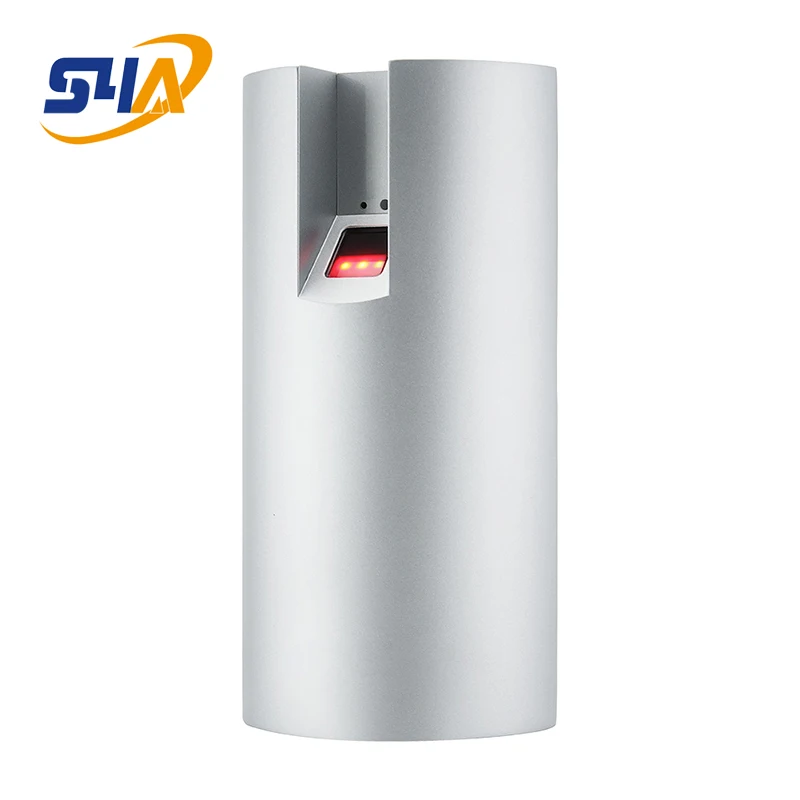

FR-002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP
FR-002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP
FR-002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP
FR-002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP
FR-002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP
FR-002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP

FR 002 Fingerprint RFID Reader Built In Wiegand Output And TCP/IP

Share on (1600918502405):


Price:

Quantity:


Product Overview

Description

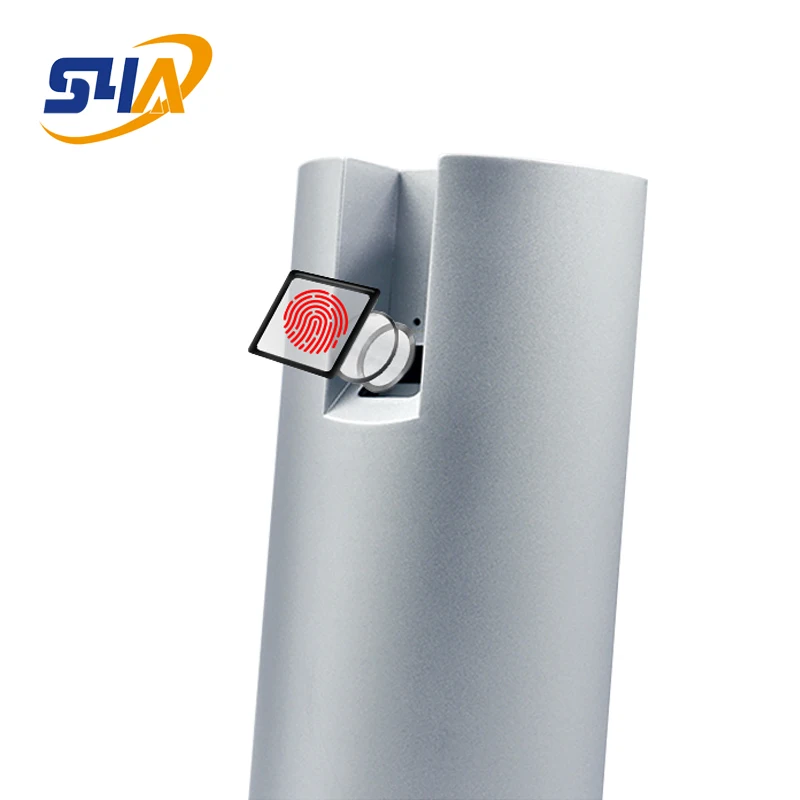

FR-002 Ethernet Fingerprint Reader work with ACB series Access Control Board.


Built-in TCP/IP communication and WG 26 output.

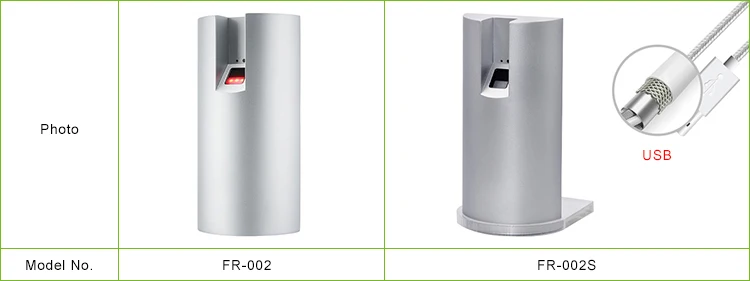

Fingerprint reader.jpg











































































Product ParameterParameter Description
S4A ModelFR-002
Product NameFingerprint RFID Reader Built In Wiegand Output And TCP/IP

SupportMifare cards 13.56MHz + Finger
Input Voltage12VDC
Static current≤150mA
Working current≤300mA
Fingerprint capacity1000
Fingerprint resolution450DPI
Fingerprint research time<1.0s
Fingerprint recognition false rate<0.001%
False Reject Rate<1.0%
Output formatWiegand
Working temperature-20℃ ~ 50℃
Working humidity20% ~ 95%
Dimension179 * 89 * 45mm

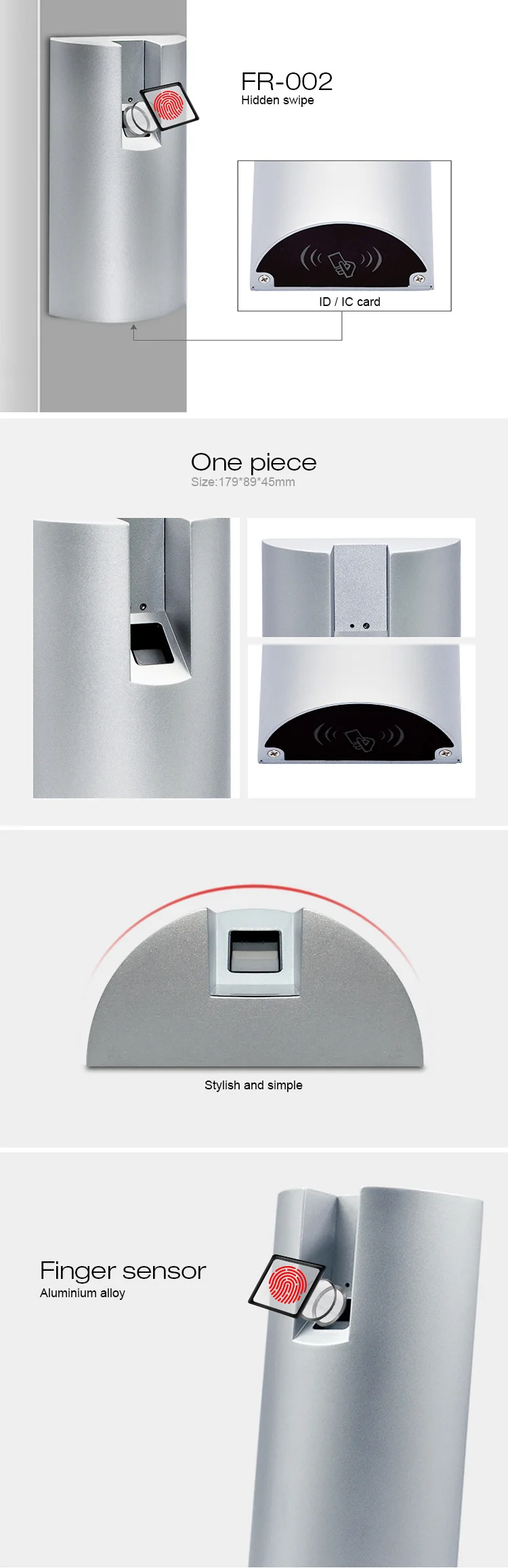

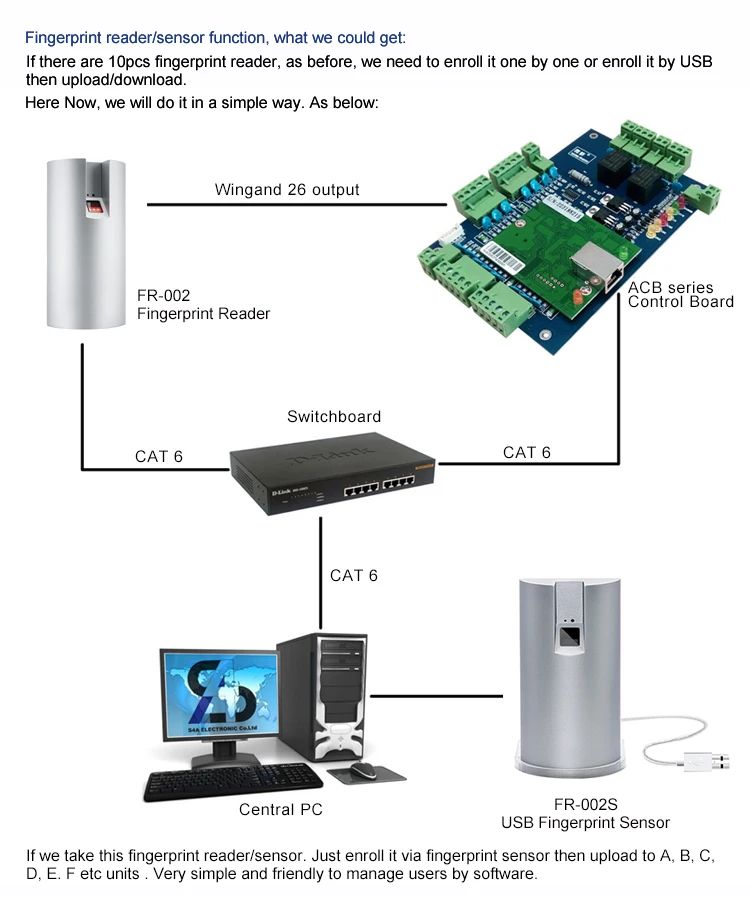

Fingerprint reader-1.jpgS4A Fingerprint Reader.jpg
