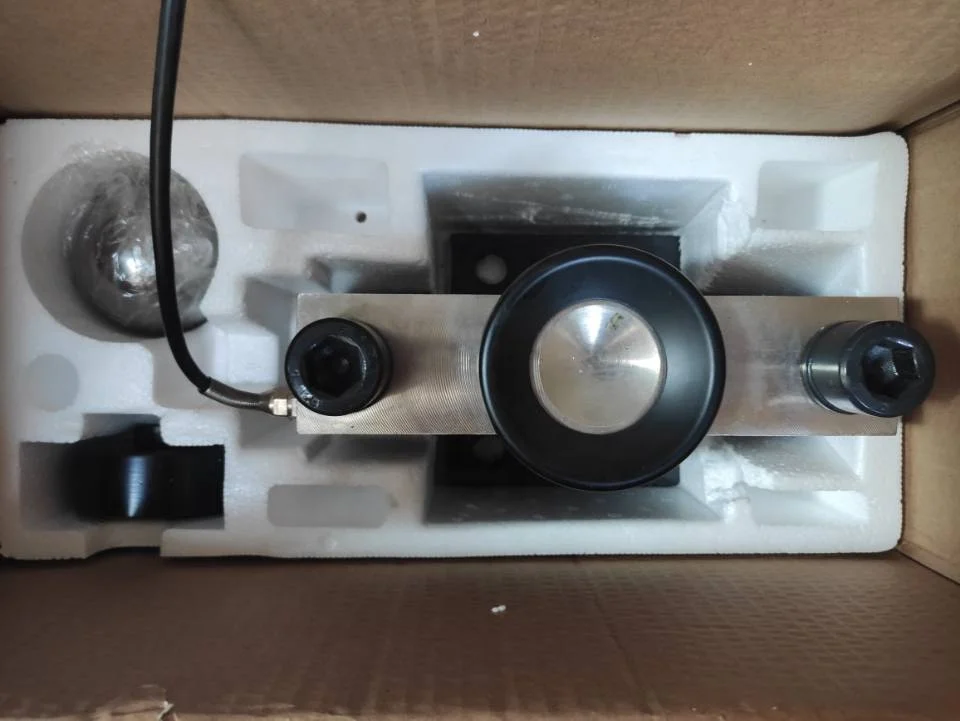

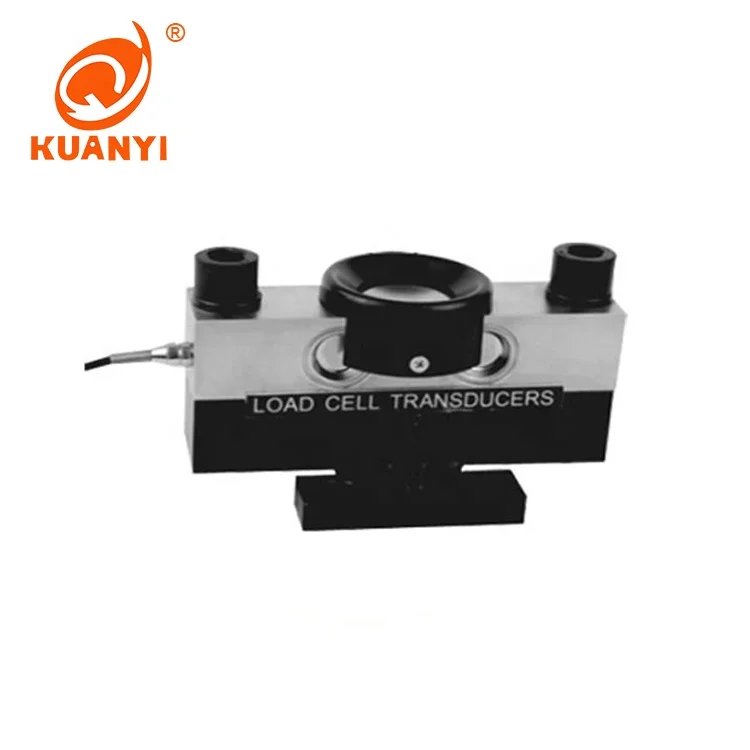

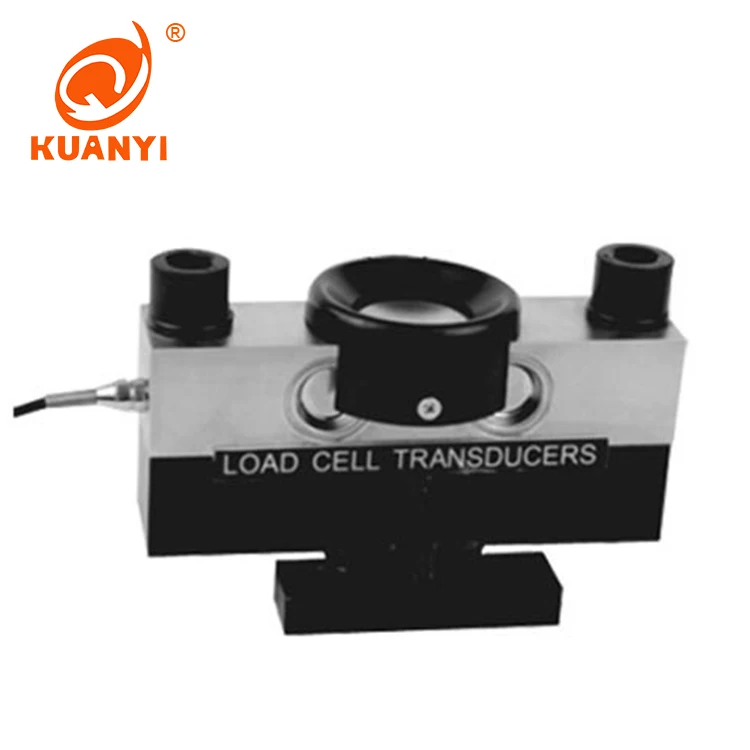

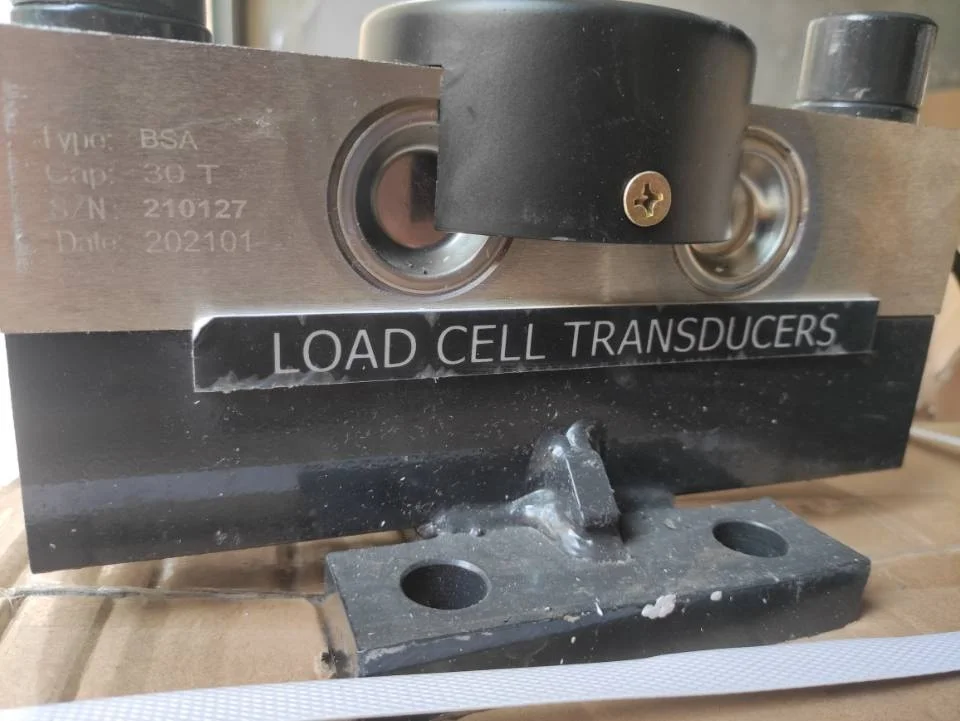

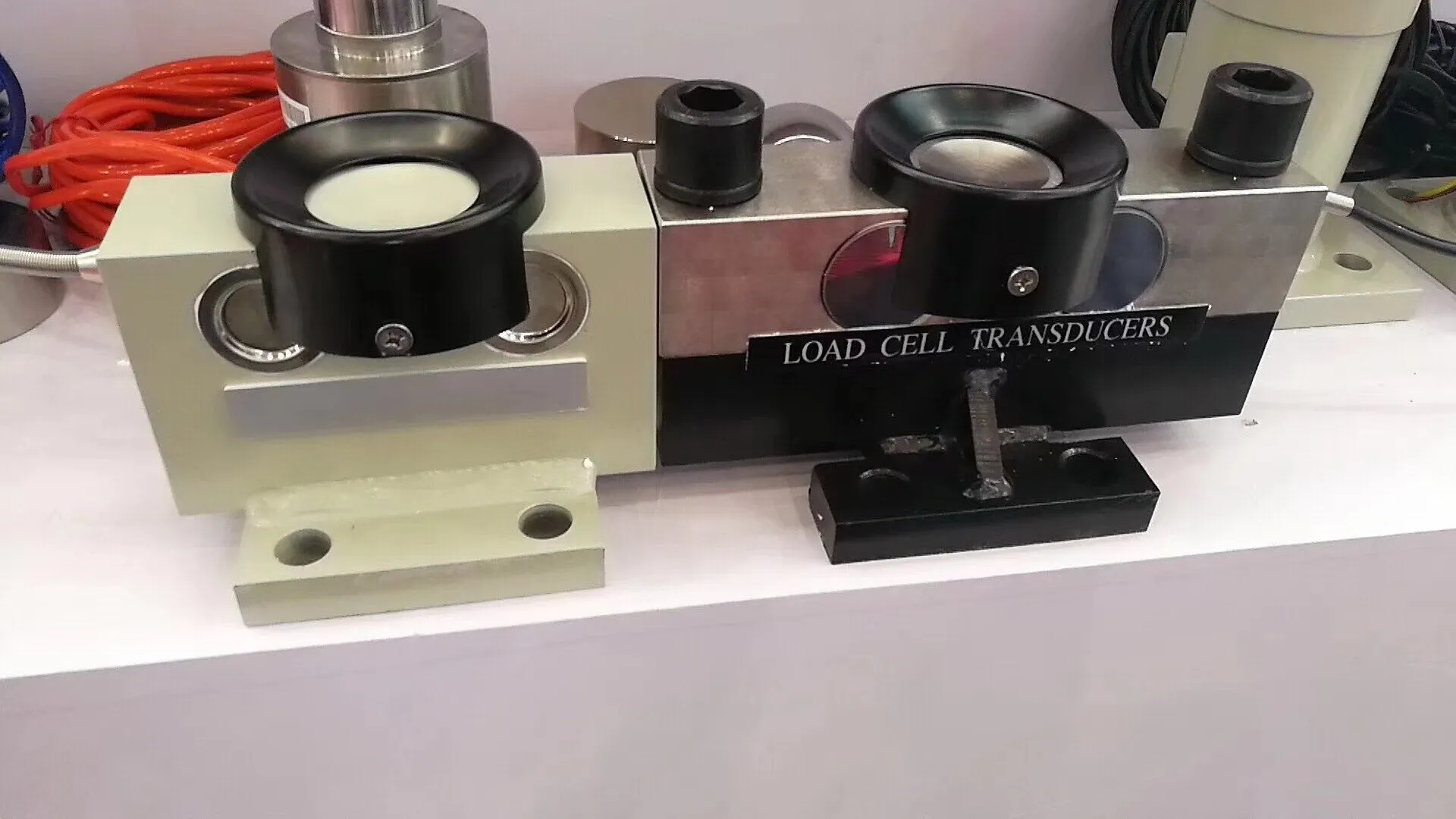

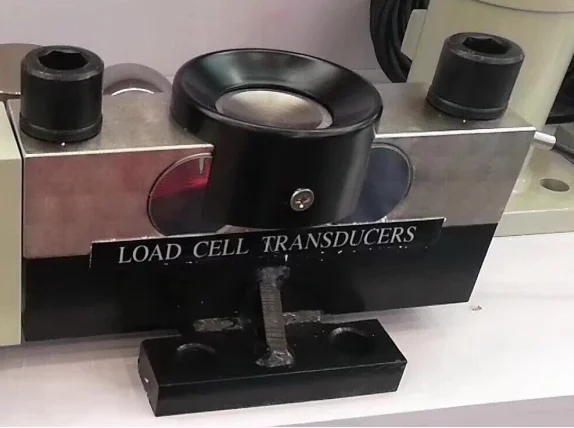

Keli QSA 30 tons Load Cell 40 ton Weighbridge Load Cell Price Load Cell

Application

Truck Scales,Railway Scales, Blending Scales , Special scales

Rated Load

5, 10,15,20,25,30, 40T

Sensitivity

2.0±0.002mV/V

Accuracy Class

C1-C5

Creep(30min)

±0.02%F.S

Zero balance

±1%F.S

TCO

±0.02%F.S/10

TC SPAN

±0.02%F.S/10

Input resistance

750±10Ω

Output resistance

702±3Ω, 703±5Ω(L≥15M),

Recommend excitation

10∼12V DC

Maximum excitation

15V DC

nsulation resistance

≥5000MΩ

Protection Class

IP67(5T)/IP68(10-40T)

Temperature Range. Compensated:

-10∼+40

Operating Temp Range

-30∼+70

Safe load limit

150%F.S, 120%F.S ( 40-50T)

Construction

Alloy Steel-S/-SS;Stainless steel

Over load limit

300%F.S. 200%F.S ( 40-50T)

Cable

Length;5.2m(5t),10m(15t) ,10/12m(20t)

12/15m(25t), 12/16m(30t), 16m(40t)  Diameter:6mm
