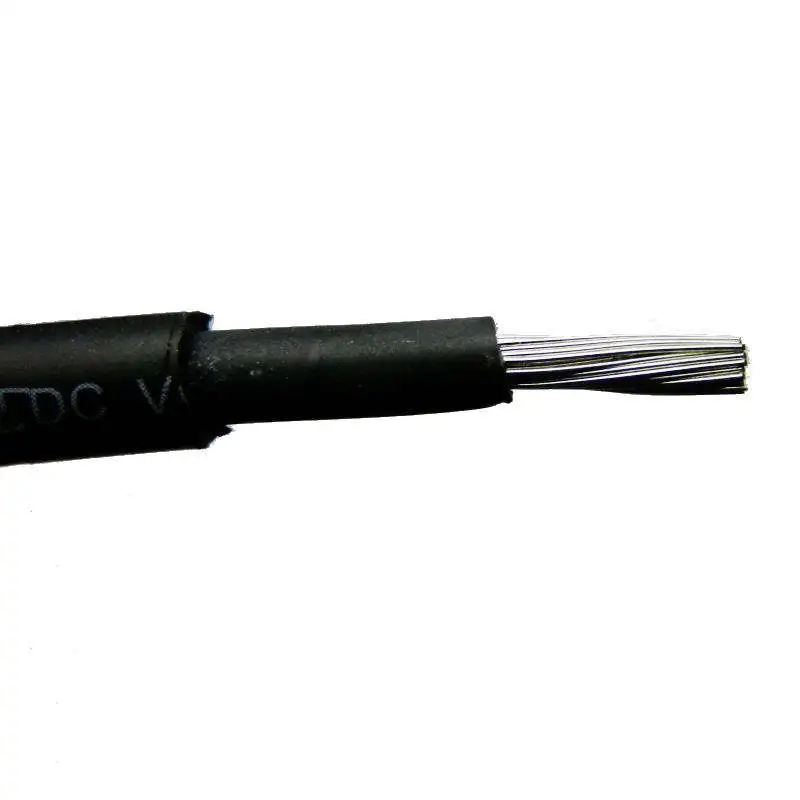

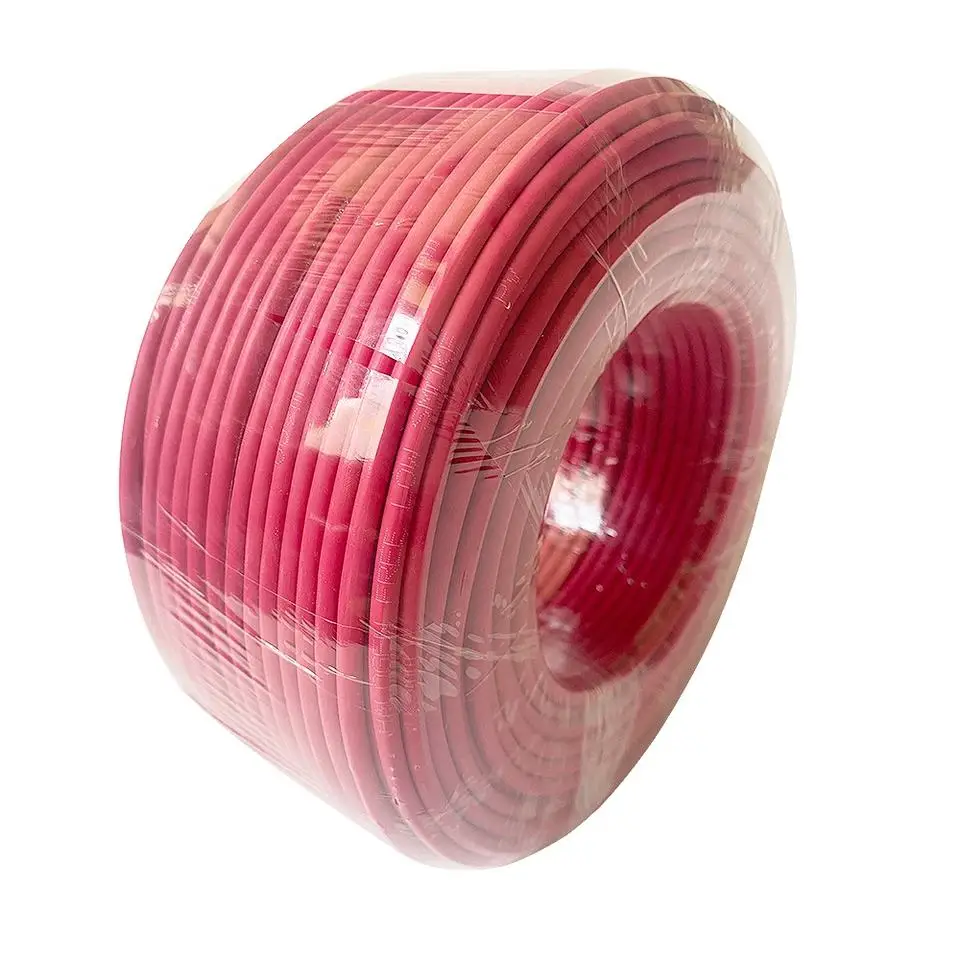

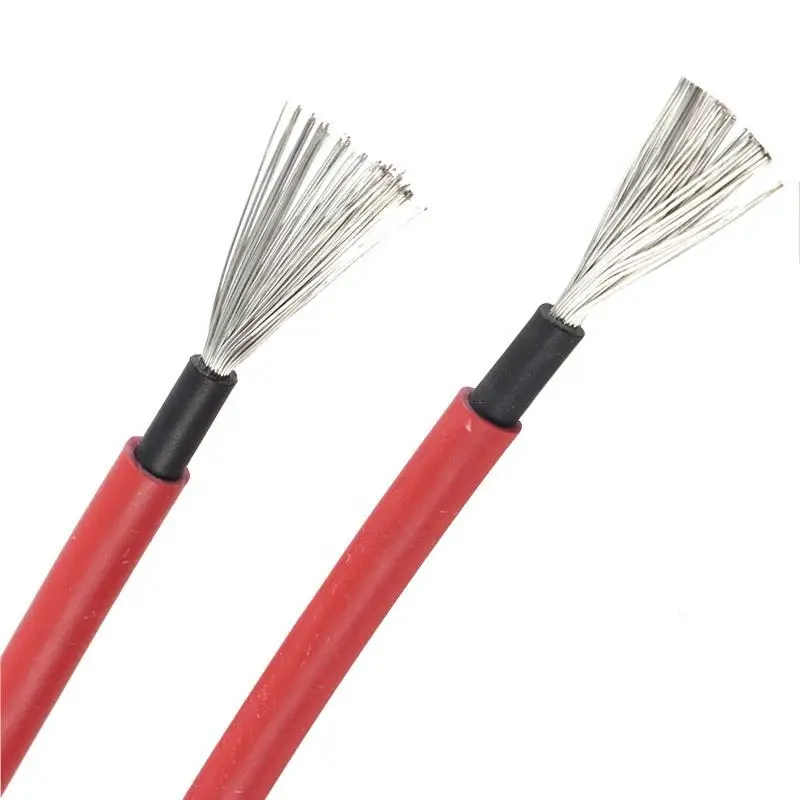

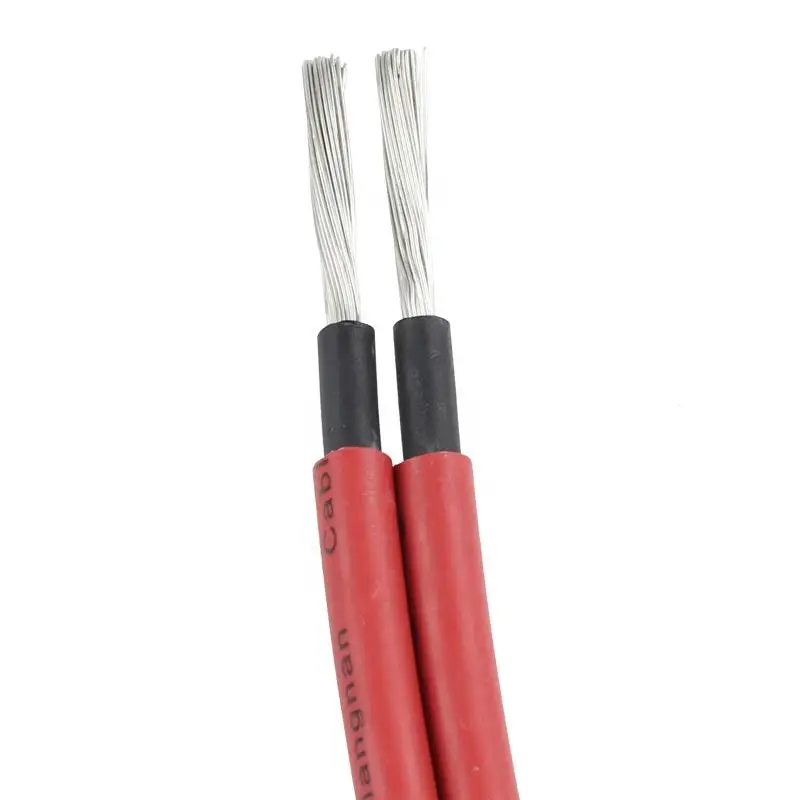

Японский Стандартный Солнечный Кабель для солнечной фотоэлектрической системы производства электроэнергии PV CQ 2 2, 0 мм2

APPLICATION

Solar photovoltaic power generaltion system used for DC wirting between solar cell modules with a system voltage below 1500V DC, between solar cell modules and junction boxes, and between junction boxes and power controllers.

STRUCTURE

Conductor:bare copper conductor

Insulation: 125⁰C irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin

Sheath: 125⁰C radiation cross-linked low-smoke halogen-free flame-retardant polyolefin

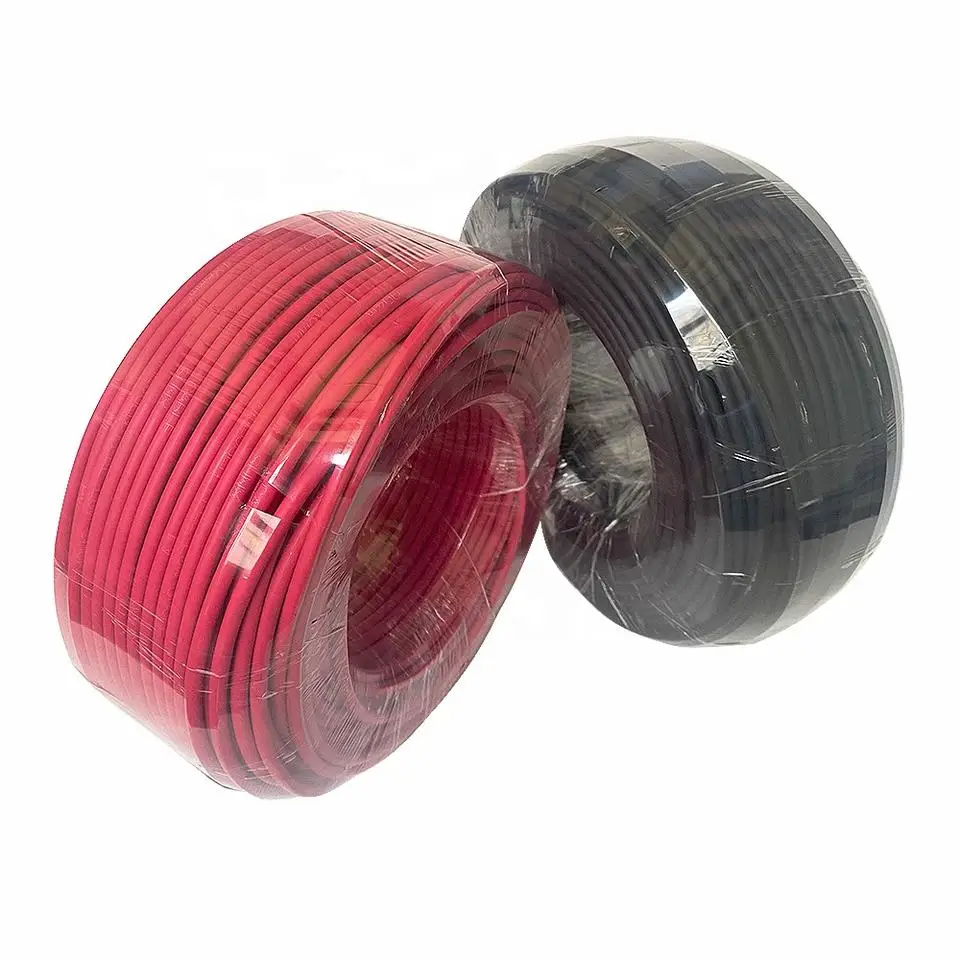

Color: Red or blac

TECHNICAL INDICATORS

Nominal voltage: DC 1500V

Test Voltage: AC 6.5kV /5min (20⁰C) or DC 15kV/5min without breakdown

Conductor max. temperature: 125⁰C

Ambient temperature:-40⁰C -- +90⁰C

Expected service life: 25years

Min. bending radius: 4

 1. 7*24hours online service, to ensure that we can meet your needs at any time.

  2. Provide OEM and ODM services to meet your different needs.

 3. More professional technicans answer any technical questions you may have.

 4. Shorter production time shorten your delivery time.

 5. Multiple payment terms reduce your financial pressure.

Free samples are available for further evaluation and you are highly welcome to visit our factory anytime! If you have any special requirement, pls feel free to contact with us!
