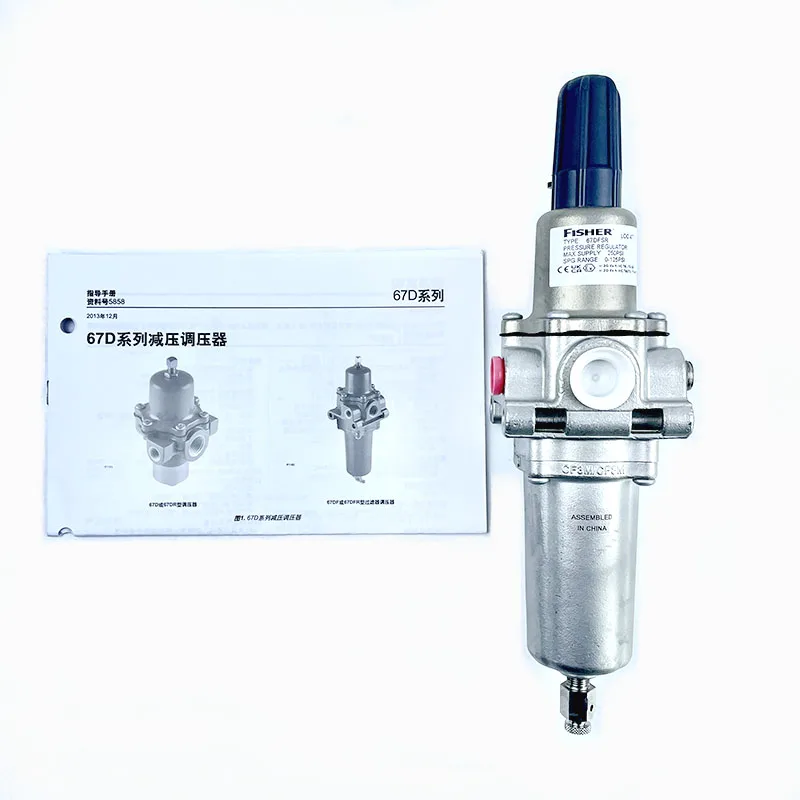

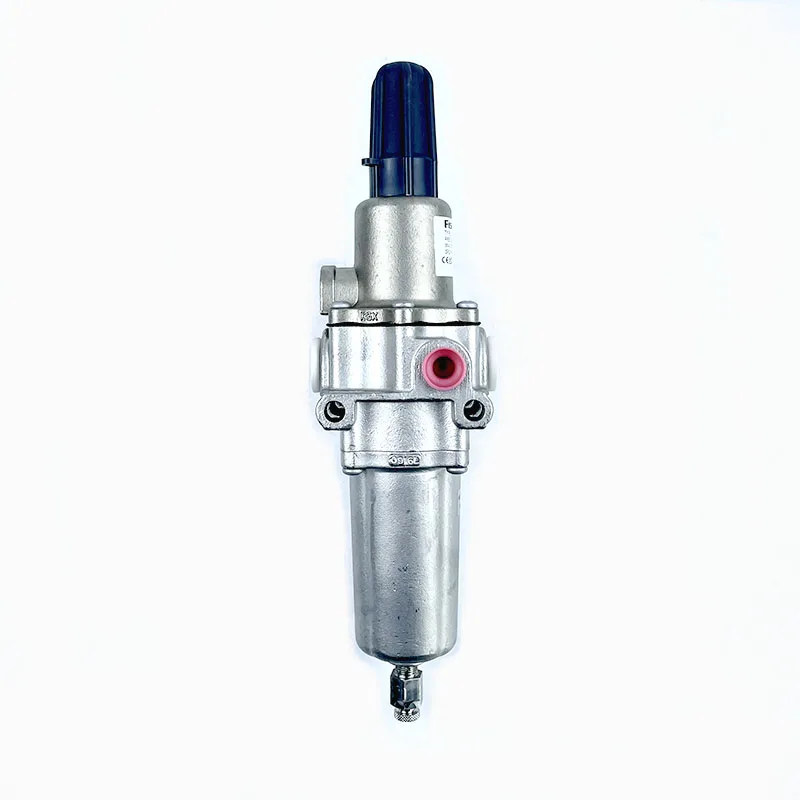

Fisher Pressure Reducing Valve 67DFSR Regulator Stainless Steel Pressure Reducing Valve 67CFSR
- Category: >>>
- Supplier: Chengdu Kosn Flow Control Equipment Co. Ltd.
Share on (1600918553337):
Product Overview
Description
Details Images
Model 67D: Direct-acting type with aluminum body and no internal pressure relief valve
Regulators
Model 67DR: Aluminum body with internal pressure relief valve
Model 67DS: Stainless steel body without internal pressure relief valve
Model 67DSR: Stainless steel body with internal pressure relief valve
Model 67DF: Aluminum body with strainer, no internal pressure relief valve
Model 67DFR: Aluminum body with strainer and internal pressure relief valve
Model 67DFS: Stainless steel body with strainer and no internal pressure relief valve
Model 67DFSR: Stainless steel body with strainer and internal pressure relief valve
Valve Body Size and Outlet Connection Type
1/2 NPT
Maximum Inlet Pressure (Body Rating)(1)
All models with strainer: 17.2 bar / 250 psig
All models without filter: 27.6 bar / 400 psig
Outlet pressure range
See Table 1
Maximum emergency outlet pressure(1)
10.3 bar / 150 psi above the outlet pressure setting, up to a maximum of
17.2 bar / 250 psi
Full open flow coefficient
Main valve: Cg: 45.24; Cv: 1.33; C1: 35.02
Internal pressure relief valve: Cg: 1.45; Cv: 0.045; C1: 32.8
IEC Selection Factors
Xt
: 0.75
Internal Pressure Relief Valve Performance for Models 67DR, 67DSR, 67DFR, and 67DFSR
For low-capacity models only, where seat leakage is not significant; if inlet pressure may exceed the maximum rated pressure of
the downstream equipment, the internal pressure relief valve performance is limited to the following
exceed the maximum rated pressure of the downstream equipment or the maximum rated outlet pressure of the regulator, then the
pressure relief valve must be
If the inlet pressure may exceed the maximum rated pressure of downstream equipment or the maximum rated outlet pressure of the
regulator, additional overpressure protection must be provided.
Approximate Weights
Models 67D and 67DR: 0.5 kg / 1.2 lbs.
Models 67DF and 67DFR: 1 kg / 2.0 lbs.
Models 67DS and 67DSR: 1 kg / 2.8 lbs.
Models 67DFS and 67DFSR: 2 kg / 4.6 lbs.
Smart Bleed™ Check Valve Setpoints
0.41 bar / 6 psi differential pressure
Temperature Performance(1)
Made of Nitrile Rubber (NBR) material
Standard bolt: -29 to 82°C / -20 to 180°F
Stainless steel bolts: -40 to 82°C / -40 to 180°F
Fluorine rubber (FKM) is used:
Polyethylene filter (4) (standard):
-18 to 82°C / 0 to 180°F
Polyvinylidene fluoride (PVDF), stainless steel or glass filter (optional):
-18 to 149°C / 0 to 300°F
With silicone (VMQ)(2)
Membrane, Low Temperature
Nitrile (NBR) O-rings, and low temperature
Bolt: -51 to 82°C / -60 to 180°F
With pressure gauge: -29 to 82°C / -20 to 180°F
With automatic drain valve: 4 to 79°C / 40 to 175°F
Models 67DF, 67DFR, 67DFS and 67DFSR
Filtration performance
Filter pore size:
Polyethylene filter (4) (standard): 5 microns
Glass fiber filter (optional): 5 microns
PVDF or stainless steel filter (optional): 40 microns
Spring box vent position
Standard position is aligned with inlet, other positions available
Drain valve position
In the center of the drip tank
Pressurization
Internal pressure pickup
Options
All models
Handwheel Adjustment Screw
NACE MR0175 or MR0103(3) construction
Panel mounting kit (includes spring box with 1/4 NPT vent,
handwheel, and panel mounting nut)
Enclosure cover (available on spring box with 1/4 NPT vent)
Fluoroelastomer (FKM) resistant to high temperatures and/or corrosive chemicals
(FKM)
Resilient parts
Silicone resin (VMQ) elastomers that can withstand low temperatures
Discharge restrictor
Triple graduated outlet pressure gauge (brass or stainless steel material)
Stainless steel stem and plug
Pipe plug for second outlet
Models 67DFR and 67DFSR
Smart Bleed™ Internal Check Valve
Models 67DF, 67DFR, 67DFS, and 67DFSR
Stainless Steel Vent Valves
Regulators
Model 67DR: Aluminum body with internal pressure relief valve
Model 67DS: Stainless steel body without internal pressure relief valve
Model 67DSR: Stainless steel body with internal pressure relief valve
Model 67DF: Aluminum body with strainer, no internal pressure relief valve
Model 67DFR: Aluminum body with strainer and internal pressure relief valve
Model 67DFS: Stainless steel body with strainer and no internal pressure relief valve
Model 67DFSR: Stainless steel body with strainer and internal pressure relief valve
Valve Body Size and Outlet Connection Type
1/2 NPT
Maximum Inlet Pressure (Body Rating)(1)
All models with strainer: 17.2 bar / 250 psig
All models without filter: 27.6 bar / 400 psig
Outlet pressure range
See Table 1
Maximum emergency outlet pressure(1)
10.3 bar / 150 psi above the outlet pressure setting, up to a maximum of
17.2 bar / 250 psi
Full open flow coefficient
Main valve: Cg: 45.24; Cv: 1.33; C1: 35.02
Internal pressure relief valve: Cg: 1.45; Cv: 0.045; C1: 32.8
IEC Selection Factors
Xt
: 0.75
Internal Pressure Relief Valve Performance for Models 67DR, 67DSR, 67DFR, and 67DFSR
For low-capacity models only, where seat leakage is not significant; if inlet pressure may exceed the maximum rated pressure of
the downstream equipment, the internal pressure relief valve performance is limited to the following
exceed the maximum rated pressure of the downstream equipment or the maximum rated outlet pressure of the regulator, then the
pressure relief valve must be
If the inlet pressure may exceed the maximum rated pressure of downstream equipment or the maximum rated outlet pressure of the
regulator, additional overpressure protection must be provided.
Approximate Weights
Models 67D and 67DR: 0.5 kg / 1.2 lbs.
Models 67DF and 67DFR: 1 kg / 2.0 lbs.
Models 67DS and 67DSR: 1 kg / 2.8 lbs.
Models 67DFS and 67DFSR: 2 kg / 4.6 lbs.
Smart Bleed™ Check Valve Setpoints
0.41 bar / 6 psi differential pressure
Temperature Performance(1)
Made of Nitrile Rubber (NBR) material
Standard bolt: -29 to 82°C / -20 to 180°F
Stainless steel bolts: -40 to 82°C / -40 to 180°F
Fluorine rubber (FKM) is used:
Polyethylene filter (4) (standard):
-18 to 82°C / 0 to 180°F
Polyvinylidene fluoride (PVDF), stainless steel or glass filter (optional):
-18 to 149°C / 0 to 300°F
With silicone (VMQ)(2)
Membrane, Low Temperature
Nitrile (NBR) O-rings, and low temperature
Bolt: -51 to 82°C / -60 to 180°F
With pressure gauge: -29 to 82°C / -20 to 180°F
With automatic drain valve: 4 to 79°C / 40 to 175°F
Models 67DF, 67DFR, 67DFS and 67DFSR
Filtration performance
Filter pore size:
Polyethylene filter (4) (standard): 5 microns
Glass fiber filter (optional): 5 microns
PVDF or stainless steel filter (optional): 40 microns
Spring box vent position
Standard position is aligned with inlet, other positions available
Drain valve position
In the center of the drip tank
Pressurization
Internal pressure pickup
Options
All models
Handwheel Adjustment Screw
NACE MR0175 or MR0103(3) construction
Panel mounting kit (includes spring box with 1/4 NPT vent,
handwheel, and panel mounting nut)
Enclosure cover (available on spring box with 1/4 NPT vent)
Fluoroelastomer (FKM) resistant to high temperatures and/or corrosive chemicals
(FKM)
Resilient parts
Silicone resin (VMQ) elastomers that can withstand low temperatures
Discharge restrictor
Triple graduated outlet pressure gauge (brass or stainless steel material)
Stainless steel stem and plug
Pipe plug for second outlet
Models 67DFR and 67DFSR
Smart Bleed™ Internal Check Valve
Models 67DF, 67DFR, 67DFS, and 67DFSR
Stainless Steel Vent Valves
