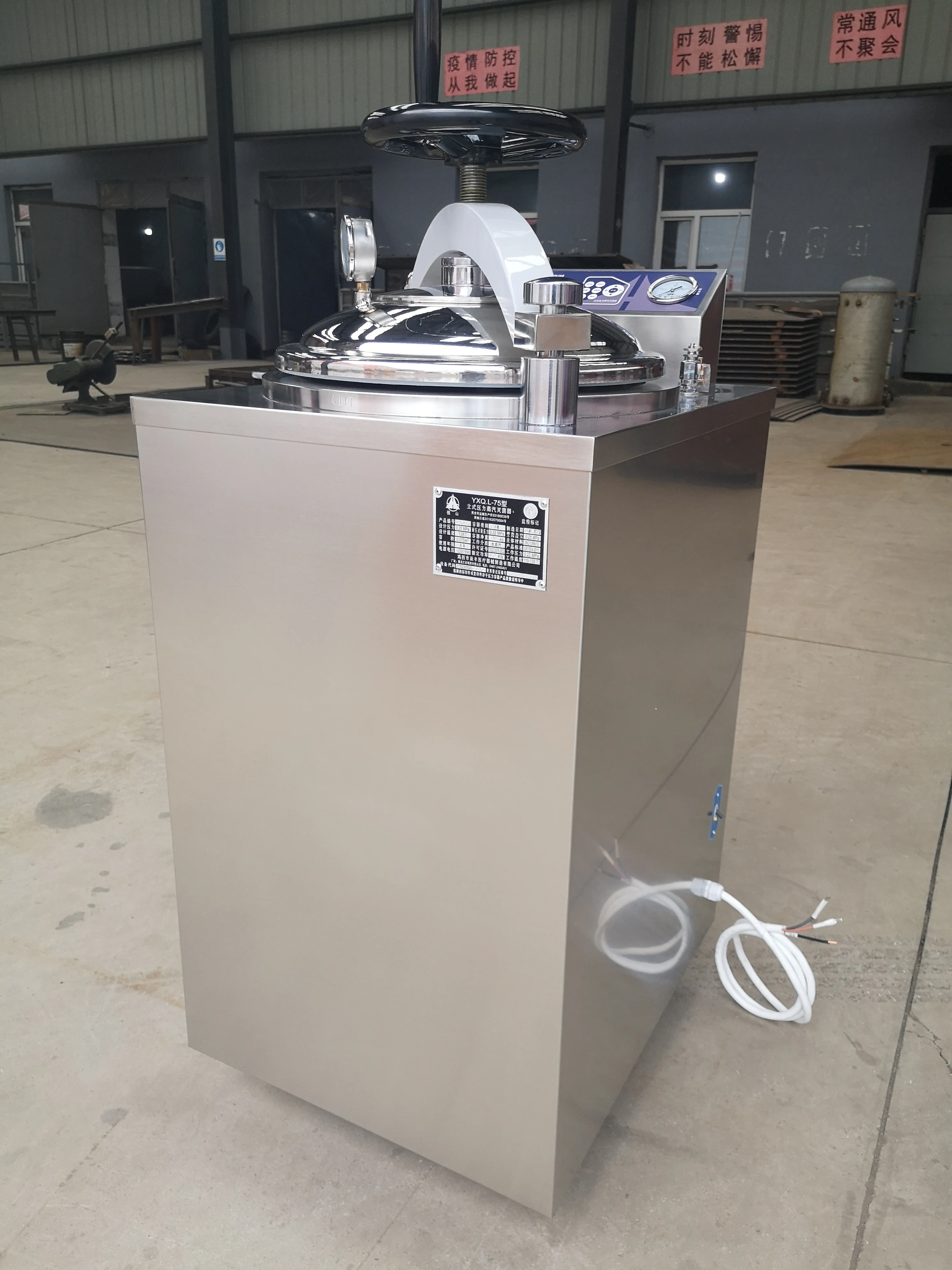

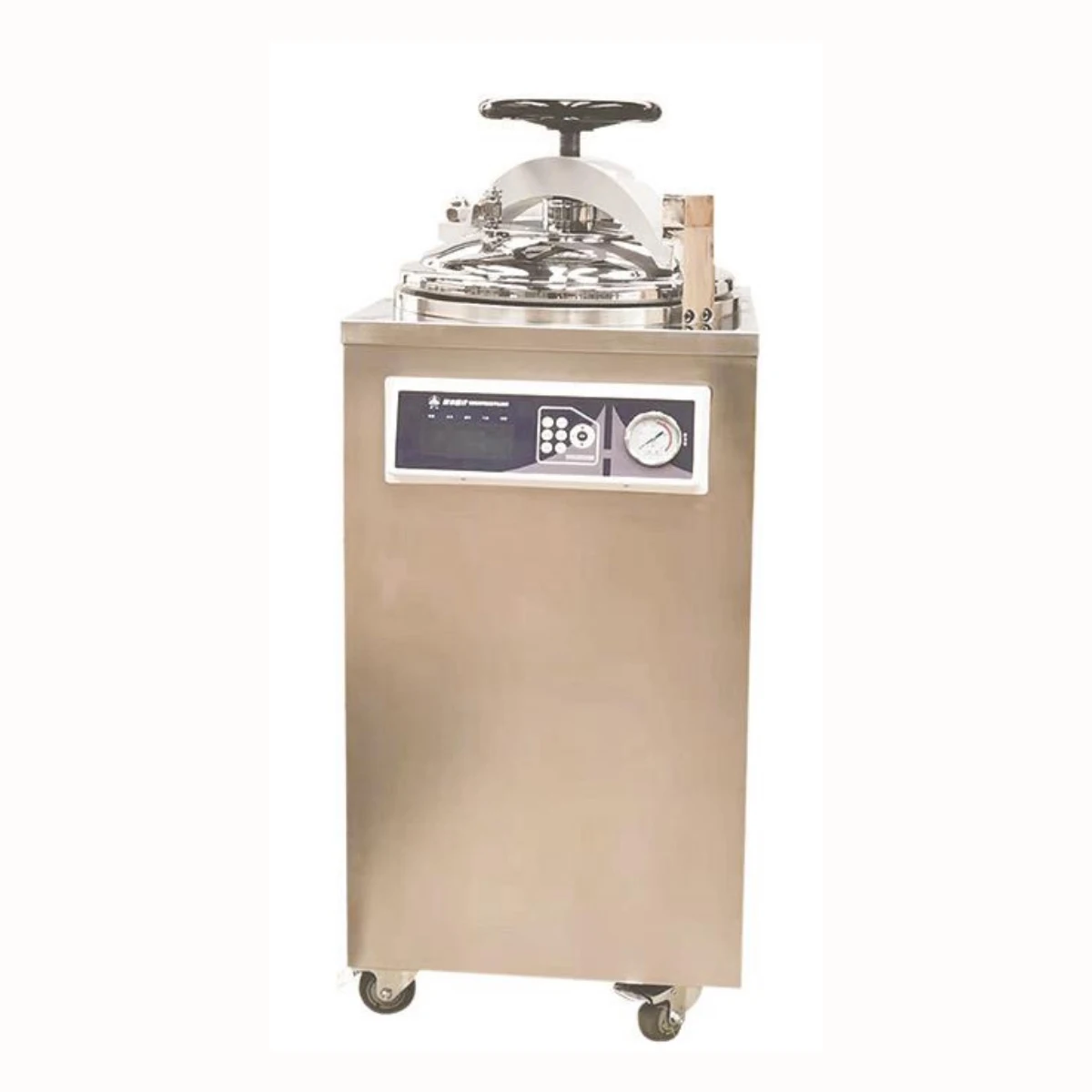

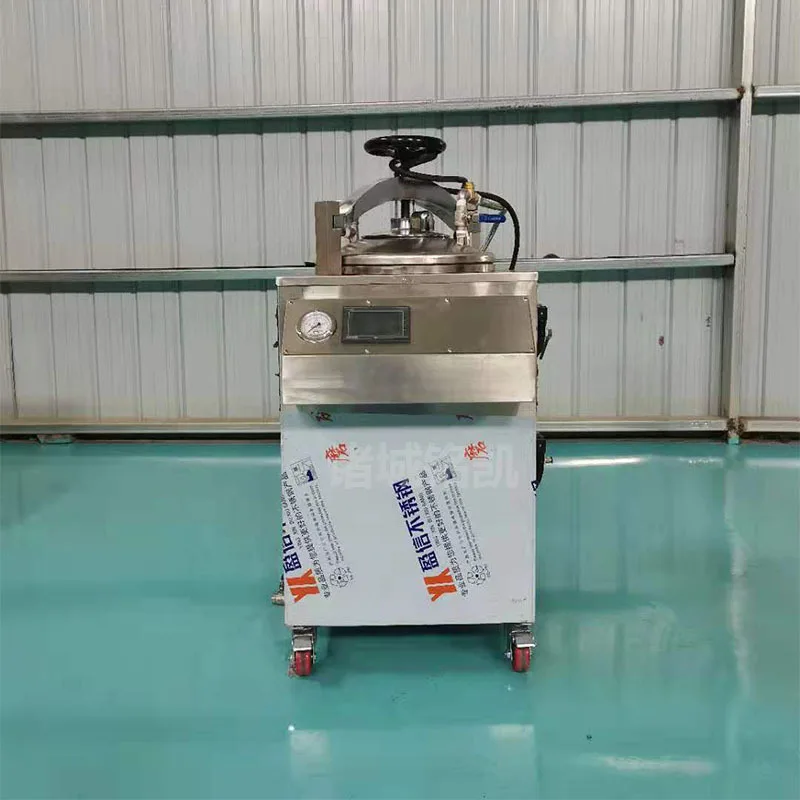

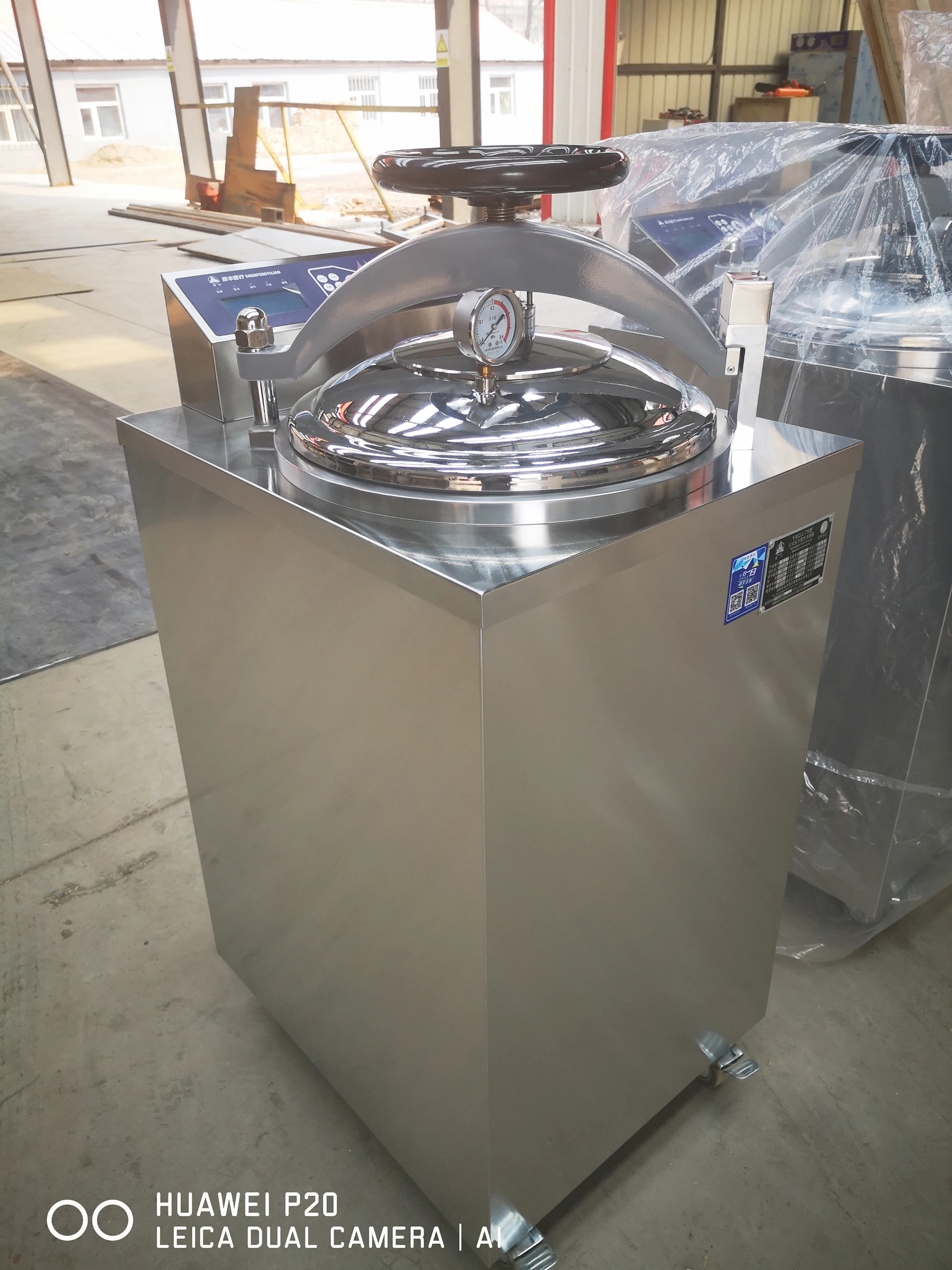

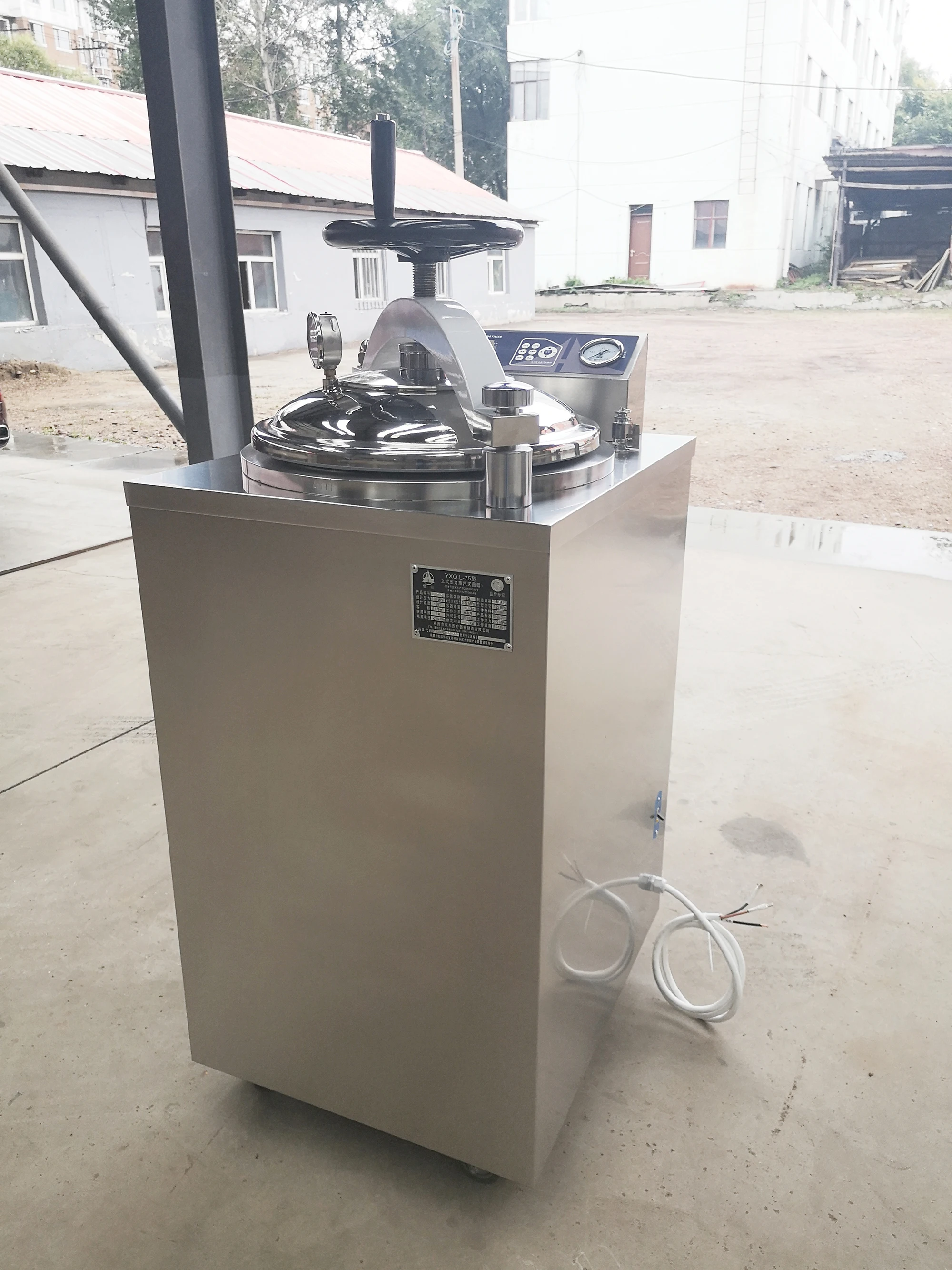

Pulsating vacuum drying type medical device steam sterilizer autoclave for hospital and lab equipment sterilization
- Category: >>>
- Supplier: Harbin Ruxuan Trade And Economic Co. Ltd.
Share on (1600918622257):
Product Overview
Description
Specification | Model YXQ.L-75 (Single-layer pot) | Model YXQ.L-70 (Single-layer pot) |
Sterilization | Φ400×600 | Φ400×450 |
Dimension | 540×510×1270 | 540×510×1130 |
Sterilization chamber volume | 0.075m³（75L） | 0.050m³（50L） |
Temperature control range | 115℃-135℃ | 115℃-135℃ |
Time setting range | 1-999（min） | 1-999（min） |
Working pressure | 0.22Mpa | 0.22Mpa |
Maximum working temperature | 135℃ | 135℃ |
Power supply and voltage | AC220V/50Hz | AC220V/50Hz |
Rated power | 4.5KW | 4.5KW |
Working environment | Temperature +5℃ — +40℃ Relative temperature ≤80%RH | Temperature +5℃ — +40℃ Relative temperature ≤80%RH |
Product net weight | 106 | 102 |
Specification
Main features:

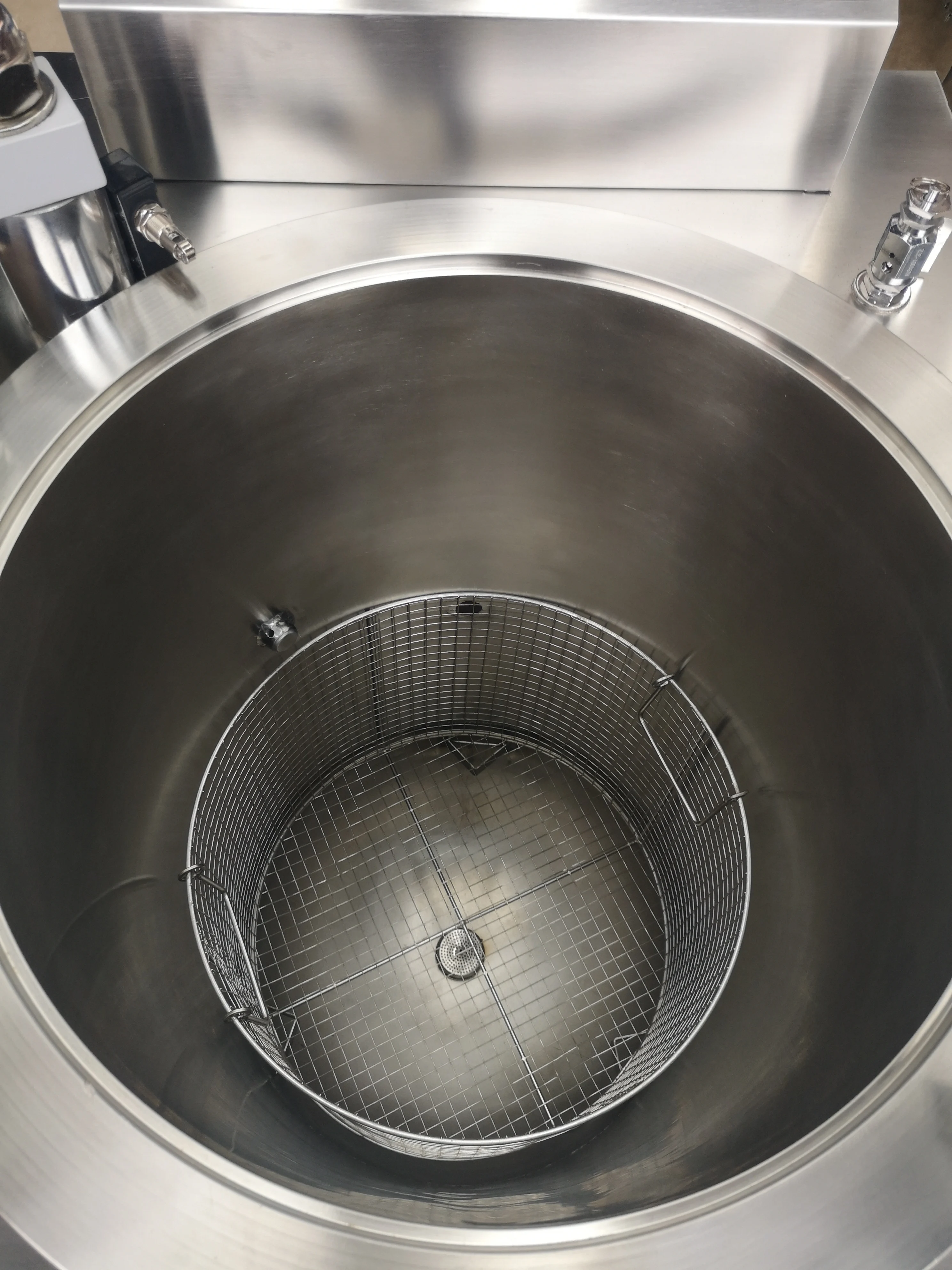

1. Vertical inner circle and outer square electric heating stainless steel structure, using microcomputer control technology, film type keys.
2. Microcomputer intelligent automatic control, heating, sterilization, exhaust liquid crystal dynamic display, the whole process of automatic control conversion, "one-button operation", and users according to the needs of sterilization items can set their own sterilization temperature, sterilization time and other procedures.
3. Horizontal sliding door, self-expanding imported silica gel sealing ring, equipment equipped with easy to move universal wheel, simple and convenient replacement of heating pipe.
4. The door is equipped with a safety interlock device, which automatically locks the door when there is pressure in the
sterilization room and cannot be opened to ensure the safety of personnel. There is a door control switch, only when the door is closed in place, the power of the equipment can be connected.
5. Double overpressure protection function, high precision pressure sensor always detect the pressure in the chamber, overpressure self-relief safety valve, to ensure the safety of personnel, equipment, articles.
1. Vertical inner circle and outer square electric heating stainless steel structure, using microcomputer control technology, film type keys.
2. Microcomputer intelligent automatic control, heating, sterilization, exhaust liquid crystal dynamic display, the whole process of automatic control conversion, "one-button operation", and users according to the needs of sterilization items can set their own sterilization temperature, sterilization time and other procedures.
3. Horizontal sliding door, self-expanding imported silica gel sealing ring, equipment equipped with easy to move universal wheel, simple and convenient replacement of heating pipe.
4. The door is equipped with a safety interlock device, which automatically locks the door when there is pressure in the
sterilization room and cannot be opened to ensure the safety of personnel. There is a door control switch, only when the door is closed in place, the power of the equipment can be connected.
5. Double overpressure protection function, high precision pressure sensor always detect the pressure in the chamber, overpressure self-relief safety valve, to ensure the safety of personnel, equipment, articles.
