  • Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine
Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine

Driving Type Double Lines One Time Painting Hot Paint Ride on road marking machine, manual operated road marking machine

Share on (1600918625937):


Price:$1,580.00 - $1,600.00

Quantity:


Product Overview

Description





Specification
It is equipped with infinitely variable speeds walking system,which improve work efficiency greatly.
It is suitable to work on the mountain road.
what calls for special attention is that it should be worked with thermoplastic(hot melt) preheater.
The marking shoe of this machine is made of high-precision cast iron,
which can make the lines orderliness,uniform thickness and more beautiful.
The grounded knife of marking shoe can be applied to different kinds of road.
Glass beads automatic spreader equipped with buffer device of speed regulation
which has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.
Engine
5.5HP
Paint container
Double layer stainless steel,equipped with inserted dismountable manumotive stirring device the container is removable & interchangeable for quick color changes
Paint container capacity
120kg
Glass beads container capacity
10kg
Glass beads container
Automatic spreader
Glass beads dispenser
100/150/200/250/300/400/450mm(optional)
Marking equipment
high-precision integrated marking shoe,screeding type,standard configuration: 150mm
Working speed
More than 1500 m/hr
Driving method
Self-propelled
Line marking width
50/100/150/200/250/300/400/450mm(optional)
Line thickness
1.0-3.0mm(adjustable)
Maximum gradeability
15°
Wheel
High temperature resistance soft rubber ,rear wheel equipped with localiser to make the machine walk along the straight line
Heating temperature
180~210℃
Heating Mode
Liquefied petroleum gas heating
Gas tank
15kg
Size and weight
1360×850×1070mm 235kg

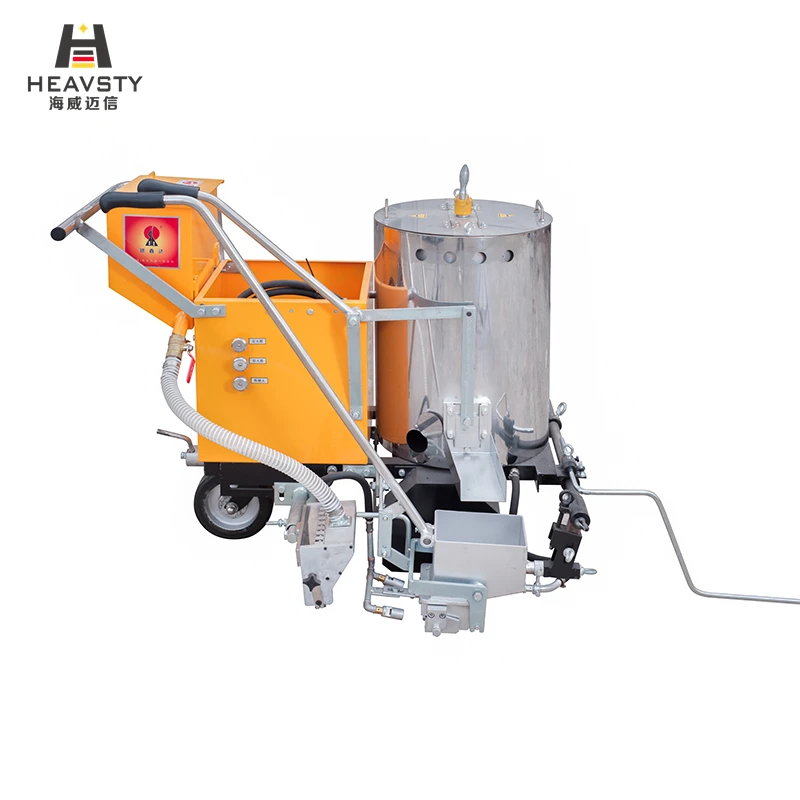

Products Pictures


Features
Marking Die System: Delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design

Direct Heat System: Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow

Tri-Wheel System: Dual solid front and single solid rear wheels provide smooth, quiet operation


Bead Dispenser
Adjustable glass beads dispenser from 5-45mm. increments allow you to "dial-in" the bead drop rate.

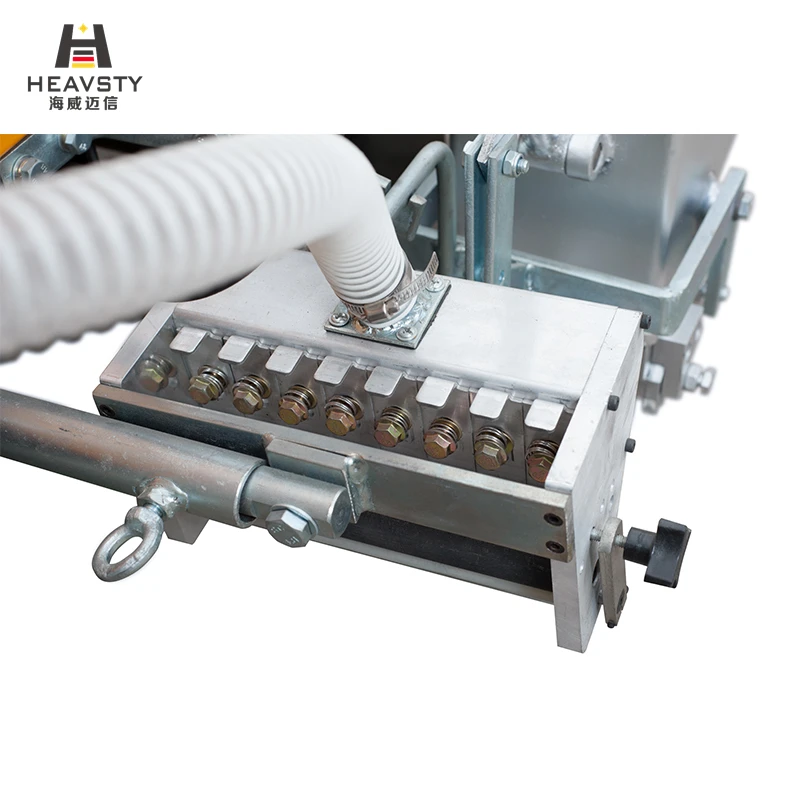

Double Line Die Shoe
Double lines Die system can be customized.
