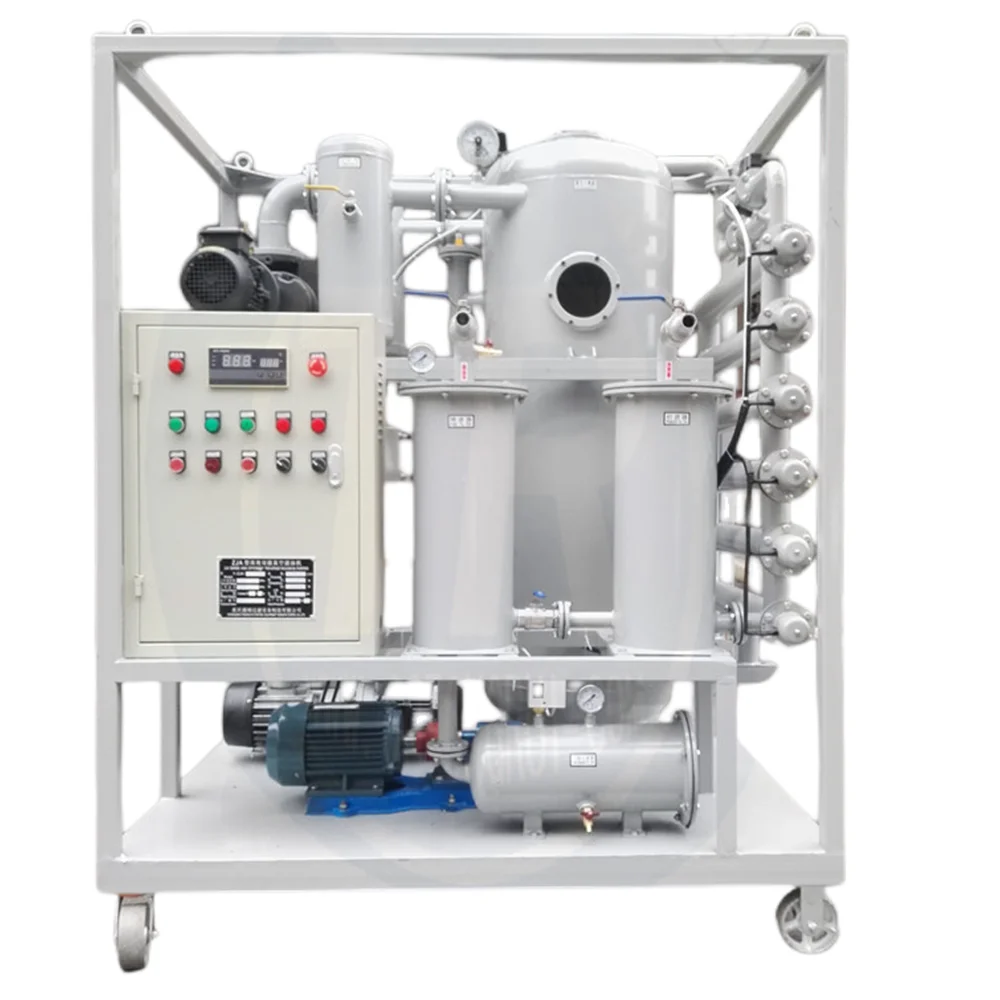

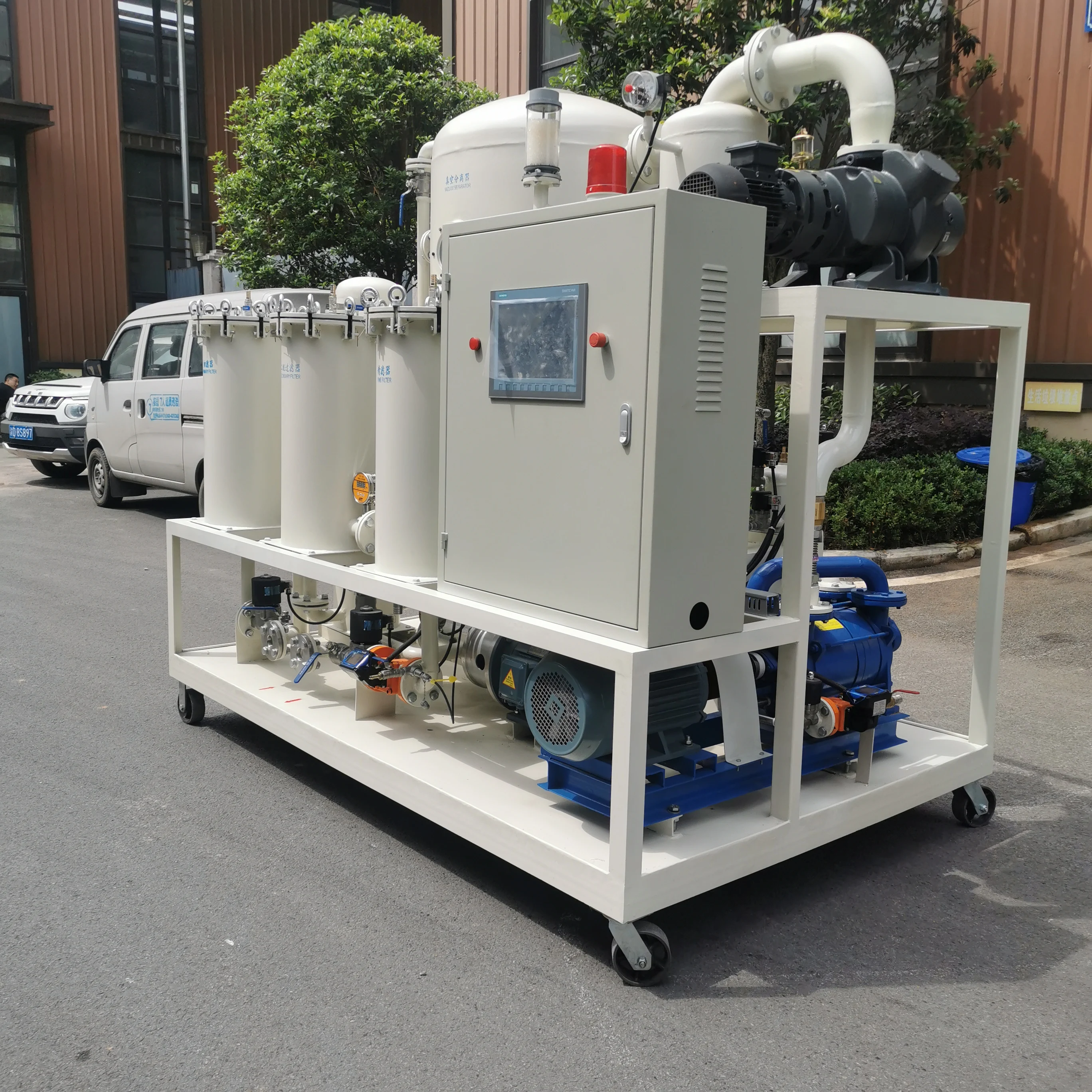

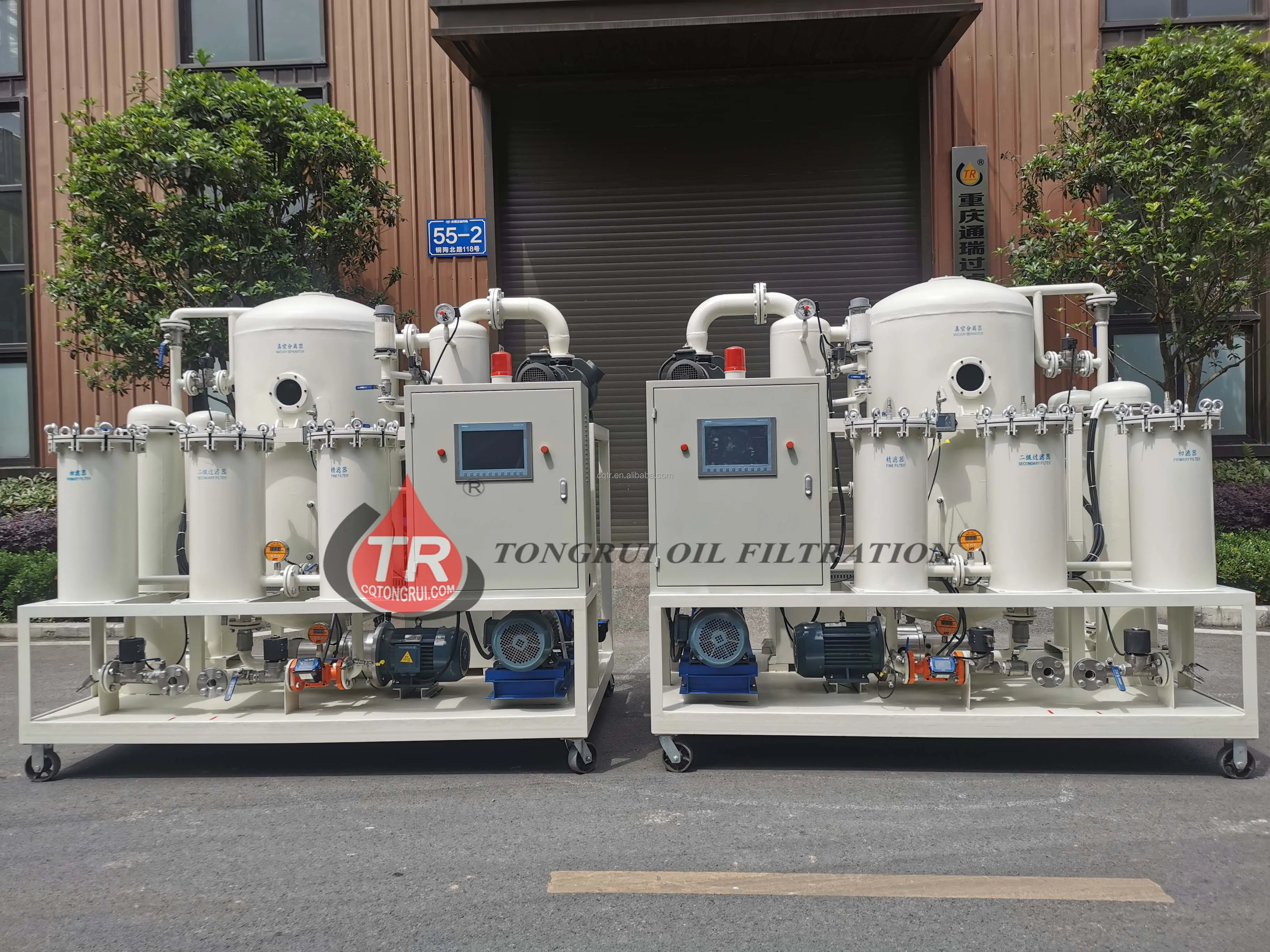

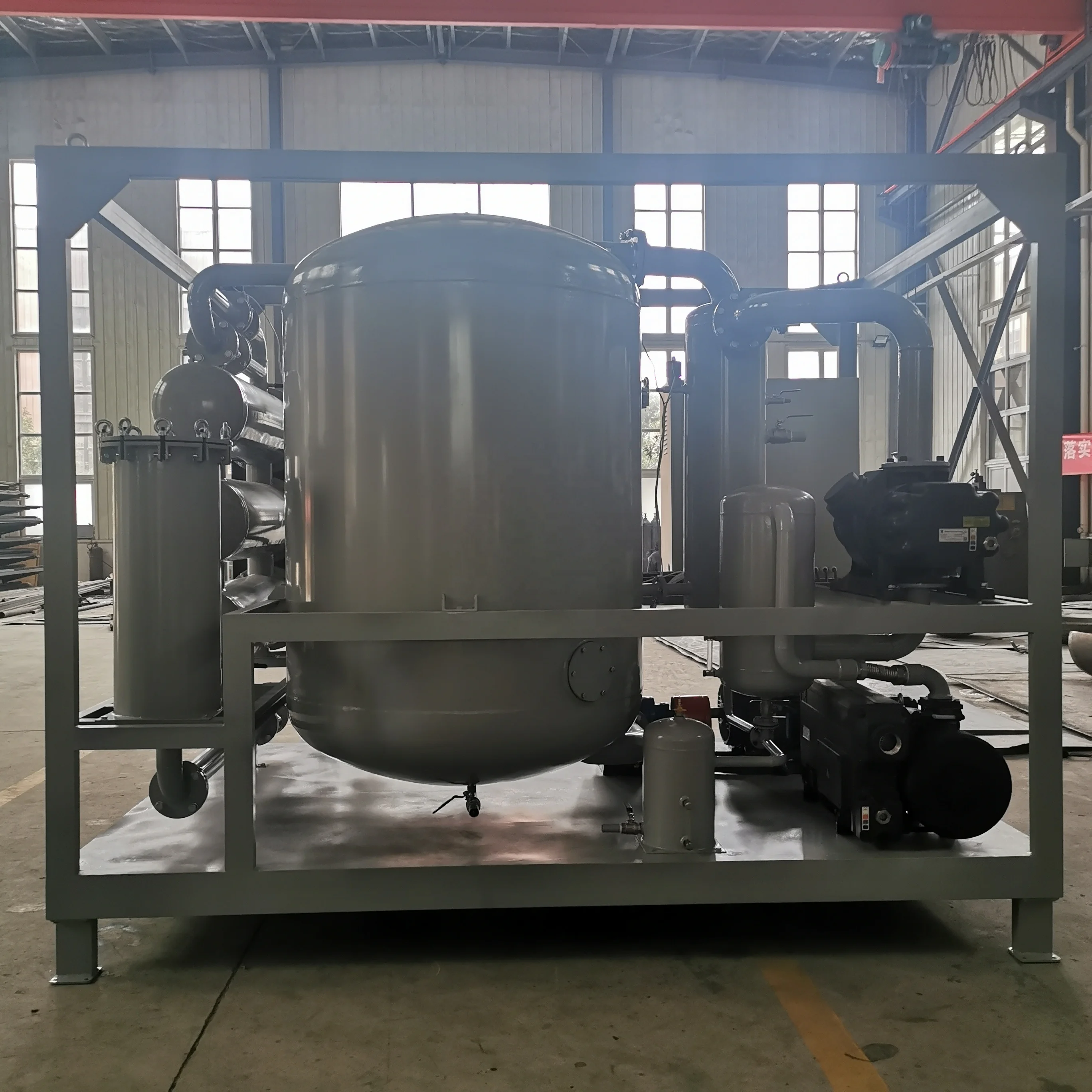

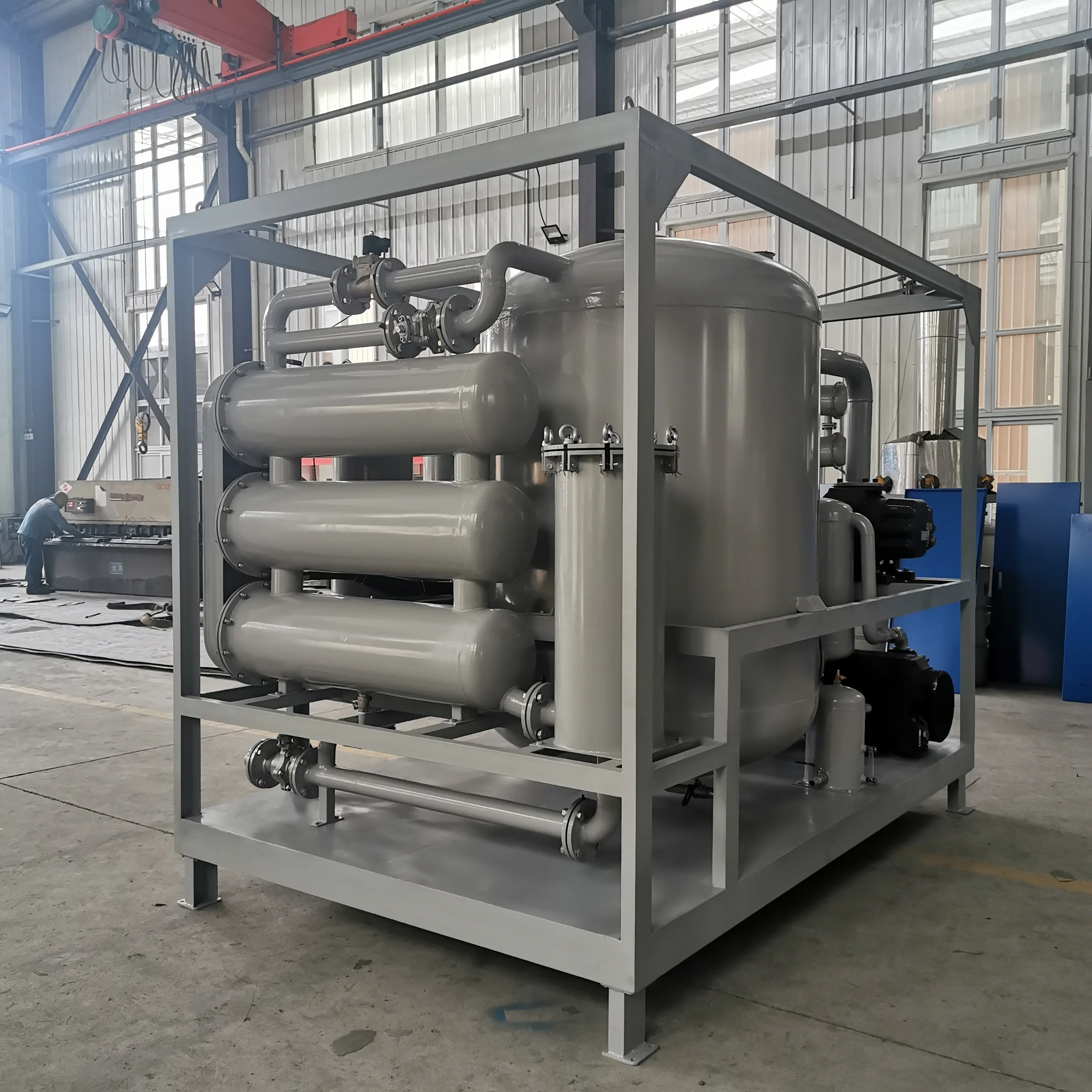

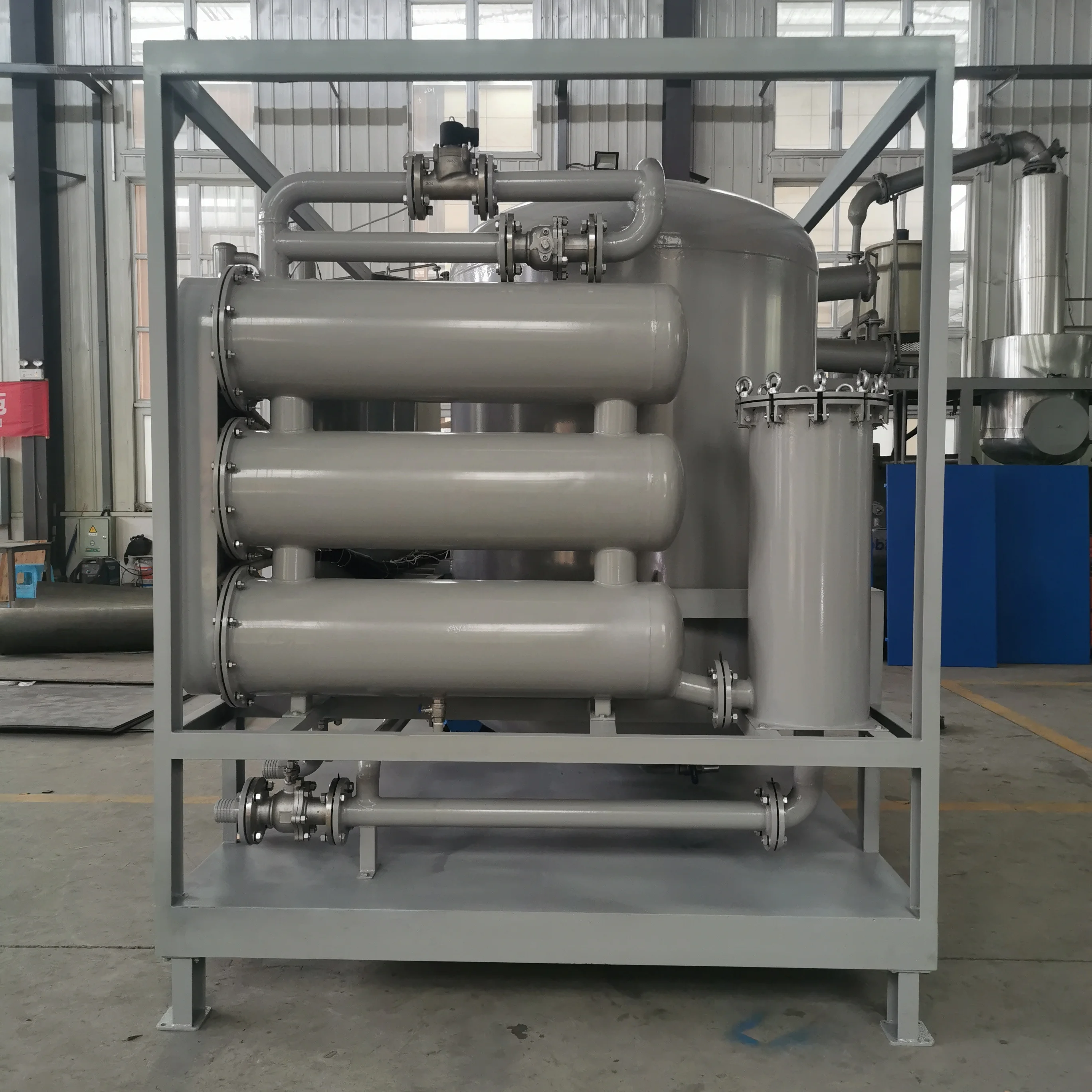

Trailer and enclosed High Vacuum used transformer oil purifier,black oil recycling system
- Category: >>>
- Supplier: Chongqing Tong Rui Filtration Equipment Manufacturing Co. Ltd.
Share on (1600918628328):
Product Overview
Description
Product Description
Product Application

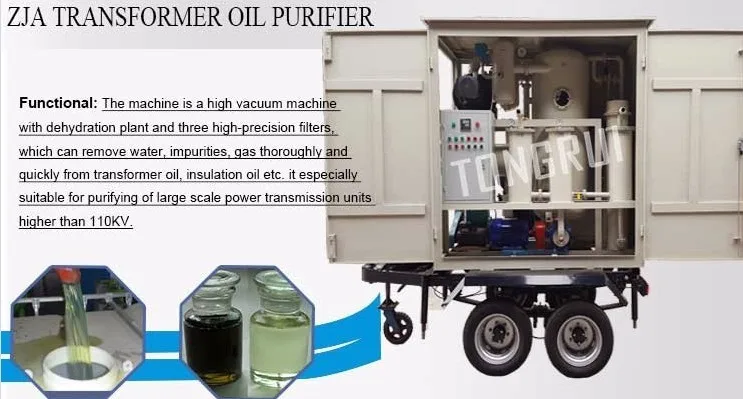

1) For maintenance of large scale power substation transformers, rapid and deep treatment of new transformer oil, imported insulation oil. As well as vacuum filtering and purifying of mutual inductor oil, capacitor oil, refrigerator oil.
2) Especially suitable for purifying of large scale power transmission units higher than 110KV and transformers of main state grid.

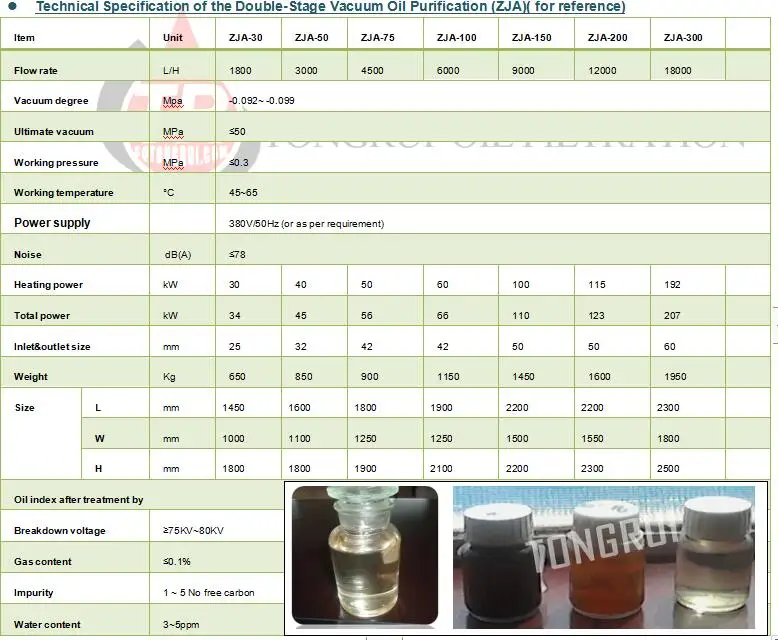

ZJA is double stage vacuum transformer oil purifier, which contain vacuum pump and roots pump. We can do more big capacity of machine, and the smallest one is ZJA-30(1800L/H), The biggest one is more than 30,000L/H. The machine is adopted the rustproof and moisture film and wood cases packages. We can take special order for you, like the machine face, color, weight, size, filter precision, filter numbers, spare parts, oil specification tester, etc.

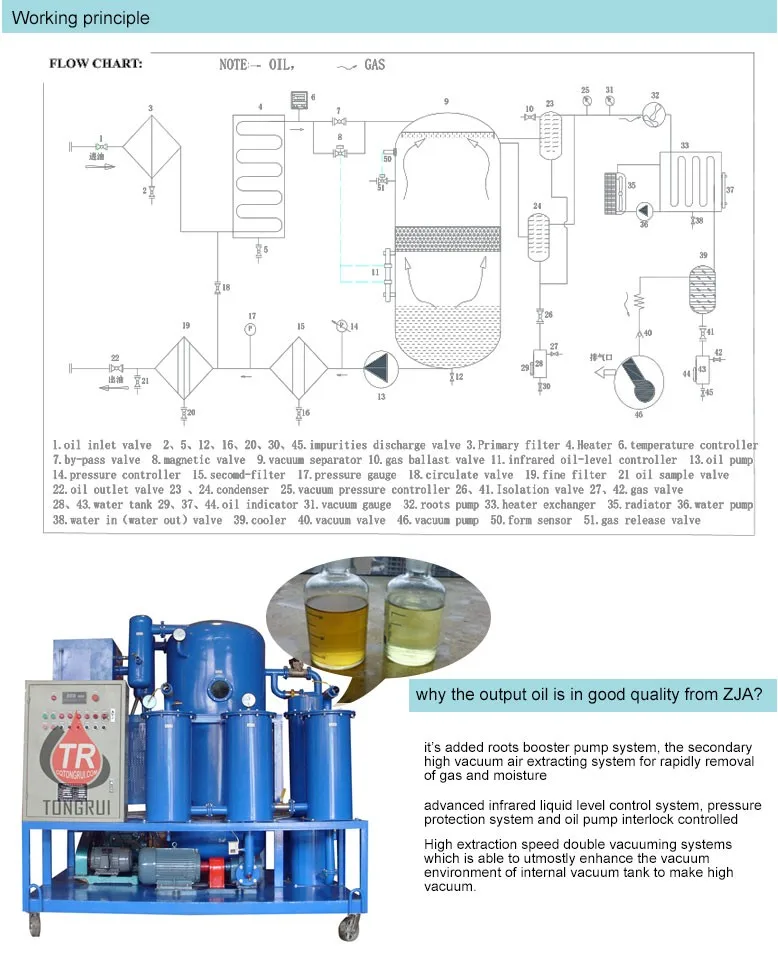

Principle of work：
During the process of working, oil remove impurities by highly efficient specific filter. It use special personalized vacuum separator and its "layered filtration" high-precision filtering technologies, and use the "cavitations’" principle, and then the contact area of the oil in vacuum separator expanded a few hundred times than before.The "cavitations’" system let surface area of the oil evaporation become greater, and the Evaporation interface Update continuously so that increased volatilization of water and the regeneration of the oil in vacuum system by the greatest extent. The moisture can be quickly removed under the condition of the low temperature/ high vacuum/ large surface and at high pumping speed. Finally it been excreted from vacuum system.
The discharged moisture and gas from vacuum separator will be cooling and dehumidification twice by cooling system, and at last it will be discharge to outside by vacuum pump.
When Oil vaporized and dehydrated by the vacuum separator, the dry oil will flow to oil transfer pump, at that time the pressure will turn negative pressure to positive pressure. After fine filtration the net oil will flow from the oil outlet and complete the whole process of filtration.
Advantages of our ZJA series transformer oil purifier
1)the higher vacuum separator tank to get better water remove.
2)The ultimate vacuum degree can reach 20Pa.
3)The filling materials in the vacuum separate tank, which expand 720times of the evaporation area. It can get higher water clean in shorter time and evaporate the water enough.
4)Oil breakdown voltage is larger than 75KV, and it can reach 80KV.
PS: ZJA series transformer oil purifier needs to circulate handling the transformer oil for about 2-3times to get a higher quality final oil. It is necessary to circulate running the machine. The circulating running is for heating the transformer oil, and it is necessary to remove small water from transformer oil. The small water will be removed according to its heating and vacuum system. All the once running the machine to get final transformer oil, which is not reasonable.
The differences of import material between China made material: import materials made machine, just has a longer life span, nicer looking, and lower operation noise. Except those, no other difference. No matter the machine’s spare parts made in China or import from other countries, which is necessary to circulate running the machine.
2)The ultimate vacuum degree can reach 20Pa.
3)The filling materials in the vacuum separate tank, which expand 720times of the evaporation area. It can get higher water clean in shorter time and evaporate the water enough.
4)Oil breakdown voltage is larger than 75KV, and it can reach 80KV.
PS: ZJA series transformer oil purifier needs to circulate handling the transformer oil for about 2-3times to get a higher quality final oil. It is necessary to circulate running the machine. The circulating running is for heating the transformer oil, and it is necessary to remove small water from transformer oil. The small water will be removed according to its heating and vacuum system. All the once running the machine to get final transformer oil, which is not reasonable.
The differences of import material between China made material: import materials made machine, just has a longer life span, nicer looking, and lower operation noise. Except those, no other difference. No matter the machine’s spare parts made in China or import from other countries, which is necessary to circulate running the machine.
Detailed Images

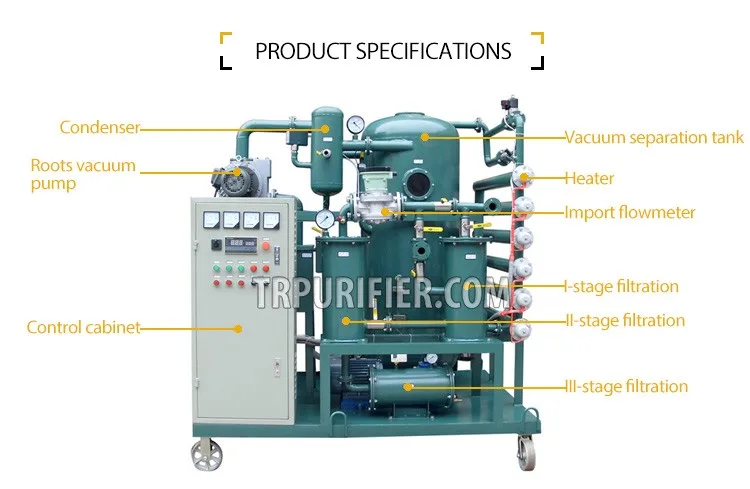

Machine Parts

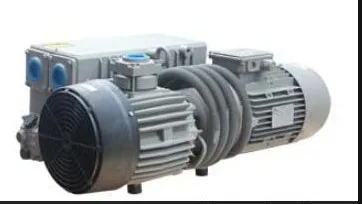

Name: Vacuum Pump
Brand: LEYBOLD,HOKAIDO
Original: Germany
The main function of it is supplying the vacuum system, to exhaust water vapor and gases from the oil.
Main Features

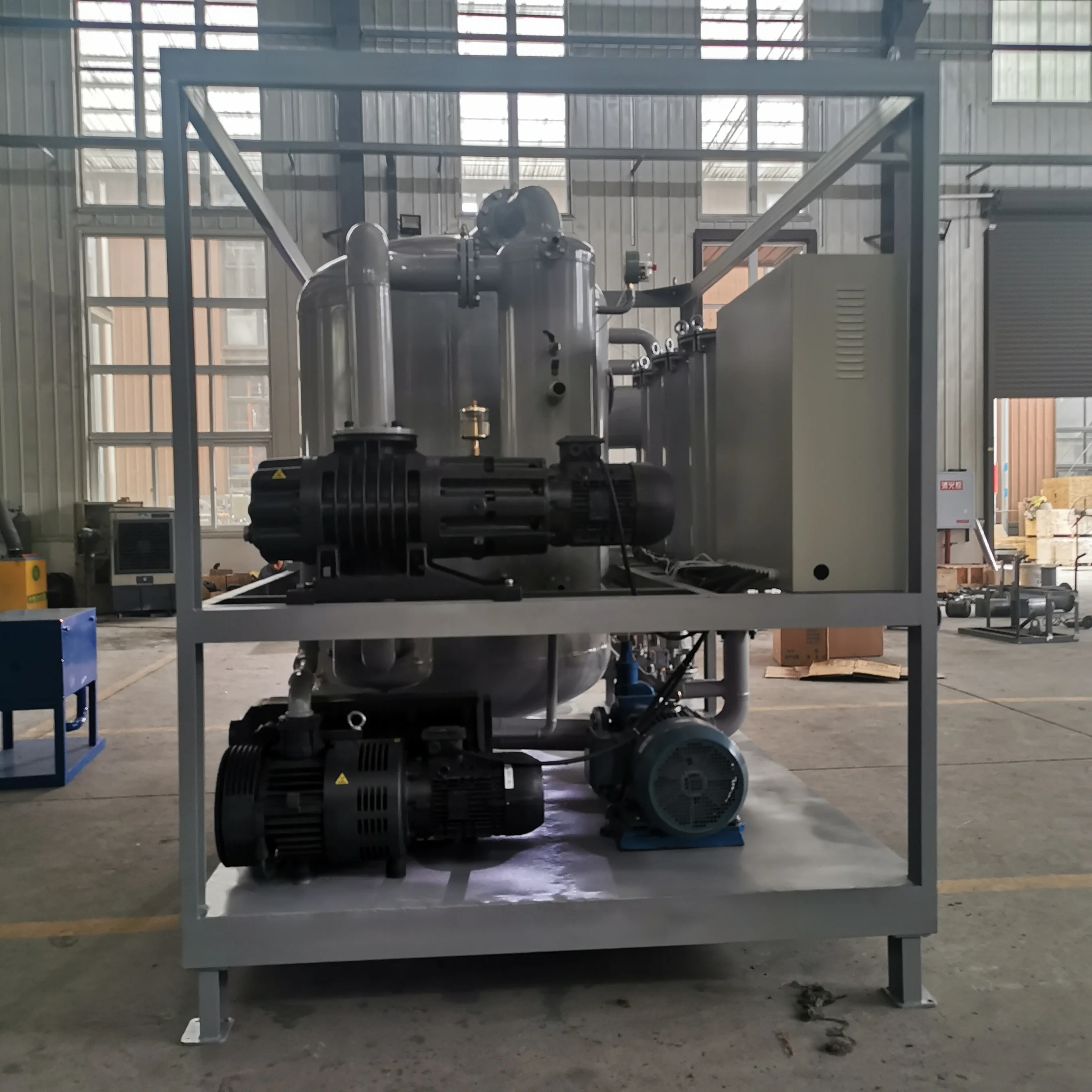

Name: Roots Pump
Brand: LEYBOLD,
Original: Germany
The main function of it is improving the vacuum degree.
Machine Parts
Name: Motor
Brand: ABB
Original: Germany
Its main function is supplying power for oil pump.
Main Features

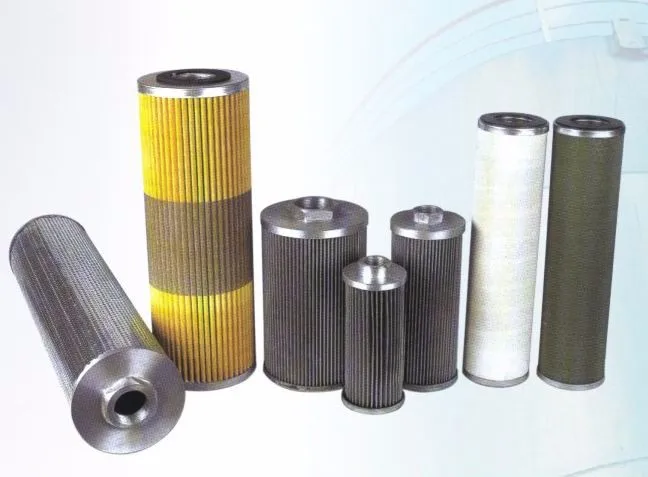

Name: Filter
Brand: CSC
Original: Japan,Italy
Fine filter, to filtrate water and impurities in the oil.
Certifications
Company Profile
Customer Photos

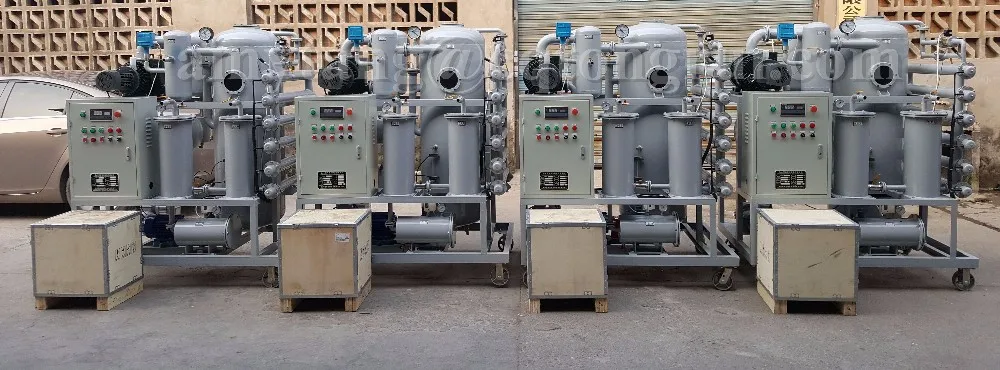

Packing & Delivery
Packaging | ||
Size | 227(L) * 178 (W) * 248 (D) | |
Weight | 2.3 T | |
Packaging Details | Different capacity machine is different size,If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
