IPQ6010 802.11AX WIFI6 1800Mbsp Openwrt Dual Band gigabit 5G Wi Fi6 Industrial Router Home Router
- Category: >>>
- Supplier: Shenzhen Huasifei Technology Co. Ltd
Share on (1600918678196):
Product Overview
Description
Product Description
Overview
WF-HR6001 adopts QCA IPQ6010 chip, which adopts 4-core ARM Cortex A53 at 1.8 GHz, 2.4G adopts 2-way MU-MIMO OFDMA modulation technology, up to 573Mbps, 5.8G adopts 2-way MU-MIMO OFDMA modulation technology, up to 1201Mbps, 802.11ac unique modulation can support more load terminals, and 512 terminals can be mounted at the same time.
Key Features

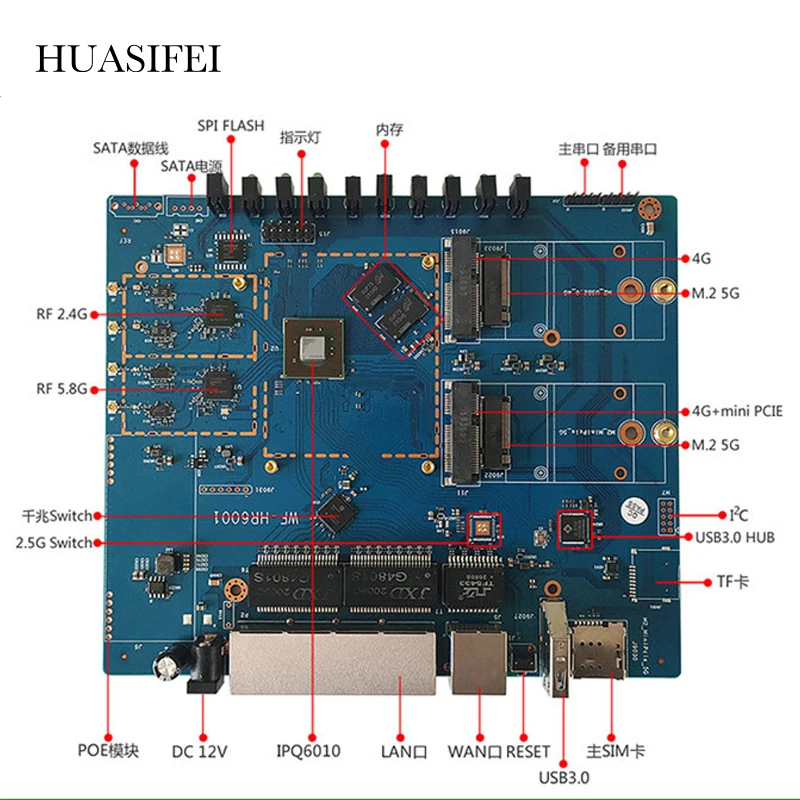

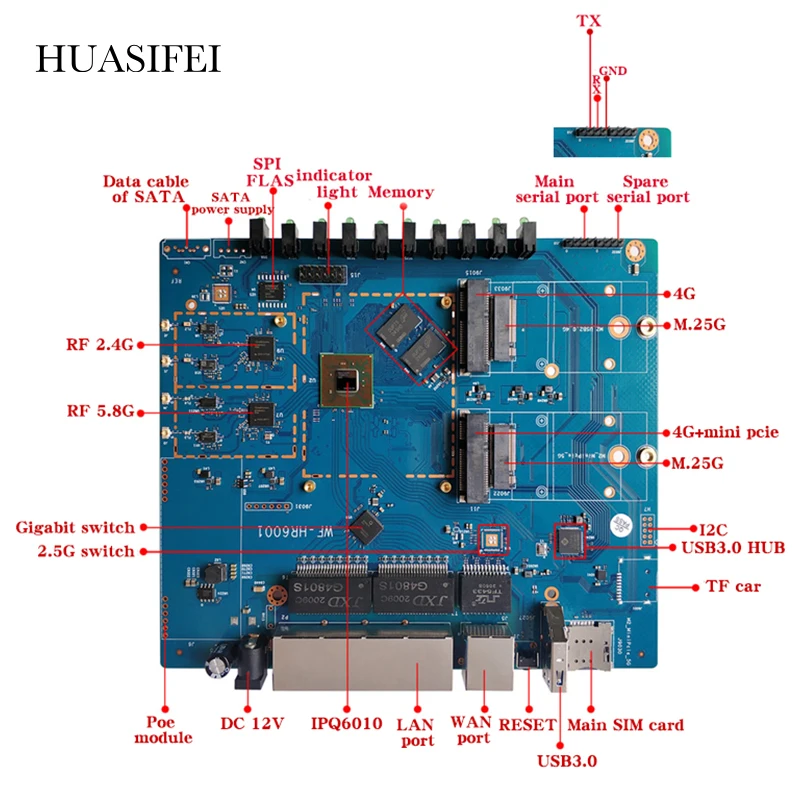

WF-HR6001 rich interface, support a variety of interface reservation, to meet the needs of various occasions application scenarios
• 2-channel USB3.0M.2 interface, can be connected to the M.2 5G module (factory default)
• 2-channel USB2.0 Mini PCI-E interface, 4G module can be connected (factory requirement)
• The 1-way Mini PCIe shares a socket with 4G
• 1 USB 3.0 interface
• 1 SATA interface, you can mount the hard disk directly
• 1 SPI interface, 2.54mm needle arrangement
• 1 I2C interface, 2.54 double row needle
• 10 LED indicator lights, 2.54 rows of pins, 9 GPIOs
• Supports 12VDC power supply and 802.11AT POE module power supply
• Supports 1 gigabit WAN 4 gigabit LANs, or 1 2.5G WAN 4 way 1000M LAN
• Support the TF card
• Support 2 way serial port, all the way debugging serial port, all the way standby serial port
WF-HR6001 software using QSDK11 version, the default double page, factory software support
• Default PPPOE dial DHCP, static IP

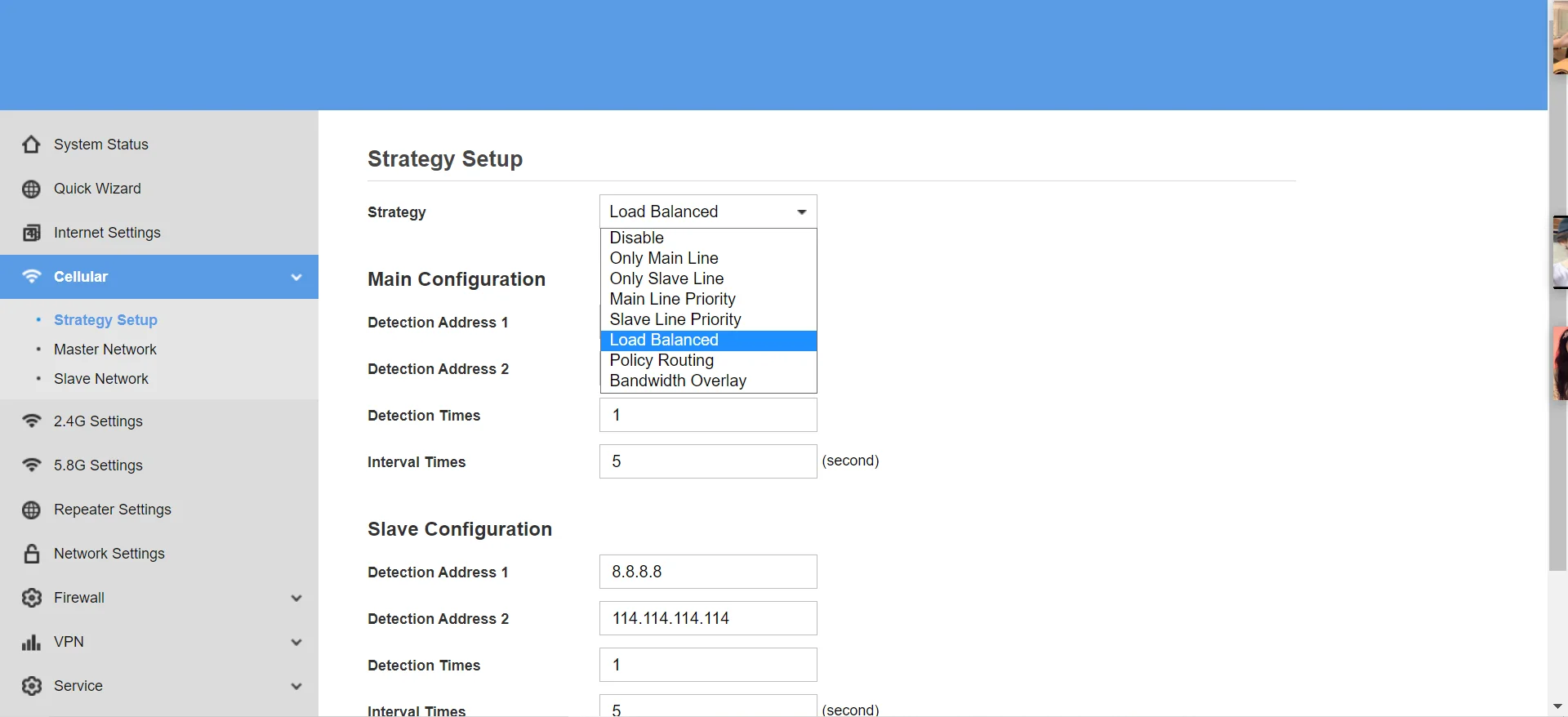

• Support dual 4G/ 5G dialing, master/slave road priority, 4/5G simultaneously proportional load, 4/5G main/standby switch
• Hard disk function needs to be improved, TF card function needs to be improved
• USB application to mount the print server, USB to mount the network card function needs to be improved
• The function of MESH networking needs to be improved
Specification
Hardware Features | |

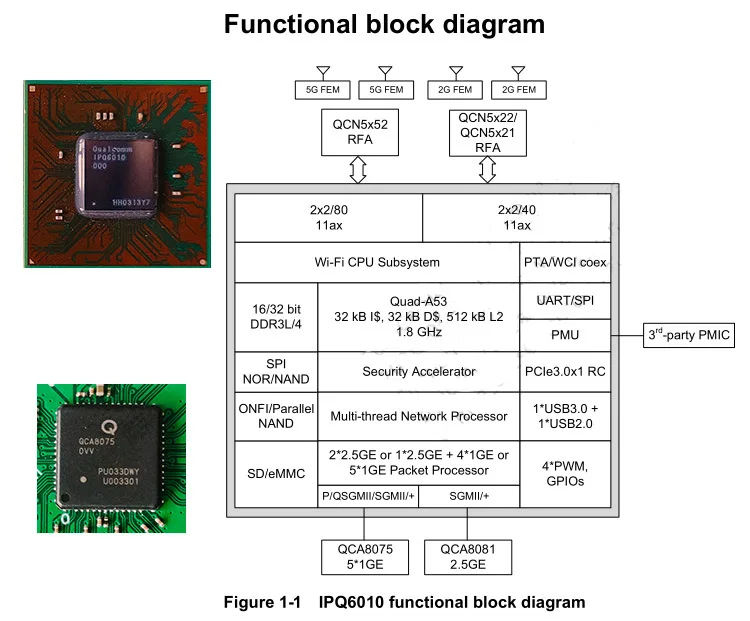

Chipset | IPQ6010+QCN5052+QCN5022+QCA8081(QCA8075) |
CPU | IPQ6010/601:Quad ARM Cortex A53 at 1.8 GHz, 64-bit ISA v8 instruction set |
FLASH | SPI /32M + NAND / 256MG flash memory |
RAM | 1024M |
Protocol | 802.11ac/n/ac/ax: 5.150GHz-5.850GHz ; |
Transmit Power | 26dBm(11a),26dBm(11n/HT20/HT40),23dBm(11ac/MCS9/HT80) |
Reception Sensitivity | 802.11a 433Mbps ≤ -90; 867Mbps ≤ -90 |
Wireless Speed | 1800Mbps |
5g wireless parameters | 5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 |
Antenna Type | 4*detachable 5dBi 5G antenna |
Interface | 1* 10/100M/ 1000M WAN |
LED | Power,SYS,2.4G,5.8G,WAN,USB,4/5G |
Power Supply | DC 12~36V |
Max power consumption | <8w |
Dimensions(L*H*W) | 175×146×17mm |
Total Weight | 0.7Kg |
Work Environments | Operating Temperature: 0°C~40°C (32°F~104°F) |
Software | |
Default Setting | IP Address: 192.168.1.1 |
WAN Type | PPPoE/ Dynamic IP/Static IP/3G/UMTS/4G/LTE,dhcp-4/5G |
Working mode | AP;Router |

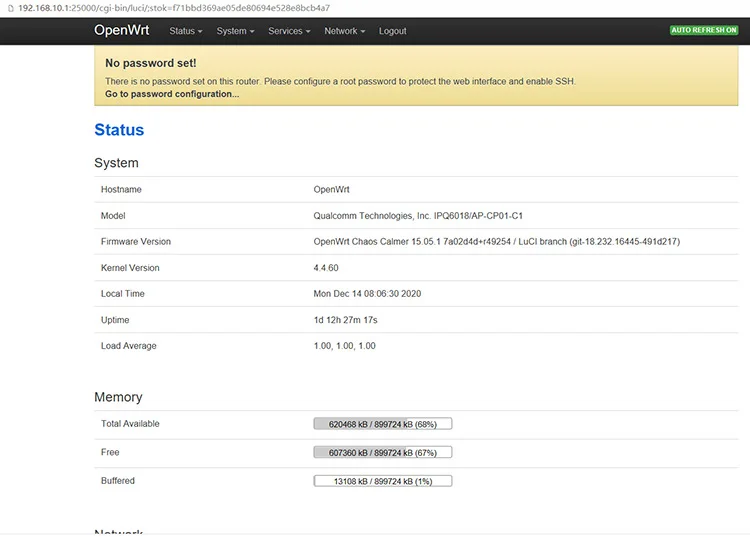

System | Supports SDK,OpenWRT, eCos |
DDNS | Support |
WEB Style Change | Support |
Band Ctrl | Support |
Static Router | Support |
System Log | Support |
DHCP server | DHCP server |

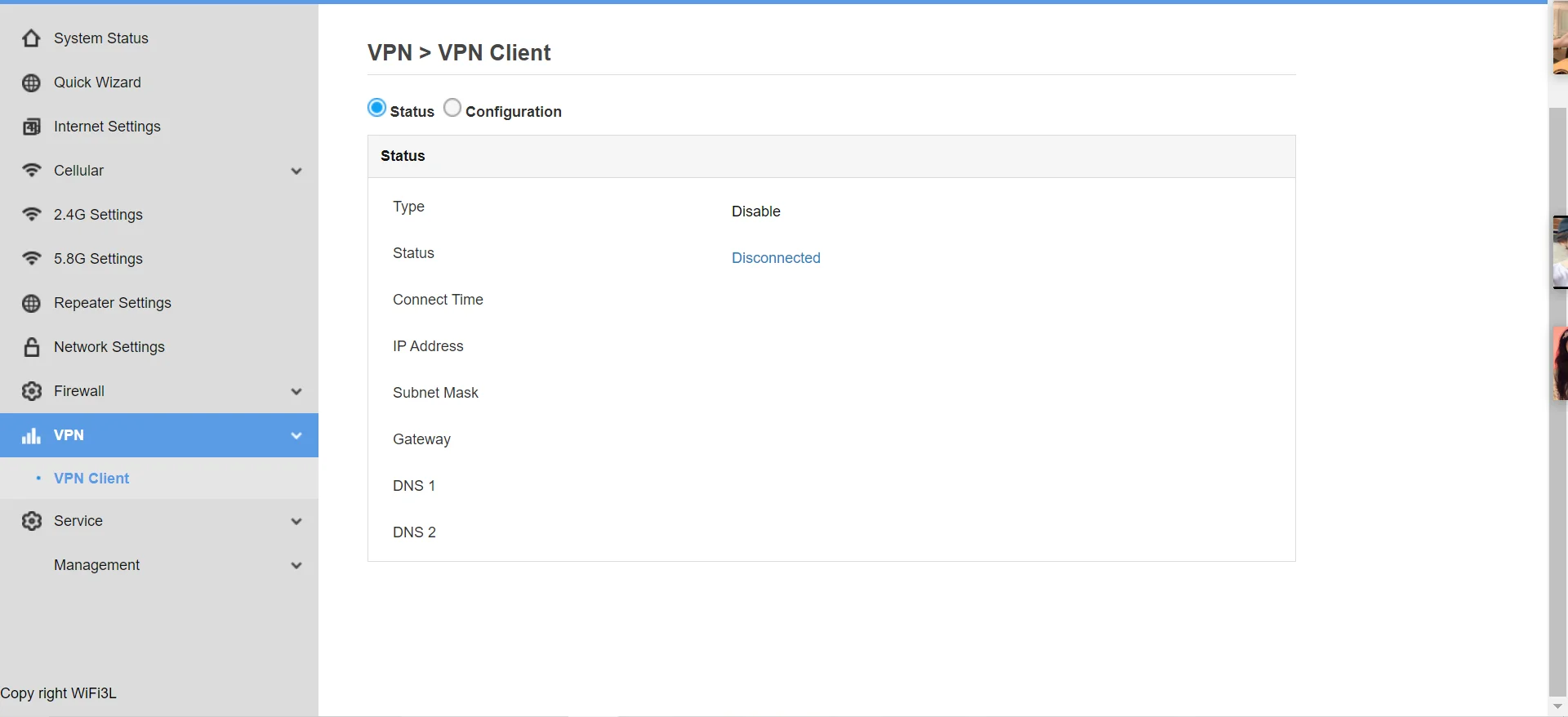

VPN Pass-Through | MVPN/IPsec/OpenVPN/PPTP/L2TP/GRE/N2N |
Other Function | Mac clone |
Networking priority | 4G priority (Y/N) |
4G priority (Y/N) |
specifications | |
Main Chip | IPQ6010+QCN5052+QCN5022+QCA8081(QCA8075) |
CPU | IPQ6010/601:Quad ARM Cortex A53 at 1.8 GHz, 64-bit ISA v8 instruction set |
Memory | 1GByte DDR3 |
NOR flash | Default 32M Byte |

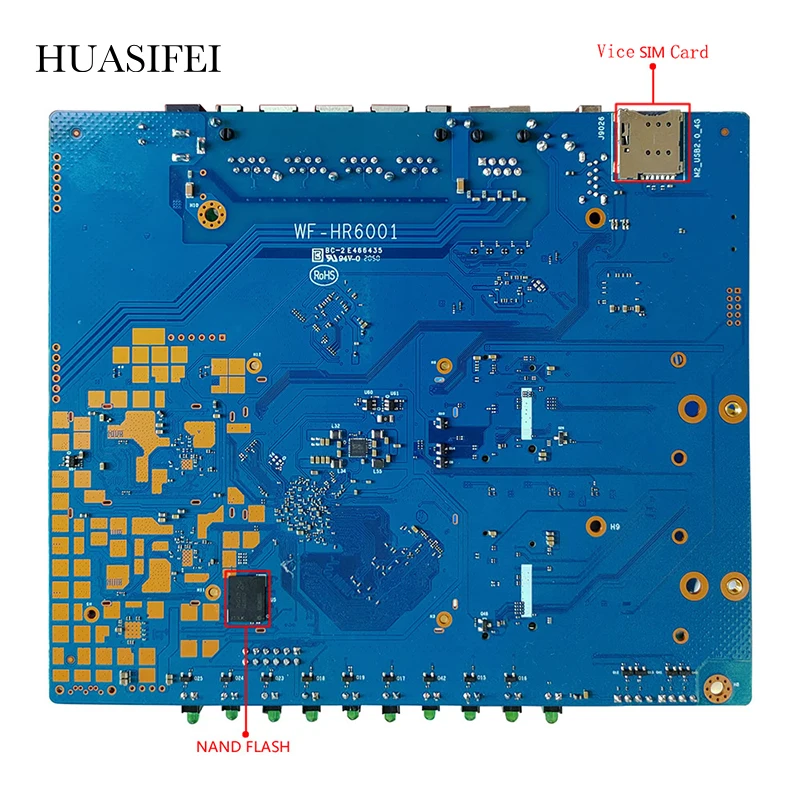

NAND | Default 256M Byte |

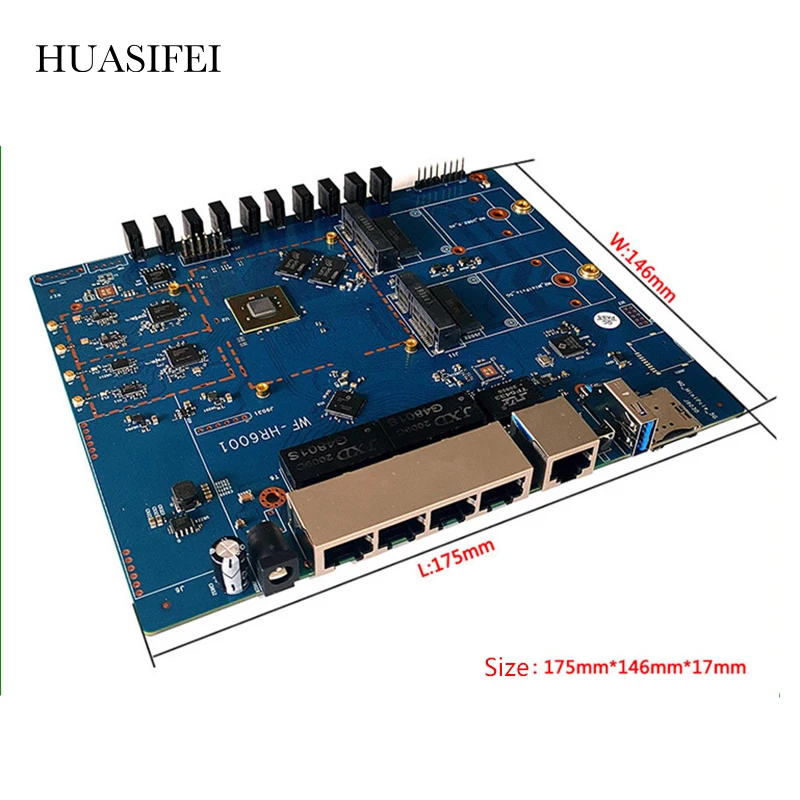

PCB | 176*146mm |
RF | 2.4G(802.11AX)2T2R + 5G(802.11aX) 2T2R |
Antenna gain | 5dBi, external |
Rate | 2.4g 600M+5g 1200M |
Port | 5 10/100/1000Mbps RJ45 ports (default), or 4 1000M + 2.5G WAN |
Power Supply | Support DC 12V 2A powered (12V 3A recommended for dual 5G), 802.11at POE powered |
Indicator Light | 10 green indicators (power, 2.4G, 5.8G, 5 network ports, 2 4/5G) |
USB 3.0 Expansion | 1*SATA external interface |
USB 2.0 | Connect the secondary card 4G MINI-PCIE |
PCIE/4G Host Card | Connect the main card 4G MINI-PCIE |
Module Support List | Longsung U9300C single and dual card |
TF card | Support, default factory without |
SATA | Support 1*SATA, default without |
External Pin Interface | UART0, UART1, I2C, SPI (refer to the back of the circuit) |
Operating Frequency Band | 802.11ac/n/ac/ax: 5.150GHz-5.850GHz ; |
RF Parameters | 2.4G: |
Operating/Storage Temperature | -10℃~50℃/-40℃~70℃ |
Operating/Storage Humidity | 5%~95% (non-condensing) |

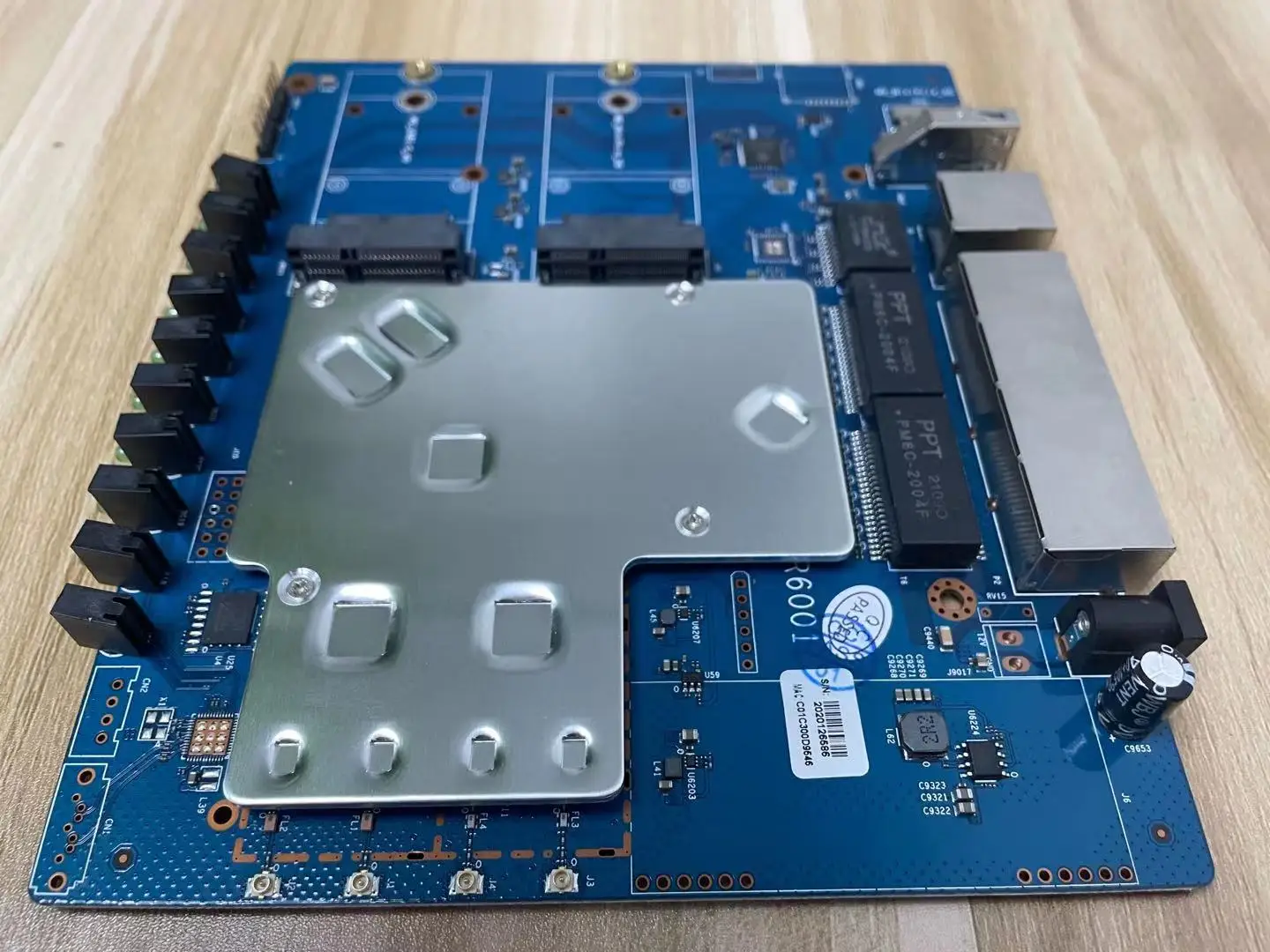

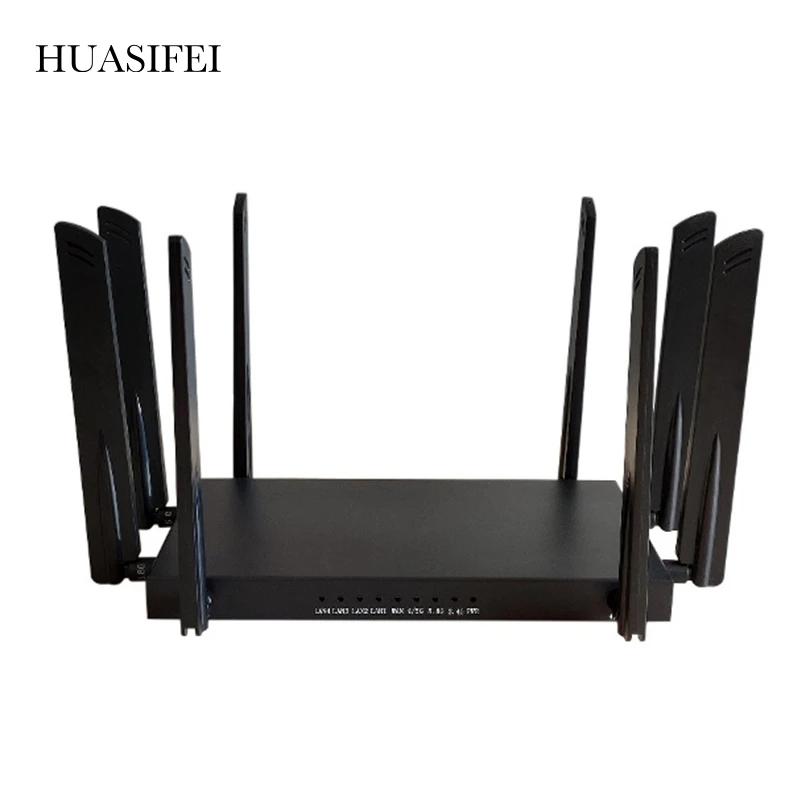

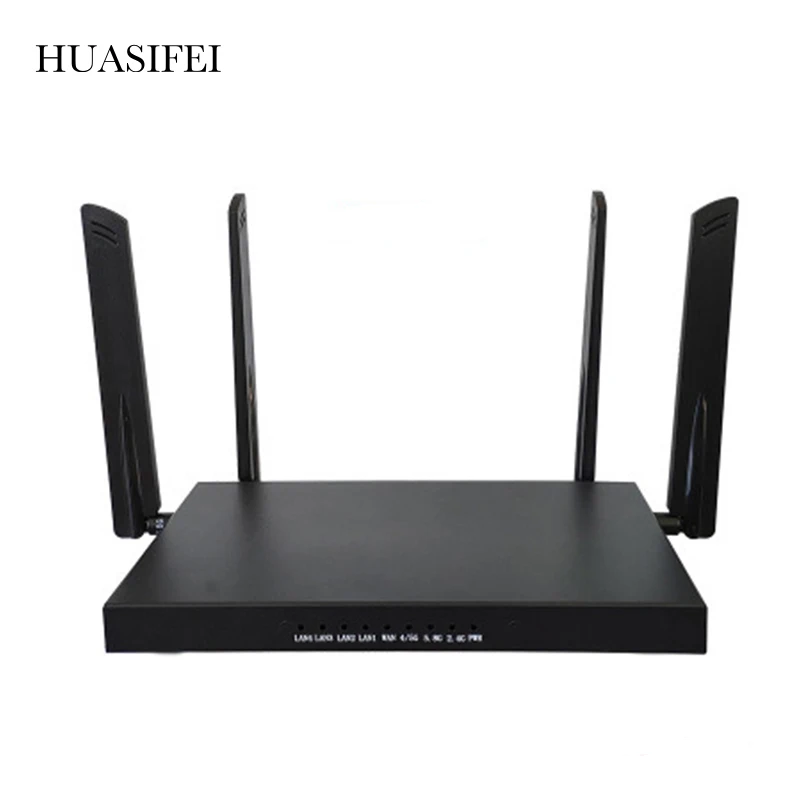

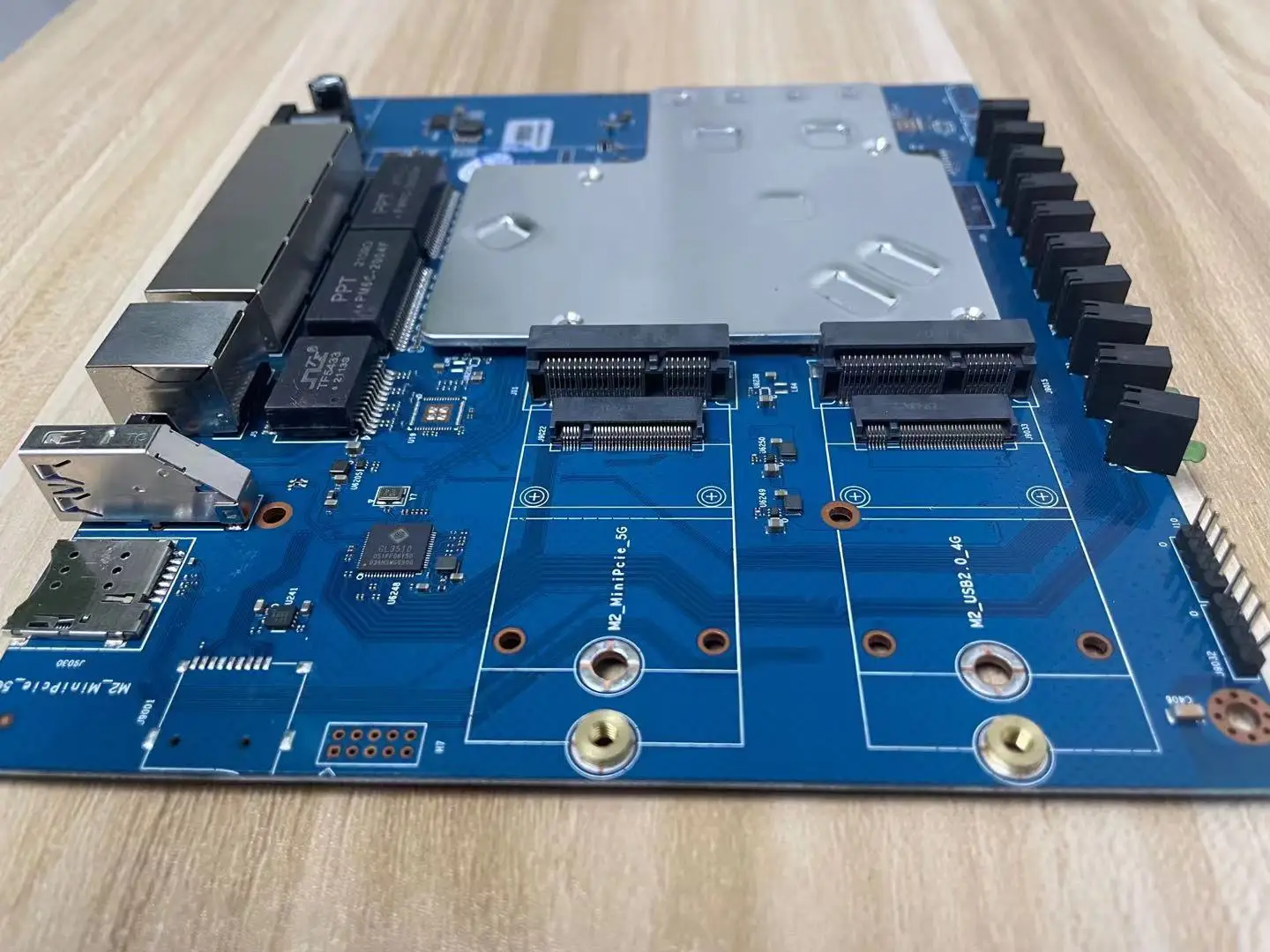

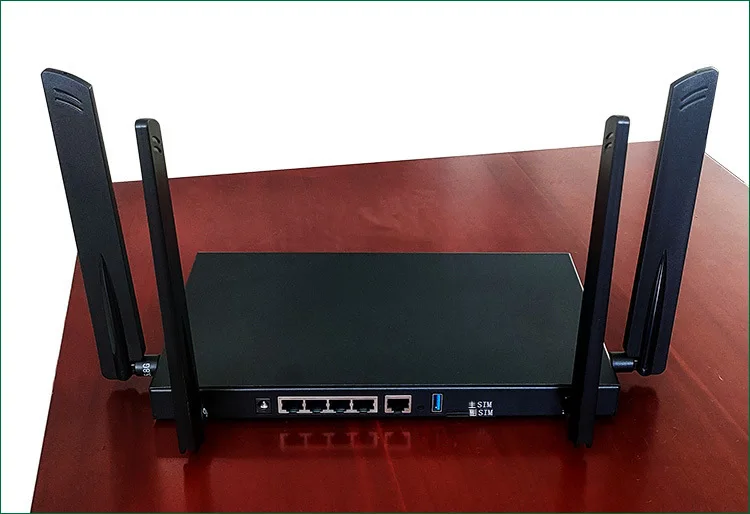

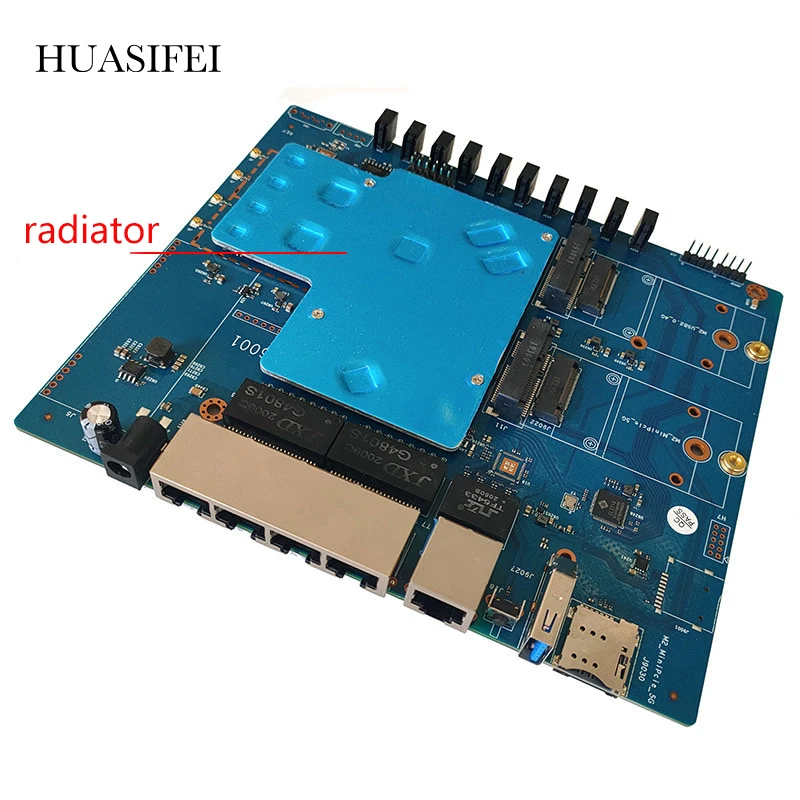

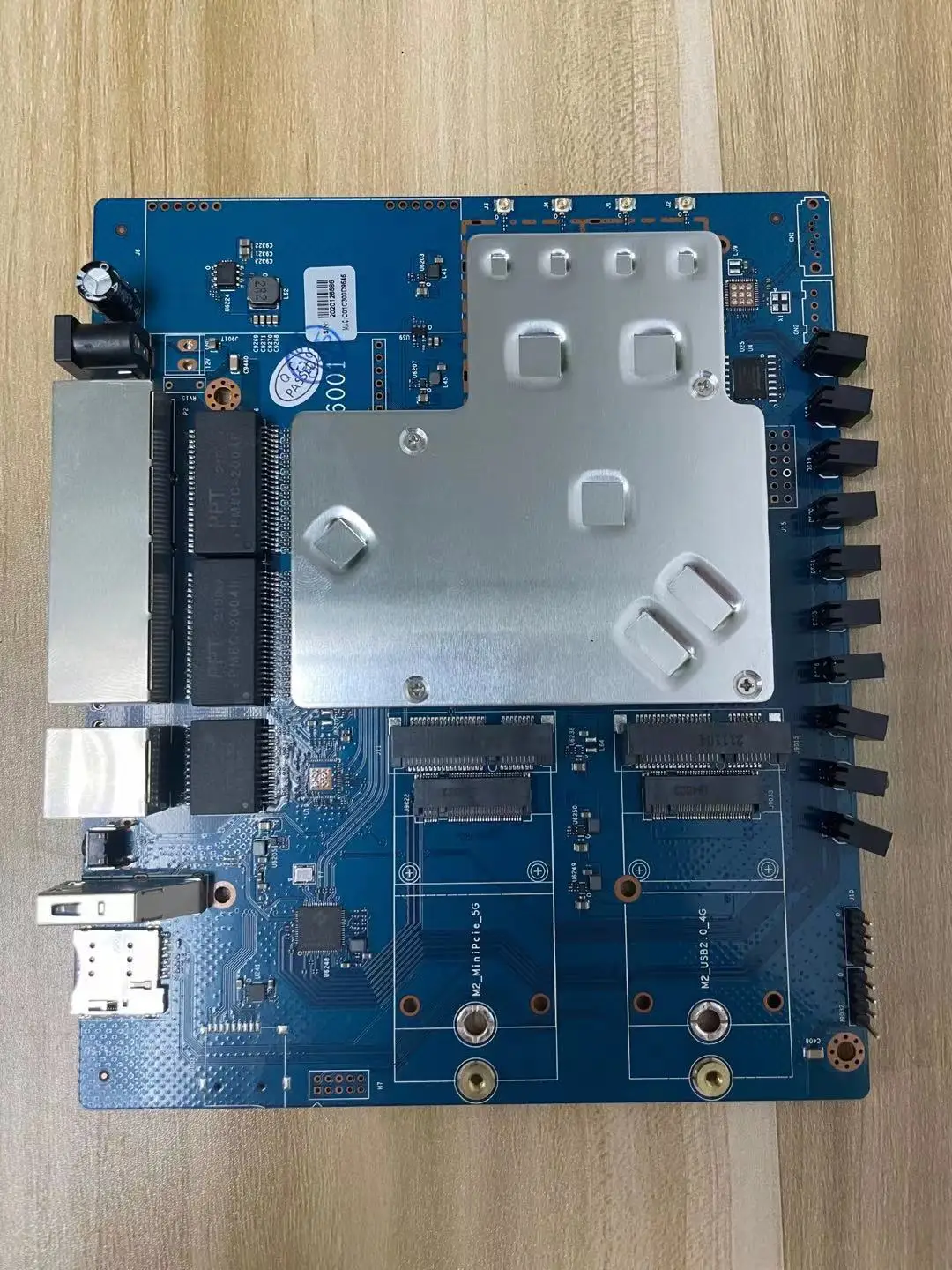

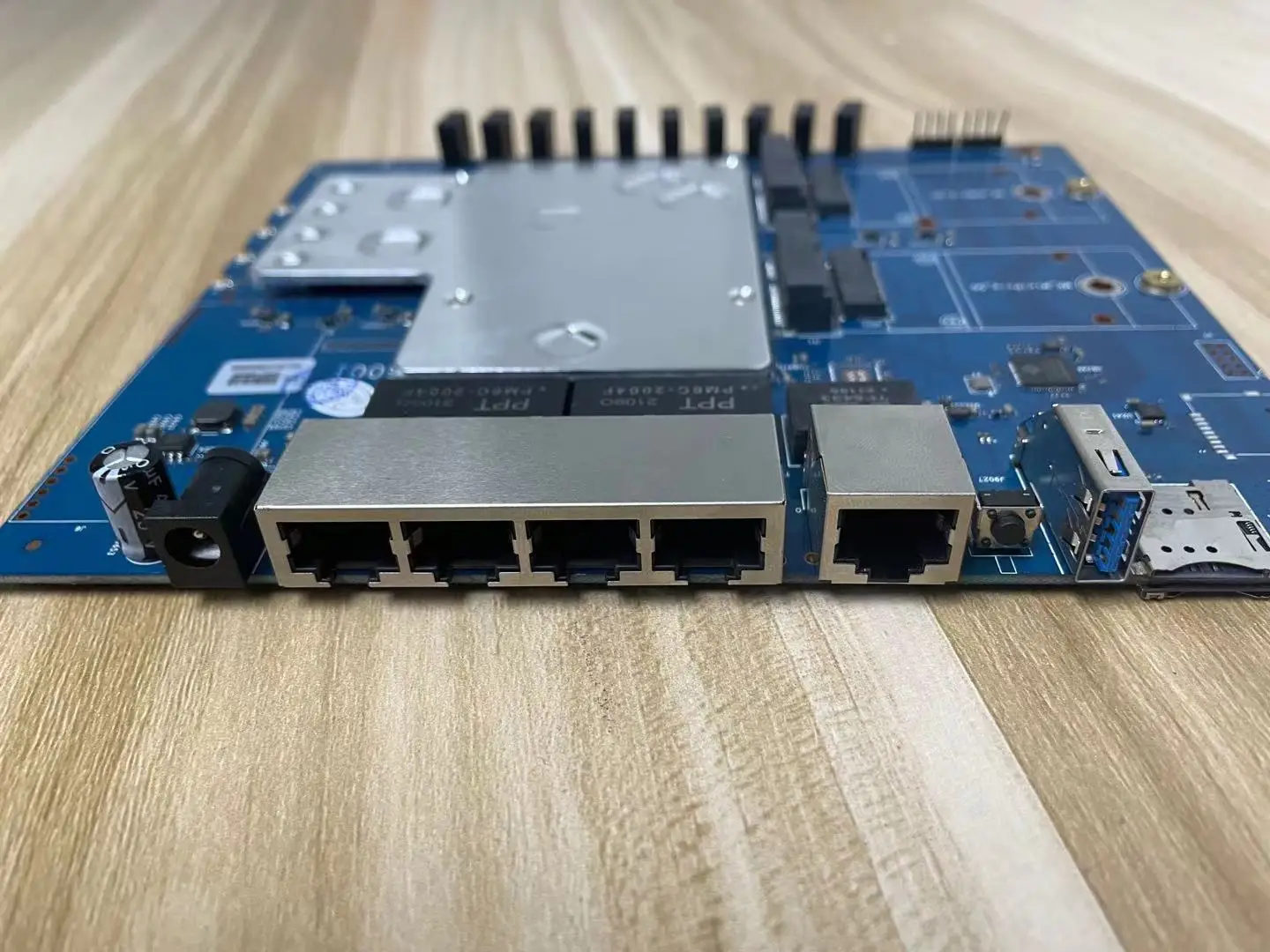

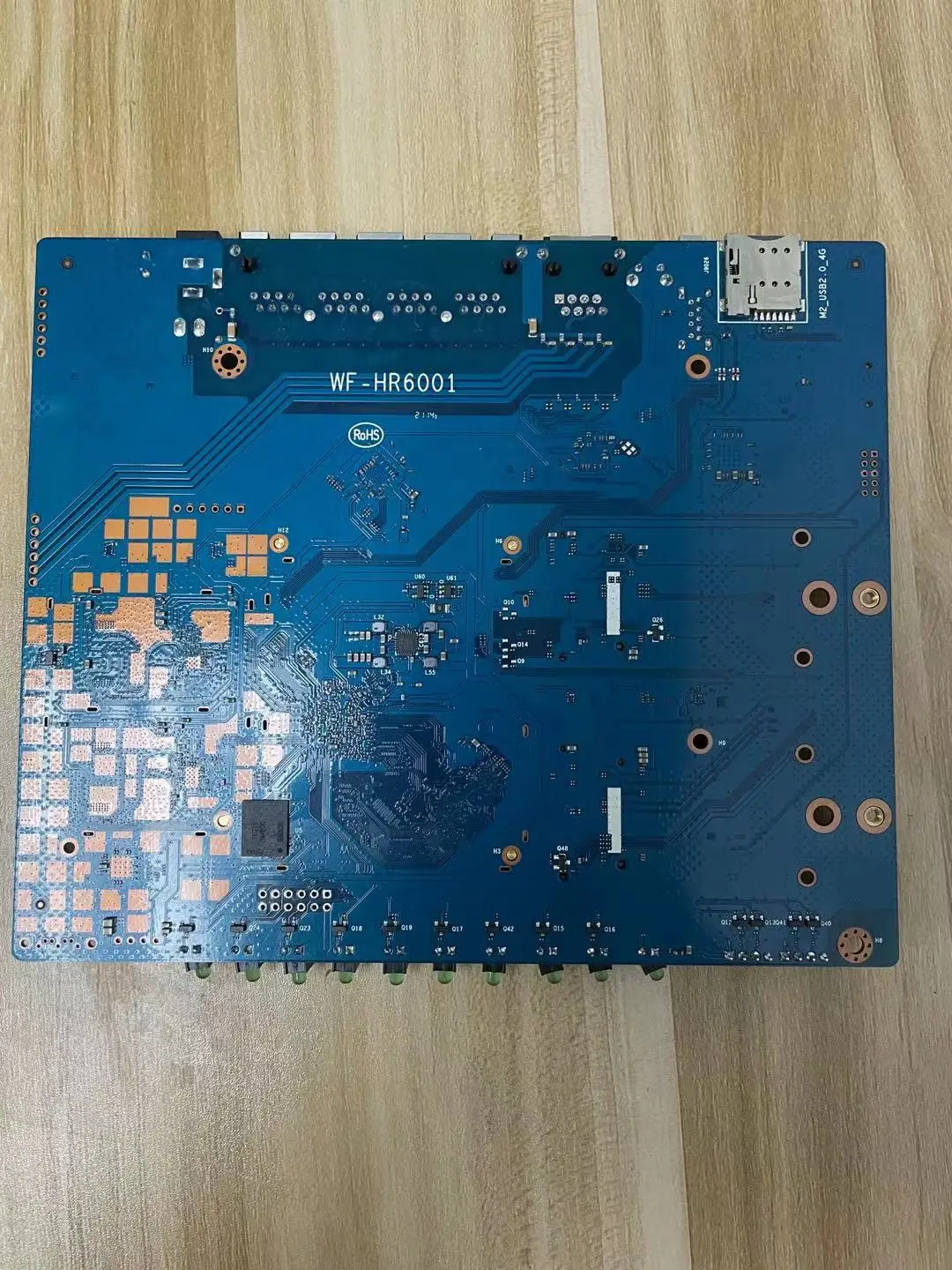

Products Pictures
Company Information
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included OpenWRT 4G5G wifi router, Vehicle 5G router, outdoor CPE, indoor CPE,MESH Router ,WIFI-6 Router ,4G OTT 4G5G Modem.HUASIFEI .with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries.
