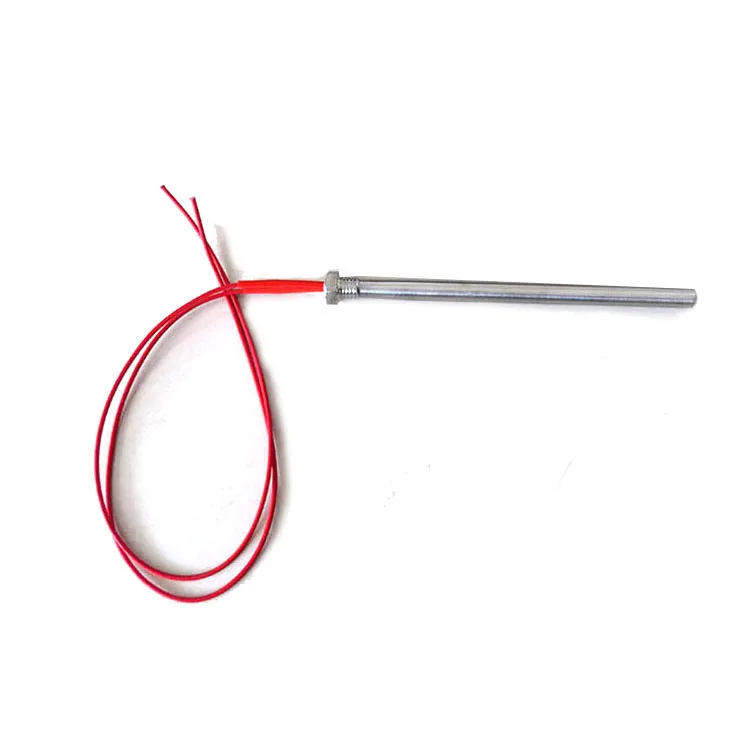

Threaded Stainless Steel 304 Sheath 9*200Mm 24V 220W Electric Resistance Cartridge Heater For Mold Heating
- Category: >>>
- Supplier: Xinghua Yading Electric Heating Appliance Co. Ltd.
Share on (1600918704004):
Product Overview
Description
Product Paramenters
product name | Thread cartridge heater |
shell material | stainless steel |
Voltages available | 12V,24V,36V,110V,220V,230V,240V,380V |
Diameter tolerance | -0.02mm |
Length tolerance | ±1mm |
Max operating temp | 650℃ |
Resistance tolerance | +10%, -5% |
Sheath material | SUS304 |
Standard Cold Zone | 5-10mm |
power | 200-4000W |
Product Display
Application
Electric cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), High
temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating
applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic
forms-high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so
forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot
stamping applications.
temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating
applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic
forms-high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so
forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot
stamping applications.
How to order?

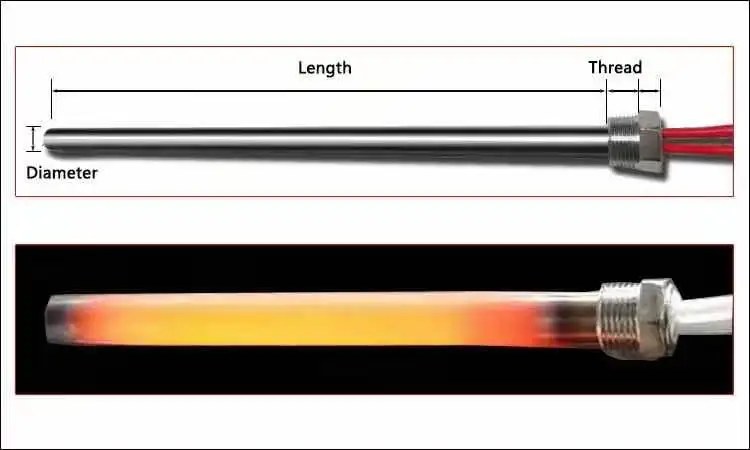

A:Diameter -see specifications for assistanceB:Overall sheath length-mesaured in inches or millimeters from end toend of heater
sheath
C:Lead length-specify in mm or inches
D:Termination Type
E:Vlotage-specify
F:Wattage:specify
G:Special modifications-specify as required
sheath
C:Lead length-specify in mm or inches
D:Termination Type
E:Vlotage-specify
F:Wattage:specify
G:Special modifications-specify as required
