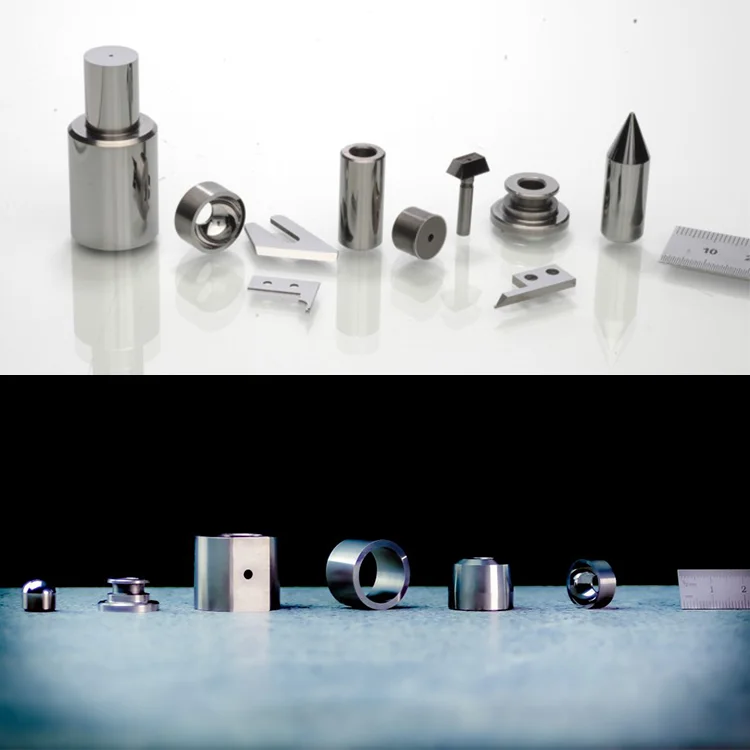

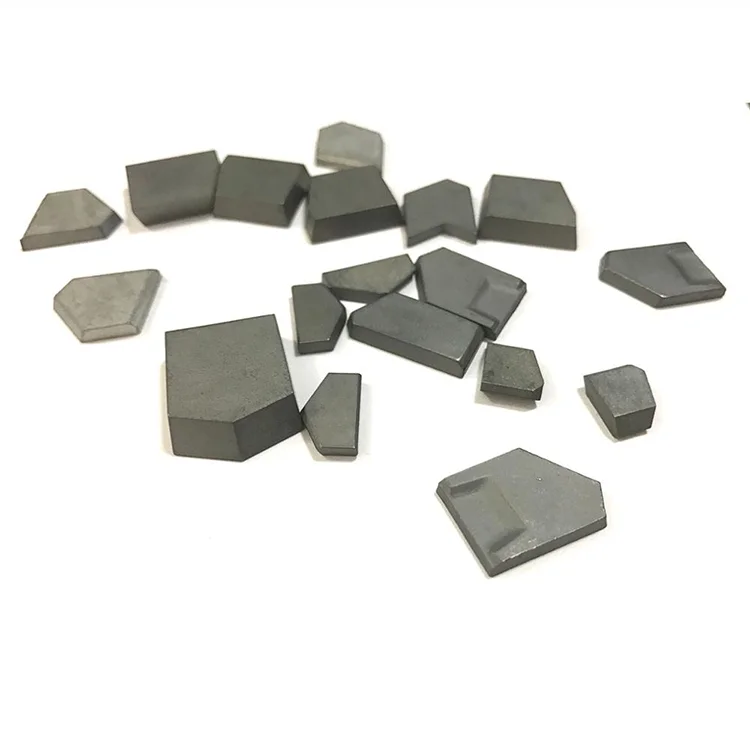

Tipped Cemented Carbide Ball Tooth/Teeth Type Probe Inserts Tips For Widia Blades
- Category: >>>
- Supplier: Jiangsu Hanpu Mechanical Technology Co. Ltd
Share on (1600918787473):
Product Overview
Description
Product Description

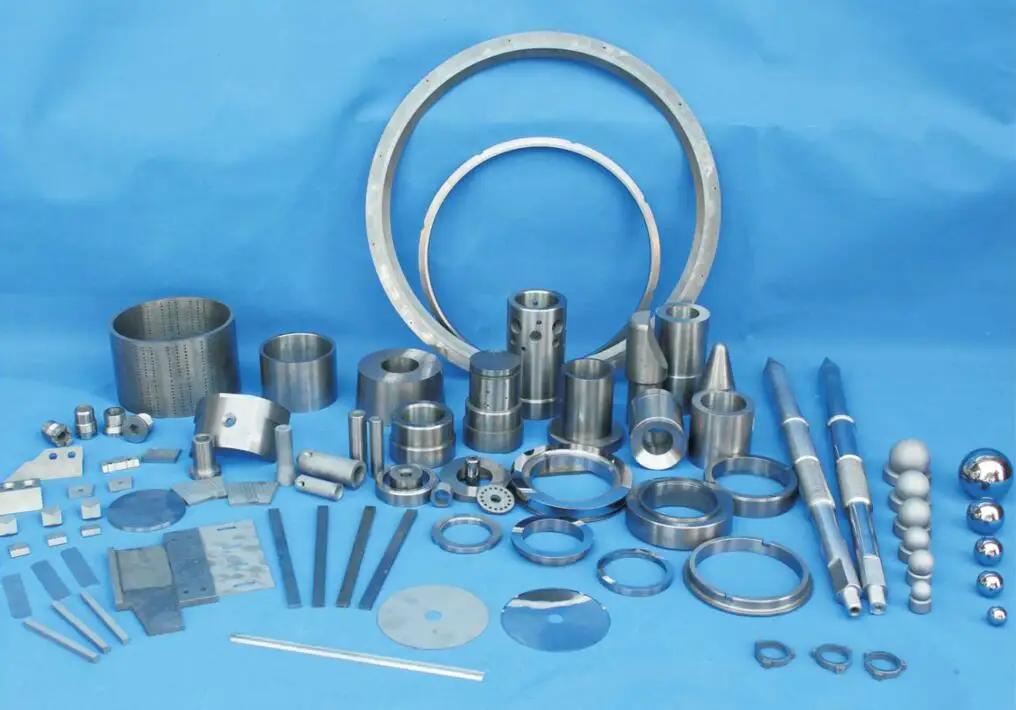

Main Products | Application Industries |
Wear parts | manufacturing, general equipment, metal products, mining, oil and gas |
Wearing parts, oil, natural gas and other fluid engineering | general equipment, mining |
Mechanical seal ring | Manufacturing, oil and gas, chemical |
Bushing | oil and gas, pump |
Nozzle | oil and gas |
Valve parts for fluid control | oil and gas |
Panels for centralizers | oil and gas |
Die hard alloy | drawing die, stamping die, powder metallurgy forming die |
Sheet | manufacturing, general equipment |
Bars for soild carbide tools | manufacturing,tool manufacturing, general parts manufacturing |
Blade | for coal mining and geological exploration |
Metal cutting inserts | manufacturing, tool manufacturing |
Other blades | welding inserts,indexable inserts,heavy duty cutting inserts |
We mainly provide special, professional, high-performance hard alloy: hard alloy ring for mechanical seal and pump shaft sleeve; Hard alloy for oil and natural gas wellhead installation (valve core, valve seat, anti-wear sleeve, hole plate, fixed hole plate); All kinds of threaded nozzles and hemispheres for SP alloy drill bits; Balls and seats for liquid elevators; Carbide bar and plate; Non-magnetic carbide; All kinds of hard alloy mold; Carbide props and rotary machines; The manufacture of hard alloy for geological mining and special-shaped wear-resistant parts for other fields.
OEM Accepted!!! Pls Provide Your Drawings!
Alloy Grade
Grade | Component(%) | Density (g/cm3) | HRA | Bending resistance(>N/mm2) | Mean Size(pm) | Grain Size(pm) | ||||
Co | Dopant | Balance | ||||||||
YG6 | 5.8-6.3 | / | WC | 14.6-15.0 | 89.5-91 | 1800 | 1.2 | 0.8-2.0 | ||
YG6X | 5.8-6.3 | 0.5 | WC | 14.4-14.7 | 90.5-91.5 | 1650 | 0.8 | 0.6-1.0 | ||
YG8 | 7.5-8.2 | WC | 14.4-14.7 | 89.0-90.5 | 2200 | 1.2 | 1.0-1.5 | |||
YG11 | 11.0-11.5 | WC | 14.2-14.4 | 87.0-88.5 | 2800 | 1.2 | 1.0-2.0 | |||
YG11C | 11.0-11.5 | WC | 14.2-14.4 | 86.0-88.0 | 3000 | 1.5 | 1.0-2.5 | |||
YG15 | 14.5-15 | WC | 13.9-14.0 | 86.0-88.0 | 3300 | 1.2 | 1.0-2.0 | |||
YG20 | 20.0-20.5 | WC | 13.2-13.5 | 84.0-85.0 | 3400 | 1.2 | 1.0-2.0 | |||
K05VF | 4.5-5.0 | 0.6 | WC | 14.6-15.0 | 92.5-93.0 | 1500 | 0.6 | 0.6-1.0 | ||
K10VF | 5.5-6.2 | 0.6 | WC | 14.5-14.7 | 91.5-92.5 | 1550 | 0.6 | 0.6-1.0 | ||
K20VF | 7.5-8.0 | 0.6 | WC | 14.5-14.7 | 90.5-91.5 | 1800 | 0.6 | 0.6-1.0 | ||
... | ||||||||||
Test items: density, Rockwell hardness, transverse fracture strength, metallographic
Inspection basis: GB/T3850-2015 Density determination method for dense sintered metal materials and cemented carbide
GB/T3949.1-2015 Cemented Carbide Rockwell Hardness Test (Scale A) Part 1: Test Method
GB/T3851-2015 Cemented Carbide - Determination of Transverse Fracture Strength
GB/T3489-2015 Cemented carbide - Metallographic determination of porosity and non-combined carbon
GB/T3488.1-2014 Cemented Carbide - Metallographic Determination of Microstructure - Part 1: Metallographic Photographs and Description
Main inspection equipment: BS224S density balance, 574R Rockwell hardness tester, DMI5000M metallographic microscope, CMT5305 material testing machine
Test results:
Inspection basis: GB/T3850-2015 Density determination method for dense sintered metal materials and cemented carbide
GB/T3949.1-2015 Cemented Carbide Rockwell Hardness Test (Scale A) Part 1: Test Method
GB/T3851-2015 Cemented Carbide - Determination of Transverse Fracture Strength
GB/T3489-2015 Cemented carbide - Metallographic determination of porosity and non-combined carbon
GB/T3488.1-2014 Cemented Carbide - Metallographic Determination of Microstructure - Part 1: Metallographic Photographs and Description
Main inspection equipment: BS224S density balance, 574R Rockwell hardness tester, DMI5000M metallographic microscope, CMT5305 material testing machine
Test results:
Test time：Nov. 18 2021
Test items | YG6 | YN6 | YG8 | YG15 |
Density (g/cm3) | 14.98 | 14.88 | 14.72 | 14.09 |
Rockwell Hardness (HRA) | 90.8 | 90.6 | 89.5 | 85.8 |
Transverse breaking strength (N/mm2) | 1810 | 1860 | 2110 | 2620 |
Porosity | A02B00 | A02B00 | A02B00 | A02B00 |
non-combined carbon | C00 | C00 | C00 | C00 |
Holes (pcs/cm2) | No | No | No | No |
Average grain size of WC phase (μm) | Fine grain | Fine grain | Fine grain | Medium grain |
Feature
1. More Accurate Slot Opening, Polishing, And Smooth Surface
2. High Stability and Pressure Loading, Corrosive Resistance
3. Smooth Surface hence Low Resistance
4. Longer Use Life
5. Easy to install
6. Customized According to Drawing
2. High Stability and Pressure Loading, Corrosive Resistance
3. Smooth Surface hence Low Resistance
4. Longer Use Life
5. Easy to install
6. Customized According to Drawing
Detailed Images

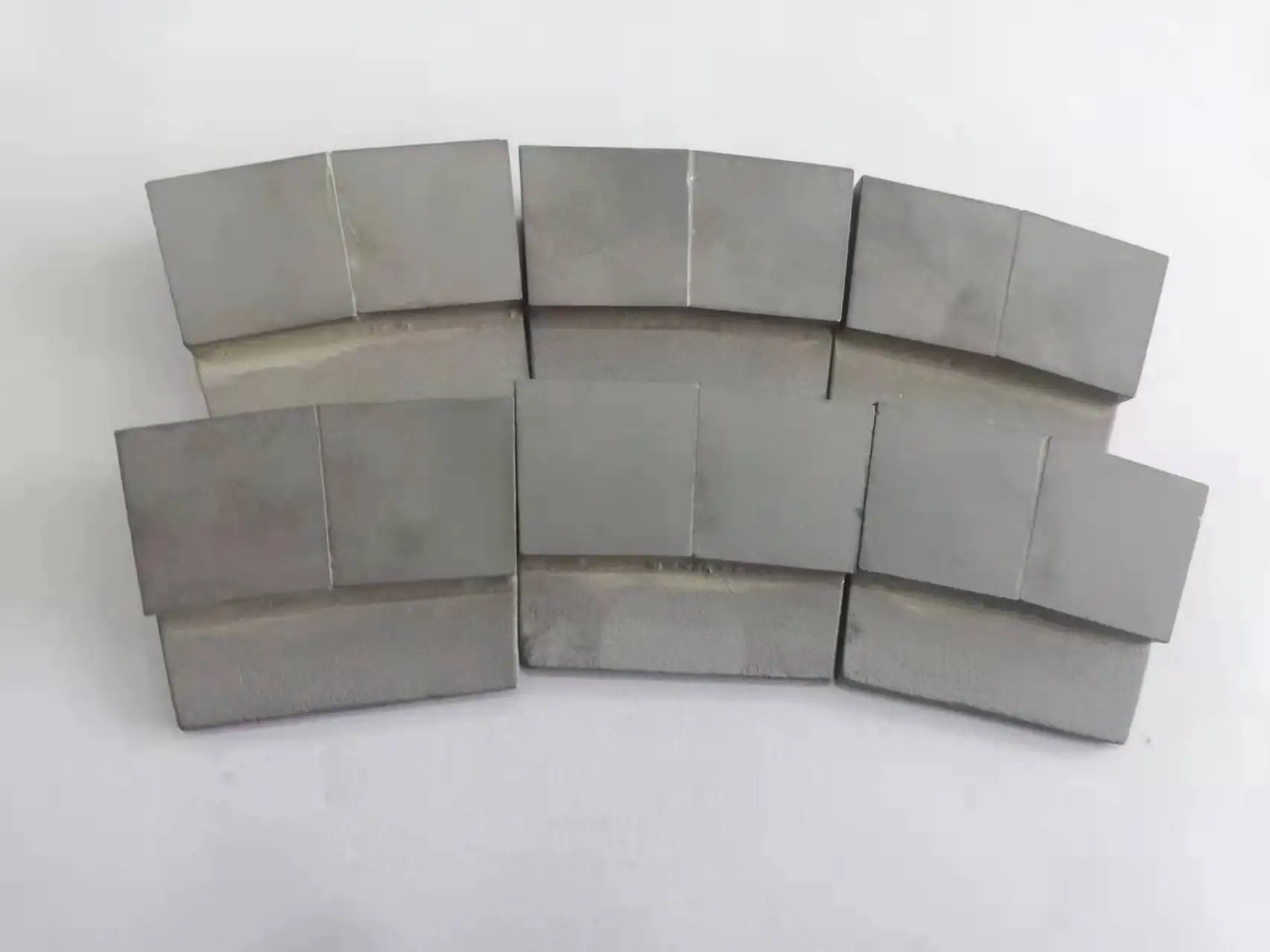

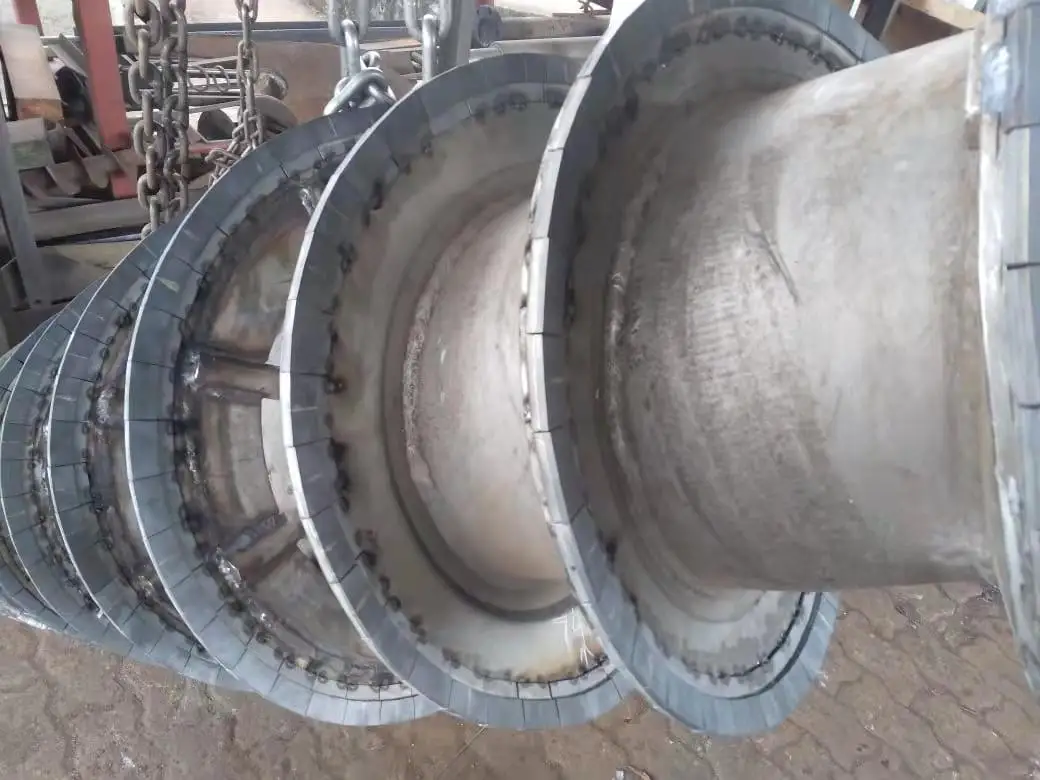

Tungsten Carbide Tiles Spare parts are widely used for the separation equipment, such as decanter centrifuge, disc stack separator, etc.

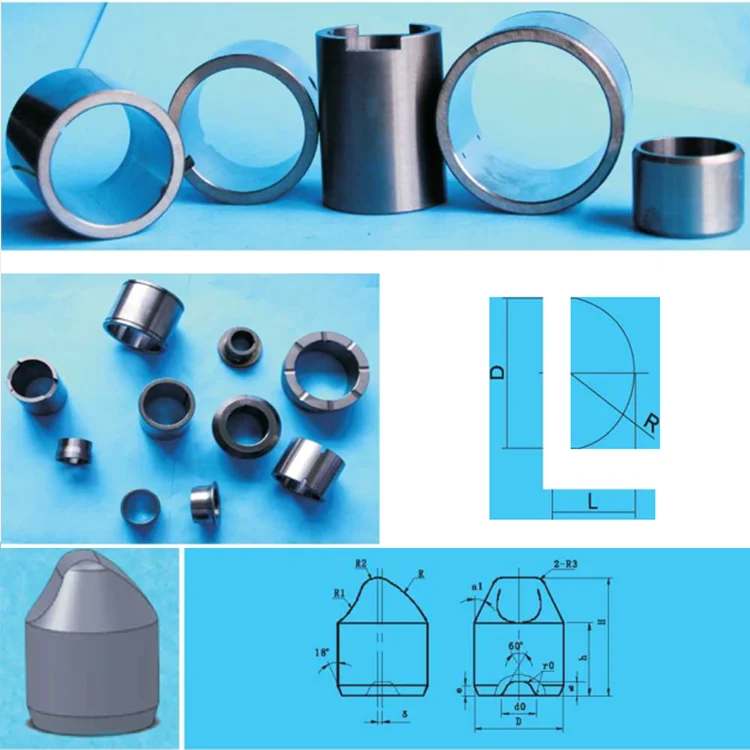

Carbide Sleeve Bushing
Suitable for pumps, oil pumps and mud pumps.
Carbide Valve Parts for Fluid Control
Used in oil and natural gas fluid control pumps.
Carbide Ball and Seat
Mainly used to separate
sludge and oil.
sludge and oil.
Carbide Tooth
Used in the mining, oily sludge and drilling mud industry.
Carbide Mud Nozzle
Used in the petroleum industry
Carbide Mud Nozzle
Used in the petroleum industry
Related Products

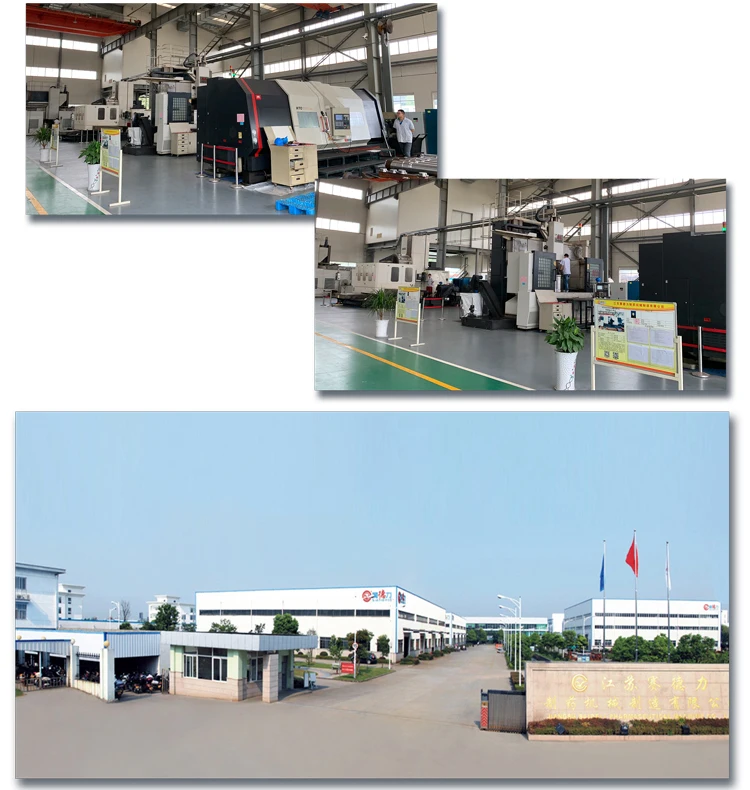

Company Profile
Established in 2019,Jiangsu Hanpu Mechanical Technology Co., Ltd. is a subsidiary of Jiangsu Saideli Machinery Group.It is a professional enterprise engaged in the evaporating crystallization, drying, filtrating, and heat transferring, with the research and development and manufacturing of technical equipment.Located in Junmin Road, Huangqiao Industrial Park, Taixing City, Jiangsu Province,the group has four major production bases,covering an area of 532800 square meters. Currently,there are 1580 employees.And we have fixed assets of 2 billion yuan and annual sales of 2.8 billion yuan.
The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles, crystallizers, heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015 system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1，A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies.
The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of Chinese market and are exported to more than 60 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada, Australia, Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt, Cameroon, etc.
Our goal is innovate products through technology, pursue excellence in quality, serve customers with integrity and perfection to become a first-rate manufacturer of evaporation and fluid equipment in China.
The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles, crystallizers, heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015 system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1，A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies.
The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of Chinese market and are exported to more than 60 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada, Australia, Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt, Cameroon, etc.
Our goal is innovate products through technology, pursue excellence in quality, serve customers with integrity and perfection to become a first-rate manufacturer of evaporation and fluid equipment in China.
Certifications
FAQ
1. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
6. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
6. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
