China Supply Tc Temperature Isolated Transmitter 4-20mA Thermocouple Temperature Isolated Transducer
Product Description

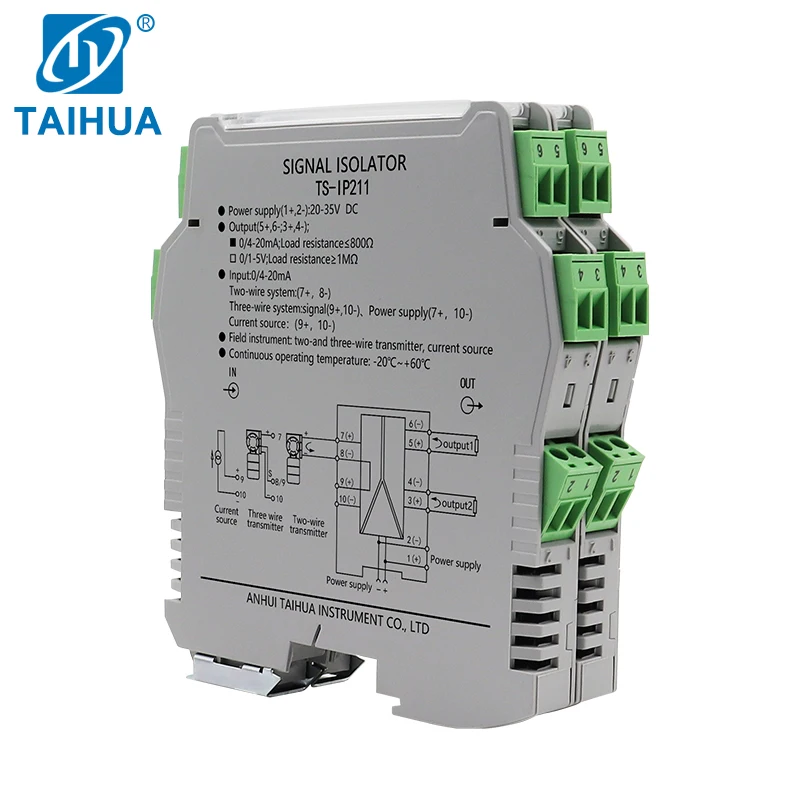

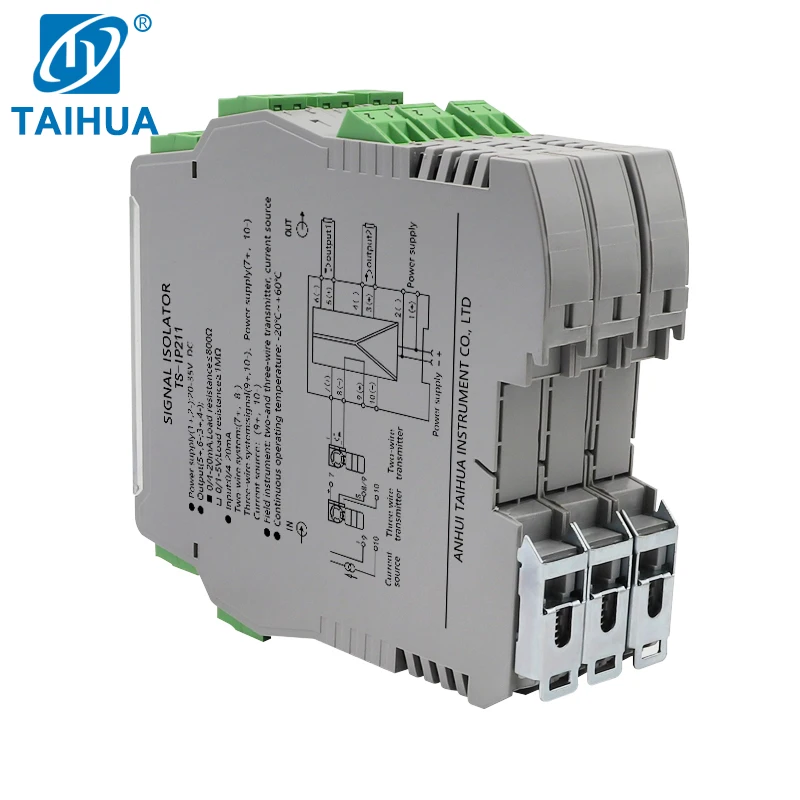

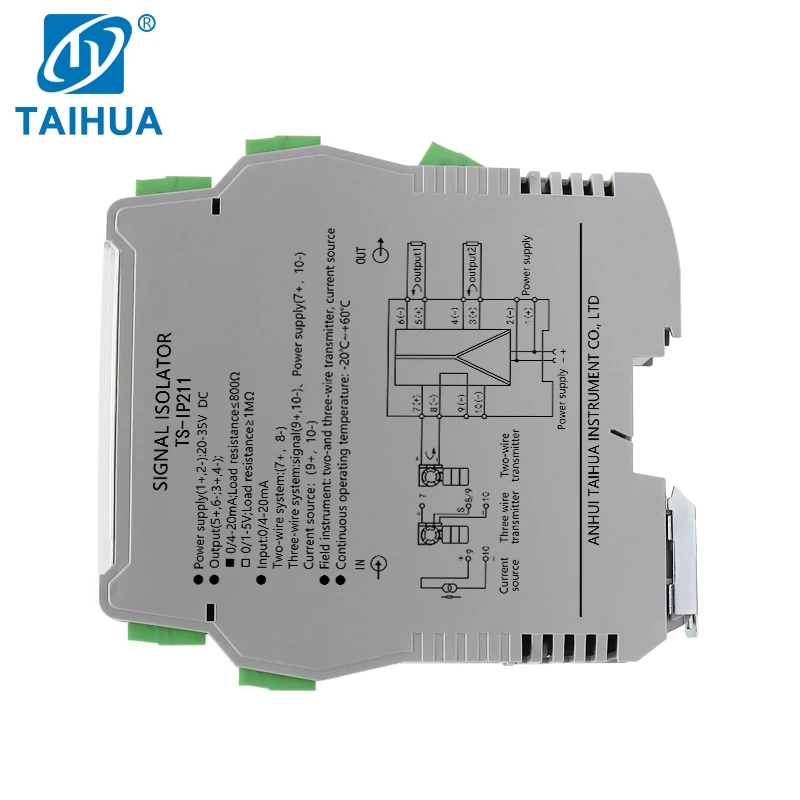

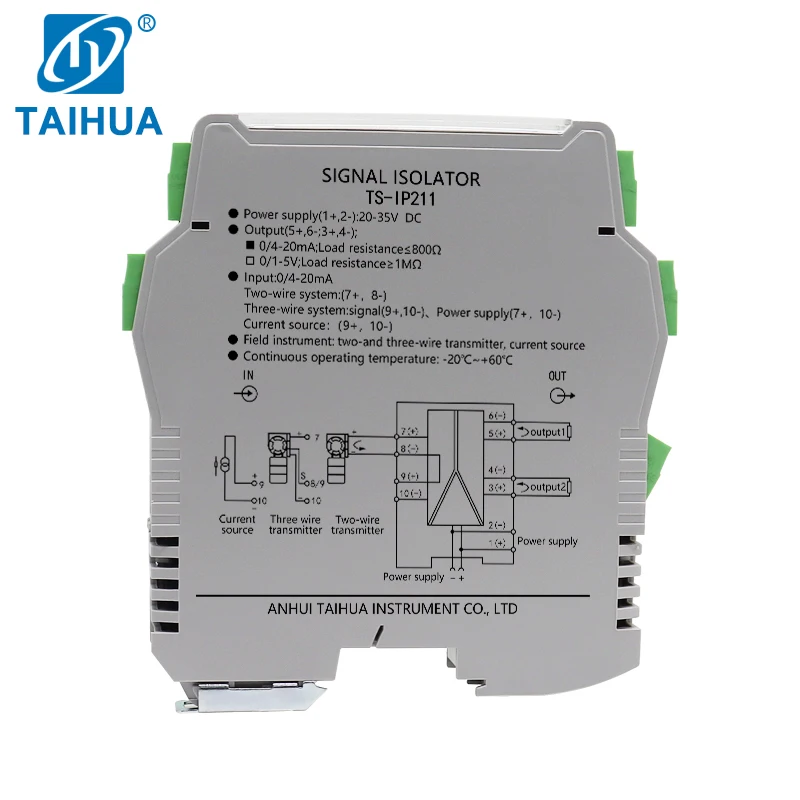

TM-TC-Pseries thermocouple signal isolator, received from the field thermocouple signal, through the isolation transformer
output standard current/voltage signal to the control room, PLC display instrument and DCS.
With LCD display function, it can switch and display parameters of different channels through key switch, and display real-time input measurement value, theoretical output value, unit and channel number, fault alarm information and other contents on the LCD screen.
Through the miniUSB interface to connect the PC upper computer to the input signal indexing, measurement range, alarm output value; Output measurement range, type, etc. RS485 communication function (to be customized).

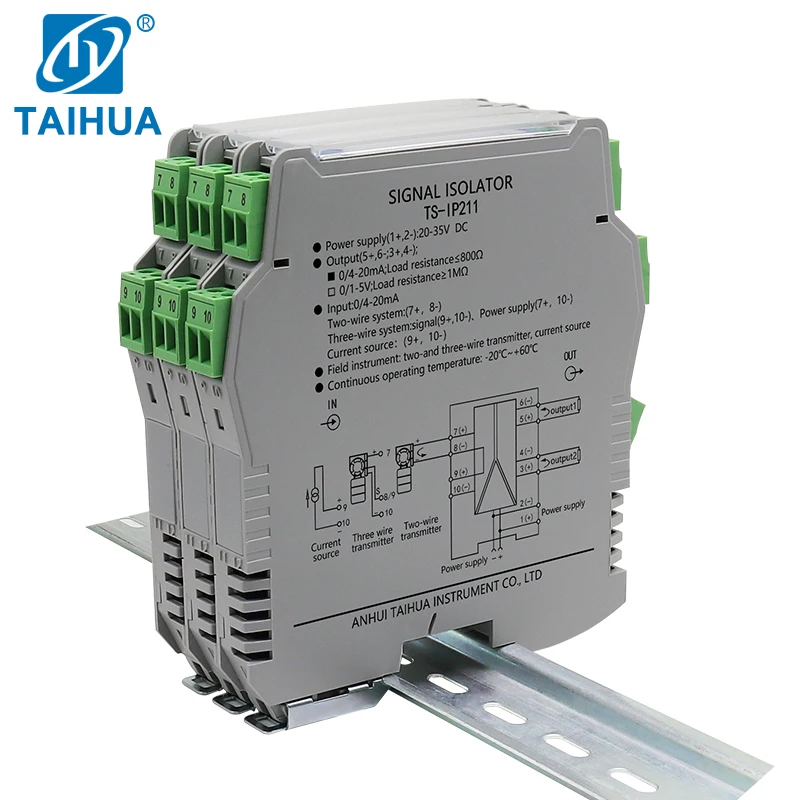

The product needs independent power supply, using DIN35mm standard guide rail independent installation mode (can choose the function of bus power supply); The input, output and power supply are isolated from each other.
output standard current/voltage signal to the control room, PLC display instrument and DCS.
With LCD display function, it can switch and display parameters of different channels through key switch, and display real-time input measurement value, theoretical output value, unit and channel number, fault alarm information and other contents on the LCD screen.
Through the miniUSB interface to connect the PC upper computer to the input signal indexing, measurement range, alarm output value; Output measurement range, type, etc. RS485 communication function (to be customized).
The product needs independent power supply, using DIN35mm standard guide rail independent installation mode (can choose the function of bus power supply); The input, output and power supply are isolated from each other.
Specification
SELECTION TABLE | ||||||||
TM-TC-P | X | X | X | Instructions | ||||
Channel | 1 | 1 IN / 1 OUT | ||||||
2 | 1 IN / 2 OUT | |||||||
5 | 2 IN / 2 OUT | |||||||
Input Signal | B | 400~+1820℃ | ||||||
E | -100~+1000℃ | |||||||
J | -100~+1200℃ | |||||||
K | -180~+1372℃ | |||||||
N | -180~+1300℃ | |||||||
R | -50~+1760℃ | |||||||
S | -50~+1760℃ | |||||||
T | -200~+400℃ | |||||||
Output Signal | 1 | 4-20mA | ||||||
2 | 0~20mA | |||||||
4 | 0-5V | |||||||
6 | 0-10V | |||||||
Product Selection: EG:TM-TC-P5K1/0-1000 2 IN/2 OUT,Input signal:K model thermocouple (0~1000℃) ,Output:4-20m | ||||||||
Main Technical Parameters | value | |
Input | ||
Input Signal | B,E,J,K,N,R,S,T etc thermocouple signal | |
Compensation accuracy:±1℃ Compensation range:-20℃~+60℃ Compensation mode: Internal compensation | ||
The input is lower than the lower limit of the range, and the output current is about 3.8mA. The input is higher than the upper limit of the range and the output current is about 20.5mA. When the input is disconnected, the output current is about 22mA (when the current is output). | ||
Disconnection Alarm | When the input is disconnected, the output current is about 22mA (when the current is output) | |
Output | ||
Output Signal | Current signal:0-20mA;Voltage signal:0-10V | |
Output Load Resistance | RL≤400Ω(Output is current signal) RL≥10kΩ(Output is voltage signal) | |
General Technical Parameters | ||
Number of Channels | 1 IN/1 OUT;1 IN/2 OUT;2 IN/2 OUT | |
Power Supply | DC 24V,Voltage Range:DC 18~32V | |
Current Consumption | ≤55mA(2 IN/2 OUT,24V Power supply,20mA Output) | |
Basic Accuracy | ±0.1%F.S or 0.2%F.S（20℃）Subject to the physical label. | |
Temperature Drift | ≤±0.1%F.S/℃（-20°C~+60°C） | |
Response Time | ≤1s (0-90%)(TYP) | |
Dielectric Strength | 1500V AC/1 min (among input/output/power supply) | |
Operating Temperature Range | -20~+55°C | |
Suit for Field Equipment | Thermocouple | |
