Product Overview
Description
Product Description

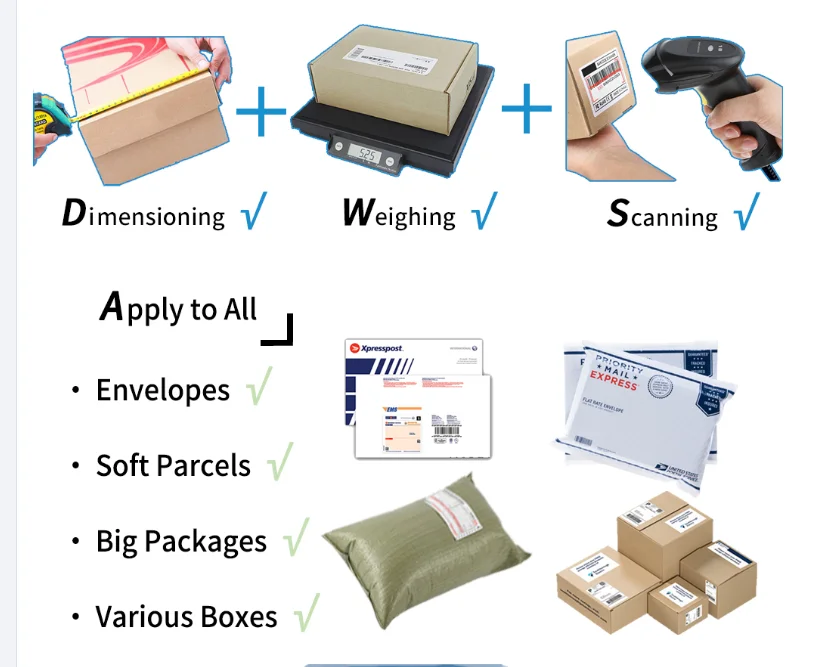

This product is used for weighing and scanning of small parcels. It integrates automatic scanning, photo taking , weighing and piece counting, it also integrates the collected barcode,and weight data through software, and can be docked into E-commerce, express delivery, logistics management systems.
Work flows:
● Put the parcel onto the surface of scale weight
● The weighing scanning machine automatically reads the barcode and weight
● Image of parcel & barcode is captured
The machine is designed to handle small parcels. It can designed in high weighing accuracy as 10g.
It is quite a mature and stable equipment but also an economic choice..
Work flows:
● Put the parcel onto the surface of scale weight
● The weighing scanning machine automatically reads the barcode and weight
● Image of parcel & barcode is captured
The machine is designed to handle small parcels. It can designed in high weighing accuracy as 10g.
It is quite a mature and stable equipment but also an economic choice..

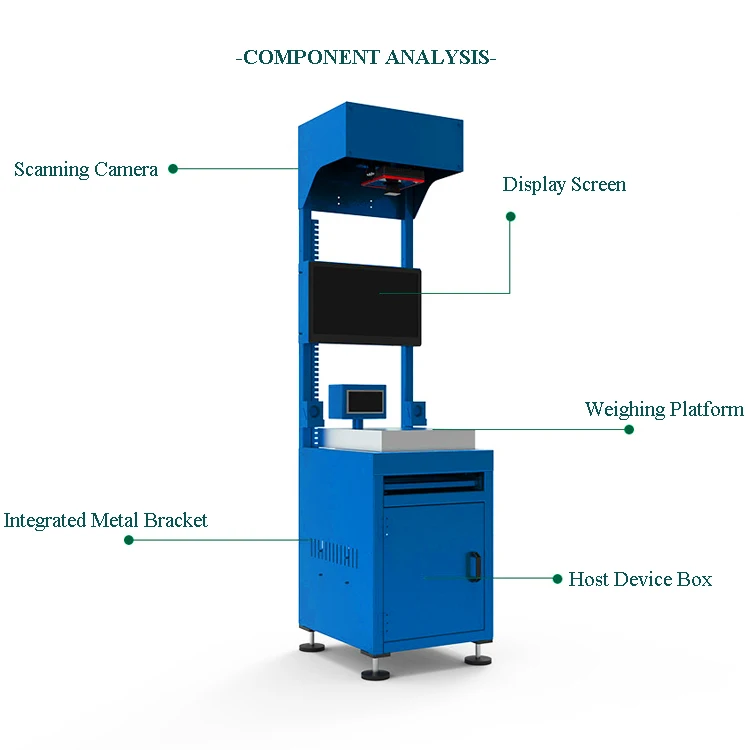

Main Features:
- ● Integrated reading, weighing ,dimensioning and picture capture function. ● Adopt brand industrial code reading camera, code scanning rate of 99.99%
● Weighing accuracy can reach 1g, the lowest weighing can start from 5g.
● Support local image uploading and real-time online image uploading.
● Multiple data transmission modes, support custom development.
Product Paramenters
Description | Specification | Remarks |
Industrial computer | model IPC-2302,I5 4GRAM，120G SSD Double Gigabit Ethernet port | Advantech |
Display | 19.5 inches | AOC |
Reading camera | MV-CA060-10GM | HIKVISION |
Dedicated light source | MV-LR-102-102-40WL | HIKVISION |
Keyboard mouse | Wireless mouse and keyboard set | Logitech |
Electronic scale | TCS-100kg | BAIHENG/FEIRUI |
Lens | MVL-HF1228M-6MP | HIKVISION |
Dimension camera | 3D binocular | |
Audio speaker | One pair |
Weighing accuracy | ±10g |
Weighing range | 0.1-30kg |
Effectiveness | 3000~4000 pieces |
Dimension range | 100*100*100~800*800*800mm |
Dimension accuracy | ±10mm for regular packages, ±15 for the irregular |
Reader recognition rate | No pollution, Damage, Fine folds, and Defects, the recognition rate is 99.99% (above 10mil barcode) |
Software interface | http、TCP、485 |
Application Software | SENAD DWS System |
Weighing mode | Static weighing |
power supply | 220V(customized) |
Remote diagnosis | yes |
gathering images | yes |
Product Details
__________

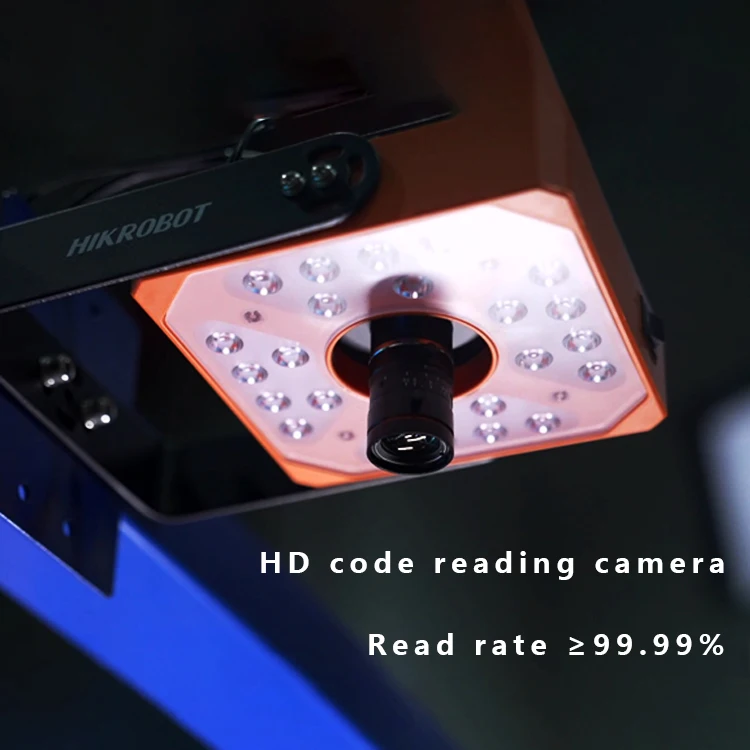

Hikvision high-precision shooting cameras can accurately scan and record item information, realize storage records, and improve
recognition capabilities
__________

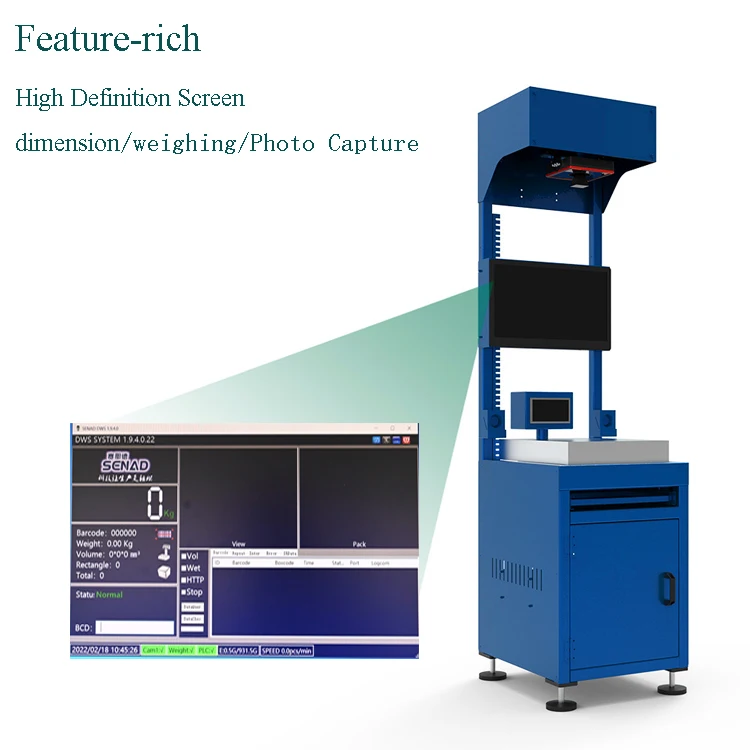

The operation interface can be customized and designed according to language requirements, clearly displaying the detailed information of each package, including weight and size, and then performing automatic sorting operations to improve work efficiency
__________
Clear record interface
__________
The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information

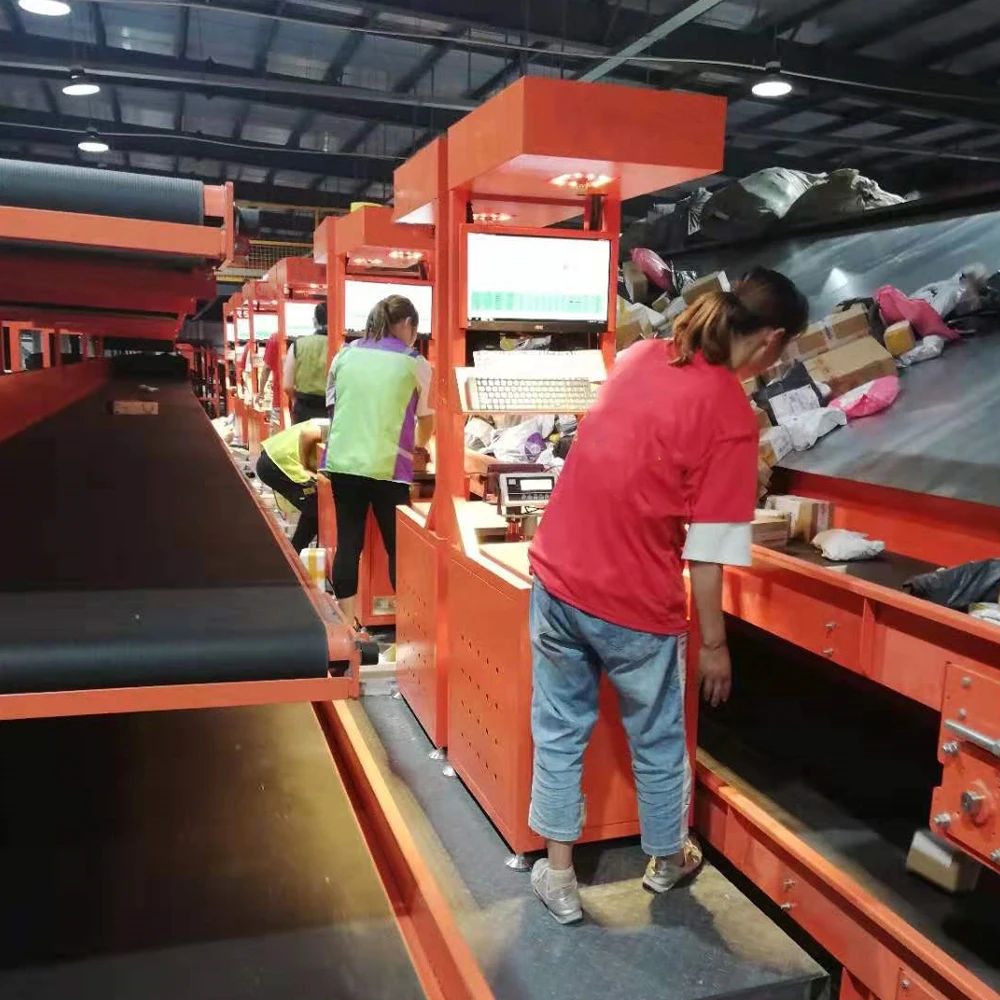

Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
About Us
Welcome to visit us!
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions,such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system,etc. These equipments take machine vision deep learning algorithm and robot motion control as the core, and adopt image processing algorithm, artificial intelligence, pattern recognition, video analysis algorithm, ARM|FPGA|DSP embedded software and hardware development, industrial machine vision positioning, vision tracking, vision detection, multi-sensor information fusion and other technical methods to achieve the goal of "replacing manual labor with robot". These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency. Technology makes production easier. We pursue a win-win situation. Our mission is to make work easier and more efficient for our partners. We will continue to contribute to upgrading and developing the practical application of new technologies, providing our partners with high quality equipment and professional consulting services.Our Factory
Development history
Our Certifications
Partners
Exhibition
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
