Malinmaus 188L 86C Minus 86 Degree ultra low temperature compact upright ULT lab vaccine medical freezers
- Category: Warehousing & Supermarket Supplies >>>
- Supplier: Mether,Scientific,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

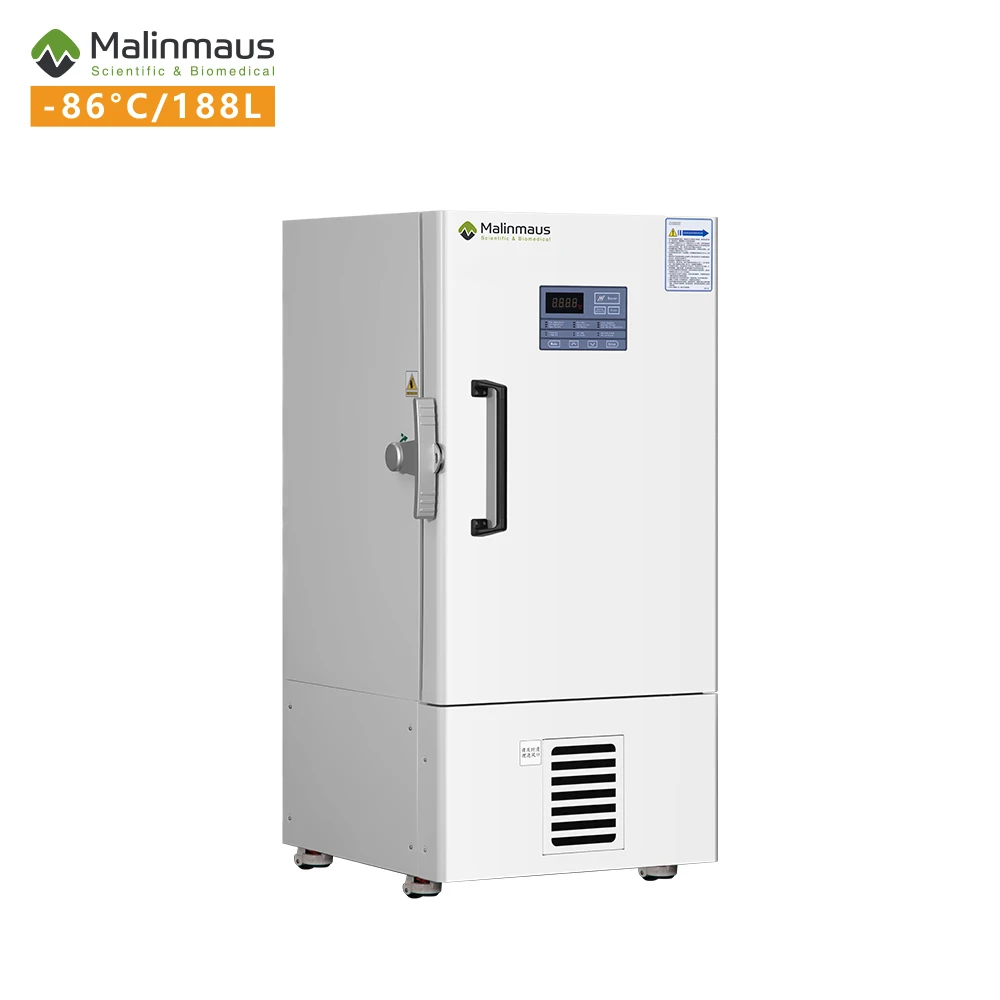

-86°C Compact ULT Freezer
★ Precise temperature control, ensure good temperature uniformity.
★ Audible and visual alarm system for secure storage.
Application
Malinmaus -86°C ultra-low temperature freezers are designed for the long-term preservation of viruses, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.
Features
Security
■ Safety door lock to prevent unauthorized access.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.
Humanized design
Malinmaus -86°C ultra-low temperature freezers are designed for the long-term preservation of viruses, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.
Features
■Accurate temperature controller, setting temperature range is -40 to -86°C, accuracy is 0.1 °C.
■ Suggested ambient temperature: +10 to 32°C.
■ 304 SS inner chamber for friendly use and easy cleaning.
■ Brand compressor to ensure excellent stability of the cooling system.
■ Patented refrigeration technology, high-efficiency mixed gas for the cooling system.
■ Suggested ambient temperature: +10 to 32°C.
■ 304 SS inner chamber for friendly use and easy cleaning.
■ Brand compressor to ensure excellent stability of the cooling system.
■ Patented refrigeration technology, high-efficiency mixed gas for the cooling system.
Security
■ Safety door lock to prevent unauthorized access.
■ 72h built-in backup battery to power the controller and save temp. data when power failure or system error.
■ Visual and audible alarm system: High/low temperature, sensor failure, controller error.■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors failed.
Humanized design
■ Adjustable shelves for easy storage.
■Casters with stoppers for easy moving and fixation.
■ Special-designed service-free drainage system.
■ Special-designed service-free drainage system.
Model NO. | UFV-86-188E | |
Main Specifications | ||
Temperature Range | -40 ~ -86 ℃ | |
Ambient Temperature | 10~32℃ | |
Capacity (L/Cu. Ft.) | 188 / 6.64 | |
Interior Dimensions (W×D×H) mm | 465×465×830 | |
Exterior Dimensions (W×D×H) mm | 830×810×1607.5 | |
Weight | 194.5 kgs | |
Noise | 50 dB | |
Storage | ||
Cold Rack (pcs) | 4×3 / 9 | |
2' Cold Box (pcs) | 108 | |
0.5~2ml Cryo Vails (pcs) | 10,800 | |
Control and Power | ||
Controller | Microprocessor | |
Display | Digital | |
Sensor | PTC | |
Voltage and Frequency | 187~242V, 50/60Hz | |
Power | 660 W | |
Electric Current | 3.14 A | |
Power Consumption (kWh/24h) | 11.17 | |
Audible and Visual Alarms | ||
High / Low Temp. Alarm | Yes | |
Power Failure Alarm | Yes, 72h | |
Sensor Error Alarm | Yes | |
Controller Error Alarm | Yes | |
Door Ajar Alarm | Yes | |
Abnormal Voltage Alarm | Yes | |
Abnormal Ambient Temp. Alarm | Yes | |
Battery Error Alarm | Yes | |
Filter Net Clean Alarm | Yes | |
Condenser Error Alarm | Yes | |
Refrigeration | ||
Refrigeration Type | Direct Cooling | |
Defrost | Manual | |
Compressor (Brand/pcs) | CUBIGEL / 1 | |
Refrigerant / Weight (kgs) | R4001 / 290g | |
Cabinet | ||
Door (pcs) | Foamed Solid Door / 1 | |
Inner Door (pcs) | 304SS Foamed Solid Door / 3 | |
Fixed / Adjustable Shelf (pcs) | 0 / 2 | |
Interior Cabinet Material | 304 Stainless steel | |
Exterior Cabinet Material | Coated Steel | |
Insulation Material | PURF (δ150mm) | |
Door Lock | Yes | |
Test Hole (pcs) | Φ25mm / 1 | |
Fixed / Levelling Castors (pcs) | 0 / 4 | |
Accessories | ||
Voltage Stabilizer | Optional | |
USB Data Download Port | Yes | |
Remote Alarm Port | Yes | |
RS232 / RS485 Port | Optional | |
Temperature Datalogger | Optional | |
Temperature Printer | Optional | |
Protective Gloves | Optional | |
LN2/CO2 Backup System | Optional | |
LN2 Filling Tank for Backup System | Optional | |
Shipping | ||
Package | Plywood box with pallet | |
Shipping Weight | 234 kgs | |
Shipping Size (W×D×H) | 915×928×1818 | |
Shipping Volume | 1.54 CBM | |
※ Specifications are subject to change without notice. Performance data herein is based on independent testing at time of publication. For latest specification information contact our sales representatives.
Product Packaging

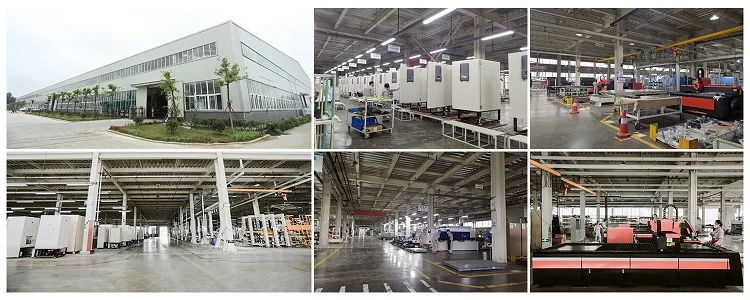

Workshop
