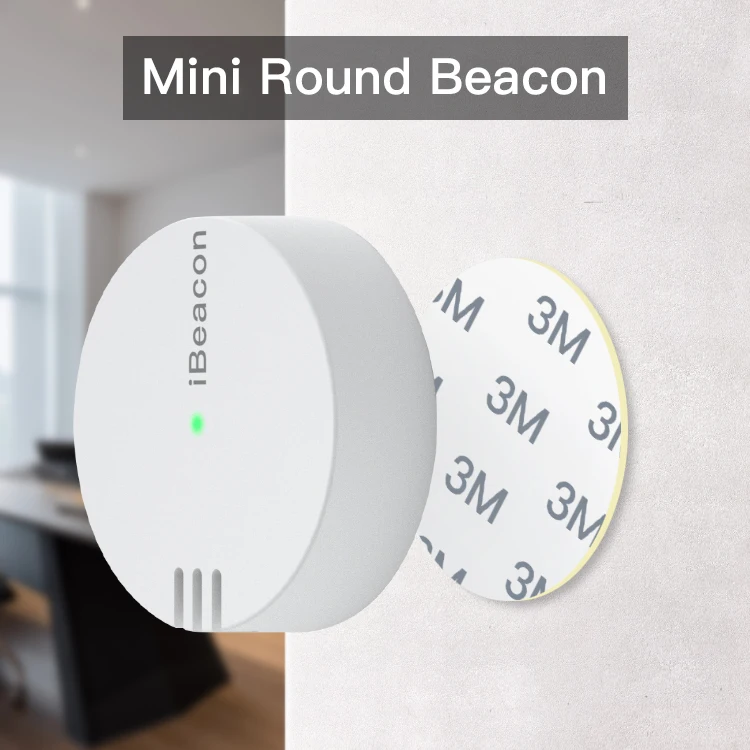

Ble IOT Temperature Sensor Beacon with 6axis Gyro Data Transfer Bluetooth Low Energy Beacon Tag
- Category: >>>
- Supplier: Shenzhen Deasino Technology Co. Ltd.
Share on (1600918873085):
Product Overview
Description
Products Description
Ble IOT Temperature Sensor Beacon with 6axis Gyro Data Transfer Bluetooth Low Energy Beacon Tag

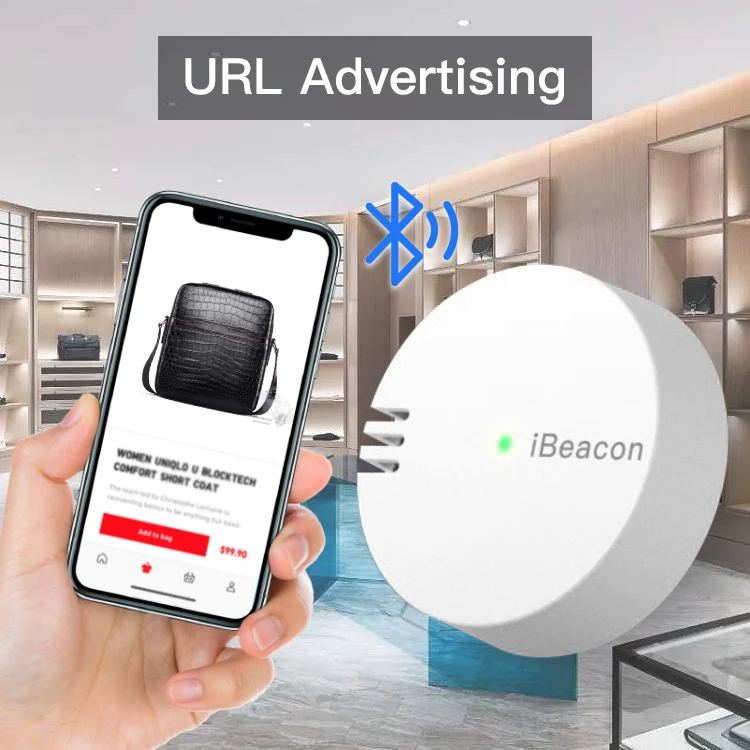

URL Advertising CR2450 Battery Set User Name

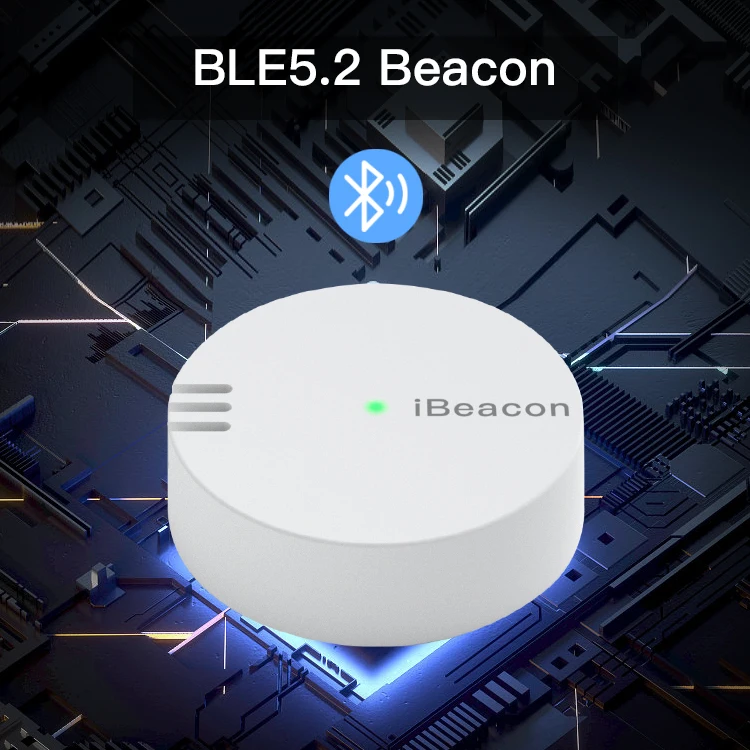

# Siliabs Series Bluetooth Low Energy 5.2 Chipset
# Basic 2 years Standby time
# Long Transmission Distance : 50m
# Certificate: CE FCC

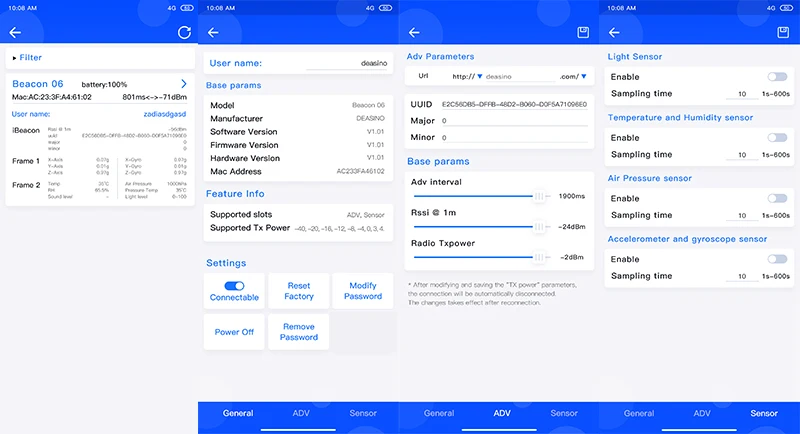

# APP Tool: Deasino in Google Play
# Firmware update over the air
# Set Bluetooth broadcast parameters and sensor sampling time
# Non-waterproof.

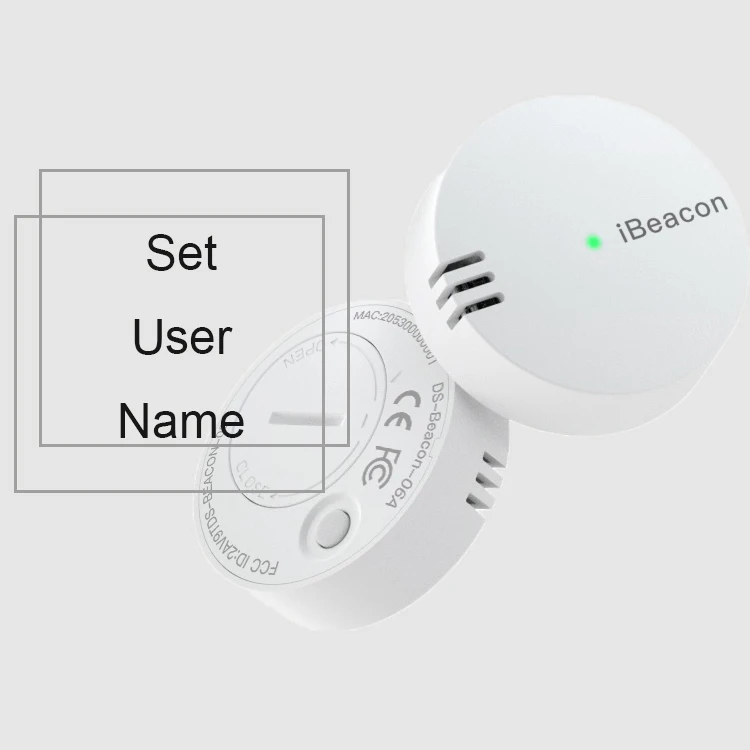

# Set User Name
# Certificate: CE FCC
# APP Tool: Deasino in Google Play
# Firmware update over the air
# Set Bluetooth broadcast parameters and sensor sampling time
# Non-waterproof.
# Set User Name
Basic Data Information | ||

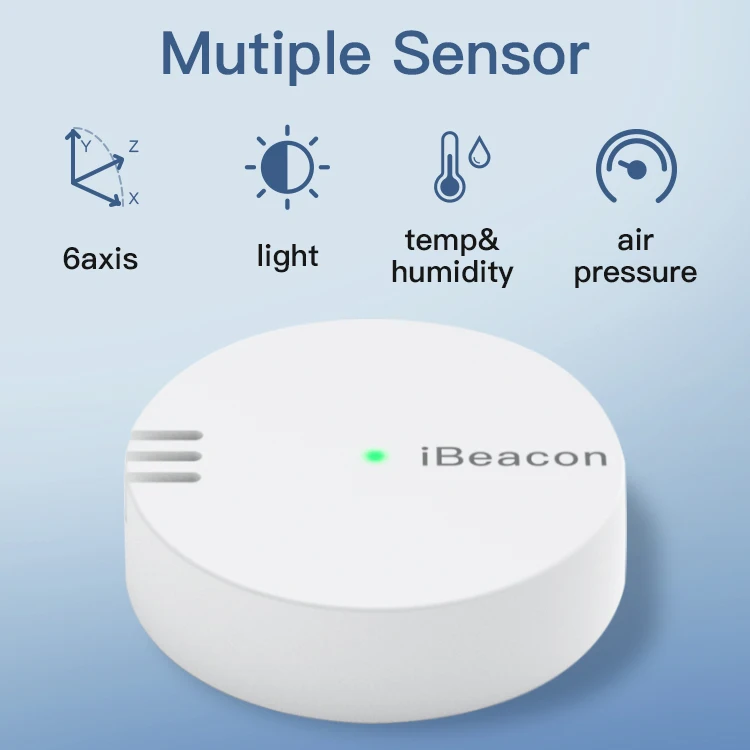

Sensor | Acceleration ,6-axis Gyro, Temperature&Humidity, Light, Air Pressure sensor | |

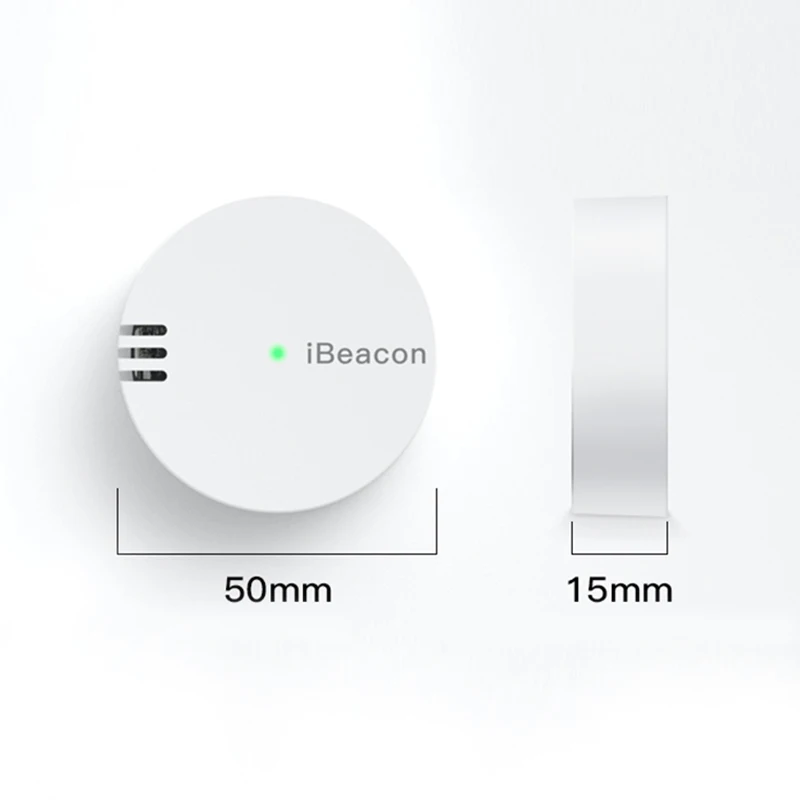

Size( D * H) | 50*15mm | |

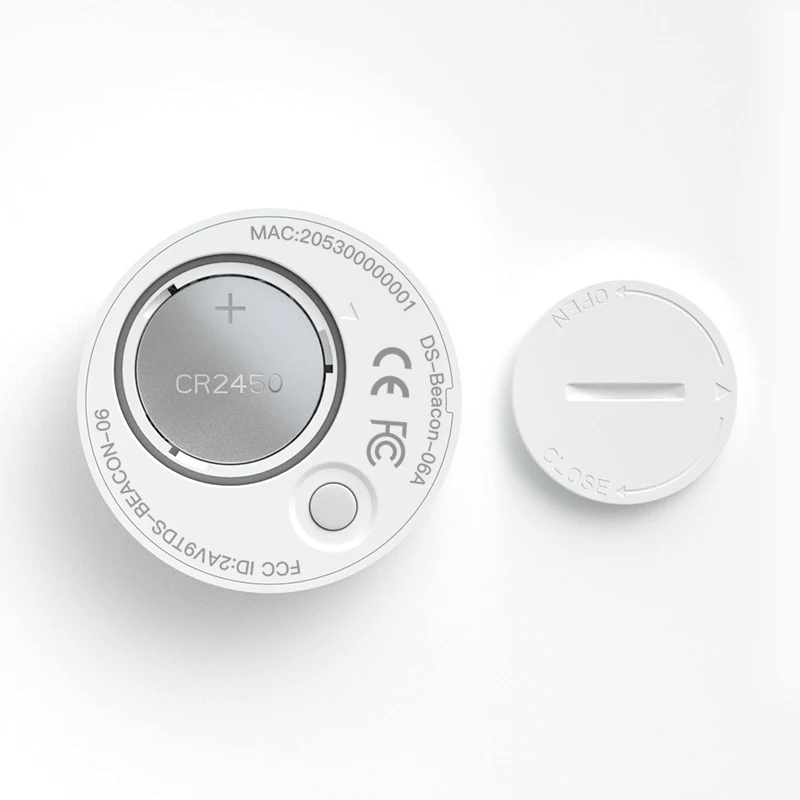

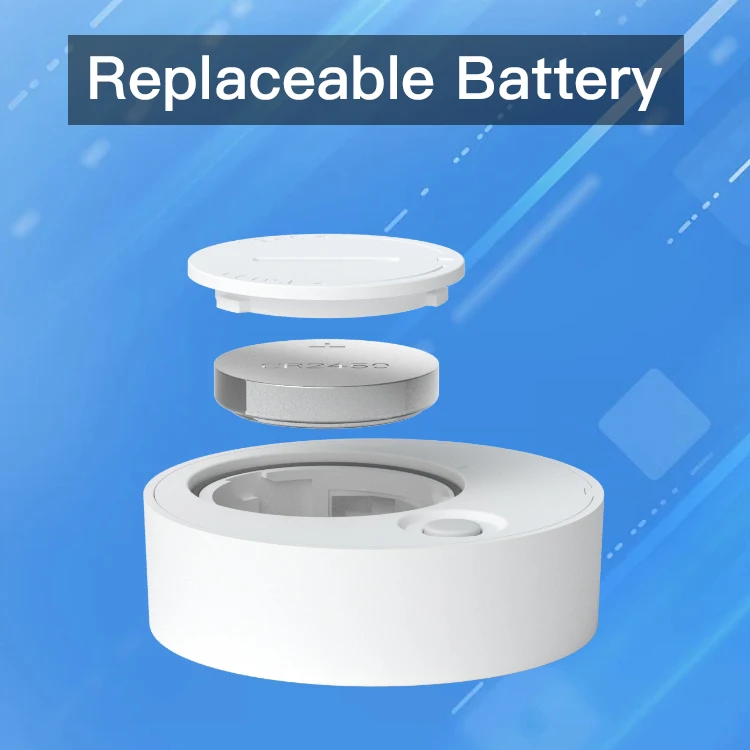

Battery | Replaceable; CR2450 | |
Product Weight | 24g | |
Operating Temperature | -20°C ~+60°C | |
Housing Material | ABS Plastic + Easy to print logo | |
Broadcasting Power | -40 +4dBm, Default 0 dBm | |
Broadcast Frequency | 20ms~20s, Default 1000ms | |
Bluetooth Stack | Bluetooth Low Energy 5.2 ibeacon | |
Initial Password | "000000"(Default password) | |
Customized | Support Customized Service | |
Application
Application scenario
> Temperature&Humidity Sensor: Cold Chain Management and Food Safety> URL Advertising: Retailer can provide the customer with a wealth of infomation
> Unique MAC Address: Bluetooth broadcast information transmission
> Indoor Positioning: Indoor positioning of shopping malls and other large public places
> Air pressure Sensor: Agricultural Humidity and Environment Monitoring
How to Use
On/off function:
Open: Long press for 3 seconds. Close: Under the power on state, hold down for three seconds and the green light will flash five times. During the green light flashing, click the button, the light will be on for one second and the power off will be successful.
Connect: Connected to Bluetooth successfully, LED flash twice;
Disconnect Bluetooth and the LED light will flash three times.
Connect: Connected to Bluetooth successfully, LED flash twice;
Disconnect Bluetooth and the LED light will flash three times.
Recommend Products
DS-Beacon-01 DS-Beacon-04 DS-Beacon-05A
DS-Beacon-05B DS-Beacon-06A DS-Beacon-06C
Why Choose Us

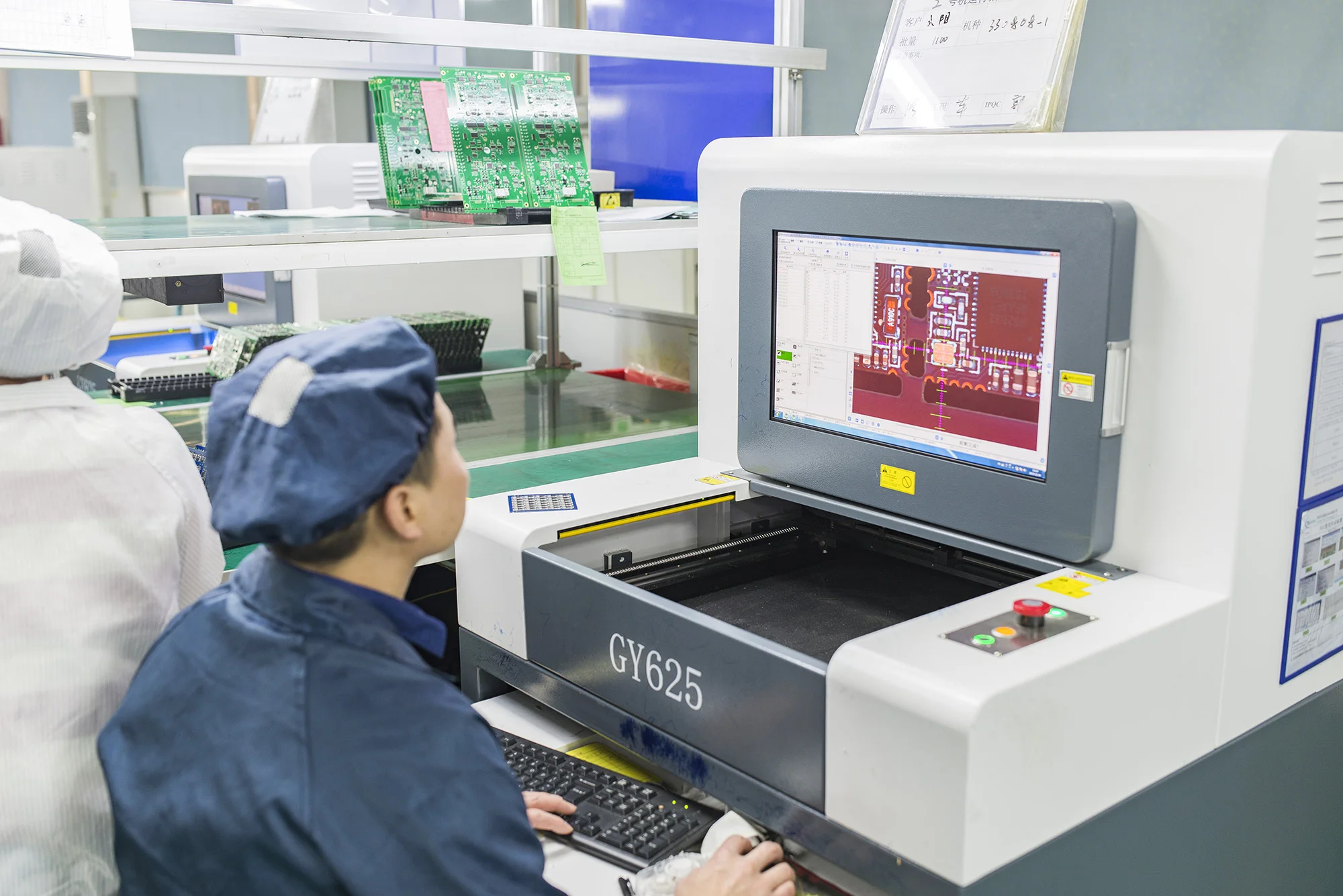

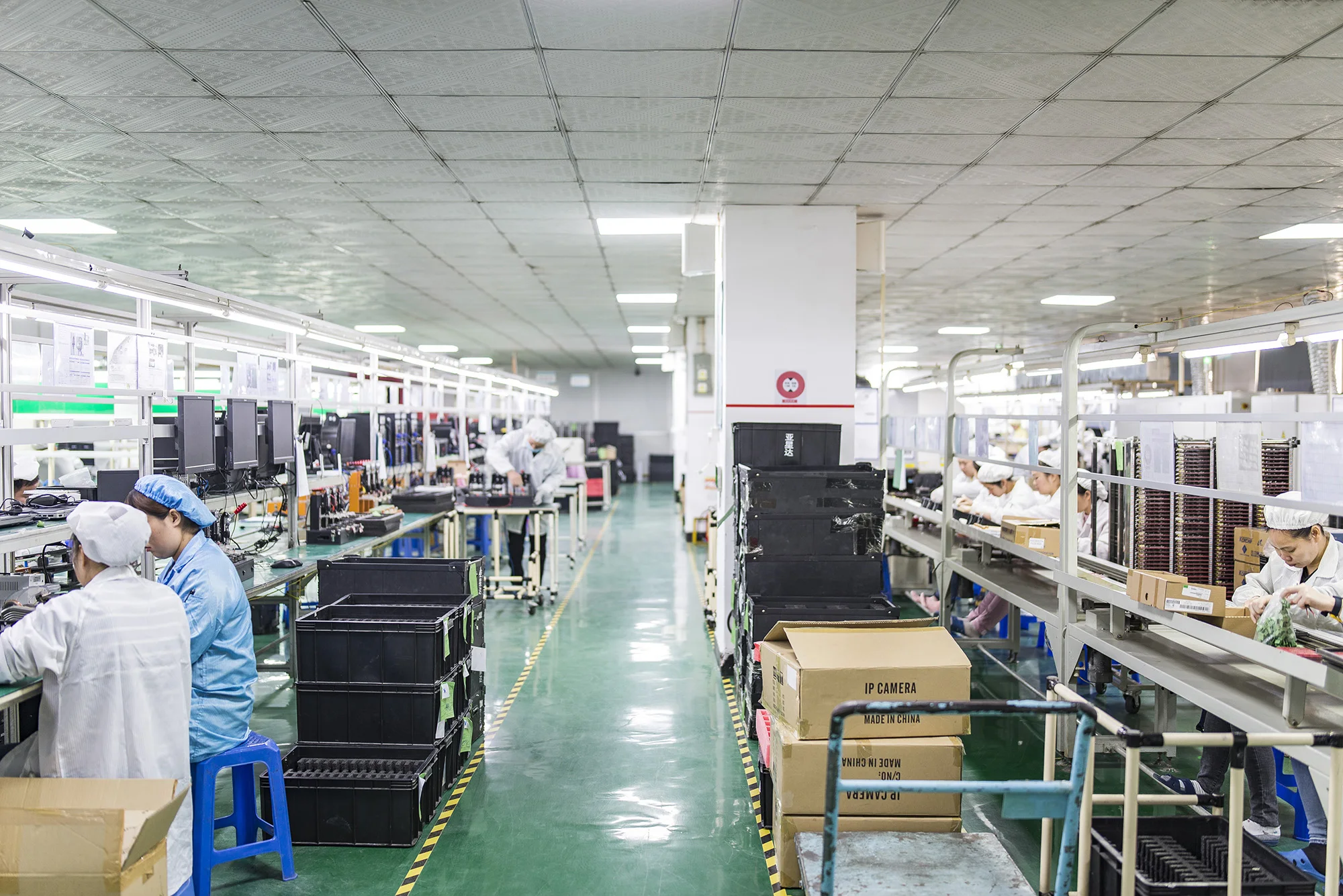

Factory R&D Team Certificate Delivery
FAQ
Q1.What documents will you provide after I buy your samples?
A1.1.Configuration App 2.Instruction 3. User Manual( data sheet/app protocol)
Q2. How to ship ?
A2.We have forwarder in China, can shipping to Any countrys. You can chose DHL, FedEx, UPS, EMS, Special Line, etc. we have profession assistance track for you until delivery.
Q3. Can I change the some parameters, like URL, PASSWORD?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK or the protocol?
A4: We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
A1.1.Configuration App 2.Instruction 3. User Manual( data sheet/app protocol)
Q2. How to ship ?
A2.We have forwarder in China, can shipping to Any countrys. You can chose DHL, FedEx, UPS, EMS, Special Line, etc. we have profession assistance track for you until delivery.
Q3. Can I change the some parameters, like URL, PASSWORD?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK or the protocol?
A4: We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
