2l Lab Small Mini Solvent Egg Instant Coffee Washing Powder Centrifugal atomizer Milk Spray Dryer Machine Price
- Category: >>>
- Supplier: Shanghai Ruiyuan Michinery Co. Ltd.
Share on (1600918883147):
Product Overview
Description
Product Description

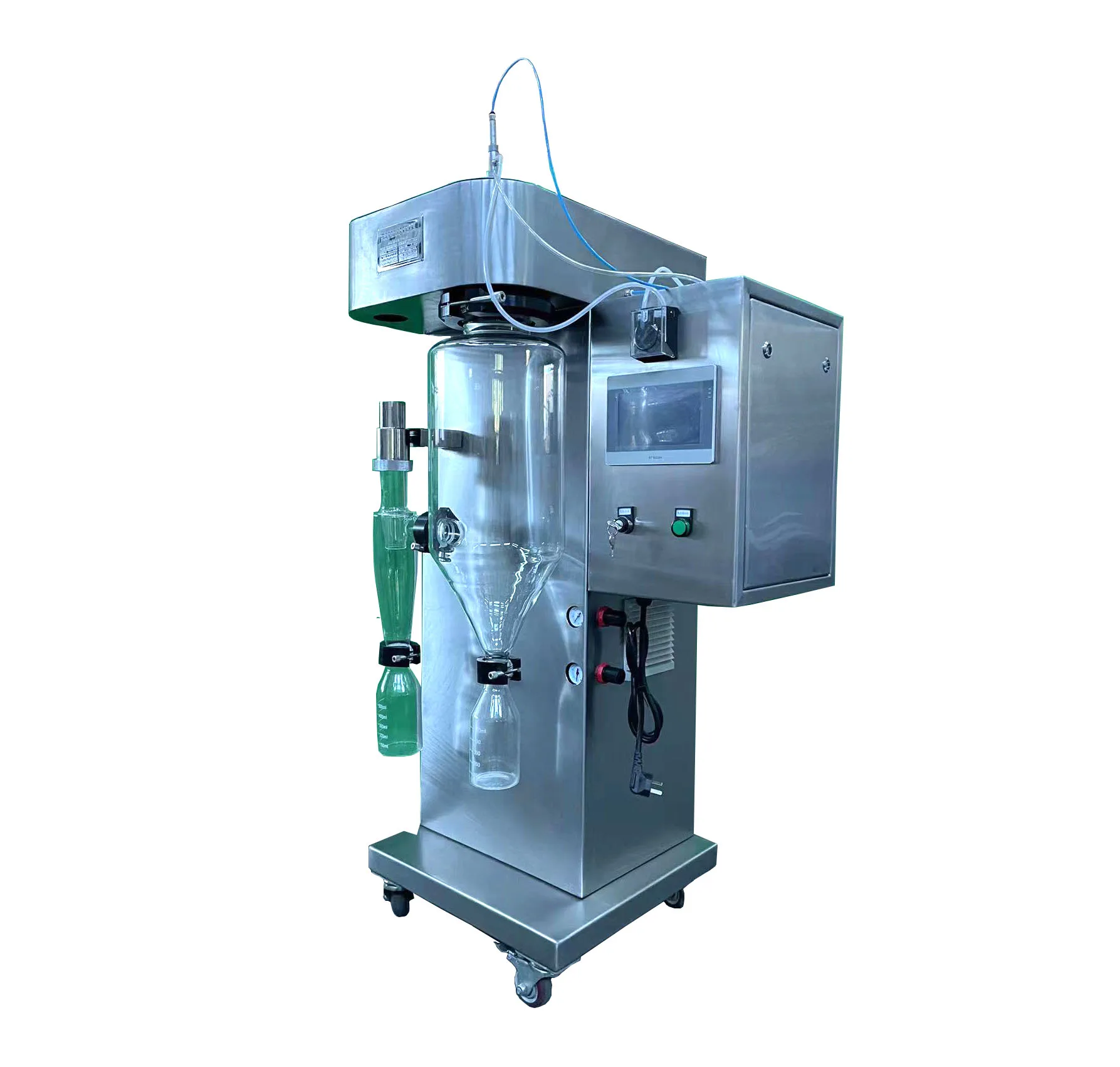

Equipment overview:
spray dryer is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has
unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy
products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.
2.Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials,
materials to maintain color, smell and taste.
3.Simplify the production process.The operational control is simple,which is suitable for control of production, wet 40-90% of the volume of liquid into a dry powder, reduce the crushing, screening processes.
spray dryer is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has
unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy
products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.

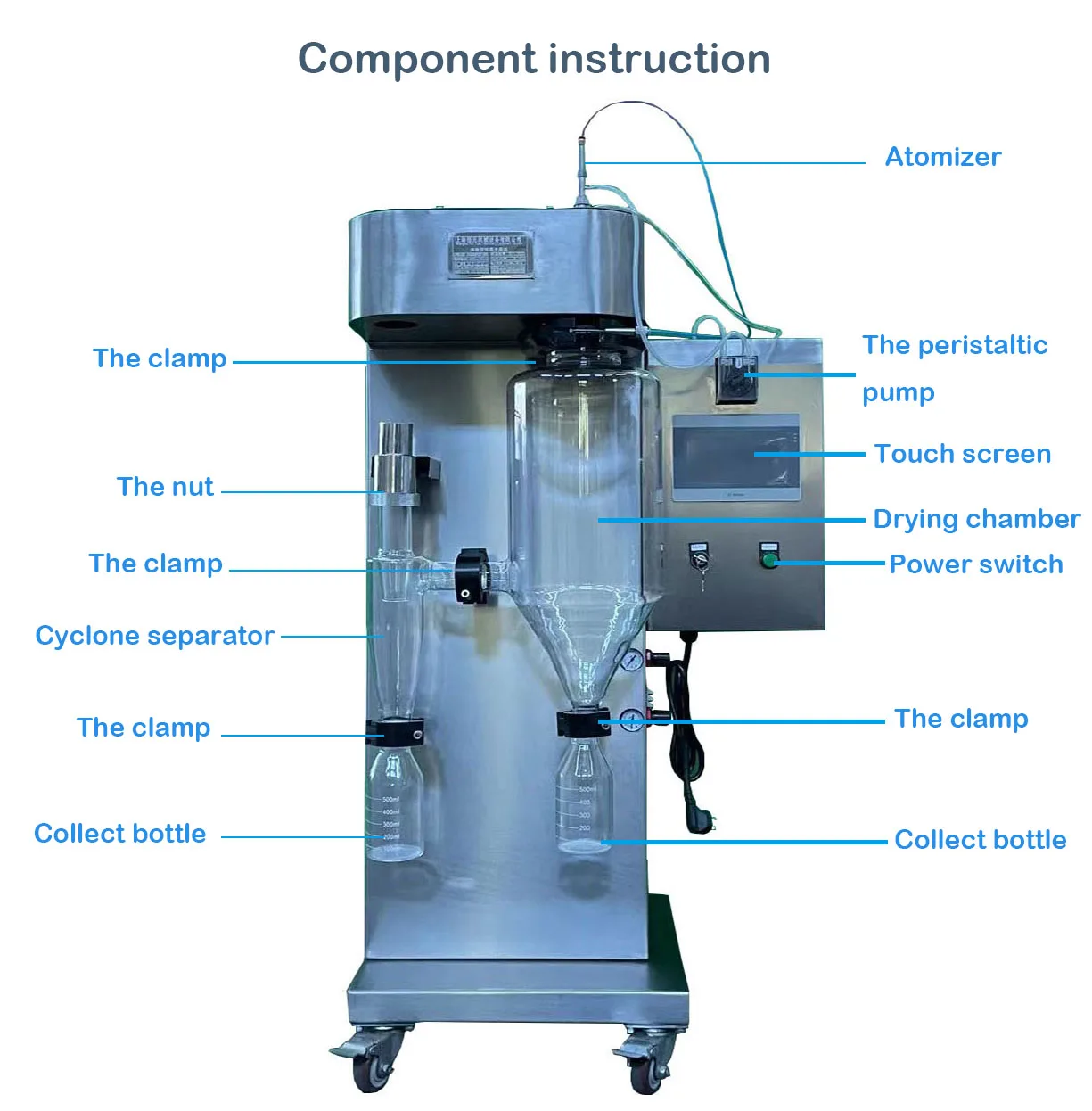

Liquid material is pumped into the top installed rotary disc atomizer by mono pump and atomized into fine droplets inside the adrying chamber. Heated and filtered hot air will be blown into the air distributor at the same time. The evenly and swirly distributed hot air completely contact with the droplets for heat transfer. In several seconds, the droplets will be dried into powder and sucked out into the cyclone for discharging via exhaust fan.
Equipment advantages:
1.Dry faster, the general time is only 5-15 seconds, with instantaneous drying characteristics.2.Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials,
materials to maintain color, smell and taste.
3.Simplify the production process.The operational control is simple,which is suitable for control of production, wet 40-90% of the volume of liquid into a dry powder, reduce the crushing, screening processes.
Specification
Item | Unit | RY-SD-5 |
Max capacity | ml/h | 5000 |
Temperature range of inlet air | ℃ | 140℃~300℃ |
Temperature range of outlet air | ℃ | 80℃~90℃ |
Precision of temperature | ℃ | +/- 1℃ |
Dry time | S | 1.0~1.5 |
Speed of squirt pump | ml/h | 5000 |
Spray system | / | Centrifugal nozzle |
Spray direction | / | Downwards co-current |
Electric heating power | kw | 9 |
Heat source | / | Electric |
Total power | / | 10KW 380V |
Stainless steel tank diameter | mm | 800 |
Dried powder restoring rate | % | ≥92 |
Centrifugal spray rotation type | / | Compressed air rotation |
Rotate speed | rpm | 25000 |
Diameter of spray tray | mm | 50 |
