800c Continuous Atmosphere Aluminum Brazing Vacuum Furnace For Radiators Air Conditioning Evaporators Heat Exchangers
- Category: >>>
- Supplier: Henan Pyrocore Corporation
Share on (1600918887654):
Product Overview
Description
Product Description

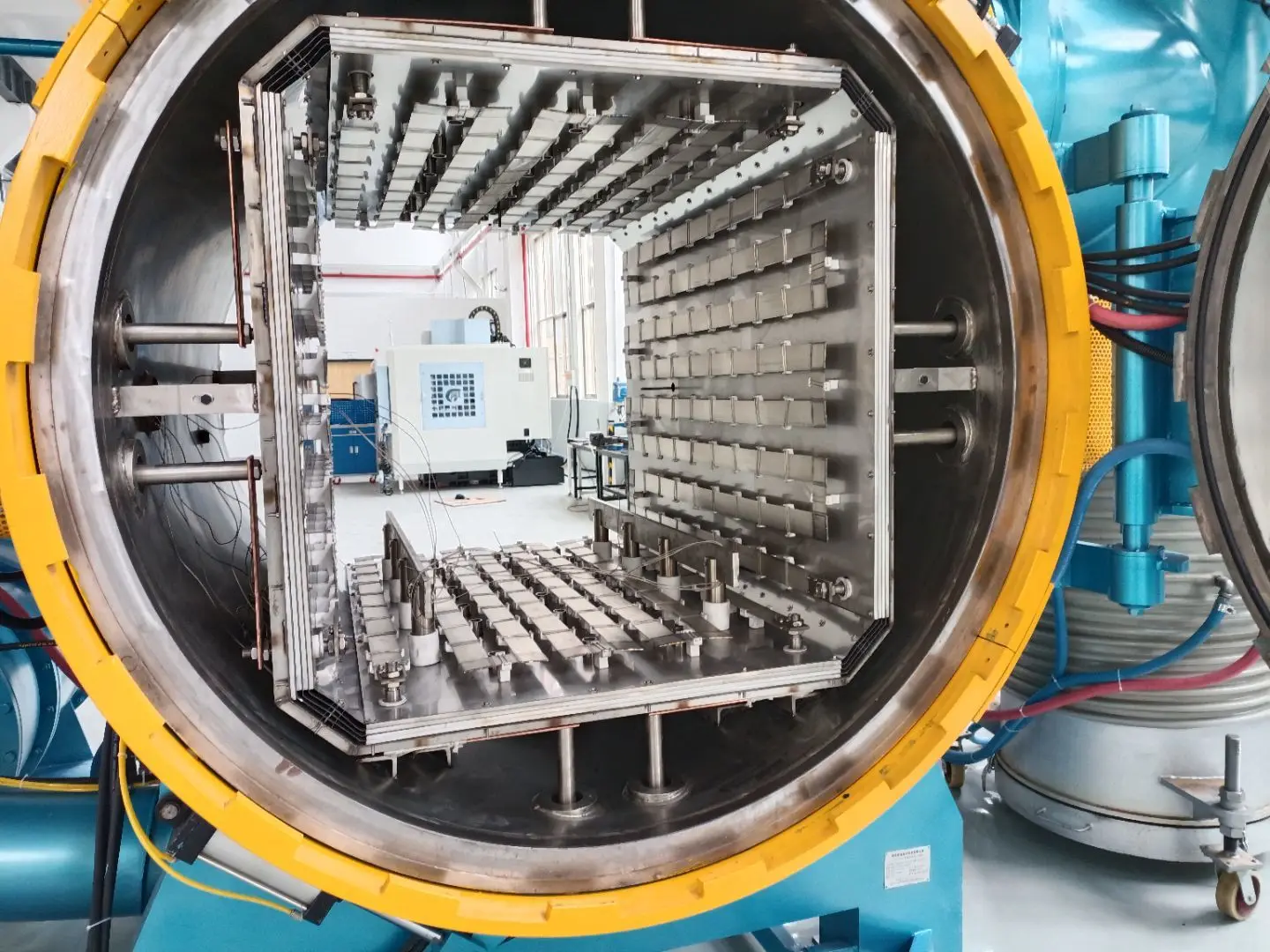

Vacuum Aluminum Brazing Furnace
Uses:

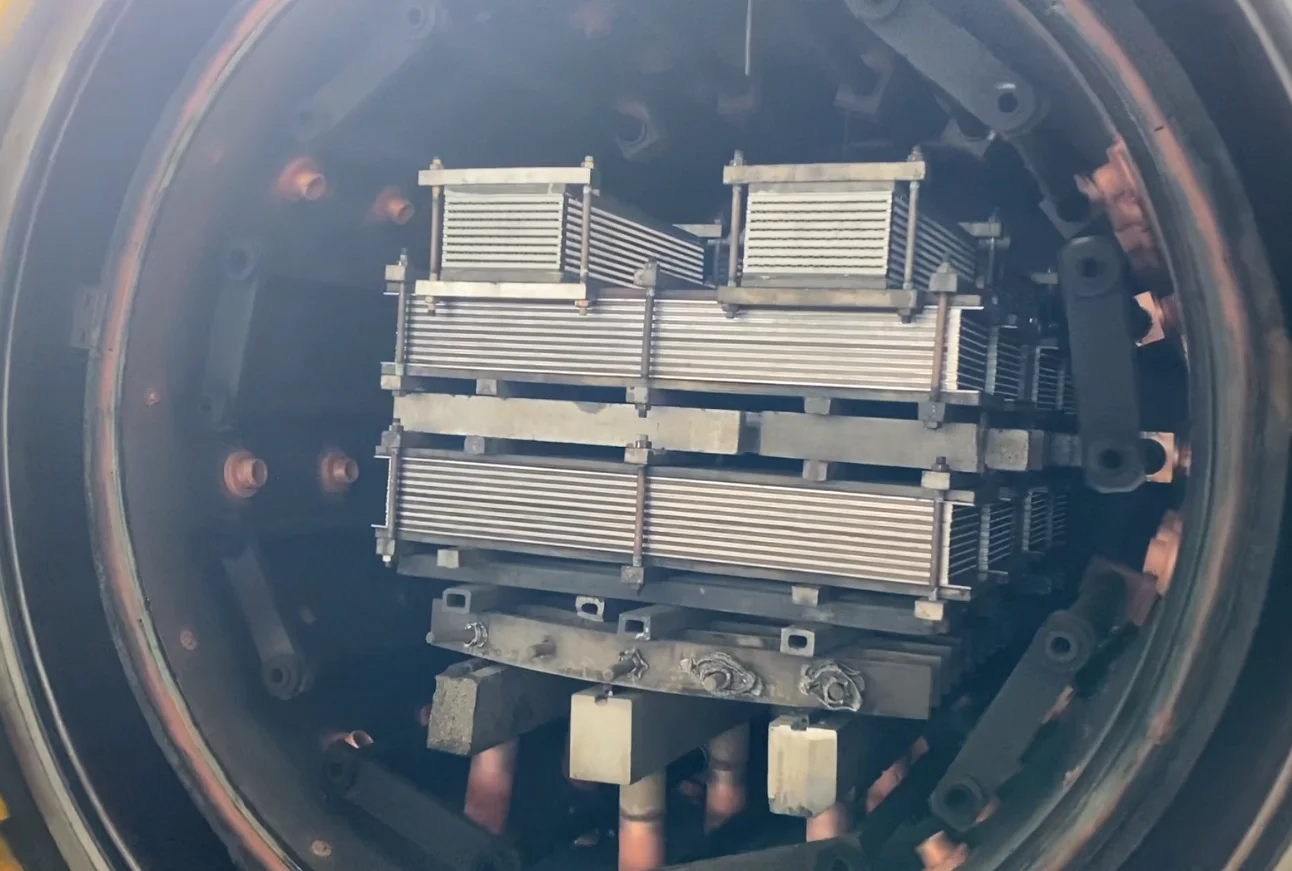

It is suitable for aluminum brazing products such as aluminum plate-fin heat exchanger, car radiator, car air conditioner
evaporator, condenser, radar network antenna and waveguide pipe. It has the characteristics of no pollution, no flux, no porosity, slag entrapment, energy saving and so on.
evaporator, condenser, radar network antenna and waveguide pipe. It has the characteristics of no pollution, no flux, no porosity, slag entrapment, energy saving and so on.
Features:
1.The equipment adopts internal circulation cooling mode to separate heating and cooling.
2.The insulation adopts all-metal screen to ensure the high vacuum degree required when brazing the workpiece.
3.Heating adopts multi-zone temperature control heating, can ensure good temperature uniformity in the temperature zone.
Product technology:
The company not only provides professional vacuum equipment, but also the company has professional vacuum aluminum brazing technician to provide you with brazing process support. The company also has a professional vacuum furnace for you to carry out process experiments, better for you. At the same time the company also undertake 6061, 6063, 3303 and other vacuum brazing outsourcing processing, welcome to consult. This product has horizontal, vertical two kinds. At the same time can be customized various non-standard vacuum aluminum brazing furnace.
1.The equipment adopts internal circulation cooling mode to separate heating and cooling.
2.The insulation adopts all-metal screen to ensure the high vacuum degree required when brazing the workpiece.
3.Heating adopts multi-zone temperature control heating, can ensure good temperature uniformity in the temperature zone.
Product technology:
The company not only provides professional vacuum equipment, but also the company has professional vacuum aluminum brazing technician to provide you with brazing process support. The company also has a professional vacuum furnace for you to carry out process experiments, better for you. At the same time the company also undertake 6061, 6063, 3303 and other vacuum brazing outsourcing processing, welcome to consult. This product has horizontal, vertical two kinds. At the same time can be customized various non-standard vacuum aluminum brazing furnace.
Specification
Type | Size (mm) | Loading Capacity (kg) | Heating Material | Heating Power (kw) | Maximum Temperature(℃) | Temperature Uniformity (±℃) | Ultimate Vacuum(Pa) |
VTB-335 | 300×300× 500 | 100 | Nickel-Chromium | 40 | 750 | 3 | 6*10-4 |
VTB-446 | 400×400× 600 | 200 | 60 | ||||
VTB-557 | 500×500× 700 | 300 | 80 | ||||
VTB-669 | 600×600× 900 | 500 | 100 | ||||
VTB-8812 | 800×800× 1200 | 1000 | 160 | ||||
VTB-9920 | 900×900×2000 | 1500 | 400 | ||||
Customization | Customization | Customization | Customization |
Other Products
We have been engaged in the production of heat treatment equipment for more than 15 years, specializing in the manufacture of vacuum heat treatment furnaces, vacuum brazing furnaces, vacuum hot pressing furnaces, vacuum metallurgical furnaces, vacuum sintering furnaces and other vacuum equipment, Especially good at designing and manufacturing non-standard equipment according to different requirements of users.
Our company employs brazing experts such as senior craftsmen and senior technicians with many years of brazing experience as senior consultants, who can provide users with good technical support in terms of product brazing technology. At present, it has successfully developed vacuum brazing processing business and brazing process supporting services for materials such as stainless steel, hard alloy, ceramics, alloy steel, superalloy, aluminum, red copper, diamond, and carbon steel.
At present, our products have been exported to all over the world - the United States, Europe, Southeast Asia and other regions. We not only provide high-quality equipment, but also continuously improve our after-sales service, truly achieving 100% customer satisfaction.

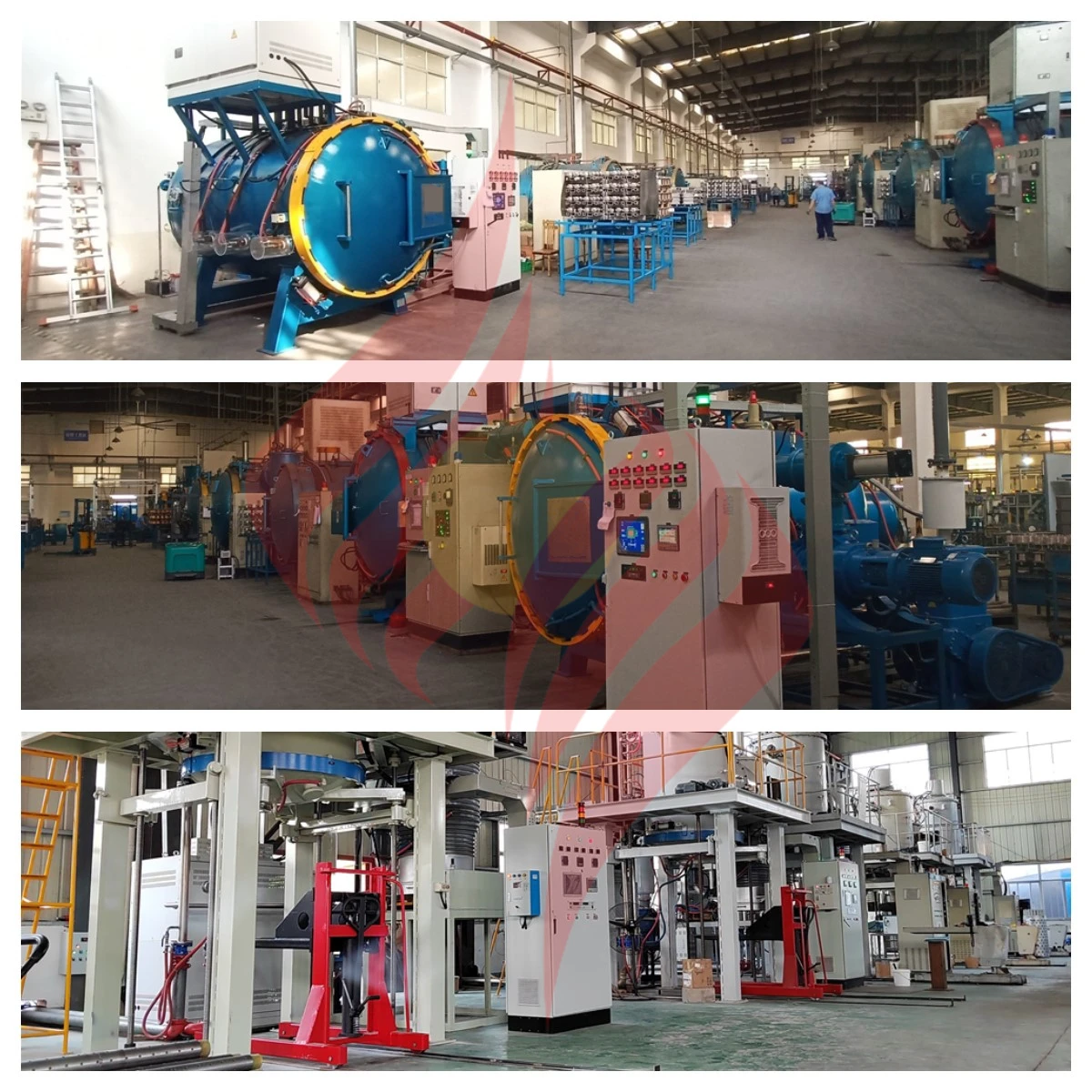

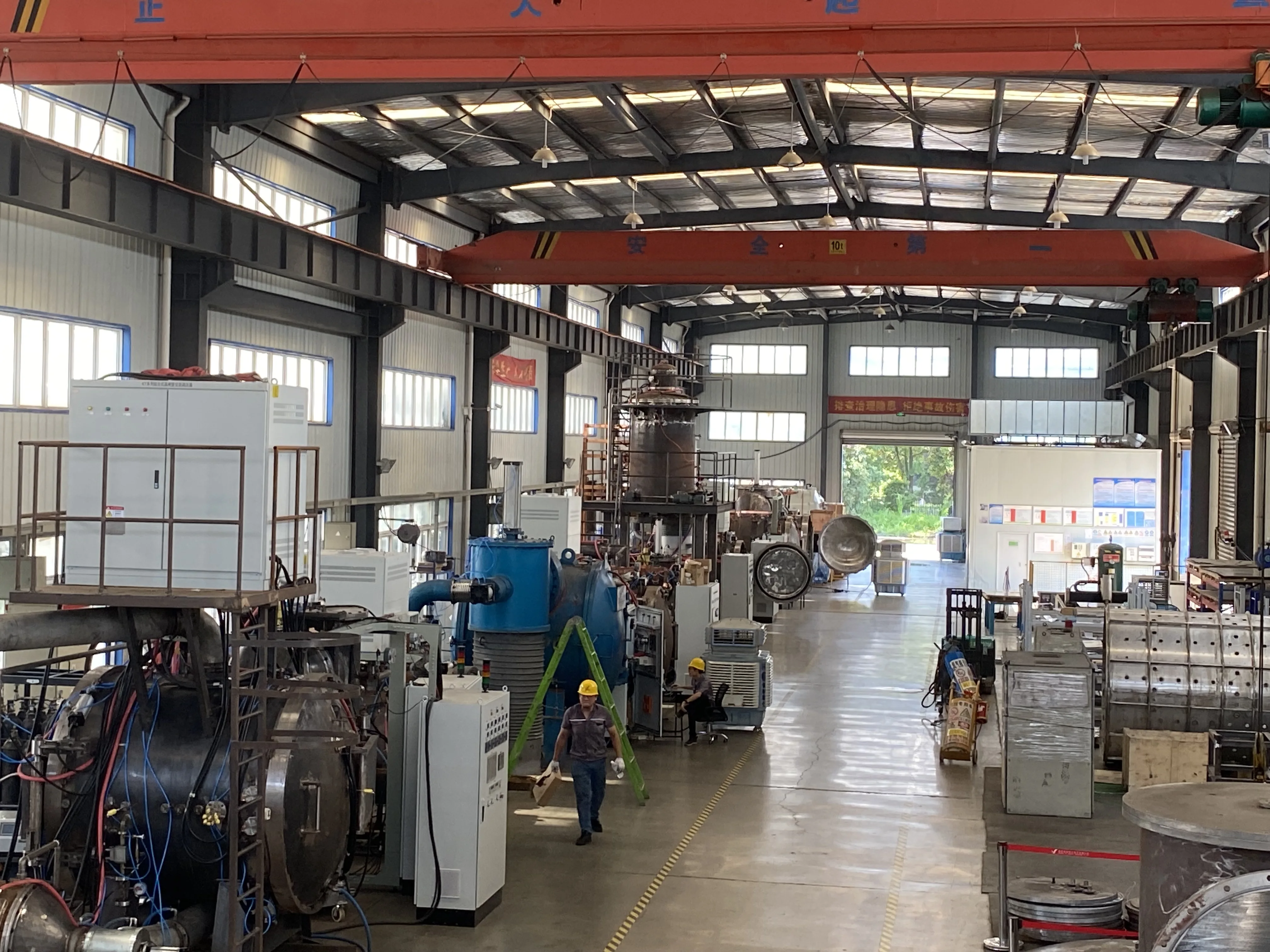

Production and Inventory
Our goal is not to win by quantity, but to win by quality. Compared with rapid development, we value the word-of-mouth of every customer who used our products. I believe that as time goes by, our reputation in the industry will get better and better. At present, we are proud that every customer who has used our equipment will be the best choice to buy a vacuum furnace again. Therefore, our products have undergone strict quality inspections before leaving the factory. We make sure to provide the best equipment to our customers, and provide quality assurance and after-sales service to customers all over the world. If there is any problem with the equipment, we will help customers in time.
Packing & Delivery
Our rich export experience enables you to receive your purchased equipment faster and safer, and we will have professional technicians come to your address to provide you with installation and maintenance guidance.
Company Profile
We have been at the forefront in the heat treatment industry. So far we have obtained a large number of national patents and various international quality certifications. You can rest assured to buy our equipment.
We actively participate in various international exhibitions to display our products and better communicate with customers. You can see us all over the world. The picture shows our just-concluded 2023 heat treatment exhibition in Dusseldorf, Germany.
Customer Case
We have many customers all over the world who have been using our equipment for production, and our equipment has been well received by all customers. We can provide you with video factory inspection service abroad, and we can discuss more equipment details in the factory when you arrive in China.
FAQ
1.Is your company accepting customization?
We have own factory and excellent technical team, and we accept OEM service.
2.Can you install the furnace in oversea?
Yes, our engeneer and worker can service inoversea.
3.What after-sale service you can offer?
1 year waraanty, and lifetime maintance service in oversea.
4. What is the delivery time?
20-45 days after receiving deposit
5. What's your regular practice concerning terms of payment?
A: Payment terms :T/T 30%-50% deposit after order confirm ,the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
We have own factory and excellent technical team, and we accept OEM service.
2.Can you install the furnace in oversea?
Yes, our engeneer and worker can service inoversea.
3.What after-sale service you can offer?
1 year waraanty, and lifetime maintance service in oversea.
4. What is the delivery time?
20-45 days after receiving deposit
5. What's your regular practice concerning terms of payment?
A: Payment terms :T/T 30%-50% deposit after order confirm ,the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
