Automatic Choco Pie 6pcs or 12 Packs Box Cartoning Packing Machine
- Category: >>>
- Supplier: Zhejiang Leadtop Pharmaceutical Machinery Co. Ltd.
Share on (1600918920318):
Product Overview
Description
Product Description
Automatic Cartoning Machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
Machine Data
Model | ZH-100 | ZH-300 |
production speed | 50-100 boxes/min | 200-300 boxes/min |
Carton Size （Customizable） | (40-125)*(12-85)*(16-70)mm | (70-200)*(35-120)*(20-70)mm |
Leaflets Size | (80-210)×(70-210)mm | |
Leaflets Fold range | (1-4)fold | |
Power | 220V/380V 50Hz 1.5kw | 220V/380V 50Hz 7.5kw |
Air consumption | 120-160 L/min | ≥0.2m3/min |
Compressed Air Pressure | 0.5-0.8 MPa | 0.5-0.7Mpa |
Noise | ＜70B | |
Size | 3250*1450*1550mm | 4950*1600*1700mm |
Weight | 1100kg | 3500kg |
Products Description

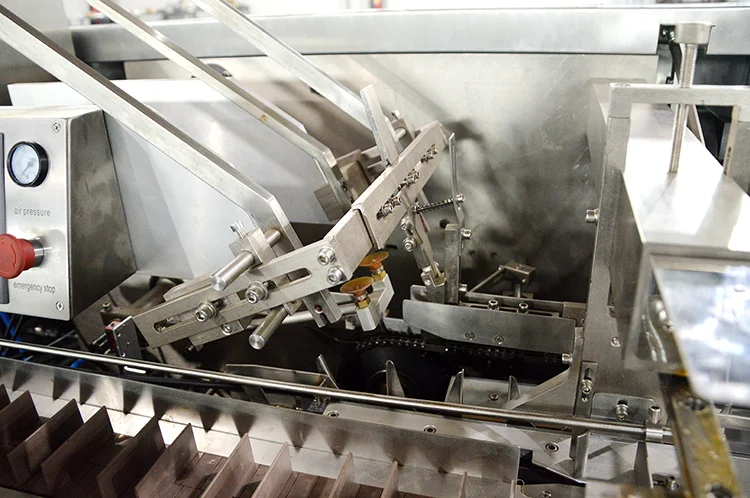

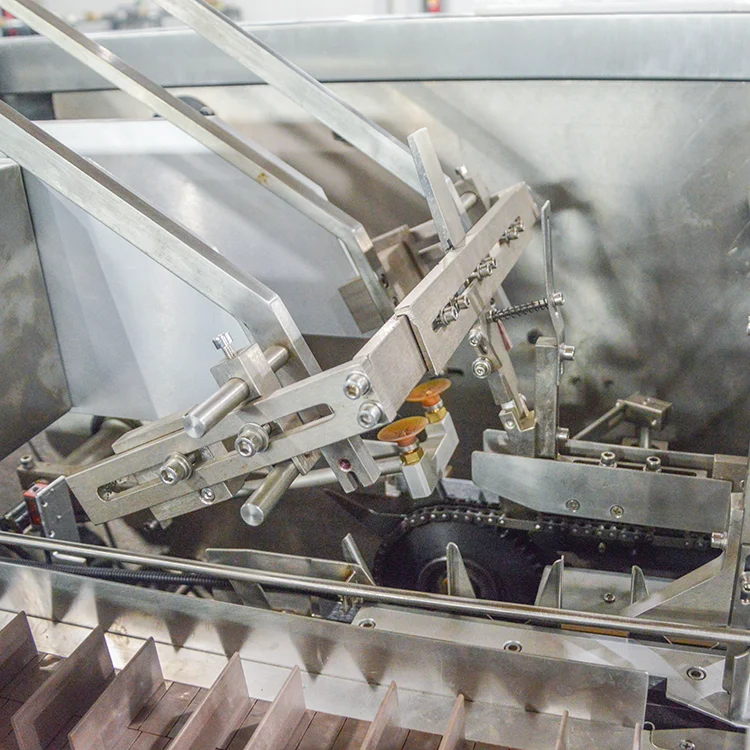

Carton Suction Station
This is the station for closing the cartons by two sides with fully automatic. The working station is closed by Plexiglas for keeping safely running.

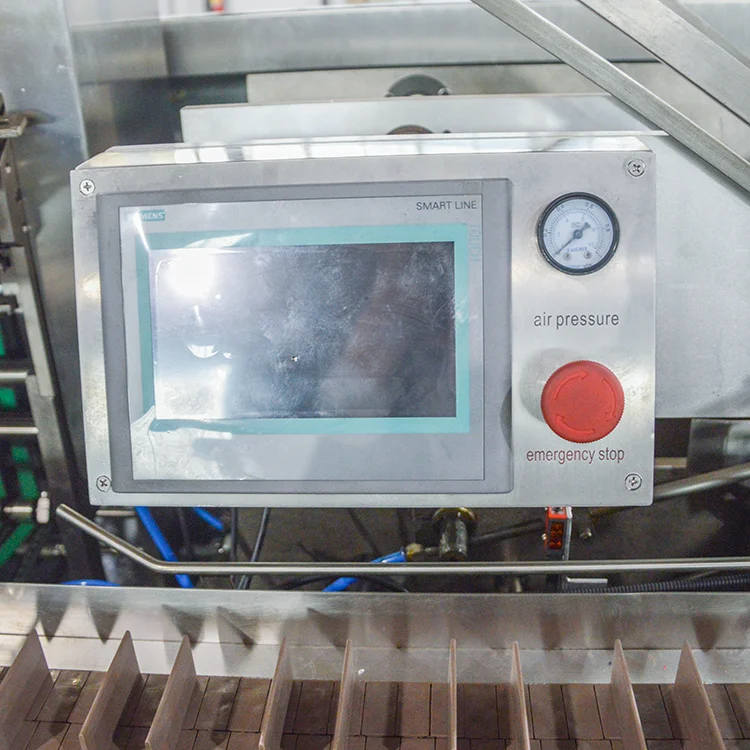

Touch Screen

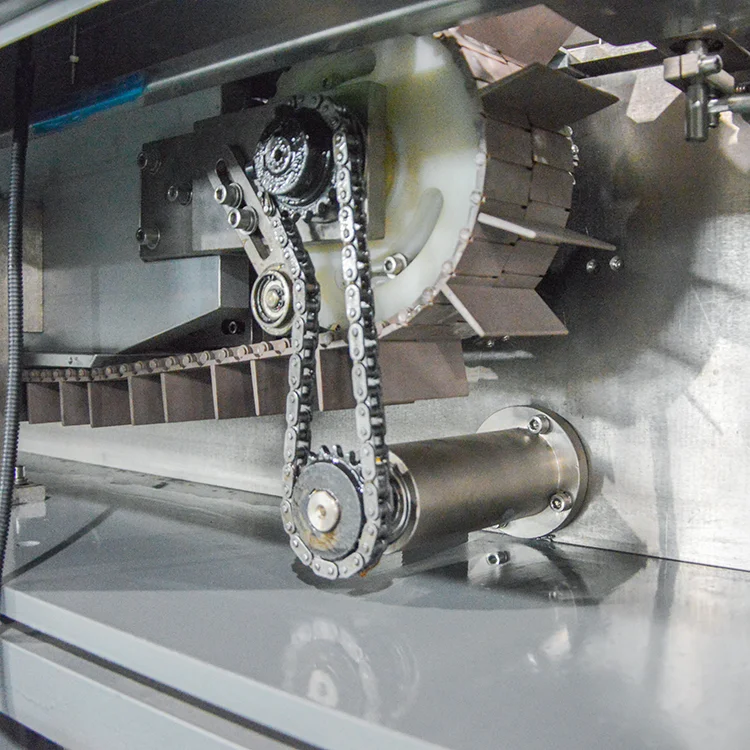

Transmission System

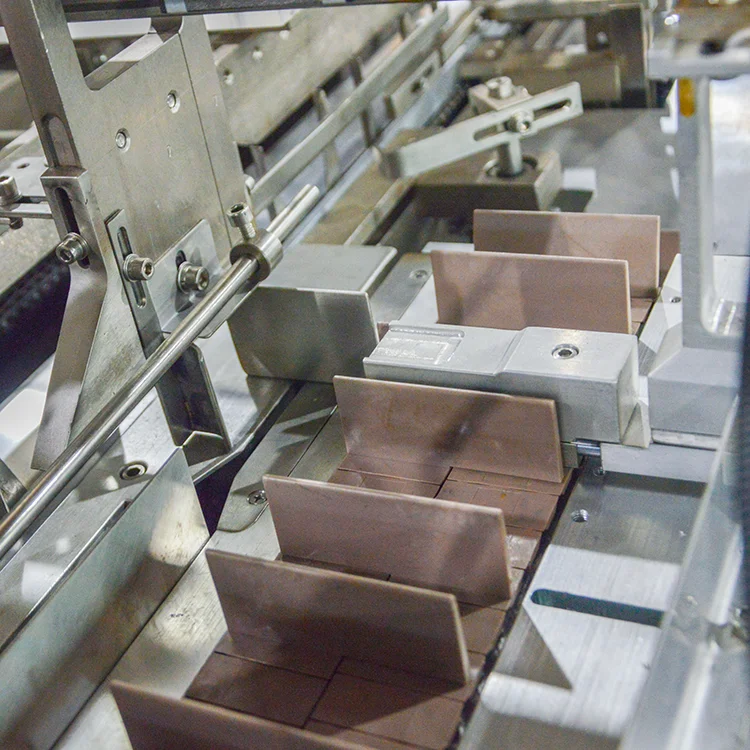

Object Inserting Station
Features
1.Rejection automatically if no product, nonstandard height or lack of leaflet.
2.Stop automatically if incorrect position of products into carton.
3.Stop automatically if no cartons or out of leaflet continues.
4.Easy to change to different products.
5.Protecting automatically for overloading.
6.Automatically display device for speed and finished products counting.
2.Stop automatically if incorrect position of products into carton.
3.Stop automatically if no cartons or out of leaflet continues.
4.Easy to change to different products.
5.Protecting automatically for overloading.
6.Automatically display device for speed and finished products counting.
Capacity and Characteristic:
1.Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2.When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3.Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4.Vibrating material categorizing and feeding mechanism is stable and reliable.
5.Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6.It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7.Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8.Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.
2.When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3.Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4.Vibrating material categorizing and feeding mechanism is stable and reliable.
5.Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6.It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7.Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8.Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.
Company Introduction
Our Company
- LTPM CHINA is one of China's leading system suppliers for the packaging sectors.
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports machinery to more than 30countries which includes European country and Americans. Through serving different companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best production solution!
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports machinery to more than 30countries which includes European country and Americans. Through serving different companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best production solution!
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q1: How many different sealing type of cartoner?
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and electrical system. According to our Maintanance Manual, the operator can do it easily.
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and electrical system. According to our Maintanance Manual, the operator can do it easily.
Q6: What is the warranty period for your machine?
A: 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
