Product Overview

Description



Product Description


PVC ceiling tile machine is used to produce pvc ceiling tiles with 595x595, 600×600 , 603x603, 2 by 2 feet. The surface of pvc ceiling tile can be treated by to hot stamping for different color or patterns to fit various decoration style.




Product Details

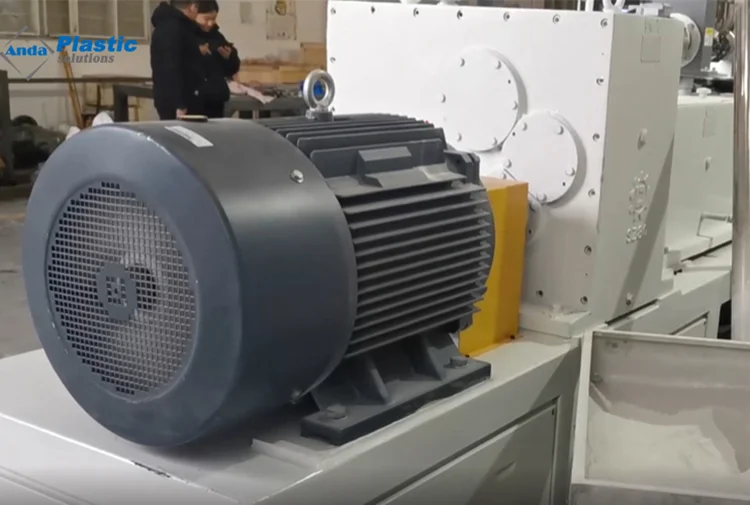

Motor

Adopt Siemens motor (effective control the starting current, lower staring power, reduce voltage fluctuation)

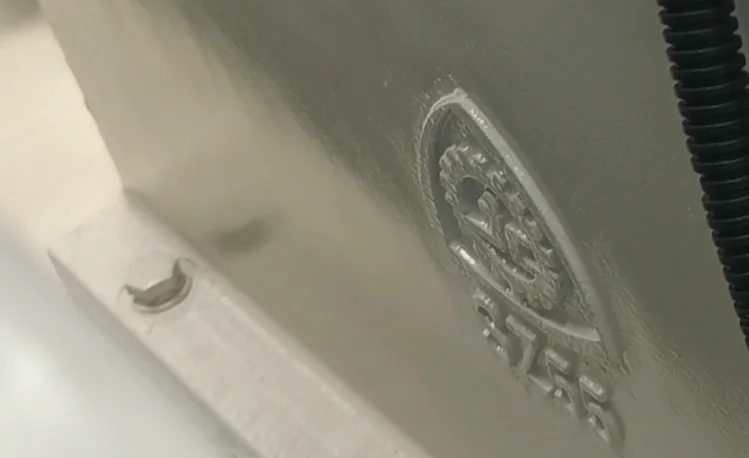

Gear box
Adopt JC gear box (high efficiency, high bearing capacity, transfer smoothly, compact structure)

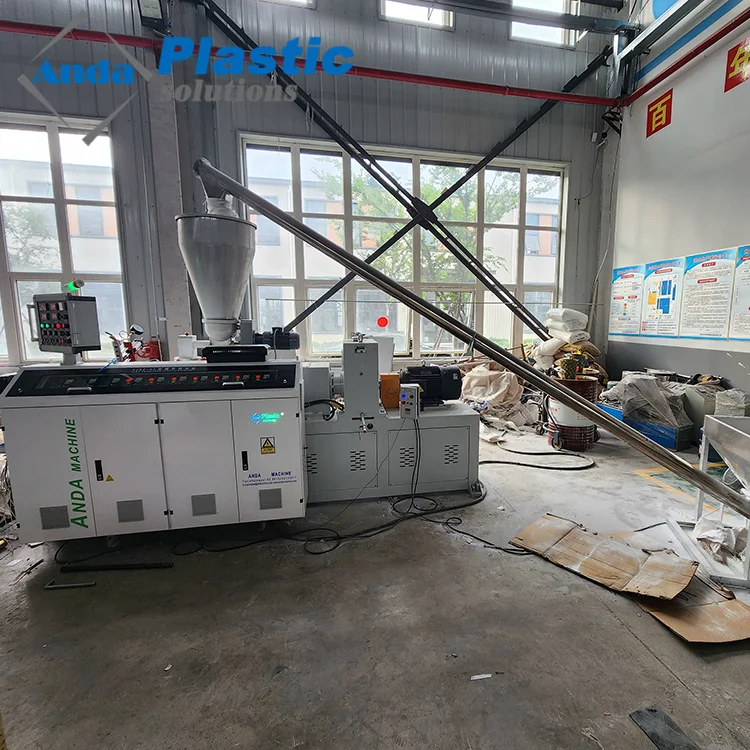

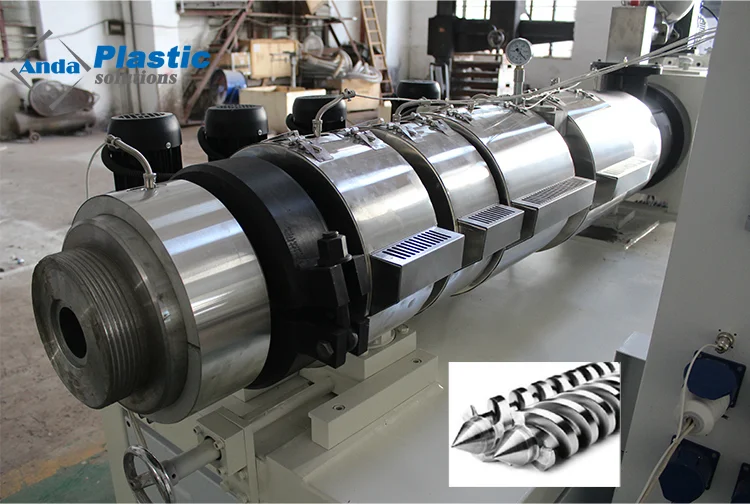

Screw extruder
Adopt twin screw extruder (which use 38CrMoAL material -- high-wearing, high strength, high temperature resistance, corrosion
resistance)

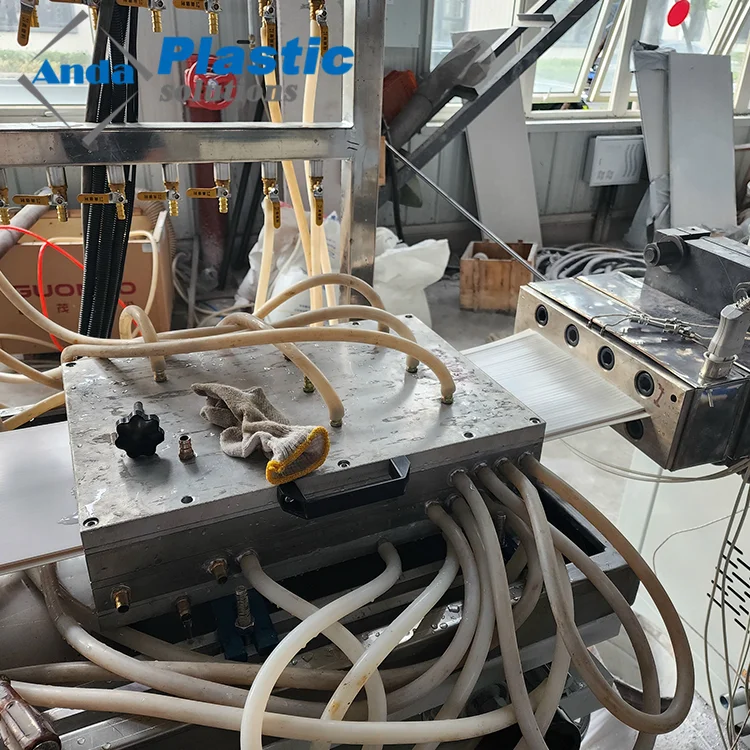

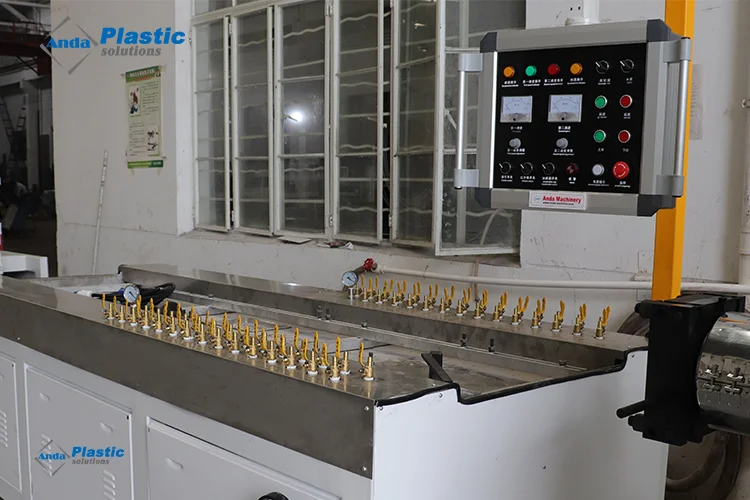

Adopt vacuum system to help the PVC products fast finalization and guarantee it is not out of shape.

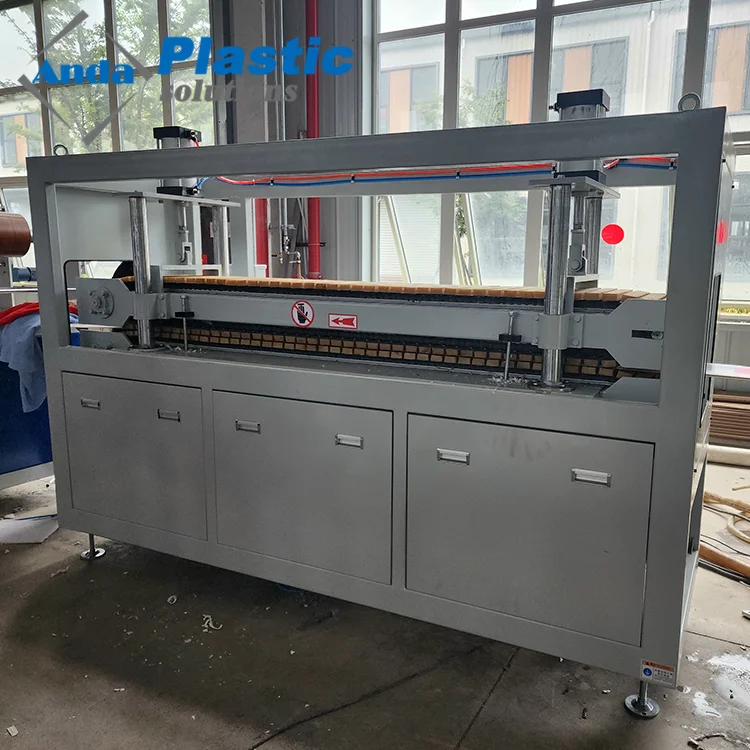

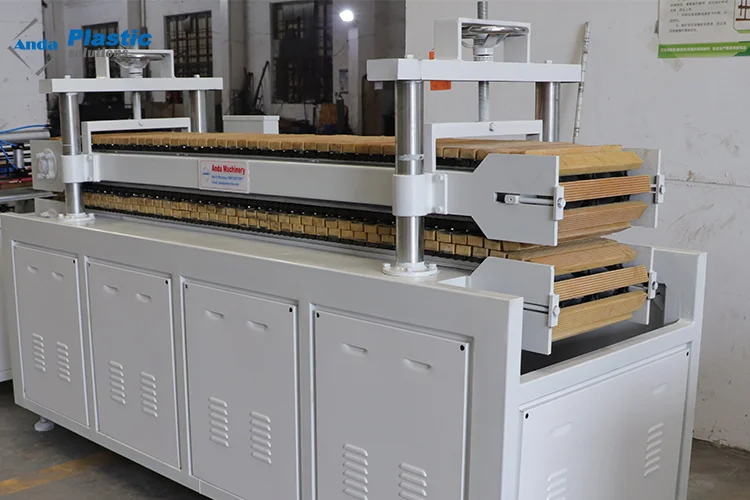

Hauling machine
The material of hauling is not too hard which can well protect the transfer of product.
It could help the effective traction.

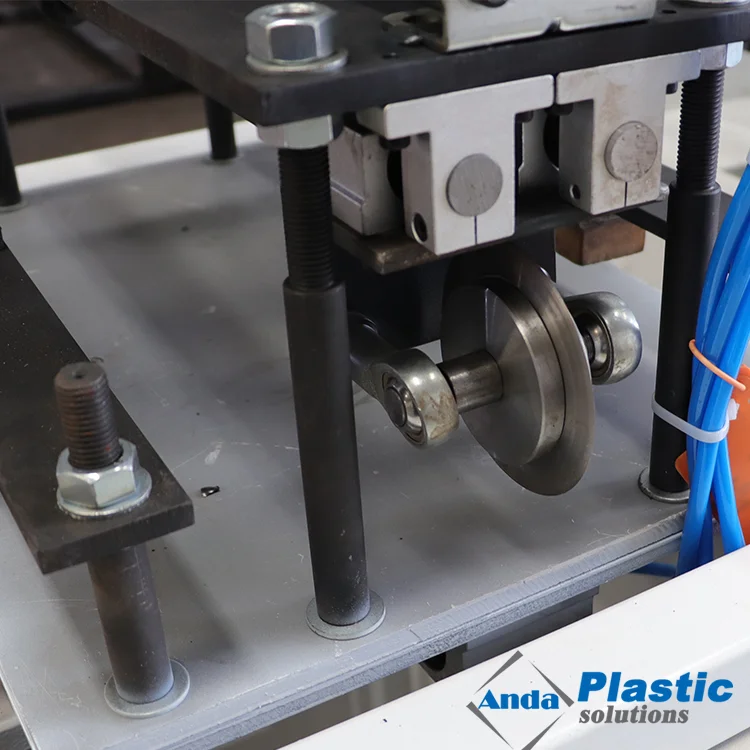

Cutting Machine
The blade is hard and sharp which has high efficiency and long service time.


Main Parameters


Model
SJSZ 48/113 common
53/128 common
High speed 53/128
High speed 65-132
Product width
200-250mm
200-300mm
200-300mm
+20-600mm
Extruder
SJSZ 48/113
SJSZ 53/128
SJSZ  high speed 53/128
SJSZ high speed 65/132
Capacity/24H
>800㎡
>1200㎡
>1600㎡
>3300㎡


Main features



Main Features of high speed pvc ceiling production line:
1. High speed, double output than common PVC ceiling production line, greatly decrease the labour cost and electricity cost and
manage cost.
2.Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect
3.Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed
4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level
5.The caco3 filler can up to 300phr, formula cost is greatly reduced.
6.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make
sure get best product
7.Lower power consumption,it can save 25-30% electrical power consumption comparing with most kind PVC ceiling production line.

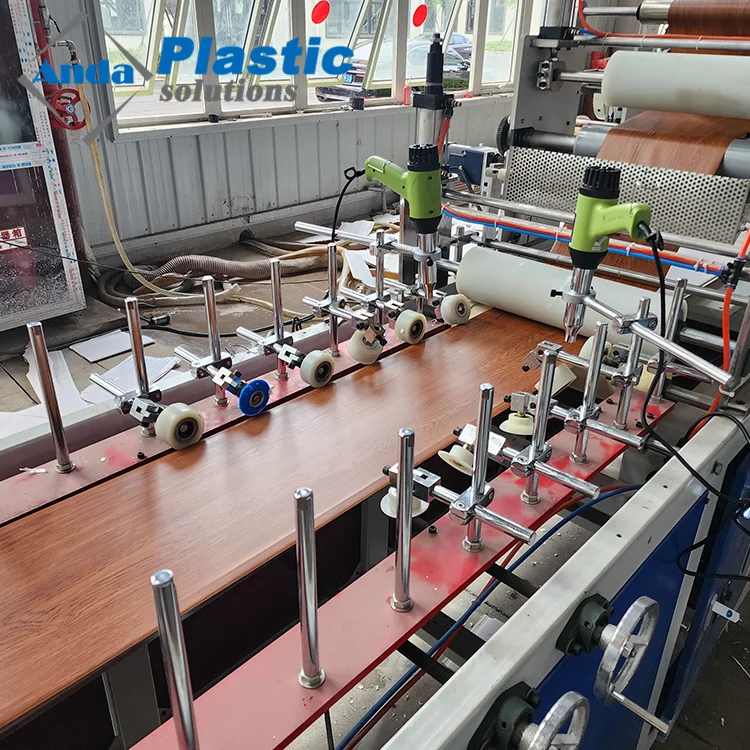

8.With online hot stamping, easy operation, saving labour.
