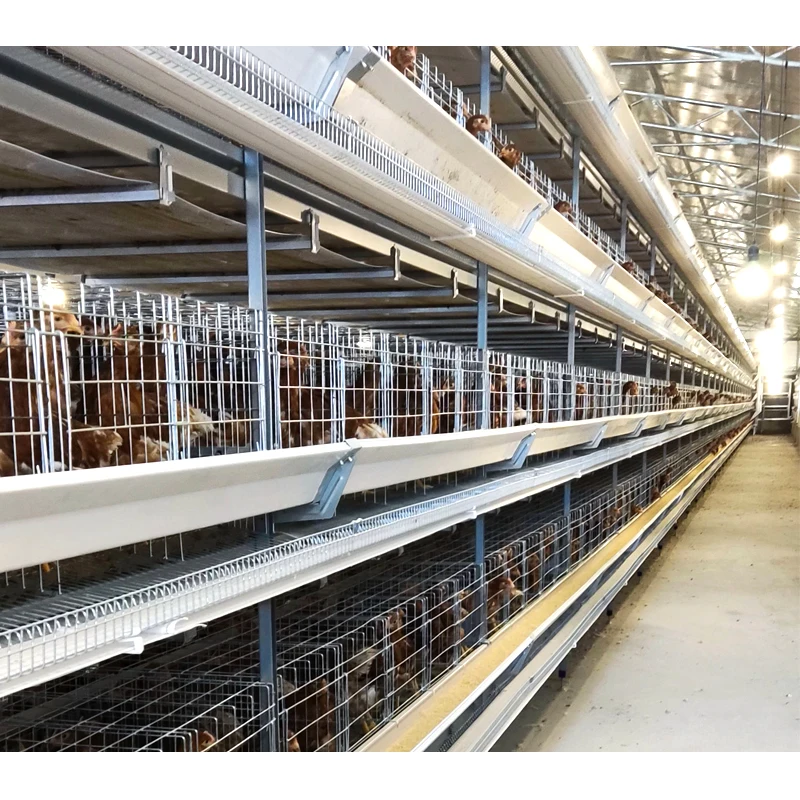

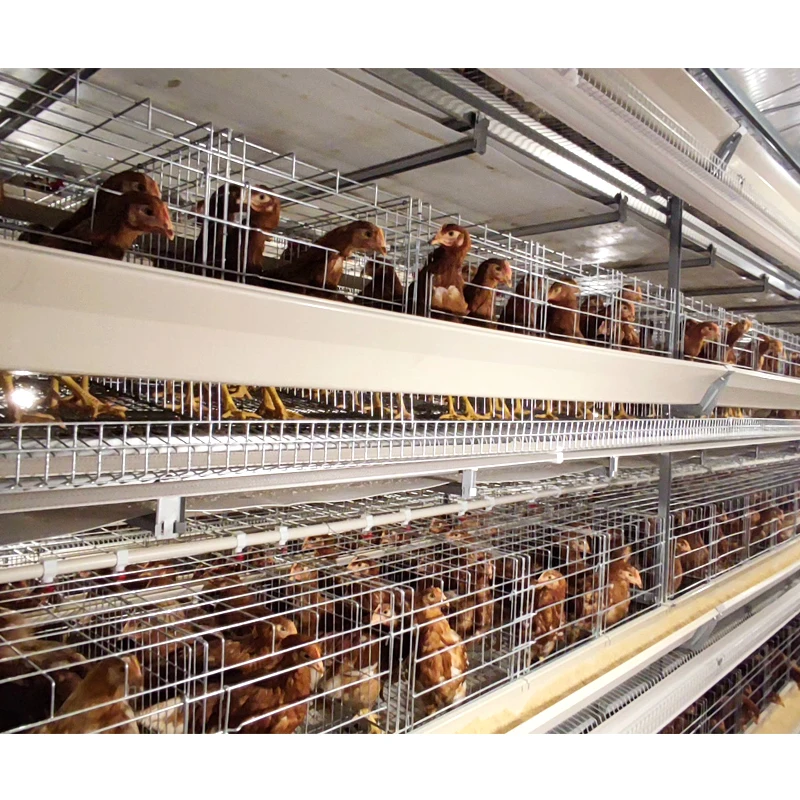

Full Automatic Poultry Farming Chicken Feeder Line H Type Chicken Cage for 15000 Chicken
- Category: >>>
- Supplier: Henan Xinfeng Machinery Equipment Co. LTD
Share on (1600918949097):
Product Overview
Description

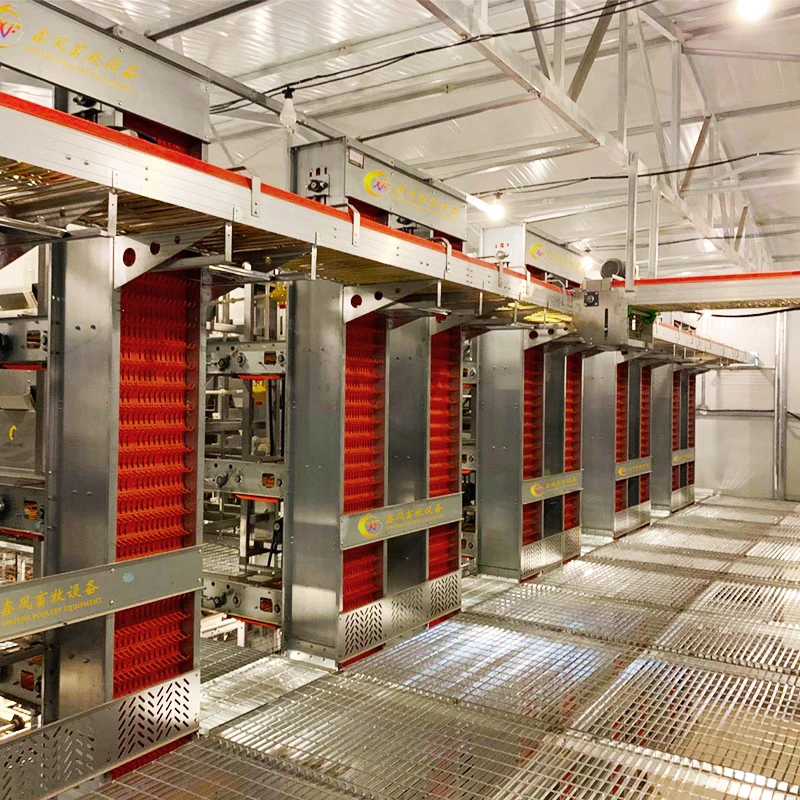

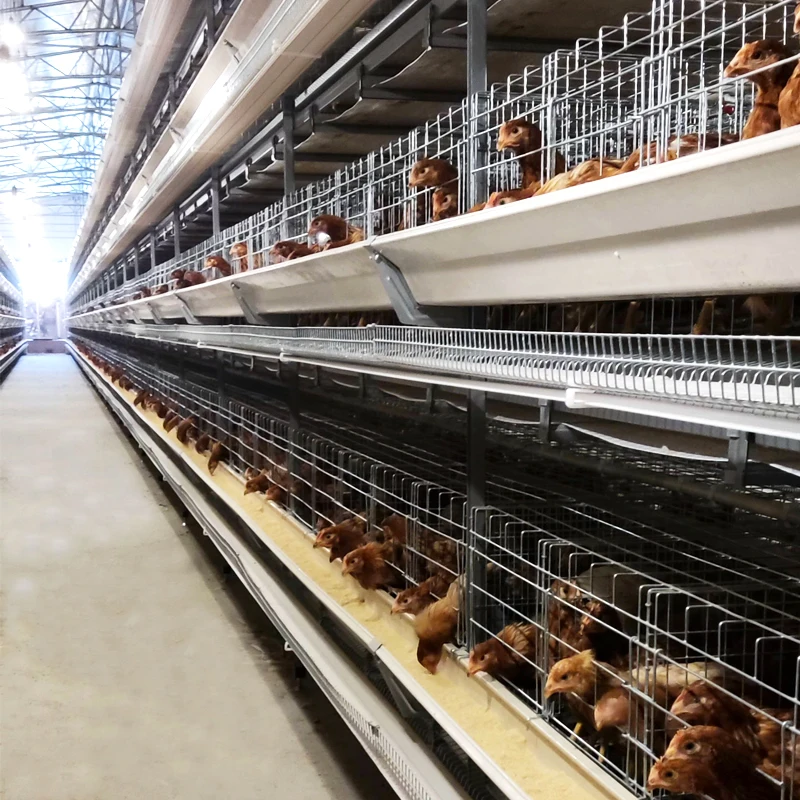

Full Automatic Poultry Farming Chicken Cage for 15000 Chicken
Three-dimensional breeding of laying hens refers to a facility breeding mode (4-12 layers of cages) with a certain scale of laying hens and a three-dimensional production system.
Compared with traditional flat raising and ladder cage raising, it has the following characteristics:
1. Large breeding capacity per unit area, 30-90 birds per square meter, saving more than 30% of the land area, and increasing the output efficiency per unit area by more than 2 times;
2. High labor efficiency, the per capita breeding capacity of laying hens can reach 30,000-50,000, and the number of single-building breeding can reach 50,000-200,000, and the per capita labor productivity can be increased by more than 3 times;
3. The degree of automation is high, and the closed facility is used for breeding. The environment in the laying hen house is controllable, and it can realize automatic feeding, manure cleaning, egg collection and other feeding processes.
Compared with traditional flat raising and ladder cage raising, it has the following characteristics:
1. Large breeding capacity per unit area, 30-90 birds per square meter, saving more than 30% of the land area, and increasing the output efficiency per unit area by more than 2 times;
2. High labor efficiency, the per capita breeding capacity of laying hens can reach 30,000-50,000, and the number of single-building breeding can reach 50,000-200,000, and the per capita labor productivity can be increased by more than 3 times;
3. The degree of automation is high, and the closed facility is used for breeding. The environment in the laying hen house is controllable, and it can realize automatic feeding, manure cleaning, egg collection and other feeding processes.
Layer Chicken Farming Scale

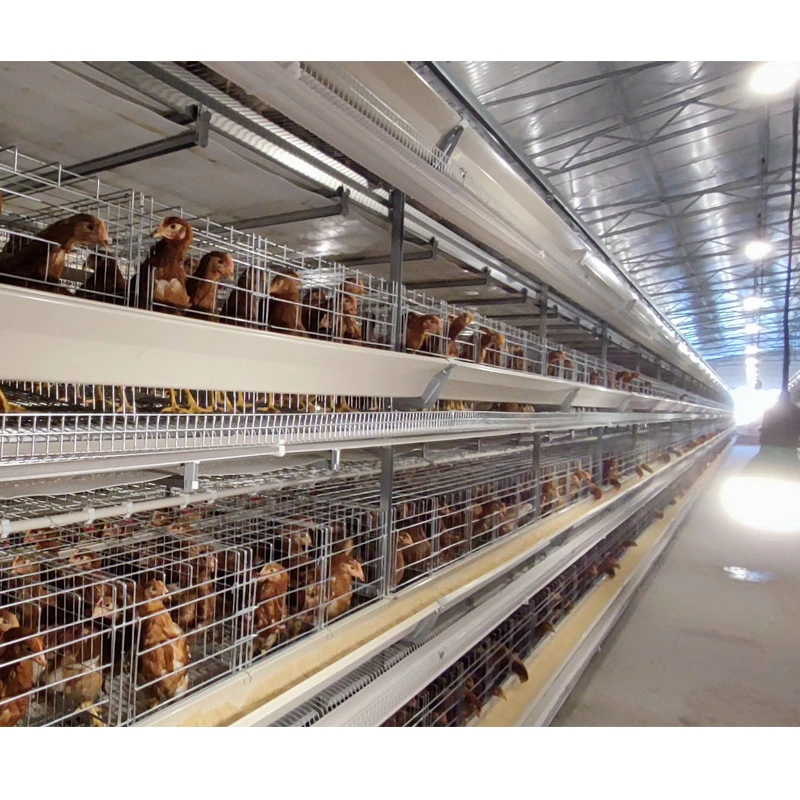

Three-dimensional breeding of laying hens should adopt stacked cages with 4 or more layers (Table 1), the feeding amount per unit area is ≥30/m2, the feeding amount in a single building is more than 50,000, and the annual egg production per square meter can reach 0.48 Ton
Table 1 Main feeding technology and production performance | ||||||
Main feeding process | Unit breeding quantity (bird/m2) | Amount of breeding in a single building (ten thousand birds) | unit annual egg production (ton/m2) | |||
A Type layer cage | 12-18 | 2-3 | 0.20-0.30 | |||
H Type 4-8 layers of cages | 30-60 | 5-10 | 0.48-0.96 | |||
H Type 10-12 layers of cages | 75-90 | 12.5-20 | 1.20-1.44 | |||

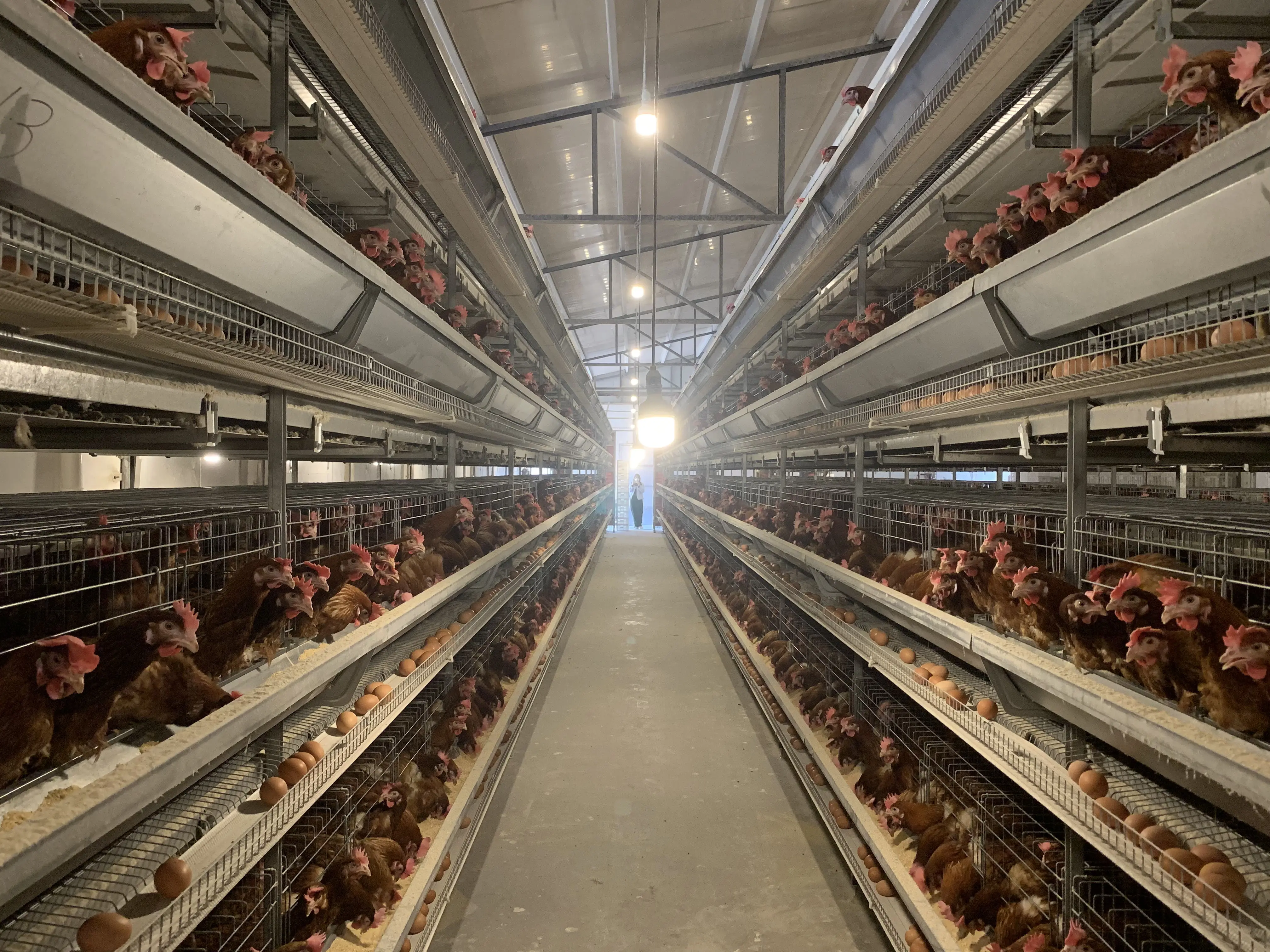

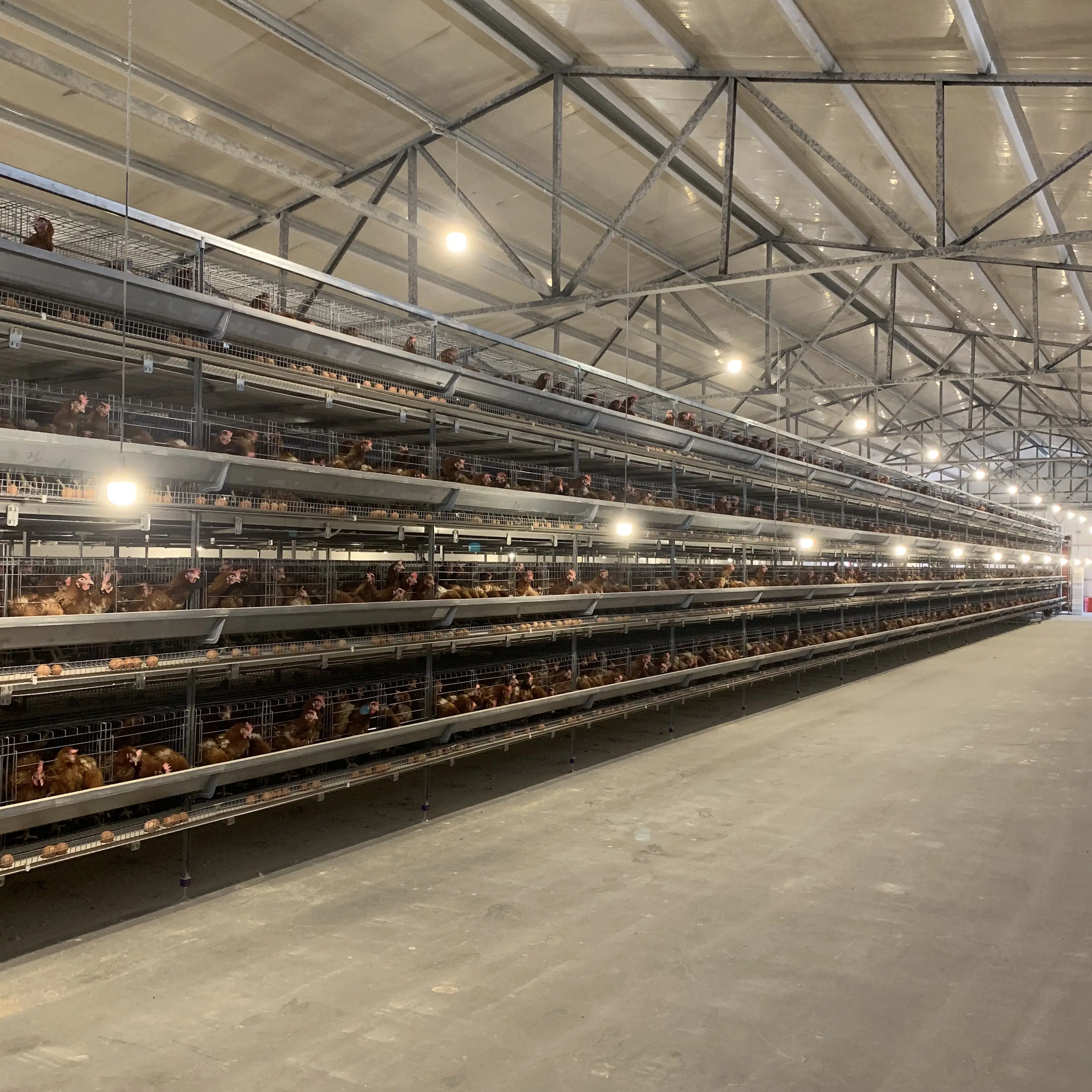

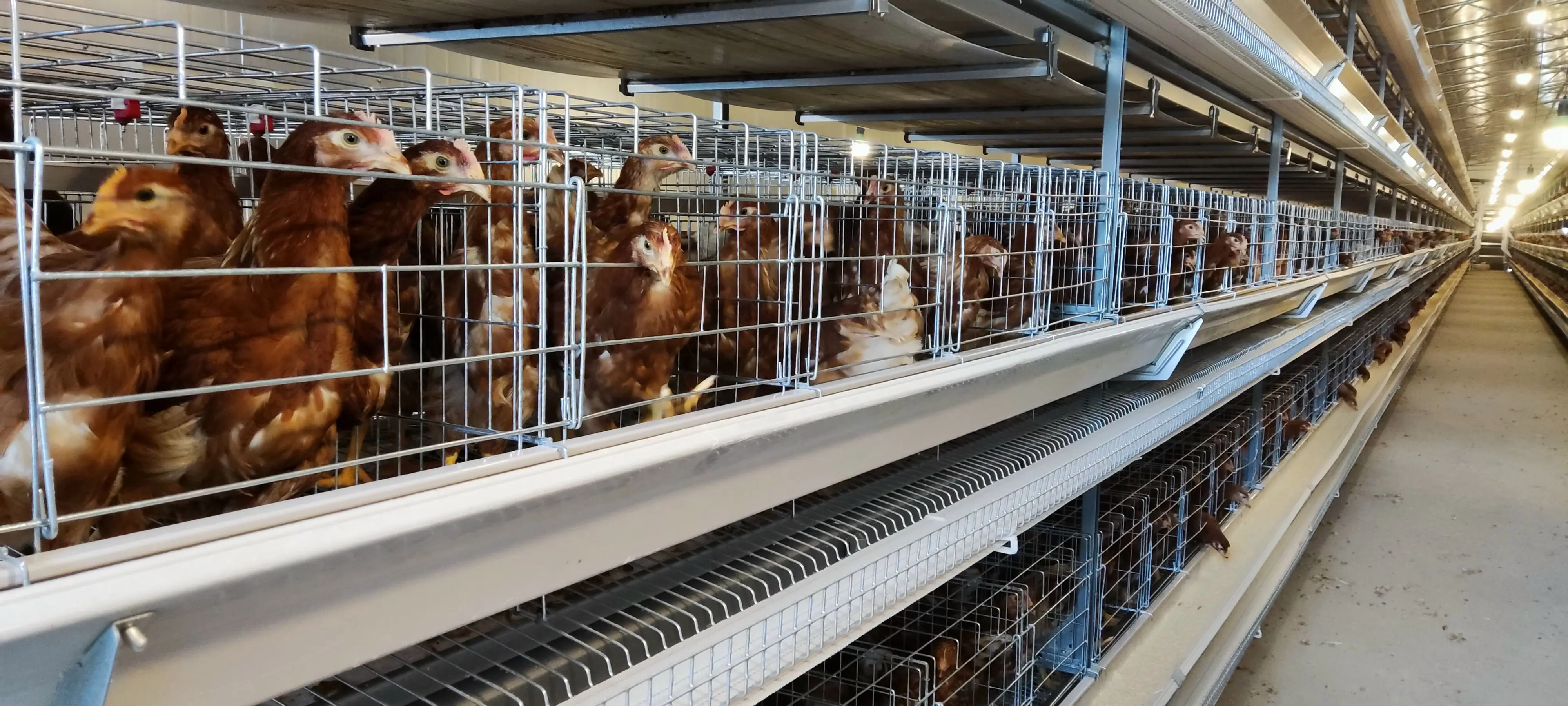

Breeding cage
The three-dimensional breeding of laying hens should ensure the heat preservation and airtight performance of the chicken house, and realize the whole process of automatic breeding.The three-dimensional breeding cages for laying hens should be made of hot-dip galvanized or magnesium-aluminum-zinc alloy materials. The failure rate of the equipment is 10% lower than that of the ladder cages, and the service life of the equipment is extended by 5-6 years.
Breeding process
The breeding process should adopt a two-stage breeding process: 1-9 weeks old (the first stage, the early stage of brooding) is raised in the brooding cage of the brooding house, and the 10-week-old to eliminated (the second stage, the later stage of rearing and egg production period) are raised in the egg-laying cages of the laying hen house, and the stocking density of each stage is shown in Table 2
Table 2 Stocking density | ||||||
Stocking density | 0-2 weeks old | 3-9 weeks old | 10 weeks old - knock out | |||
40-50 birds/m2 | 20-25 birds/m2 | 450-540 cm2/birds | ||||

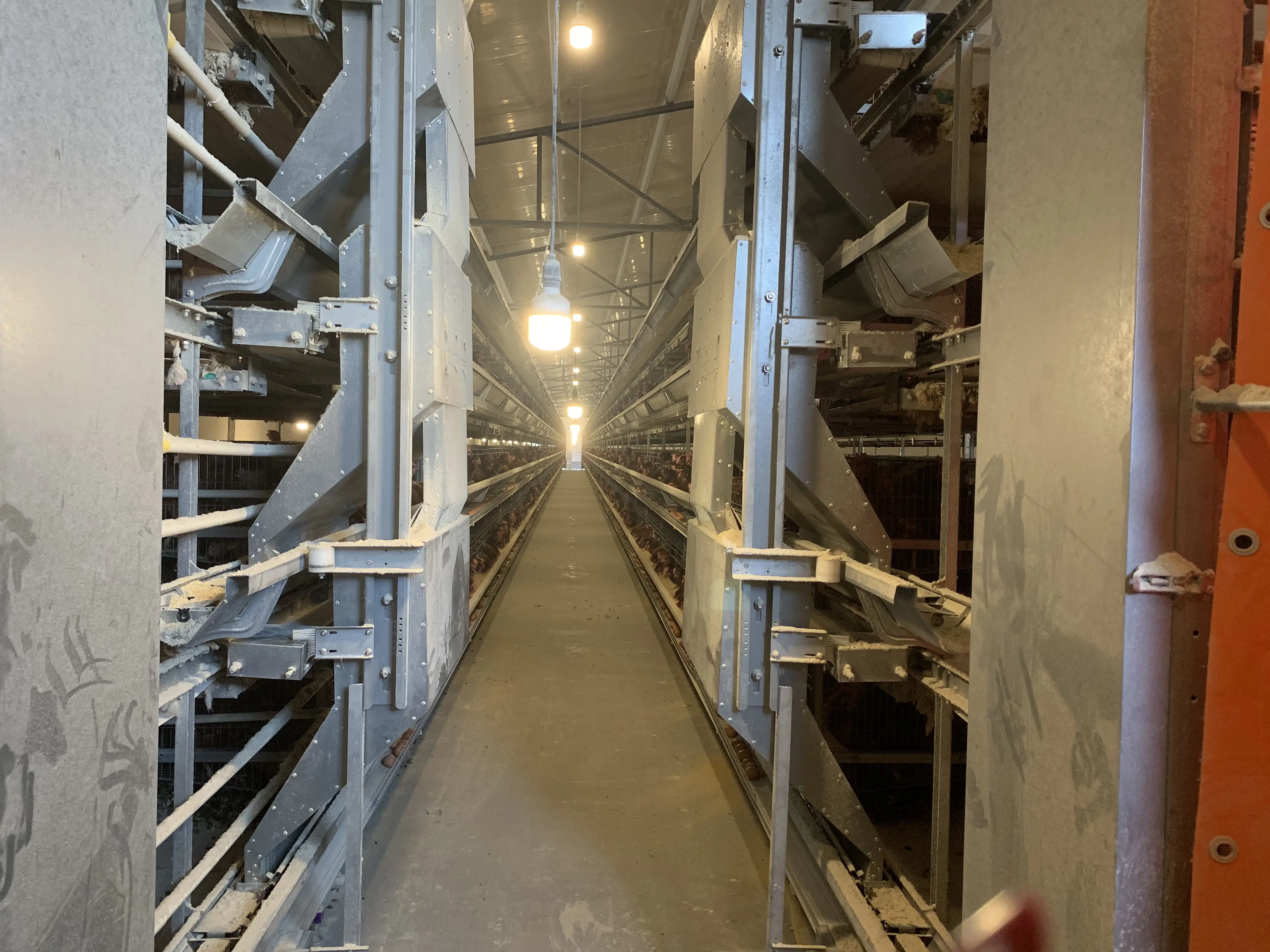

Automatic Feeding Drinking Equipment
Automatic Feeding Equipment
A fully automatic mechanized feeding and feeding system should be used, including storage towers, screw conveyors, feeders, homogenizers, troughs and cage cleaning equipment.
The silo and central conveying line should be equipped with a weighing system to meet the daily automatic feeding and feeding requirements of the chicken house.
Taking a single building with 100,000 chickens as an example, the feed intake of laying hens during the laying period is 100-109 grams per day per chicken. The feeding system should ensure at least 10 tons of feed per day, and the capacity of the silo should meet the requirements of chickens. 2-day feed intake.

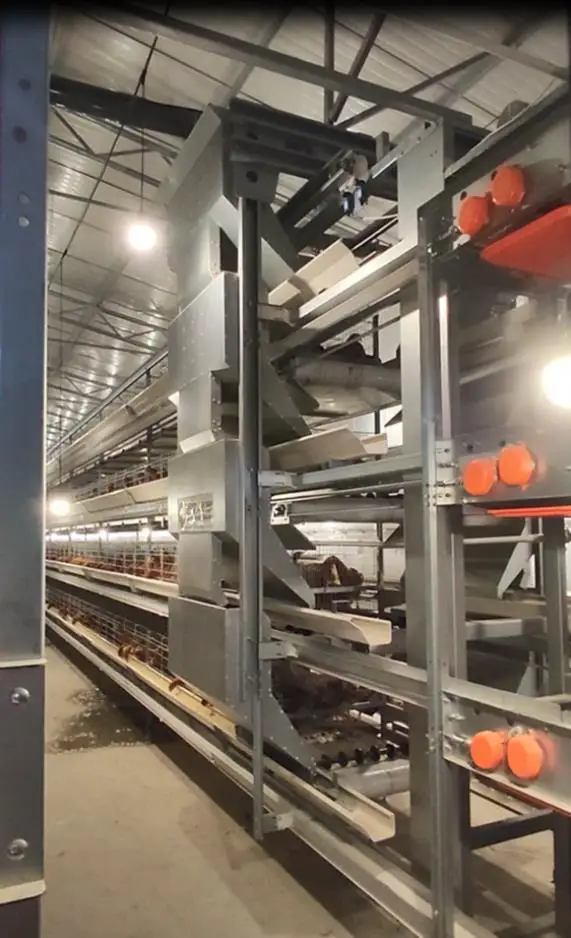

The feeder usually includes tray type, driving type and chain type, etc. It is recommended to use the driving feeding system.
Each layer of the cage should be equipped with a material trough, and when the vehicle is running along the direction of the material trough, the outlets of each layer can be discharged at the same time.
The silo and central conveying line should be equipped with a weighing system to meet the daily automatic feeding and feeding requirements of the chicken house.
Taking a single building with 100,000 chickens as an example, the feed intake of laying hens during the laying period is 100-109 grams per day per chicken. The feeding system should ensure at least 10 tons of feed per day, and the capacity of the silo should meet the requirements of chickens. 2-day feed intake.
The feeder usually includes tray type, driving type and chain type, etc. It is recommended to use the driving feeding system.
Each layer of the cage should be equipped with a material trough, and when the vehicle is running along the direction of the material trough, the outlets of each layer can be discharged at the same time.

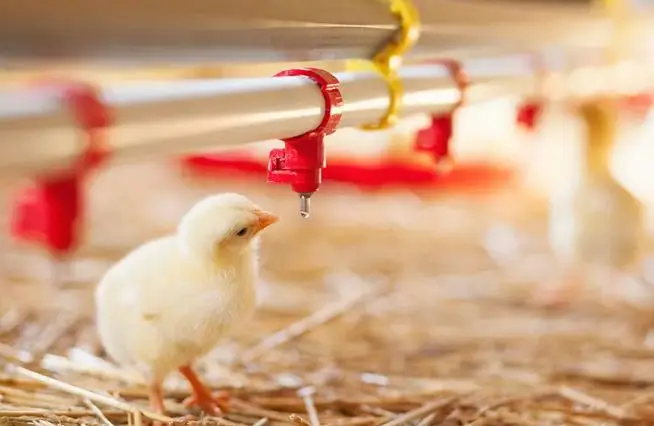

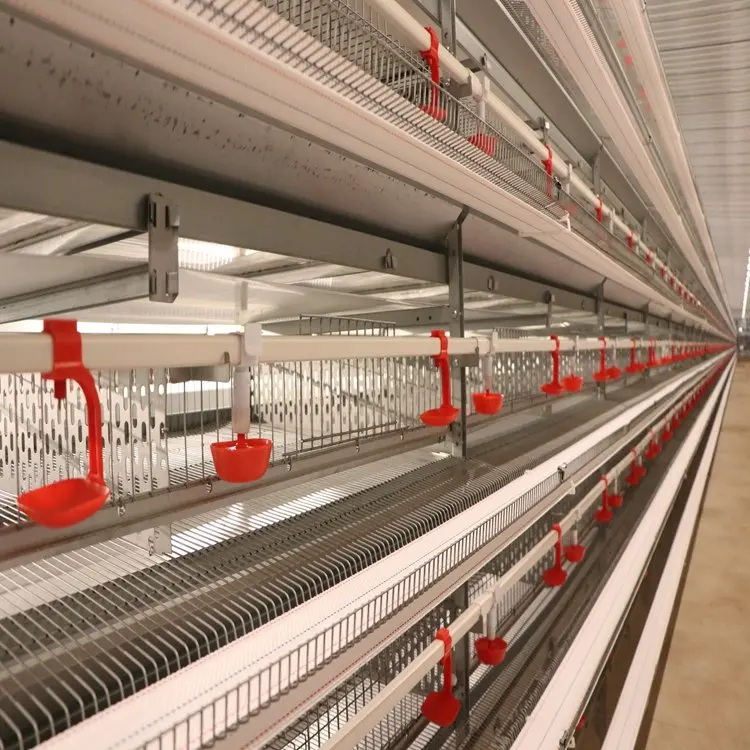

Nipple drinking line type automatic drinking water system should be adopted, including drinking water pipe, drinking nipple, dosing device, pressure regulator, pressure reducing valve, recoil water line system and intelligent control system.

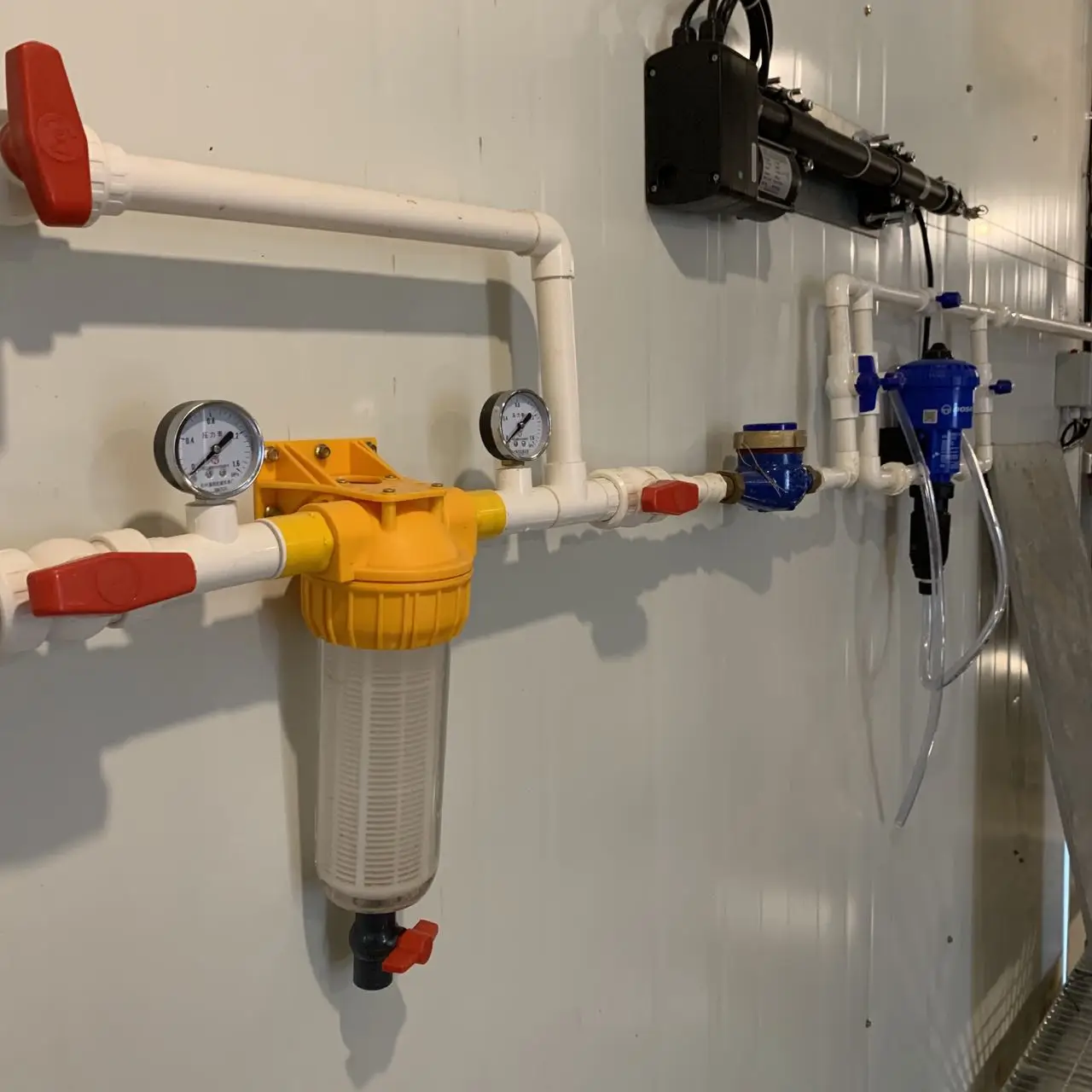

Dosing devices and filters should be installed at the water inlet of the chicken house to realize drinking water filtration and automatic drinking water dosing.
In the early stage of brooding, each layer should be equipped with a height-adjustable drinking water line near the cage top net and feeder trough, and each cage should be equipped with 2-3 nipple drinking fountains, and water cups should be installed under the nipple drinking fountains;
In the late breeding period and laying period, a drinking water pipeline and a "V"-shaped water tank are installed between the middle net and the top net to prevent drinking water from leaking to the manure cleaning belt.
Water pipes, etc. should be made of corrosion-resistant plastic materials. Water pressure regulators should be installed on each layer of waterline to ensure sufficient water supply at the front and end of each layer of waterline.
Dosing devices and filters should be installed at the water inlet of the chicken house to realize drinking water filtration and automatic drinking water dosing.
In the early stage of brooding, each layer should be equipped with a height-adjustable drinking water line near the cage top net and feeder trough, and each cage should be equipped with 2-3 nipple drinking fountains, and water cups should be installed under the nipple drinking fountains;
In the late breeding period and laying period, a drinking water pipeline and a "V"-shaped water tank are installed between the middle net and the top net to prevent drinking water from leaking to the manure cleaning belt.
Water pipes, etc. should be made of corrosion-resistant plastic materials. Water pressure regulators should be installed on each layer of waterline to ensure sufficient water supply at the front and end of each layer of waterline.
Automatic Manure Cleaning & Egg Collection Equipment

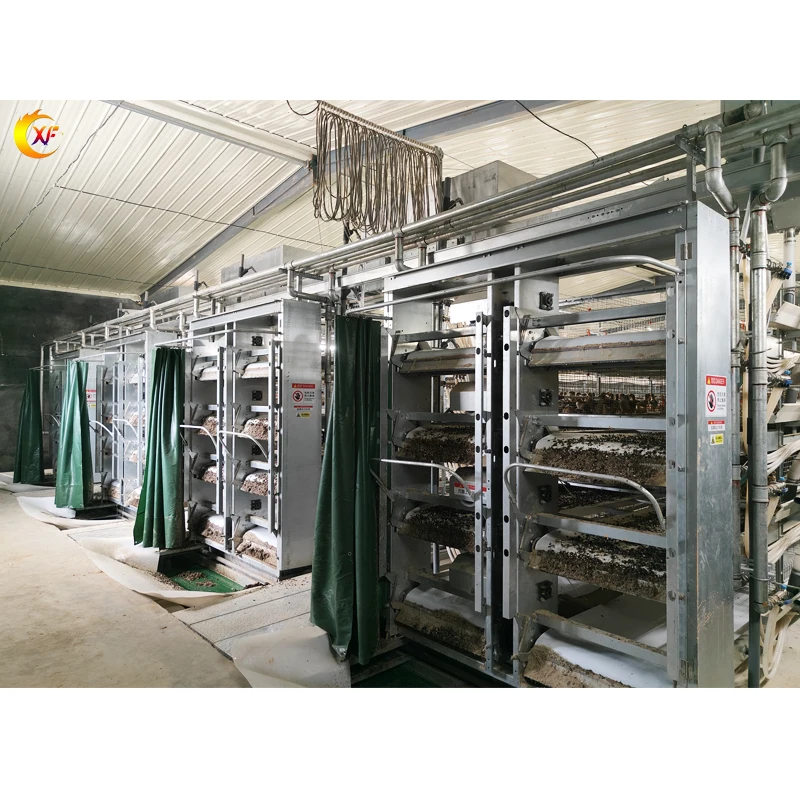

Automatic Manure Cleaning Equipment

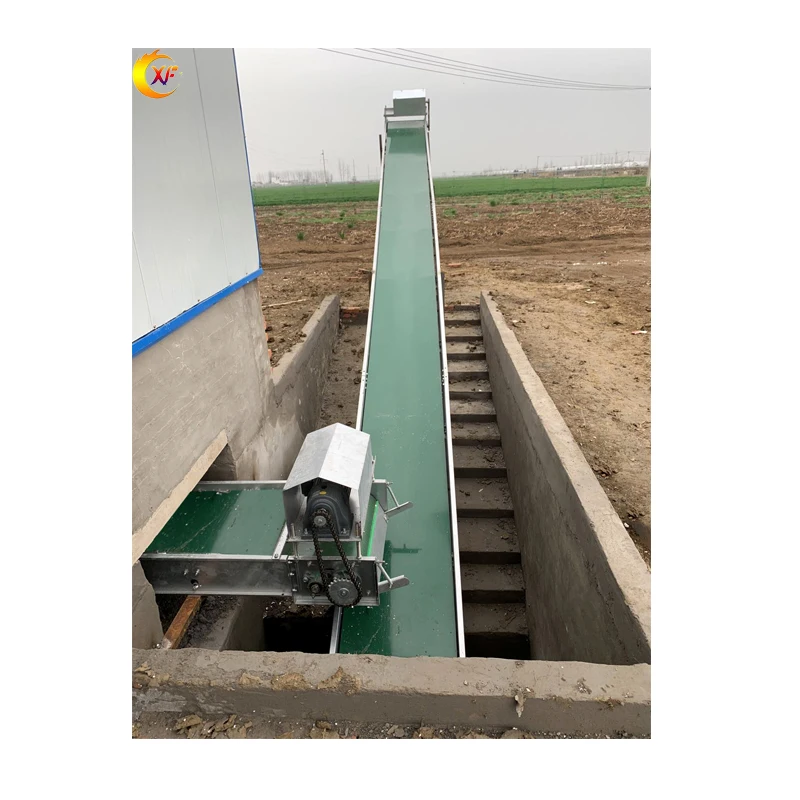

Conveyor belt type manure removal system should be adopted, including longitudinal, horizontal and oblique manure removal conveyor belts, power and control systems.
The bottom of each layer of cages should be equipped with a conveyor belt for layered cleaning, which is transported to the tail end of the chicken house by the vertical conveyor belt. Outside the house, ensure that "the manure does not fall to the ground", and appropriately increase the frequency of manure cleaning. It is recommended that the manure should be cleared every day.
The excrement conveyor belt should be made of new polypropylene material, which has the functions of anti-static, anti-aging and anti-deviation. In order to prevent the chickens from touching the manure on the conveyor belt, a top net should be placed above each layer of cages.
The bottom of each layer of cages should be equipped with a conveyor belt for layered cleaning, which is transported to the tail end of the chicken house by the vertical conveyor belt. Outside the house, ensure that "the manure does not fall to the ground", and appropriately increase the frequency of manure cleaning. It is recommended that the manure should be cleared every day.
The excrement conveyor belt should be made of new polypropylene material, which has the functions of anti-static, anti-aging and anti-deviation. In order to prevent the chickens from touching the manure on the conveyor belt, a top net should be placed above each layer of cages.

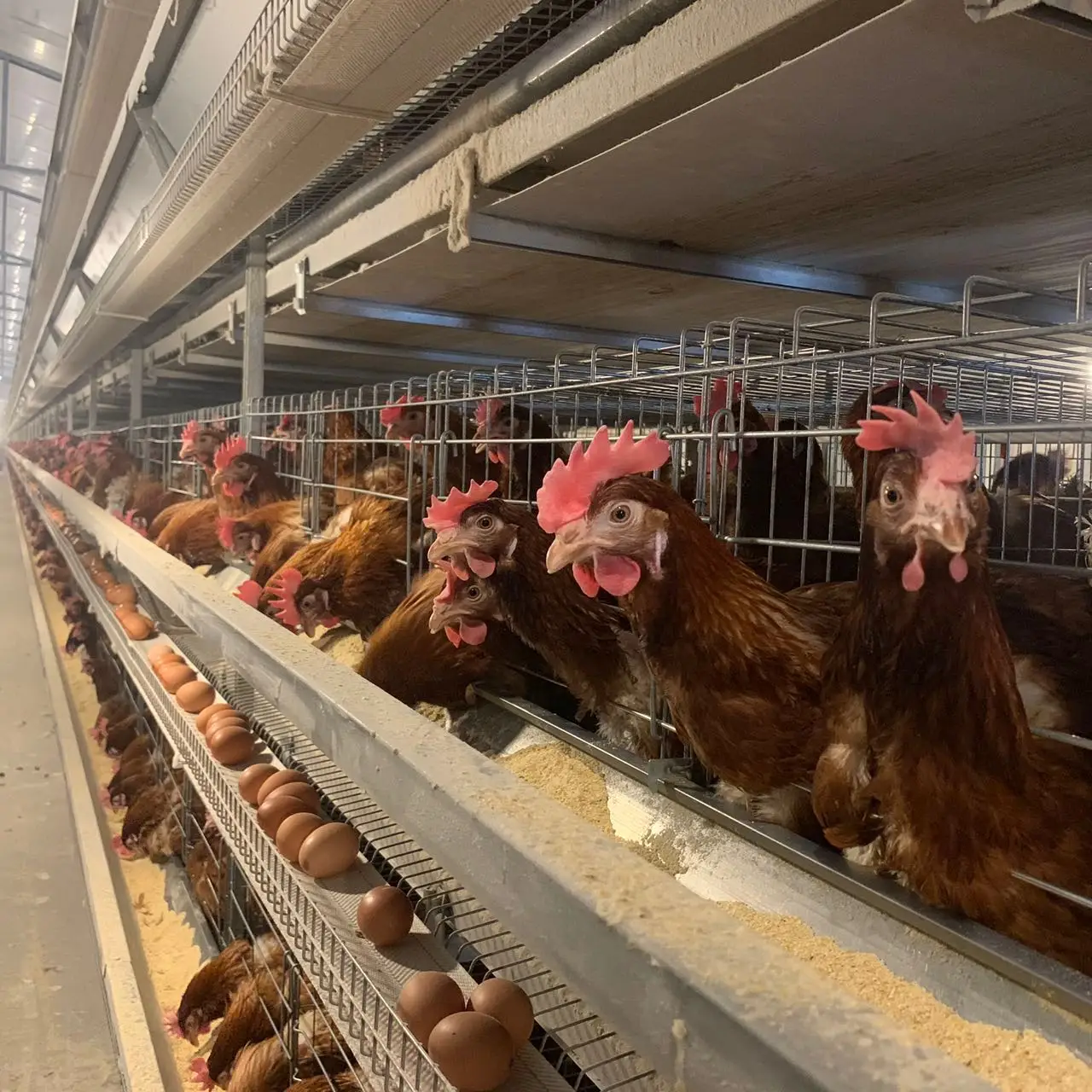

Automatic Egg Collection Equipment

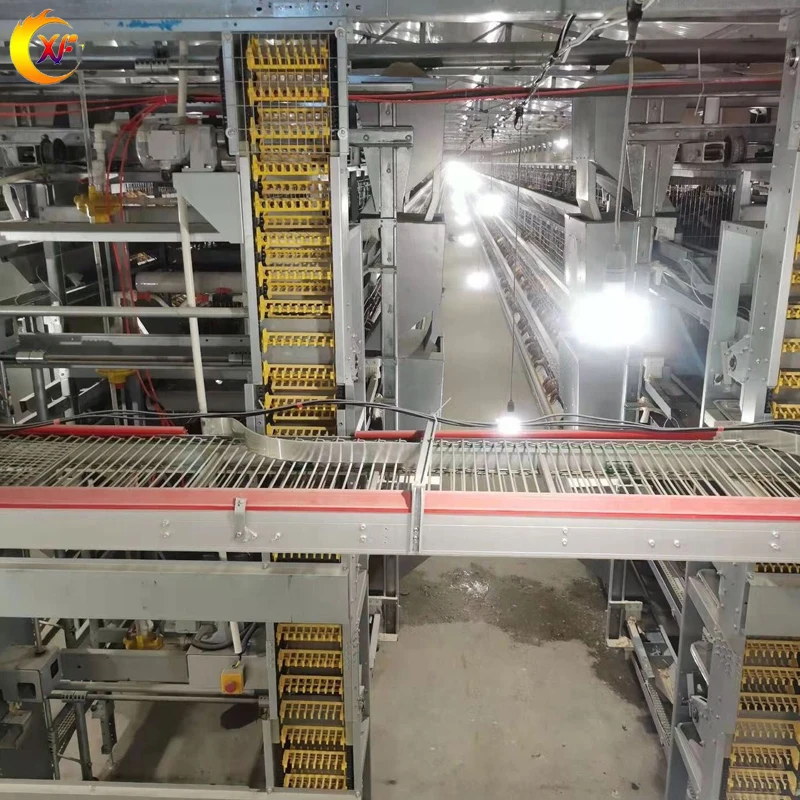

An automated egg collection system should be used, including egg collection belts, egg collection machines, central egg transfer lines, egg storage and egg grading and packaging machines.
During the egg collection process, each layer of eggs should be automatically transferred to the cage head rack, and then the eggs will be transferred from the chicken house to the egg storage through the central egg collection line for subsequent packaging.

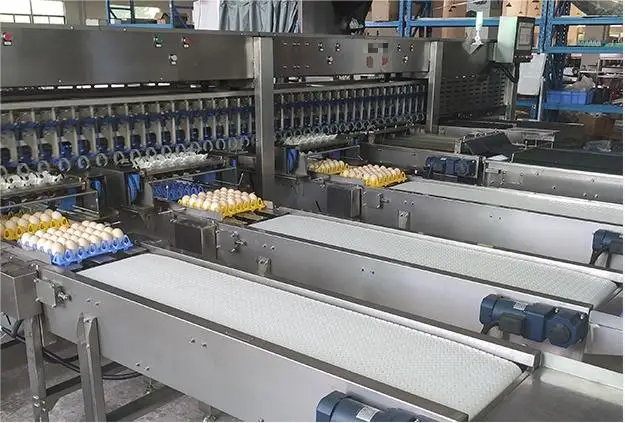

The packaging process should use an egg grading packaging machine for automatic egg grading and tray loading. The efficiency of the egg grading packaging machine should be configured according to the actual production situation of the site, and the processing speed is usually 30,000 to 180,000 pieces per hour.
Egg belts should be made of new high-toughness polypropylene material above PP5.
During the egg collection process, each layer of eggs should be automatically transferred to the cage head rack, and then the eggs will be transferred from the chicken house to the egg storage through the central egg collection line for subsequent packaging.
The packaging process should use an egg grading packaging machine for automatic egg grading and tray loading. The efficiency of the egg grading packaging machine should be configured according to the actual production situation of the site, and the processing speed is usually 30,000 to 180,000 pieces per hour.
Egg belts should be made of new high-toughness polypropylene material above PP5.

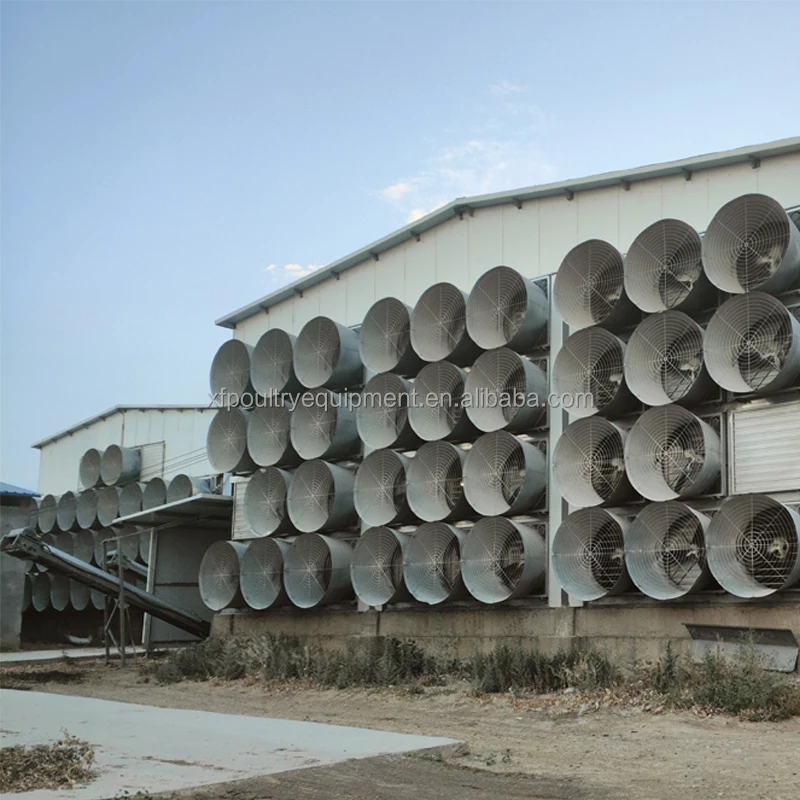

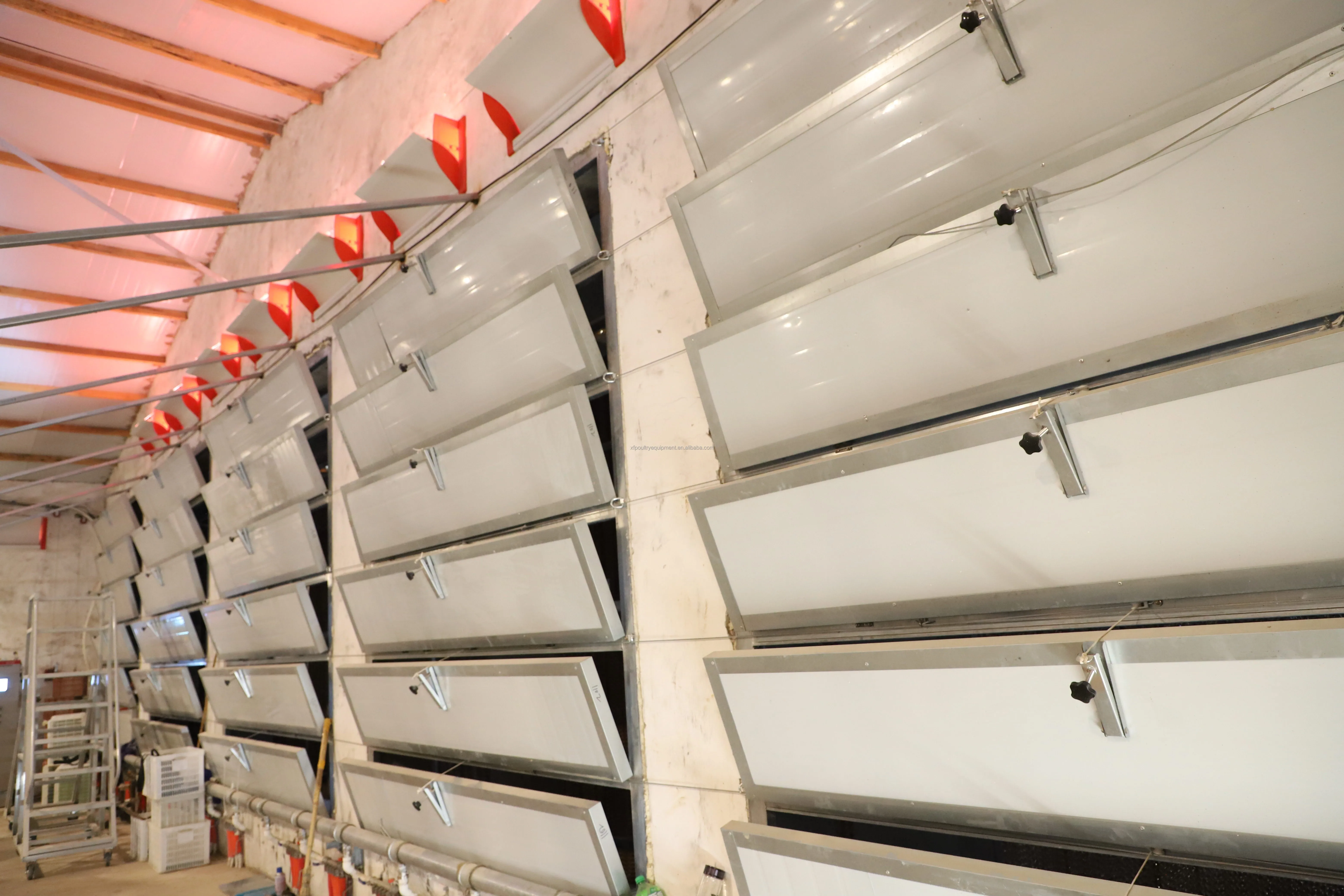

Automated Environmental Control
Automated Environmental Control

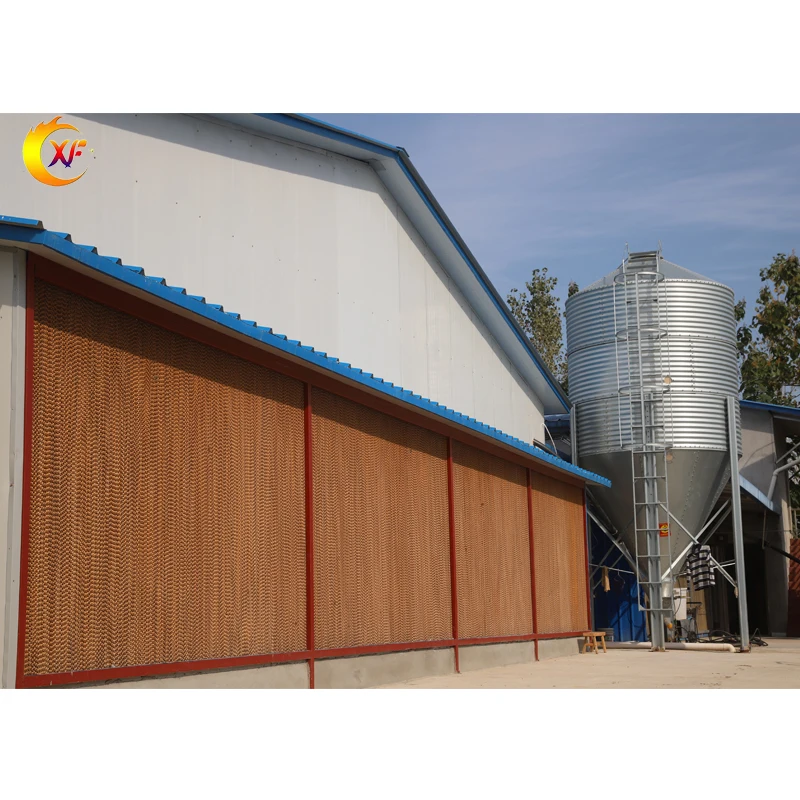

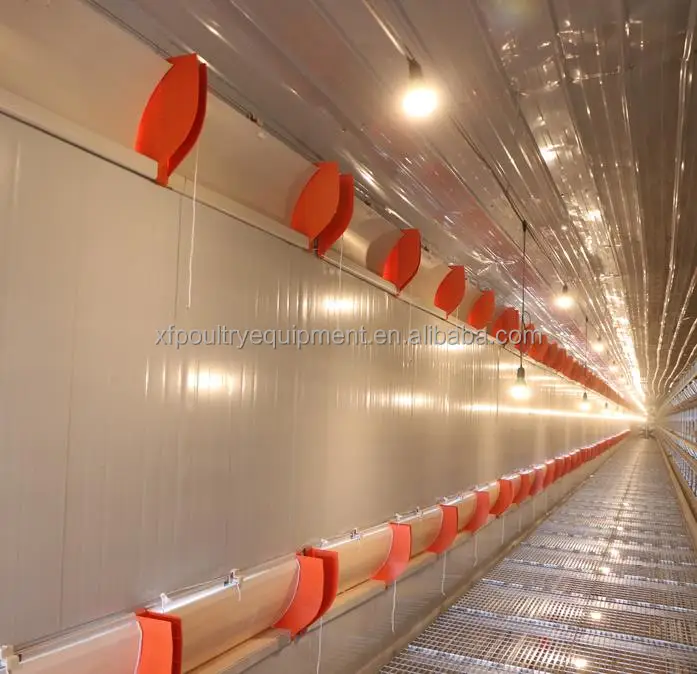

The three-dimensional breeding should adopt a fully enclosed chicken house, and realize automatic regulation through environmental control equipment such as chicken house fans, wet curtains, small ventilation windows and deflectors.
(1) High temperature climate environment control mode.
(2) Cold climate environment control mode.
(3) Automatic control equipment.
The environment is fully automated with the intelligent environmental controller as the core, and the temperature and humidity, wind speed, NH3, CO2 and other environmental sensors are arranged according to the space size of the chicken house and the distribution of cages.
Based on the analysis of the environmental parameters in the house by the intelligent environmental controller, the opening and closing of environmental control equipment such as small windows on the side walls, deflectors, fans and wet curtains are automatically adjusted to realize intelligent control of the environment in the chicken house.
Control the uniformity and stability of the environment of chickens in different positions of the chicken house to ensure that the wind speed in the cage can reach 0.5-1.5 m/s, the maximum local temperature difference of the whole house is less than 3°C, and the daily temperature fluctuation is less than 3°C.
(2) Cold climate environment control mode.
(3) Automatic control equipment.
The environment is fully automated with the intelligent environmental controller as the core, and the temperature and humidity, wind speed, NH3, CO2 and other environmental sensors are arranged according to the space size of the chicken house and the distribution of cages.
Based on the analysis of the environmental parameters in the house by the intelligent environmental controller, the opening and closing of environmental control equipment such as small windows on the side walls, deflectors, fans and wet curtains are automatically adjusted to realize intelligent control of the environment in the chicken house.
Control the uniformity and stability of the environment of chickens in different positions of the chicken house to ensure that the wind speed in the cage can reach 0.5-1.5 m/s, the maximum local temperature difference of the whole house is less than 3°C, and the daily temperature fluctuation is less than 3°C.
Company Profile
Henan Xinfeng Animal Husbandry Equipment Co., Ltd.
Henan Xinfeng Animal Husbandry Equipment Co., Ltd. is located in Xiping County, Zhumadian City of Henan Province.
Since the company’s establishment in 2015, Xinfeng staff have always been dedicated to the research & development, design, production, sales, and installation of poultry breeding equipment, also has been continuously introducing advanced European breeding concepts and new technology into the new equipment.
The main products include automatic chicken cages, automatic duck equipment, automatic quail equipment, automatic rabbit equipment, organic fertilizer production line equipment and steel structure buildings.
With excellent screen production equipment, strong technical force, scientific technology and excellent quality control system, we have established the strategic cooperative relationship with some renowned international enterprises in Germany, France, the Netherlands and South Korea, and have sold the products to more than 50 countries around the world.
The company staff adheres to the principle of "No failure" and takes "perfect service and best price" as the direction to build a national standardized livestock and poultry breeding farm.
Since the company’s establishment in 2015, Xinfeng staff have always been dedicated to the research & development, design, production, sales, and installation of poultry breeding equipment, also has been continuously introducing advanced European breeding concepts and new technology into the new equipment.
The main products include automatic chicken cages, automatic duck equipment, automatic quail equipment, automatic rabbit equipment, organic fertilizer production line equipment and steel structure buildings.
With excellent screen production equipment, strong technical force, scientific technology and excellent quality control system, we have established the strategic cooperative relationship with some renowned international enterprises in Germany, France, the Netherlands and South Korea, and have sold the products to more than 50 countries around the world.
The company staff adheres to the principle of "No failure" and takes "perfect service and best price" as the direction to build a national standardized livestock and poultry breeding farm.
Exhibition

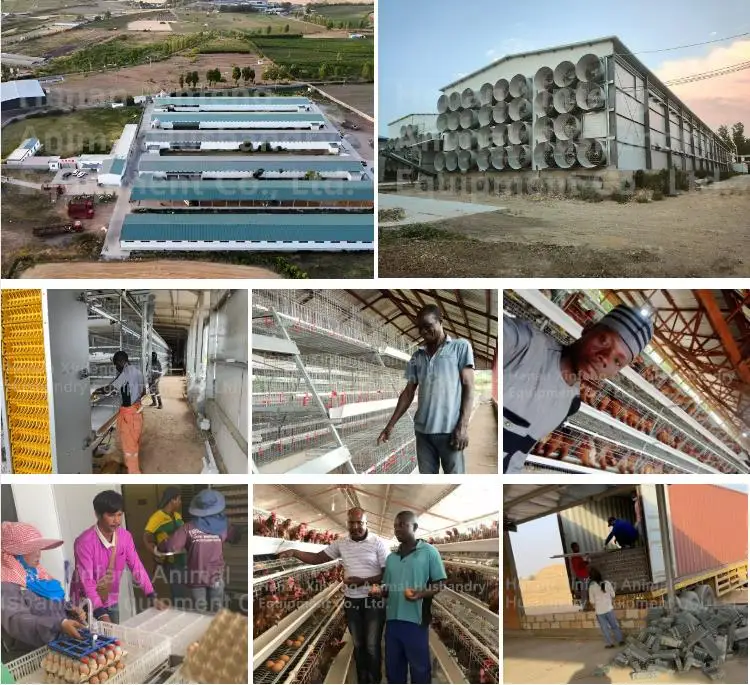

Customer Cases
Packaging and Delivery
FAQ
1.Q: Chicken cages can be customized?
A: Yes, We have a-type chicken cage and H type chicken cage now, and our all kinds of chicken cages can be customized designaccording to each client's demands, provide non-standard design of program and process flow chart to you.
2.Q: What kinds of chicken layer cage you can offer?
A:We can produce cage system, automatic feeding system, automatic egg collecting system, automatic manure removing system and automatic environmental control system.
3. Q: what's your payment and currency?
A: We accept different kinds of payment terms:
1) Accept payment of TT.
2) Accept L/C
3) Accept Alibaba credit guarantee payment
4) Westen Union, Paypal. e-Checking, Visa card, Master card, etc.
B:The currency we accept have USD, RMB, EUR, GBP, AUD.
4. Q: What's the MOQ? How many sets chicken cage for 20 feet container and 40HQ container?
A: Yes, We have a-type chicken cage and H type chicken cage now, and our all kinds of chicken cages can be customized designaccording to each client's demands, provide non-standard design of program and process flow chart to you.
2.Q: What kinds of chicken layer cage you can offer?
A:We can produce cage system, automatic feeding system, automatic egg collecting system, automatic manure removing system and automatic environmental control system.
3. Q: what's your payment and currency?
A: We accept different kinds of payment terms:
1) Accept payment of TT.
2) Accept L/C
3) Accept Alibaba credit guarantee payment
4) Westen Union, Paypal. e-Checking, Visa card, Master card, etc.
B:The currency we accept have USD, RMB, EUR, GBP, AUD.
4. Q: What's the MOQ? How many sets chicken cage for 20 feet container and 40HQ container?
A: Our MOQ is 40 sets, one 20 feet container can loading 80-100 sets, one 40HQ container can loading 160-200 sets chicken layercages.
5. Q: What information do I need provide?
A: Normally, we need our customer provide below information:
1. Which kinds of chicken do you plant to feed? (layer, broiler or pullet)
2. How many birds? (5000 birds or more?)
3. Do you need automatic equipment?
4. Do you have chicken house?(L*W*H)
5. Working voltage? (V, HZ, Phase)
6. Any other requirement do you need?
5. Q: What information do I need provide?
A: Normally, we need our customer provide below information:
1. Which kinds of chicken do you plant to feed? (layer, broiler or pullet)
2. How many birds? (5000 birds or more?)
3. Do you need automatic equipment?
4. Do you have chicken house?(L*W*H)
5. Working voltage? (V, HZ, Phase)
6. Any other requirement do you need?
