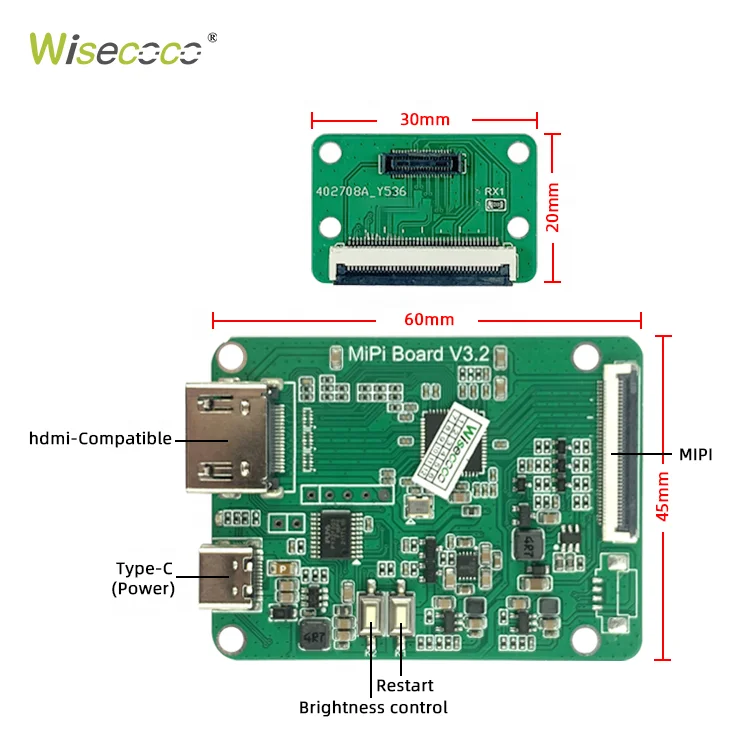

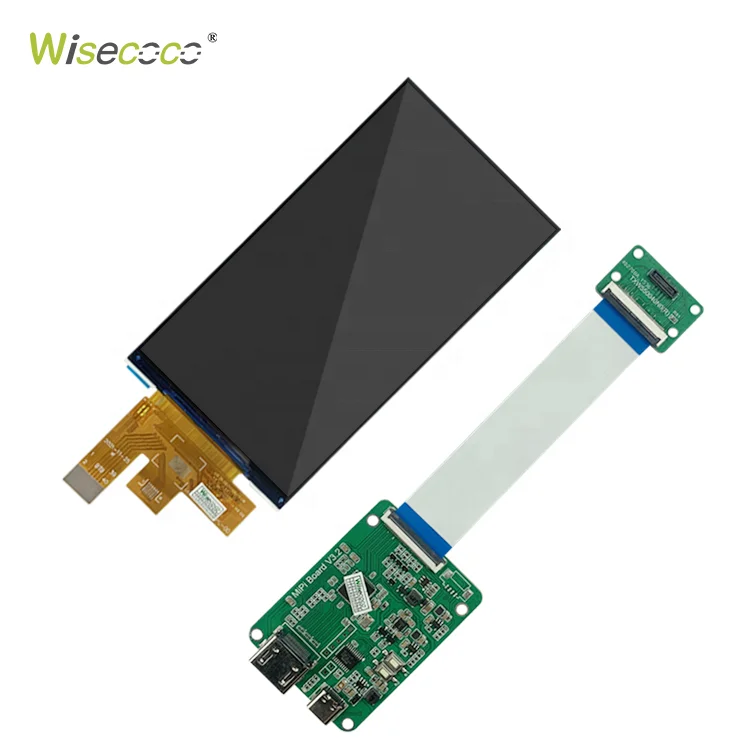

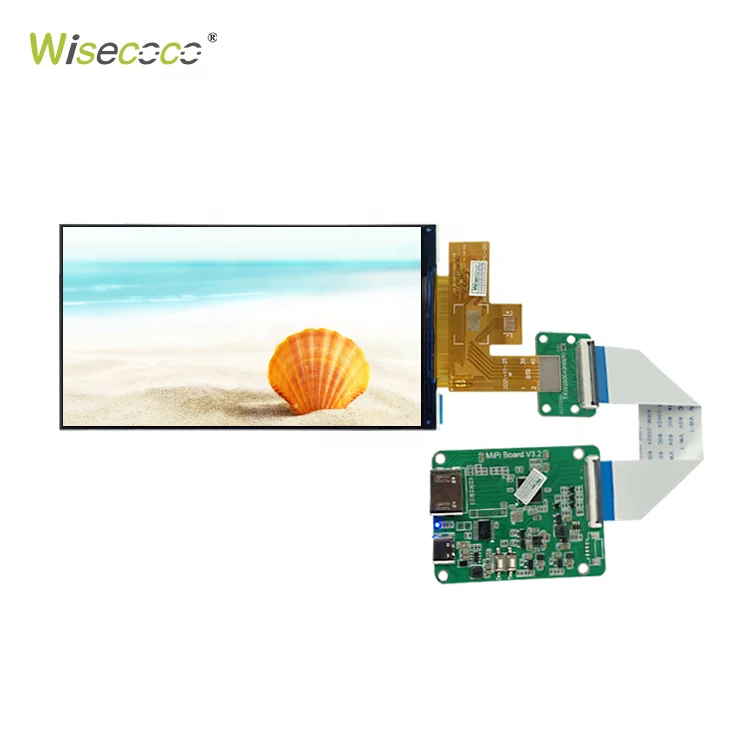

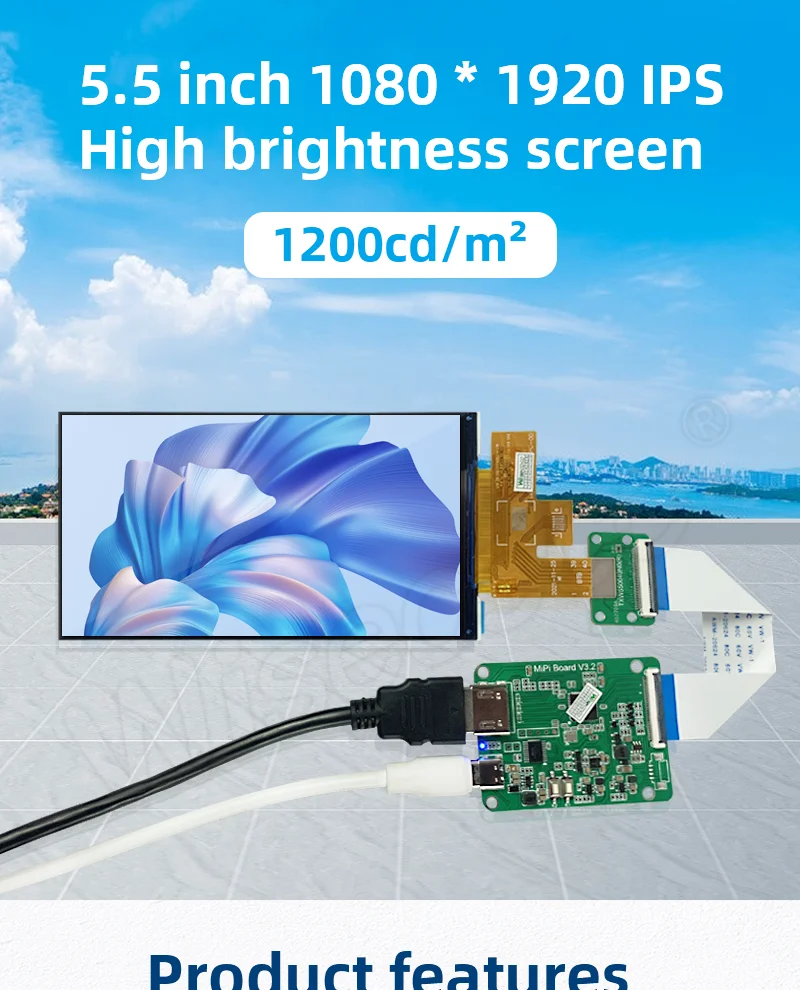

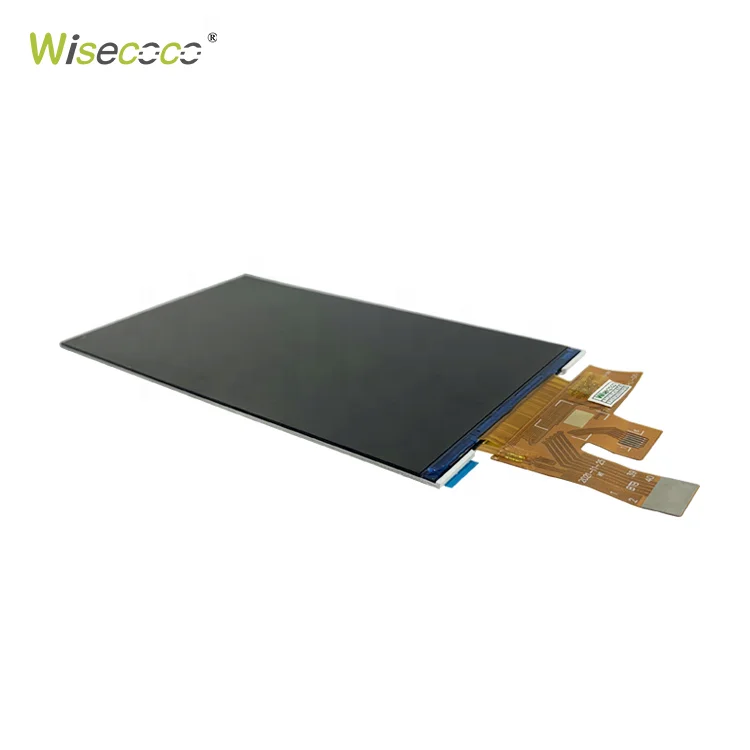

High Brightness LCD Modules 5.5 Inch FHD Display Screen Orange Raspberry pi IPS Display Panel Driver Board 1500nits Outdoor Use
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (1600918970220):
Product Overview
Description
LCD Modules 5.5 Inch FHD Display Screen Orange Rasberry pi IPS Display Panel Driver Board High Brightness 1500nits Outdoor Use
General Features : | |||
Panel Size | 5.5 inch | Panel Type | TFT LCD |
Resolution | 1920x1080 | Pixel Format | RGB Vertical Stripe |

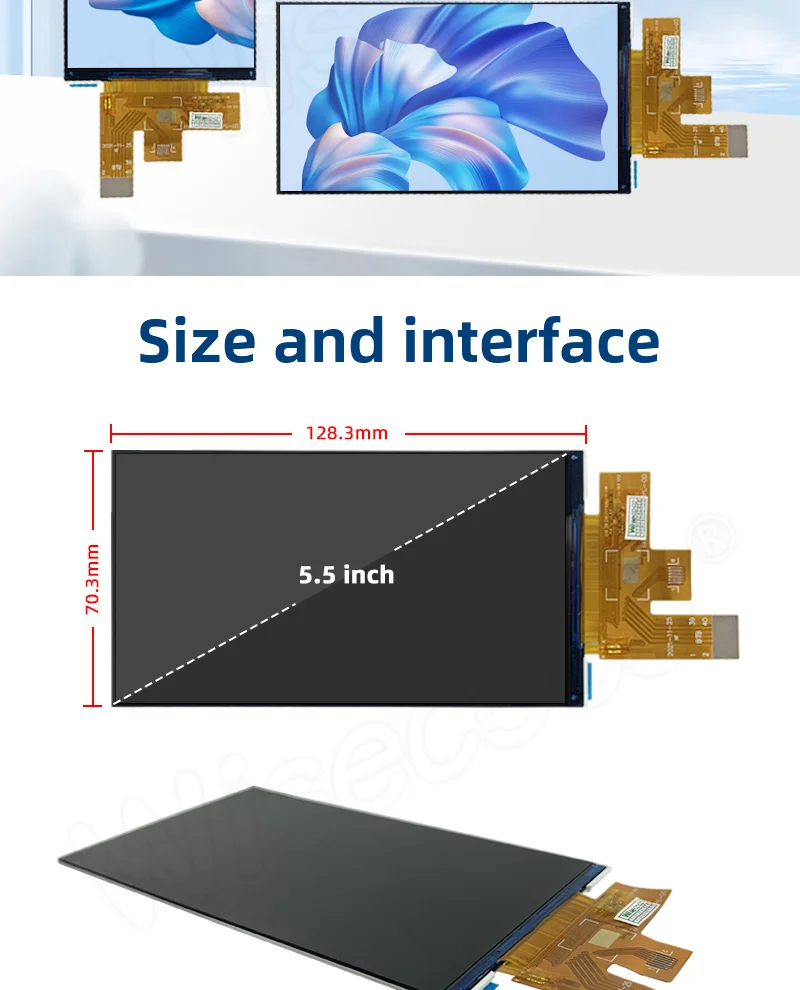

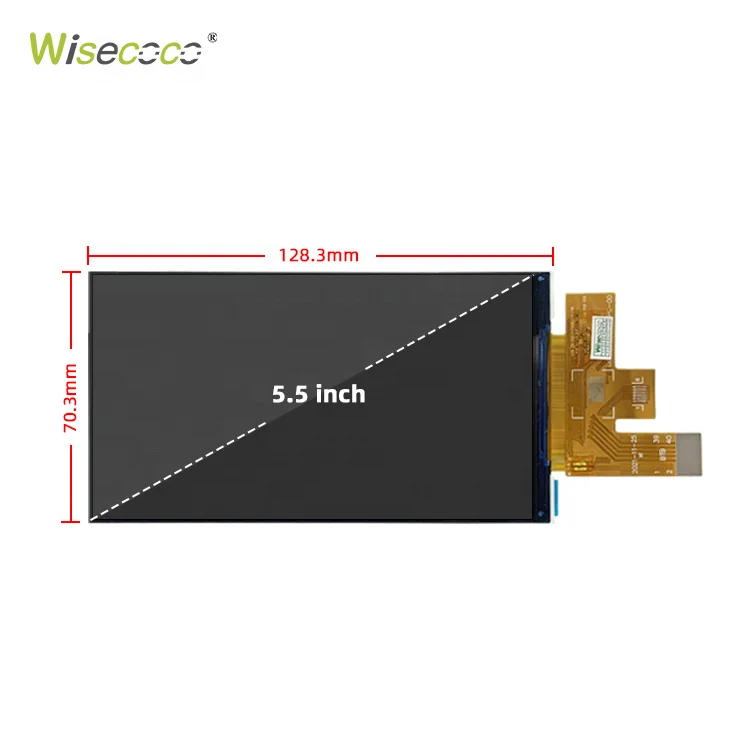

Display Area | 69.12*122.88 mm | Outline Size | 72.8(W)*131.2(H)*1.81(D)mm |
Brightness | 1500 Cd/m² (Typ.) | Contrast Ratio | 3000:1 (Min.) (TM) |
Best View on | Symmetry | Viewing angle | 80/80/80/80 (Typ.)(CR≥200) |
Response Time | 2 ms (Max.) | Touch Screen | Optional |
Application | Mobile, Handheld, PDA | ||

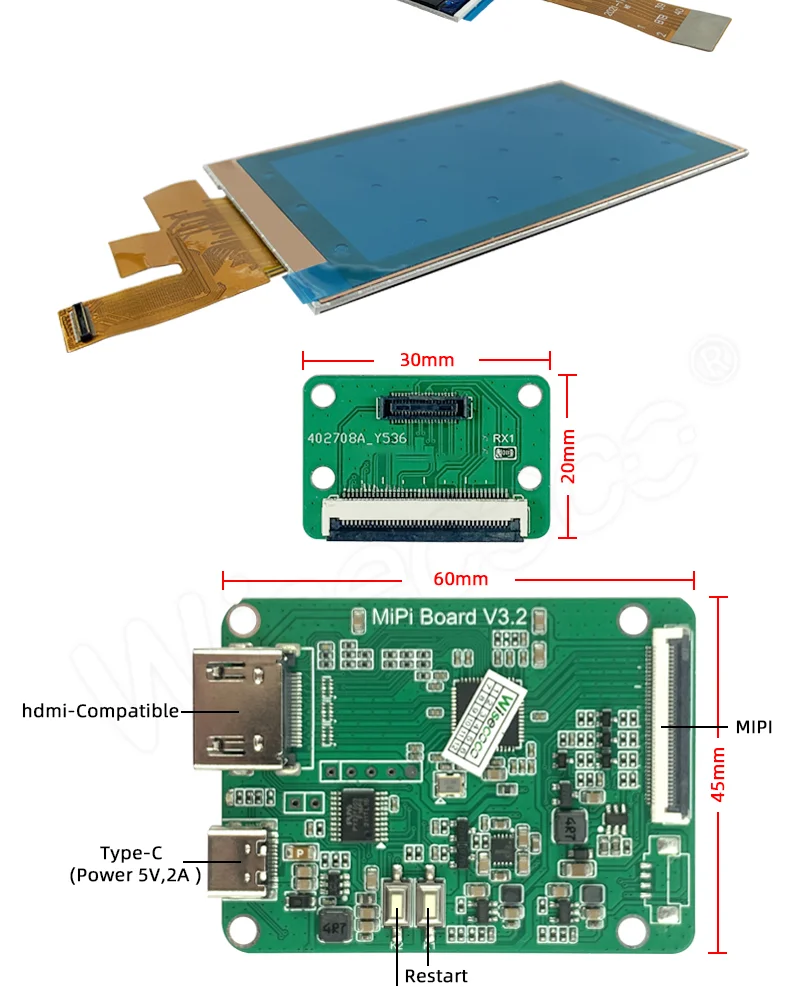

Signal Interface | MIPI (4 data lanes) | ||
Input Voltage | 3.3V (Typ.)(VDDI) | ||
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C | ||
High quality!
Large Stock!
Cost-Effective!
Multiple Choice!
Provide Customized Service!!!
(Sizes, Resolution, Brightness, Materials, Shapes, Interfaces, Touch Fuction etc.)
Welcome to contact with us and get our best service!!!
