knojac fine powder crushing machine konjak powder flour mill seaweed agar agar powder pulverizer miconfine seaweed crushing mill
- Category: >>>
- Supplier: Henan Workers Machinery Co. Ltd.
Share on (1600918995474):
Product Overview
Description
working principle

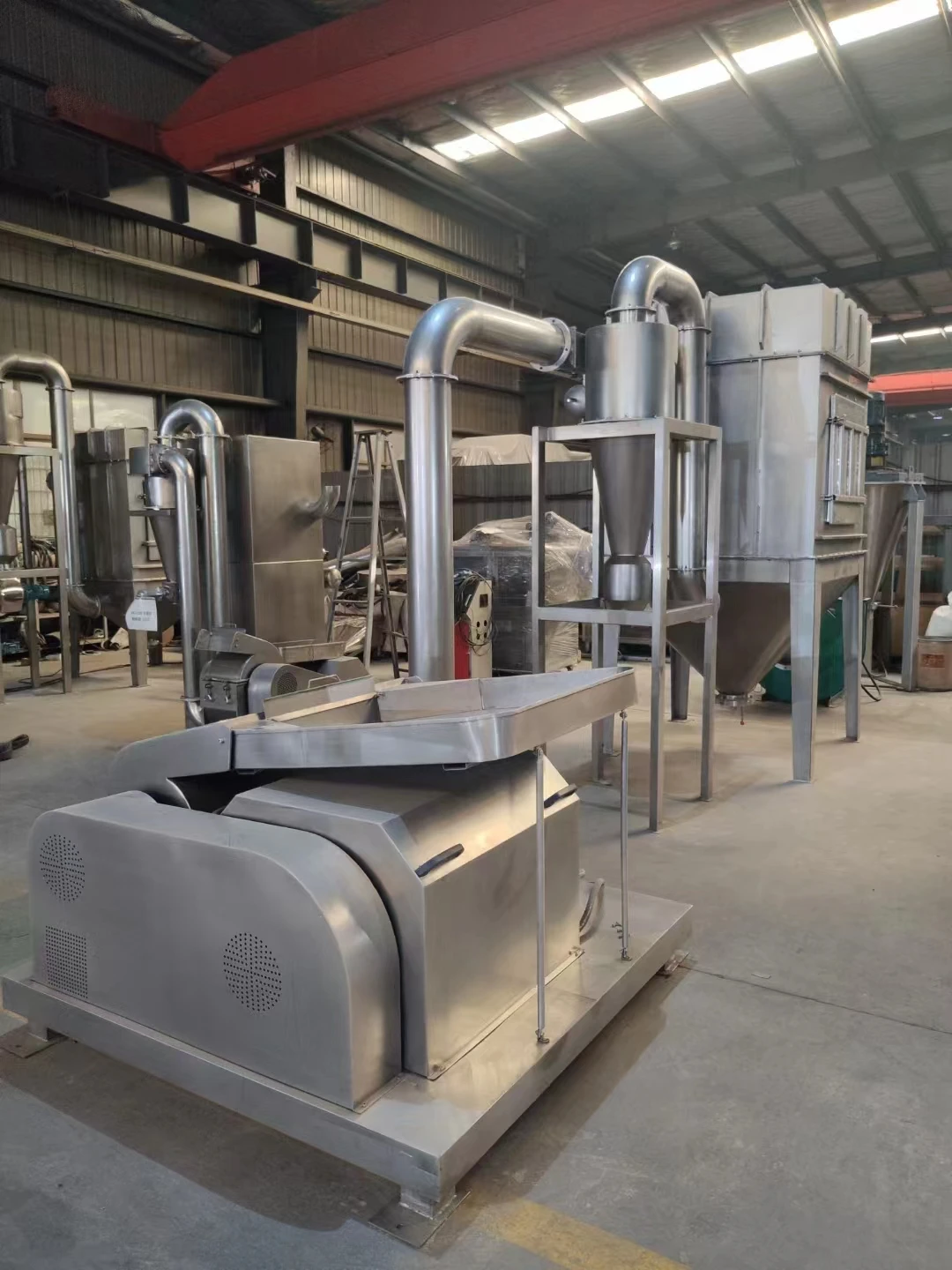

The material enters the crushing chamber from the hopper and is subjected to centrifugal force generated by the high-speed rotation of the movable blade

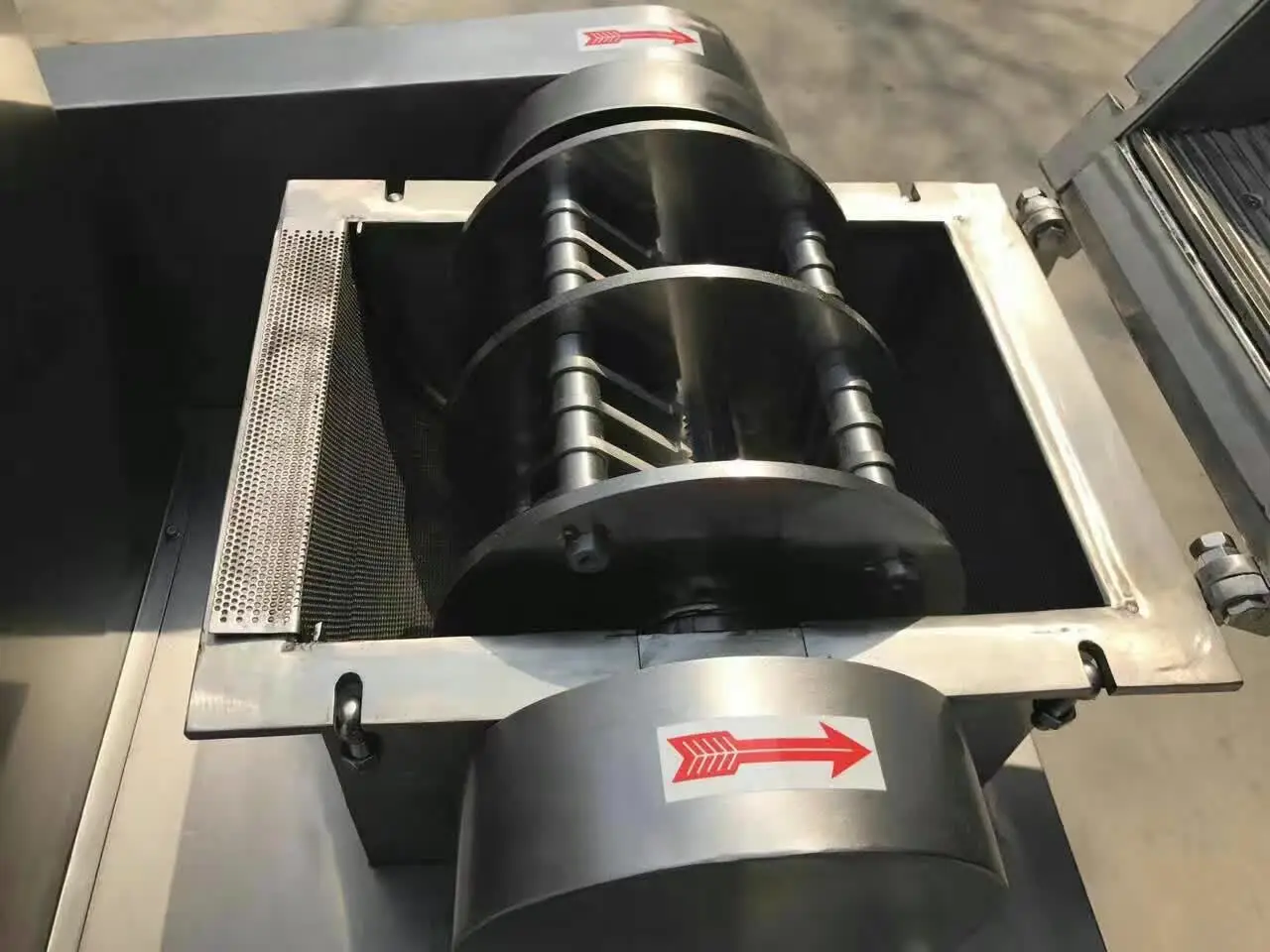

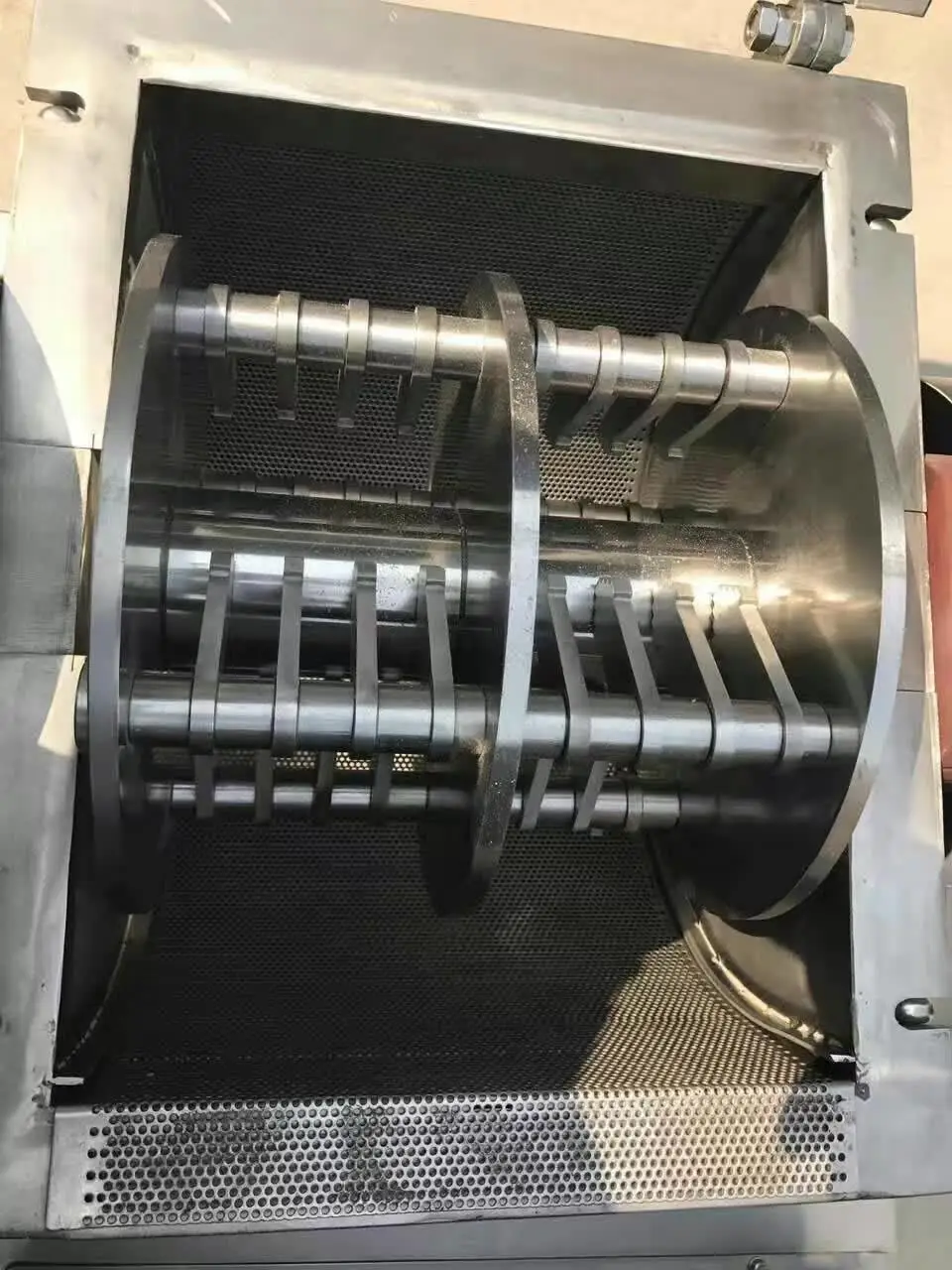

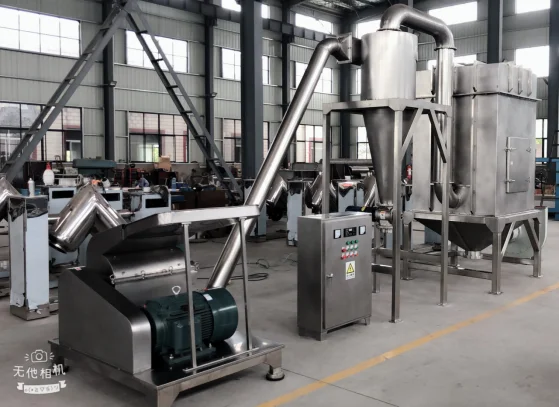

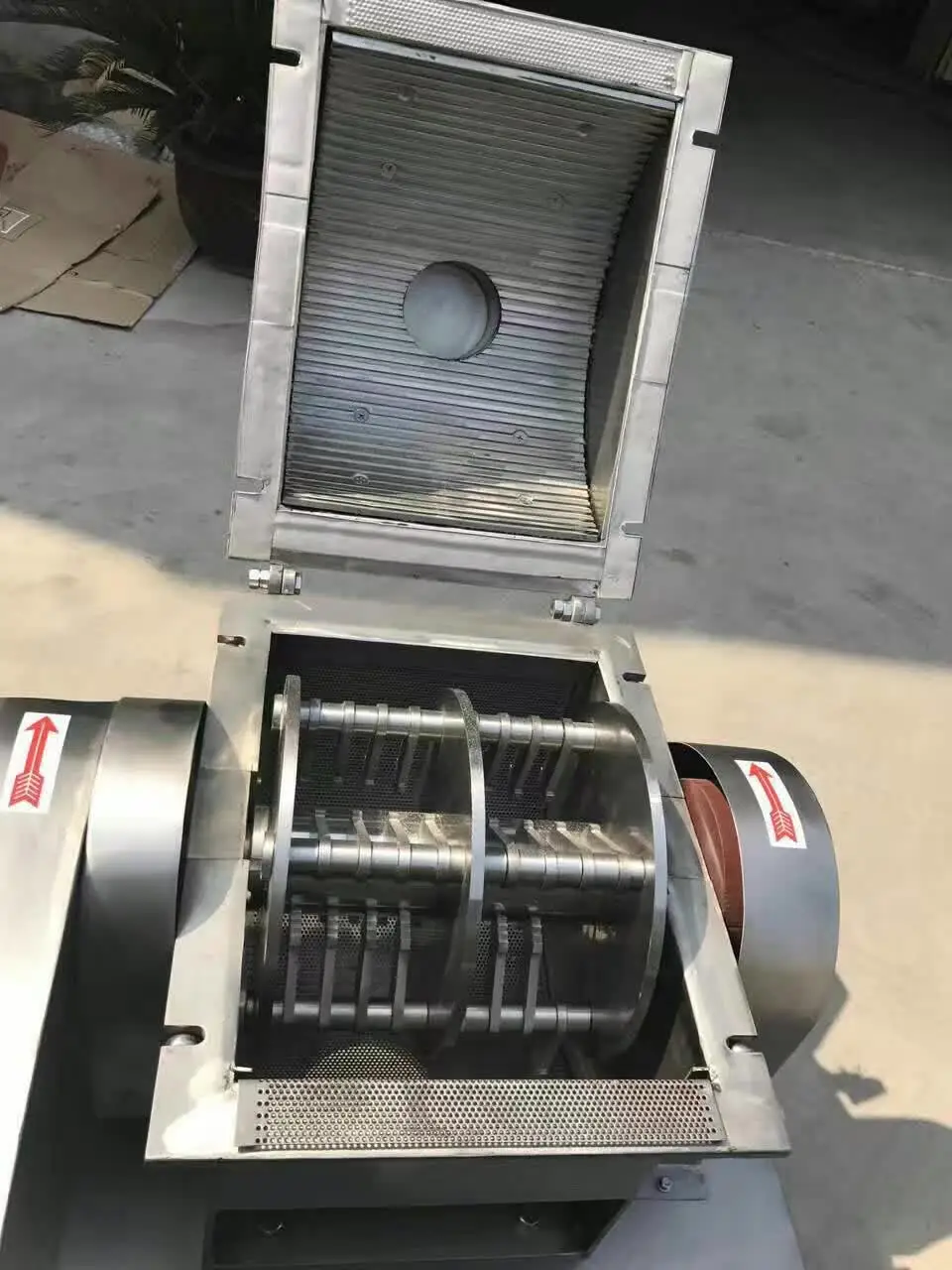

The material is thrown towards the chamber wall from the center, and is crushed by the impact, shearing, grinding, and material impact between the movable blade and the fixed toothed plate. Finally, the material reaches the annular space on the outer wall of the rotary table, and the fine particles are discharged from the bottom through the external sieve plate. The coarse powder is repeatedly crushed inside the machine, and the fine particles are then passed through the high-pressure induced draft fan pipeline through the cyclone separator. The air is closed by the closed fan, and the ultrafine powder is introduced into the dust removal box, There is a 300 mesh dust bag inside the dust removal box, which is equipped with a pulse dust removal device to prevent ultrafine powder from adsorbing on the bag and affecting the wind pressure, thus improving the efficiency and stability of the equipment for long-term continuous production.
The material is thrown towards the chamber wall from the center, and is crushed by the impact, shearing, grinding, and material impact between the movable blade and the fixed toothed plate. Finally, the material reaches the annular space on the outer wall of the rotary table, and the fine particles are discharged from the bottom through the external sieve plate. The coarse powder is repeatedly crushed inside the machine, and the fine particles are then passed through the high-pressure induced draft fan pipeline through the cyclone separator. The air is closed by the closed fan, and the ultrafine powder is introduced into the dust removal box, There is a 300 mesh dust bag inside the dust removal box, which is equipped with a pulse dust removal device to prevent ultrafine powder from adsorbing on the bag and affecting the wind pressure, thus improving the efficiency and stability of the equipment for long-term continuous production.
Model | Capacity (kg/h) | Discharge size (mesh) | Motor power (kw) | Rotating speed (rpm) | Weight （kg） |
wks-400 | 80-1000 | 20-120 | 18 | 4000 | 150 |
wks-630 | 400-1500 | 20-120 | 30 | 4000 | 250 |
wks-880 | 800-2000 | 20-120 | 37 | 4000 | 350 |
wks-1000 | 1000-2500 | 20-120 | 45 | 4000 | 450 |
Application

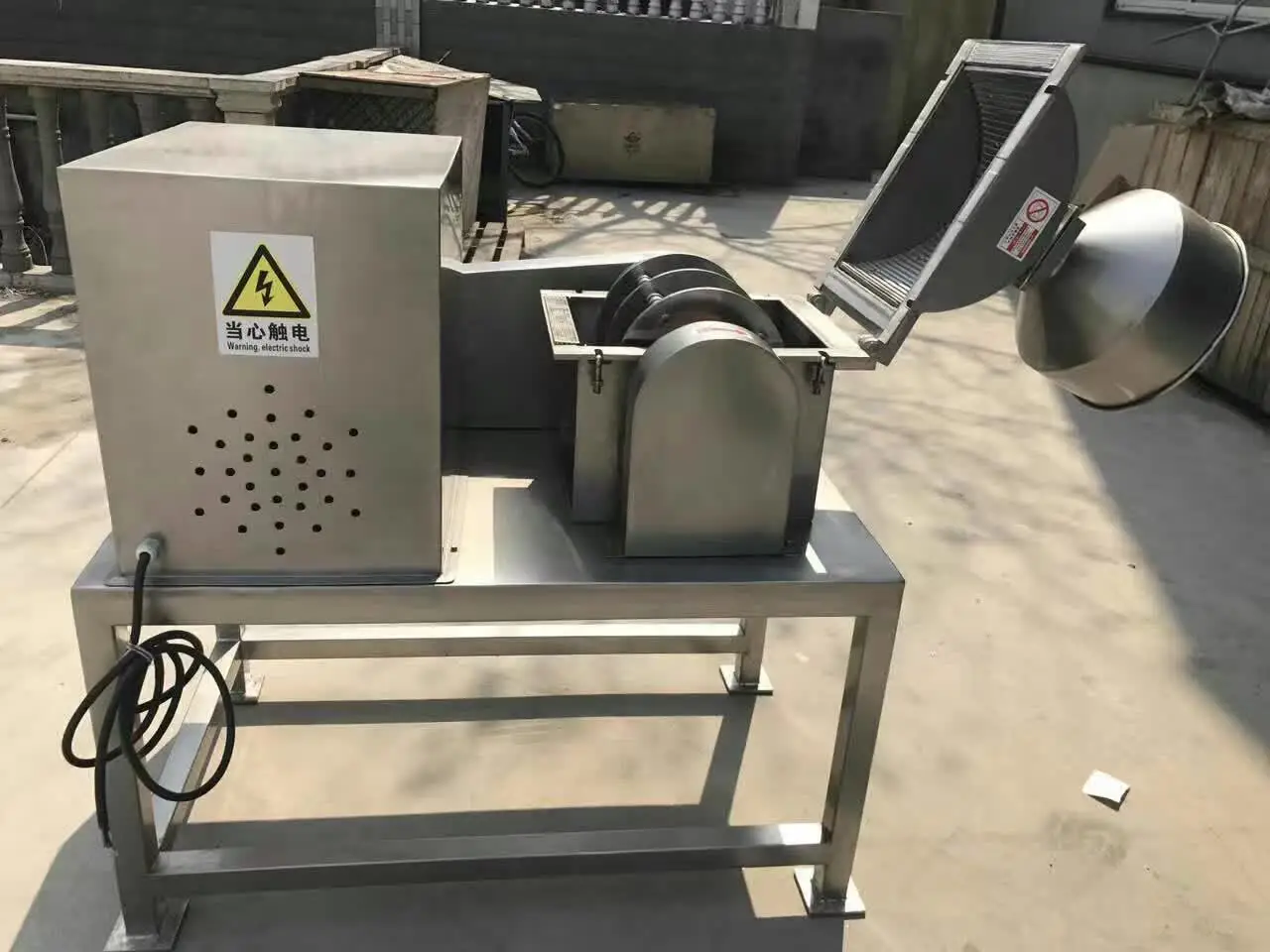

The machine is made up of three parts:main machine,auxiliary machine and electric control box. It has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.It uses fixed plate and the relative motion between the activity hammer,making materials impacted and shredded under effect of centrifugal force.The production process going on continuously,the machine can undertake the grinding of chemical products.food,herb,cosmetics,plastic,dyestuff,resin,grain,etc.
