Waterproof Camel Flash/ Flexible Roof Flashing and All Purpose Repair Tape Butyl tape lead free flashing tape
- Category: >>>
- Supplier: Shanghai Toptape Industrial Material Co. Ltd.Shanghai Ltd.
Share on (1600919013506):
Product Overview
Description
Product Description

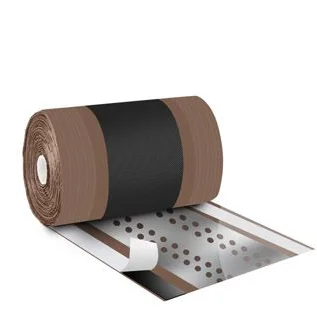

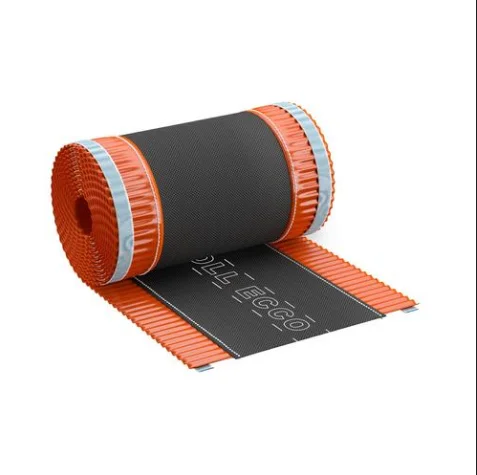

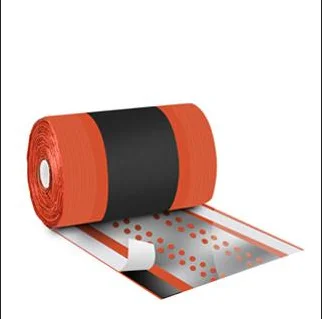

Waterproof Camel Flash/ Flexible Roof Flashing and All Purpose Repair Tape Butyl tape
Camel Flashing is a waterproof dry fix solution, it is made of UV-stabilized aluminum surface with 100% butyl lamination,
excellent water-tightness against heavy rain., specifically designed for ridge and hip against rainwater entry.
Product Introduction
Feature of butyl tape for ventilation systems
TOPTAPE Flexible flashing can be cut with hard scissors. It can be shaped and laid with hands. Flexible flashing has an automatic fusion function, eliminating the welding work necessary for using other metal flashing. The strong adhesive edge enhances protection against rain, snow, and dust.
The use function of flexible flashing is becoming more perfect: the sandwich mesh extends to the edge, making the forming of flexible flashing more convenient. The sandwich mesh is placed inside a highly flexible and resilient waterproof polyisobutylene layer. Hand bending can create vertical seams.
Application of butyl tape for ventilation systems
Flexible flashing can be widely used in the following areas:

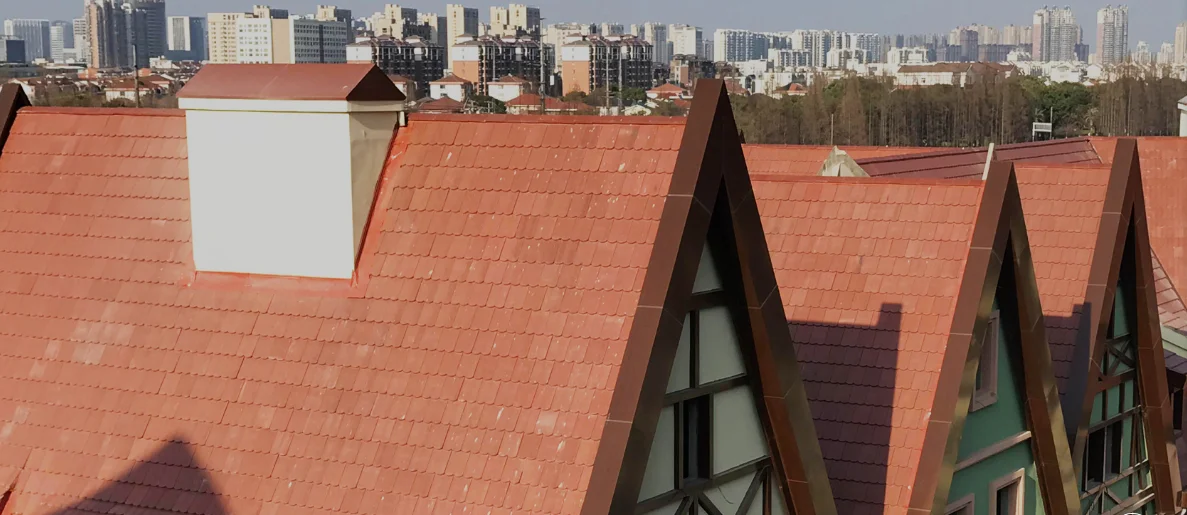

Joint between roof and wall
Around the chimney
Surroundings of roof ventilation pipes

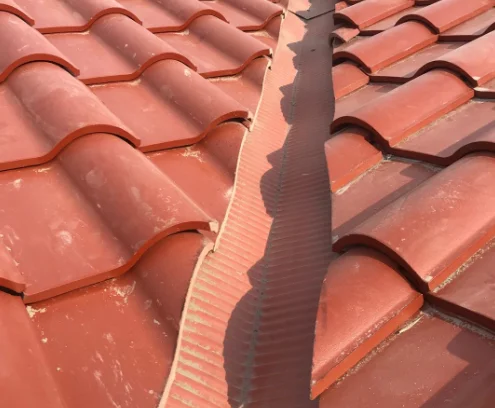

Sloping roof
Irregular roof
Deformation joint
Roof openings and skylights, etc
Material: polyethylene propylene, sandwich aluminum mesh, butyl bonded edge; PE coated aluminum foil+butyl rubber
Specification: 380mm * 5m/600mm * 5;
Color: brick red, black, gray Packaging parameters:
Quantity: 1 roll/box, according to actual situation;
Weight: 3.1kg/roll, 7.3kg/box
Purpose: Waterproof
Product Test Report
ITEM | MEASUREMENT | TEST METHOD |
Tensile Strength | 0.7kgf/cm2 | JIS K 6301 500MM/MIN |
water resistance | No deterioration ，No fat separation，Water absorption＞0.028 | 20℃ water, 168 Hr |
heat resistance | no hanging,No fat separation， No deterioration | 5mm*5mm*100mm on Vertical steel plate,110℃ 168Hr |
holding power | slide is 0.5mm | 2mm*50mm*50mm on Vertical steel plate,100℃ 168Hr |
cold resistence | no craking, no slide | 5mm*5mm*100mm on Vertical steel plate,-30℃ 24Hr |
offensive smell | on offensive smell | 10g in 1 liter glass tubes, 24Hr |
Product Details Show
THICKNESS | WIDTH | LENGTH | |
0.8-10MM | 5MM-1000MM | 1M-30M | |
COLOR OF BUTYL RUBBER | BLACK, GREY, WHITE | ||
LINER | PAPER | ||

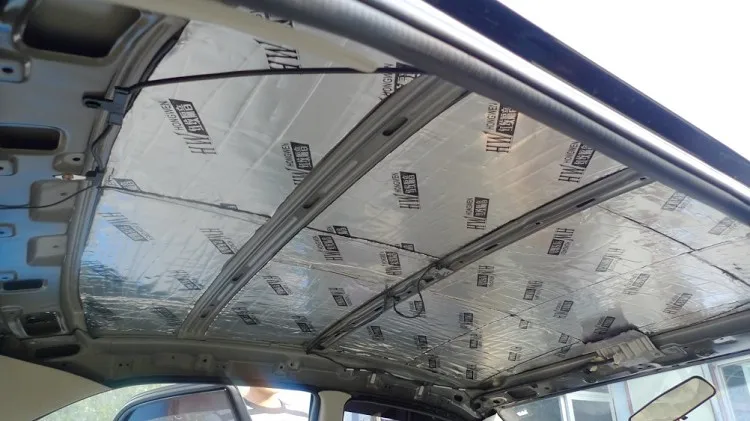

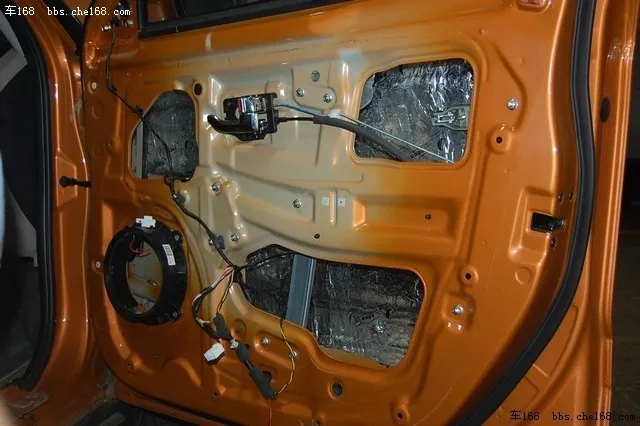

Applicaton
Why Choose Us
Advantage of our factory
1, Shanghai toptape is factory. price is low, delivery is fast.
2, All the tapes are customized by size, color, usage.
3, Shanghai toptape earn a reputation for honesty in adhesive tape feild.
4, Shanghai toptape will take resiponsbility to every rolls tape we sold.
5,Nearly 60% of our bookings come from repeat busines.
Advantage of butyl tape for ventilation systems
1,This butyl tape is soft pure butyl rubber.
2, It is very sticky.
3, Pack with strong box.
4, Shanghai toptape could slit glazing tape in 5mm width.
5, This tape is alternative with 3M/NORTON/butyl tape.
RoHS TEST REPORT
ADHESIVE TEST MACHINE OF SHANGHAI TOPTAPE
Production Process

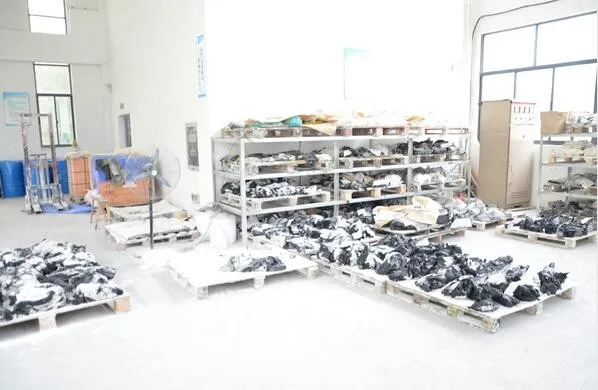

Butyl Rubber Mixing
Butyl rubber Choose
Extruded Butyl Rubber
Product Packing
