4km accuracy laser range finder customize oem optical rangfinder long distance sensor with rs232
- Category: >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (1600919095152):
Product Overview
Description
Overview
Brief introduction of laser rangefinder (LFR)
Laser rangefinder is also called laser range finder, LRF, laser rangefinder module, it is an instrument that uses a laser beam to measure distances.
The basic principle is that a laser pulse is sent to the object to be measured and the timing is started, and the timing is stopped when the reflected light is received. This time can be converted to the distance between the laser and the target.
The basic principle is that a laser pulse is sent to the object to be measured and the timing is started, and the timing is stopped when the reflected light is received. This time can be converted to the distance between the laser and the target.
Product Description
We provide laser range finder module (LRF module) with 5km, 10km, 15km, 20km up to 40km.

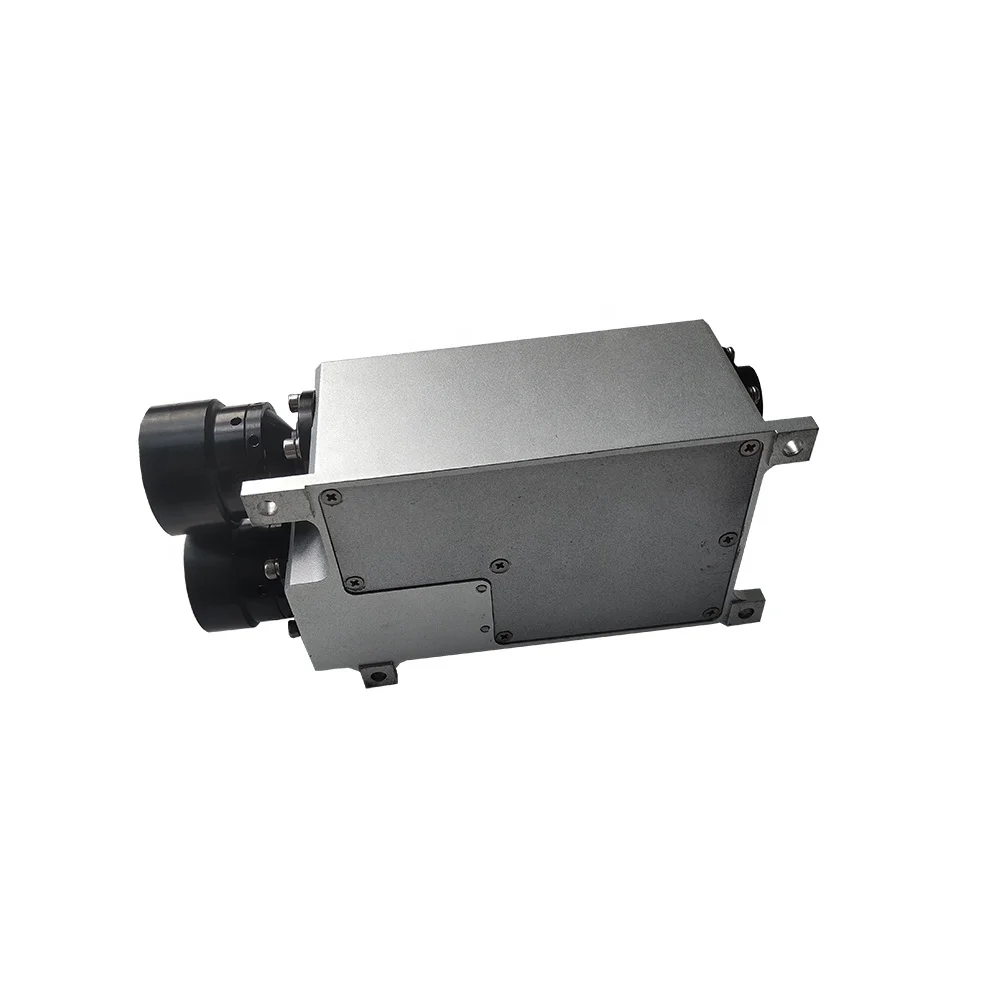

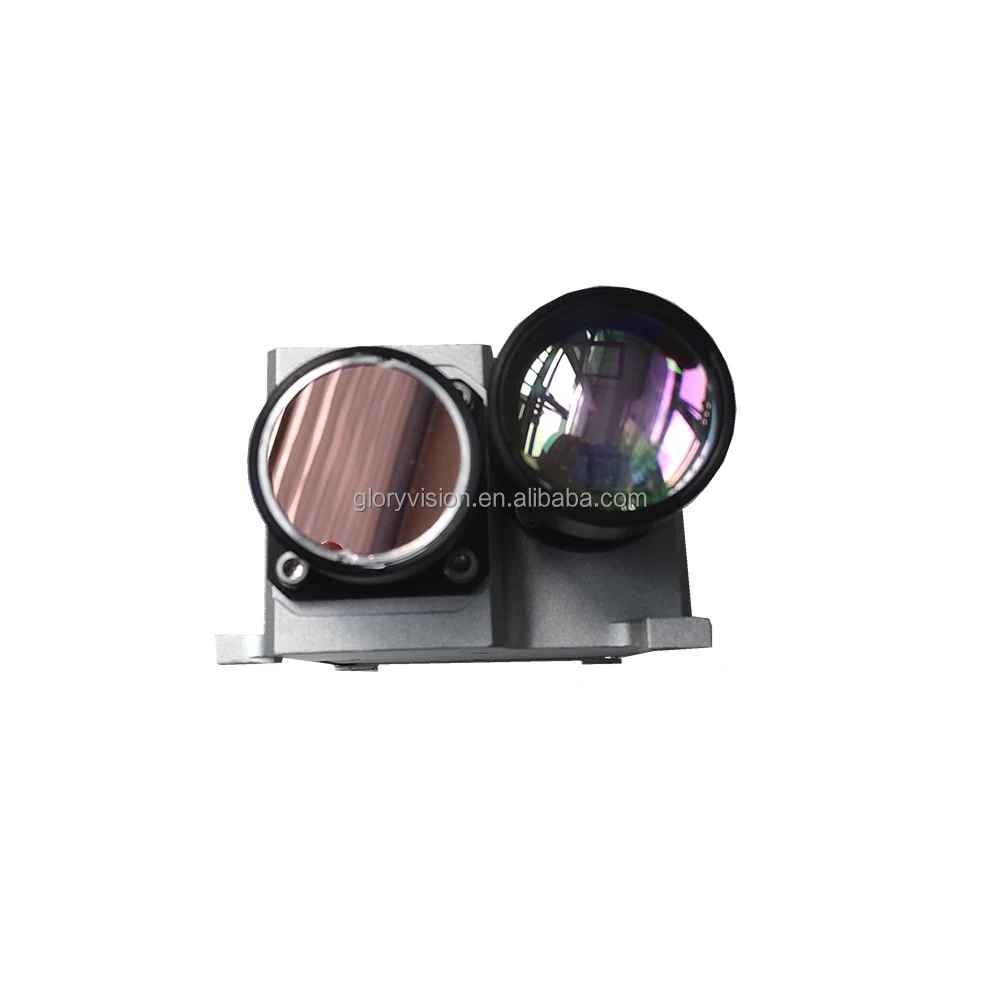

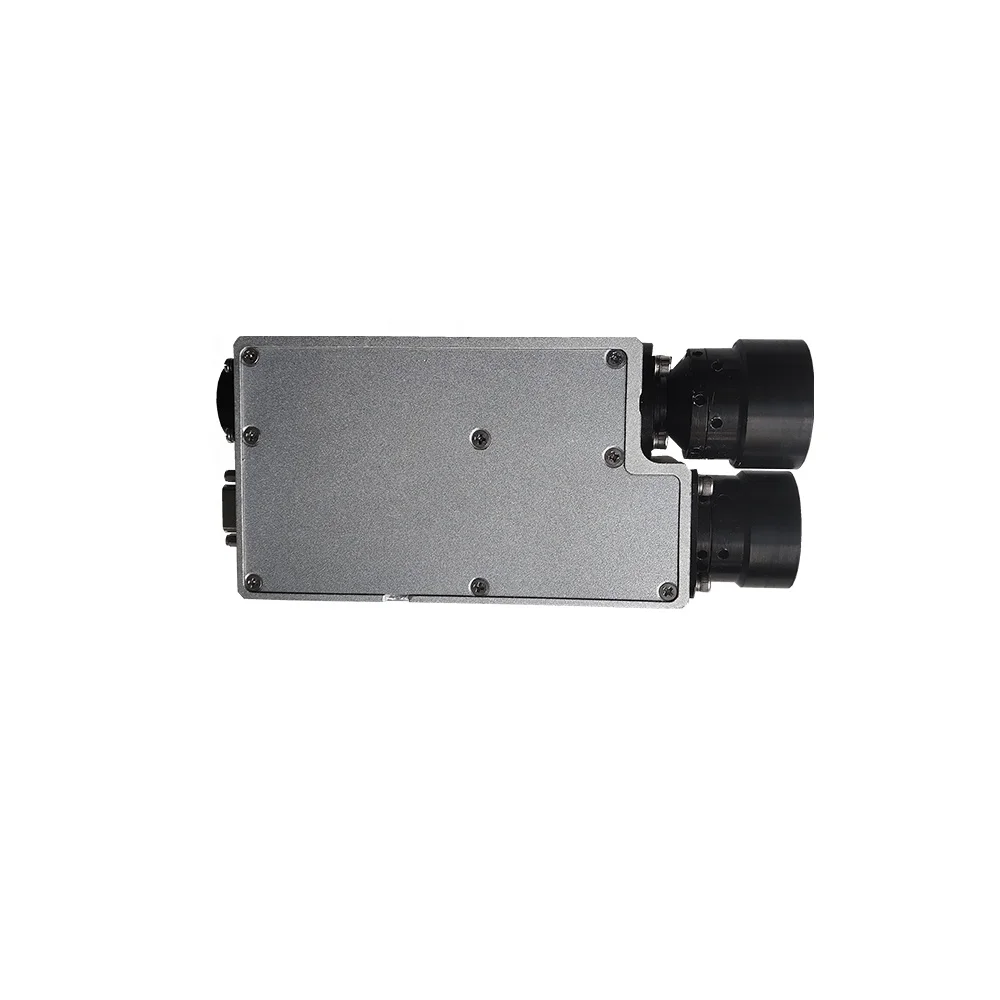

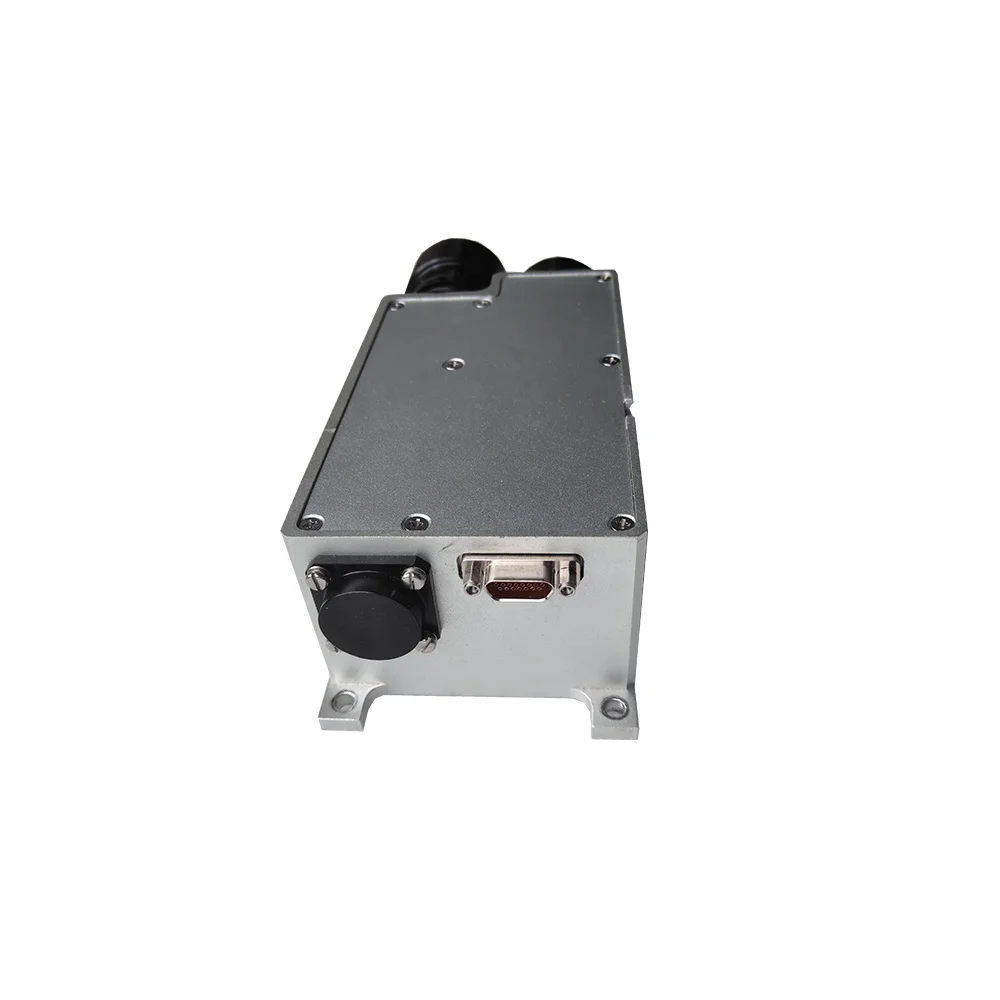

Details Images
Manufacturing Technique
No. | Description | GV LFR-20 | GV LFR-20a | |
1 | Wave length | 1064nm | 1570nm | |
2 | Type of Lamp-house | Lamp-pumped | ||
3 | Range finder ability | 200~20000m | 200~23000m | |
4 | Max range finding | 30km | ||
5 | Range gate | Communication command | ||
6 | Ranging accuracy | ±1m | ||
7 | Frequency | 0.2Hz, 1Hz | ||
8 | Measurement accuracy | 98% | ||
9 | Dimension(mm) | 160×72×52 | ||
10 | Weight | 800g | ||
11 | Power | DC18~33V | ||
12 | Peak electric current | ≤800mA | ||
13 | Interface | RS422 | ||
14 | Working temp. | -40~60℃ | ||
15 | Storage temp. | -55~75℃ | ||
16 | Anti-impact | 30g | ||
Application
This laser rangefinder(LRF) module is mainly used on security system integration, for day/night cameras, infrared cameras , portable thermal imagers as well as long distance photoelectric devices.
Main applications are as follows:
1. Photoelectric surveillance and reconnaissance.
Main applications are as follows:
1. Photoelectric surveillance and reconnaissance.
2. Target tracking system and air defense system.
3. Land, air and sea target fire control system.
4. Measure altitude of the aircraft.
5. Measure the distance of the ship from the coast.
6. Determine the position of the moving target.
Eye Safe or NOT?
Generally, the long distance laser rangefinder module uses wavelength with 1064nm, 1535nm and 1570nm etc most.
Among these, 1064nm is NOT eyesafe module, 1535nm, 1570nm is eyesafe, cost pri.ce will be higher.

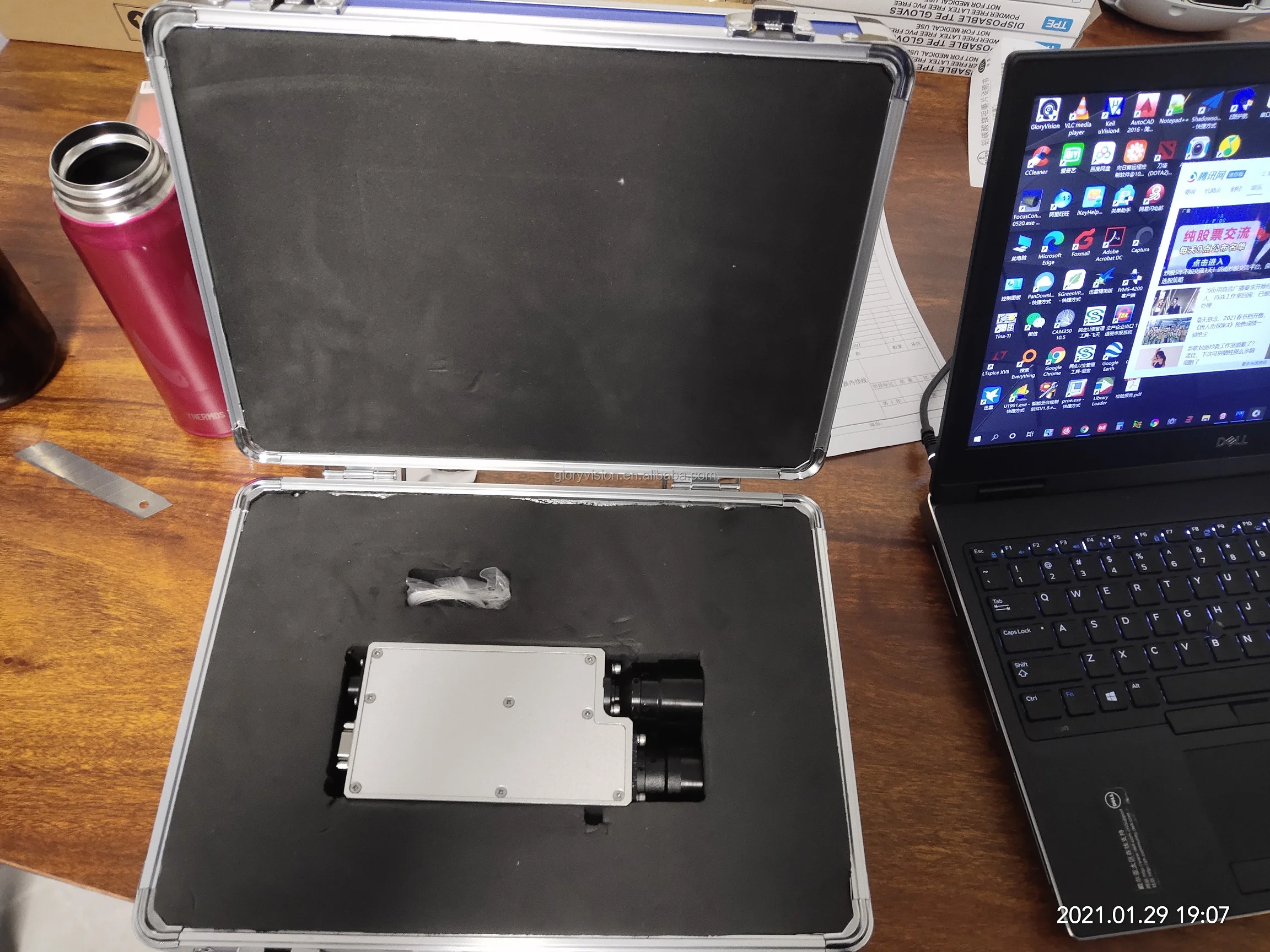

Product packaging
Recommend Products
FAQ
How to get the latest price?
You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.
What is MOQ?
Our minimum order quantity is 1 pc.
What is the lead time?
Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we receive your payment. If not, please confirm with sales.
How to ship goods to customer?
Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.
Do you provide customization service?
Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer's payment.
