ELP USB Camera Module Low Light 1080P H.264 IMX323 Sensor Webcam Module with Microphone and 2.1mm Wide Angle Lens For Embedded
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (1600919097971):
Product Overview
Description

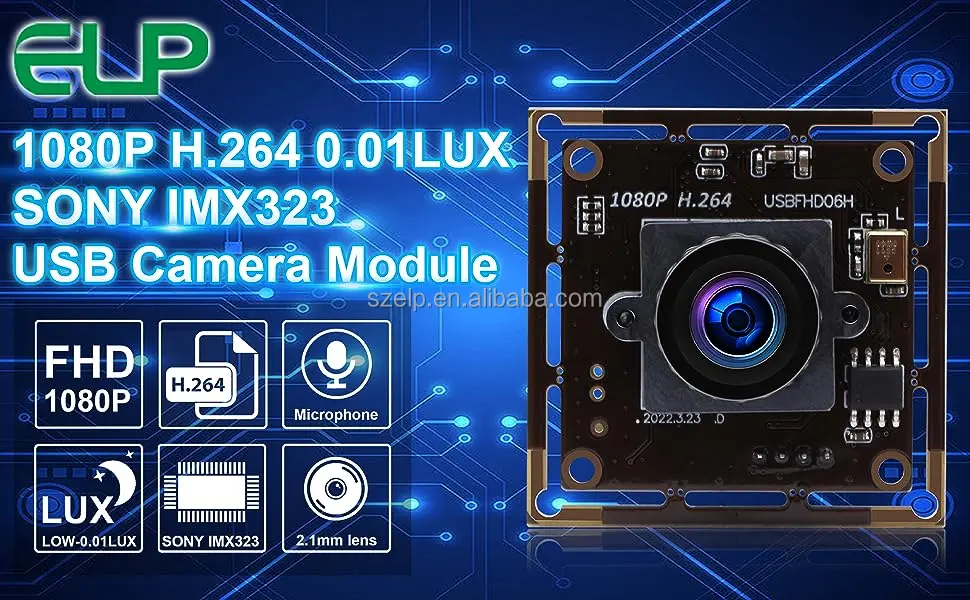

ELP USB Camera Low Light 2MP 1080P Sony IMX323 Sensor USB Camera Module with Microphone,2.1mm Wide Angle Lens Embedded Webcam Board,0.01Lux H.264 High Speed Industrial USB Computer Camera for Laptop
Features
* 1080P HD high definition,Max Resolution:1920(H)*1080(V),can drive 1080P@30fps.
* 1/2.9” IMX322 sensor for high quality image
* 1/2.9” IMX322 sensor for high quality image
* With Built-in microphone for audio recording
* 0.01 Lux Low illumination for dark clear vision, ideal for any lighting condition
* 0.01 Lux Low illumination for dark clear vision, ideal for any lighting condition
* H.264 on board higher coding efficiency compression
* 2.1mm M12 wide angle lens,wider viewing range
* 2.1mm M12 wide angle lens,wider viewing range
* Mini Board size 38*38mm/32*32mm,small outline and thin profile for embedded
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Why Choose H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Why Choose H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Specification
Model: | ELP-USBFHD06H-L21 (2.1mm Lens, HFOV about 104degree) |
Optional Model: | ELP-USBFHD06H-L28 (2.8mm lens, HFOV about 106 degree) ELP-USBFHD06H-L36 (3.6mm lens, HFOV about 85 degree) ELP-USBFHD06H-L60 (6mm lens, HFOV about 50 degree) ELP-USBFHD06H-L80 (8mm lens, HFOV about 40 degree) ELP-USBFHD06H-L12 (12mm lens, HFOV about 25 degree) ELP-USBFHD06H-L170 (L170 fisheye lens, HFOV 142 degree) ELP-USBFHD06H-L180 (L180 fisheye lens, HFOV 180 degree) (Only Lens difference, other parameter is the same) |
Sensor | IMX322 / 323 |
Lens Size | 1/2.9 inches |
Pixel Size | 12.8X11.6 mm |
image area | 2000(H)X1121(V) approx. 2.24 M pixels |
Max. Resolution | 1080P |
Compression format | H.264 /MJPEG / YUV2（YUYV） |
Resolution & frame | H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/ 800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/ 640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps/1920X1080@ 30fps YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/ 800X600@ 15 fps |
S/N Ratio | 42dB |
Dynamic Range | 86dB |
Sensitivity | 5.0V/lux-sec@550nm |
Mini illumination | 0. 01lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 2.1mm M12 S mount Lens (HFOV about 104 degree) |
Digital audio | High quality digital MIC, support single, dual channel |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 140mA~190mA |
Working temperature | -10～70℃ |
Storage temperature | -20～85℃ |
Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
Cable | Standard 1M / 2M,3 M,5M optional |
Operating system request | Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above |
Our Advantages
Details Images

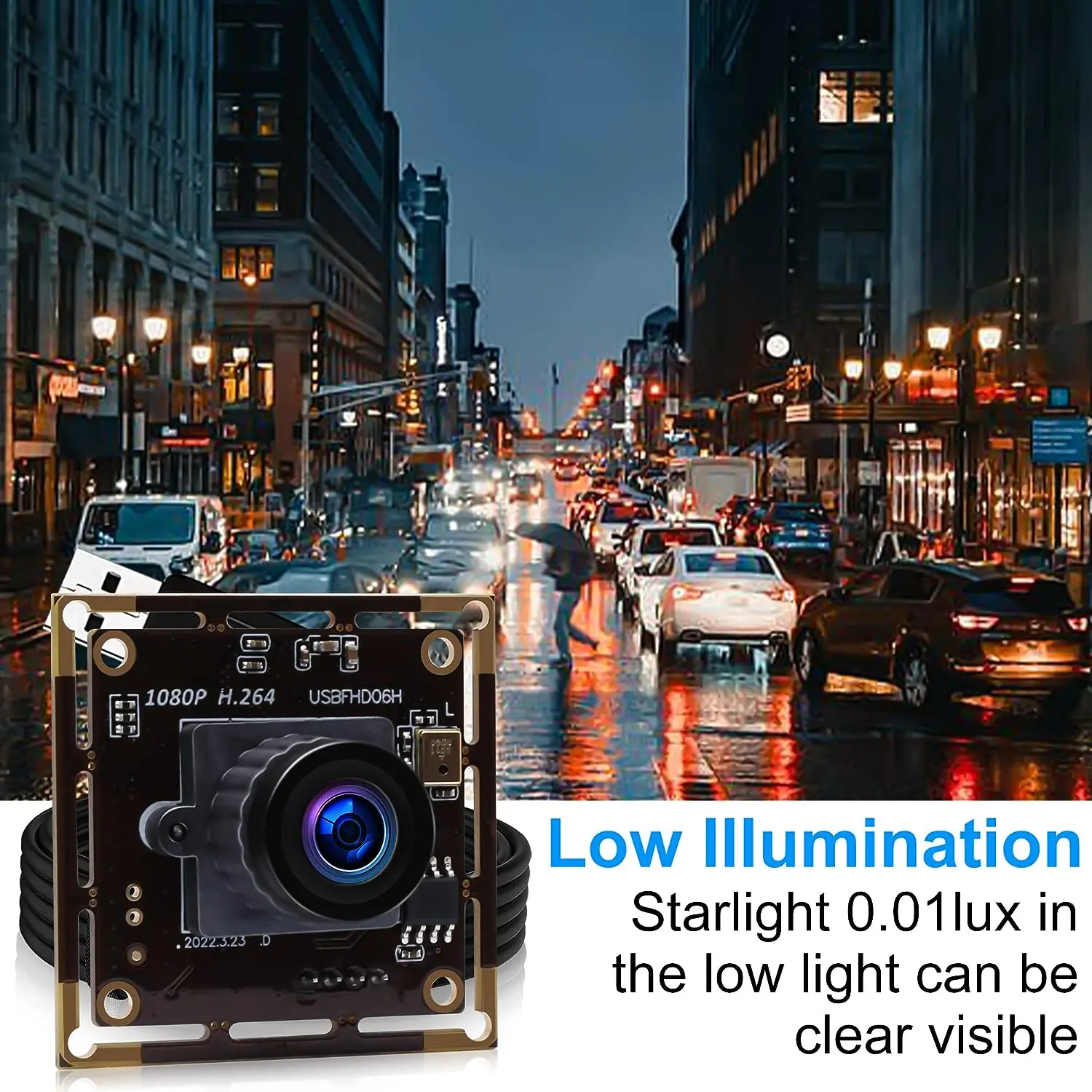

0.01Lux Low illumination
* Ideal for any lighting condition
* Can view good videos during night with little light,or low/weak lights.
* Can view good videos during night with little light,or low/weak lights.

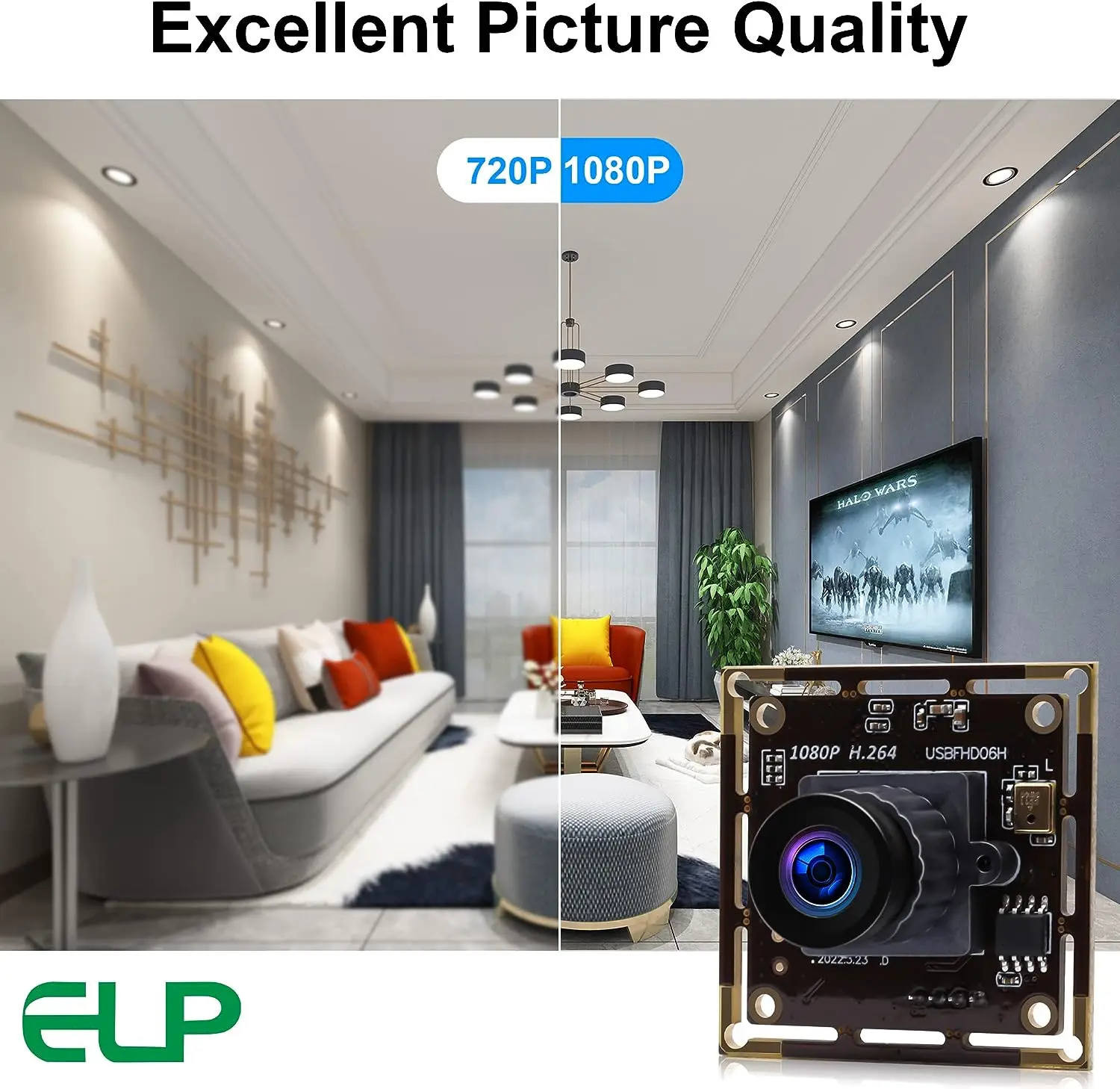

High Resolution FHD 1080P
* Excellent Picture Quality
* Can drive 30fps@1920(H)X1080(V)
* Can drive 30fps@1920(H)X1080(V)
H.264 High efficiency On board Encoding
* Higher coding efficiency
* Can provide high-quality video images at the low bit rate as well as the low bandwidth.
* Can provide high-quality video images at the low bit rate as well as the low bandwidth.
Built-in MIC
* Built-in microphone for audio recording.
* Picking up your voice clear and noise reduction.
* Picking up your voice clear and noise reduction.
MIni Size:38*38mm/32*32mm
* Super small outline and thin profile for embedded applications.
* 1Meter(approximately 40 inches/3.3feet) long cable with a small 4 pin connector that plugs into the camera board.
* 1Meter(approximately 40 inches/3.3feet) long cable with a small 4 pin connector that plugs into the camera board.
2.1mm Wide Angle Lens Wider Viewing Range
* HFOV:104.5degree
* VFOV:56degree
Plug&Play/Free Driver
* Very easy to use, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
High Compatibility, Can work with most OS
* UVC for use in Linux, Windows XP, WIN CE, MAC, Raspberry Pi,Android Phones,Win7,Win8,SP2 or above.
ELP-USBFHD06H-L21/L28/L36/FD100/L170/L180 are loved by thousands of millions business people from all over the world
Applications
Wide Application:
Can be widely used in all kinds of machine vision,ideal for low/weak light conditions capturing: road traffic/parking lot/hospital ward monitoring
* ATM Machine, Kiosk, automatic vending machine,Robot,Sanner, Medical equipment, machinery equipment
* POS equipment, Smart TV BOX, advisement player, LED display, safety box
* notebook, video door phone, Tablet external, on-the-spot law enforcement
* Recognition algorithm attendance machine, simple security system, teaching system
* Interactive system,credit card machine, attendance machine, Voting system,, Virtual reality
* exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance
* High speed video shooting Device,micro HD surveillance, endoscope,Medical auxiliary equipment, etc.
* POS equipment, Smart TV BOX, advisement player, LED display, safety box
* notebook, video door phone, Tablet external, on-the-spot law enforcement
* Recognition algorithm attendance machine, simple security system, teaching system
* Interactive system,credit card machine, attendance machine, Voting system,, Virtual reality
* exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance
* High speed video shooting Device,micro HD surveillance, endoscope,Medical auxiliary equipment, etc.
Related Products
Company Profile
About US
Shenzhen Ailipu Technology Co.,Ltd established in 2005, is a 18 years professional USB Cameras manufacturer in China. Our own brand ELP is well known in cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS. With our own unique R&D team as the basic, oriented by dedicated sales team. We already developed into a professional video products company, integrated with developing, manufacture, sales and service all together.
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 48 megapixel. And recently We launch new ultra HD 48MP USB cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.

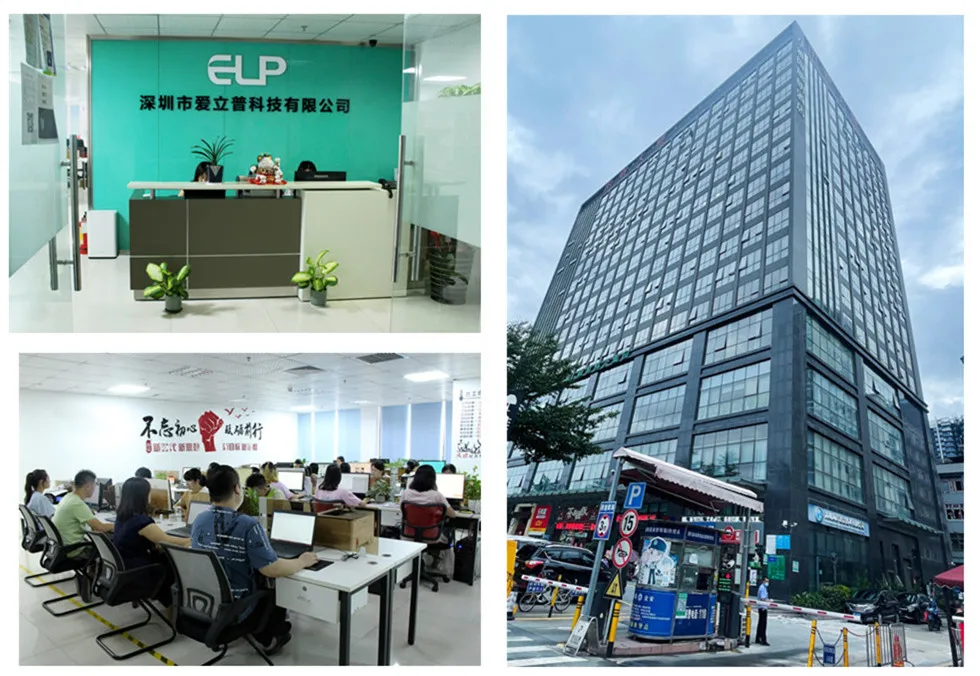

Our Office

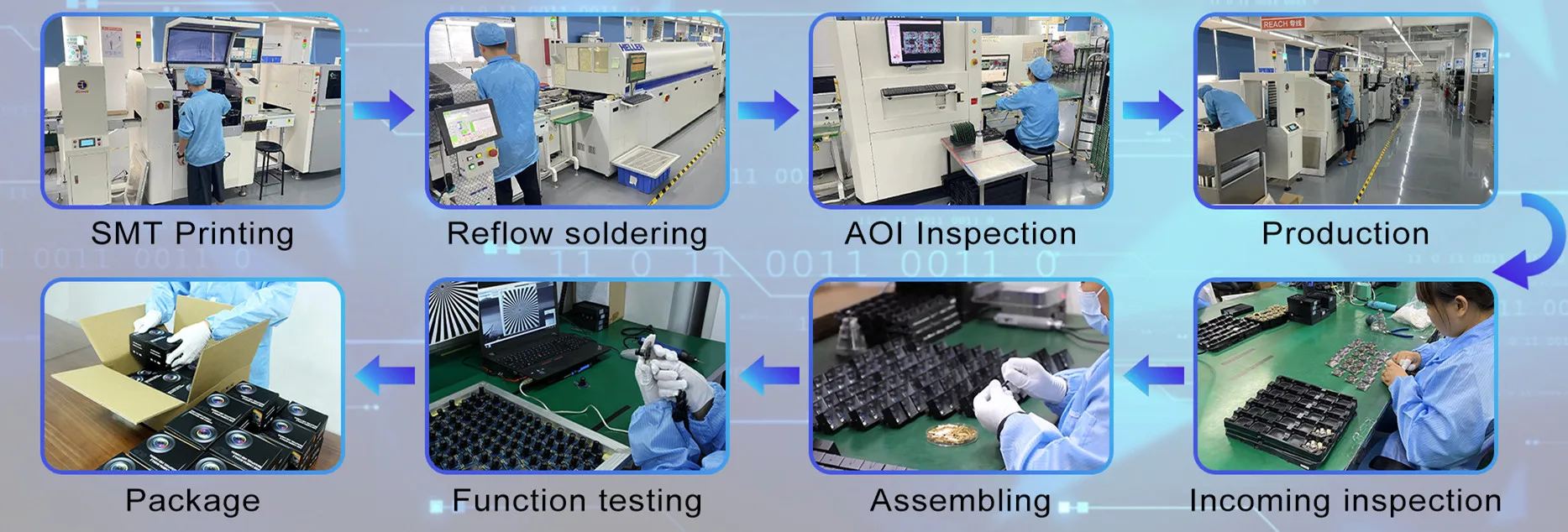

Our Factory & production Flow
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 16 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Yes, we are designer and manufacturer for usb camera module for more than 16 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
