Pitch 1.5Mm P1.8 P2.5 Large Ktv Club Theatre Led Screen Interior Pantallas Led Cinema Para Publicidad Interior Restaurant
- Category: >>>
- Supplier: Canbest Opto-Electrical Science & Technology Co. Ltd.
Share on (1600919251457):
Product Overview
Description
Warranty
Technical Parameters
Model | FIW125 | FIW186 | FI2W |
LEDType | SMD1515 | SMD1515 | SMD1515 |
Physical Density (dot/m²) | 640000 | 289050 | 160000 |
Module Size (W ×H ×D) mm | 320x160x17 | 320x160x17 | 320x160x17 |
Module Resolution(W×H) | 256x128 | 172x86 | 128x64 |
Cabinet Size (W ×H ×D) mm | 640x480x74 | 640x480x74 | 640x480x74 |
Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
Scanning Mode | 1/64 | 1/48 | 1/32 |
Cabinet Flatness(mm) | ≤0.10 | ≤0.10 | ≤0.10 |
Grey Scale (Bit) | 14 | 14 | 14 |
Protection Level | IP45 | IP45 | IP45 |
Brightness(cd/㎡) | 500-900cd/㎡ | 500-900cd/㎡ | 500-900cd/㎡ |
ColorTemperature | 3200-9300Kadjustable | 3200-9300Kadjustable | 3200-9300Kadjustable |
Brightness Uniformity | ≥98% | ≥98% | ≥98% |
Horizontal/Vertical ViewAngle | ≥140°/≥120° | ≥140°/≥120° | ≥140°/≥120° |
Contrast Ratio | ≥5000:1 | ≥5000:1 | ≥5000:1 |
Module Input Voltage DC | 5V | 5V | 5V |
Max Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Input VoltageAC | 110-220V | 110-220V | 110-220V |
Cabinet Max Power Consumption | ≤600W/m2 | ≤580W/m2 | ≤480W/m2 |
Cabinet Aver.PowerConsumption | ≤200W/m2 | ≤180W/m2 | ≤160W/m2 |
Working Temperature | 20℃～+80℃ | 20℃～+80℃ | 20℃～+80℃ |
Working Humidity | 10%～95%RH | 10%～95%RH | 10%～95%RH |
Installation/Service Method | Front installation/Front service | Front installation/Front service | Front installation/Front service |

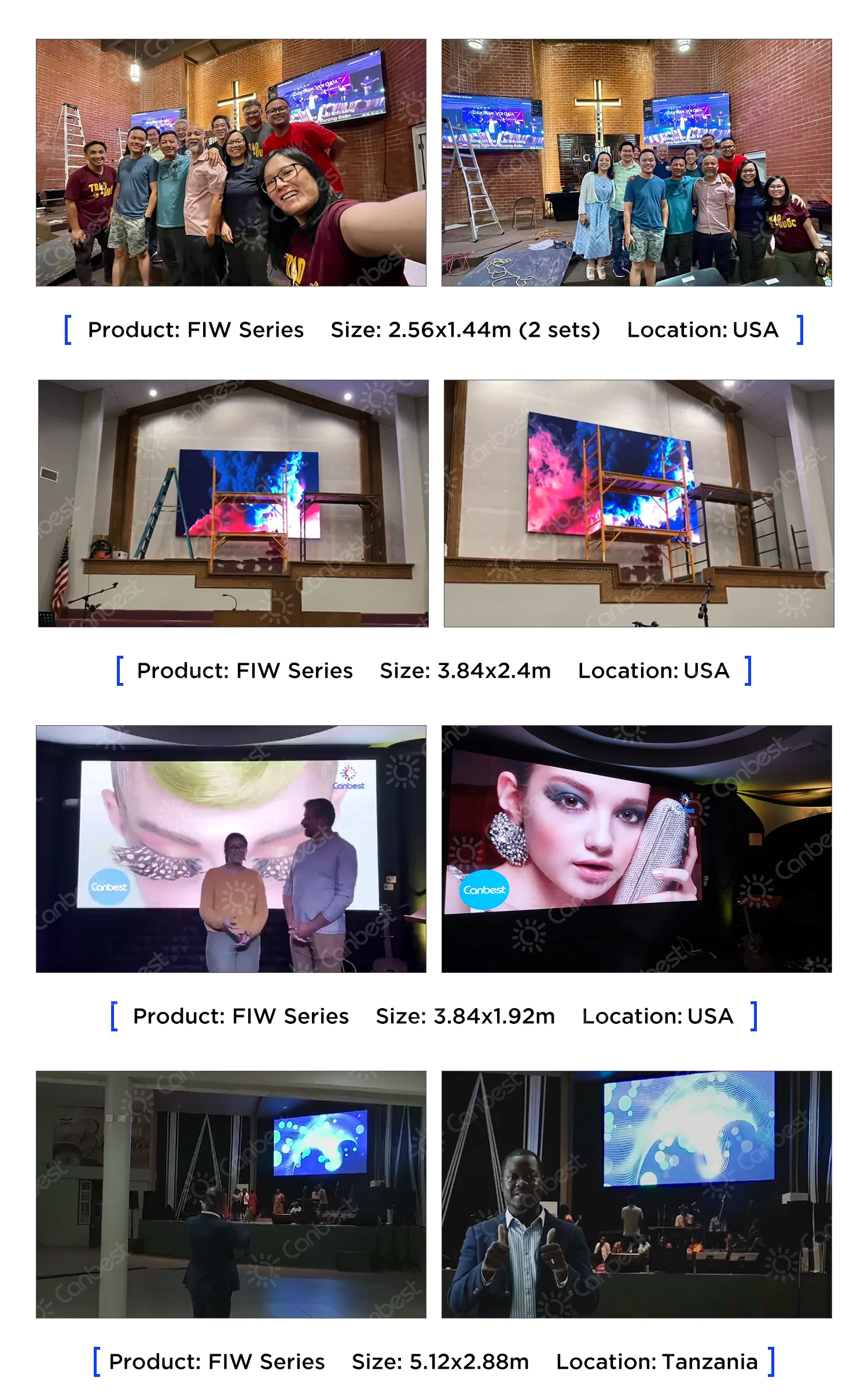

Projects
