160KV directional x ray generator or x ray tube
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (1600919258428):
Product Overview
Description

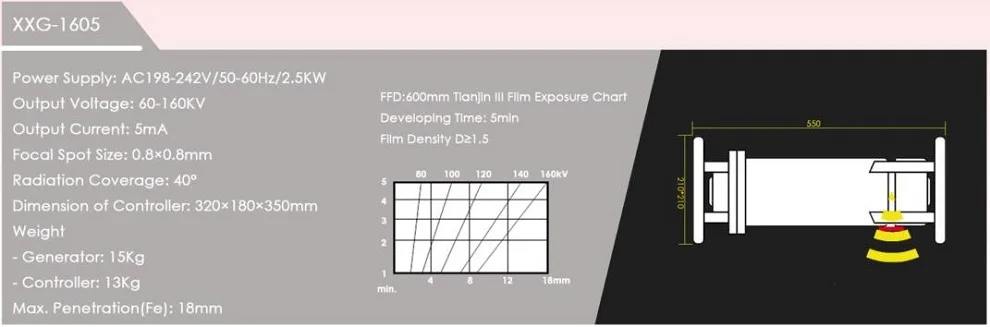

160KV directional x-ray generator or x-ray tube
Product Description
Related Products

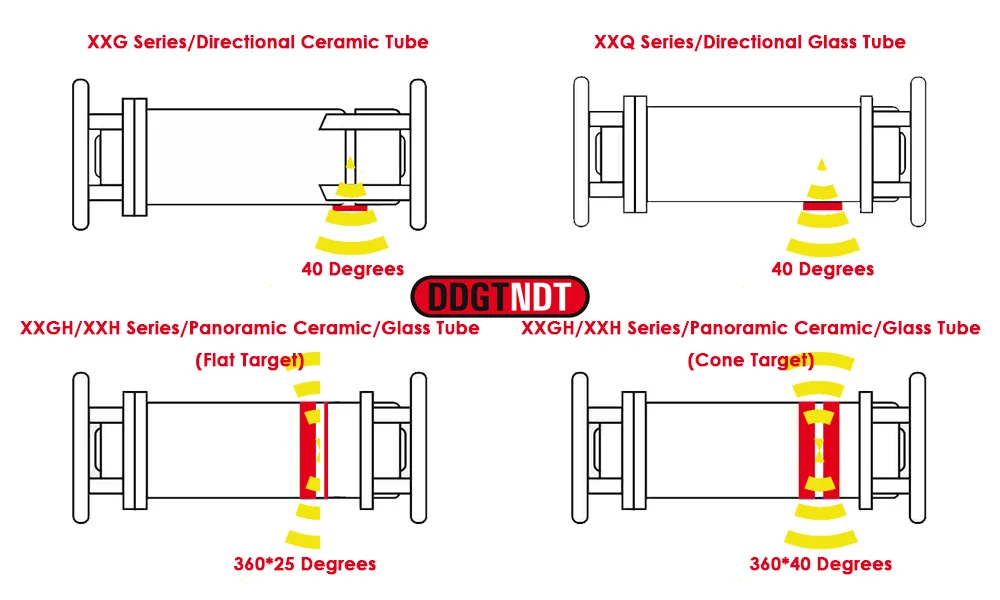

Radiation Coverage
XXG Series
| Model | XXG-1005 | XXG-1605 | XXG-2005 | XXG-2205 | XXG-2505 | XXG-3005 | XXG-3205 | XXG-3505 |
| Power supply | AC 198-242V/50-60HZ/2.5KW | AC 198-242V/50-60HZ/3.5KW | ||||||
| Output voltage | 30-100KV | 80-160KV | 100-200KV | 120-220KV | 150-250KV | 170-300KV | 180-320KV | 180-350KV |
| Max. Penetration (A3) | 7mm | 18mm | 29mm | 33mm | 39mm | 50mm | 55mm | 60mm |
| Focus size (mm) | 0.8*0.8 | 0.8*0.8 | 1.5*1.5 | 1.5*1.5 | 2.0*2.0 | 2.5*2.5 | 2.5*2.5 | 2.5*2.5 |
| Generator size (mm) | 40° | 40° | 40° | 40° | 40° | 40° | 40° | 40° |
| Ray radiation angle | 210*210*530 | 210*210*550 | 270*270*580 | 270*270*580 | 270*270*610 | 320*320*625 | 320*320*655 | 320*320*660 |
Generator weight (kg) | 14 | 15 | 20 | 21 | 25 | 34 | 40 | 41 |
| Controller size (mm) | 320*180*380 | |||||||
| Controller weight (mm) | 13 | |||||||

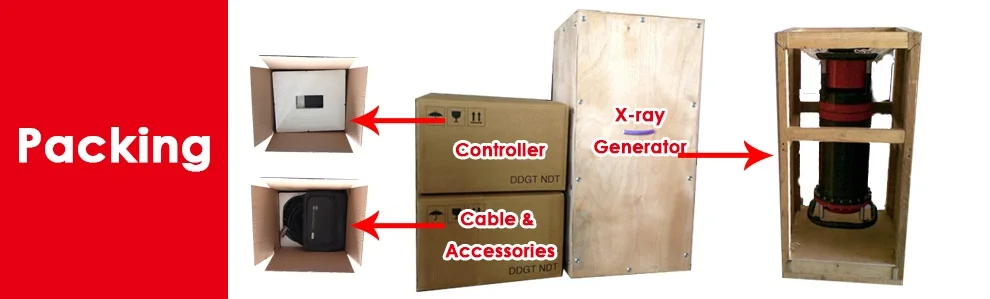

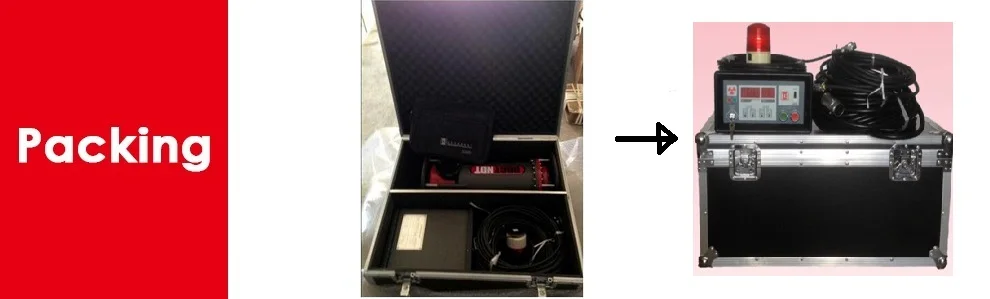

Packing
| No. | Item | Parameter | Qty. |
| 1 | X-ray Generator | XXG-1605 | 1 |
| 2 | Controller | DGT-KX-V | 1 |
| 3 | Connecting Cable | 25m | 1 |
| 4 | Power Cable | 10m | 1 |
| 5 | Earth Wire | 5m | 1 |
| 6 | Fuse | 2A/5A | 10 |
| 7 | Fuse | 20A | 20 |
| 8 | Film Bag | 80*360mm | 5 |
| 9 | Lead Marker | 390V | 1 |
| 10 | Varistor | 4 | |
| 11 | H.V. On Button | 1 | |
| 12 | H.V. Off Button | 1 | |
| 13 | Fuse Seat | 2 | |
| 14 | Accessory Bag | 1 |

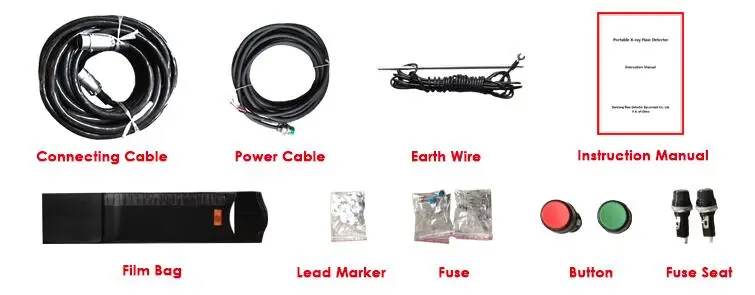

Cable&Accessories

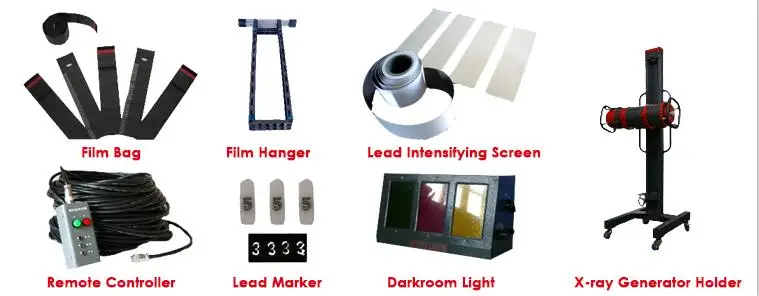

Optional Accessories
Payment and Shipping

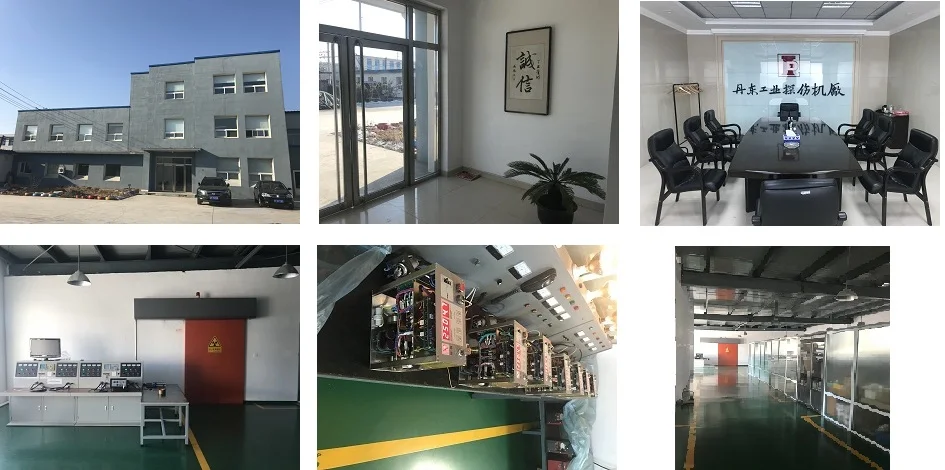

Company Information
Our company was founded in 1988, which is one of the well known companies specialized in Non-dectructive testing (NDT) equipments. After 20 years' development, we have accumulated abundant technical force and established a wealth of design and practical experience. We are a manufacturer and trading company. Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our portable X-ray machines have the specifications from 100kV, 120kV, 160kV, 200kV, 220kV, 250kV, 300kV, 320kV to 350kV. Our portable machines have smaller size and lighter weight, and are more convenient for users to operate.
Our stationary X-ray machines have the specifications from 100kV, 160kV, 225kV, 300kV, 320kV, 350kV, 400kV, 420kV to 450kV. Our stationary machines have stronger penetrating power and also are more suitable for the online non-destructive testing. Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers. They can be widely used in many fields such as mechanism, electron, petroleum, chemical industry, electric power, bridges, boats and ships, vehicles. aviation, heating power, boilers, pressure vessels and war industries. Our sales network covers the whole world and we maintain good business relationship with more than 200 customers. We will serve the first-class technology, first-class products and first-class service for you.
Certificate
FAQ
1. The warranty period?
12 months.
2. If you could repair by yourself?
We could provide the free spare parts and guide for you.
3. If you couldn't repair by yourself?
We will send the free generator and controller to you directly.
4. The delivery term?
Air Cargo
5. The delivery time?
After payment, the testing needs 2 days. After deliverying, you will get it within 7 days.
The contact details
The contact person: Mr. Frank Chen
Tel: +86-415-2883568
Fax: +86-415-2824917
Mobile: +86 15842587084
Skype: fchen011
Wechat: ct112611
Email: frank (at) ddgtndt.com ; frank.chen01 (at) hotmail.com
Website: //ddgt.en.alibaba.com
