CE pass Woodworking High precision 4 Four Side Planer four side Moulder four sided planer for wood moulding
- Category: >>>
- Supplier: Guangdong Reignmac Machinery Co. Ltd.
Share on (1600919300288):
Product Overview
Description
Product Description

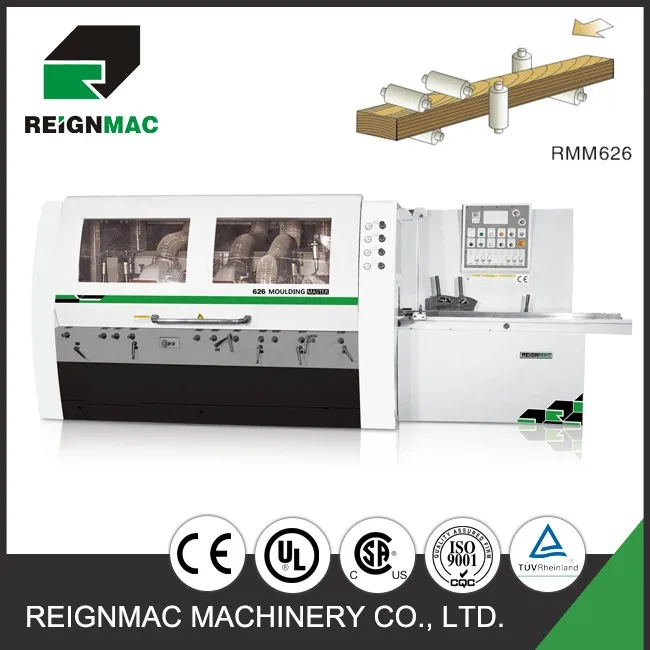

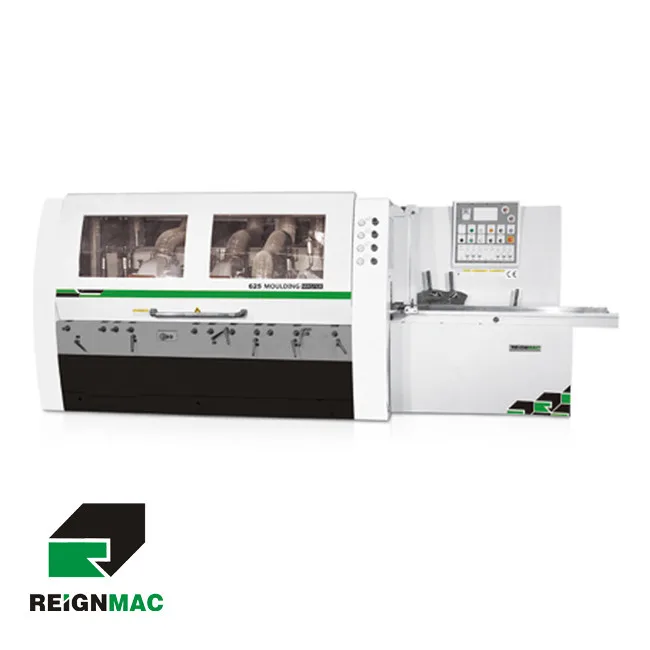

CE pass Woodworking High precision 4 Four Side Planer four side Moulder four sided planer for wood moulding
| M26 SERIES (Max. width 260mm) | |||
| Specification & Type | RMM626 | RMM526 | |
| Working Width | Min. | 20mm | 20mm |
| Max. (max. cutting circle of 160mm) | 260mm | 260mm | |
| Working thickness | Min. | 8mm | 8mm |
| Max. (max. cutting circle of 160mm) | 180mm | 180mm | |
| Min processing length | 220mm | 220mm | |
| Number of spindles | 6pcs | 5pcs | |
| Speed of spindles | First bottom spindle, | 6000r/min | 6000r/min |
| Cutting circles | First top spindle | 6000r/min | 6000r/min |
| Right side spindle | 6000r/min | 6000r/min | |
| Left spindle | 6000r/min | 6000r/min | |
| Second top spindle | 6000r/min | - | |
| Second bottom spindle | 6000r/min | 6000r/min | |
| Frist bottom spindle | Ø110-Ø145mm | Ø110-Ø145mm | |
| Right side spindle | Ø125-Ø200mm | Ø125-Ø200mm | |
| Left side spindle | Ø125-Ø200mm | Ø125-Ø200mm | |
| First Top spindle | Ø110-Ø200mm | Ø110-Ø200mm | |
| Second Top spindle | Ø110-Ø200mm | - | |
| Second Bottom spindle | Ø110-Ø200mm | Ø110-Ø200mm | |
| Spindle diameter | Ø50mm | Ø50mm | |
| Basic motor power | First bottom spindle | 7.5 kW/10HP | 7.5 kW/10HP |
| Right side spindle | 7.5 kW/10HP | 7.5 kW/10HP | |
| Left side spindle | 7.5 kW/10HP | 7.5 kW/10HP | |
| First Top spindle | 11 kW/15HP | 11 kW/15HP | |
| Second Top spindle | 11 kW/15HP | - | |
| Second Top Bottom spindle | 11 kW/15HP | 11 kW/15HP | |
| Feed | 5.5kW/7.5HP | 5.5kW/7.5HP | |
| Feed beam rise & fall | 1.1kW/1.5HP | 1.1kW/1.5HP | |
| Total motor power | 62.1kW/84HP | 43.6 kW/59HP | |
| Feed speed (Inverter for feed) | 6-30m/min | 6-30m/min | |
| Dust outlet diameter | 150mm | 150mm | |
| Overall machine dimensions (L×W×H) | 4710×1700×1700mm | 4280×1700×1700mm | |
| Weight | 5000kg | 4600kg | |
| Note: Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time. | |||
M26 Outstanding character
1. Inverter to feed 6-30m/min.
2. Individual motor power for each spindle to ensure maximum cutting power.
3. Spindle diameter Φ50 and two pairs of high-precision bearing support, which are more suitable for heavy-duty cutting.
4. All adjustment of spindles is centralized in front of machine, to be convenient to operate.
5. High chrome work table for good durability.
6. The gear case is equipped, to be good for processing the short pieces.
7. The design of double-layer work table is more reliable and effective to ensure the straightness on both sides of work piece.
Hot products & video
Wood sample diagram
Company Information
Reignmac machine are welcomed by many companies over the world, we are not only your supplier, but also your partner. If you want more information, pls click here to send inquiry to us. Thank you.
Welcome to visit our factory! Our working hours: 8 am to 6 pm from Monday to Saturday. The contact information are as follows:
Export manger: Ms Landy Luo
Mobile/Whatsapp/Wechat/Veber: +86 13923251885
Click here to directly send email to us~
Exhibtion & customer
Reignmac is not only your supplier, but also your partner! Hope to have chance to cooperate with you!
Packaging & Shipping
Most of the machine are fully assembled in Reignmac factory,so just open the package,remove the lubrication grease and get power connected. For other machines, the main parts are well assembled, you might need to install some parts which are easy to install and our engineer will contact with you to install.
FAQ
1. Can I visit you?
Sure, our factory is in Shunde, foshan, China. Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
2. Can I negotiate the prices for the machine?
Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request !
3. How many days do you need for delivery?
Some of our machines have stock, so if you order and make payment, we might deliver asap. If no stock, we might need 60-75 days for new production. But the delivery time is determined by the order you purchase. We will try our best to produce faster if your time is urgent.
4. What is your price term and payment term?
Price term: EXW,FOB, CNF, CIF, ect.
Payment term: T/T, L/C,ect.
You can choose the one which is the most convenient and cost effective for you.
5. How much will be the Shipping cost?
This is determined by the purchasing quantity of machines and your destination port. We will be grateful if you can tell us your destination and items you will order.
6. Can you give warranty of your products?
Yes,1 year warranty since we load the machine at the factory for the spare part which is broken cuased by the quality of part according to the serial no of machine you supply .After 1 year , the part is payable by the customer .
7.How to install and operate the machine?
For Moulder and Multi rip saw machines,most of the machine are fully assembled in our factory, so just open the package ,remove the lubrication grease and get power connected. For DET machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.If you need after service or installation and adjustment from Reignmac , all expenses are payable by your company , which are the ticket from China to your company,the hotel in your country , the food in your country and the Chinese translator for your language etc. all charges happen during the after service and installation & adjustment.
Sure, our factory is in Shunde, foshan, China. Warmly welcome to visit our factory if it's convenient for you, please contact us to make an appointment and supply the pick-up service and hotel reservation service.
2. Can I negotiate the prices for the machine?
Yes, we may consider great discounts for mass buying quantity, the more you buy, the lower our price will be. Please contact with our sales and get the catalogue and quotation for your request !
3. How many days do you need for delivery?
Some of our machines have stock, so if you order and make payment, we might deliver asap. If no stock, we might need 60-75 days for new production. But the delivery time is determined by the order you purchase. We will try our best to produce faster if your time is urgent.
4. What is your price term and payment term?
Price term: EXW,FOB, CNF, CIF, ect.
Payment term: T/T, L/C,ect.
You can choose the one which is the most convenient and cost effective for you.
5. How much will be the Shipping cost?
This is determined by the purchasing quantity of machines and your destination port. We will be grateful if you can tell us your destination and items you will order.
6. Can you give warranty of your products?
Yes,1 year warranty since we load the machine at the factory for the spare part which is broken cuased by the quality of part according to the serial no of machine you supply .After 1 year , the part is payable by the customer .
7.How to install and operate the machine?
For Moulder and Multi rip saw machines,most of the machine are fully assembled in our factory, so just open the package ,remove the lubrication grease and get power connected. For DET machines, the main parts are well assembled, you might need to install some parts which are easy to install and any problem may have can contact with us for more information for installation . About operate the machine, we have operation instructions for you.If you need after service or installation and adjustment from Reignmac , all expenses are payable by your company , which are the ticket from China to your company,the hotel in your country , the food in your country and the Chinese translator for your language etc. all charges happen during the after service and installation & adjustment.
Our Services
our company has prefect pre-sell service and after-sell service,if you have any question,please feel free to contact with us! Hope to have chance to cooperate with you! Thank you~
