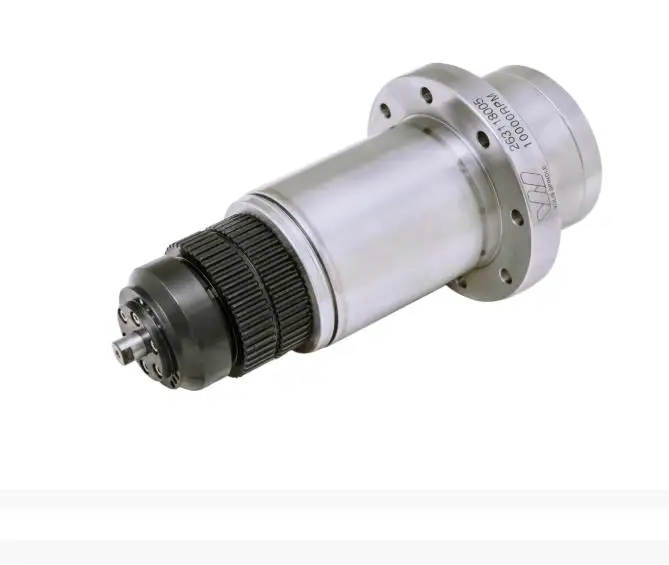

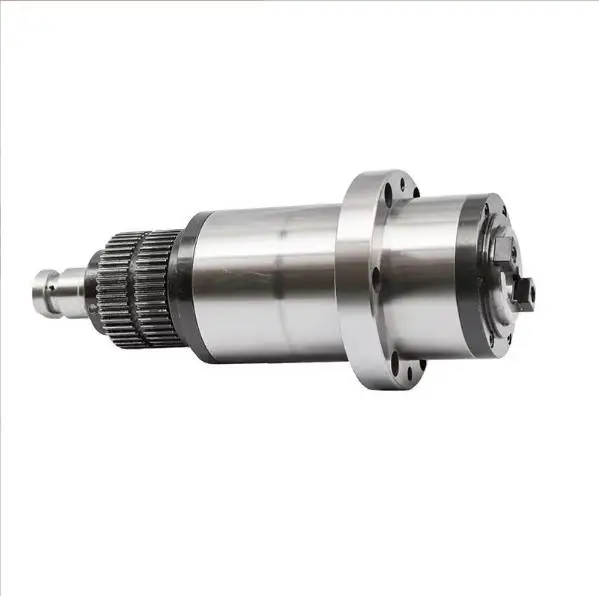

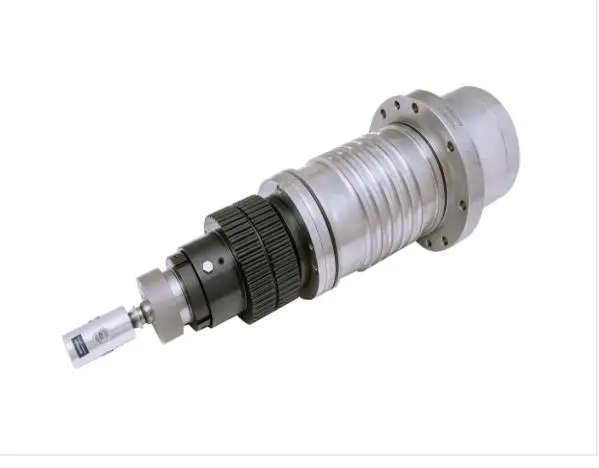

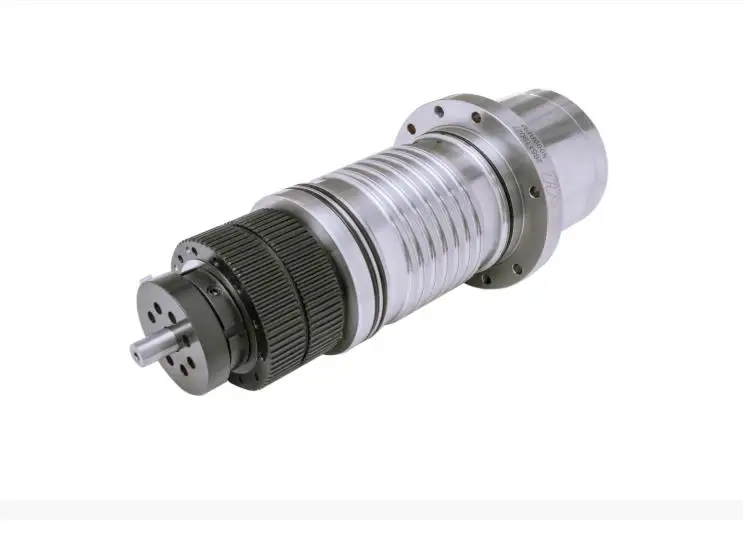

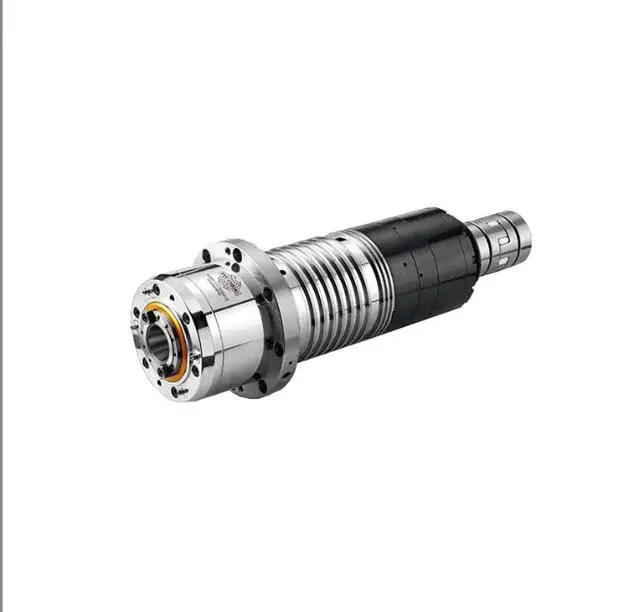

Factory Direct Sales Wholesale Price Hf Spindle
- Category: >>>
- Supplier: Changsha Chushitian Precision Machinery Co. Ltd.
Share on (1600919335987):
Product Overview
Description
Installation Instructions
The rotating parts are fully ground to completely eliminate the imbalance problem caused by the different inner and outer diameters.
The inside is equipped with an air shaft seal and an inner labyrinth ring. After the spindle is assembled, the outer labyrinth ring is inserted outside to completely prevent the cutting fluid from entering the spindle bearing.
The end key fixing seat has no pass design, although the manufacturing cost is high, but the inner cone will not be ground intermittently during grinding, which can ensure the best taper combination. And when running at high speed, the thermal expansion of the spindle can be greatly reduced.
The inside is equipped with an air shaft seal and an inner labyrinth ring. After the spindle is assembled, the outer labyrinth ring is inserted outside to completely prevent the cutting fluid from entering the spindle bearing.
The end key fixing seat has no pass design, although the manufacturing cost is high, but the inner cone will not be ground intermittently during grinding, which can ensure the best taper combination. And when running at high speed, the thermal expansion of the spindle can be greatly reduced.
Product features
With high precision - Adopt BT tool holder etc, has the unique characteristics of high precision
With high speed - CNC spindle speed up to 12,000 RPM, provide strong support for high efficiency and high precision processing of
CNC.
CNC.
High torque - Has end-face key, more safty! The low speed high torque characteristics of CNC spindle make heavy cutting, improve
the working efficiency.
the working efficiency.
BT40 ATC spindle full kit include :
1. 1pc BT40 12000rpm atc spindle2. 1pc Spindle holder + cylinder holder
3. 1pc Pneumatic air cylinder
1. 1pc BT40 12000rpm atc spindle2. 1pc Spindle holder + cylinder holder
3. 1pc Pneumatic air cylinder

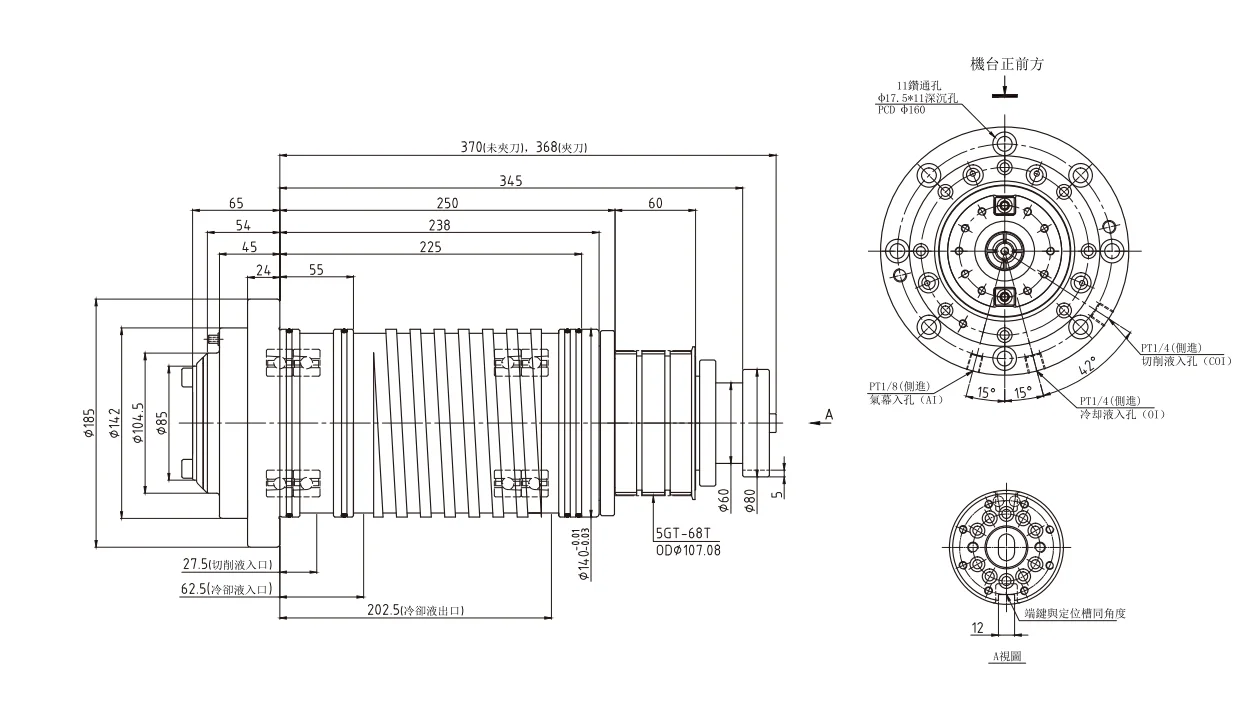

Technical Parameters
Spec | BT4O.φ140 | 主軸《m^»AirSeal | 標準 Standard |
最高轉數Max Speed | 12000rpm | 冷卻方式Coolant | 油冷式Oil |
刀把規格Tool Holder | BT40 | 主軸冷卻需求Cooling Requirement | / |
軸承規格Bearings | 前軸承 Front 7014*2 | 苴瞬度畑偏摆 Spindle Taper Deflection | 0.002mm |
後軸承 Rear 7014*2 | 測試棒主軸端偏摆Test-Bar Deflection | 0.003mm | |
軸承潤滑方式Bearing Lub. | Grease | 測試棒 300mm Test-Bar Deflection | 0.008mm |
軸 方式 Preload | 定位預壓 Rigidly Preload | 主軸平衡等級Balance Grade | G1QSO1940) |
軸承溫升範圍Temp.Risen | 室溫+18。。以内 Within Room Temperature | | 前蓋表面處理Front-cover Plating | Plating Chromium |
傳動方式Drive By | 皮带式 Belt(5GT—68T) | 前噴數量 Cutting Fluid Nozzles | 4 |
定位方式Orientation | 凹感應 Concave induction | 安裝方式 Operation Mode | 立式 Vertical |
拉刀力 Clamping Force | 700±50Kgf | ||
拉刀方式Clamp By | ET40 四JB爪 4 Segment Gripper | ||
中心出水CTS | 無N | ||
打刀缸Cylinder | 無N |
