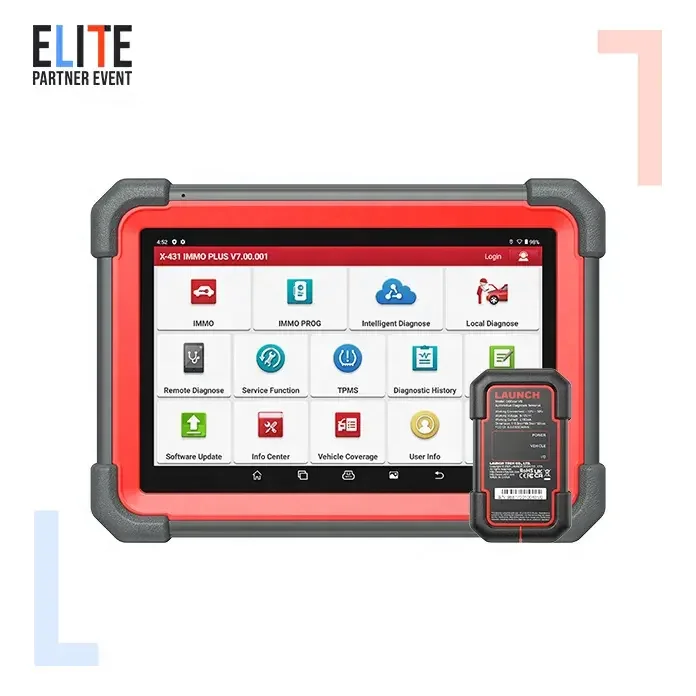

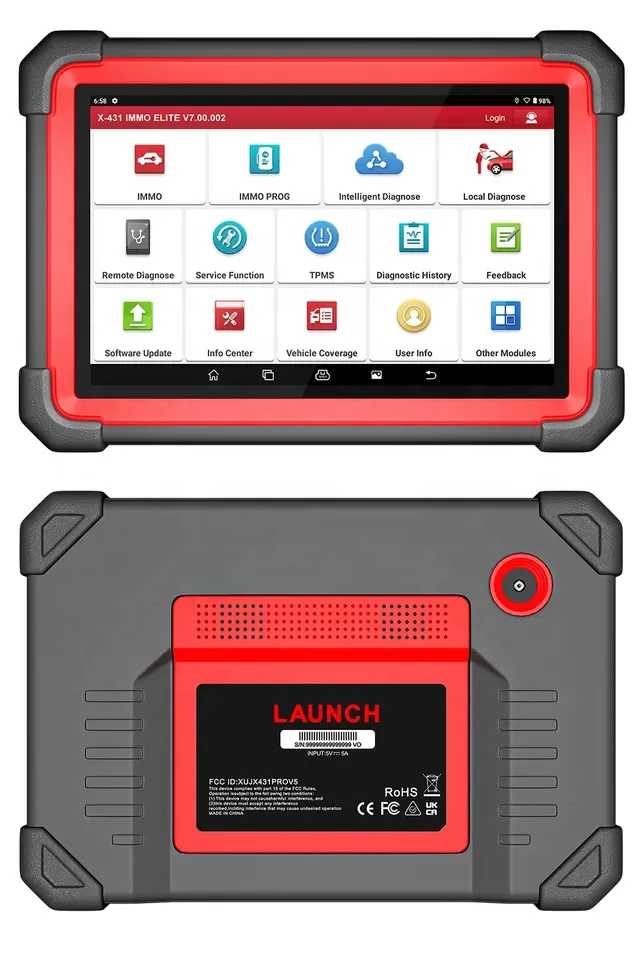

2023 Launch X431 IMMO PLUS X 431 ELITE 3 in 1 IMMO Clone Key Programming Tool Locksmith Full System Diagnostic Scanner
- Category: >>>
- Supplier: Shenzhen Acartool Auto Electronics Co. Ltd.
Share on (1600919359408):
Product Overview
Description
Product Description
Product Description

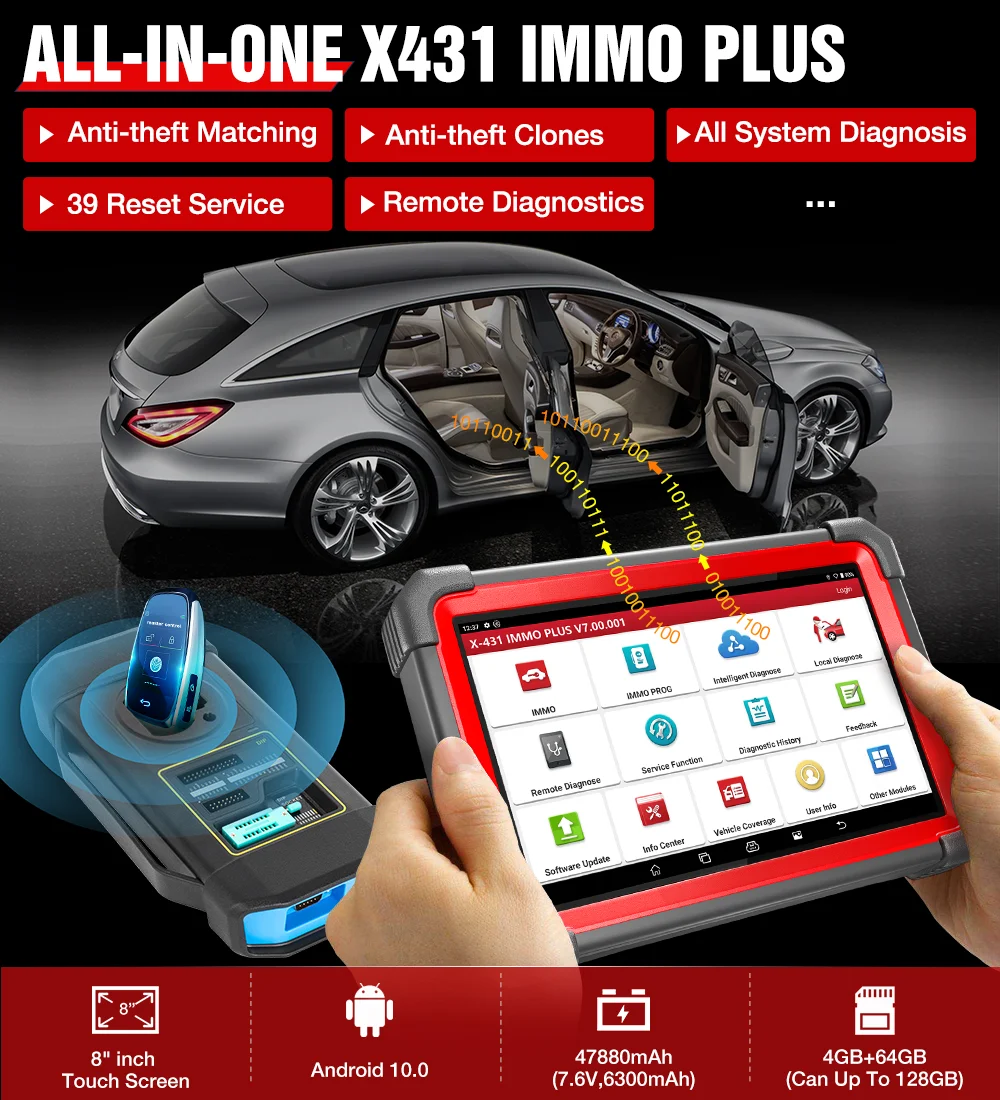

LAUNCH X431 IMMO PLUS Key Programmer 3-in-1 IMMO Clone Diagnostics Functions

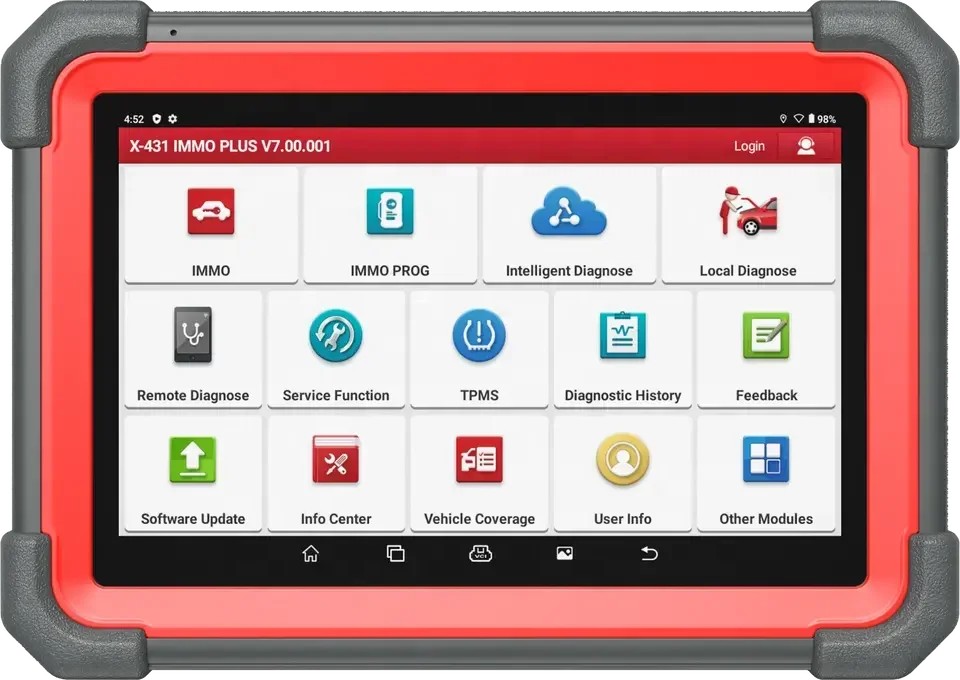

LAUNCH X431 IMMO PLUS key programmer is a new generation of 8-inch automobile special IMMO matching tool with high configuration and super performance. The host is developed based on the Android 10.0 open system, adopts a 2.0Ghz 4-core high-efficiency processor, 4GBRAM+64GBROM large storage, and is equipped with a high-endurance battery, which make the diagnosis faster, more stable and more durable.
X431 IMMO PLUS integrates powerful IMMO matching, IMMO programming, full-model system-wide diagnosis with plus functions and special functions. It is the best choice for intelligent maintenance of the IMMO matching tool in repair shops.
X431 IMMO PLUS integrates powerful IMMO matching, IMMO programming, full-model system-wide diagnosis with plus functions and special functions. It is the best choice for intelligent maintenance of the IMMO matching tool in repair shops.
The Key Reason to Choose LAUNCH X431 IMMO PLUS
1. Professional Key IMMO Programming: read pin code , all key lost , add new key, key copying ,Remote control matching, ect.
2. OE-Level All System Diagnosis
3. Full Bi-Directional Control ( Active Test ) + ECU Coding
4. Support 39 More Reset Service , Keep increasing
5. Support CAN FD DIOP new protocols
6. FCA SGW AutoAuth Access
7. 2 Years Free Update. After that, you can still use it, it will not be locked.
8. 24 Language Free Choose, No language barrier

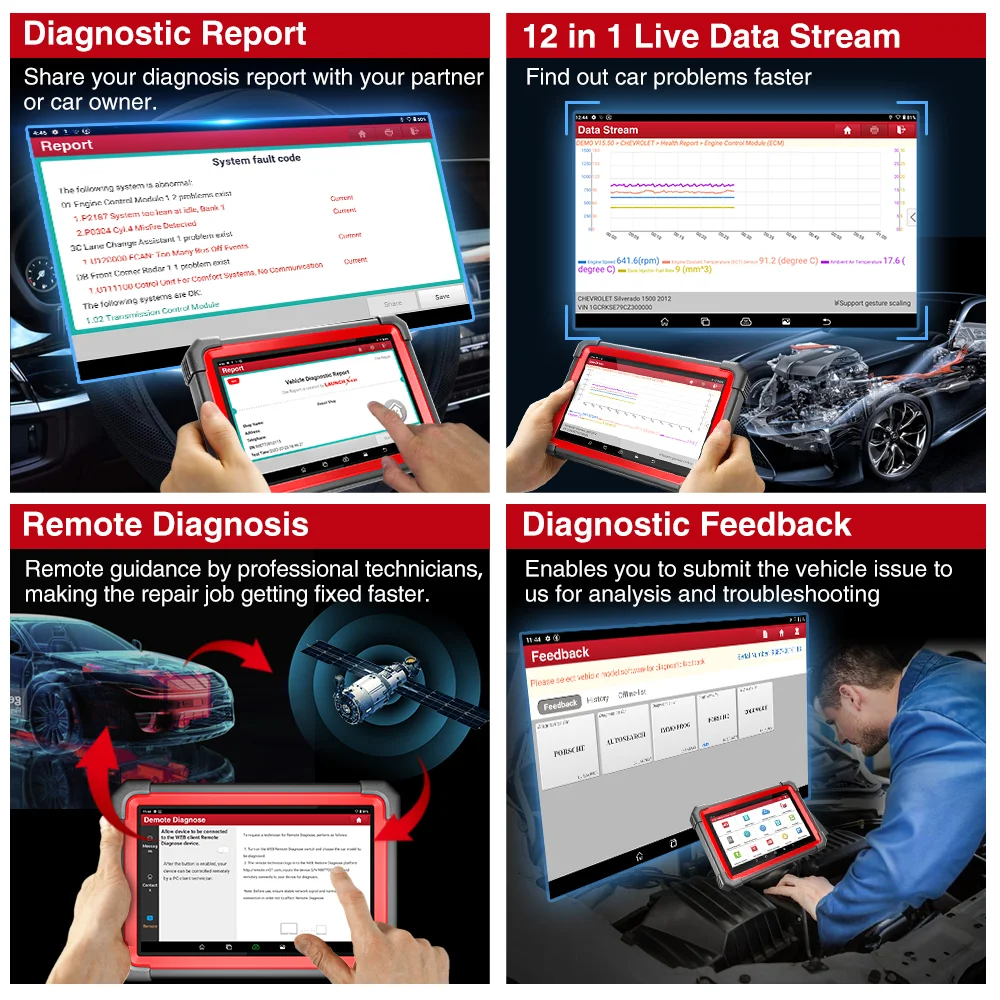

9. Support Auto VIN Scan + Intelligent diagnostics + Remote Diagnostics + Diagnostic Feedback
10. 1Years Warranty for any Quality Problems and Lifetime Free Tech Support
11. Android 10.0 System, 2.0GHz 4-core processor, which runs faster and
2. OE-Level All System Diagnosis
3. Full Bi-Directional Control ( Active Test ) + ECU Coding
4. Support 39 More Reset Service , Keep increasing
5. Support CAN FD DIOP new protocols
6. FCA SGW AutoAuth Access
7. 2 Years Free Update. After that, you can still use it, it will not be locked.
8. 24 Language Free Choose, No language barrier
9. Support Auto VIN Scan + Intelligent diagnostics + Remote Diagnostics + Diagnostic Feedback
10. 1Years Warranty for any Quality Problems and Lifetime Free Tech Support
11. Android 10.0 System, 2.0GHz 4-core processor, which runs faster and
Professional Key Programming and Matching
1. Supports all key lost , add new key , Read pin code, key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement: Support anti-theft modules replacement of for BMW-, for Mercede-s-Ben-z, for V-W/for Aud-i, for Hon-da, for Nissa-n, for Hyunda-i, for Ki-a, for BY-D, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading: Supports the anti-theft password reading of Peugeot Citroen, G-M, Niss-an, Hyund-ai, K-ia, Che-ry Cars, Dongfe-ng Fengxin-g,JA-C Passenger Cars, etc.
4. Key Matching: Support key matching of for Ford, for G-M, for Merce-des-Be-nz, for BM-W, for V-W/for Au-di, for Porsche, for Peugeot Citroen, for La-nd Rov-er for Jagu-ar, -for Hon-da, for Toyota-, for Niss-an,for Hyundai, for Kia, for BYD, for Changa-n Automobile, for Wuli-ng Baojun,for Gre-at Wall Motors, for Ch-ery Cars, for J- AC Passenge-r Cars, etc.

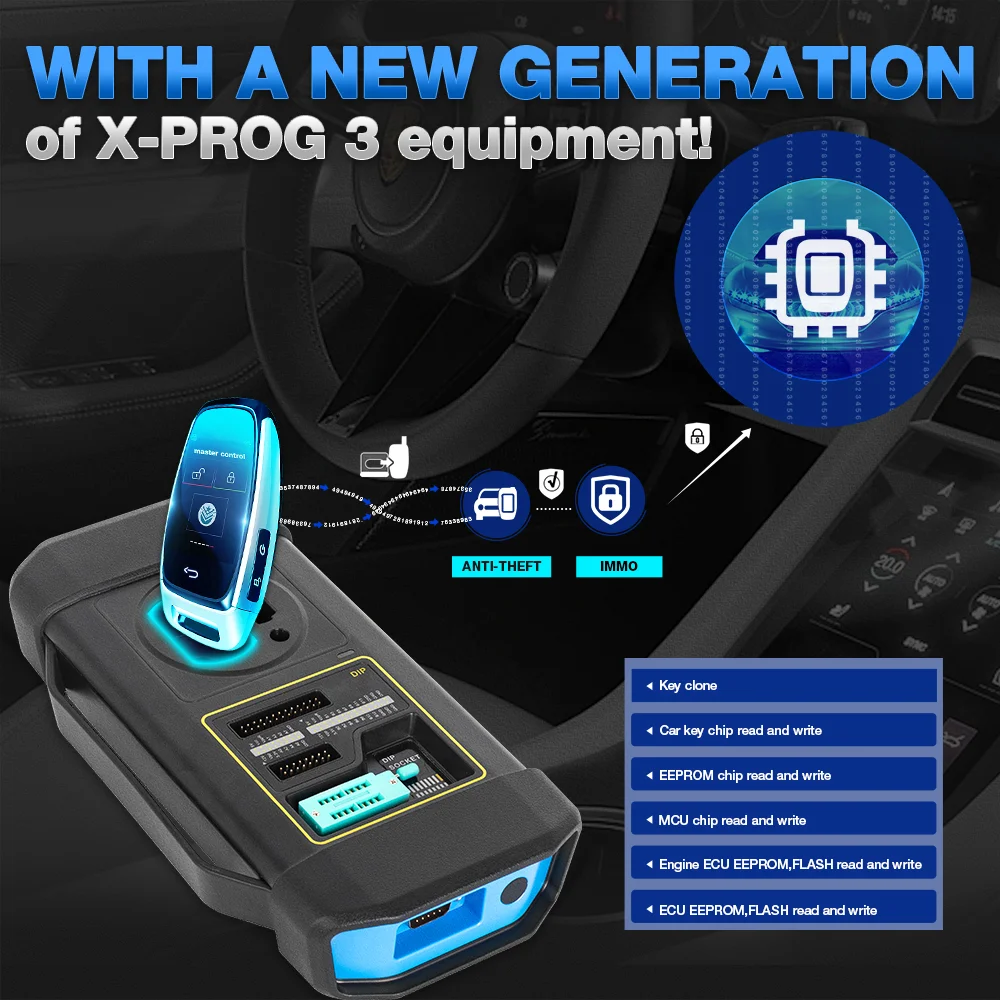

5.Support car key chip reading/writing, EEPROM chip reading/writing, MCU chip reading/writing, EEPROM and FLASH reading/writing of engine ECU and gearbox ECU
2. Anti-theft modules replacement: Support anti-theft modules replacement of for BMW-, for Mercede-s-Ben-z, for V-W/for Aud-i, for Hon-da, for Nissa-n, for Hyunda-i, for Ki-a, for BY-D, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading: Supports the anti-theft password reading of Peugeot Citroen, G-M, Niss-an, Hyund-ai, K-ia, Che-ry Cars, Dongfe-ng Fengxin-g,JA-C Passenger Cars, etc.
4. Key Matching: Support key matching of for Ford, for G-M, for Merce-des-Be-nz, for BM-W, for V-W/for Au-di, for Porsche, for Peugeot Citroen, for La-nd Rov-er for Jagu-ar, -for Hon-da, for Toyota-, for Niss-an,for Hyundai, for Kia, for BYD, for Changa-n Automobile, for Wuli-ng Baojun,for Gre-at Wall Motors, for Ch-ery Cars, for J- AC Passenge-r Cars, etc.
5.Support car key chip reading/writing, EEPROM chip reading/writing, MCU chip reading/writing, EEPROM and FLASH reading/writing of engine ECU and gearbox ECU
and more and keep increasing
Advantages:
1. Anti-theft Data Synchronization for Replaced Second-hand ABS Module of 2014MY Focus
2. Supports V-W/AUD-I MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
3. Supports V-W/AUD-I MQB platform gearbox ECU replacement or cloning.
4. Supports ECU replacement for fifth-generation Au-di (0AW/0B5) gearboxs.
5. Supports reading, writing & cloning of the ECU for fourth-generation V-W UDS engines.
6. Supports BM-W E chassis 8HP gearbox ECU program wiping.
7. Support Merced-es(Engine, Gearbox, EIS) and BM-W(Gearbox) ECU anti-theft data erase.
8. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17,MED17,EDC17,MEVD17, etc.
- Siemens engine ECU: BM-W(MSV90, MSD87, MSD85,MSD81, MSD80),
Mercede-s(SIM271DE2.0,SIM271KE2.0),V-W/Au-di(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1, VL381, VGS2- FCVT, VGS-FDCT, DQ400E, DL501 Gen2, DL382-7F, VGS2-FDCT, 9G_Tronic, DQ380, DQ381, DQ500, AL551, AL450, AL552, AL951, 8HPXX, etc.
Active Test ( BI-Directional Controls )
requests a module to perform a specific test and function.(Turn on and off actuators to determine whether there are problems with sensors and actuators)
Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable,Fuel Injector Tests, Injecor Buzz Test, Injector Kill Tests, Injector
Cut Out Test,A/C Compressor Clutch Relay On/Off
EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test
Turn Off ACC Lane Keeping Assist System (LKAS),Turn ON/OFF Front and Rear side ACM Solenoid,
Turning the fuel pump on and off,Oil Pressure Control Test
Inlet and Outlet Valve tests,High beam test,Interior lighting test
Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable,Fuel Injector Tests, Injecor Buzz Test, Injector Kill Tests, Injector
Cut Out Test,A/C Compressor Clutch Relay On/Off
EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test
Turn Off ACC Lane Keeping Assist System (LKAS),Turn ON/OFF Front and Rear side ACM Solenoid,
Turning the fuel pump on and off,Oil Pressure Control Test
Inlet and Outlet Valve tests,High beam test,Interior lighting test
ECU Coding
used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.You can use our x431 IMMO PLUS to stimulate all the possibilities of the vehicles
After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.
Recode Changed Modules/Optimize Vehicle Performance/Re-Flash/Hidden Functions/Renew ECUs Coordination/Reprogram/Adaptive
Data/Improve Fuel Efficiency/Reduce Power Loss/Improve the Durability of Mechanical Parts
After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.
Recode Changed Modules/Optimize Vehicle Performance/Re-Flash/Hidden Functions/Renew ECUs Coordination/Reprogram/Adaptive
Data/Improve Fuel Efficiency/Reduce Power Loss/Improve the Durability of Mechanical Parts

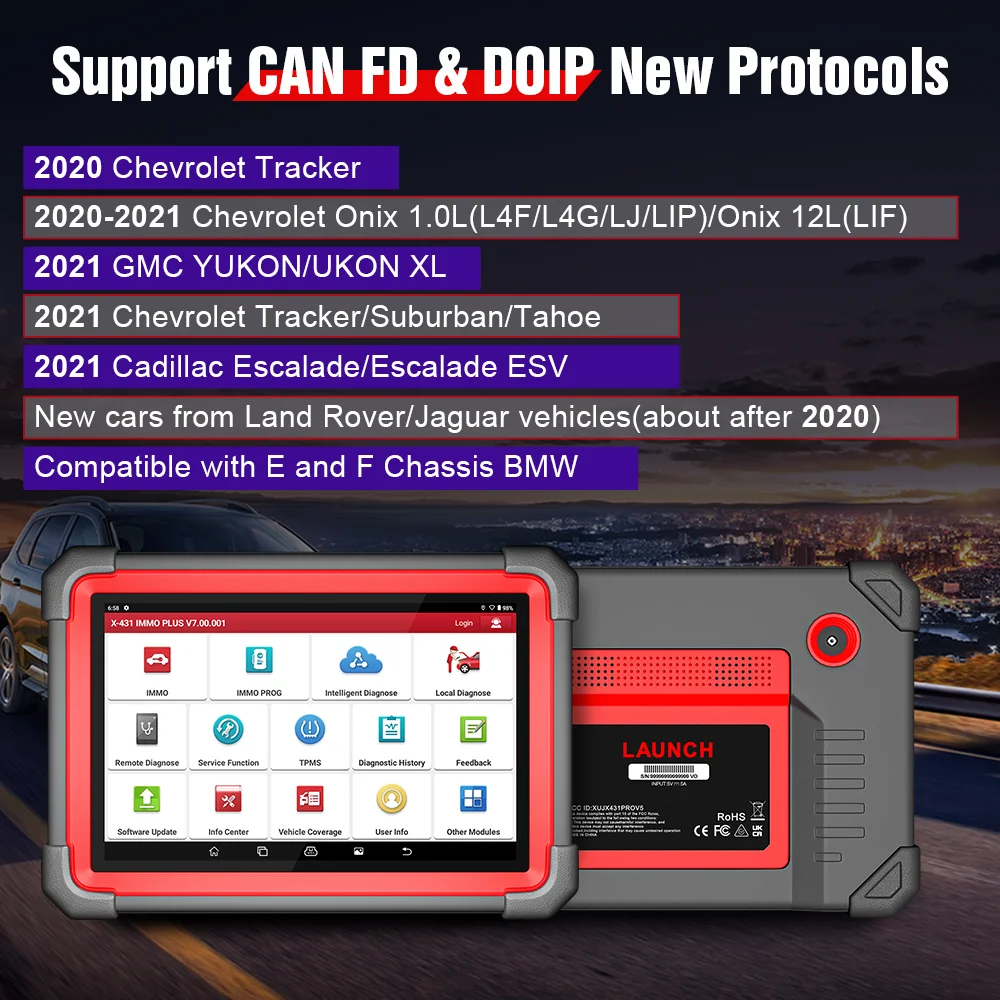

Support CAN FD DOIP New Protocols
it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For G-M vehicles
manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrol-et Onix 2020-2021 year
Supports For Che-vrolet Tracker 2020 year
Supports For Chevr-olet Suburban 2021 year
Supports For Chevro-let Tahoe 2021 year
Supports For Buic-k
Supports For Cadi-llac Escalade 2021 year
Supports For Cadi-llac Escalade 2021 year
Supports For G-M-C Yukon 2021 year
Supports For G-M-C- Yukon XL 2021 year
Supports For Hol-den
Supports For DAEW-OO
Supports For Alph-eon
Supports For Ravo-n
Supports For Pont-iac
Supports For Satu-rn
Supports For Hum-mer

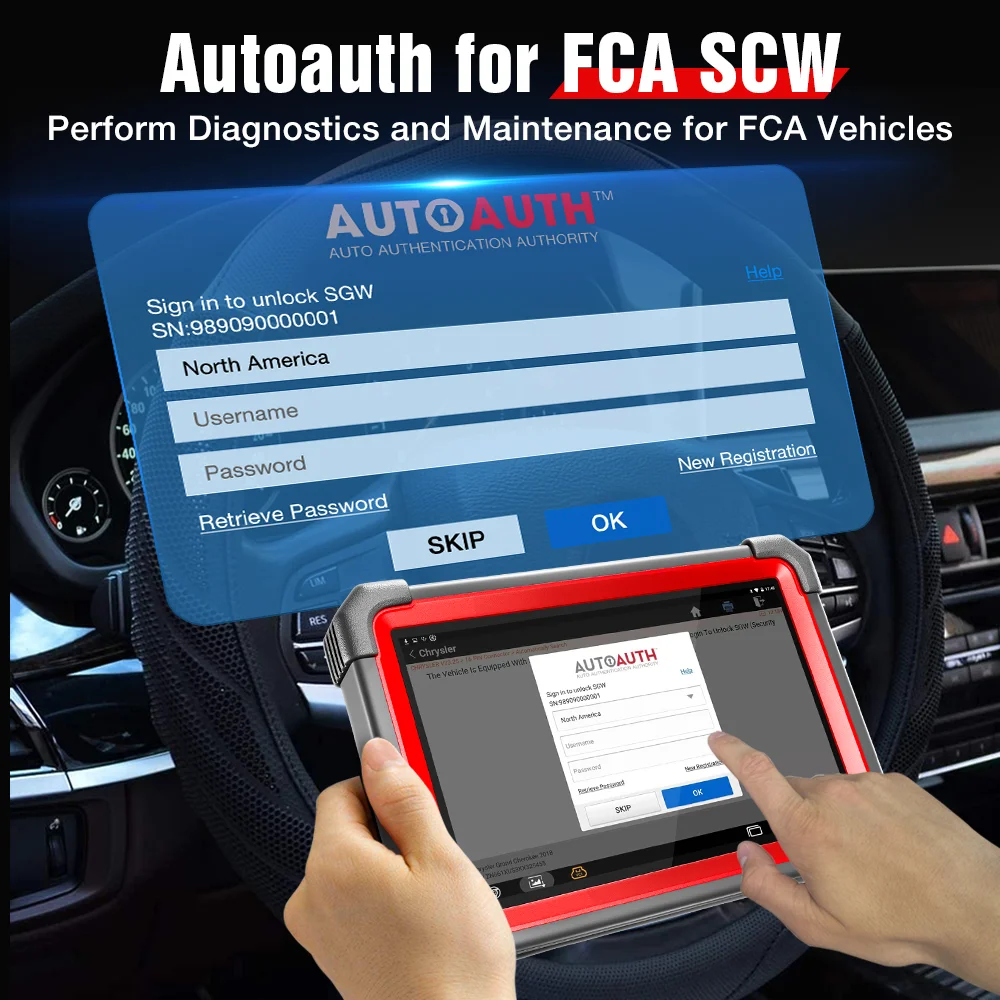

Auto Auth for FCA SCW
AutoAuth for FCA SGW which makes X431 works with Chrysler,Dodge,Jeep,Alfa Romeo and Fiat after 2017
39+ Reset Service Supports
1> Oil Reset Service
This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change
interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving milea-ge or driving time,
so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.
2> Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.
3> Steering Angle Calibration
This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering
mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this
position as reference,the ECU cancalculate the accurate angle for left and right steering.
4> ABS Bleeding
This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking
System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.
5> Gear Learning
This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.
6> IMMo Service
This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car
identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.
7> Injector Coding
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding
cylinder,so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.
8> Battery Maintenance System Reset
This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low
battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
9> Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
10> Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the
default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air
intake.
11> Gearbox Matching
This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.
12> AFS (Adaptive Front-lighting System) Reset
This function enables you to initialize the adaptive headlamp system.
13> Sunroof Initialization
This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature
threshold outside the caretc.
14> Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the airsuspension system.
2. When the vehicle height is incorrect.
15> EGR Adaption
This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.
16> Seats Calibration
This function is applied to match the seats with memory function that arereplaced and repaired.
17> Tyre Reset
This function is used to set the size parameters of the modified or replacedtire.
18> Coolant Bleed
Use this function to activate the electronic water pump before venting thecooling system.
19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.
20> NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized
and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine
ECu.
21> Ac System Initialization
AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.
22> High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status informationdetection.
23> Windows Calibration
This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and
descending functionof power window.
24> Language Change
This function is used to change system language of vehicle center console.
25> AF Reset
This function is applied to set or learn airlfuel rate parameters.
26> Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for
door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.
27> StoplStart Reset
This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is
vehicle equipped withhidden function and hardware support).
28> Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it isreplaced or repaired.
29> Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power
provided by each cylinder.
30> Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output
power is reduced resultingfrom a long time service of the GPF.
31> Motor Angle Calibration
This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is
different from theactual rotor field position.
32> Automatic air conditioning initialization software Reset Service ( RESET ACINI )
33> Electronic water pump starts Reset ( RESET COOLANT )
34. RESET ECU
35. RESET FRM
36. RESET CLUTCH
37. RESET GATE
38. RESET TURBO
39. RESET RLSENSOR
All in One Graphic Data Stream Analysis in Graph
Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of
sensors and components.
Vehicle Health Report Share and Print
Health Report Generate and Share , you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card ,Also,You can customize your name ,your address and other information on this report .
Remote Diagnosis
help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.
Diagnostic Feedback
and more ...
LAUNCH X431 IMMO PLUS Compatible Models
1.X431 Videoscope: Check unseen parts of engine, fuel tank system, etc.
2.X431 TSGUN TPMS WAND: Activate all sensors,TPMS relearn,Program LAUNCH sensors
3.X431 RF-Sensor: Copy the original tire pressure sensor data; can be programmed unlimited times
4.X431 PROG: IMMO functions for VAG Group Above 3.5
5.X431 BST360: Battery Health Test, Smart System Test, Charging Health Test, Test Report
6.X431 PRINTER: Print out diagnostic data/ reports
2.X431 TSGUN TPMS WAND: Activate all sensors,TPMS relearn,Program LAUNCH sensors
3.X431 RF-Sensor: Copy the original tire pressure sensor data; can be programmed unlimited times
4.X431 PROG: IMMO functions for VAG Group Above 3.5
5.X431 BST360: Battery Health Test, Smart System Test, Charging Health Test, Test Report
6.X431 PRINTER: Print out diagnostic data/ reports
Product Details
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
