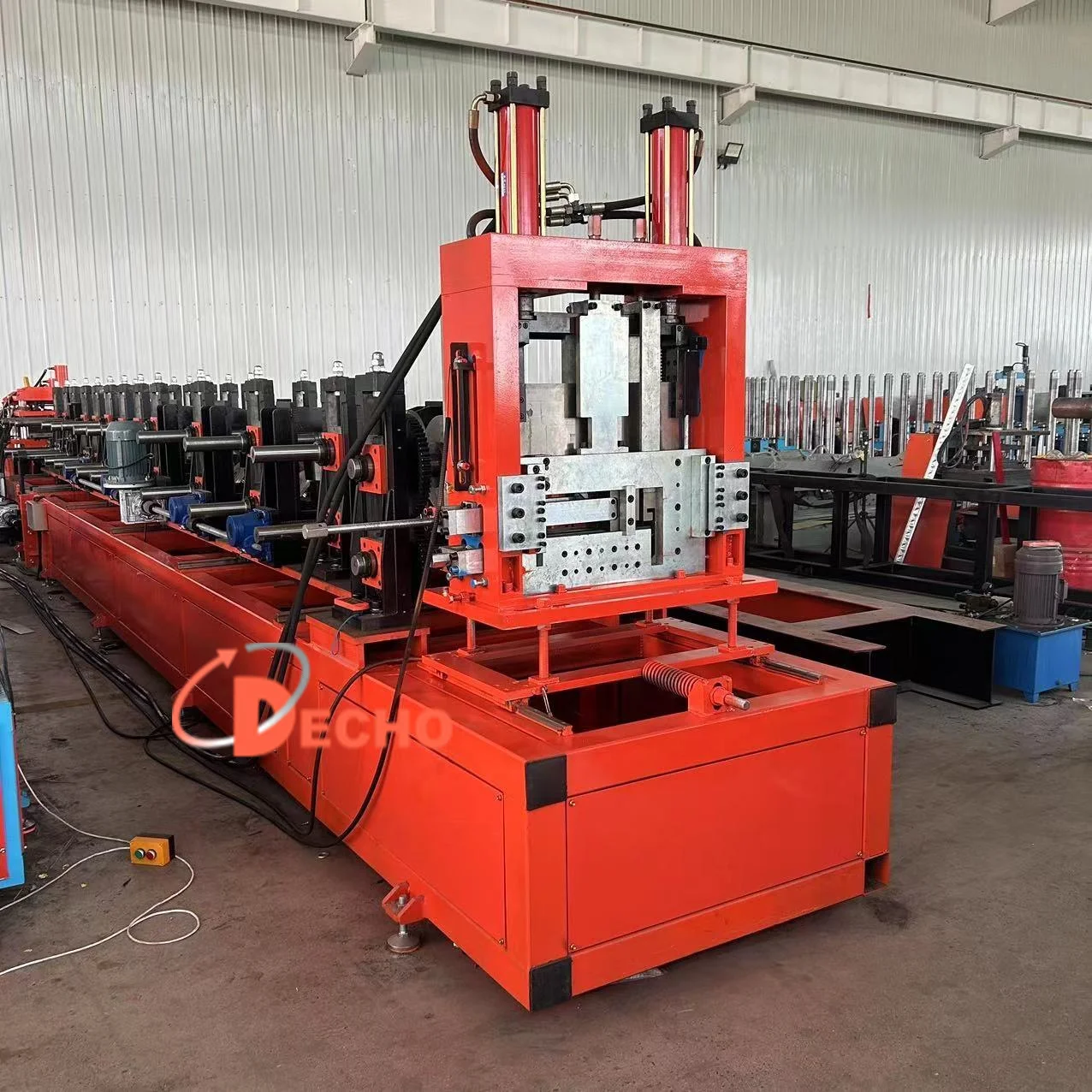

Factory Customize Fully Automatic Size Adjustment C Z Channel Purlin Interchangeable Changing Cold Roll Forming Machine
- Category: Building Material Machinery >>>
- Supplier: Henan Dingkou Industrial Co. Ltd.
Share on (1600919364906):
Product Overview
Description
Product information
Part details | Item name | C & Z Profiles Roll Forming Machine |
Material | Row material | Galvanized,Steel etc |
Size | 80-305mm | |
Thickness | 1-3mm | |

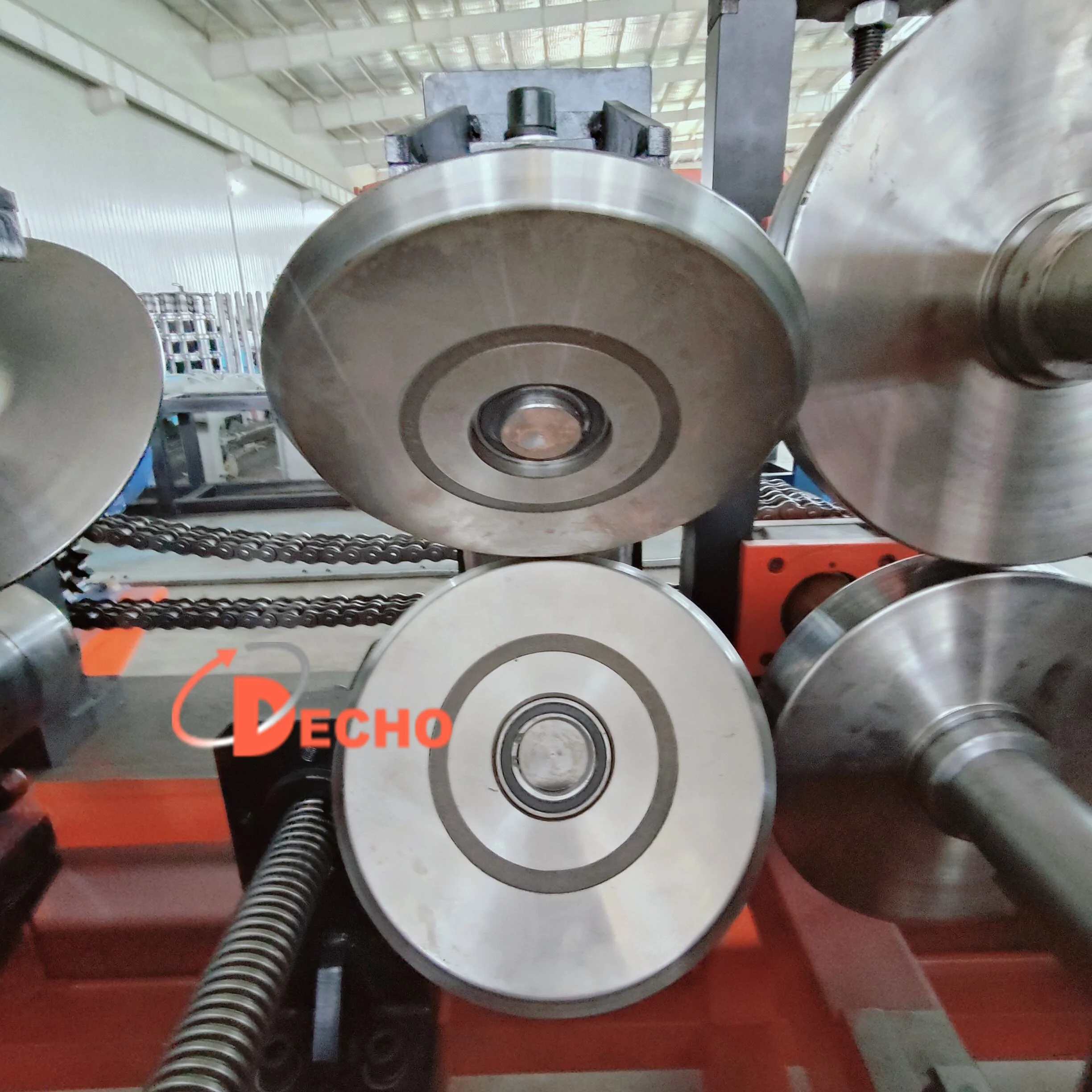

Machine | Roller material | Bearing steel heat treatment |
Shaft material | Bearing steel heat treatment | |
Shaft diameter | 80mm | |
Rack midplane | Cast iron archway-50mm | |
Color | Customized | |
Working speed | 1-15m/min | |
Power | Driving way | Double row chain/Gear Box drive |
Main power | 15KW | |
Pump power | 7.5KW | |

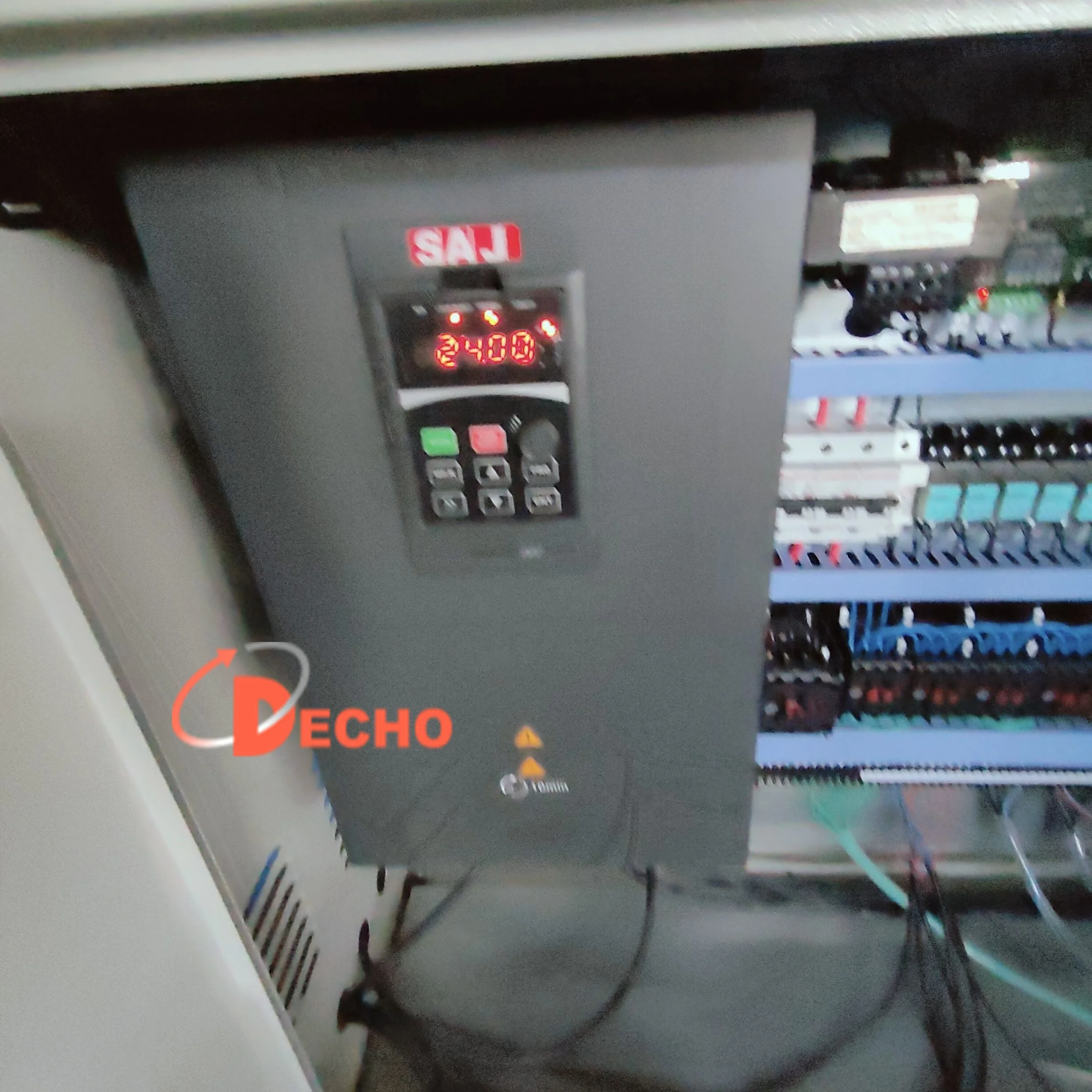

Inverter | 17.5KW | |
Voltage | 380V/50Hz 3P/Customized | |

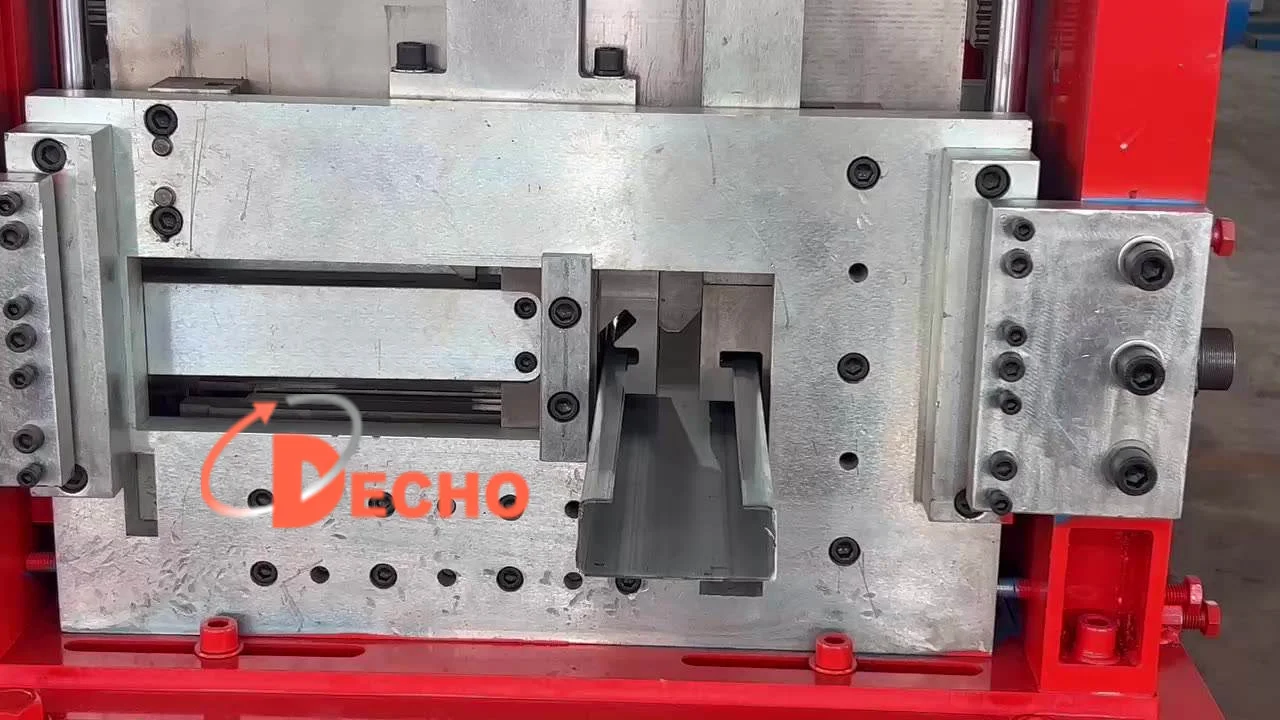

Cutter | Material | Cr12 |

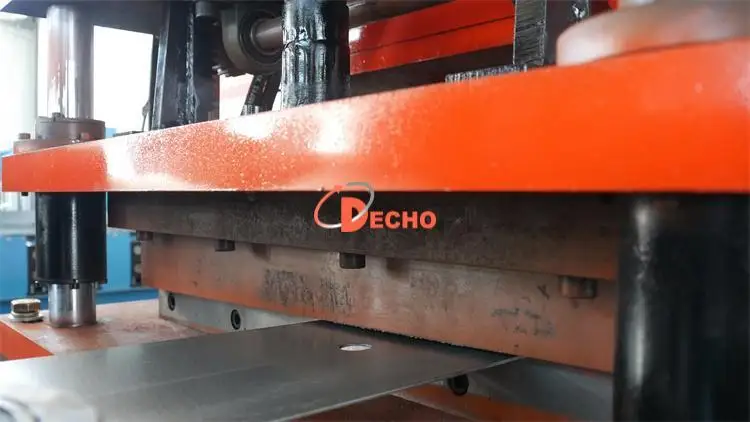

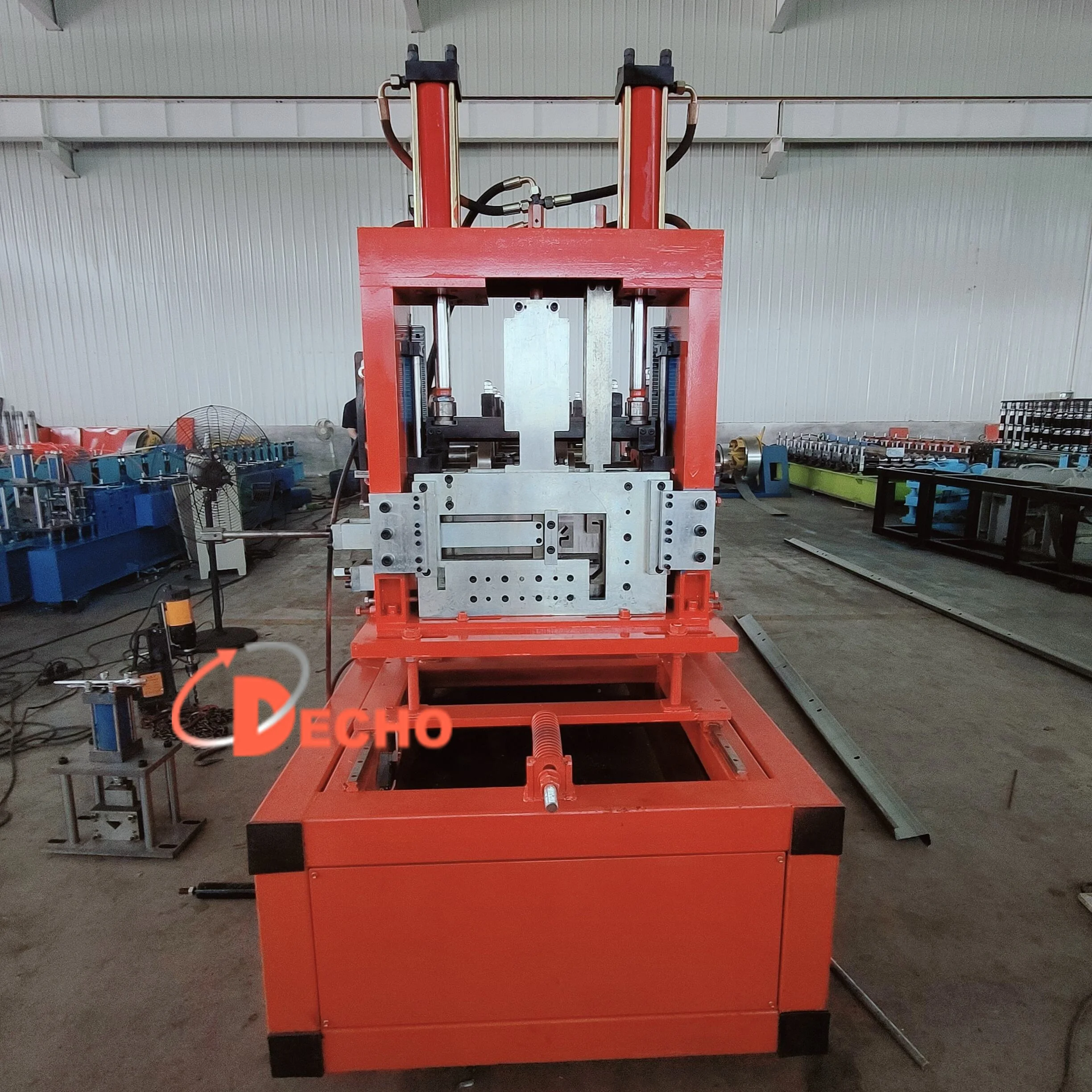

Operate | Hydraulic cutting | |
Control system | PLC brand | Delta |
Screen | Touchable screen | |
Language | Chinese/English/Customized | |
Leveling part | Feeding | Guide shaft and guide wheel |
Leveing | Two rows of rollers in the upper, three rows of rollers in the down, two conveyors | |
Punching system | Size | Customized |
Decoiler | Operation | Manual/electric/hydraulic |
Weight capicatity | 5T/8T/10T | |
Receiving table | Operation | Manual/electric |
Length | 3m |

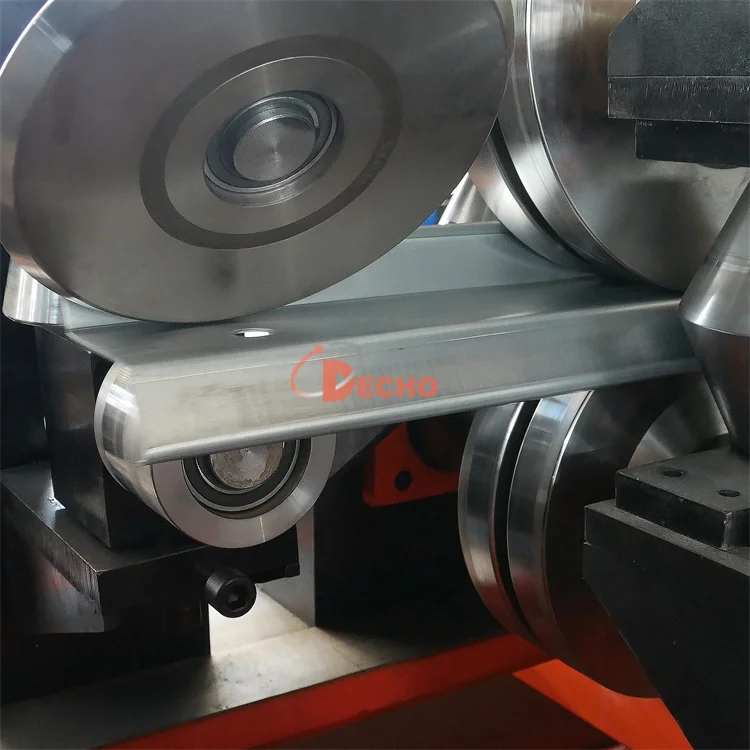

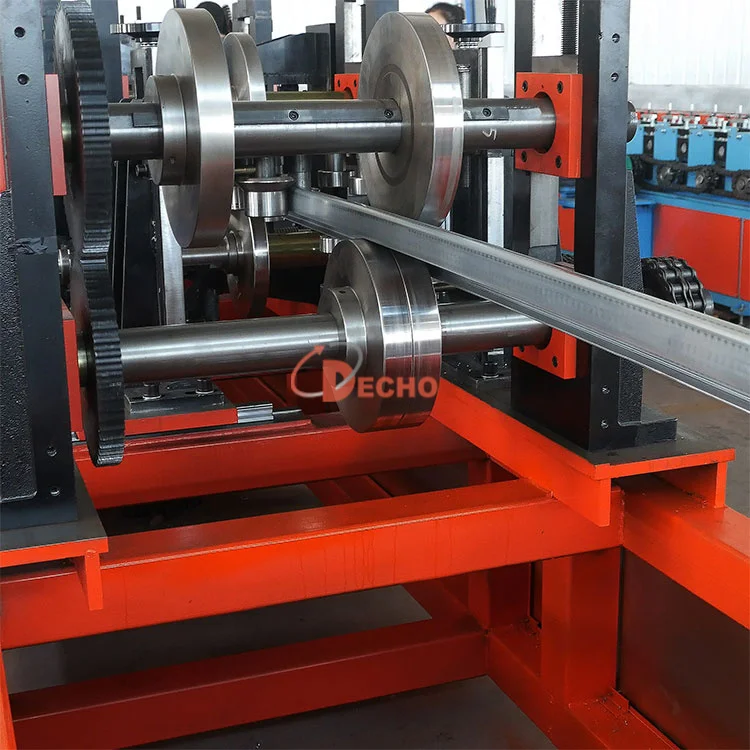

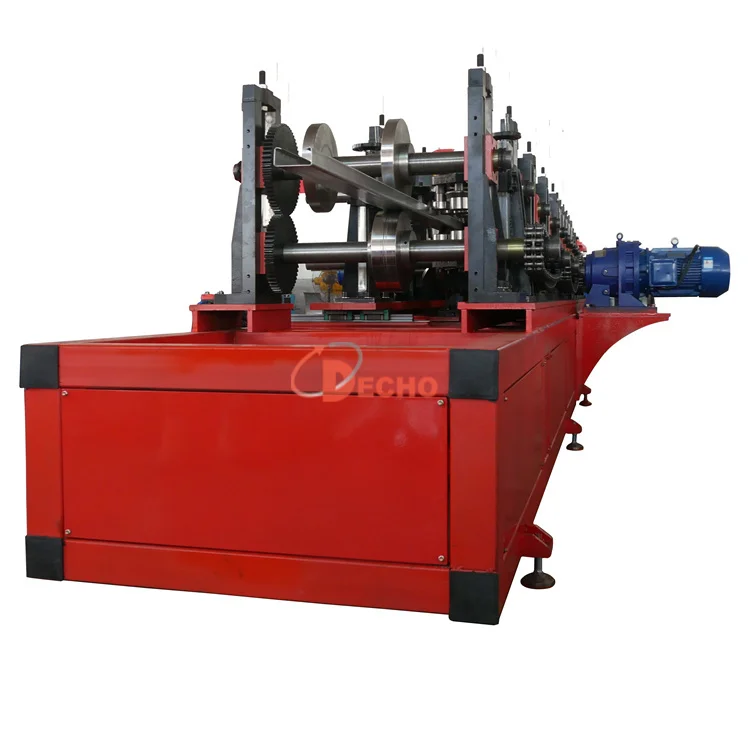

Detail Images

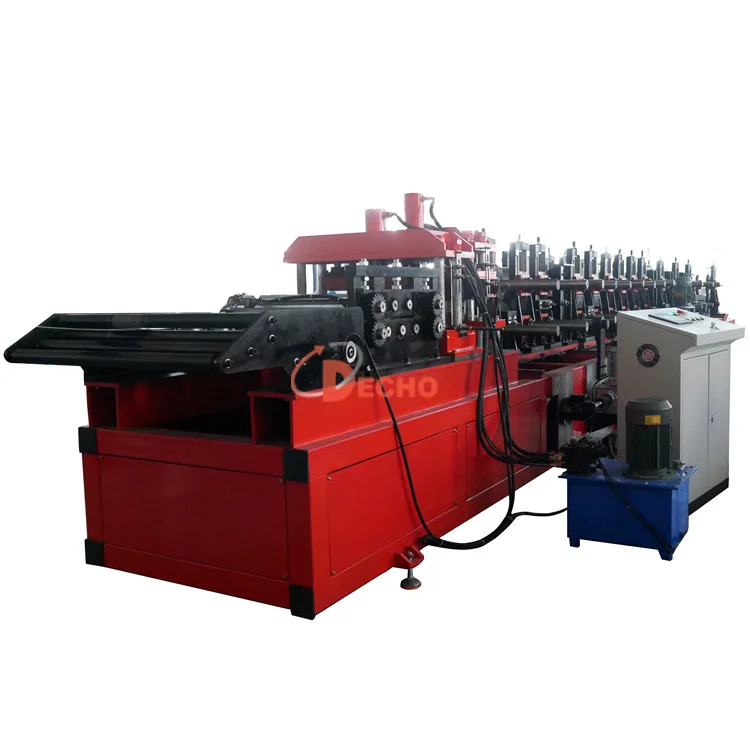

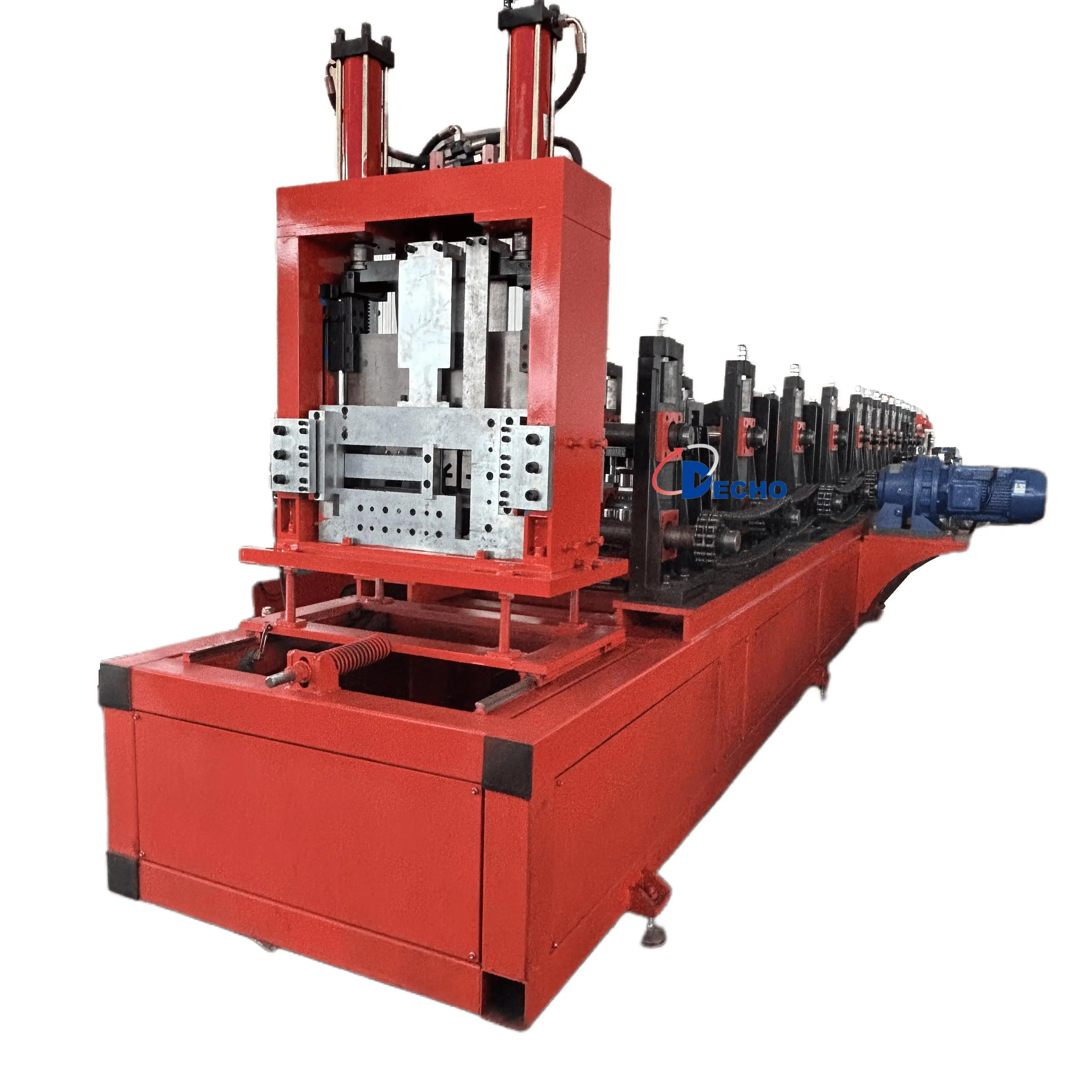

The Whole Process Of Purlin Roll Forming Machine
It Consists Of One Decoiler, Sheet Guiding Equipment, Roll Forming Section, PLC Control System, Hydraulic Cutting, Collection Table.
It Consists Of One Decoiler, Sheet Guiding Equipment, Roll Forming Section, PLC Control System, Hydraulic Cutting, Collection Table.
Z Purlin
C Purlin
Advantage：
>>> Fully Automatic Only Need 1 Worker ，Easy To Operate <<<
>>> 2 type purline Can Be Made <<<
>>> High Efficiency <<<

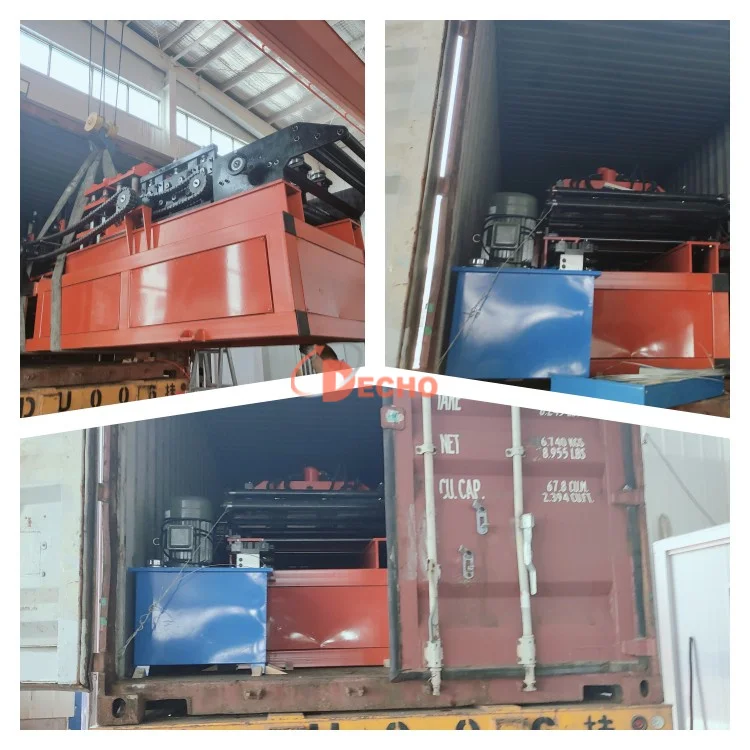

Packing&Delivery
Item | Designations | Quantity | Unit |
1 | Decoiler | 1 | Set |
2 | Roll Forming System | 1 | Set |
3 | Control System | 1 | Set |
4 | Stacking Rack | 1 | Set |
More model for your choice
Company Introduction
Our Clients

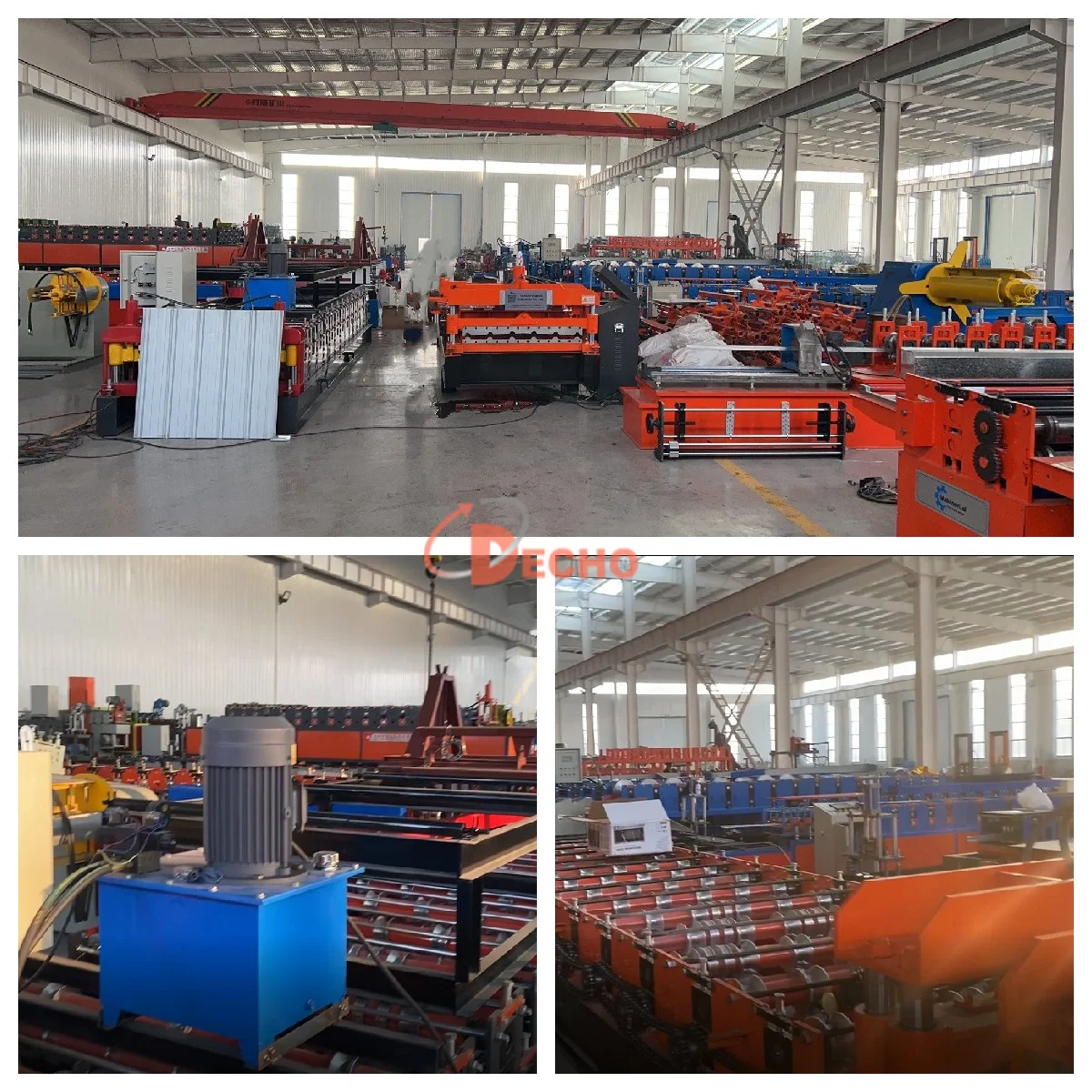

Workshop & Warehouse
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories.
Q2: Can I have my own customized product?
A2: Yes, just send the customized color, logo, pattern, packaging, box label and so on.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your orde.
Q2: Can I have my own customized product?
A2: Yes, just send the customized color, logo, pattern, packaging, box label and so on.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your orde.
