Spot cheap PBT material 4cm brushless dc axial fan cooling 4015 3pin fan 12v 40x40
- Category: >>>
- Supplier: Beijing Zihang Dahui Electronics Co. Ltd.
Share on (1600919435918):
Product Overview
Description

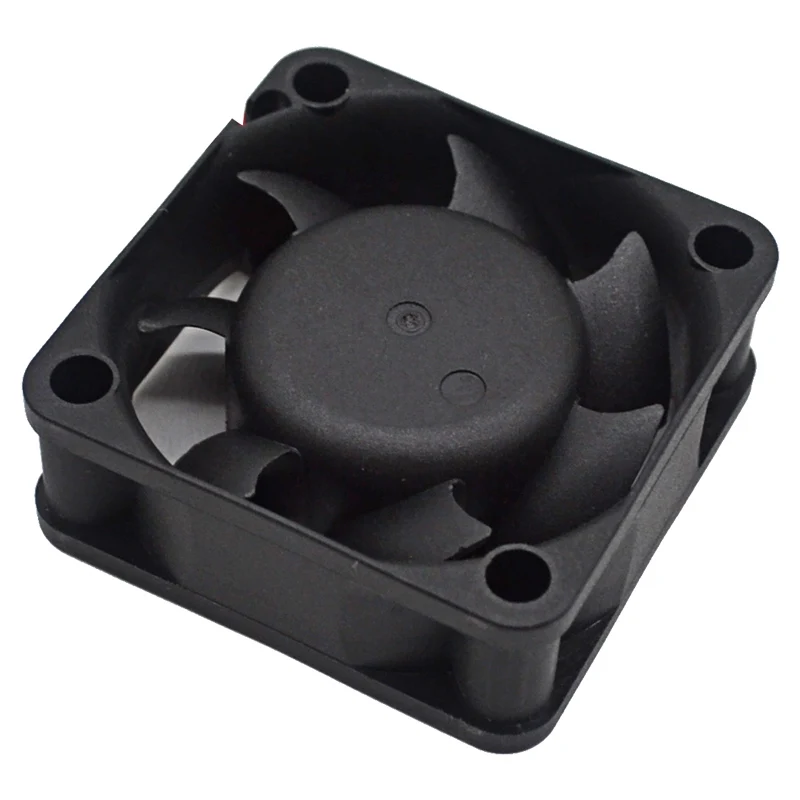

Spot cheap PBT material 4cm brushless dc axial fan cooling 4015 3pin fan 12v 40x40

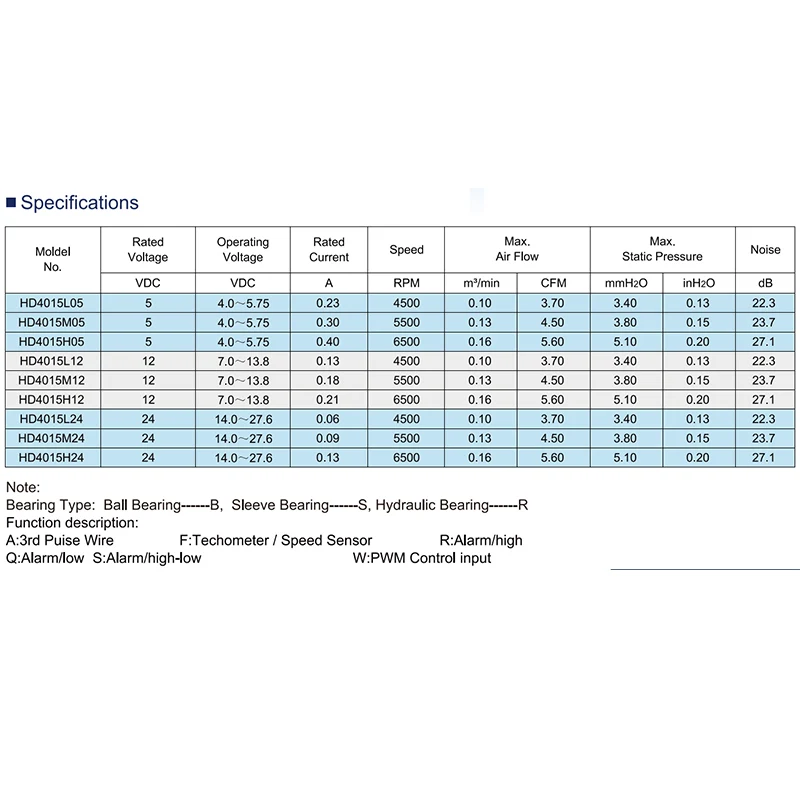

| Moldel NO. | Rated Voltage | Operating Voltage | Rated Current | SPeed | Max .Air Flow | MAX.Static Pressure | Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD4015L05 | 5 | 4.0-5.75 | 0.23 | 4500 | 0.1 | 3.7 | 3.4 | 0.13 | 22.3 |
| HD4015M05 | 5 | 4.0-5.75 | 0.3 | 5500 | 0.13 | 4.5 | 3.8 | 0.15 | 23.7 |
| HD4015H05 | 5 | 4.0-5.75 | 0.4 | 6500 | 0.16 | 5.6 | 5.1 | 0.2 | 27.1 |
| HD4015L12 | 12 | 7.0-13.8 | 0.13 | 4500 | 0.1 | 3.7 | 3.4 | 0.13 | 22.3 |
| HD4015M12 | 12 | 7.0-13.8 | 0.18 | 5500 | 0.13 | 4.5 | 3.8 | 0.15 | 23.7 |
| HD4015H12 | 12 | 7.0-13.8 | 0.21 | 6500 | 0.16 | 5.6 | 5.1 | 0.2 | 27.1 |
| HD4015L24 | 24 | 14.0-27.6 | 0.06 | 4500 | 0.1 | 3.7 | 3.4 | 0.13 | 22.3 |
| HD4015M24 | 24 | 14.0-27.6 | 0.09 | 5500 | 0.13 | 4.5 | 3.8 | 0.15 | 23.7 |
| HD4015H24 | 24 | 14.0-27.6 | 0.13 | 6500 | 0.16 | 5.6 | 5.1 | 0.2 | 27.1 |

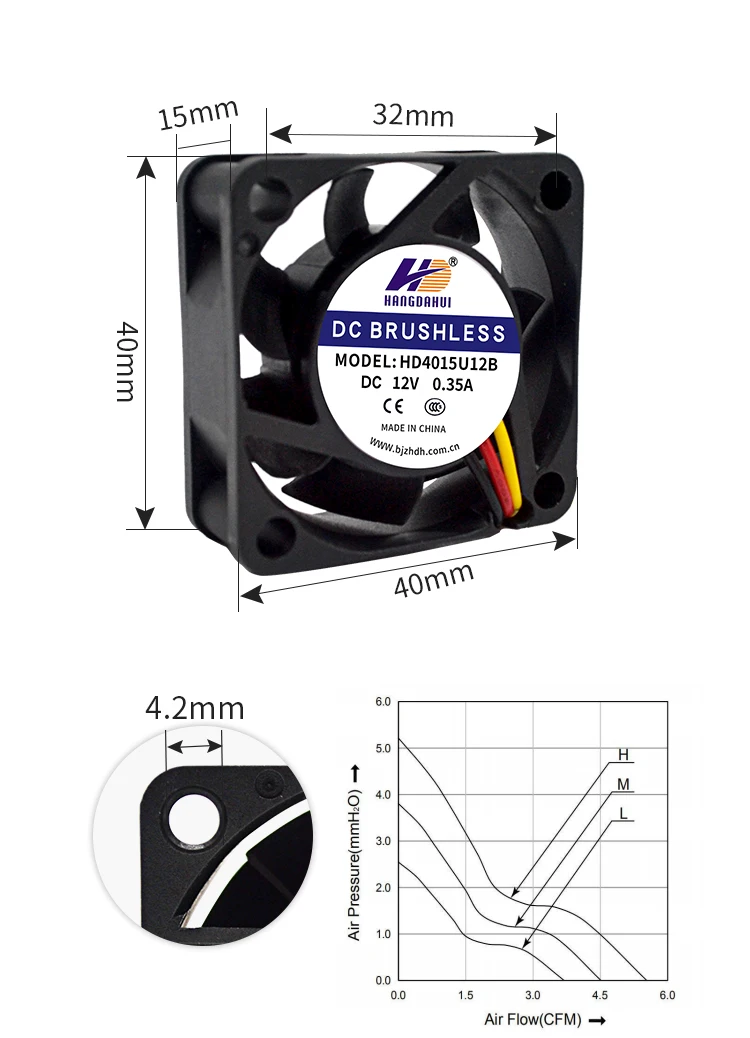

cooling fan 40*40*15 4cm HANGDAHUI
FAQ
1 What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
2 What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3 How many types bearing of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.
4 How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5 How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
