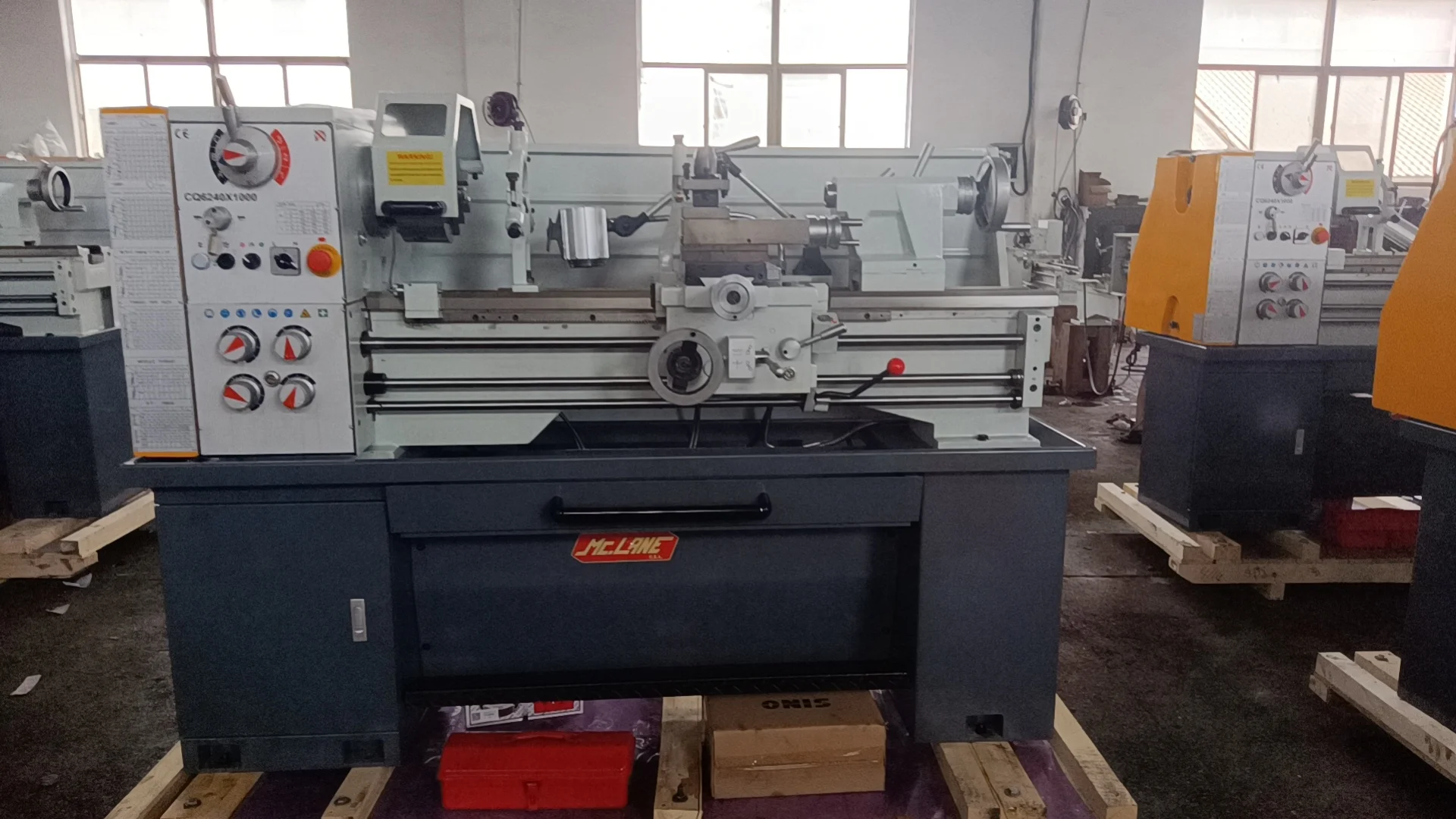

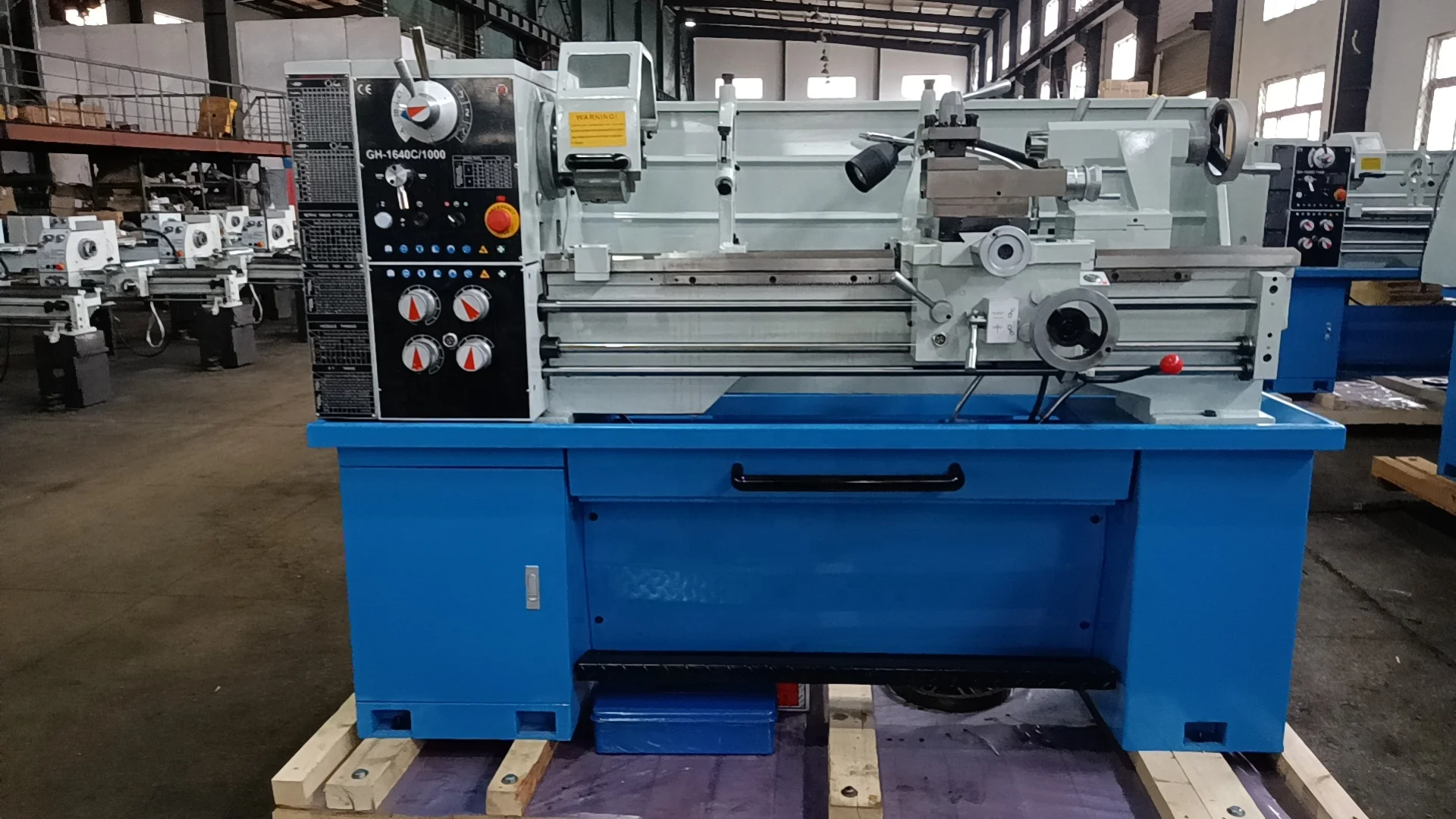

CQ6230 Metal lathe machine industrial bench engine type gap bed Horizontal Metal Turning Lathe Machine
- Category: >>>
- Supplier: Shenzhen Integrity Industry Co. Ltd.
Share on (1600919446790):
Product Overview
Description
PRODUCT DESCRIPTION
Color can made as customer's request
Horizontal Metal Turning Lathe Machine
Model | CQ6230A |
Max.swing over bed | Φ310mm |
Max.swing over cross slide | Φ180mm |
Max. swing over gap | Φ450mm |
Distance between centers | 750mm/910mm/1000mm |
Width of bed | 181mm |
Spindle bore | Φ38mm |
Taper of spindle bore | M.T.#5 |
Range of spindle speeds | 65-1810(1400)rpm |
Taper of tailstock | M.T.#3 |
Metric threads can be cut | 0.4-7mm |
Inch threads can be cut | 4-60 T.P.I. |
Range of longitudinal feeds | 0.0527-1.2912mm/rev |
Range of cross feeds | 0.011-0.276mm/rev |
Max. travel of cross slide | 130mm |
Max. travel of top slide | 75mm |
Max. travel of tailstock quill | 100mm |
Standard accessories：
·3 Jaw chuck(Φ160mm)
·4 Jaw chuck(Φ200mm)
·Steady Rest
-·Follow Rest
·Change Gears Set
·-M.T.#3 Dead Centers
·M.T.#5/3 Reduction Sleeve
·-Oil gun ·Splash Guard
-·Foot stands
·Tool Box&Tools
-Oil Tray
Optional accessories：
·Face Plate
·Work Light
·Foot Brake System
·Coolant System
·Live Center
·Drill Chuck+Drill Arbor
·Lead screw Guard
·Chuck Guard
·Quick Change Tool Post
·Digital Readout(2 Axis)
·Digital Readout(3 Axis)
·Digital Readout(3 Axis)
