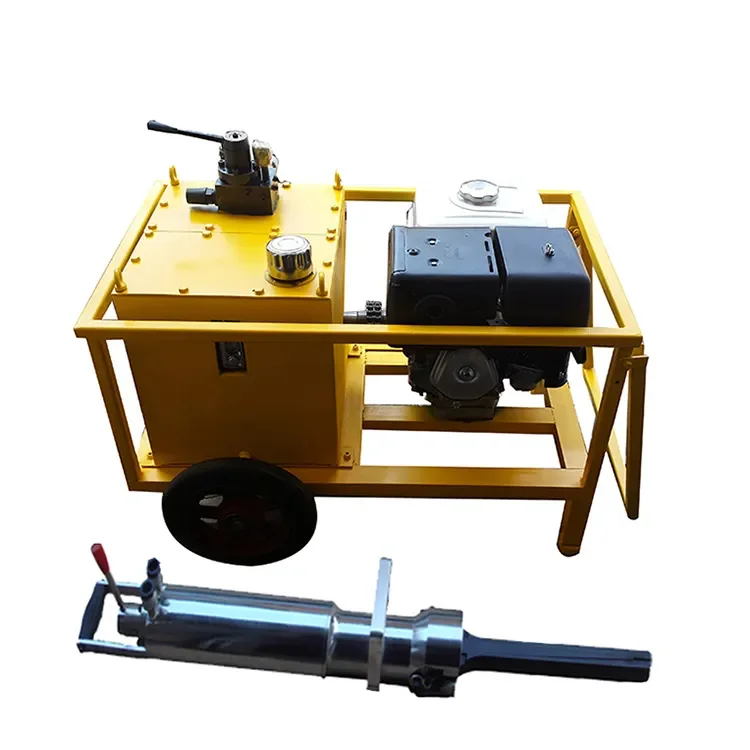

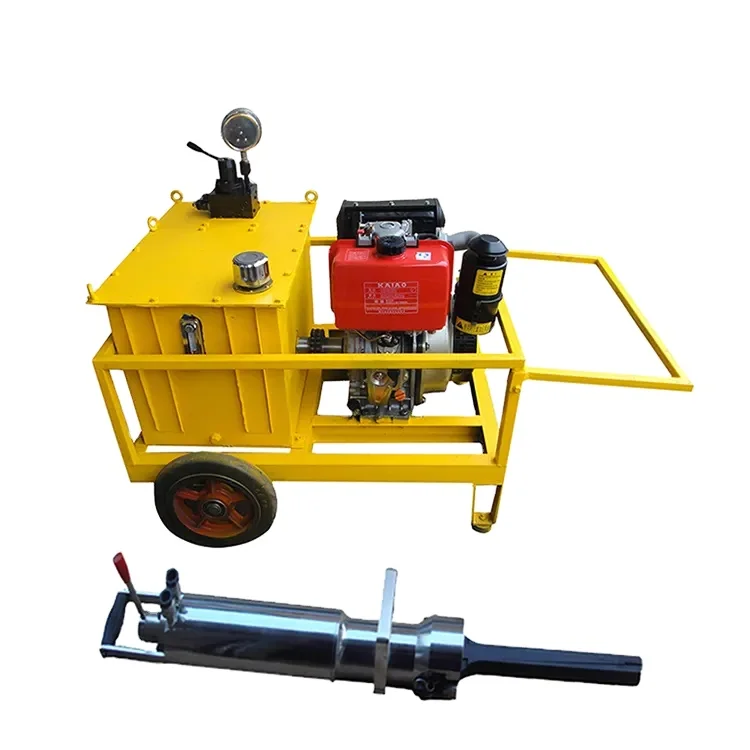

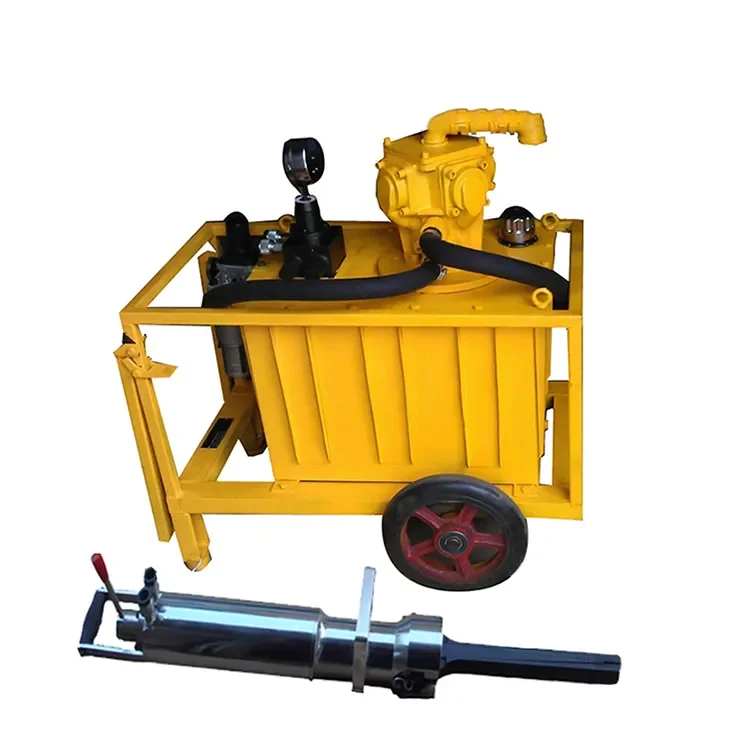

Electric Type Hydraulic Stone Splitter For Norway Market Darda Concrete Splitter
- Category: >>>
- Supplier: Fuzhou Deckwell Machine Co. Ltd.
Share on (1600919458248):
Product Overview
Description
Product Overview
Hydraulic Rock Splitter
Hydraulic splitter main role: quarry barren material mining.
1) large ores (metal ores, non-metallic ores) of the secondary Disintegration;
2）concrete components (concrete pavement, machine tool foundations, bridges and housing components) local and total demolition operations.
3)Demolition of concrete structures in indoor or confined spaces;
1) large ores (metal ores, non-metallic ores) of the secondary Disintegration;
2）concrete components (concrete pavement, machine tool foundations, bridges and housing components) local and total demolition operations.
3)Demolition of concrete structures in indoor or confined spaces;
4）Excavation of tunnels, ditches and other rocks, etc.
Diesel/Gasoline/Electric/Pneumatic
*500-820 Ton splittering force
*500-820 Ton splittering force
fast crack time:5-12s

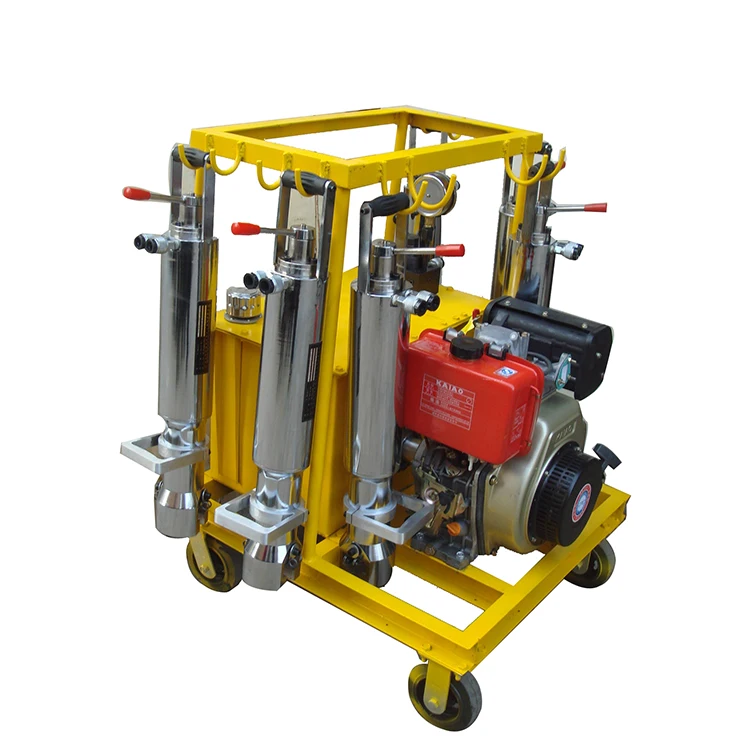

* one station drive up 1~ 10 splitter gun
PRODUCT SPECIFICATIONS
Engine Model | Diesel type | Gasoline type | Electric type (220v 380v) | Pneumatic type | ||
Dimensions | (MM) | 1150*1180*940 | 1200*1170*800 | 384*280*620 | 364*280*620 | |
Weight | (KG) | 120 | 100 | 75 | 100 | |
Fuel tank capacity | (L) | 40 | 40 | 30 | 40 | |
Working medium | / | 46 or 68 anti-wear hydraulic oil | 46 or 68 anti-wear hydraulic oil | 46 or 68 anti-wear hydraulic oil | 46 or 68 anti-wear hydraulic oil | |
Engine power | (KW/HP) | 7.7KW | 7.5HP | 0.75KW 2.2KW 4KW 7.5KW | 4.04kw 5.5HP | |
Working pressure | (Mpa) | 55~60 | 55~60 | 55~60 | 55~60 | |
Work flow | (L/Min) | 2. 13 | 2. 13 | 2. 13 | 13 | |
Configurable splitting machine number | (Handle) | 1~ 10 | 1~ 10 | 1 2~3 4~6 7~ 10 | 1~ 10 | |
model | DS80A | DS80B | DS80C | DS80D | DS90A | DS90B | DS90D | DS90E | ||
weight | (kg) | 20 | 21 | 25 | 27 | 26 | 26.5 | 27 | 28 | |
diameter | (mm ) | Φ38~42 | Φ40~42 | Φ40~42 | Φ45~48 | Φ38~42 | Φ40~42 | Φ40~42 | Φ45~48 | |
Piston inside diameter | (mm) | 80 | 80 | 80 | 80 | 90 | 90 | 90 | 90 | |
The minimum hole depth | (mm ) | ≥450 | ≥500 | ≥600 | ≥800 | ≥450 | ≥500 | ≥600 | ≥700 | |
Wedge length | (mm ) | 150 | 200 | 300 | 450 | 150 | 200 | 300 | 350 | |
Actual division force | (T) | 280 | 300 | 420 | 450 | 420 | 450 | 480 | 500 | |
Crack time | (S) | 5~ 12 | 5~ 12 | 5~ 12 | 5~ 12 | 5~ 12 | 5~ 12 | 5~ 12 | 5~ 12 | |
Splitting force | (T) | 500 | 600 | 680 | 720 | 680 | 720 | 780 | 820 | |
Details Images
Product packaging
Related Products
Recommend Products
Company Profile
FAQ
Q1
where is Deckwell factory located?
A1:Deckwell factory is located at Fuzhou cityFujian Province.Our factory is build in 2003 and we start to do export from 2008.
Q2
What is our main application?
A2: 1.Hydraulic power unit and tools 60%
2.Pneumatic tools 40%
Q3
Q3
What is the payments term ?
A3:
1.T/T
(1)Payment<=5000USD100% in advance.
(1)Payment<=5000USD100% in advance.
(2)Payment>=5000USD,30% T/Tin advance balance befor shippment. 2. L/C at sight.
3.Western Union
Q4
Q4
What is the delivery time?
A4:Generally 5-15 days.It will need 30 days if the order is big amount as USD100 000.
Q5
Q5
Can I Mark My Own brand on the machine?
A5: Yes, But you have to provide your authority of brand to us
Q6
Q6
Can I get a sample?
A6: Yes, But the sample and the express freight cost must be paid by customer.
