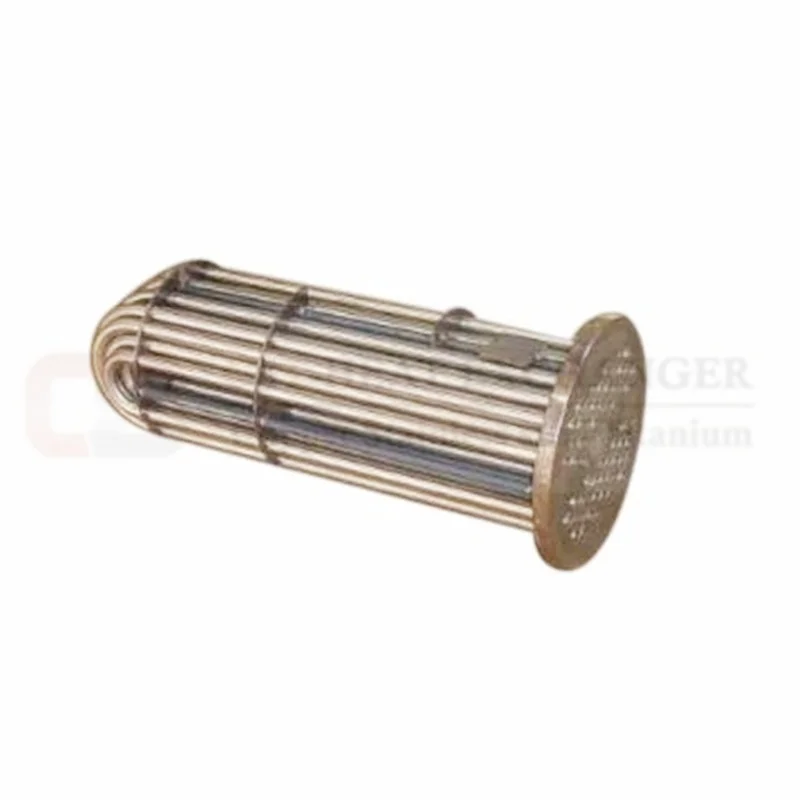

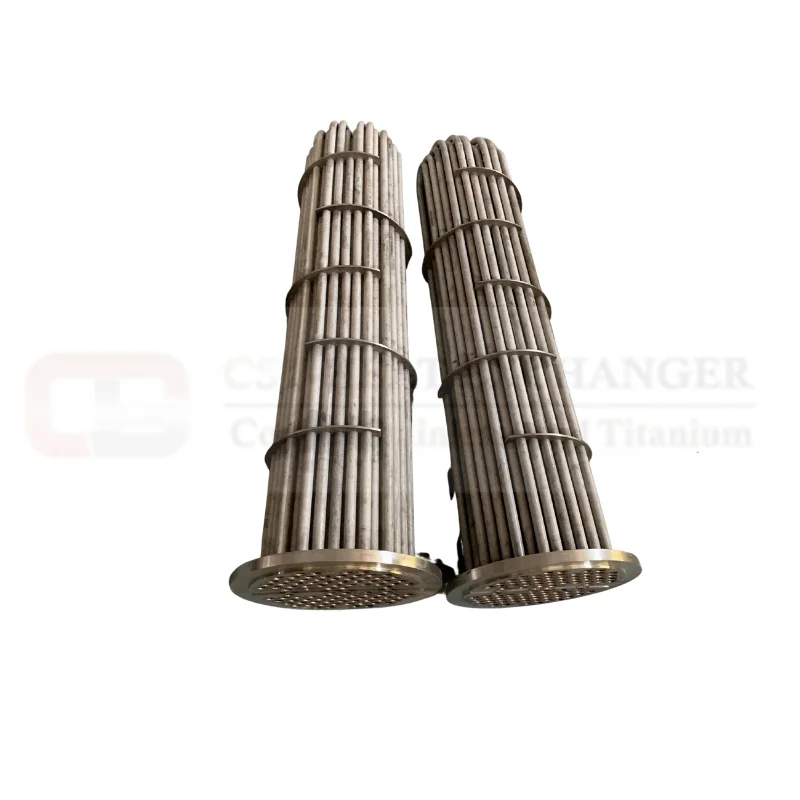

Double Tube Bundle For Tube In Shell Type Swimming Pool Heat Exchanger
- Category: >>>
- Supplier: Changzhou Vrcoolertech Refrigeration Co. Ltd.
Share on (1600919466832):
Product Overview
Description
Product Description
Tube bundle heat exchanger is a typical heat exchanging device that make two liquid with different temperatures to exchange heat.
Through the heat exchanger tank, one fluid can be cooled down and the other fluid can be heated to meet the required temperature.

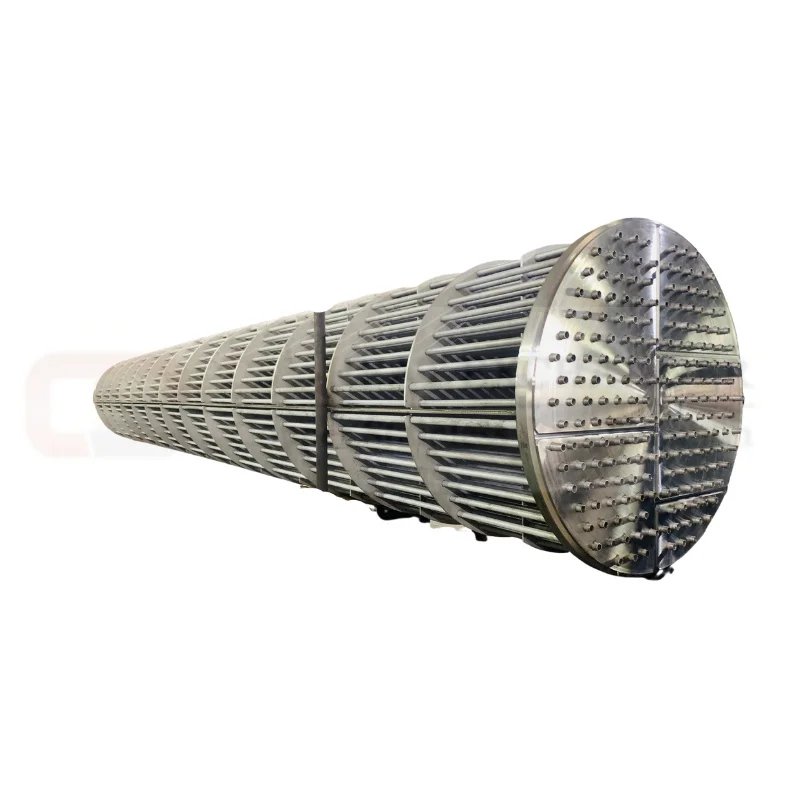

Tube bundle collected many groups of pipe densly packed as a radiation core, outside installed with a tubular tank shell making from the pressure vessle steel plate, when hot liquid or gases are circulated in the tube bundle, the large combined surface area of the tubes will bring efficient heat exchanging performances to transfer heat into the tank shell water and cooling the fluids
in the tubes.
Through the heat exchanger tank, one fluid can be cooled down and the other fluid can be heated to meet the required temperature.
Tube bundle collected many groups of pipe densly packed as a radiation core, outside installed with a tubular tank shell making from the pressure vessle steel plate, when hot liquid or gases are circulated in the tube bundle, the large combined surface area of the tubes will bring efficient heat exchanging performances to transfer heat into the tank shell water and cooling the fluids
in the tubes.
Common use Material for Tube Bundle Heat Exchanger

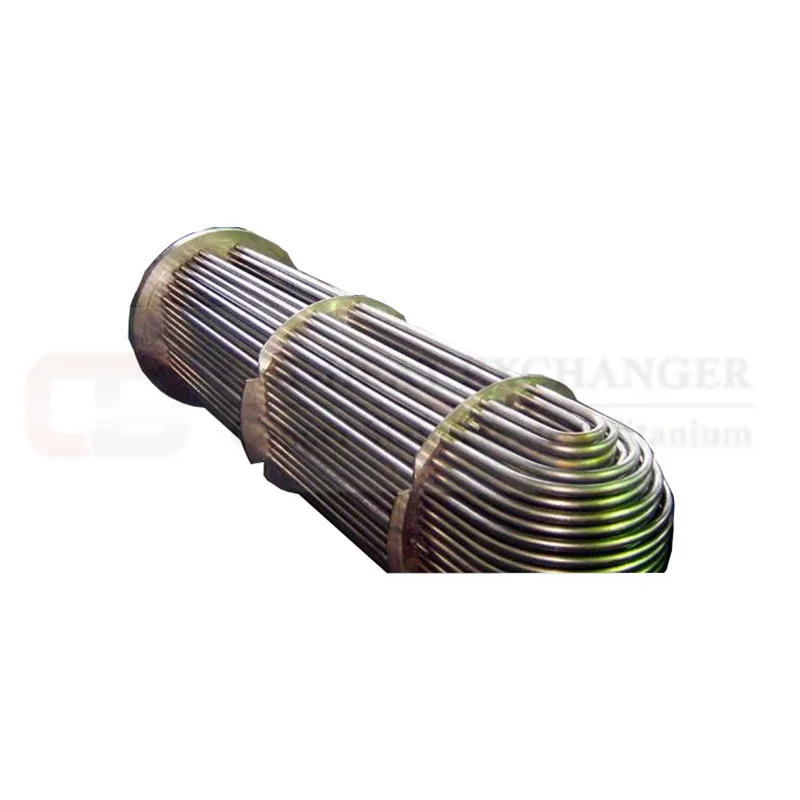

There are two different of tube bundles: Straight tubes and U tubes.
There are two different of tube bundles: Straight tubes and U tubes.
Depending on specific requirement and application, there are following tube material options:
Carbon Steel Tube : ASTM A179/ASME SA179/179M, ASTM A192, ASTM A333, ASTM A334
Alloy Steel Tubes: ASTM A213 T5, T9, T11, T22, T91
Copper Tubes
Tank Shell Materia Options:
ASTM A516 GR70
ASTM A572 GR50
ASTM A537 CL1
Applications:
Chemical Production
Petroleum Industry
Energy Power
Carbon Steel Tube : ASTM A179/ASME SA179/179M, ASTM A192, ASTM A333, ASTM A334
Alloy Steel Tubes: ASTM A213 T5, T9, T11, T22, T91
Copper Tubes
Tank Shell Materia Options:
ASTM A516 GR70
ASTM A572 GR50
ASTM A537 CL1
Applications:
Chemical Production
Petroleum Industry
Energy Power

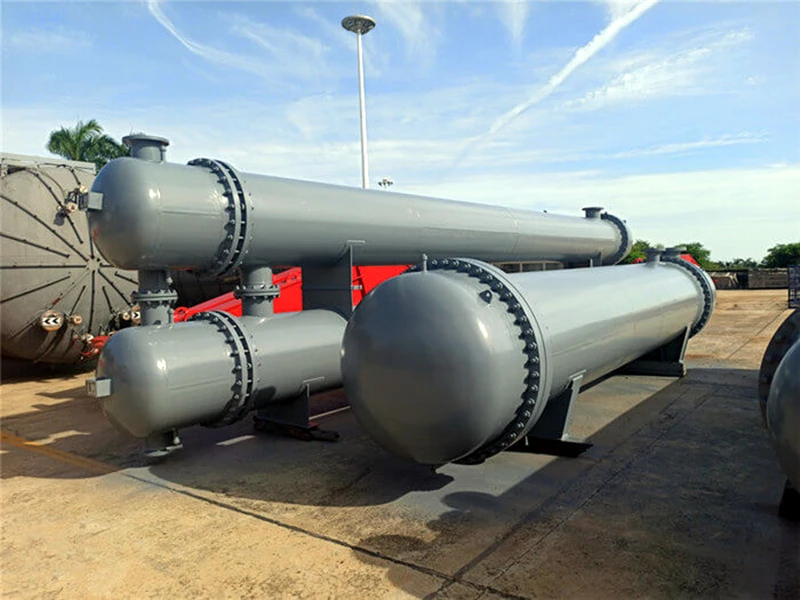

We are offering Shell and Tube Heat Exchanger to our clients who trust us for our quality standards. Used in special purpose machinery.
These are highly efficient as the manufacturing process is strictly supervised by our skilled and experienced supervisors. These are popular for their smooth functioning, easy operation and long service life. Our clients can avail the product in different sizes and cost effective range.
These are highly efficient as the manufacturing process is strictly supervised by our skilled and experienced supervisors. These are popular for their smooth functioning, easy operation and long service life. Our clients can avail the product in different sizes and cost effective range.

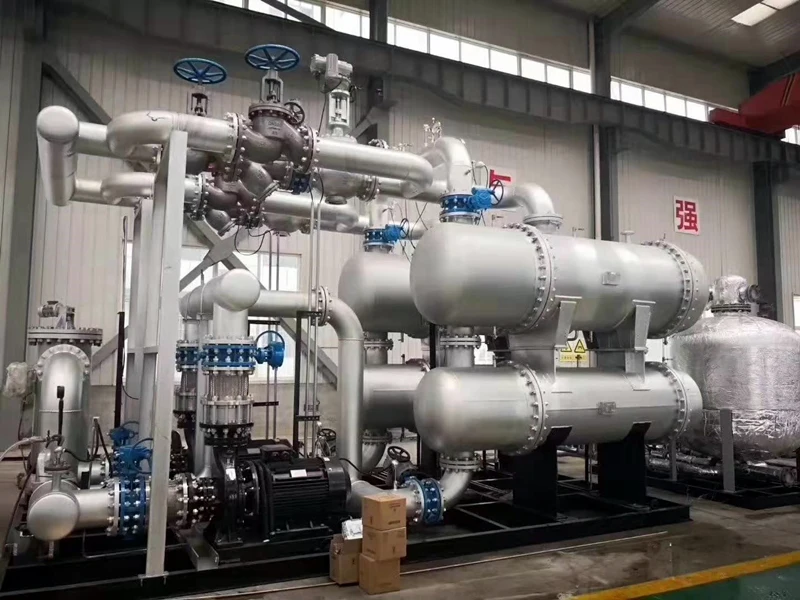

Our shell and tube heat exchangers are used in many comfort and industry applications for heating and cooling fluids. They consist of a shell with traditional plain tubes or enhanced surface tubes for high thermal performance. The fluids can be liquids or gases, one of which flows inside the tubes while the other flows outside the tubes within the shell. There are single-phase or two-phase heat exchangers, and the latter is used to either boil or condense fluids.
Features:
* Best for special purpose machinery
* Smooth functioning
* Durable finish
Features:
* Best for special purpose machinery
* Smooth functioning
* Durable finish
Technical service
We can provide detailed drawing after your order.
We can also provide Custom services.

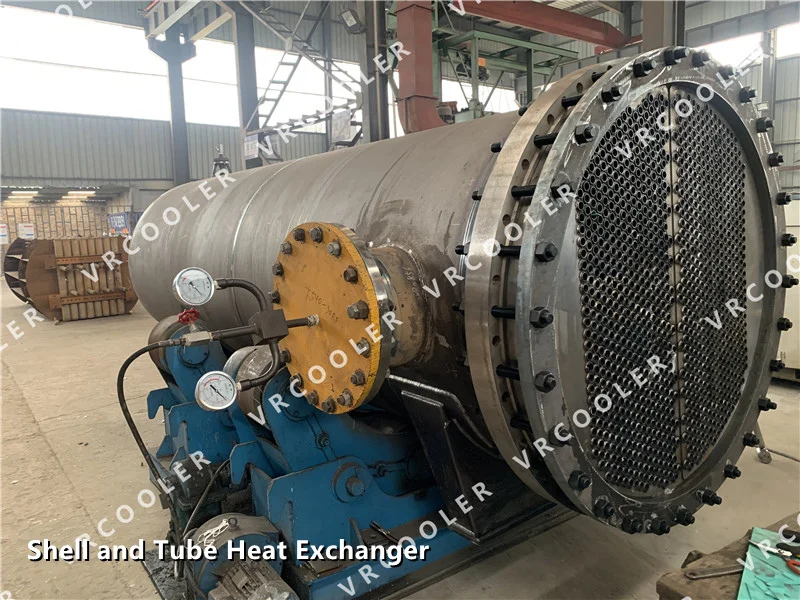

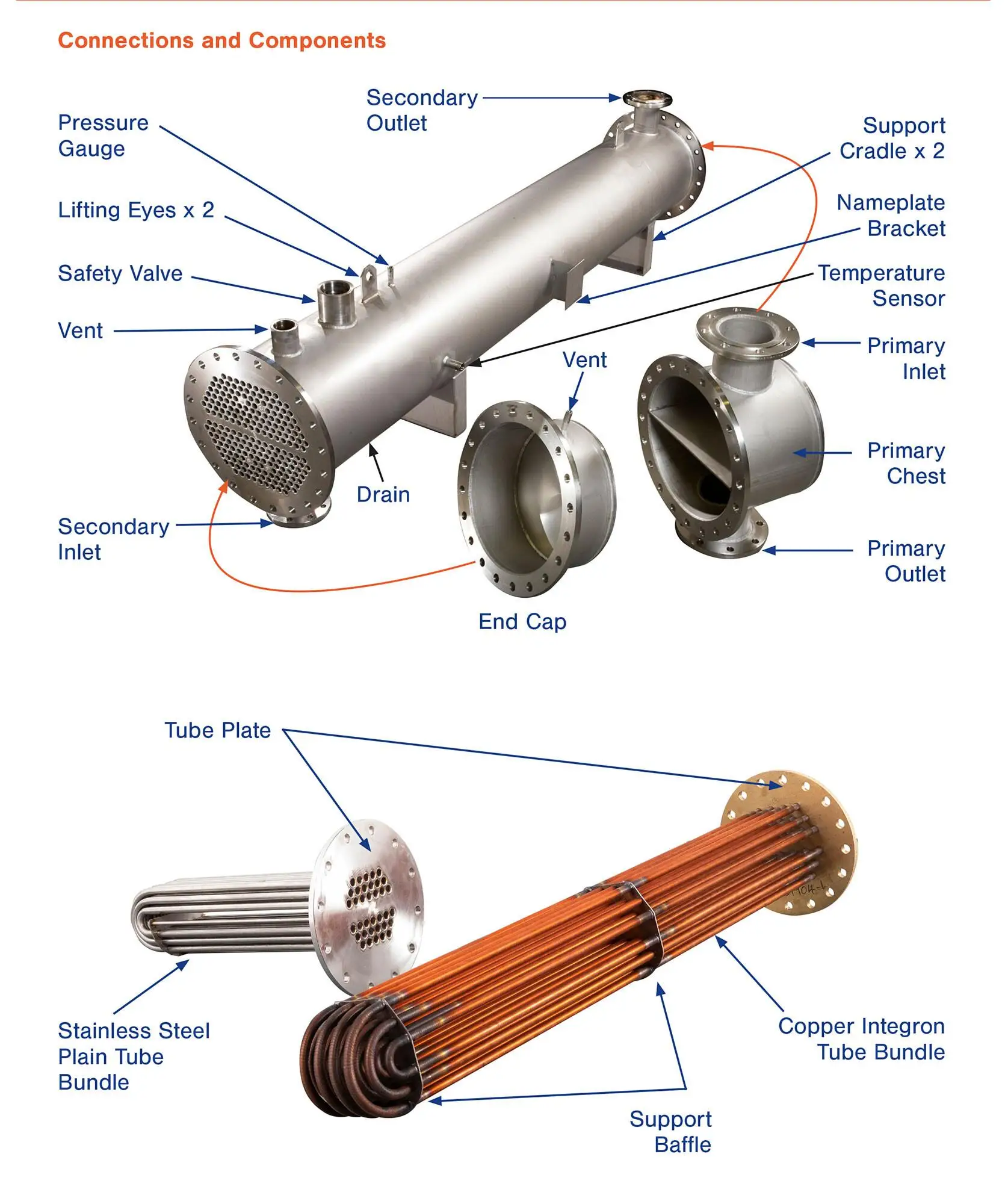

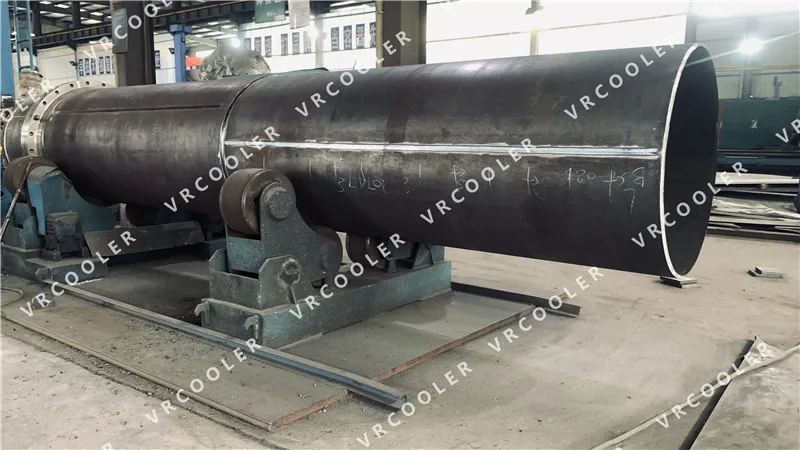

Shell
The shell of a shell and tube heat exchanger is made of pipe or welded metal plates using materials that can withstand extreme temperatures and that are corrosion resistant.
The inner shell must be round with a consistent diameter to minimize space between the baffled outer edge and the shell.
Tubes
Tubes of a shell and tube heat exchanger are welded or extruded and made from carbon steel, stainless steel, titanium, Inconel, or copper.
Tube diameters of 0.625 inch (16mm), 0.75 inch (19mm), or one inch (25mm) are used in compact heat exchangers.
The thickness of the tubes is chosen for pressure, temperature, thermal stress, and resistance to corrosion at lengths of 6 to 24 feet or 2 meters to 7 meters. Tubes that are longer reduce shell diameter and result in high shell pressure drop.

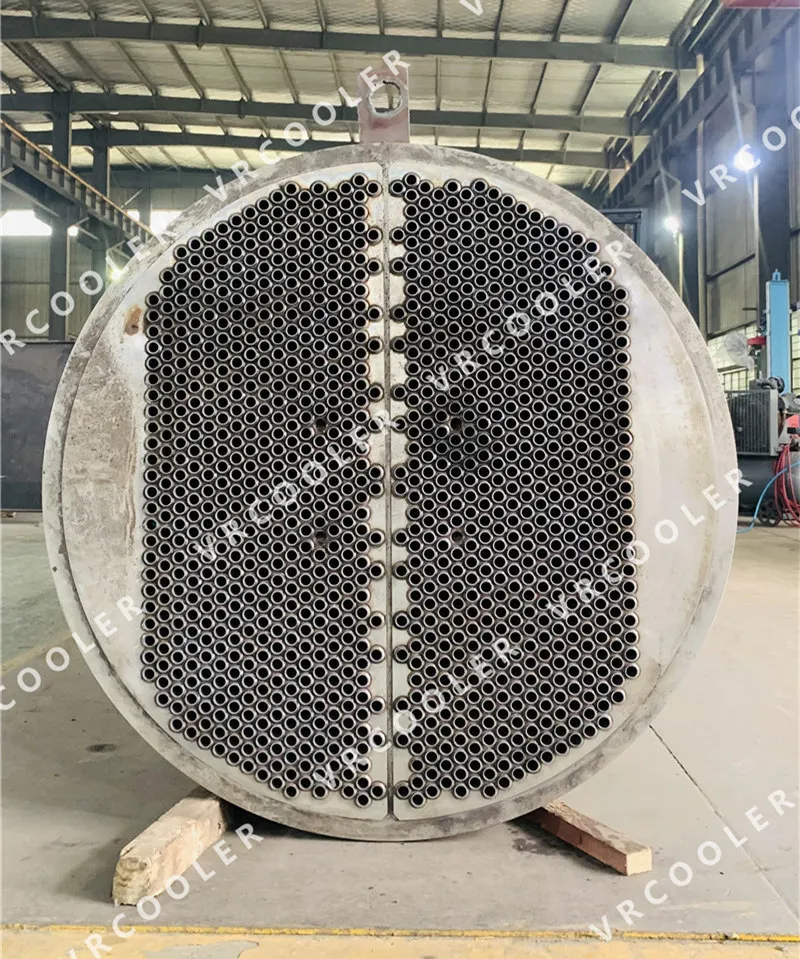

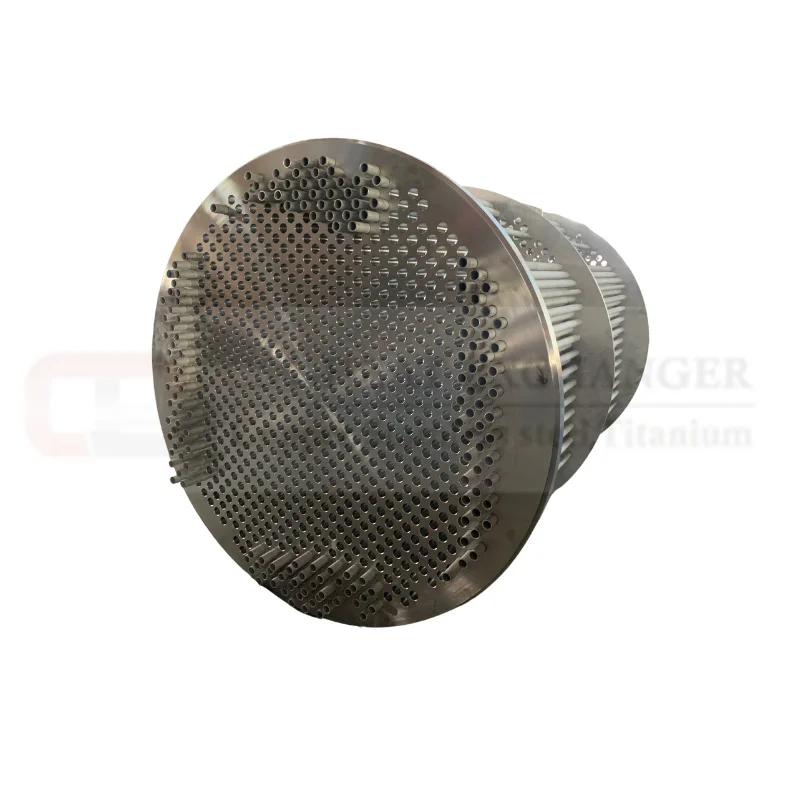

Tube sheet

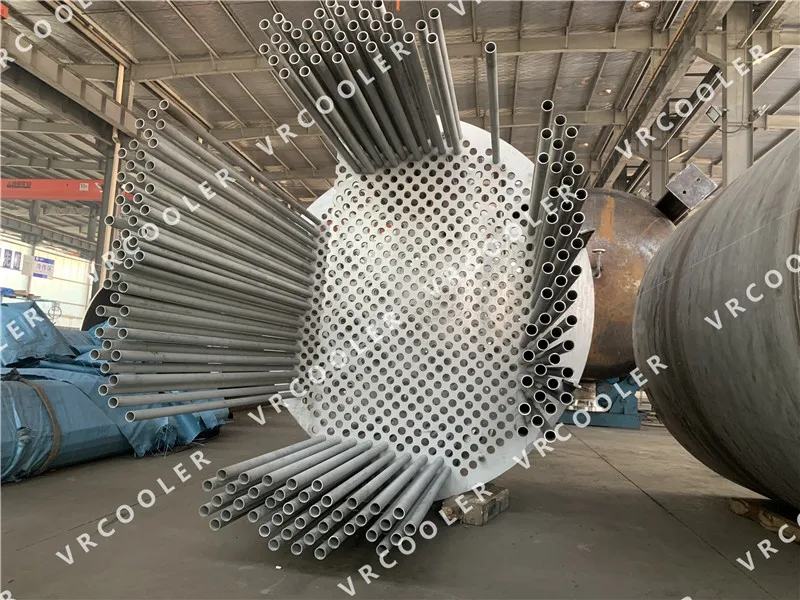

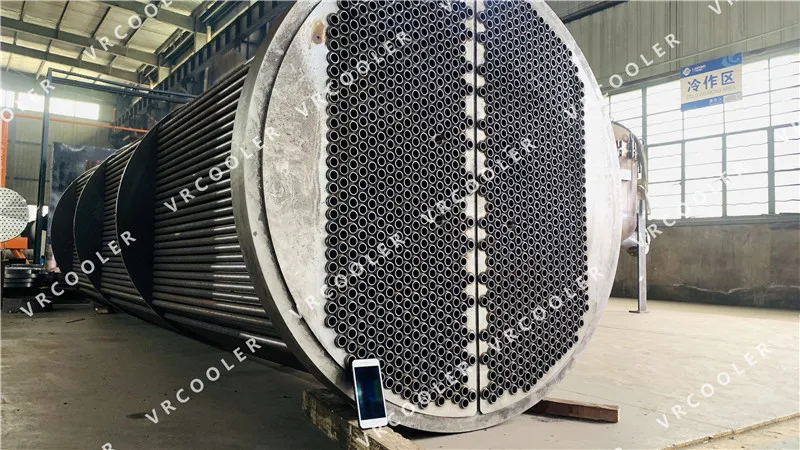

The tube sheet is a plate or sheet that is perforated with holes for the insertion of pipes or tubes and designed to support the tubes on either end of the cylindrical shell.
The shell extends beyond the tube sheets and is sealed on both ends to form the enclosed chamber that is covered by the heads.
Customer feedback

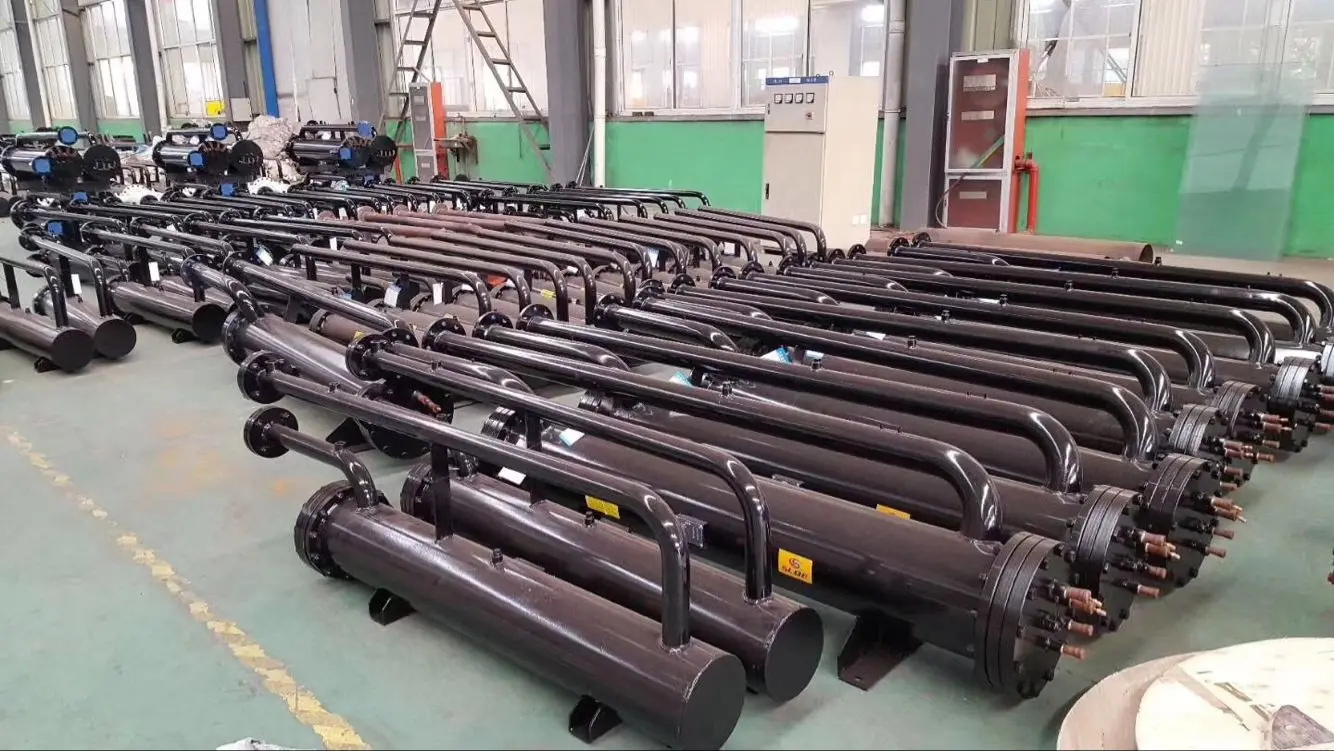

Our Factory
VRCOOLERTECH CST Company
We specialize in designing, manufacturing and exporting refrigeration equipments for the varied industries since 2004.
When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.
Our main products:
Commercial heat exchangerIndustrial heat exchanger
Dry cooler
Unit cooler
Charge air cooler
Charge air cooler
Compressor cooler(intercooler, aftercooler, oil cooler)
Our equipments
How to contact and visit us?
Changzhou Vrcoolertech Refrigeration Co.,Ltd
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: info@cstheatexchanger.com
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: info@cstheatexchanger.com

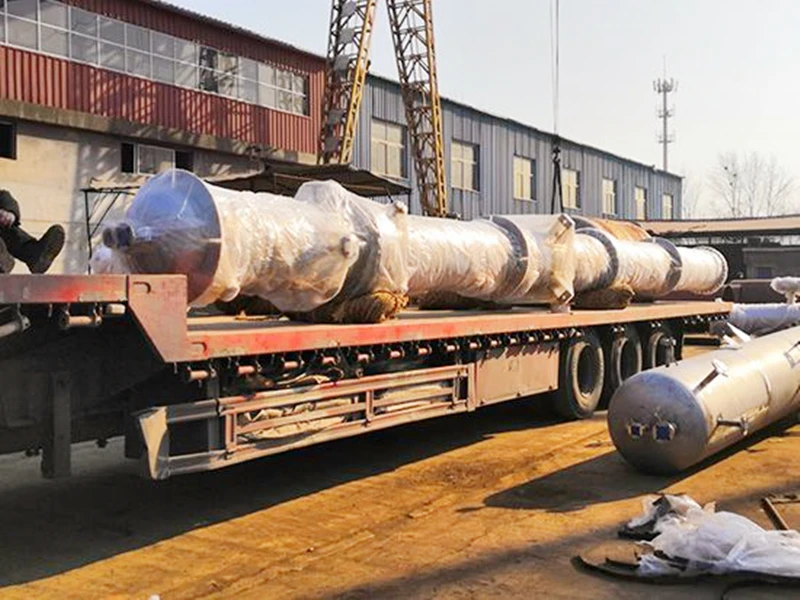

Packing & Delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use PE film for packing or pack it according to customers special request.
We will delivery on time by sea or bt air according to your requiremnts.
Where our customers come from？
We serve for buyers from all over the world.
We have export our product to moran than 60 countries.
