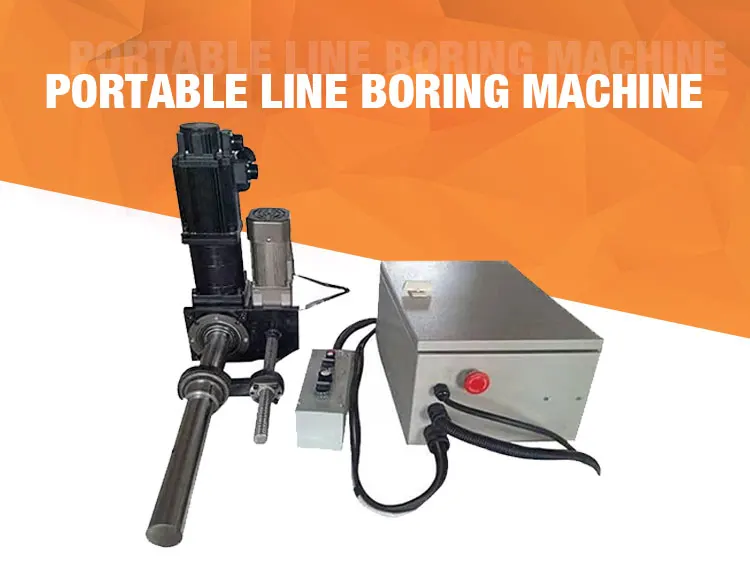

PORTABLE LINE BORING AND WELDING MACHINE
Application Range
DIG-DOG Portable Boring and Welding Machine is a high-end equipment that integrates various function modes of welding hole, boring hole and end face processing at present, realizing the processing of cylinder hole in idle narrow position of engineering machinery, and further improving the processing capacity of the equipment. The original hole welding, boring processing functions need welding, boring two sets of equipment to complete, the new equipment integrated the two functions, only after the completion of the hole welding process reassembly can realize the boring function.
BM-40 and BM-60

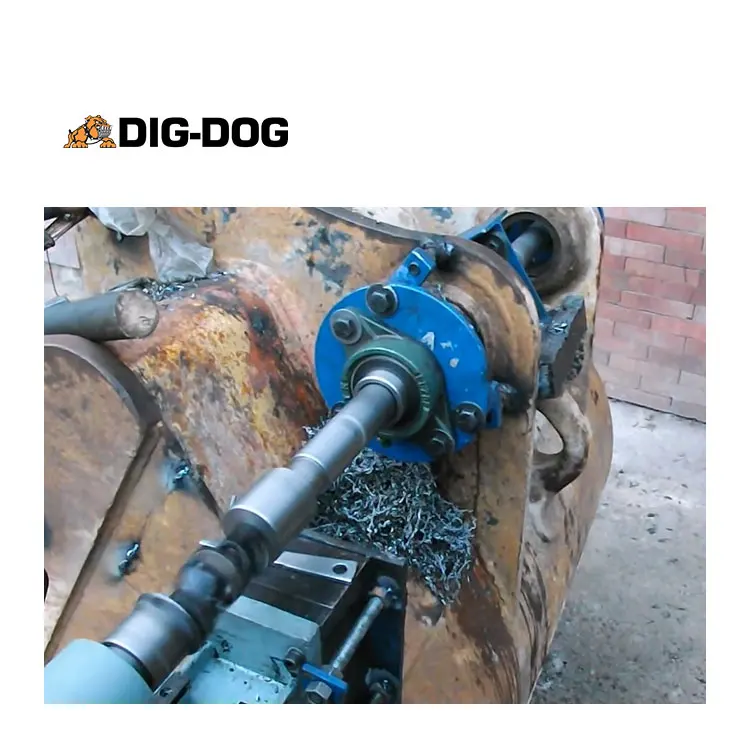

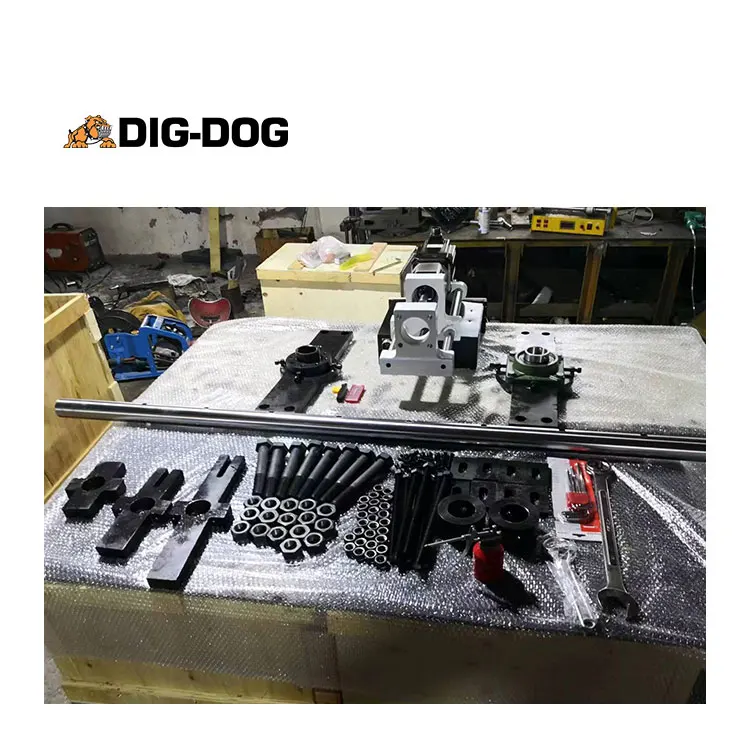

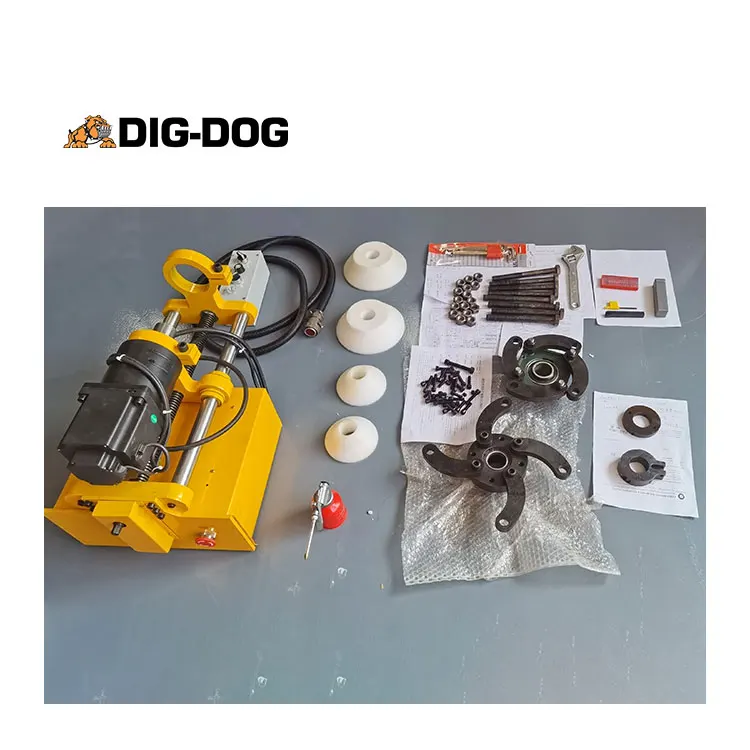

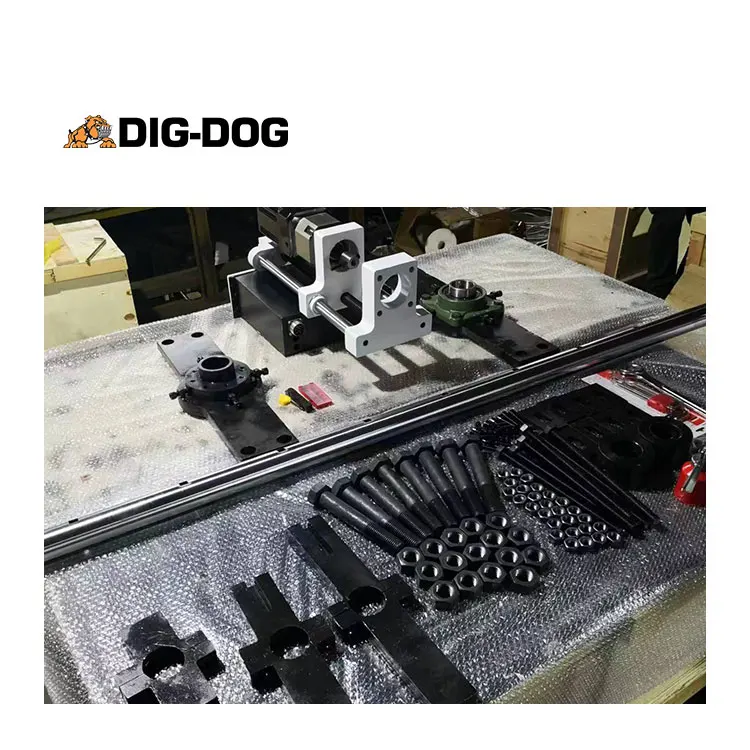

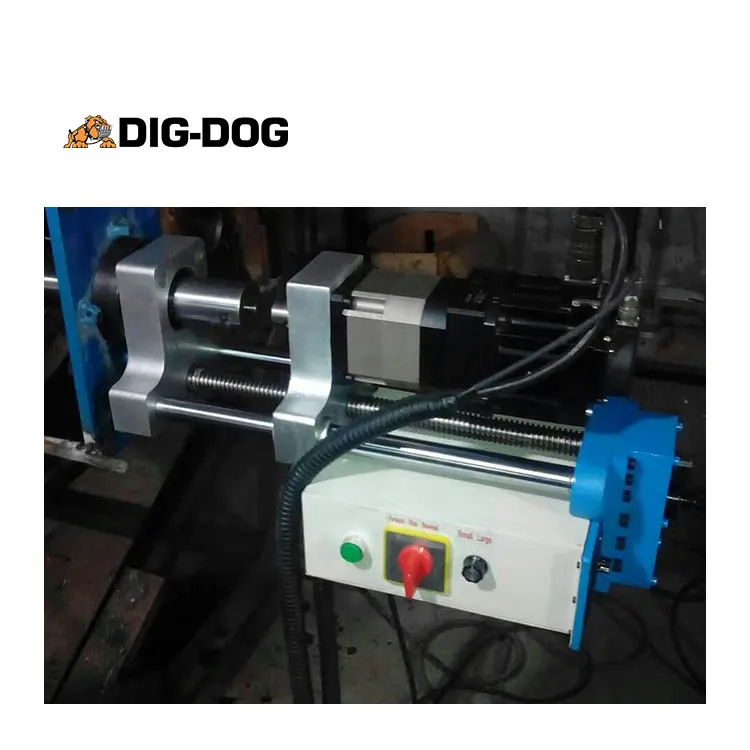

DIG-DOG BM-40 and BM-60 Portable lin Boring Machine is a Kind of Portable Processing Equipment Mainly Developed for On-site Maintenance of Construction Machinery. It is Mainly used for the Processing of Small Pipe Inner Holes and Concentric Spacing
Holes. Main Application: Machine the Revolving Holes, Articulated Holes, Shaft Pin Holes on Various Engineering Machinery Structures after Repair Welding, or Installing Hole Sleeves after Reaming. Repair and Processing Concentric Holes, One-time Positioning Processing of the Porous on Excavators, Loaders, Presses, Cranes, etc. to Ensure the Coaxiality of the Porous.
Holes. Main Application: Machine the Revolving Holes, Articulated Holes, Shaft Pin Holes on Various Engineering Machinery Structures after Repair Welding, or Installing Hole Sleeves after Reaming. Repair and Processing Concentric Holes, One-time Positioning Processing of the Porous on Excavators, Loaders, Presses, Cranes, etc. to Ensure the Coaxiality of the Porous.
BWM-50

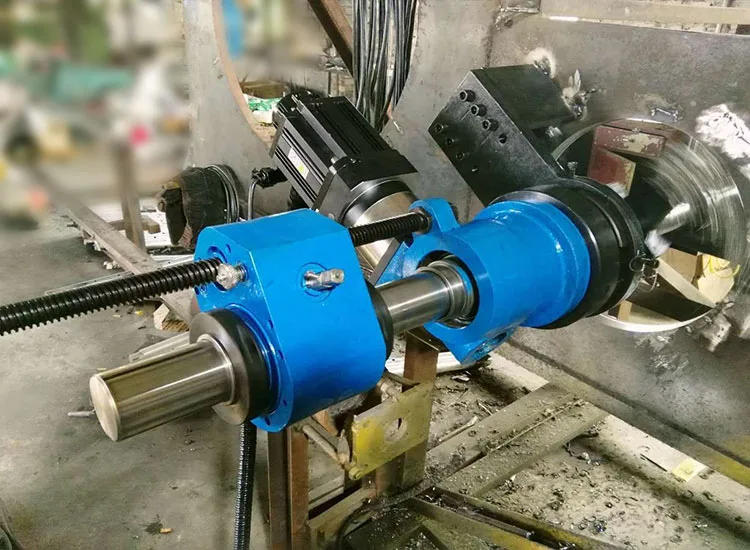

DIG-DOG BWM-50 Portable Boring and Welding Machine is a high-end equipment that integrates various function modes of welding hole,boring hole and end face processing at present, realizing the processing of cylinder hole in idle narrow position of engineering machinery, and further improving the processing capacity of the equipment. The original hole welding, boring processing functions need welding, boring two sets of equipment to complete, only after the completion of the hole welding process reassembly can realize the boring function，the new equipment integrated the two functions.
TYPE | BM-40 | BM-50 | BWM-50S | BWM-50P | BM-60 | BM-60S |
Main motor | 1.5KW Brushless DC | 1.5KW Brushless DC | 3KW Vertical servo | 3KW Vertical servo | 2KW DC servo | 2KW DC servo |
Power of cutter moving motor | 120W | 120W | 120W | 120W | 120W | 120W |
Main motor output speed | 125r/min | 125r/min | 0-300r/min | 0-300r/min | 100r/min | 80r/min |
Motor speed control | CVT | CVT | CVT | CVT | CVT | CVT |
Feed way | Tiptronic | Tiptronic | Tiptronic | Tiptronic | Tiptronic | Tiptronic |
The boring bar diameter | 40mm | 50mm | 50mm | 50mm | 60mm | 60mm |
Scope of boring | 45-200mm | 55mm-260mm | 55mm-260mm | 55mm-260mm | 65--500mm | 65-500mm |
Feed stroke | 380mm | 380mm | 200mm | 200mm | 420mm | 740mm |
Maximum cutting capacity on one side | 2-3mm | 2-3mm | 3mm | 2mm | 2-3mm | 2-3mm |
Machining roundness | 0.03mm | 0.03mm | 0.02mm | 0.03mm | 0.03mm | 0.05mm |
roughness | 3.2um | 3.2 | 3.2 | 3.2 | 3.2um | 3.2um |
Installation | Weld | Weld | Weld | Weld | Weld | Weld |
Hole range | * | * | 55-230mm | 55-230mm | * | * |
Single side welding thickness | * | * | 3-4mm | 2-3mm | * | * |
Wire type | * | * | 1.0 | 1.0 | * | * |
company introduction

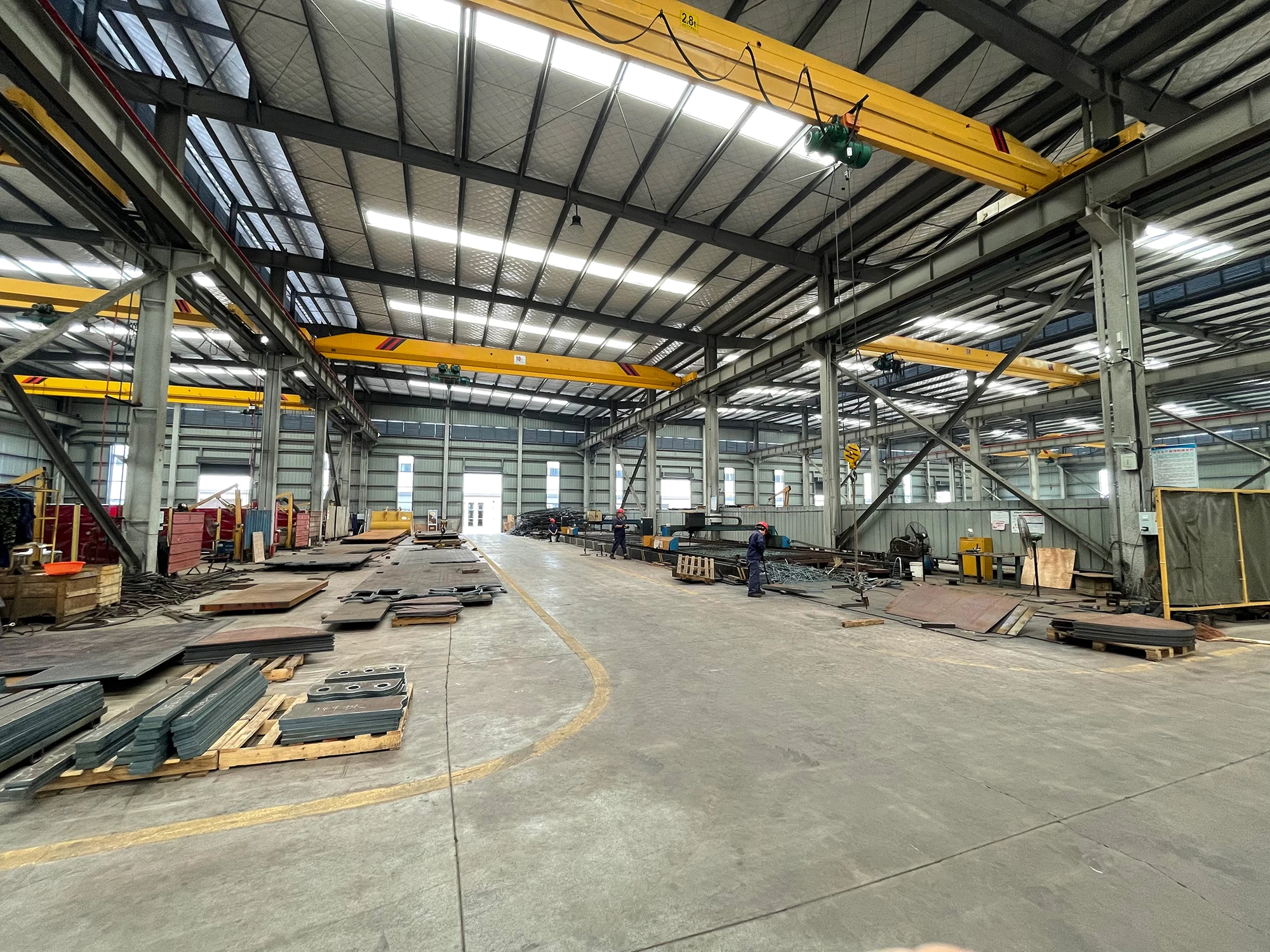

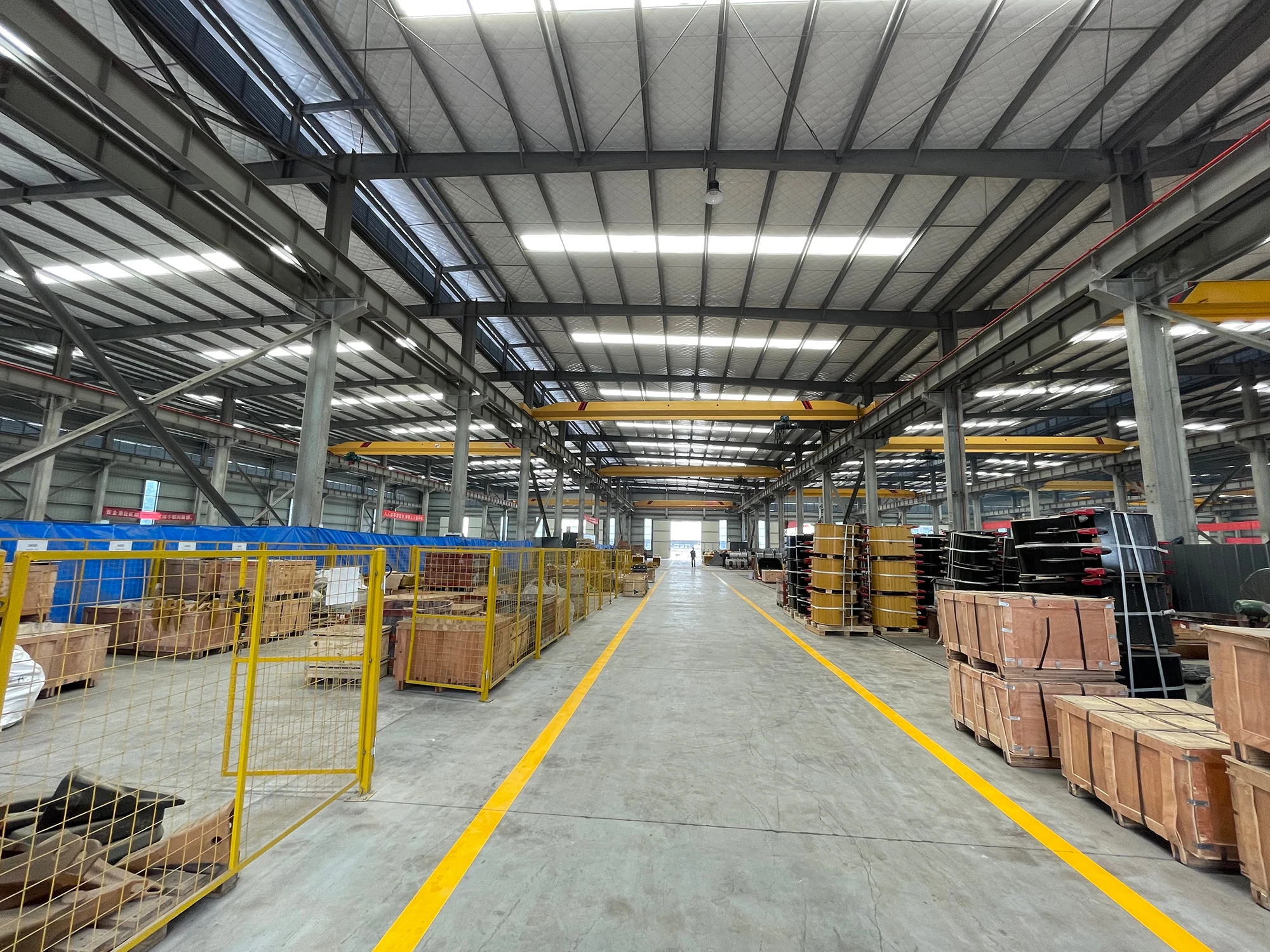

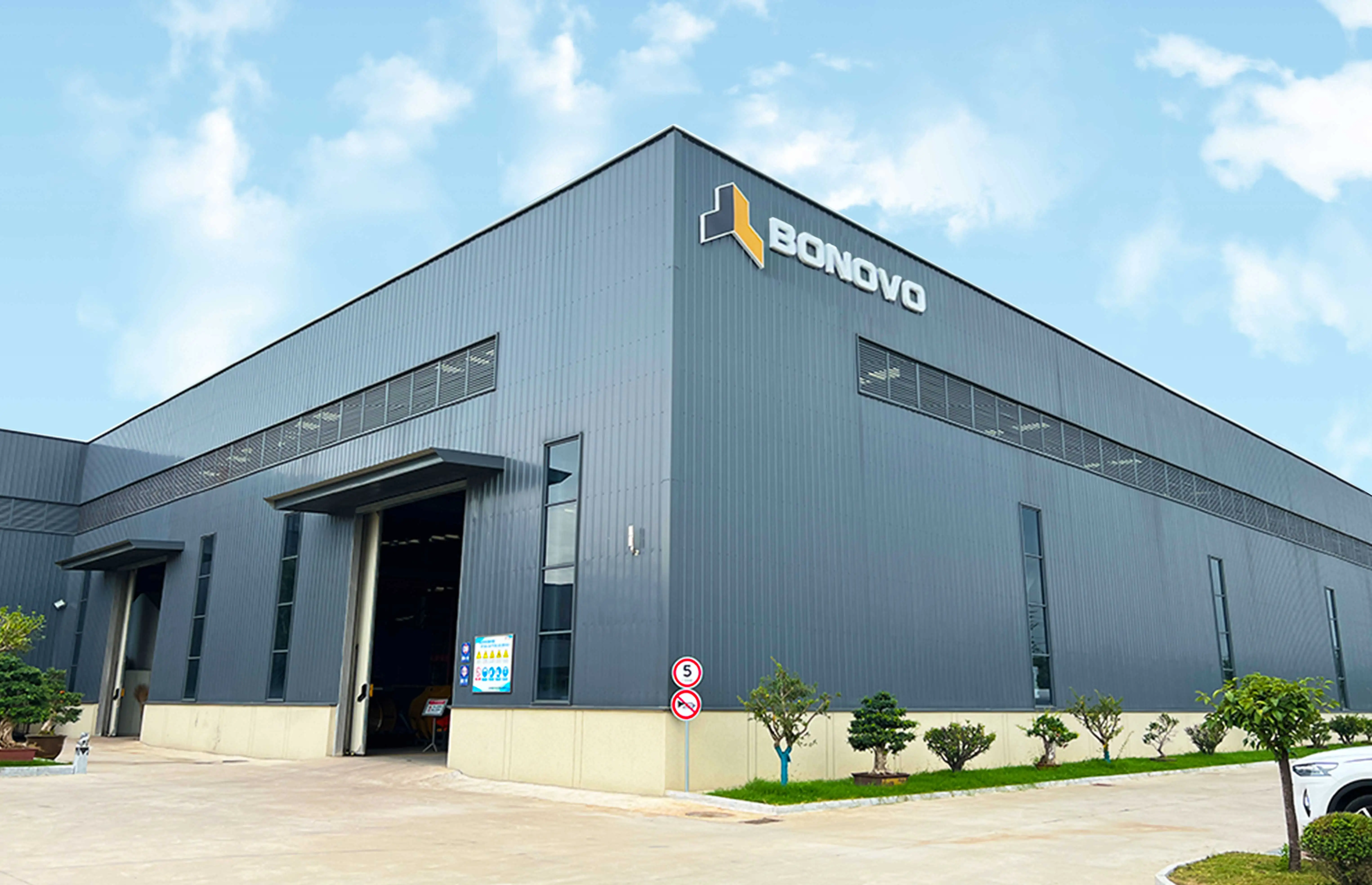

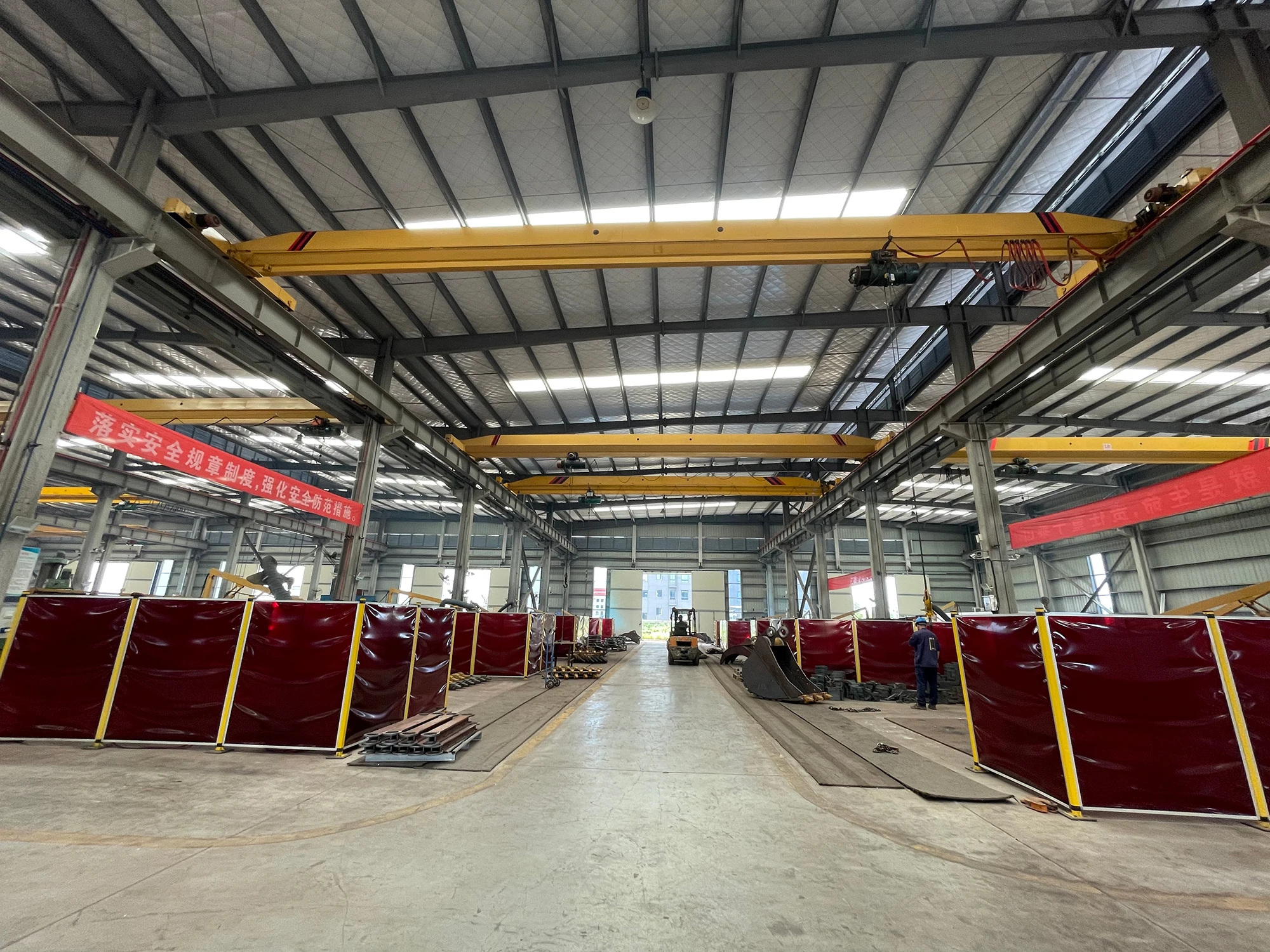

Xuzhou Bonovo Machinery & Equipment Co., Ltd is located in Xuzhou city, which is the largest construction machinery production
