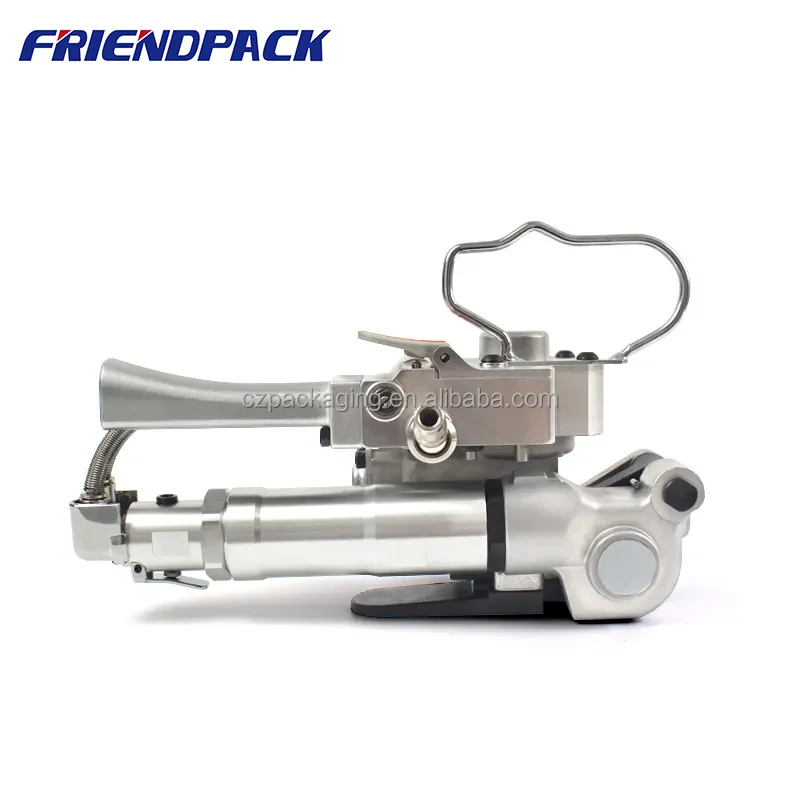

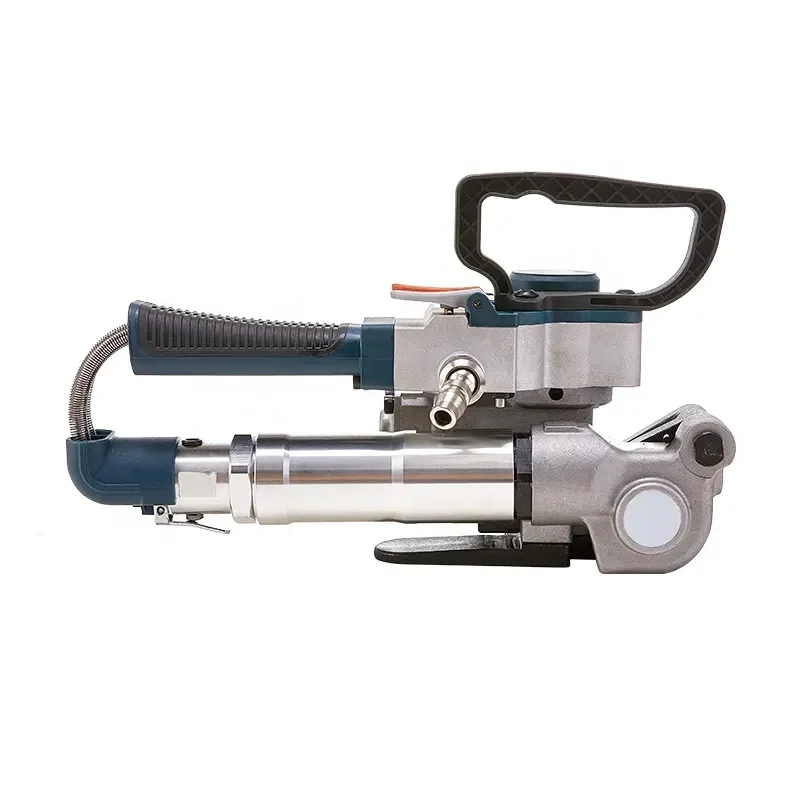

Semi Automatic Air Pneumatic Handle Strapping Tool Semi Automatic Plastic Belt Tensioner Tapes Strapping Machine

Share on (1600919550901):


Price:

Quantity:


Product Overview

Description





Product Paramenters

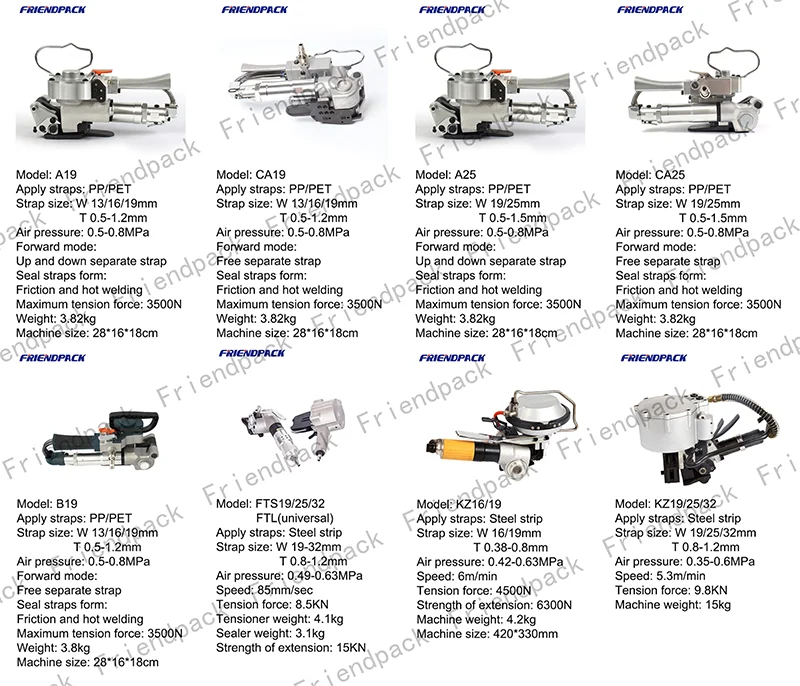

Model
A19
A25
B19
B25
Air pressure
0.5-0.8MPa
0.5-0.8MPa
0.5-0.8MPa
0.5-0.8MPa
Tension force
3500N
3500N
3500N
3500N
Applicable packing belt
PET belt/All plastic PP belt
PET belt/All plastic PP belt
PET belt/All plastic PP belt
PET belt/All plastic PP belt
Tape width
13/16/19mm
19/25mm
13/16/19mm
19/25mm
Tape thickness
0.5-1.2mm
0.5-1.5mm
0.5-1.2mm
0.5-1.5mm
Welding time
2-5s
2-5s
1-3s
1-3s
Compressed air consumption
0.3L/min
0.3L/min
0.3L/min
0.3L/min
Machine size
28*16*18cm
28*16*18cm
30*14.9*17.3cm
30*14.9*17.3cm
Machine weight
3.8kg
3.8kg
3.65kg
3.65kg


Tape of A19/A25
Wearing method: separate the upper and lower belts
Welding speed: 3-5 seconds
Cutting mode: cutting
Tape of B19/B25/CA19/CA25
Threading method: no need to separate the upper and lower tape
Welding speed: 1-3 seconds
Cutting mode: sawing


Products Description

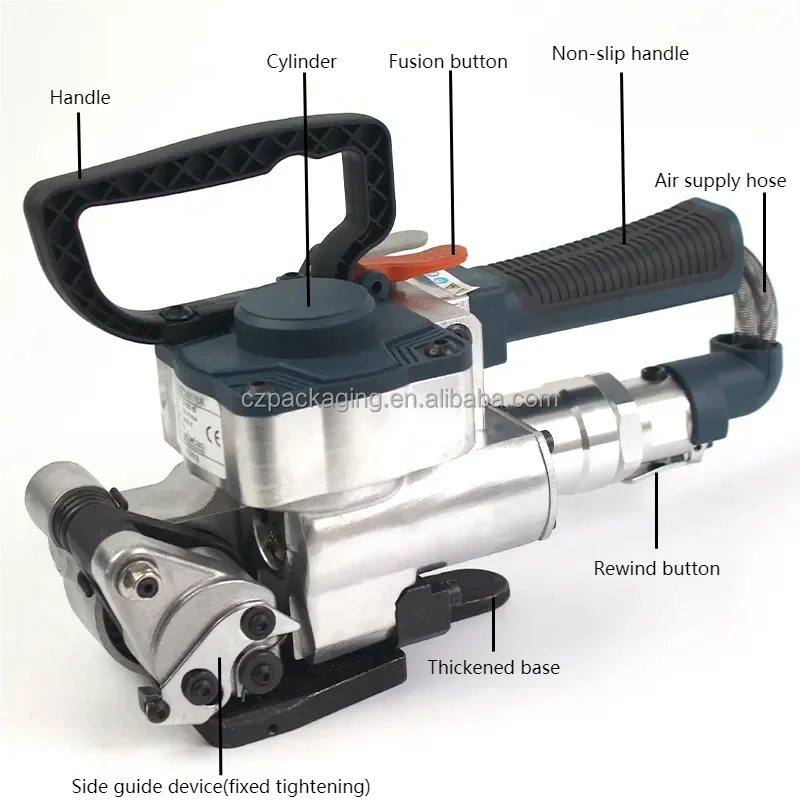

Product Details

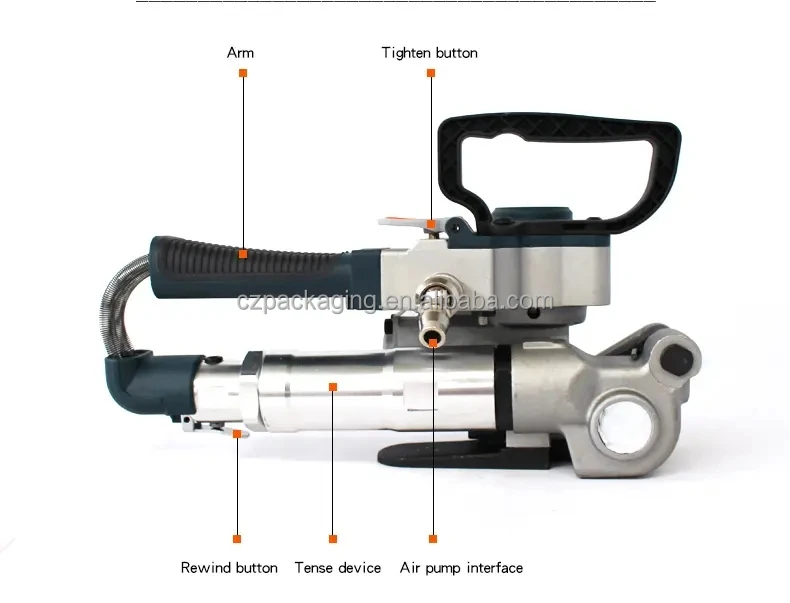

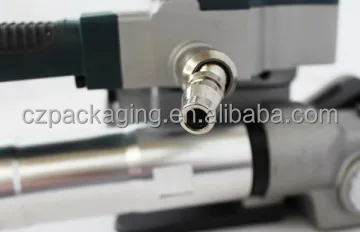

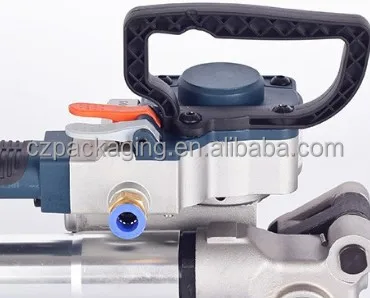

Air pump quick connector
Use excellent alloy material,the connector is more efficient and more wear-resistant, making the equipment more stable and longer use.

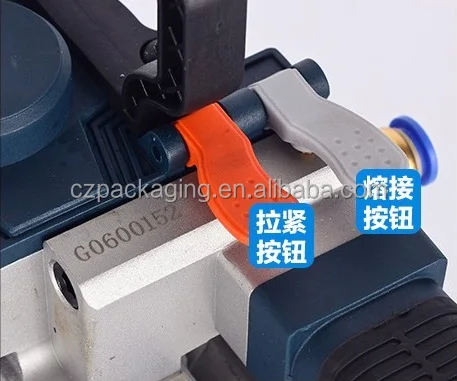

Easy to operate
After the strapped belt is ready, press the tighten button, tighten it and release it, then press the fuse button until the strap is welded and cut


Special silence device
In order to ensure that the equipment does not produce noise during operation, a special noise elimination device is selected. The
noise of the machine vibrator is greatly reduced.

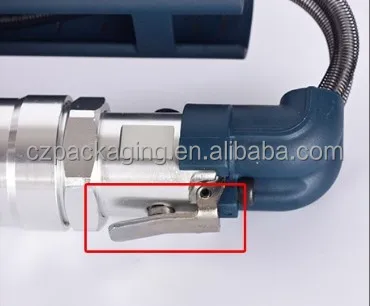

Rewind button settings
After packing, press and hold the rewind button by hand until the packing belt is sent from the tension wheel to remove the packer.

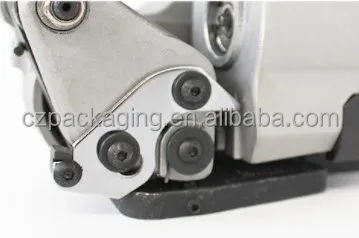

Fixed cutter blank
Remove the spring tip on the fixed cutter, and then the ctter baffle of the fixed blade can be reinstalled. The compression spring is installed in the slice handle plate.

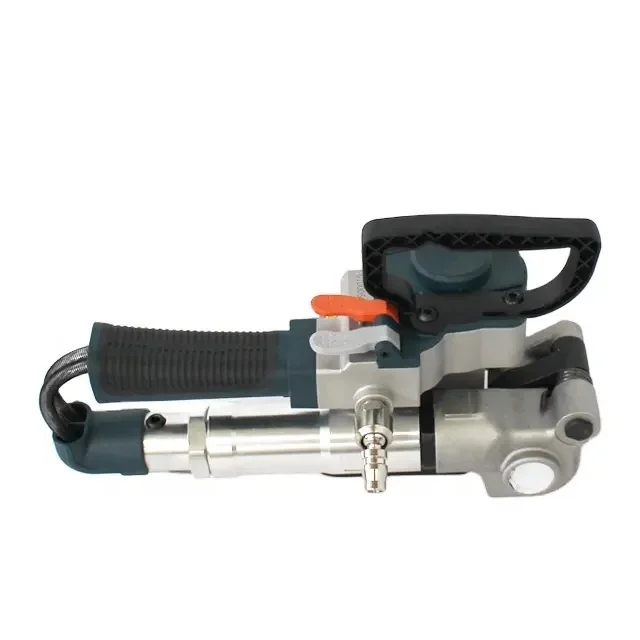

Portable design
The portable design can be taken away with just a little lifting, which is convenient for outdoor operation and suitable for packing large objects.


Catalog






Production Process




About Us




Upack Imp. And Exp.,Ltd is a Professional One-Stop Packing Solution Provider of Fill-Label-Cap-Shrink-Carton-Seal-Strap-Wrap-Convey-Stack process, Which has been focusing on the planning, R&D and manufacturing of automatic packaging production line. such as automatic carton packing line,shrinking wrapping line, Fully automatic pallet strapping line,Conveyor system and so on. Our company are providing one-stop purchase expereinces for customers. Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.






FAQ




1: Are you a factory or trading company?
A: As the pictures I show you in above, located in Changzhou city,we are the factory and our mainly products is: Auto capping machine, Auto labeling machine, and some semi-auto machine,also we can make production line based on your requirements.

2:What's the payment terms?
A: TT transfer,L/C and other payment methods if it is convenient for you.

3:What's the warranty of your equipment?
A:1 year warranty on the machine core after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support service in after-sales.We test every machine manually to make sure they are in good condition before they are sent to your place.

4:What is the service?
7 days 24 hours on line service,engineer overseas service is also available if necessary.

5:What's your advantage? Why we choose you?
A1: We have the most professional techniques and team, we are able to customiz machines according to the customer requirements,which is hardly acquired from other suppliers.
A2:We are a professional manufacturer and warmly welcome clients from worldwide to visit our factory and cooperate with us.

In order to meet the growing international demand, our company is looking for motivated agents to promote products all over the world. If you are interested in a partnership, please contact us and we will contact you as soon as possible.

Please don't hesitate to send us an inquiry for any other questions ,We will come back soon with proper solution.
