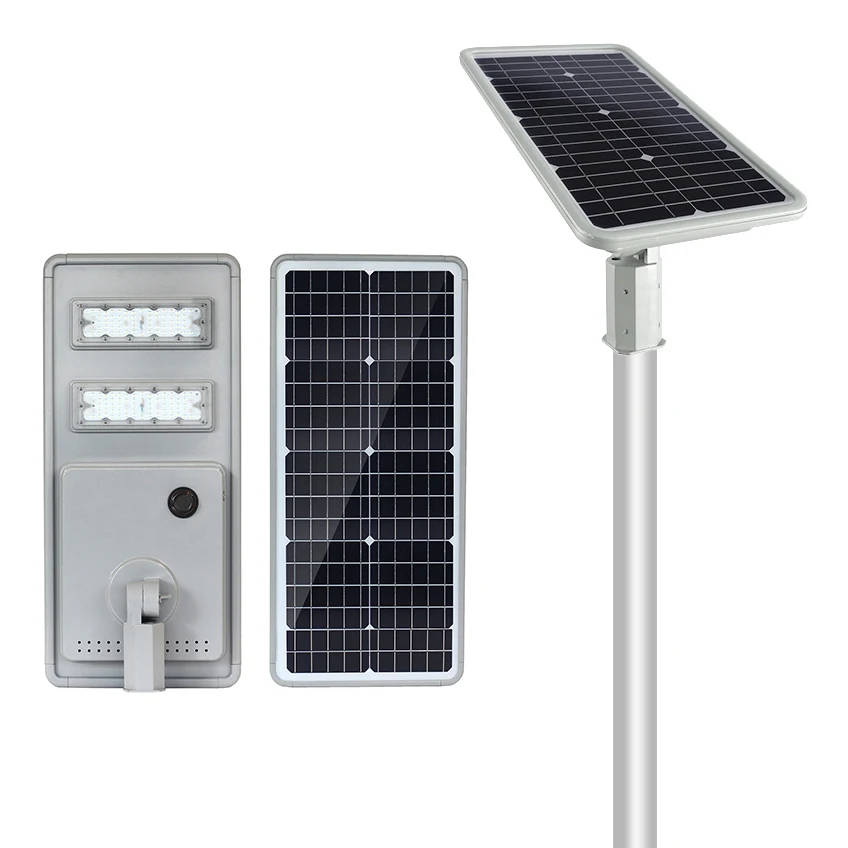

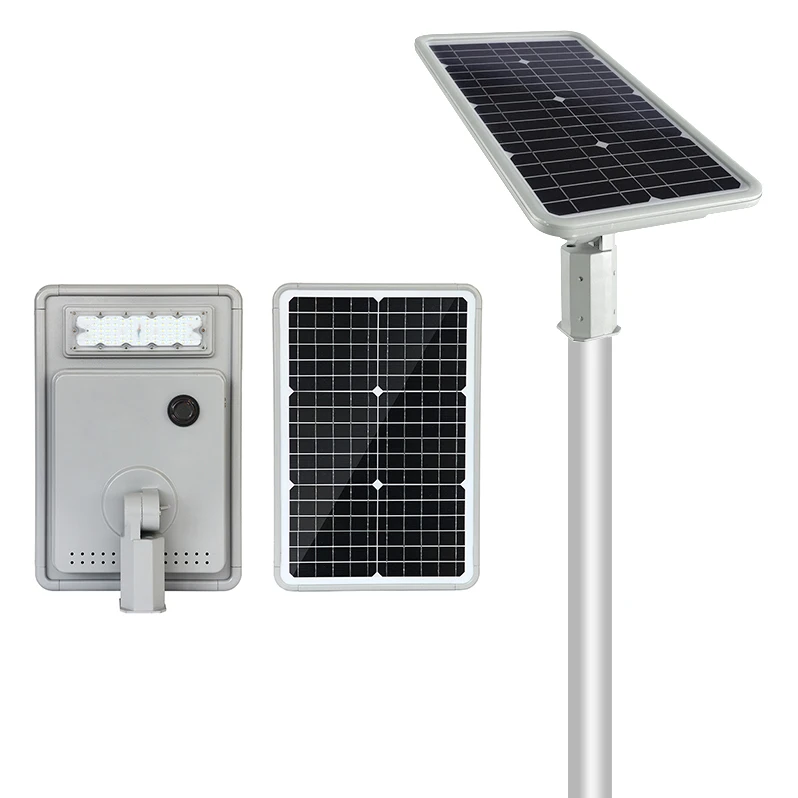

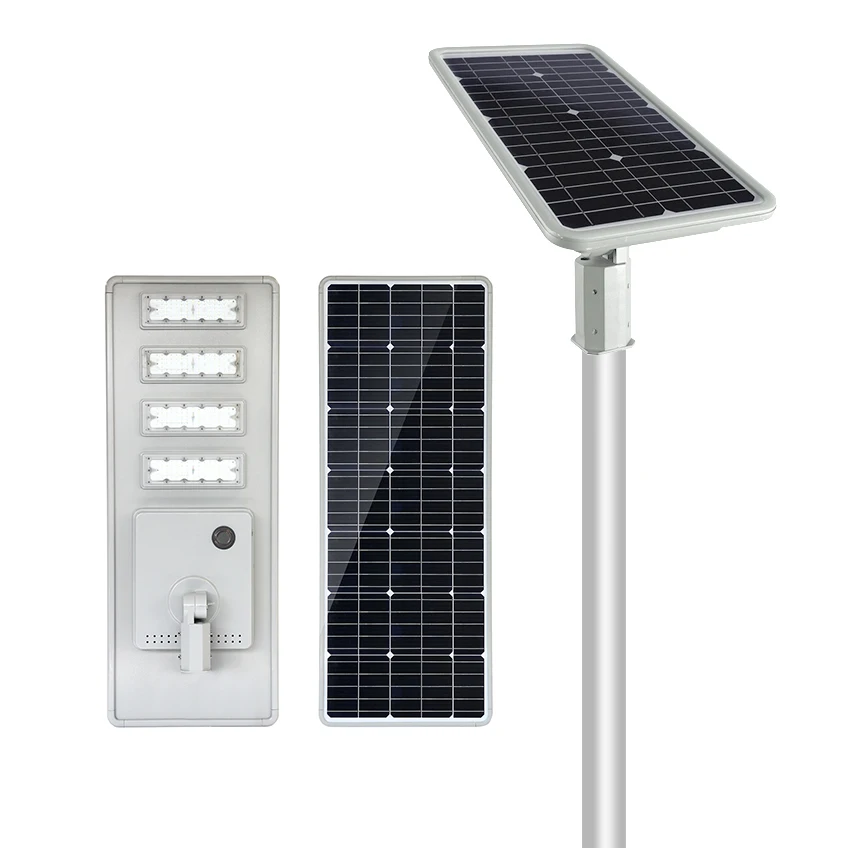

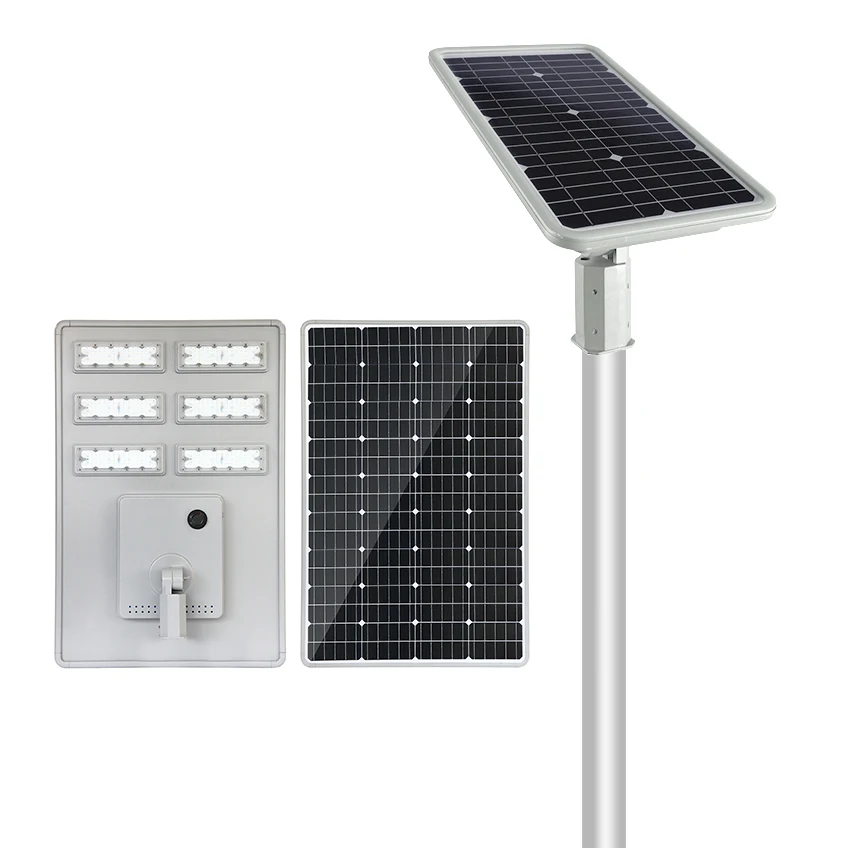

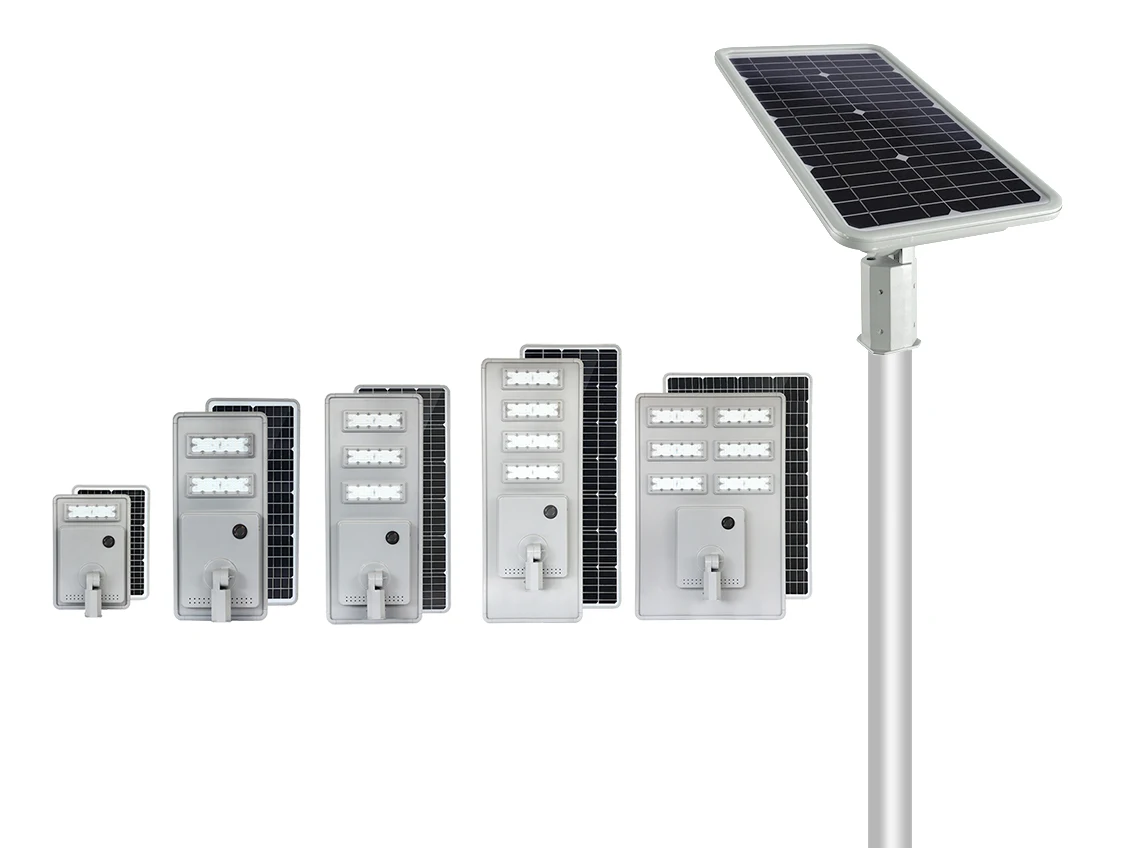

Competitive new design integrated all in one module outdoor ip65 solar led street light
- Category: >>>
- Supplier: Shenzhen Penel Optoelectronics Technology Co. Ltd.
Share on (1600919600503):
Product Overview
Description

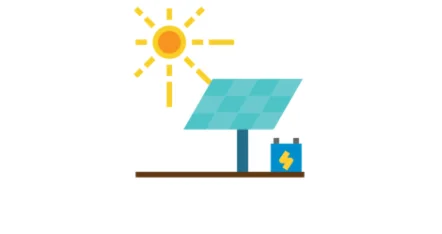

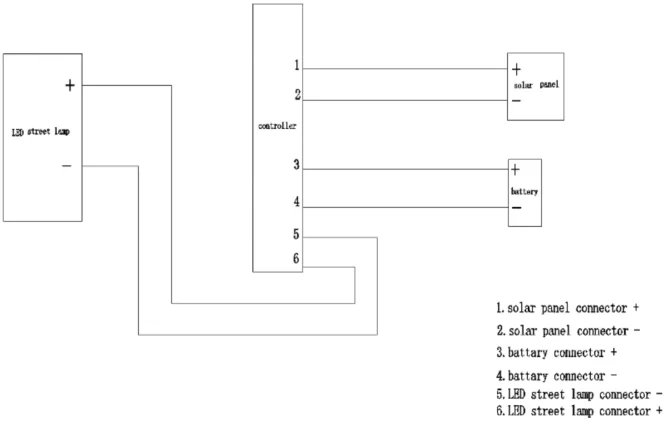

HOW IT WORKS?
Technical Parameters
Model | SST-02-40 | SST-02-60 | SST-02-120 | SST-02-180 | |||||
Street Lamp | Power | Max. 40Watt | Max. 60Watt | Max. 120Watt | Max. 180Watt | ||||
Light source | 40pcs Cree brand chips SMD3030 | 60pcs Cree brand chips SMD3030 | 120pcs Cree brand chips SMD3030 | 180pcs Cree brand chips SMD3030 | |||||
LM/Watt | >140Lm/w | >140Lm/w | >160Lm/w | >160Lm/w | |||||
Lamp Dimension | 549*294*67.5mm | 659*367*63.5mm | 789*367*63.5mm | 1000*430*83mm | |||||
CRI | >70 | ||||||||
Color Temperature | 3000K/4000K/5000K/5700K/6500K | ||||||||
Housing Material | die-cast aluminium | ||||||||
Housing Color | Grey | ||||||||
Solar Panel | Type | Monocrystalline Silicon | |||||||
Power | 18V 25W | 18V 35W | 18V 45W | 18V 70W | |||||
Dimension | 524*269mm | 632*340mm | 762*340mm | 971*401mm | |||||
Conversion efficiency | 22% | ||||||||
Pack | Type | LiFe PO4 (Lithium iron phosphate battery) | |||||||
Capacity | 12.8V 15AH | 12.8V 20AH | 12.8V 30AH | 12.8V 40AH | |||||
Charge time | 6-8HRS | ||||||||
Discharge time | 8-12HRS | ||||||||
Type | PWM | ||||||||
Charging efficiency | 90% | ||||||||

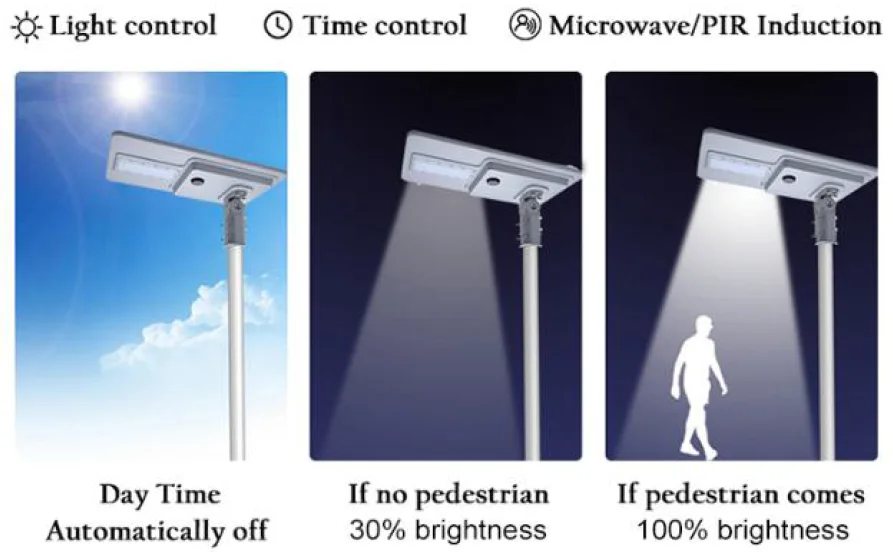

Working mode | with light sensor | Lamp turn ON automatically when sunset, and turn OFF automatically when sunrise | |||||||
with microwave sensor | Microwave sensor will be MORE sensitive than IR sensor !! | ||||||||
with time control | |||||||||
Supports continous rainy days | 3 Days | 3 Days | 3 Days | ||||||
Installation Height | 4-5 meters | 4-6 meters | 5-7 meters | 6-8 meters | |||||
IP Rating | IP65 | ||||||||
Warranty | 3 Years | ||||||||

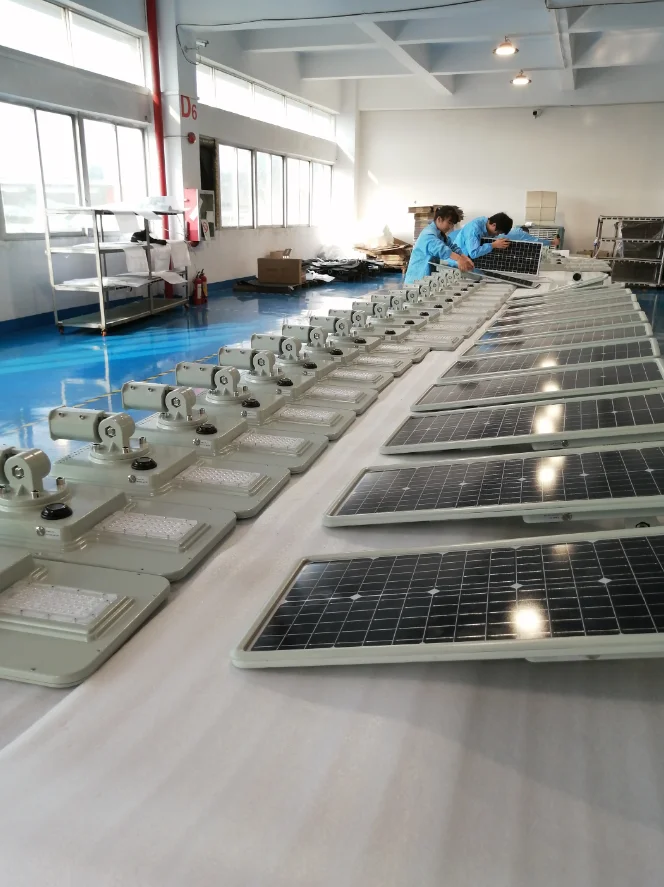

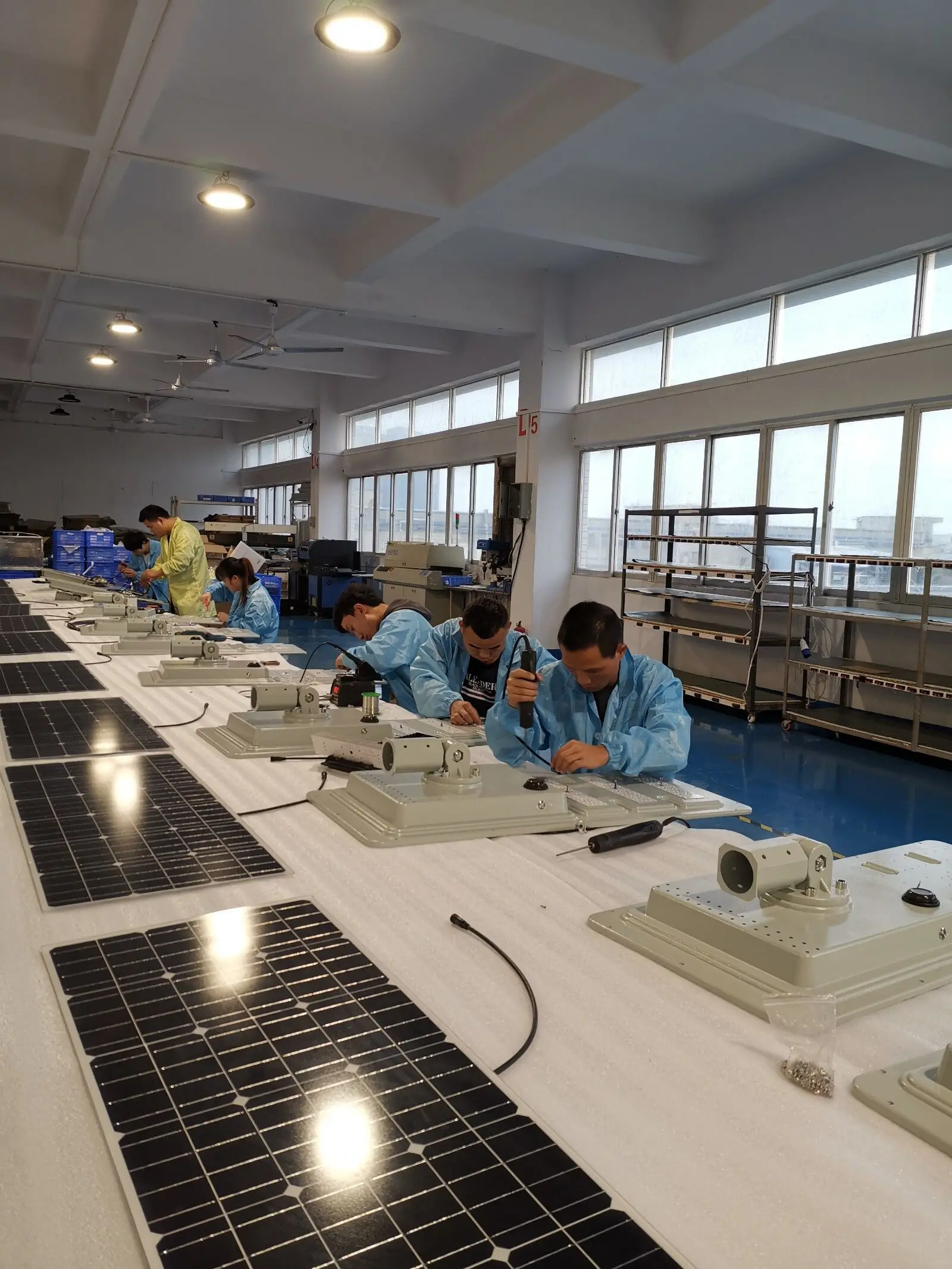

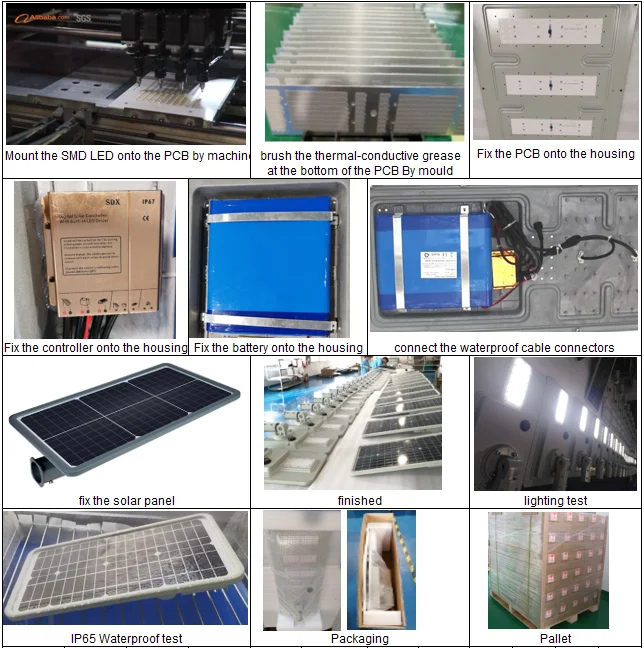

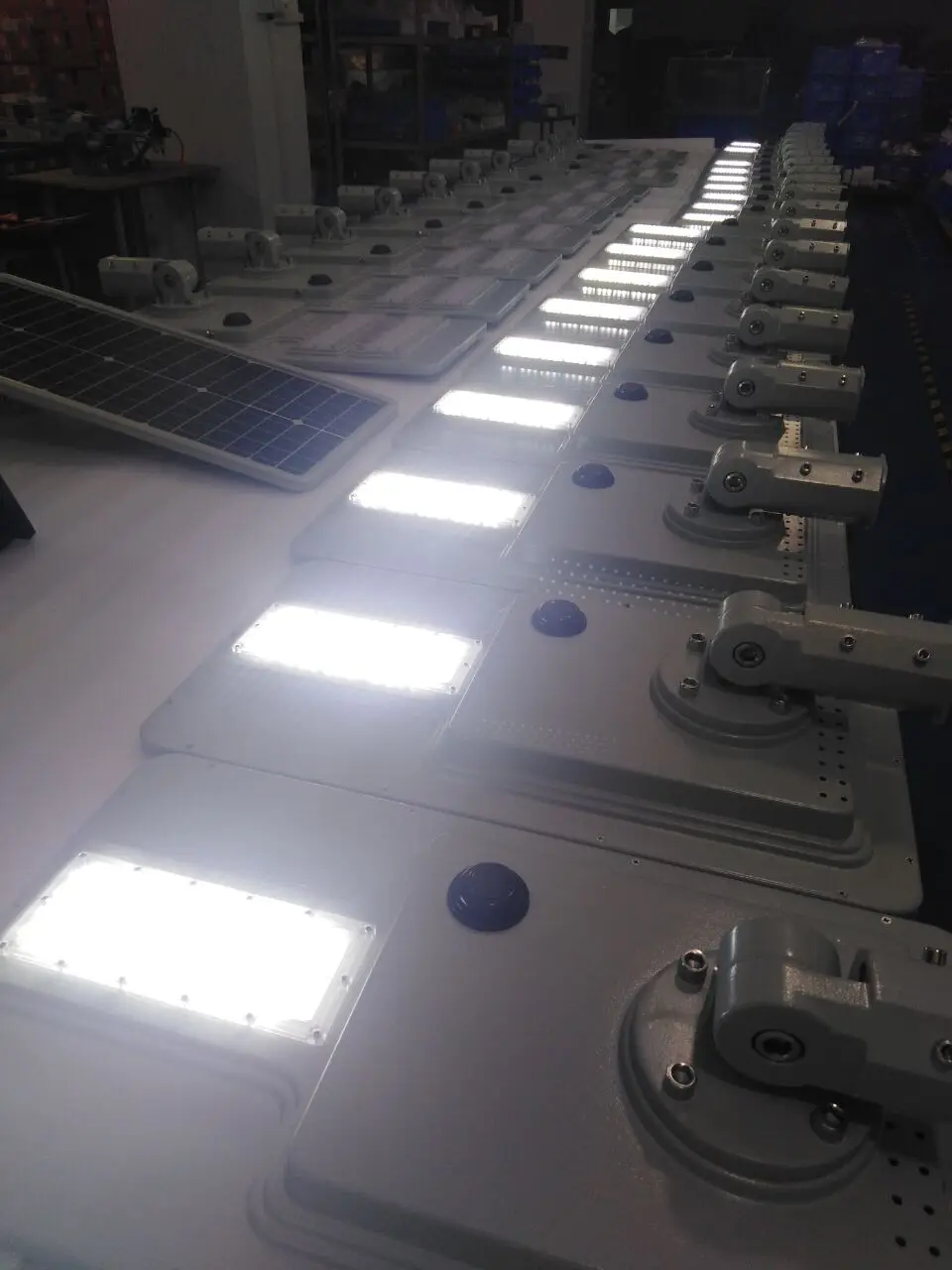

Product production process

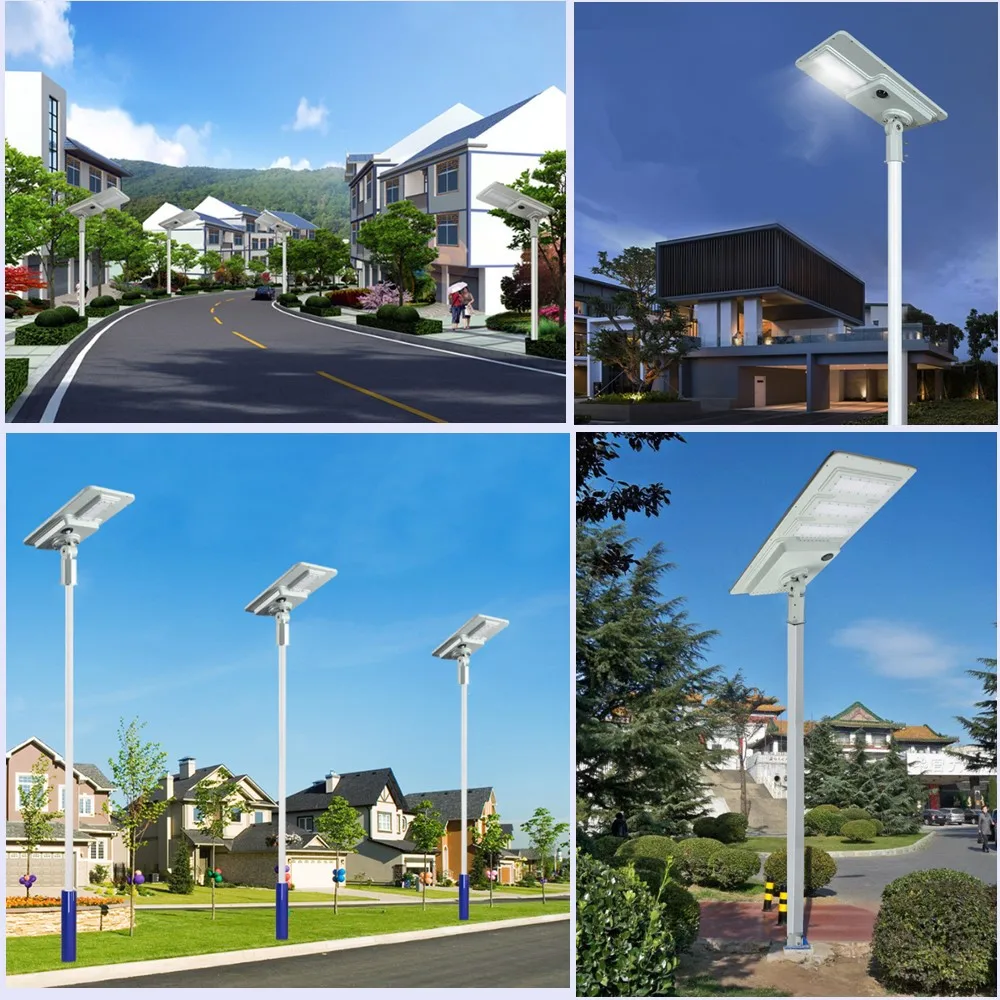

Applications
Widely apply in subordinate road, street, industry, park, village, remote area, courtyard, school, square,
and some other outdoors lighting areas.
and some other outdoors lighting areas.
Product Advantages
WHY ALL-IN-ONE SOLAR LED STREET LIGHT?
100% solar energy / No electric bill
Our solar street lighting system can be whole night lighting with 3-4 cloudy days. So customers no need to pay any extra electric
bill after installation. In other words, customers can save more money by using solar street lights.
bill after installation. In other words, customers can save more money by using solar street lights.
One Stop Easy Installation, No need wire trenching
Do not like on grid power led lights, the all-in-one solar street lights is off grid. And it is 100% solar energy, so peaple no
need to trench the wire any more. Again, the cost of wire trenching can be saved.
need to trench the wire any more. Again, the cost of wire trenching can be saved.
Enviromental Protection
We use the grade A lithium battery to make sure long life span of the led solar street lights. And the using of the lithium
battery and led light source can protect the enviroment better.
battery and led light source can protect the enviroment better.
PRODUCT DETAILS

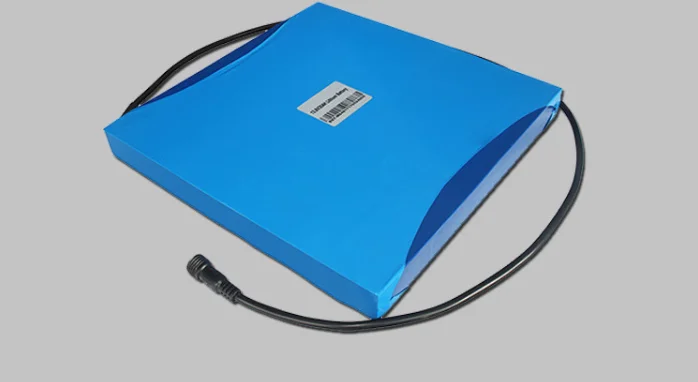

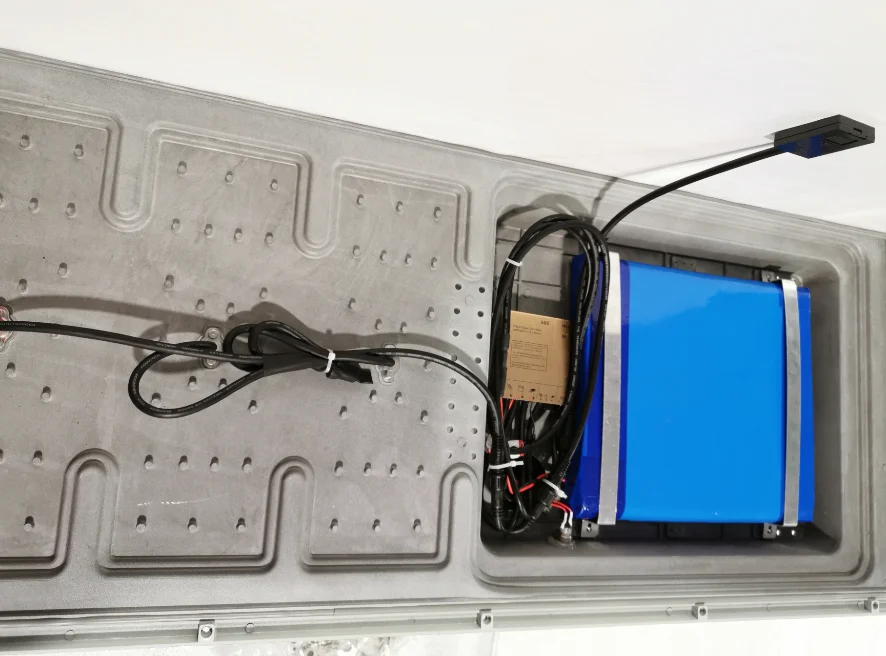

HIGH QUALITY A Grade LiFe PO4 (Lithium iron phosphate battery)
Turely declared BIG capacity, Can stand higher temperature, longer lifespan, much safer, more friendly, and fast charging, durable and long lasting
HIGH QUALITY SOLAR PANEL
Monocrystalline Silicon, Large illumination area, 22% high conversion efficiency and fast charging, durable and long lasting

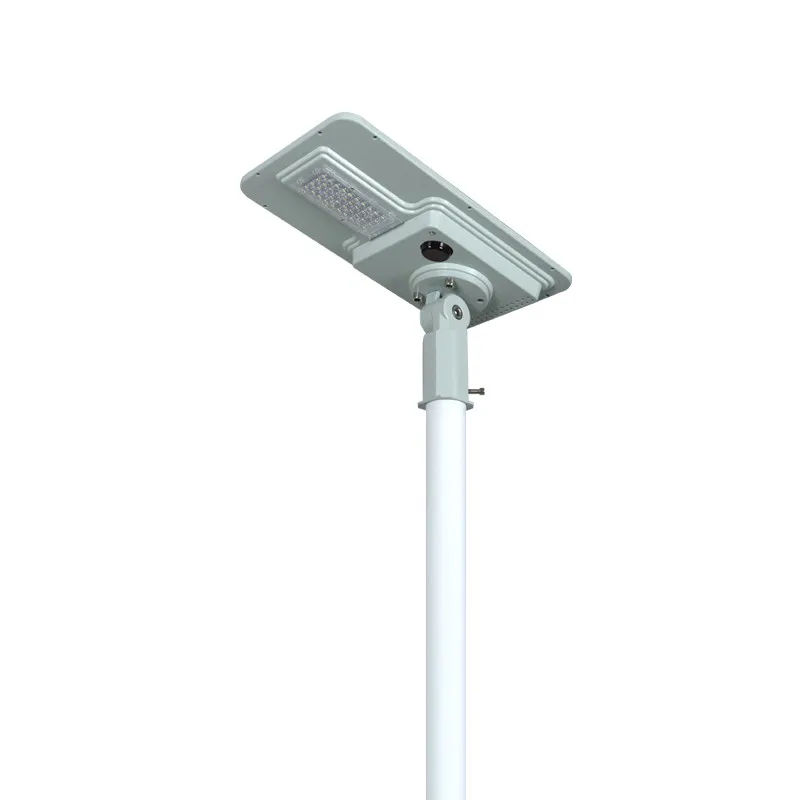

SIMPLE AND QUICK INSTALLATION, 180° ROTATABLE ADAPTOR
Multi installation way, wall installation and pole installation

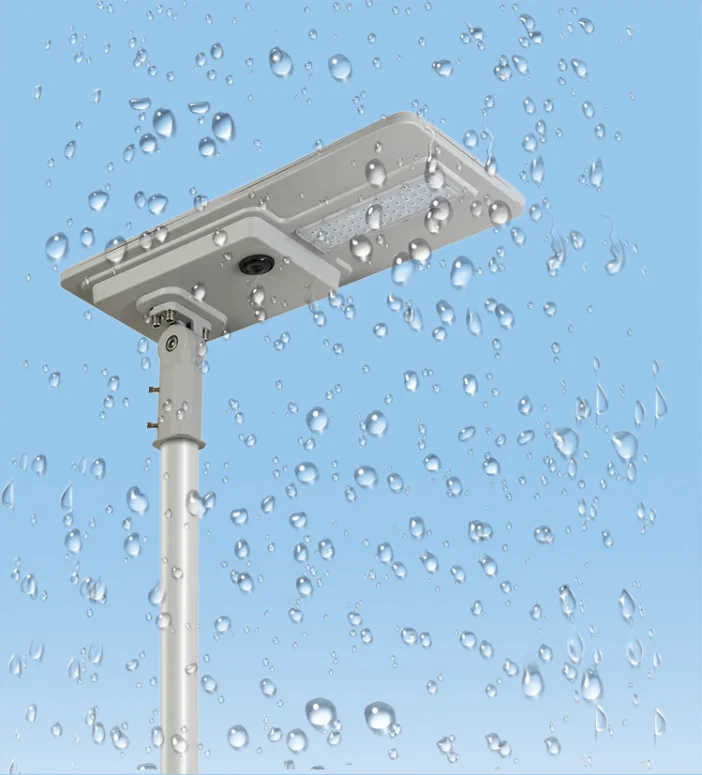

IP65 WATERPROOF , HIGH QUULITY DIE-CAST ALUMINIUM
The structure design of the integrated solar street lamp is of good heat dissipation, IP65 waterproof and corrosionproof for outdoor using. We use 304 stainless steal for every screws and waterproof cable connectors.
Certifications
Recommend Products
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. More details please contact us.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1~2pcs for sample checking is available
Q4. How to proceed an order for led light?
A: 1-let us know your requirements or application.
2-We quote according to your requirements or our suggestions.
3-customer confirms the samples and places deposit for formal order.
4-We arrange the production.
Q5. Is it OK to print my logo on led light product?A: Yes. Please inform us formally before our production and confirm the design
firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q7:How to deal with the faulty?
A: 1-Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
2-Within the guarantee period, if the product have a failure occurs under normal usage, PENEL would provide free/rework new parts or products based on the proof-documents; 3-If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid maintance within warranty period; 4-After guarantee period, if you can repair them by yourself, we would give you our professional technical guide. If you can't solve the problem, we also would do our best to help you solve the problem.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. More details please contact us.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1~2pcs for sample checking is available
Q4. How to proceed an order for led light?
A: 1-let us know your requirements or application.
2-We quote according to your requirements or our suggestions.
3-customer confirms the samples and places deposit for formal order.
4-We arrange the production.
Q5. Is it OK to print my logo on led light product?A: Yes. Please inform us formally before our production and confirm the design
firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q7:How to deal with the faulty?
A: 1-Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
2-Within the guarantee period, if the product have a failure occurs under normal usage, PENEL would provide free/rework new parts or products based on the proof-documents; 3-If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid maintance within warranty period; 4-After guarantee period, if you can repair them by yourself, we would give you our professional technical guide. If you can't solve the problem, we also would do our best to help you solve the problem.
