Cheap high quality MTX 3000w BLDC Hub Motor e bike conversion kit 20' 24' 26' 27.5' 28' 29'
- Category: >>>
- Supplier: Saili Motor Co. Ltd.Saili Ltd.
Share on (1600919623209):
Product Overview
Description
Products Description
1500W 2000W 3000W 48V 60V 72V Brushless Direct Hub Motor Electric Bicycle Conversion Kits
• Apply to electric bicycle rear and front wheel with 170-190mm frame dropput
• Suitable for 20in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 48V / 60V / 72V available, top speed from 50-90 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric bike
Main Parameters | ||
Rated voltage | 48/60/72V | |
Rated power | 1500/2000/3000W | |
Controller | Brushless 60A 24 mosfet Controller | |
Dropout size | 170-190mm | |
Wheel size | 20'' 26" 27.5" 700C 28" 29‘’ | |
Rated Speed | 50-90km/h | |
Rated Efficiency | >=83% | |
Freewheel | Rear / 1-7 speed | |
Spoke Specification | 12g/13g | |
Integrate speed sensor | YES | |
Noise (db) | < 50 | |
Optional parts | Tyre, Head light, Disc brake, etc | |
Warranty | 2 year | |

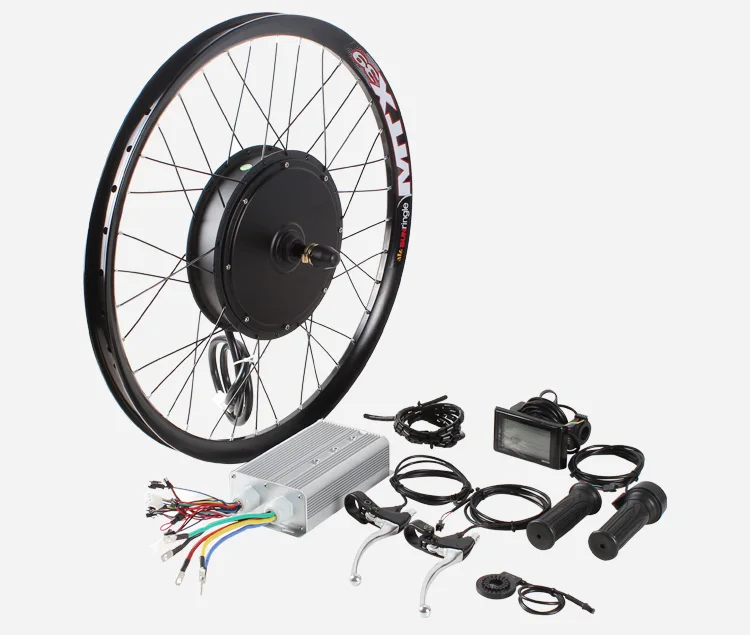

What the electric bike kit include?
1 * 1500-3000W Powerful Brushless Gearless Motorized 20'' 26" 700C 28" 29" Wheel Motor
1 * 48-72V 60A smart controller
1 * Thumb Throttle
1 * SW900 LCD display

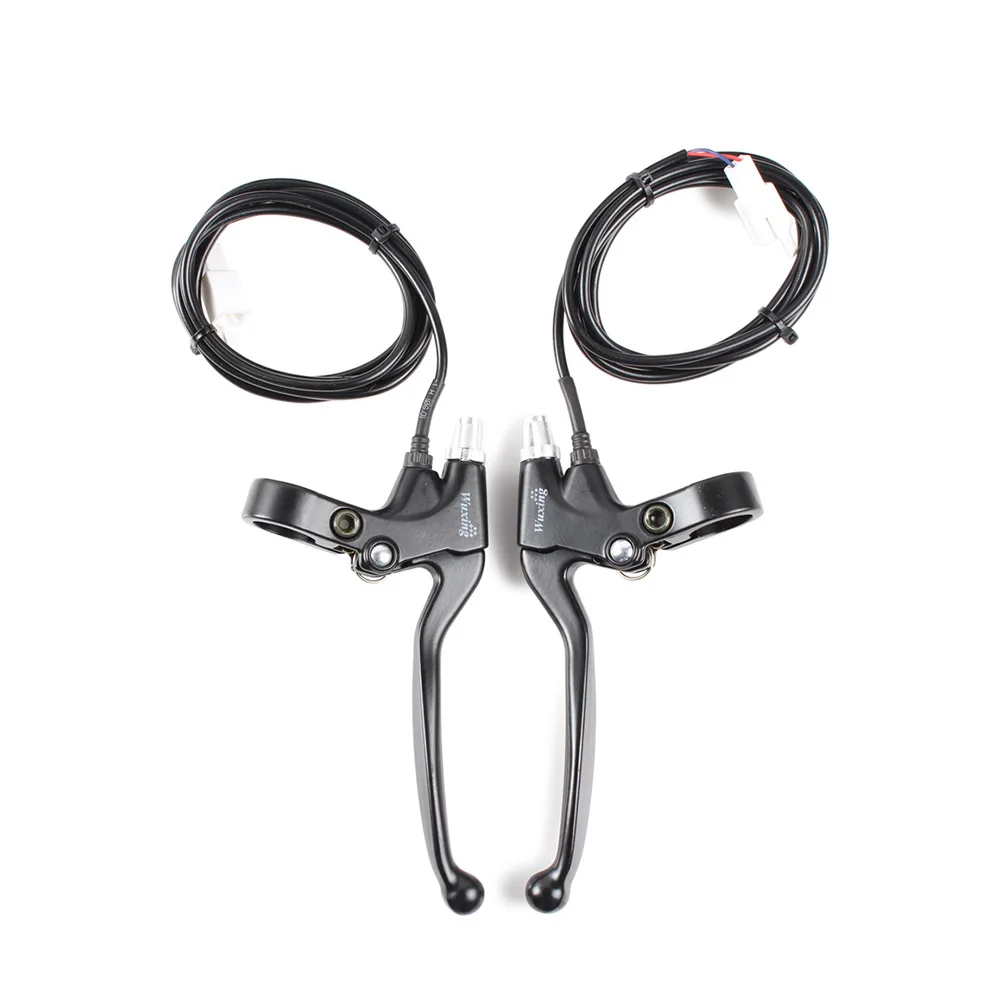

2 * Aluminum Alloy Brake Levers
1 * 12 Magnets Pedal Assistant Sensor
1 * Lithium Battery (Optional)
1 * 1500-3000W Powerful Brushless Gearless Motorized 20'' 26" 700C 28" 29" Wheel Motor
1 * 48-72V 60A smart controller
1 * Thumb Throttle
1 * SW900 LCD display
2 * Aluminum Alloy Brake Levers
1 * 12 Magnets Pedal Assistant Sensor
1 * Lithium Battery (Optional)
Product Details

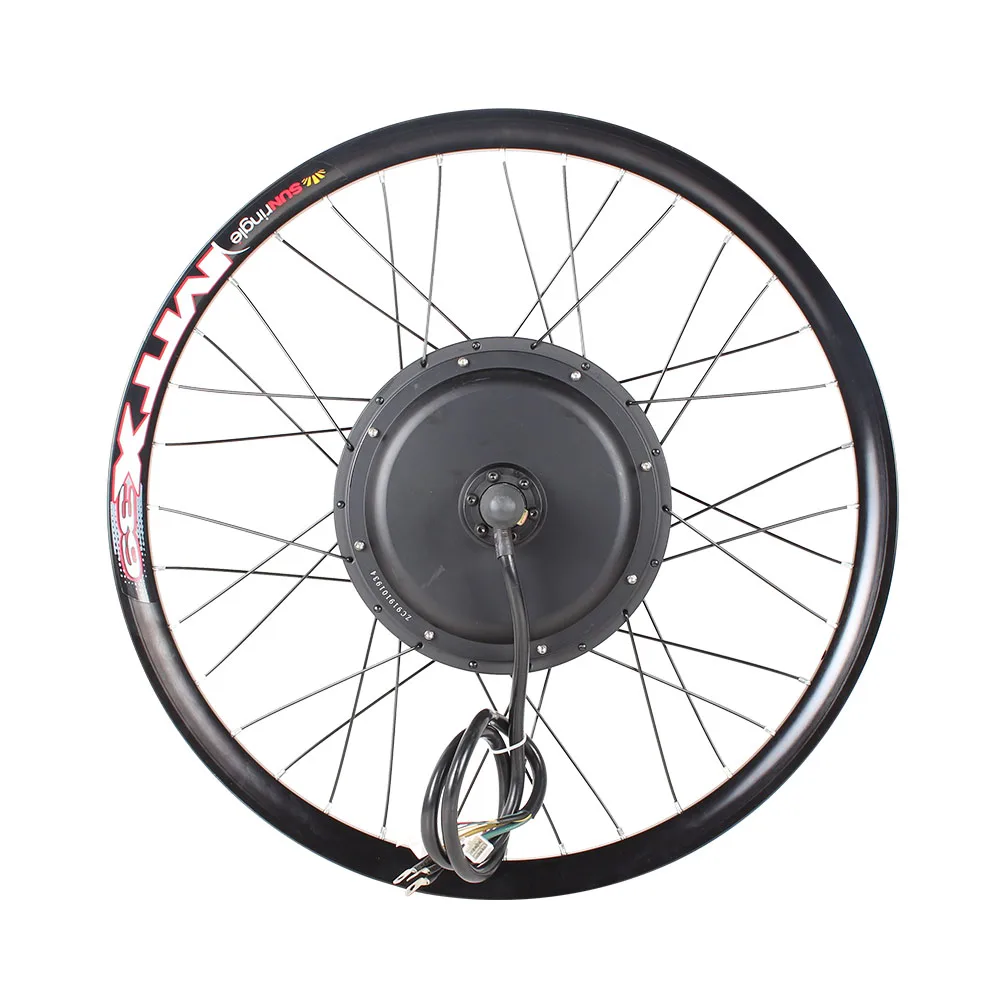

Powerful Brushless Direct Hub Motor
• Light and low noise
• Long service life
• 135-170 dropout for bikes
• 20'' 26" 27.5'' 700C 28" wheel to option
• Light and low noise
• Long service life
• 135-170 dropout for bikes
• 20'' 26" 27.5'' 700C 28" wheel to option

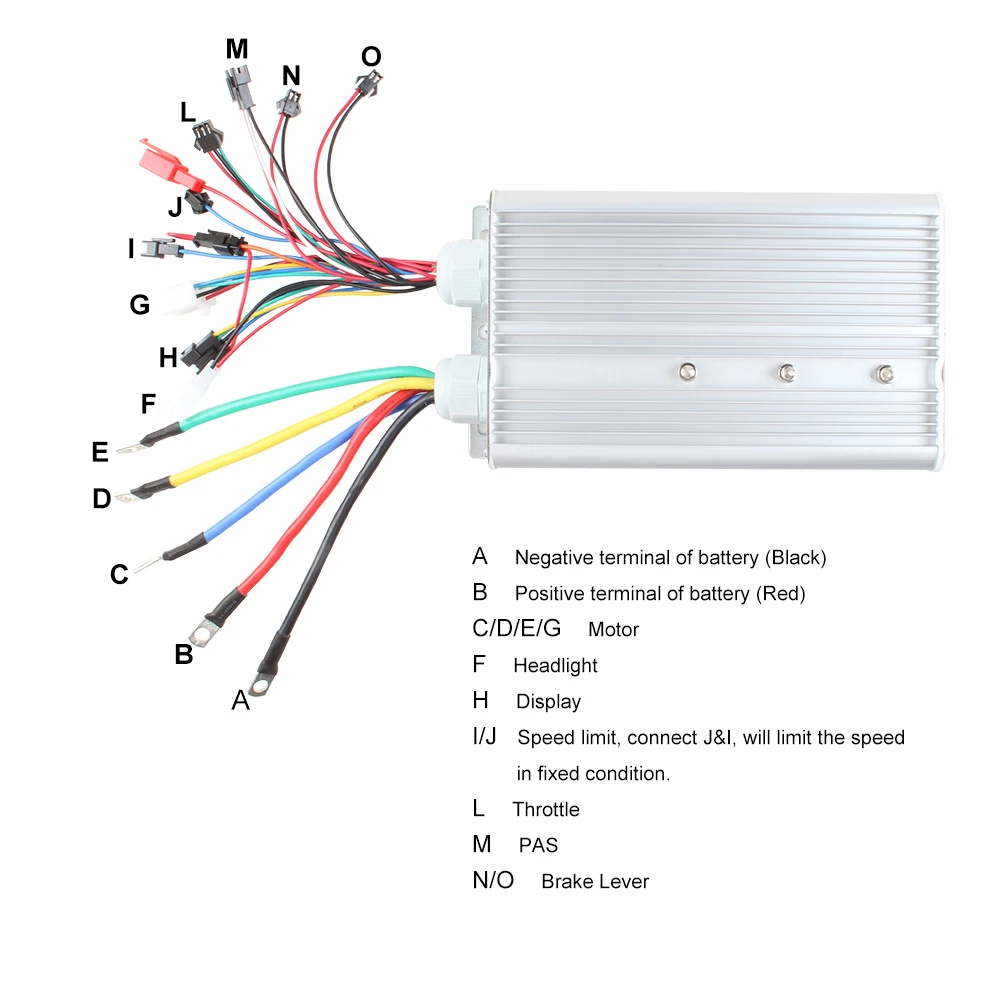

Brushless Controller
Functions: Low Brake, Display, Throttle, lock, speed limited, Pedal Assist Sesor. With multiple protection features such over-current, over-temperature, over-voltage, under-voltage, lack of phase and so on.
Functions: Low Brake, Display, Throttle, lock, speed limited, Pedal Assist Sesor. With multiple protection features such over-current, over-temperature, over-voltage, under-voltage, lack of phase and so on.

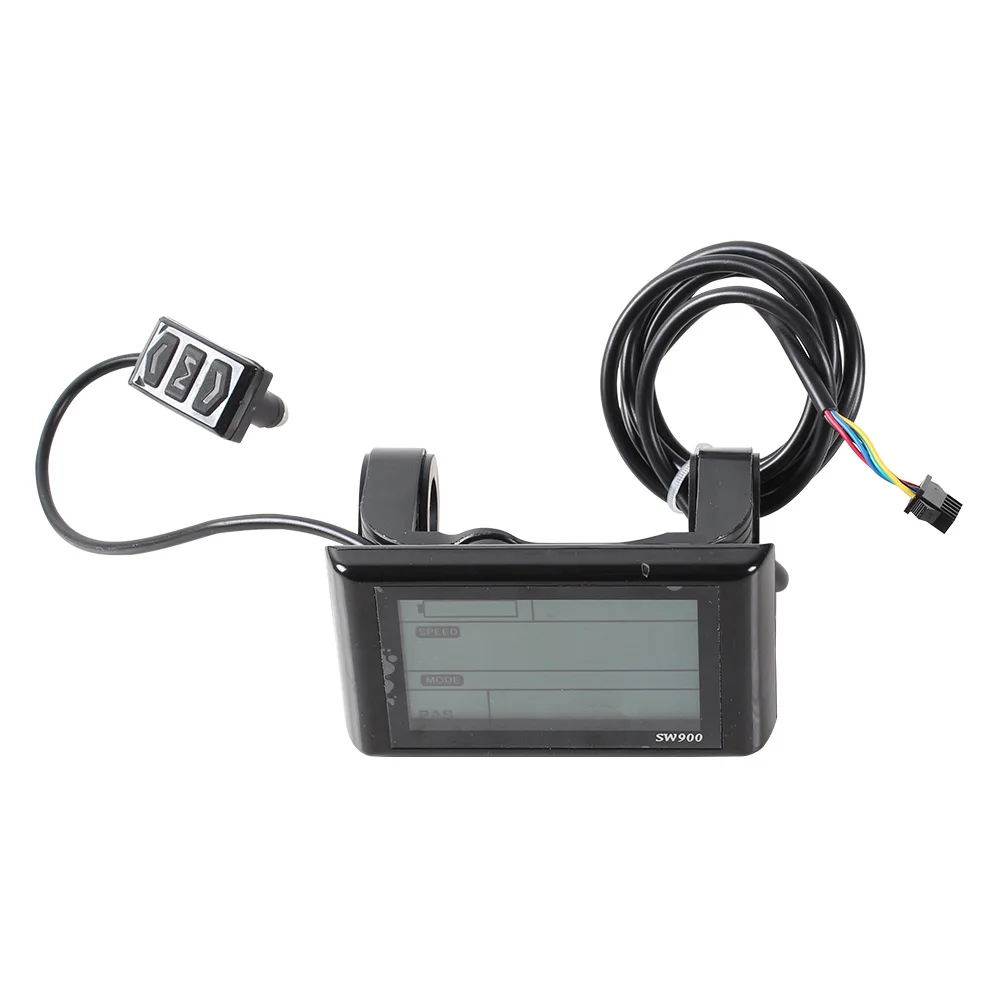

SW900 LCD Display
Speed indicator, PAS grades indicator, Battery indicator, Error indicator, Single Trip Distance and Total Distance, Headlight indicator.
PAS
12 Magnets Pedal Assistant Sensor
UKC1 Color display
Brake sensor

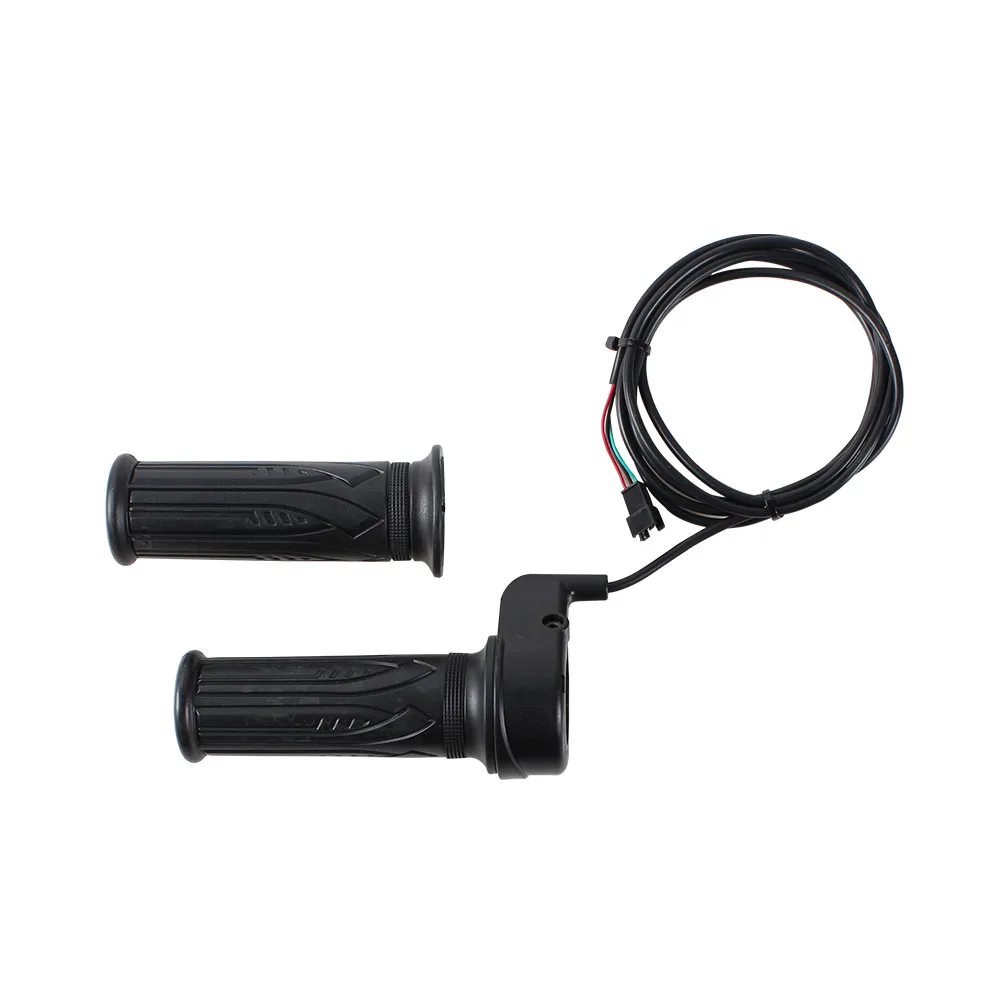

Twist throttle
Customized capacity lithium-ion battery
FAQ
1. What is your warranty policy?
2 years (Guarantee replacement in first year, guarantee repair in the next year.)
2. Should I pay the high taxes?
We can make a low-value invoice to help you clearing customs and avoid the high taxes.
3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample.
4. What is the delivery time?
It usually takes 7-10 days, but the exact delivery time might be different for different quantity. Once we confirmed the all
details of order, we will put all source into it.
5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T. We'll show you the photos of the products and packages before you pay the balance.
6. How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit;
B: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2. Should I pay the high taxes?
We can make a low-value invoice to help you clearing customs and avoid the high taxes.
3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample.
4. What is the delivery time?
It usually takes 7-10 days, but the exact delivery time might be different for different quantity. Once we confirmed the all
details of order, we will put all source into it.
5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T. We'll show you the photos of the products and packages before you pay the balance.
6. How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit;
B: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
