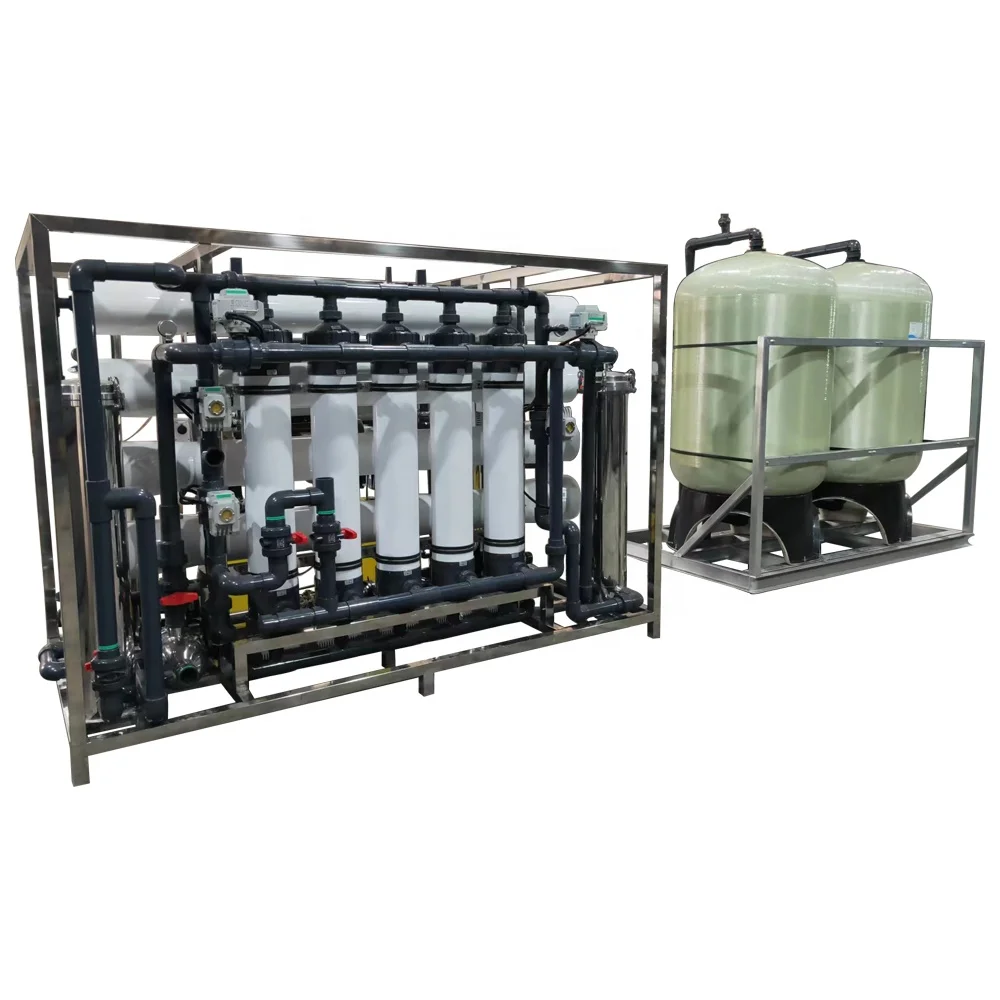

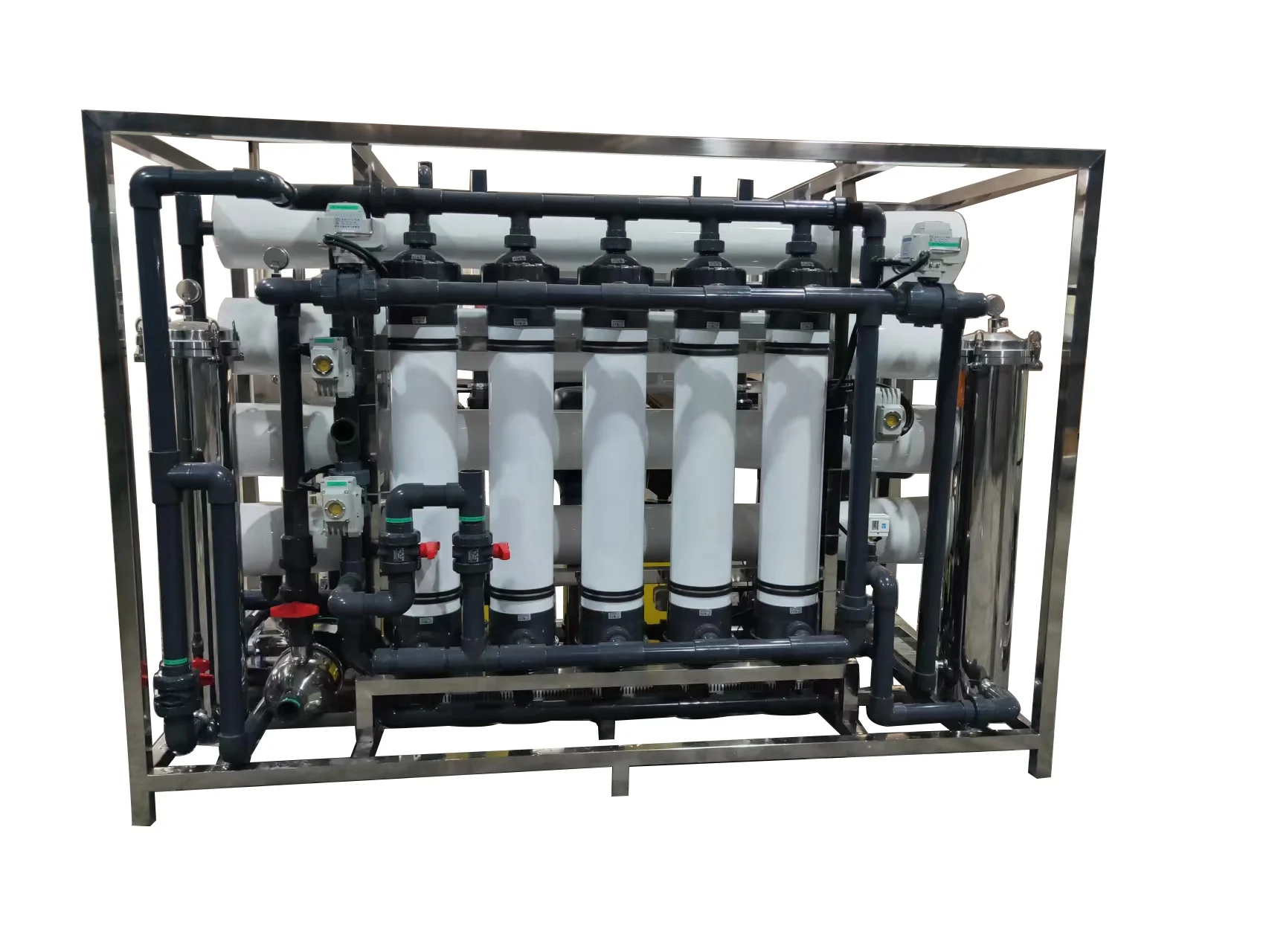

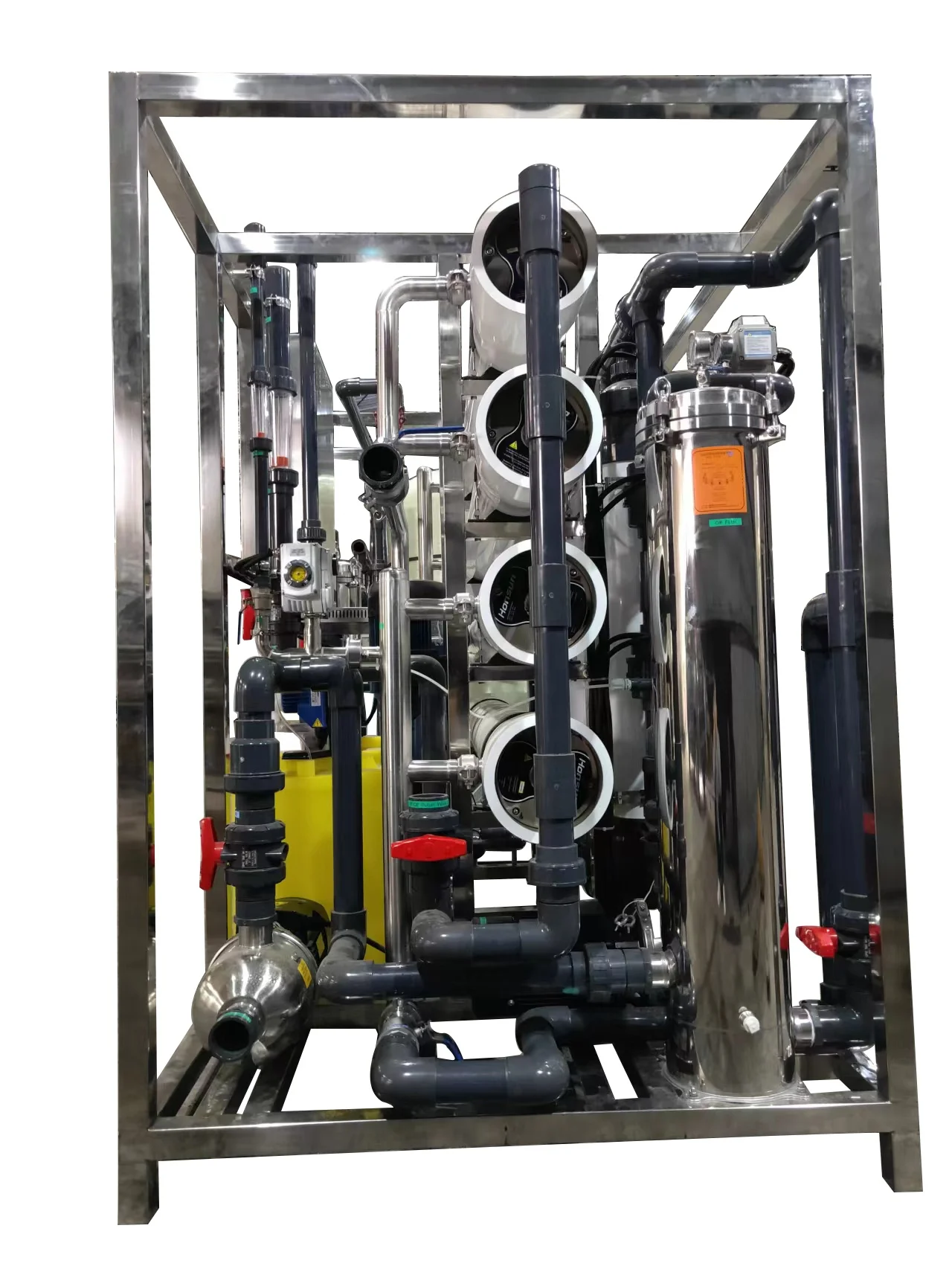

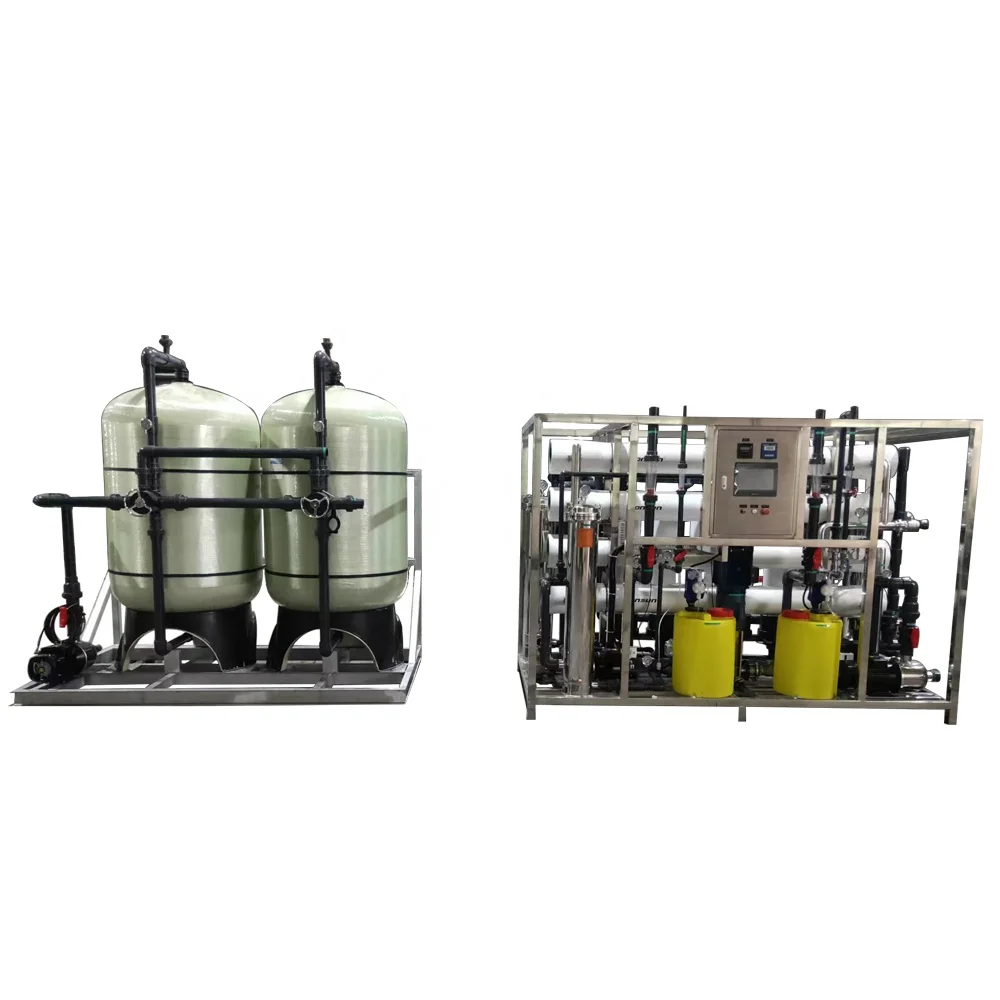

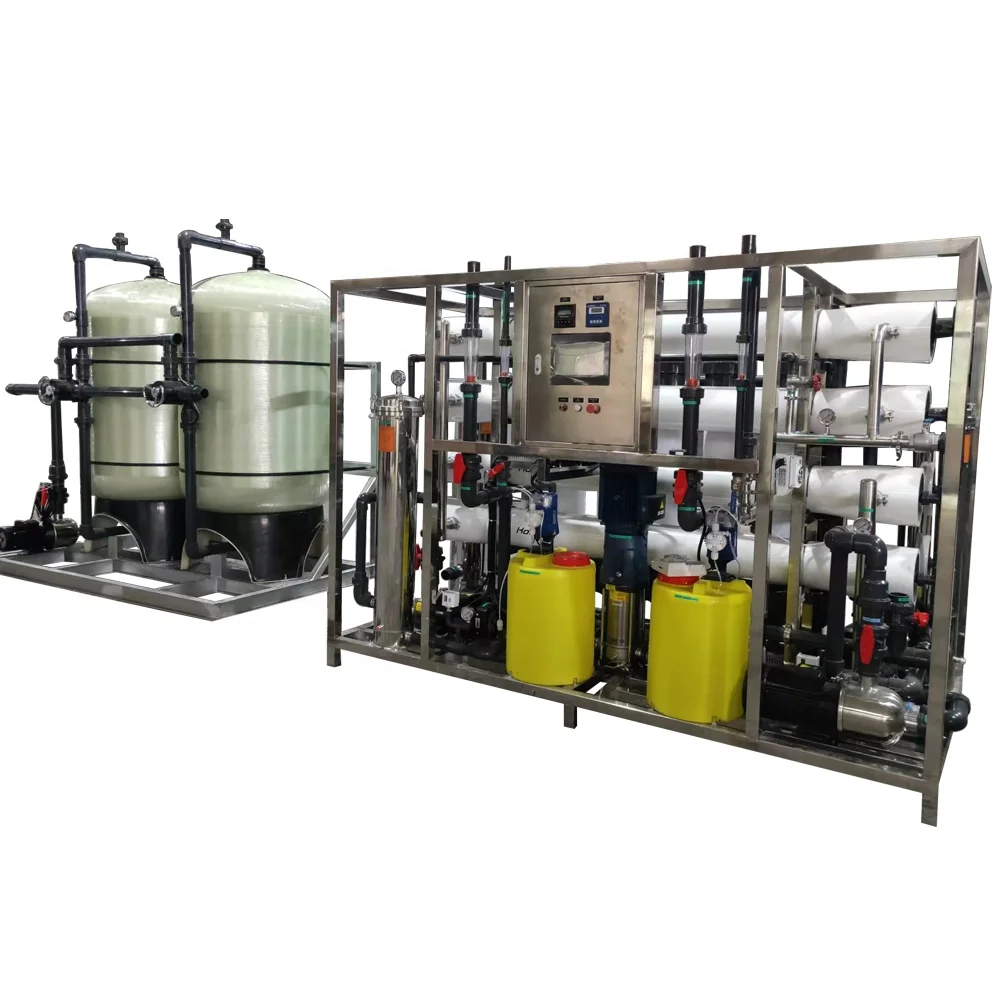

Automatic RO Water Treatment Plant Price Nanofiltration system for waste water treatment
- Category: >>>
- Supplier: Guangzhou Vocee Membrane Technology Co. Ltd.
Share on (1600919633550):
Product Overview
Description
Ultrafiltration+NF/RO plant for Textile Wastewater reused
Textile, printing and dyeing are industries with high water consumption and high pollution. The wastewater is mainly characterized by high short fiber content, high cloth wool, high suspended solid concentration, high turbidity, high salt content, and high chroma.Therefore, it is very important to customize effective wastewater treatment and wastewater reuse system.
UF+RO/NF is the post-treatment of textile wastewater reuse. Textile wastewater can be used directly after treatment, which can save 50%-70% of production water for factories, reduce wastewater discharge and reduce wastewater costs.
As the water contains a certain amount of organic matter and impurities, it is very easy to pollute the RO/NF membrane and block the membrane pores. Therefore, ultrafiltration is used as pretreatment to effectively protect them.
The wastewater is treated by the reverse osmosis/nanofiltration equipment, the residual organic chroma, inorganic salt, hardness, etc. in the wastewater can be removed, reaching or exceeding the water standard of the printing and dyeing industry, which can meet the production needs of medium and high-end products.
Product Description
System Features
1. Runs automatically and controlled by PLC+ Touch screen.
2. When system encounter a fault, it will auto turn off and protect system.
3. Energy saving and low noise, no need to heat.
4. Auto backwashing, foward washing the UF membranes to increse service life.
5. system be equipped with chemical cleaning system, CIP.
6. Compact structure and saves installation place.
7. Individual setting on the touch screen to control the system.
8. Better wate flux design, with longer service life and lower mataince cost.
Textile Wastewater Reuse System Main Parameters
| Name | Textile Waste Water Reuse System |
| UF output capacity | 6300L/H |
| NF output capacity | 5000L/H |
| Input TDS | 3000mg/L |
| Output TDS | <300mg/L |
| Power supply | 220V 60HZ 3Phases |
| Feed pump | 7,000L/H SS304 CNP |
| Backwash pump | 15,000L/H SS304 CNP |
| High pressure pump | 12,000L/H SS304 CNP |
| Precision filter | 40'' 5micron |
| Control system | Siemens PLC, man-machine interface touch screen |
| CIP system | Includes CIP pump, CIP tank, CIP filter,etc. |
| Desalination rate | ≥98% |

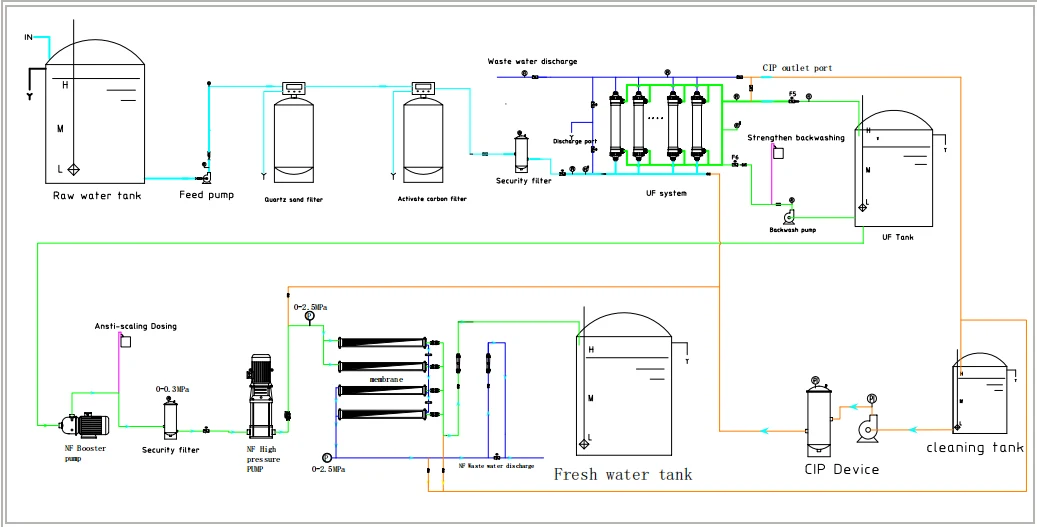

Textile Wastewater Reuse System Flowchart

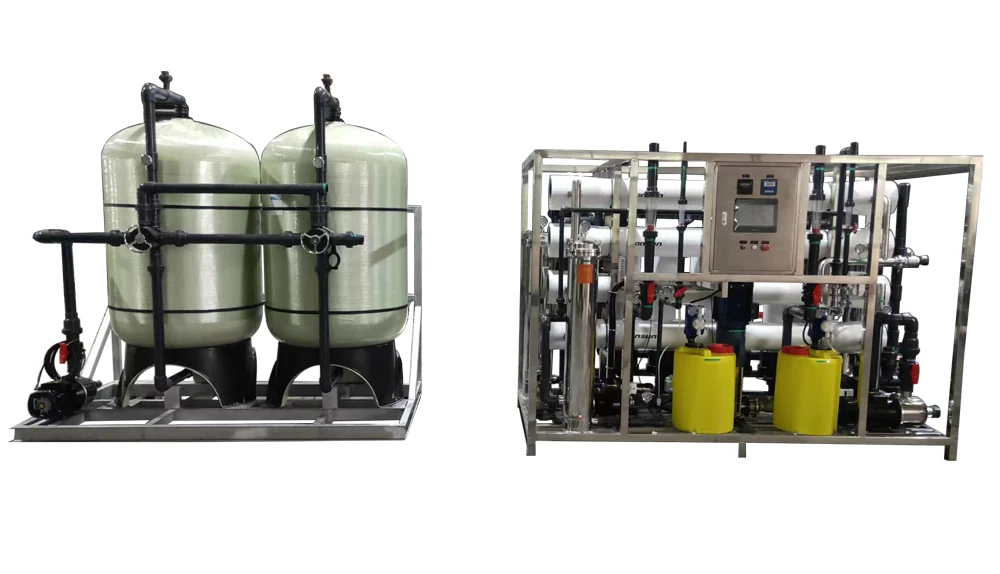

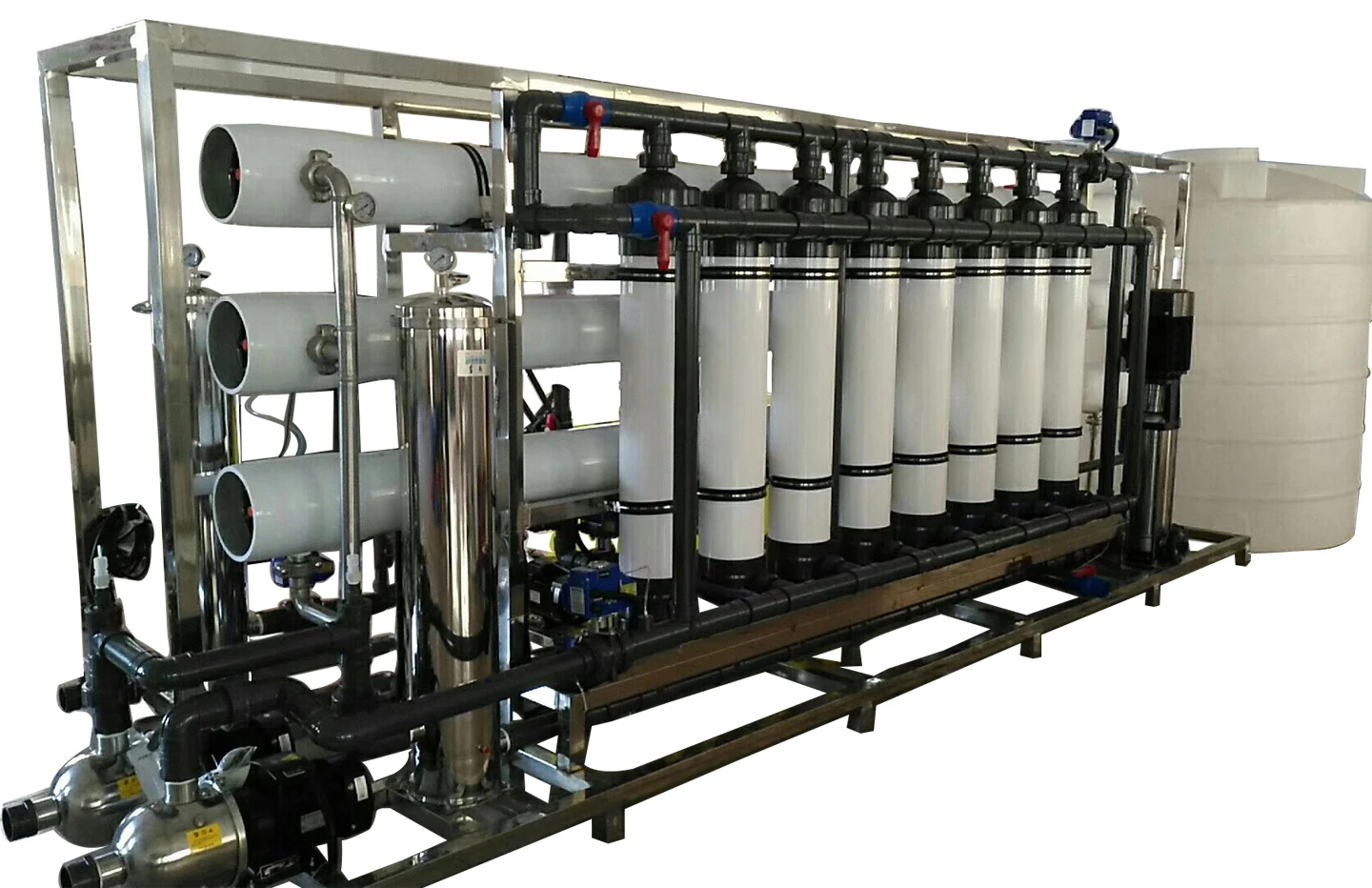

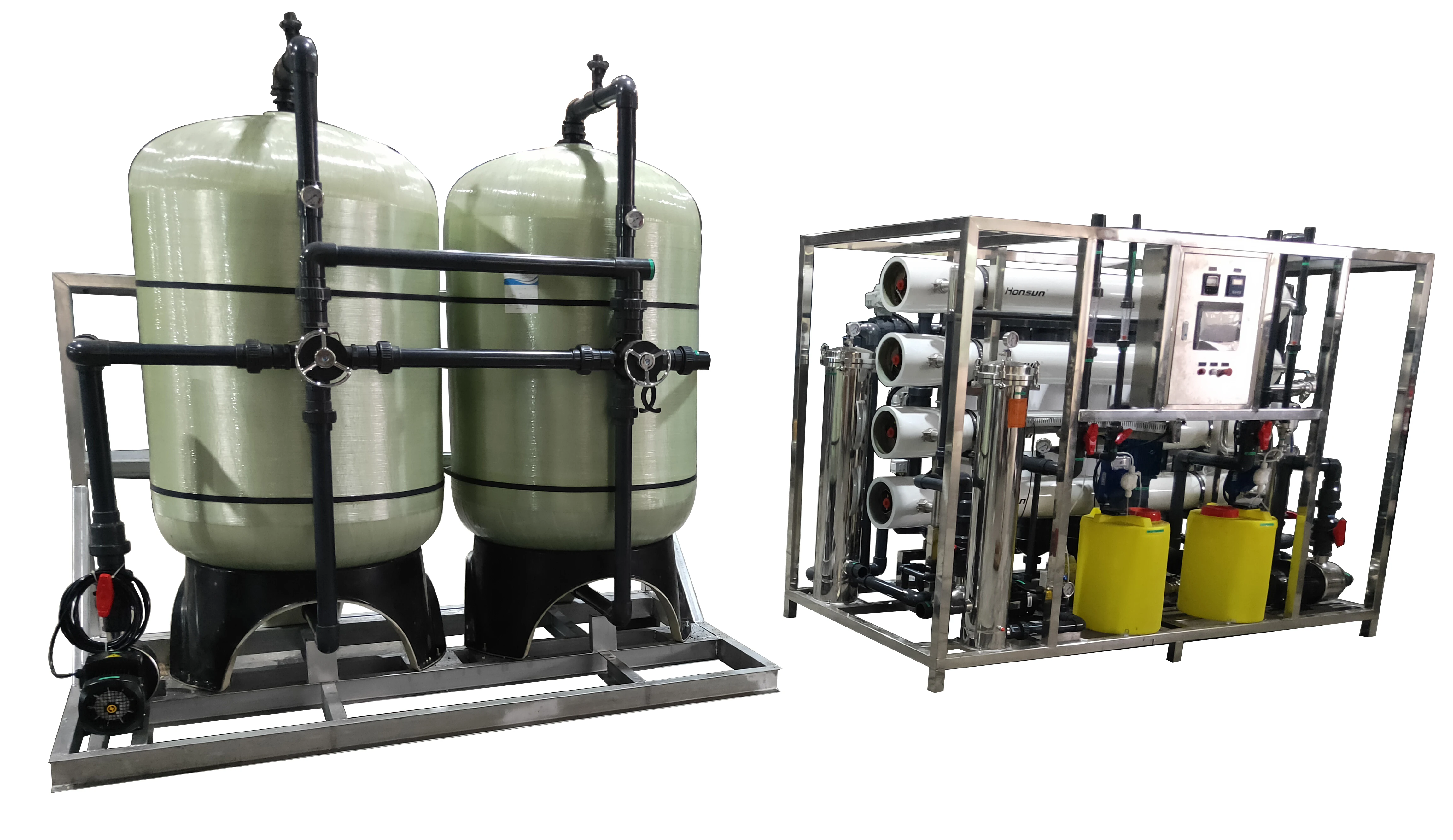

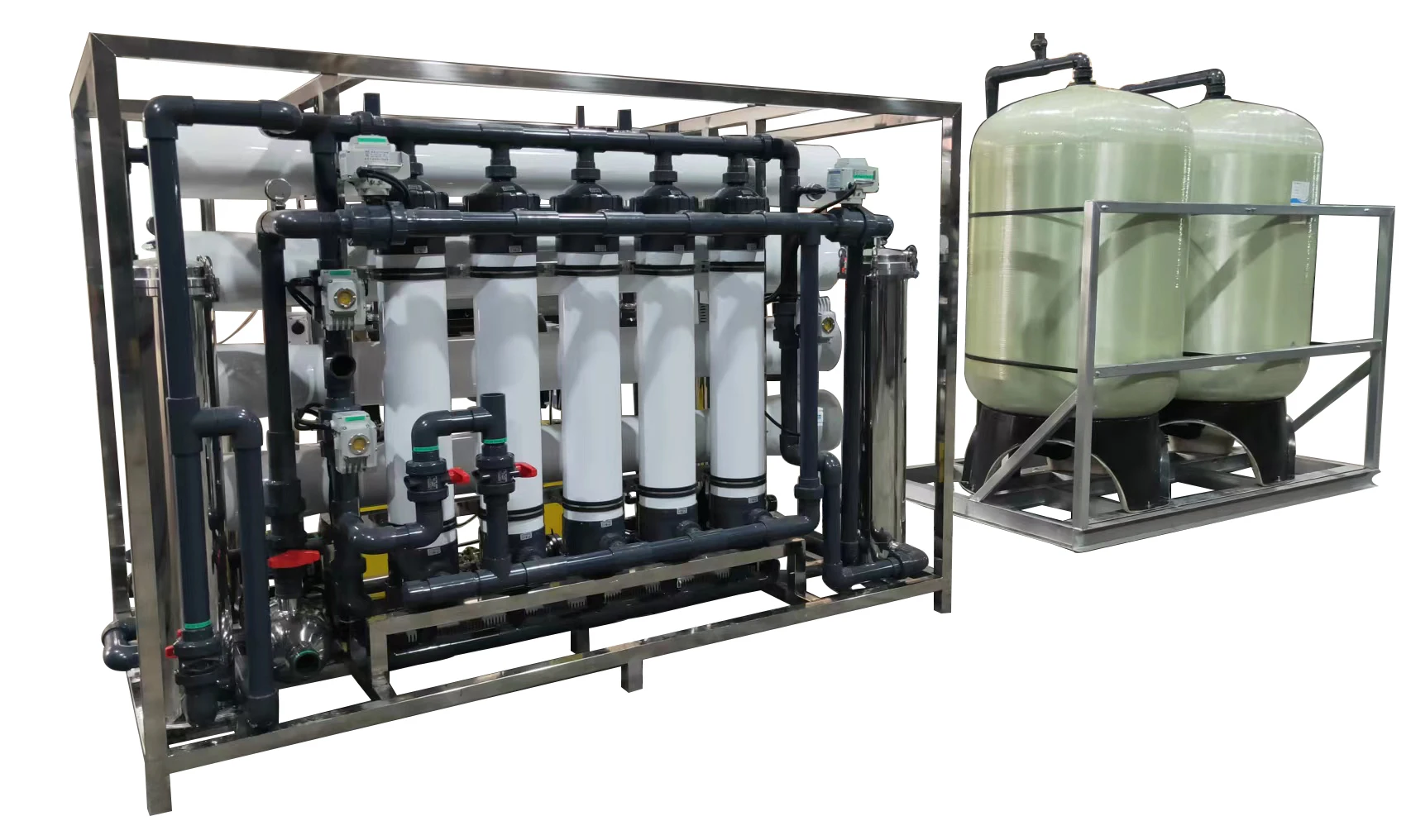

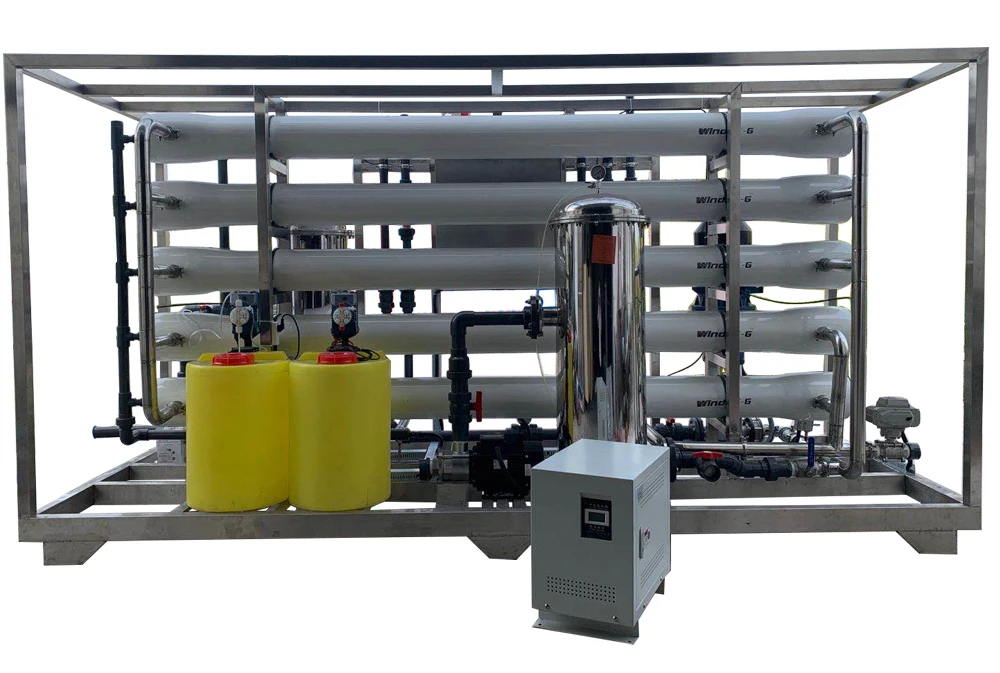

Detailed Images
VOCEE Wastewater Ruse System Applications:
1). Electroplating wastewater
2). Textile Industry Wastewater
3). Metallurgical industry
4). Chemical industry
5).Paper Industry,
6)Crystalline silicon industry,etc.
Purified water can be used for:
Related Products

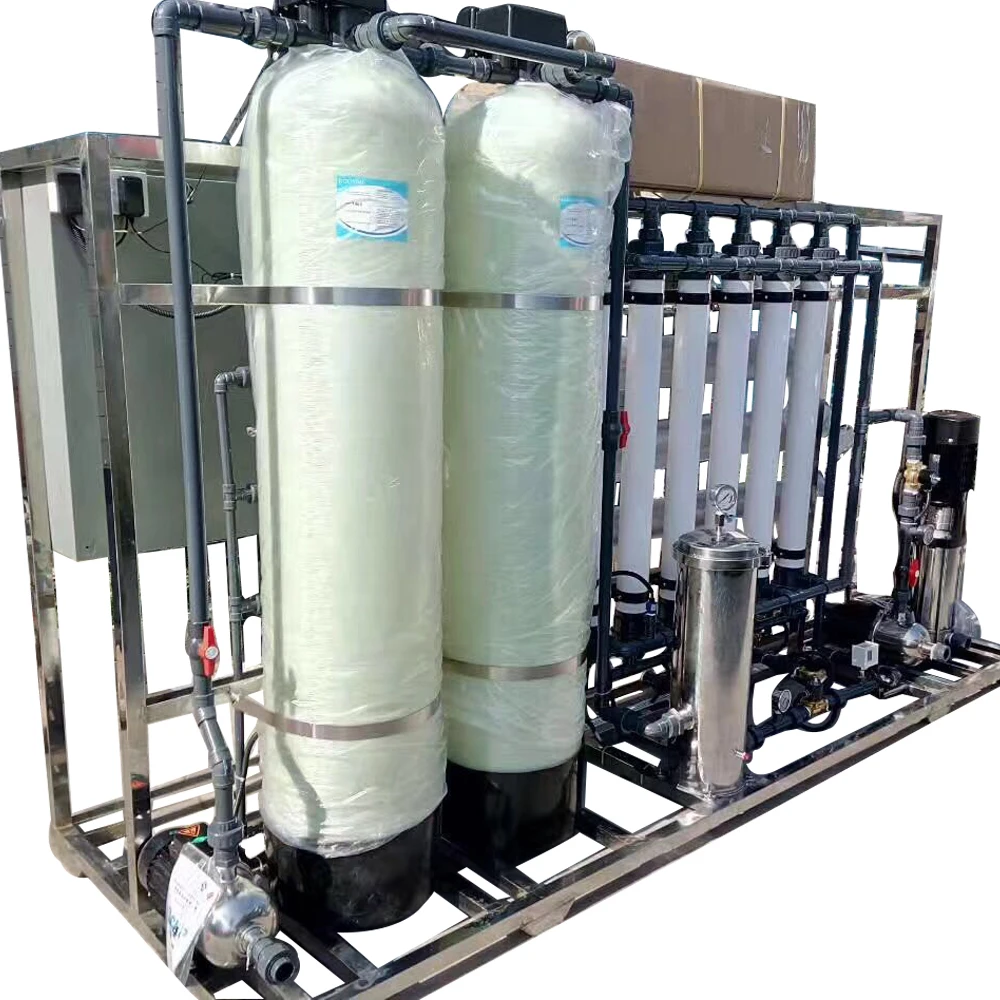

Small wastewater reuse system, UF system 1500L/H+RO system 1000L/H, For wastewater recycling.
For reuse of electroplating wastewater,UF system + RO system
200m3/Day Wastewater treatment system for texitle wastewater recycling,Recovery rate:60%
Packaging & Shipping
Packaging Details:
1.All equipment are packed with wooden/carton box and wrapping film.
2.All parts are fastened in container, guarantee that no damage while shipping.
2.All parts are fastened in container, guarantee that no damage while shipping.
Why choose us?
1.All consumables are selected top quality to ensure the stability of the equipment.
2.Our engineer has over 20 years experience, can provide you with professional design solutions according to your needs in time.
3.We provide Installation/Commissioning/Training. Will teach and train your people how to use, also we can arrange our technical personnel to your side to install the machine.
4.Timely, efficient and reliable after-sales service. Free lifetime technical support.
Our Services
Pre-Sales Service
* Inquiry and consulting support!
*Technical communication, Provide drawings for confirmation!
* View/visit our Factory!
After-Sales Service
* Training how to install and use the machine.
* Timely response within 24 hours.
* Engineers available to service machinery overseas.
Company Information
Guangzhou Vocee Membrane Technology Co.,Ltd is a membrane separation technology-based enterprise with advanced ultra-filtration membrane, MBR membrane production technology and more than 10 years of product application experience, to provide you with high-performance membrane water treatment as the core of the overall technical solutions.We always put our service in our work,and provide quality services to our customers and partners. If you have questions or have any opinions in the process of cooperation, you can contact with us at any time.
Our Main Products:
1.Ultra-filtration & MBR membrane,
2.UF water treatment system,
3.MBR wastewater treatment plant.
4.Nnofiltration equipment,
5.RO pure water machine
6.EDI ultra pure water equipment,
7. Wastewater recycling system
8.Seawater desalination system,
9.Material concentration and separation membrane equipment.
Our products are widely applied in varies of industries such as food and beverage process water, textile and paper industry, brackish water desalination, electronics industry Ultra-pure water, pharmaceutical industry, chemical industry, boilers, and public water treatment systems, etc.
FAQ
Q: Are you trading company or manufacturer?
A:We are the Top professional manufacturer in China, more than 10 years experience in the water treatment.
Q: What's your delivery time?
A:Normally,it need about 7-30 days.The exact time depends on your quantity.
Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
