Automatic Continuous Siphon Horizontal Peeler Centrifuge Equipment For Cassava Starch Dewatering
- Category: >>>
- Supplier: Jiangsu Hanpu Mechanical Technology Co. Ltd
Share on (1600919637260):
Product Overview
Description
Product Description

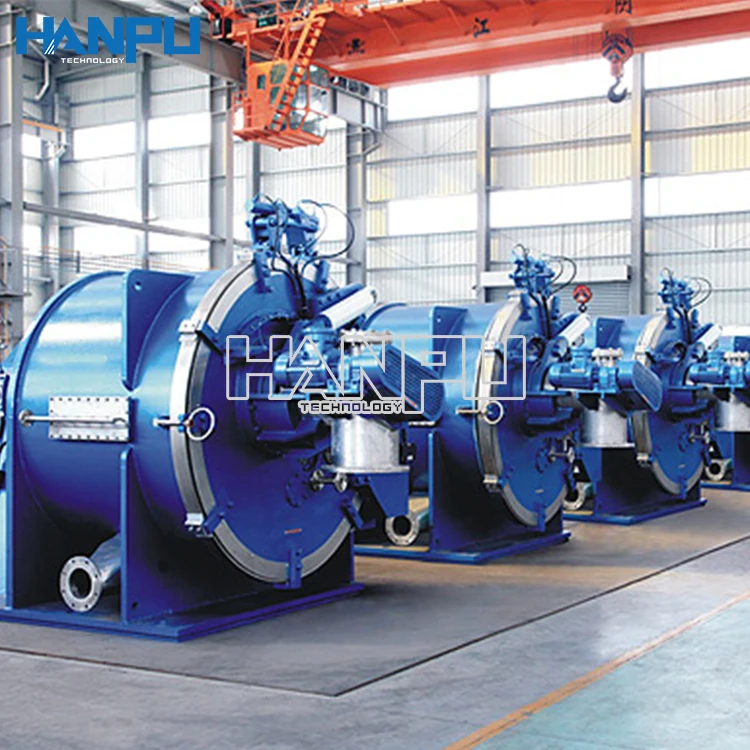

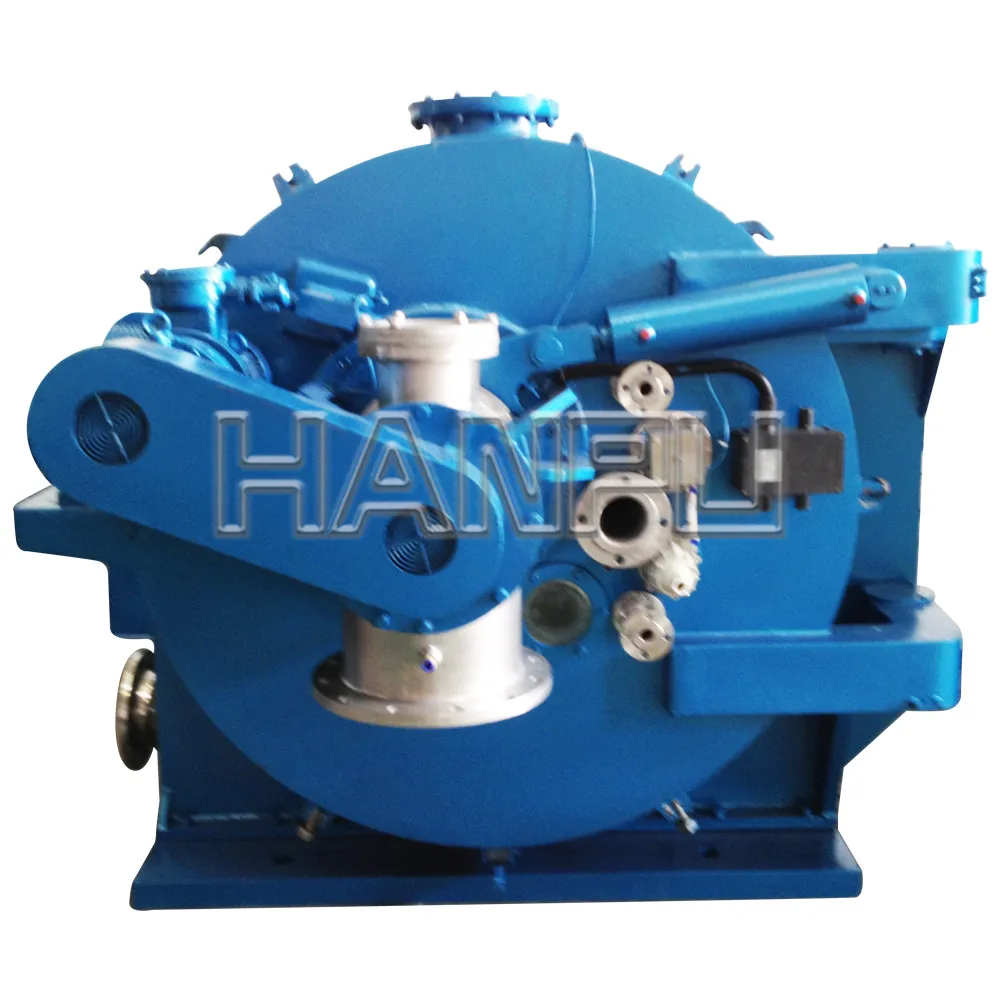

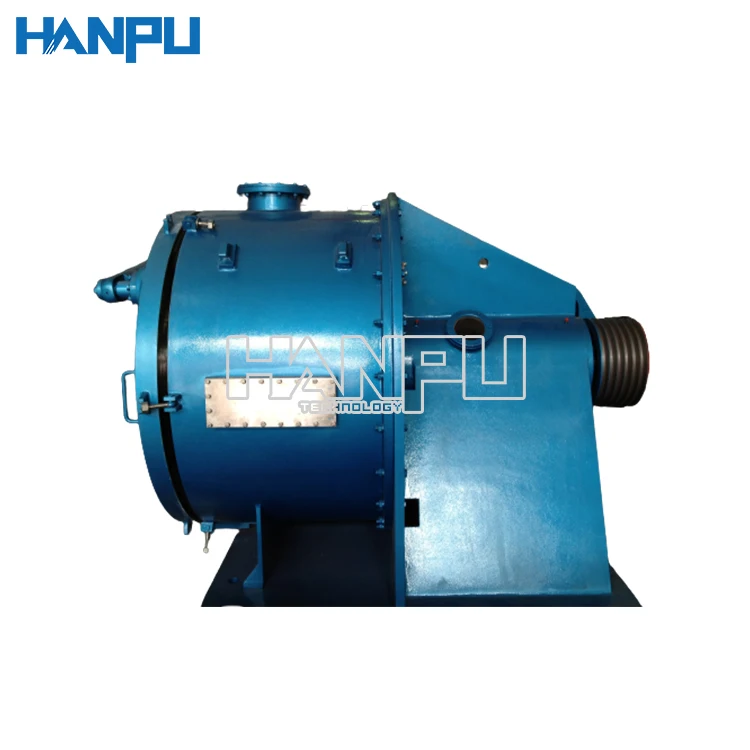

The GKH AUTOMATIC HORIZONTAL SCRAPER SIPHON CENTRIFUGE PEELER machine is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.
It is controlled by PLC.It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking.
Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.)
Also manual operation mode is available which can be changed over from full-automation mode by customer's will.
Item\\model | GKH-26 | GKH-140 | GKH-250 | GKH-260 | GKH-500 | GKH-1100 | GKH-1800 | GKH-2400 |
Basket diameter (mm) | 450 | 800 | 1000 | 1050 | 1250 | 1600 | 1800 | 2000 |
Basket Height (mm) | 300 | 450 | 500 | 500 | 630 | 1000 | 1250 | 1400 |
Basket volume (L) | 21 | 110 | 200 | 210 | 335 | 879 | 1390 | 1923 |
Loading Capacity (kg) | 26 | 140 | 250 | 260 | 500 | 1100 | 1800 | 2400 |
Max Speed （r/min） | 2600 | 1500 | 1400 | 1400 | 1200 | 950 | 900 | 950 |
Maximum separating factor | 1700 | 1007 | 1095 | 1150 | 1006 | 808 | 815 | 1008 |
Motor power (Kw) | 15 | 37 | 45 | 45 | 75/90 | 132 | 160 | 200 |
WORKING PRINCIPLE
▷Except centrifuge force like the other common centrifuge siphon centrifuge also has a kind of siphon draught force similar to vacuum pipe.
▷When the centrifuge is of no load,the counter-pulse pipe feeds the liquid to siphon chamber and the liquid is forced to the clearance through the via hole on the drum of siphon chamber.Then air of siphon pipe is eliminated and a layer of liquid forms on the filtering media,so as to make the feeding more even.
▷Then feeding starts,the siphon pip rotates to a certain position and it turns to a lower position required after a certain period.When the feeding is finished,the siphon pipe turns to the lowest position(Max diameter place of siphon chamber).
▷After the suspension liquid comes into the drum,solid products are left on the filter cloth while the liquid is forced to go through the filter cloth and internal drum and collected in the clearance between internal and external drum,then it flows into the siphon chamber through drum and via hole.
▷Next the liquid will be draught by siphon pipe and the deposited solid will be dewatered and scraped by scraper which is driven by oil cylinder. And then the solid falls out through hopper.
▷When discharging is finished,centrifuge begins to clean the mesh.The siphon centrifuge not only washes the filter cloth in the drum,but also feeds the washing water to siphon chamber.By controlling the upper and lower rotation of siphon pipe,liquid can counter-pulse wash the filter mesh from the internal drum.
▷When the washing is finished,carry out the next circulative processing cycle.
Product Recommendations
Company Profile
Established in 2019,Jiangsu Hanpu Machinery Engineering Technology Co., Ltd. is a subsidiary of Jiangsu Saideli Machinery Group.It is a professional enterprise engaged in the treatment of industrial waste water and gas,as well as evaporating crystallization, drying, filtration, and heat transfer in the field of multi-process production,together with the research and development and manufacturing of technical equipment.

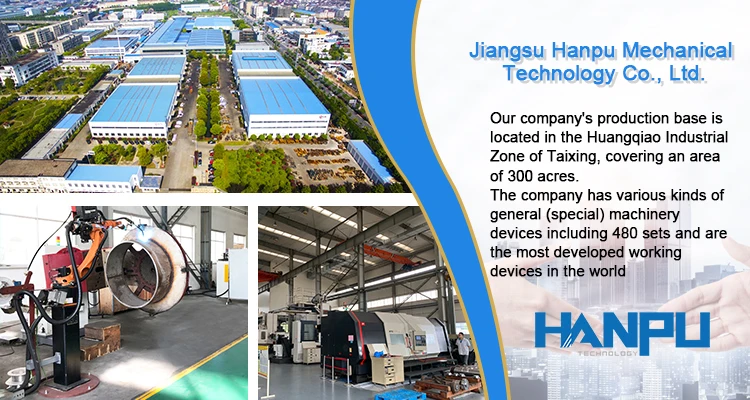

Located in Junmin Road, Huangqiao Industrial Park, Taixing City, Jiangsu Province,the group has four major production
