Heavy hammer crusher Large Construction waste Limestone granite Coal gangue Impact sand machine Heavy hammer crusher
- Category: >>>
- Supplier: Shanghai Jianye Heavy Industry Co. Ltd.
Share on (1600919736845):
Product Overview
Description
Products Description

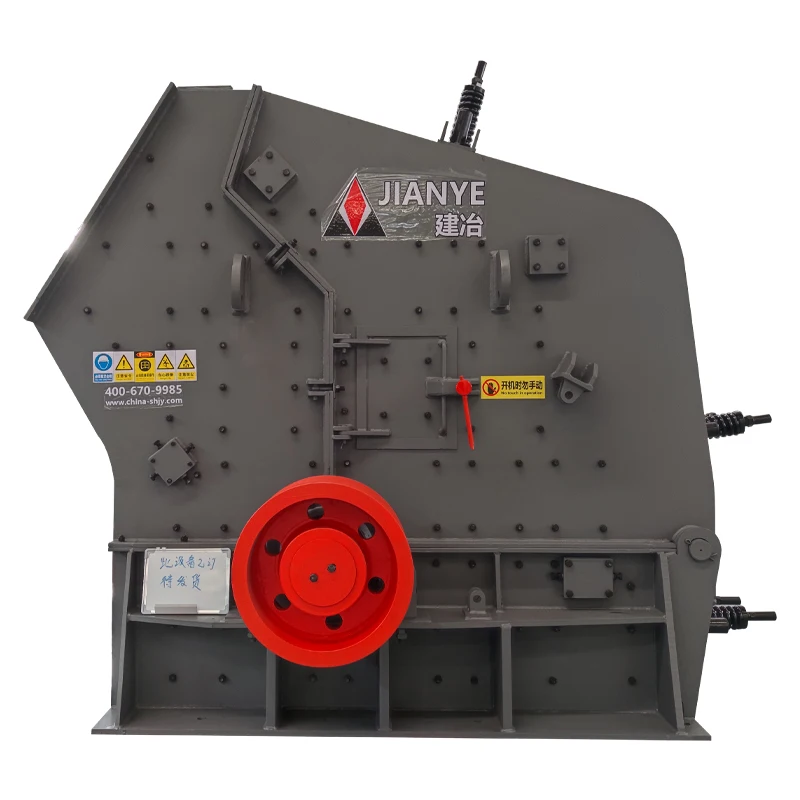

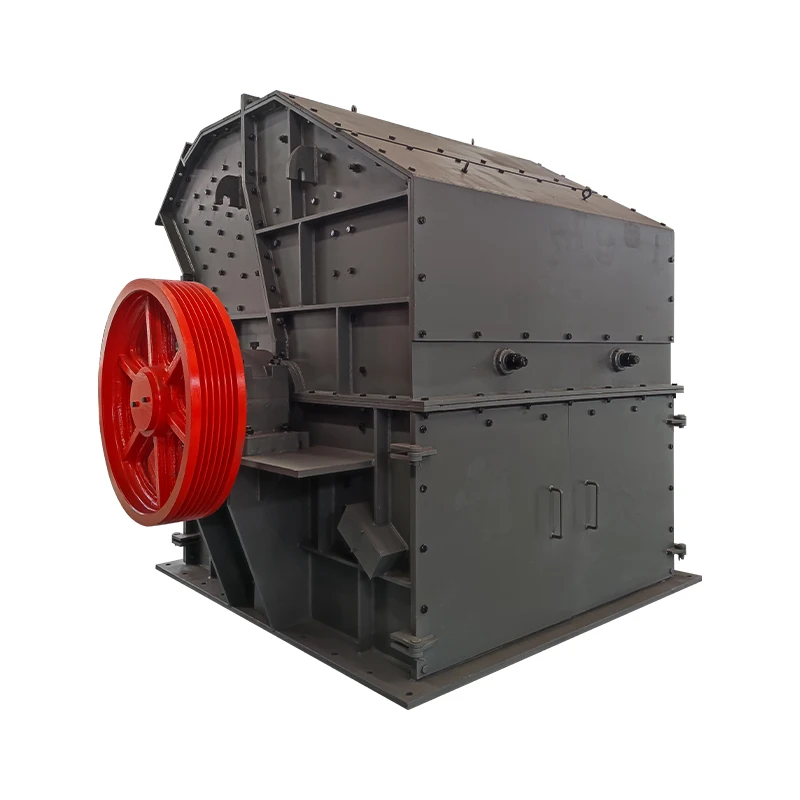

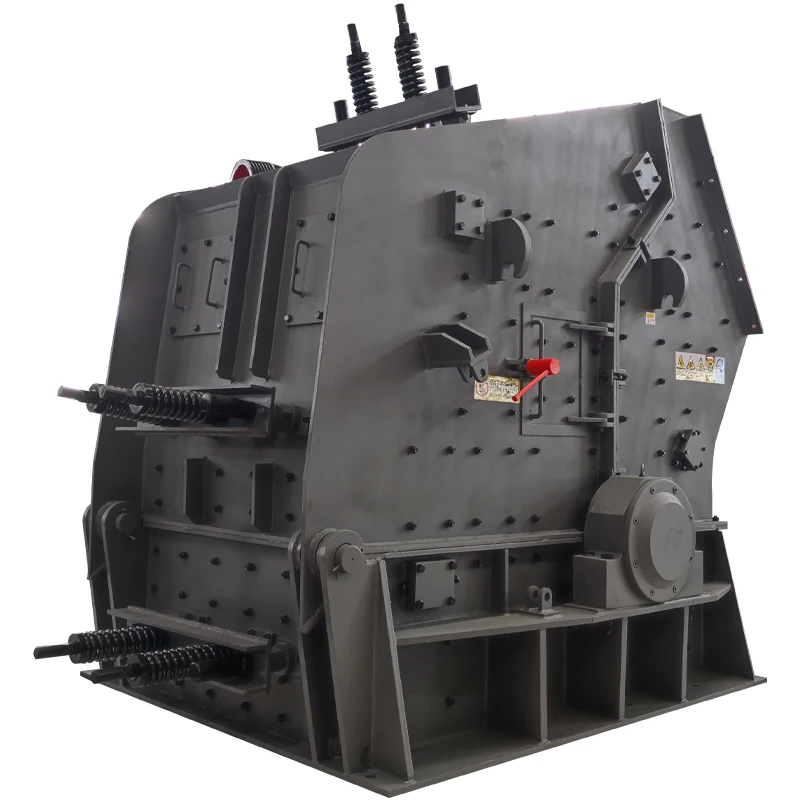

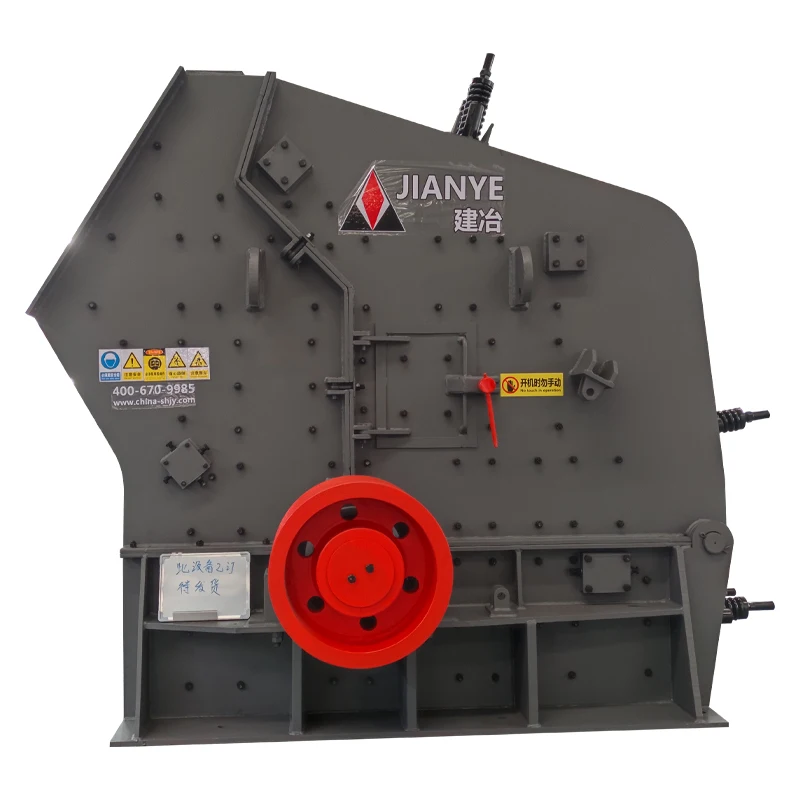

Impact crusher
The impact crusher can handle all kinds of materials with particle size less than 300 mm and compressive strength no more than 260 MPa. It has the characteristics of large crushing ratio, high crushing efficiency, cube shape and selective crushing. This series of products are divided into three categories: mining, cement and concrete industry. Crusher equipment is suitable for ore with various compressive strength.
Product Paramenters
Feeding size： <500mm
Capacity： 37-550T/h
Application field： Pf impact crusher metallurgy, mining, cement, chemical and ceramic industries, as well as highway
Capacity： 37-550T/h
Application field： Pf impact crusher metallurgy, mining, cement, chemical and ceramic industries, as well as highway
construction, water conservancy engineering, construction gravel, sand production and other fields.
Scope of application：The impact crusher is suitable for medium crushing and fine crushing of various soft and medium
Scope of application：The impact crusher is suitable for medium crushing and fine crushing of various soft and medium
hard ores, such as limestone, feldspar, calcite, talc, coal gangue, etc
It can crush more than 700 kinds of materials
Working principle
During operation, driven by the motor, the rotor of the impact crusher rotates at a high speed. After the material enters, it
collides with the plate hammer on the rotor, and then it is hit back to the lining plate to crush again, and finally discharged
from the discharge port. The stone directly falls into the high-speed rotating turntable from the upper part of the machine; under the action of high-speed centrifugal force, it collides with the flying stones around the turntable in an umbrella way, resulting in high-speed collision and high-density crushing. After hitting each other, the stones will form eddy current movement between the turntable and the shell, causing many times of mutual impact, friction and crushing, and discharge directly from the bottom. Form a closed-circuit multiple circulation, by the screening equipment control to achieve the required particle size
collides with the plate hammer on the rotor, and then it is hit back to the lining plate to crush again, and finally discharged
from the discharge port. The stone directly falls into the high-speed rotating turntable from the upper part of the machine; under the action of high-speed centrifugal force, it collides with the flying stones around the turntable in an umbrella way, resulting in high-speed collision and high-density crushing. After hitting each other, the stones will form eddy current movement between the turntable and the shell, causing many times of mutual impact, friction and crushing, and discharge directly from the bottom. Form a closed-circuit multiple circulation, by the screening equipment control to achieve the required particle size
Equipment advantage
1. The easily worn parts such as hammer, impact plate and liner of PF impact crusher are made of special hard and
wear-resistant materials, which are small in size, light in weight and easy to replace accessories.
2.The product shape of PF impact crusher is cubic, and the size of discharge granularity is adjustable.
3.Pf impact crusher has high crushing chamber, high hardness, large block size and less stone powder.
4.Pf impact crusher has novel and unique structure and stable operation.
wear-resistant materials, which are small in size, light in weight and easy to replace accessories.
2.The product shape of PF impact crusher is cubic, and the size of discharge granularity is adjustable.
3.Pf impact crusher has high crushing chamber, high hardness, large block size and less stone powder.
4.Pf impact crusher has novel and unique structure and stable operation.
5.Pf impact crusher has the advantages of low energy consumption, high output and high crushing ratio.
Product packaging
Model | Rotor specification (mm) | Inlet size (mm) | Feed size (mm) | Capacity(t/h) | Power (KW | Overall dimensions(mm) |
PF-1007 | Φ1000*700 | 400*730 | ≤300 | 35-50 | 37-55 | 2400*1560*2600 |
PF-1010 | Φ1040*1000 | 400*1080 | ≤350 | 50-80 | 55-75 | 2440*2250*2650 |
PF-1210 | Φ1250*1050 | 400*1080 | ≤350 | 60-120 | 110-132 | 2700*2340*2900 |
PF-1214 | Φ1250*1400 | 400*1430 | ≤350 | 80-160 | 132-160 | 2700*2690*2890 |
PF-1315 | Φ1300*1500 | 860*1520 | ≤350 | 120-180 | 180-260 | 3100*3280*2670 |
PF-1515 | Φ1550*1500 | 900*1650 | ≤350 | 200-260 | 260-280 | 3400*3500*3280 |
PF-1520 | Φ1500*2000 | 980*2040 | ≤350 | 300-550 | 355-400 | 3550*3700*3280 |
---------------------------More Products---------------------------
Jaw Crusher
Impact Crusher
Cone Crusher
Grinding Mill
Sand Making Machine
Mobile Crusher Plant

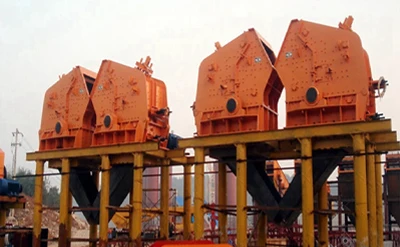

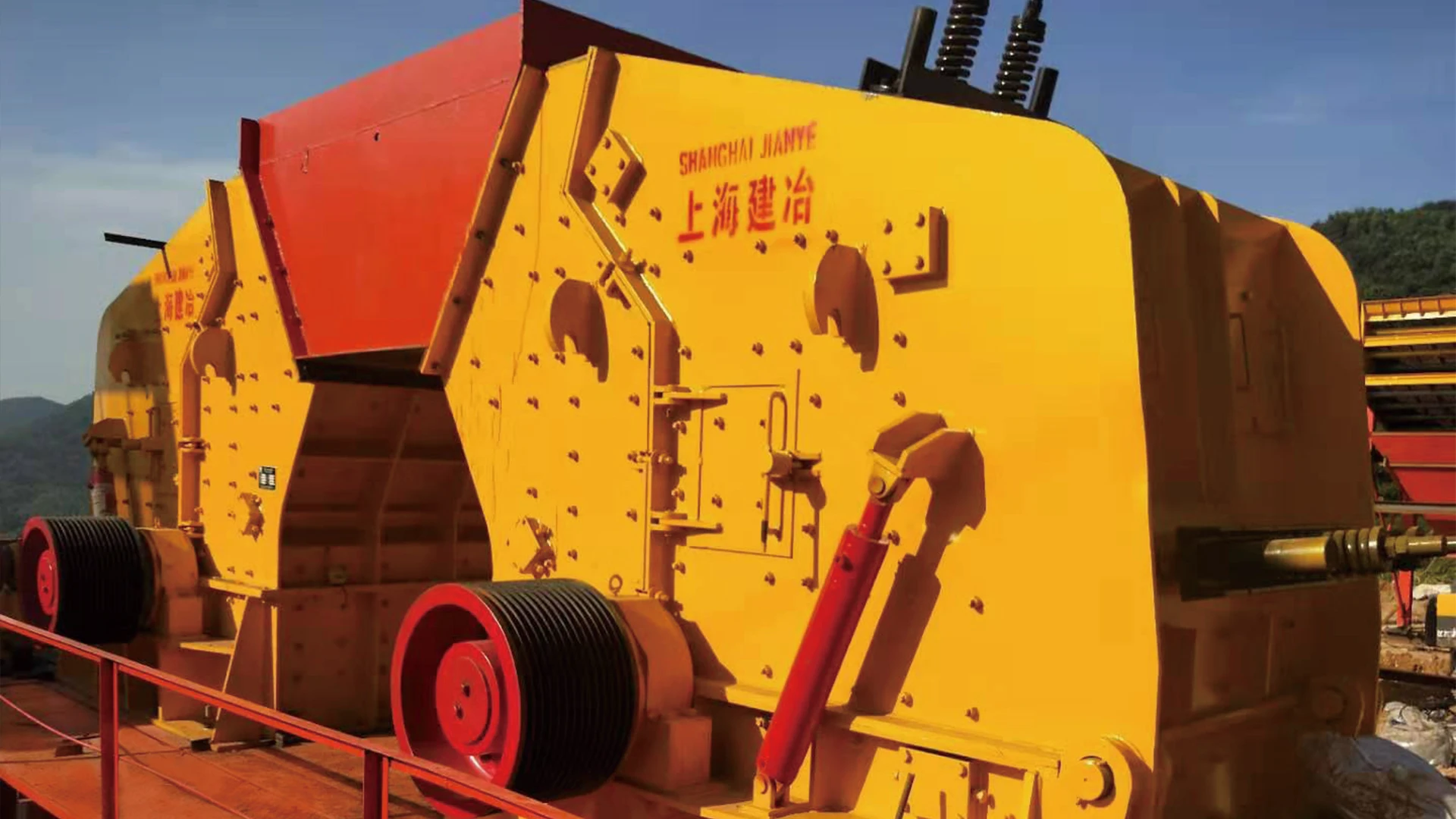

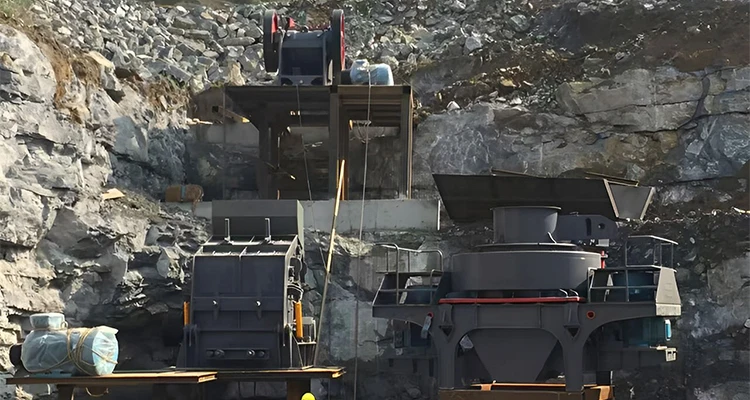

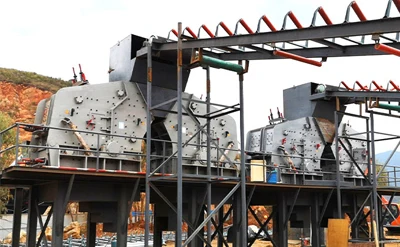

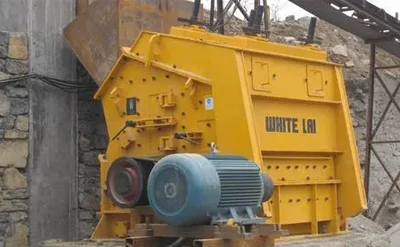

customer site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Poland, etc. and our products are well received by customers.
All machine has a 1-year quality assurance. As long as the machine has any problem (non-human factors) within one year, we will repair or change with new one for free. Please rest assured to buy and use!
Video introduction
Shanghai Jianye Heavy Industry Co., Ltd. is an international mining machinery supplier which is integrating manufacturing, R & D and sales. Its products include crushing and sand making equipment, industrial grinder mill, screening and washing equipment, mobile crushing plant etc. These equipment are mainly used in sand and stone aggregate processing, mining, construction waste recycling, industrial powder making, etc.
Our own factory
Product certification certificate
Wrapping and delivery
AFTER-SALES SERVICE AND CONCEPT
PRODUCTION LINE PROFILE
Our Company Has Reliable Products And Experienced Service Team. 1et The Internet Techinology Apply To Every Tache Of Pro-Duct Andoperation. Sale By Internate Actively, Provide The Atest Product Information And Technical Service. We Believyou-Not Only Need a Product, Butalso Good After Service. Based On The Techinology And Quality Products,We Would Provide The Gratfed, Save Worry, Disburden Service For Ouicustomers.PRE-SALE
1.Guide Our Customers To Deploy The Most Useful Equipment Item According To Theirs Requiryment.
2.Provide Technical Date,Including Equipment Bill, Layout, Base Specification And Installation Picture To Consult,
3.Design And Manufacture Product According To The Customers'Special Requestment.
4.Dispatch The Technical Person To Reach The Locale To Layout Field, Design The Best Installtion Flow And Scheme To Consult For Free.
3.Design And Manufacture Product According To The Customers'Special Requestment.
4.Dispatch The Technical Person To Reach The Locale To Layout Field, Design The Best Installtion Flow And Scheme To Consult For Free.
SALE
1 Product According To The Standard Of Technology Strictly. 2.Experiment The Machine By The Operating Regulate,
3.Verify The Product Before Leaving Factory Strictly, 4.Organize Shipping By The Contract In Time.
3.Verify The Product Before Leaving Factory Strictly, 4.Organize Shipping By The Contract In Time.
AFTER-SALES
1 Dispatch Special Worker After Service To Arrive Locale To Guide The User To Install And Debug, Experiment Circulate, Train Operating Persons For Free.
2. Guarantee Of Repair, Replacement And Refund Of Substandard Products, The Period Of Guarantee Is 1 Year(Except Abrasion In Normal, Wearing Parts, The Damaged Parts By Misoperation) If The Equipment Appears Fault During Guarantee, Our Company Woulde To Reach The Locale After Take The User's Telephone, Remove The Fault, Ensure The User's Produce Innormal.
