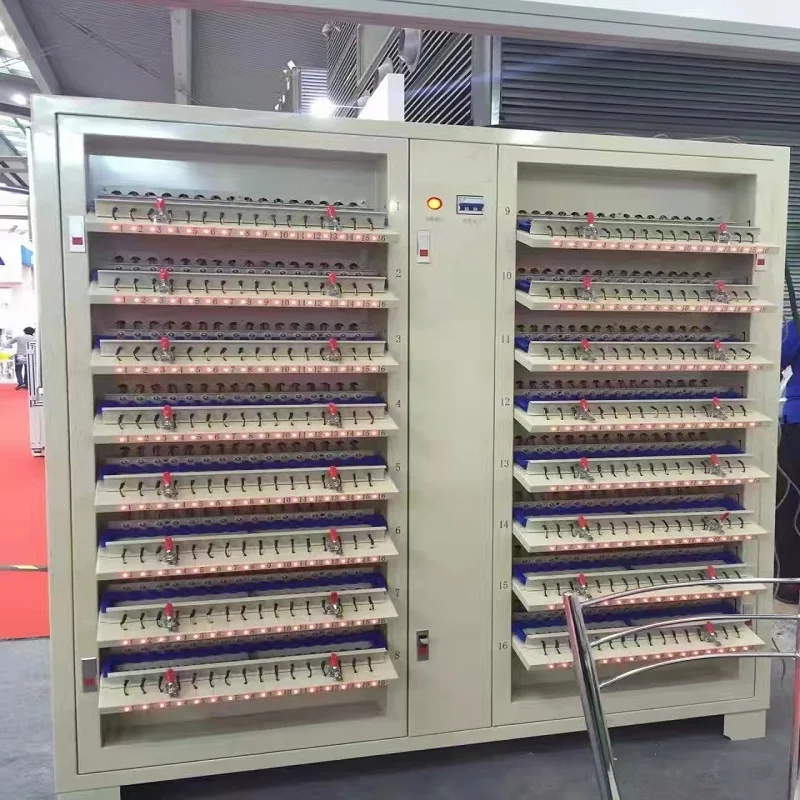

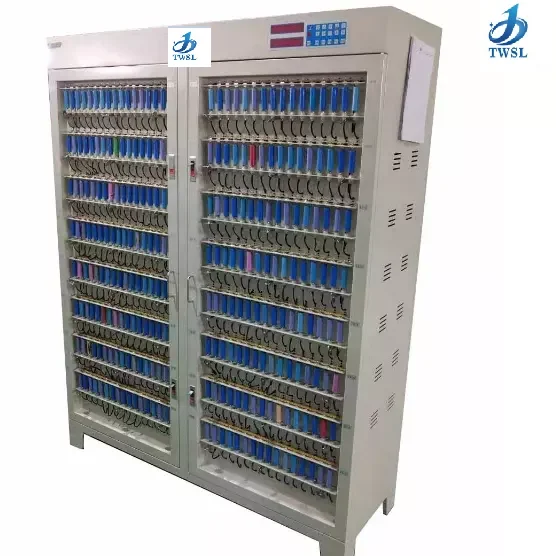

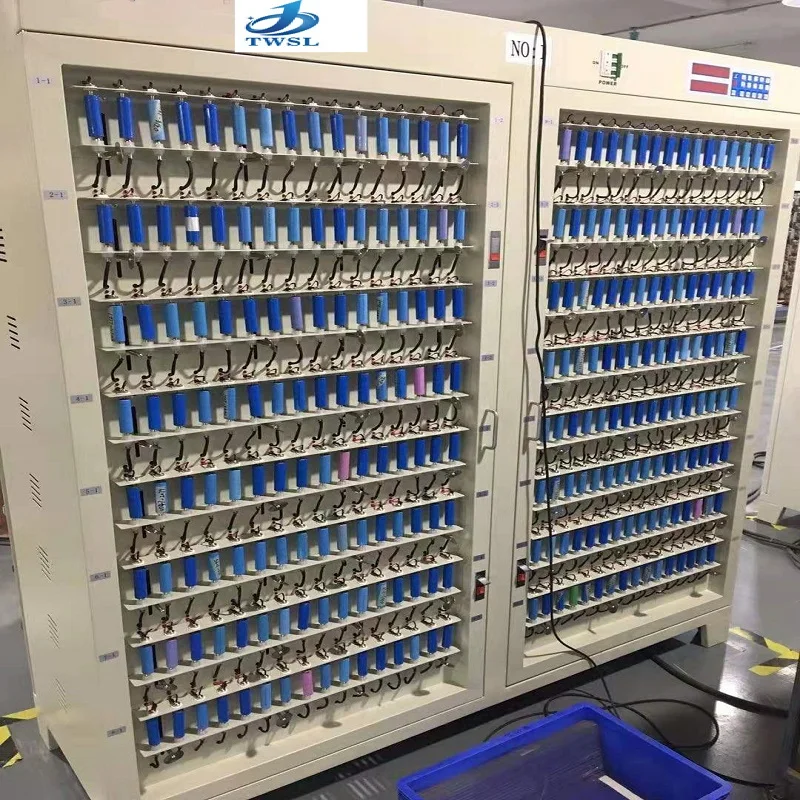

LiFePO4 Nca Ncm NiMH NiCd 18650 Lithium Battery 5V 3A 5A 6A 512 Channel Battery Charging and Discharging Machine

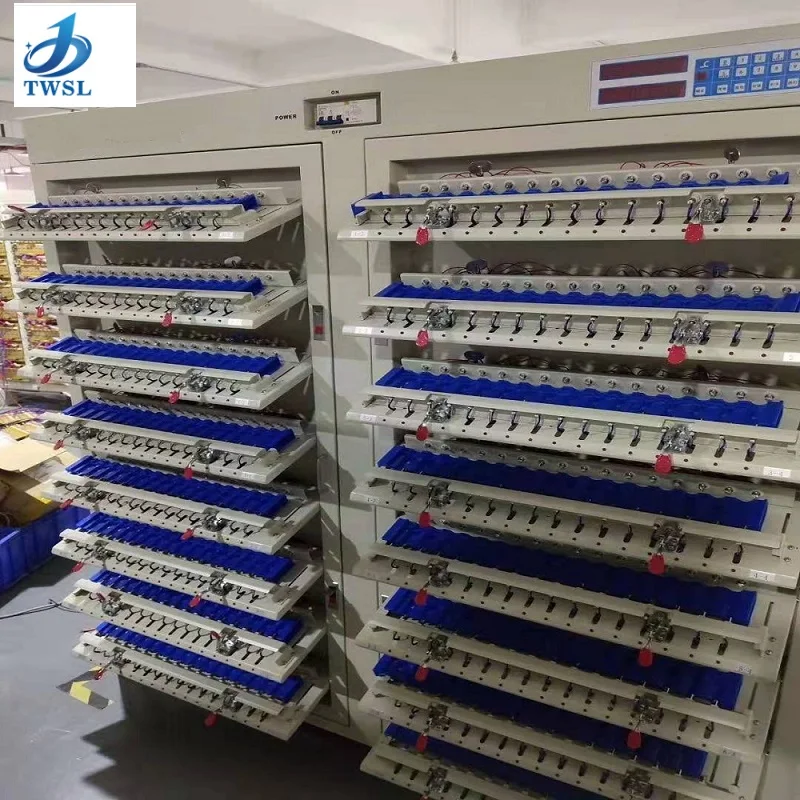

1. Cylindrical Cell Battery Capacity Analyzer mainly constitute by the computer system and control software,

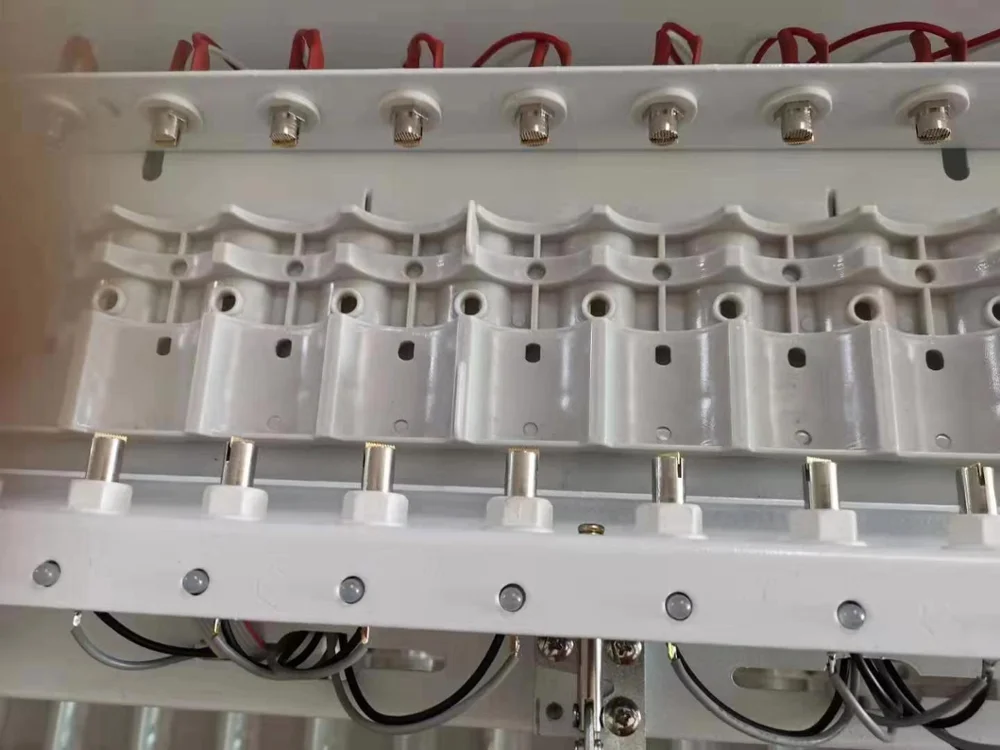

communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture,

charging, constant current and constant voltage source discharge constant current source, storage control circuit,

current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.

 Each device can conduct a constant current and constant voltage charging and constant flow electricity test on the battery that meets the voltage range.
2. The constant current constant voltage power supply of the patent of the present invention has no effect on the constant voltage switching,

which is particularly suitable for the requirements for charging lithium ion batteries.
3. The device uses the AVR single -chip microcomputer as the control center.

The external sampling circuit can be controlled by the upper machine. When connected to the computer,

it can save the complete charging and discharge curve of all channels, and can also be separated from the upper machine

to complete the operation through the control panel. Hengli constant voltage voltage charging, constant current discharge test, time sorting and other work.
4. Each battery has its own sources of constant current and constant pressure, and its own circuit will not affect each other
5. Detect each battery voltage in real time. When charging, the first constant current charging. When the battery voltage reaches the set value, it will be converted smoothly to constant voltage charging Essence During the constant current discharge process, when the battery voltage is lower than the set value, the discharge is completed, and the corresponding battery indicator light is on.
6. Have power -off protection function, you can continue the original workflow after calling.
7. The power supply tube uses 50N06, which is suitable for batteries that require lower discharge voltage, such as lithium iron phosphate batteries.
8. The upper machine can set 32 process parameters and 256 cycles. Each host can connect 1 to 20 single -chip machine systems (10 sets or less).
9. Support software function. 10.A) Use the graphic operation interface to display the voltage, current, time, capacity and other data of each battery, and display the corresponding working status and abnormal conditions in various colors;
1.B) Any segment battery capacity indication (up to 100 segments);
2.C) Data points can be recorded based on voltage, current, and time changes to form a complete charging and discharge curve data.

The time interval of the data point of the curve is ≤ 4 seconds.
1.D) A variety of conditions (capacity, time, opening voltage, discharge platform, etc.);
1.E) Automatic calculation of data such as constant current charging ratio, capacity loss, discharge efficiency,

average voltage, intermediate voltage and other data;
1.F) Operator permissions settings and classification operations;
2.G) Display the charging curve and circulating chart;

Customizable current range: 0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.

Customizable voltage range: 0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.

SPECIFICATIONS:
