GoKWh Transparent Lifepo4 Lithium Battery 12V 50Ah 100Ah 200Ah Akku Pack for RV Boat Home
- Category: >>>
- Supplier: Dongguan Lightning New Energy Technology Co. Ltd.
Share on (1600919795064):
Product Overview
Description
Welcome to customize OEM&ODM
Products Description

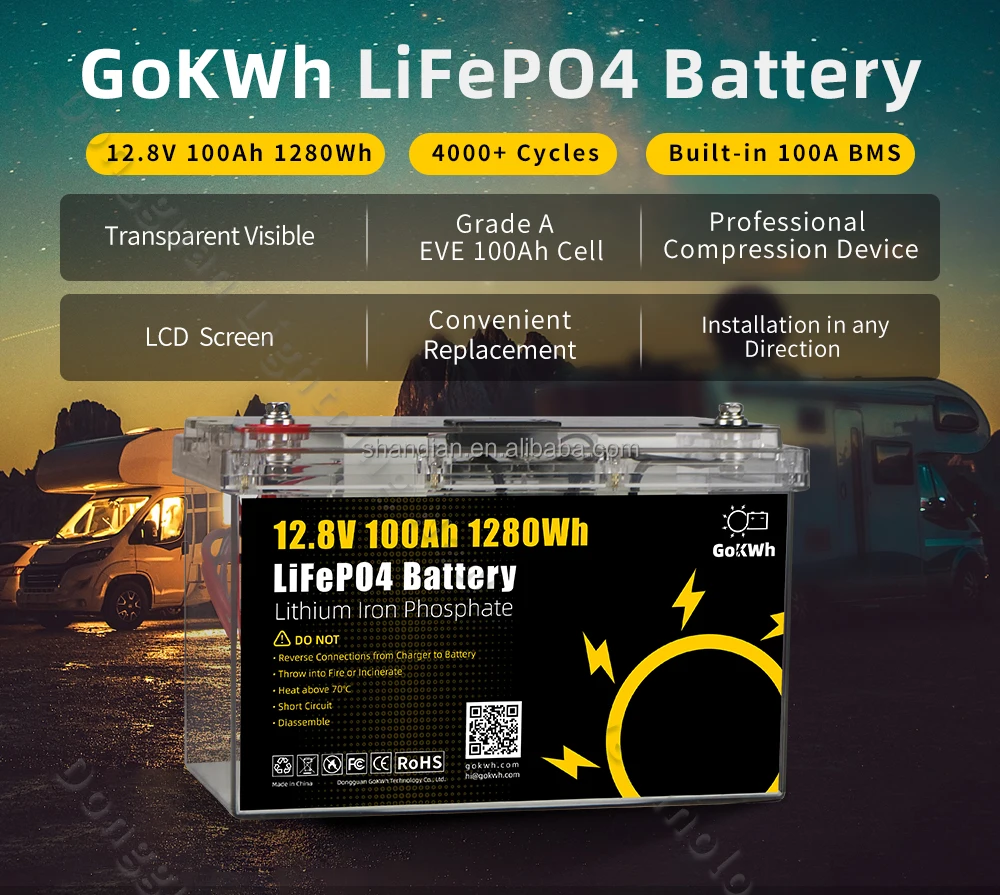

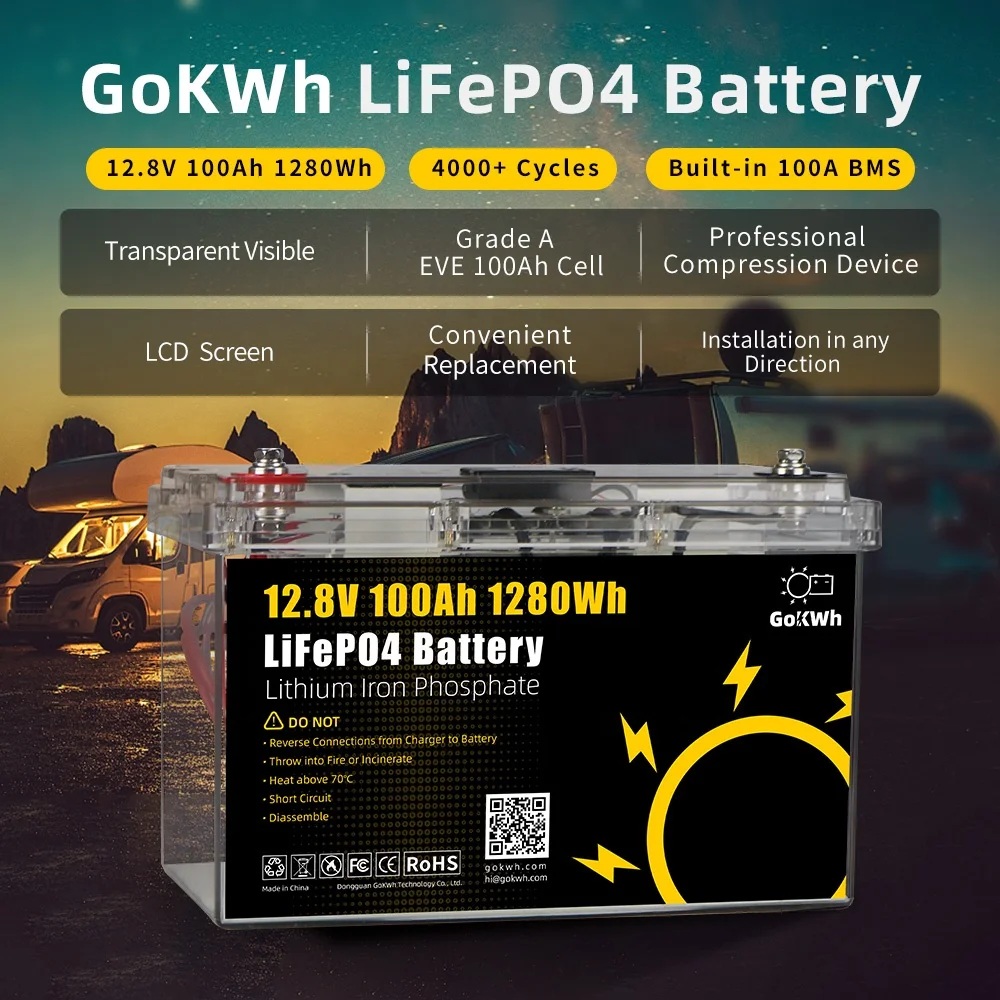

Overview | GoKWh LiFePO4 Battery 12.8V 100Ah 1280Wh | 4000+ Cycles | Built-in 100A BMS #Transparent Visible #Grade A EVE 100Ah Cell #Professional Compression Device #LCD Screen #Installation in any Direction | ||
Specifications | BASICAL SPECIFICATIONS | Model: 12V 100Ah | |
Rechargeable:Yes | |||
Cell Type:LiFePO4(LFP) Prismatic | |||
Dimensions: 339*185*218mm | |||
Case Material:Transparent ABS | |||
Warranty:5 Years | |||
ELECTRICAL SPECIFICATIONS | Nominal Voltage: 12.8V | ||
Nominal Capacity: 100Ah | |||
Dimension and Weight | Nominal Energy: 1280 Wh | ||
Standard Charge Voltage: 14.4±0.2 V | |||
Max Charge Current: 100A | |||
Discharge Cut-Off Voltage: 10V | |||
Max Discharge Current: 100A | |||
Internal Resistance: ≤30mΩ | |||
PERFORMANCE SPECIFICATIONS | Cycle Life: ≥4000 Times (80%DoD) | ||
Service Life: 10 Years (25°C/77°F） | |||
Charge Temperature Range: 0~50°C (32~122°F) | |||
Discharge Temperature Range: -20~60°C (-4~140°F) | |||
Protection: IP65, Built-in BMS | |||
For More Specification Click Here

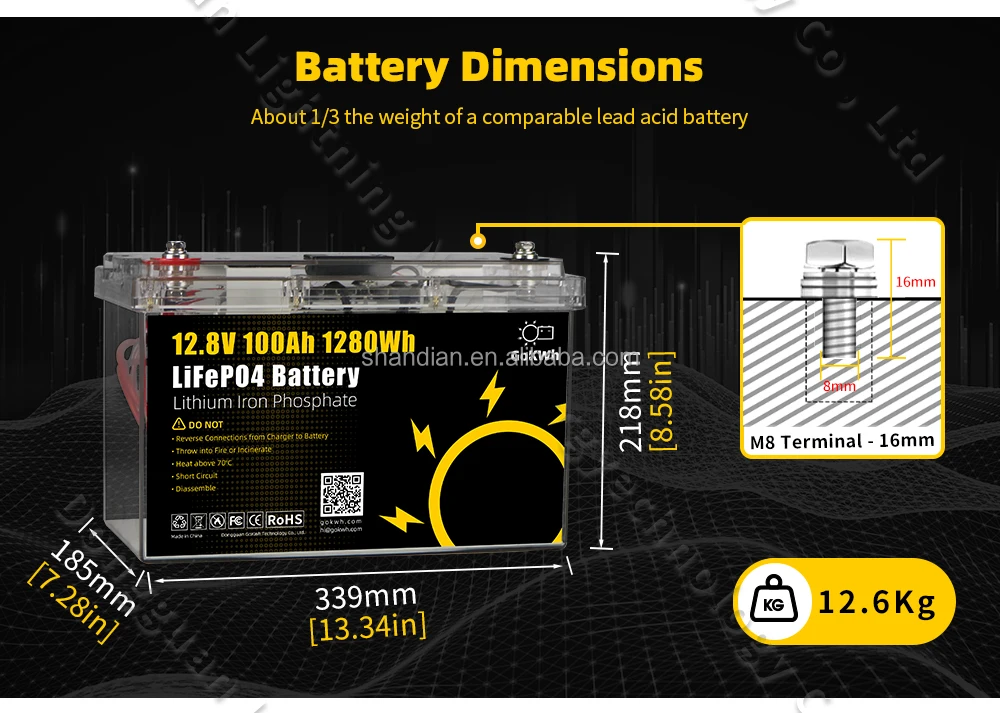

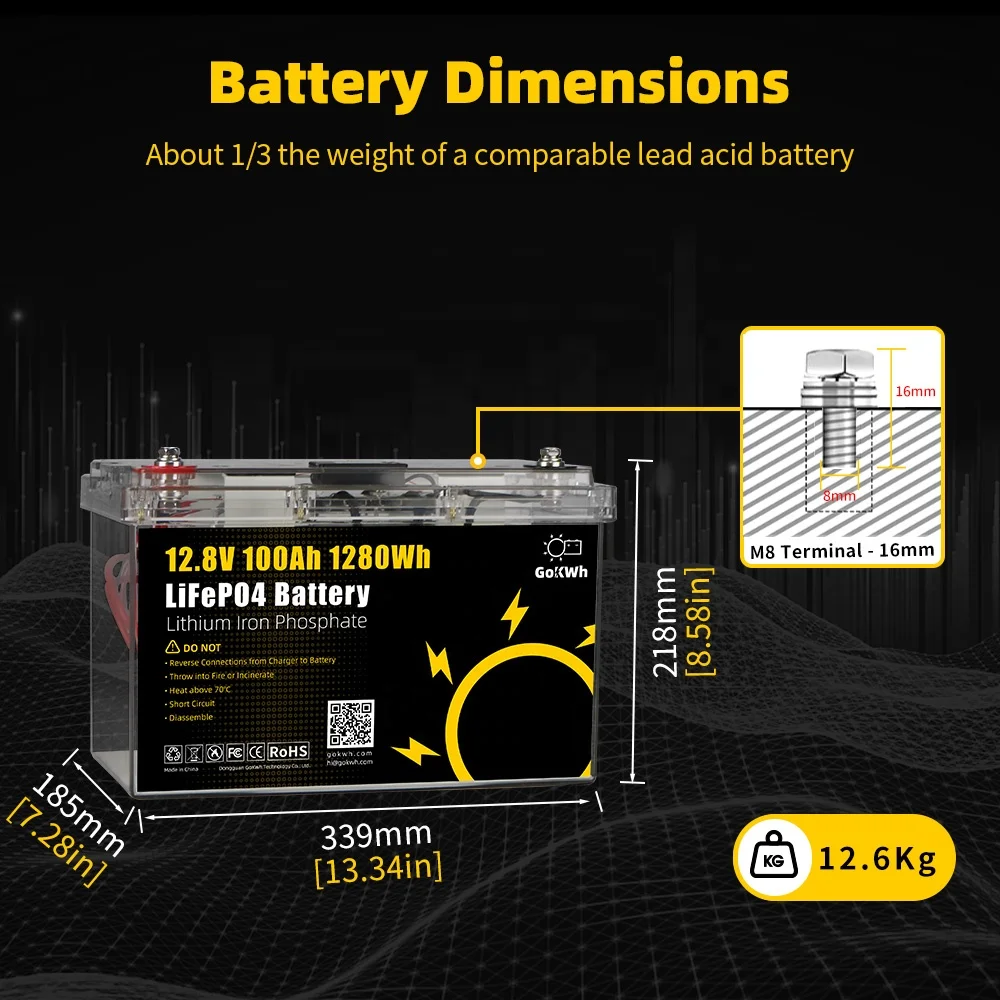

Battery Dimensions
About 1/3 the weight of a comparable lead acid battery.
M8 Terminal - 16mm
M8 Terminal - 16mm
Why Choose Us
GoKWh VS Others
Transparent Visible
LiFePO4 Grade A EVE 100Ah Cell
Professional Compression Device
Installation in any Direction
8-10 Years Life Time
1/3 Heavy of Lead Acid
2/3 Size of Lead Acid
100% DOD High rate diacharge ability
ECO-Friendly & Green
Genuine LiFePO4 Prismatic Cell

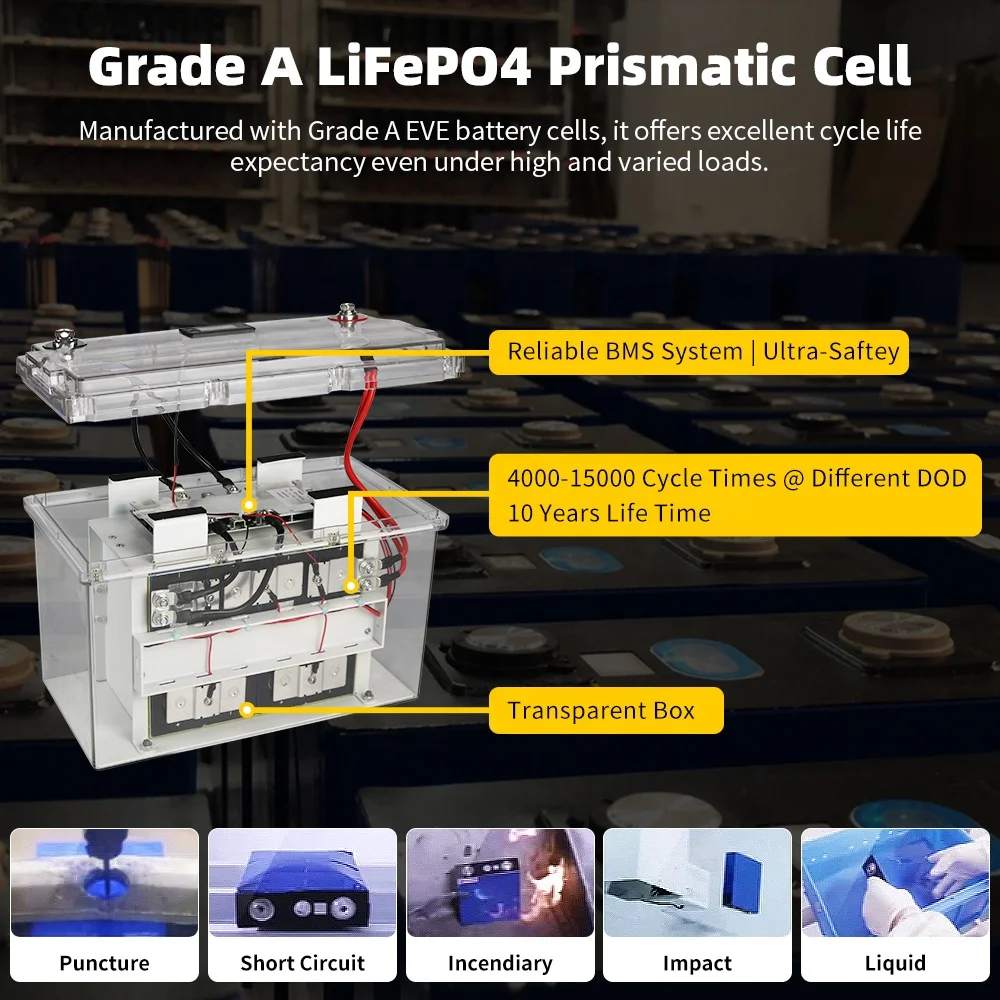

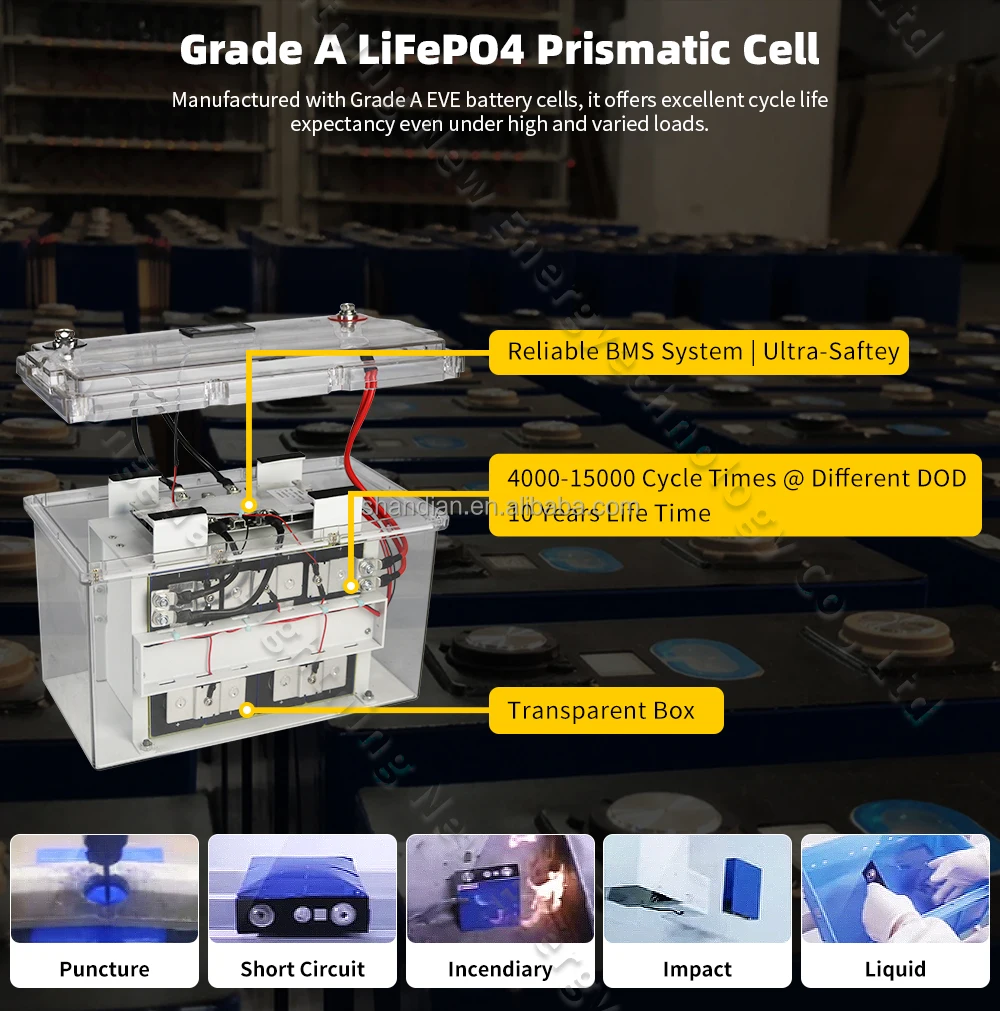

Grade A LiFePO4 Prismatic Cell
Manufactured with Grade A EVE battery cells, it offers excellent cycle life expectancy even under high and varied loads.
4000-15000 Cycle Times @ Different DOD
10 Years Life Time
Manufactured with Grade A EVE battery cells, it offers excellent cycle life expectancy even under high and varied loads.
4000-15000 Cycle Times @ Different DOD
10 Years Life Time

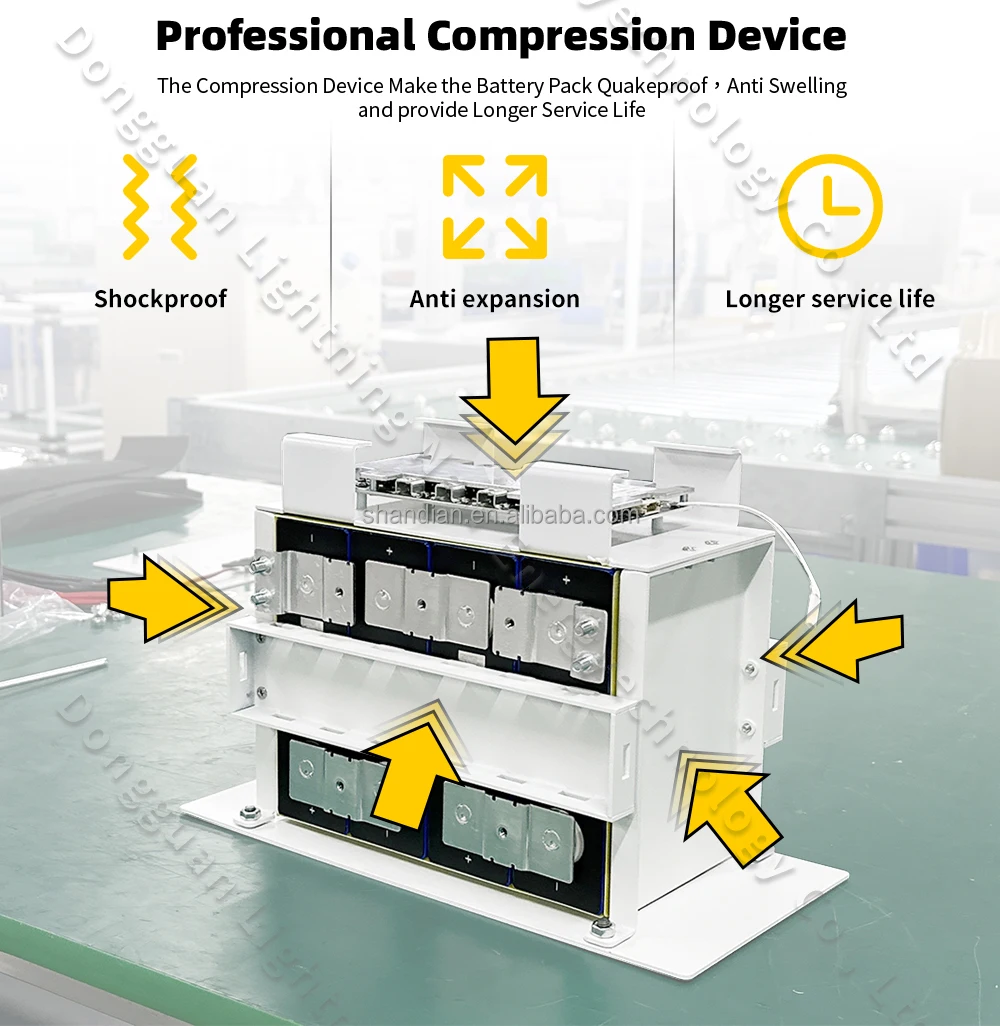

Professional Compression Device
The Compression Device Make the Battery Pack Quakeproof，Anti Swelling and provide Longer Service Life

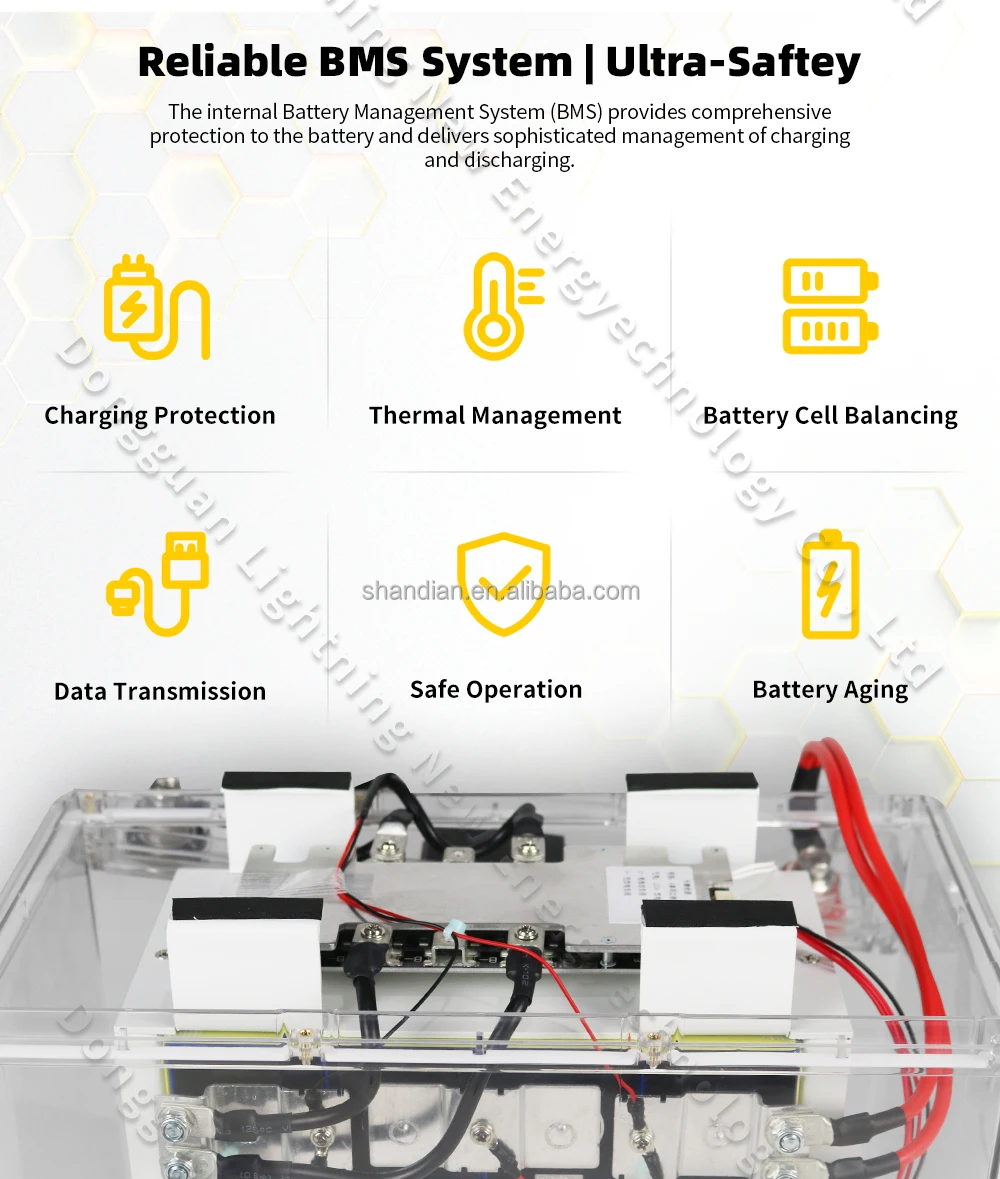

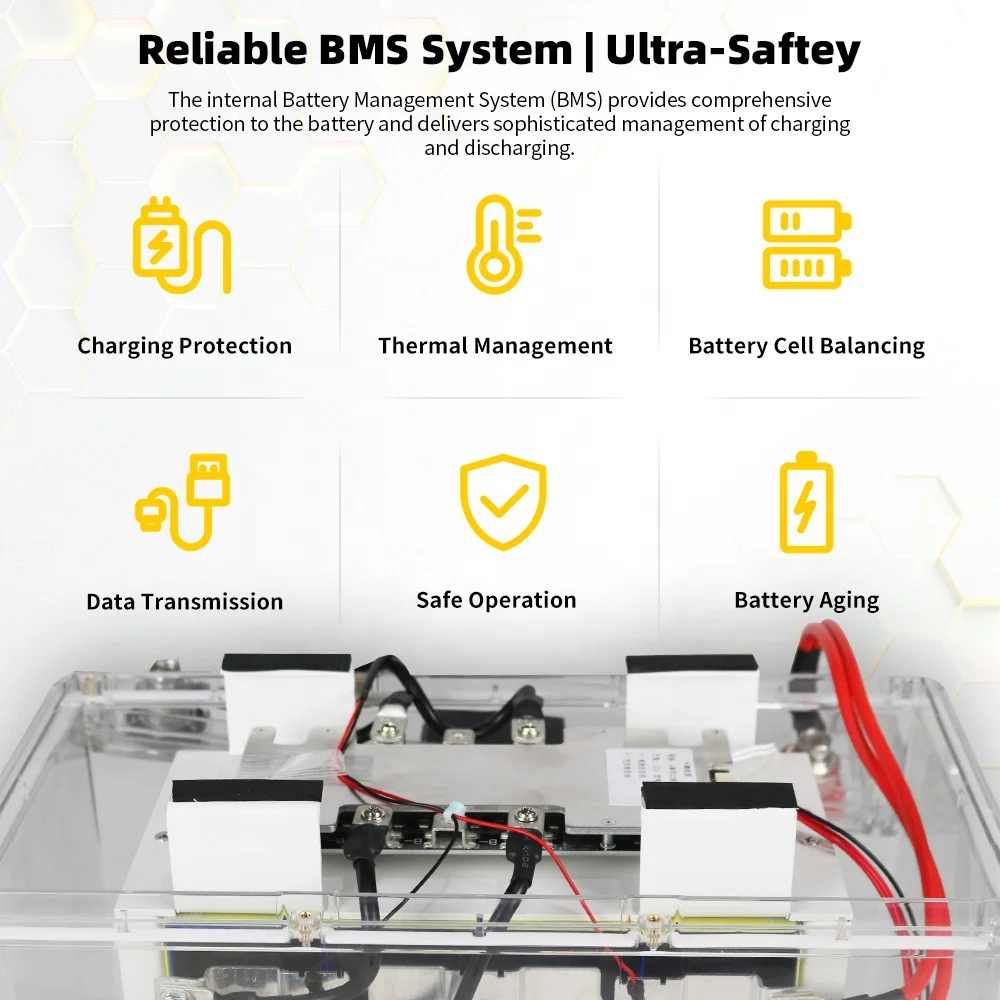

Reliable BMS System | Ultra-Saftey
The internal Battery Management System (BMS) provides comprehensive protection to the battery and delivers sophisticated management of charging and discharging.
Charging Protection
Thermal Management
Battery Cell Balancing
Data Transmission
Safe Operation
Battery Aging
Thermal Management
Battery Cell Balancing
Data Transmission
Safe Operation
Battery Aging

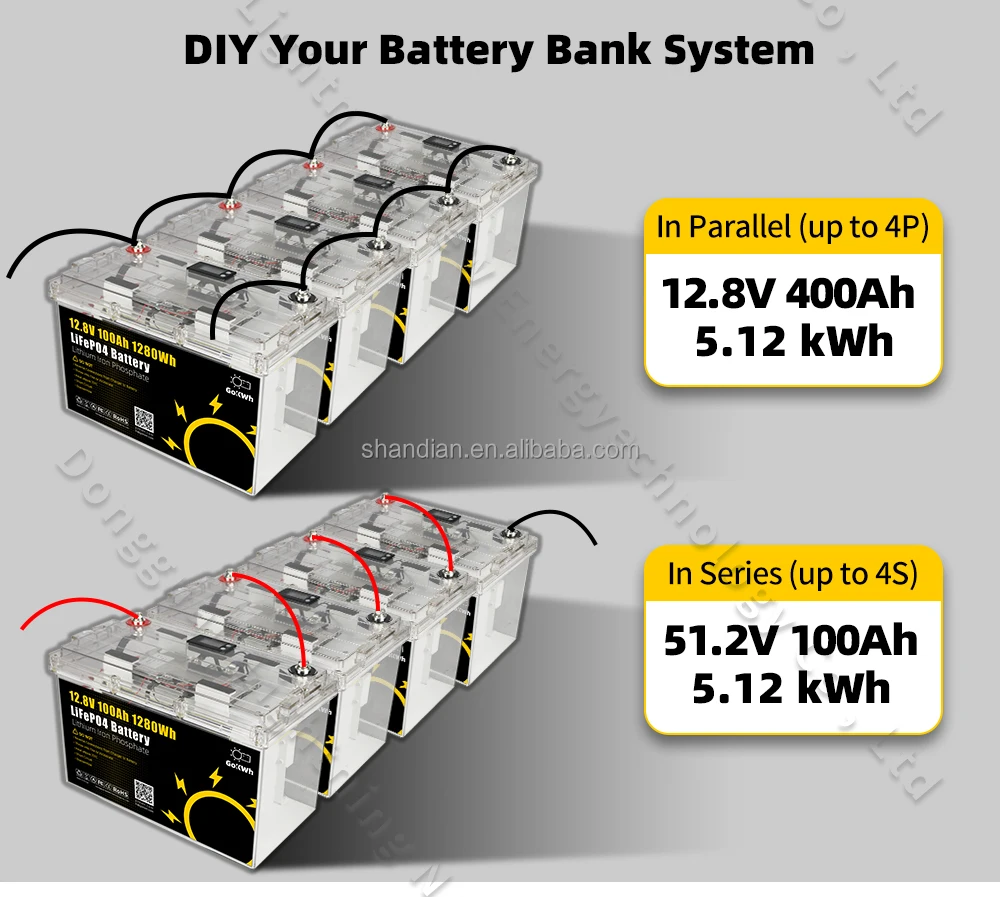

DIY Your Battery Bank System
In Parallel (up to 4P)
12.8V 100Ah | 5.12 kWh
In Series (up to 4S)
51.2V 100Ah | 5.12kWh
12.8V 100Ah | 5.12 kWh
In Series (up to 4S)
51.2V 100Ah | 5.12kWh
Due to the limitations of BMS, the default model does not support series and parallel connection at the same time. If necessary, please contact our Sales
Note
Not A Starting/Power Battery
• Do not use it as a starting battery
• Do not use it to run Golf Cart
• Charge the battery between 32°F and 122°F
Series/Parallel Tips
• The same model (capacity & voltage & BMS)
• The same brand
• Recent purchases (within 3 months)
• Do not use it as a starting battery
• Do not use it to run Golf Cart
• Charge the battery between 32°F and 122°F
Series/Parallel Tips
• The same model (capacity & voltage & BMS)
• The same brand
• Recent purchases (within 3 months)
High Output Power
Suitable for A Variety of Home or Outdoor Devices
1280Wh Uasble Energy
1280Wh Uasble Energy
3 Ways to Recharge The Battery
• Charger
12V(14.6) 20A LiFePO4 Battery Charger: 5hrs
• Solar Panel + MPPT
Recommend ≥400W Within 1 sunny day
• Generator
Add a 20A DC to DC Charger: 5hrs
* Please make sure your charger supports lithium batteries.
* Due to the difference in charging voltage, it is recommended to choose only one method of charging at a time.
12V(14.6) 20A LiFePO4 Battery Charger: 5hrs
• Solar Panel + MPPT
Recommend ≥400W Within 1 sunny day
• Generator
Add a 20A DC to DC Charger: 5hrs
* Please make sure your charger supports lithium batteries.
* Due to the difference in charging voltage, it is recommended to choose only one method of charging at a time.

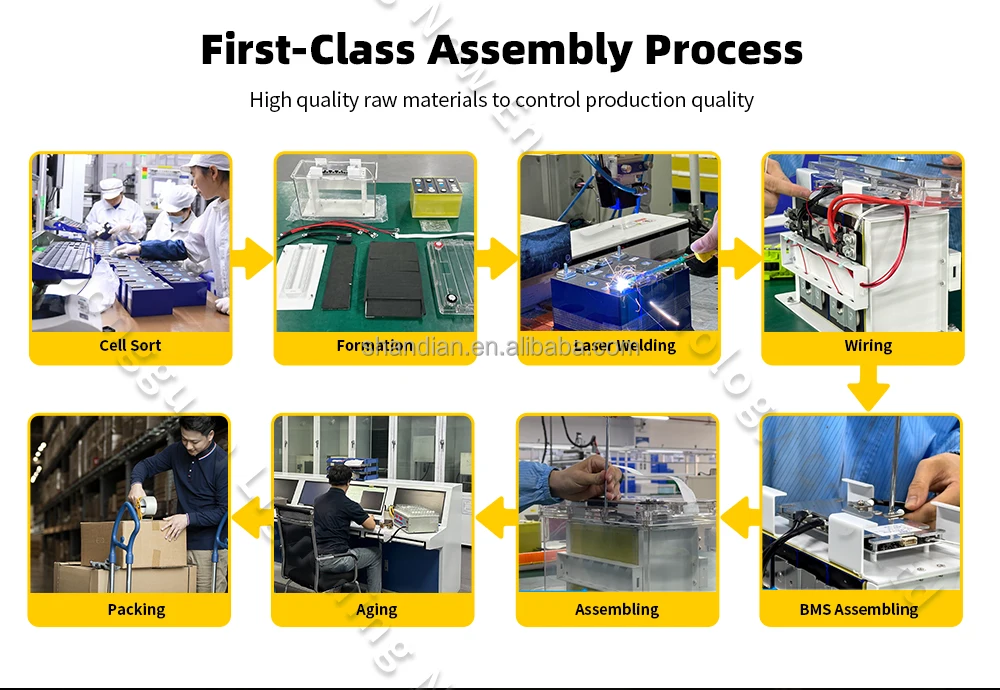

First-Class Assembly Process
Cell Sort —Formation —Laser Welding—Wiring—BMS Assembling—Assembling—Aging Test—Packing
What's in the box
1 * GoKWh Transparent 12V 100Ah LiFePO4 Battery
2 * Insulation Caps
2* M8 Post Bolts
1 * User Manual
2 * Insulation Caps
2* M8 Post Bolts
1 * User Manual

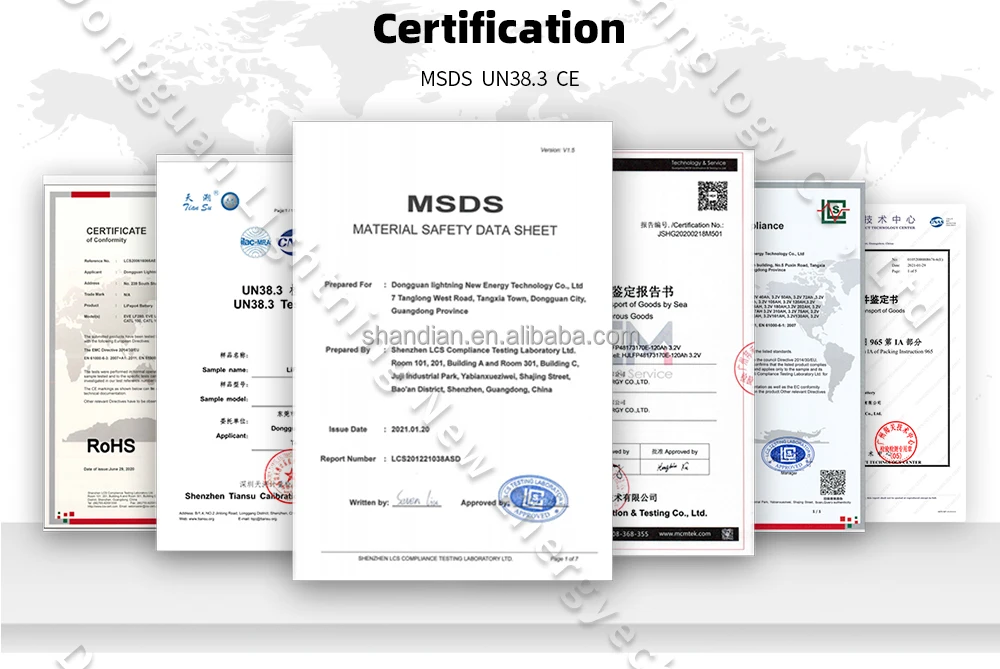

Certification
MSDS UN38.3 CE
Shipping&Delivery
Total Delivery Time = Handling Time + Transit Time (+ any holidays and weekends)
Purchase Region | Warehouse | Shipping Option | Handling Time | Estimated Delivery Time | ||||
USA/Canada | USA/CA | FedEx/DHL/UPS | 1~7 working days | 2~7 working days | ||||
CN | By sea+Express(FedEx/DHL/UPS, Tax free) | |||||||
EU Country | DE(*2)/PL | DPD/UPS/TNT | 2~7 working days | |||||
CN | By railway or sea+Express(DPD/UPS/TNT, Tax free) | |||||||
Asia | CN | By sea/railway+Express(DPD/Toll/UPS/FedEx/TNT, most country are Tax free) | 1~7 working days | 25~60 working days | ||||
Australia or other | CN | |||||||
We can't deliver the following address directly | ||||||||
A | USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online. | |||||||
B | Portugal: Azores and Madeira | |||||||
C | Spain:Canary Islands, hueda,Missily and melilia and some other Island | |||||||
D | Russia: Kamchatka Peninsula | |||||||
E | Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check. | |||||||
Noted: *The above transportation time is only the reference time of most orders, excluding inspection time or other special time,such as natural accidents, congestion and other uncontrollable factors.*The tracking will be update after pick up by local express. Please wait patiently or contact us for help. *Countries that do not appear in the table, Please Clickhttps://shandian.en.alibaba.com/contactinfo.html Here to consult us for freight charges | ||||||||
FAQ
1). Q: I need more function such Bluetooth and LCD screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
2).Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
3).Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
4).Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
5).What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
6).Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use and no any additional device.
2).Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
3).Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
4).Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
5).What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
6).Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use and no any additional device.
Pls kindly know due to the limitations of BMS, the default model does not support series and parallel connection at the same time.
