Switching Power Supply Led Strip Light Transformer12v 24v 20watts 40watts 60watts Phase Dimming Pool Light Transformers For Neon
- Category: >>>
- Supplier: Shenzhenshi Zhenhuan Electronic Co. Ltd.
Share on (1600919870074):
Product Overview
Description
Products Description
switching power supply led strip light transformer12v 24v 20watts 40watts 60watts Phase dimming pool light transformers for neon lights

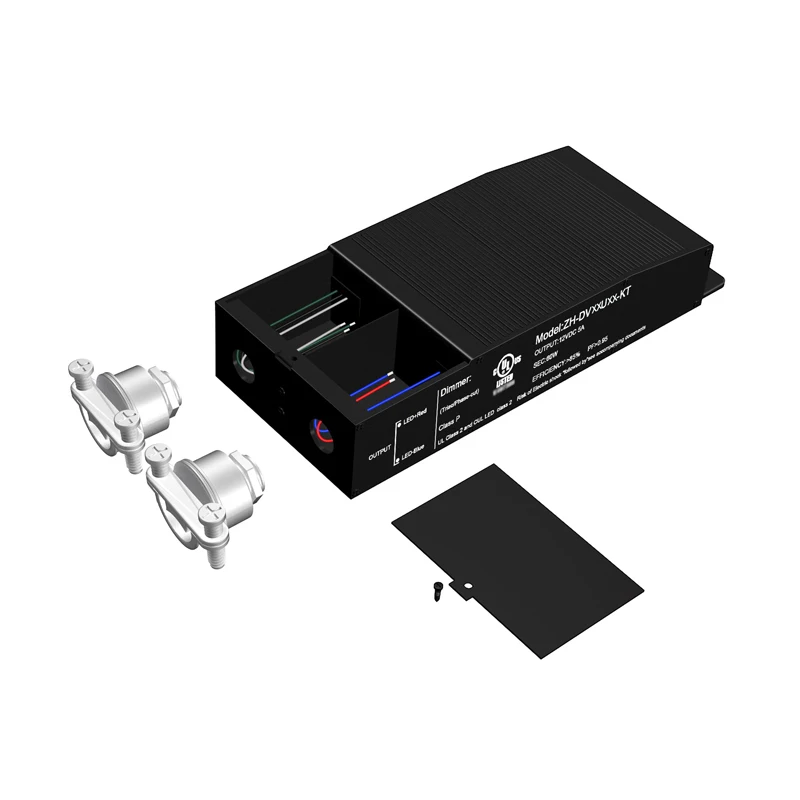

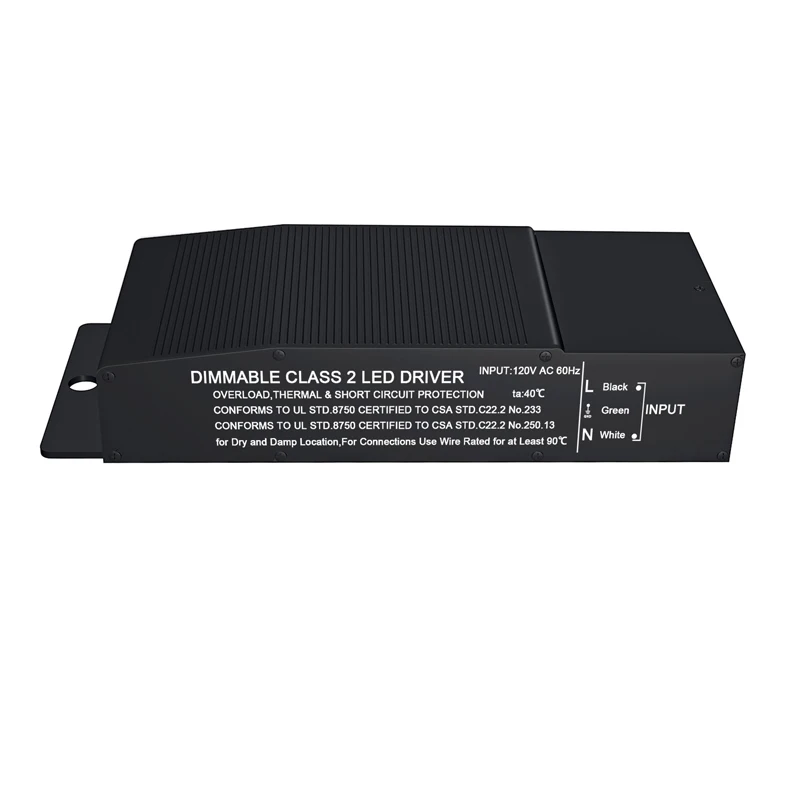

The KSPOWER - NT series triac dimmable led driver 20 40 60 Watt is one constant voltage solution, single channel, accept AC input voltage 120V, output voltage 12Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 12V dimming transformer use low profile metal aluminum case, dry and damp, makes the dimmable led drivers solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and NEMA 3R waterproof environment protection rated for indoor or outdoor use, the phase dim led driver provide 5 years warranty and outstanding led dimming performance.
Input Voltage | 120V & 230VAC | ||||||
Power Factor | PF≧0 95/120VAC at 80% load | ||||||
NO. | KSNT | ||||||
Output Voltage | 12V/24V | ||||||
Rated Current | 0.84A-5A | ||||||
Rated Power | 20W 40W 60W | ||||||
Ripple &Noise(max.) | 200mVp-p / 250mVp-p | ||||||
Dimension(L*W*H) | 177*70*35mm/6.97*2.76*1.38in | ||||||
Festures:
Dimmable with any standard MLV TRIAC (Leading edge) dimmer switch● Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides
● 12V/24V PWM Output
● Single Channel & Constant Voltage mode
● Flicker-Free

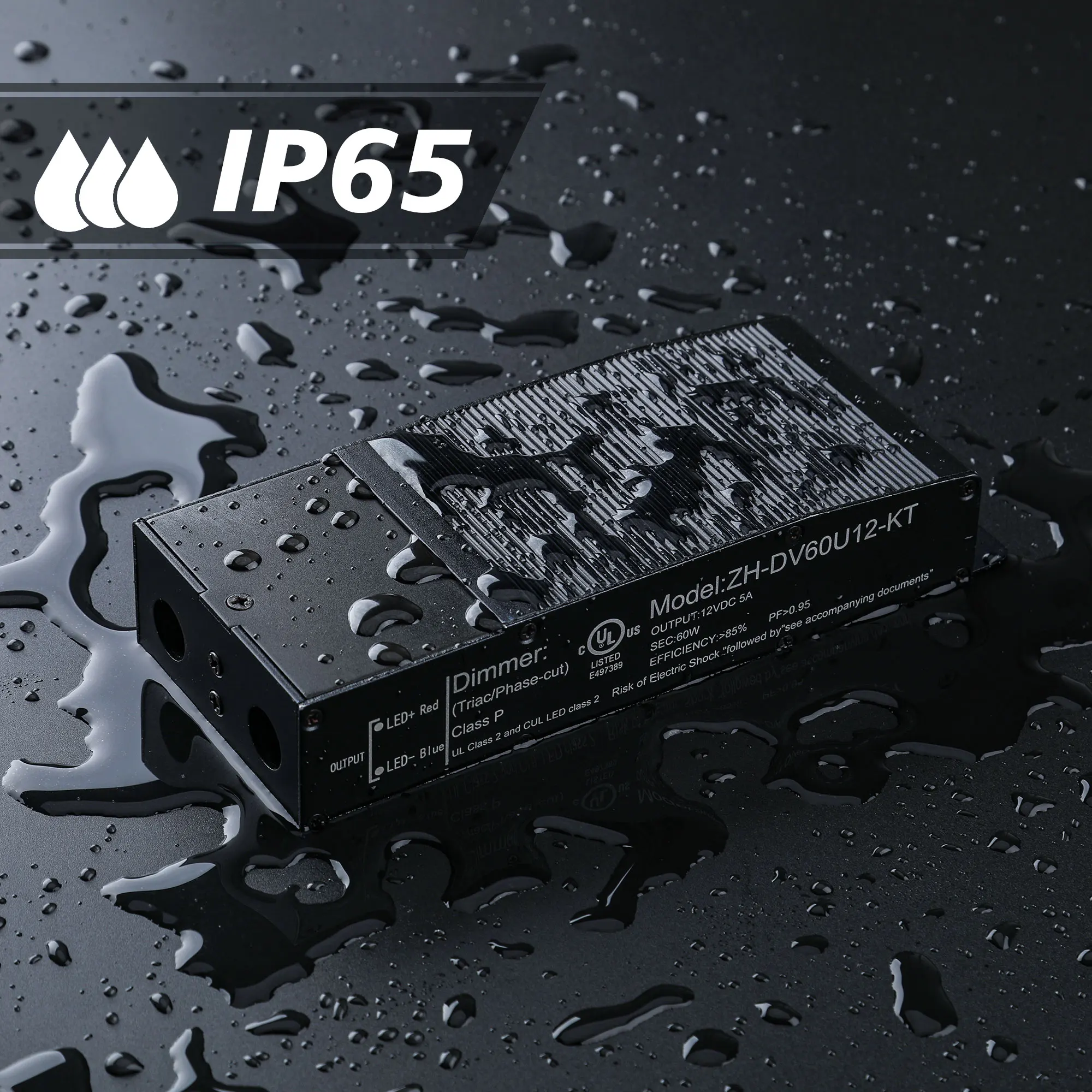

● Nema 3R Enclosure – Outdoor Use
● Two bottom knockouts
● Optional 10% voltage boost to compensate for voltage drop
● Nema 3R Enclosure – Outdoor Use
● Two bottom knockouts
● Optional 10% voltage boost to compensate for voltage drop
● Current Limiting Overload Protection
● UL/cUL 8750 CLASS2 CE Cert.
● UL/cUL 8750 CLASS2 CE Cert.
● Certified to CSA Standard
● Waterproof,for Dry, Damp, Wet Location
● 5 Years Warranty
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Dimmer Model | Drivers | Dimmer Model | Drivers | Dimmer Model | Drivers |
LUTRON DV-600P | No Flicker | LUTRON MSC-600M | No Flicker | LEVITON IP106-ILZ | No Flicker |
LUTRON D-603PGH | No Flicker | LUTRON V-600 | No Flicker | LEVITON DSE06-102ELV | No Flicker |
LUTRON MAELV-600 | No Flicker | LUTRON PD-6WCL | No Flicker | LEVITON DSL06-ILZ | No Flicker |
LUTRON VT-600M | No Flicker | LUTRON SELV-300P | No Flicker | LEVITON DDL06-BL | No Flicker |
LUTRON NT-603P | No Flicker | LUTRON MIRELV-600M | No Flicker | LEVITON DD710-BD | No Flicker |
LUTRON NTLV-603P | No Flicker | LUTRON SPS-600 | No Flicker | LEVITON IPL06-10 | No Flicker |
LUTRON N-2003P | No Flicker | LUTRON SPS-300LD-RP | No Flicker | LEVITON IP710-DL | No Flicker |
LUTRON DVCL-153P | No Flicker | LEVITON 6613-PLW | No Flicker | LEVITON RDL06-10 | No Flicker |
LUTRON S-600P | No Flicker | LEVITON 6681 | No Flicker | LEVITON TSM10-1L | No Flicker |
LUTRON CTCL-153P | No Flicker | LEVITON 6633-P0G | No Flicker | LEVITON 66EV | No Flicker |
Company Profile
Working Room
Exhibition
Certifications
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 50 | 0.26 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
155*85*35 | 455*370*175 | 14 |
