70V/80V/90V/100V/120V~250V Ultra Low Input Automatic Voltage Stabilizer / regulator SVC 30KVA, Estabilizador de voltaje

Product Overview

Description

Ultra Low Input Voltage Automatic Voltage Stabilizer / Regulator



1. Feature:
The series product is a servo-motor type high accuracy household AC Automatic Voltage Stabilizer regulator AVR, the low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.

2. Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.

3. Specification:
Phase No.: Single phase/1 Phase
Input voltage: Customized Ultra Low Input voltage, wide input range: 70V~250V, 80V~250V, 90V~250V, 100V~250V, 120V~250V optional
Output voltage: 220VAC/110VAC(1kVA~5kVA); 220VAC(7.5kVA~30kVA)
Accuracy of voltage: +/-2.5%
Frequency: 50Hz/60Hz
Efficiency: >90%
Response time: <1.5s against 10% input voltage deviation
Ambient Temperature: -10C~+40C
Insulation resistance: >2MΩ
Waveform distortion: Non-additional waveform distortion
Protection function: Over voltage, over current, overloading and delay etc.

4. Remarks:
Custom-made specifications are acceptable.



5. Models:

Model	Rated Power	Package Size(Approx. )	Qty. Per Pkg
SVC-1000VA	1000VA	50*29*40CM	4PCS/PKG
SVC-2000VA	2000VA	62*34*27CM	2PCS/PKG
SVC-3000VA	3000VA	37*28*32CM	1PC/PKG

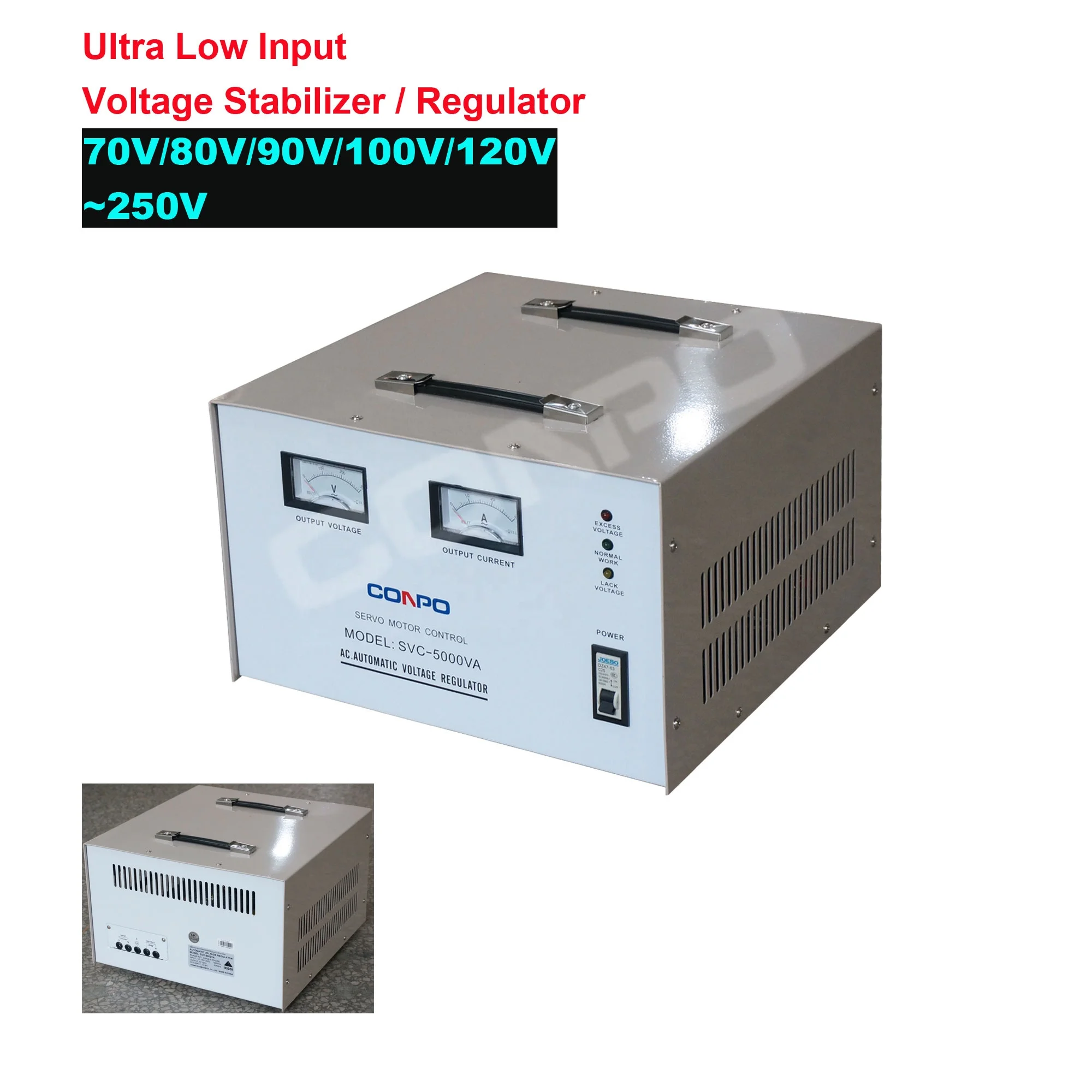

SVC-5000VA(Desk type)	5000VA	44*46*30CM	1PC/PKG

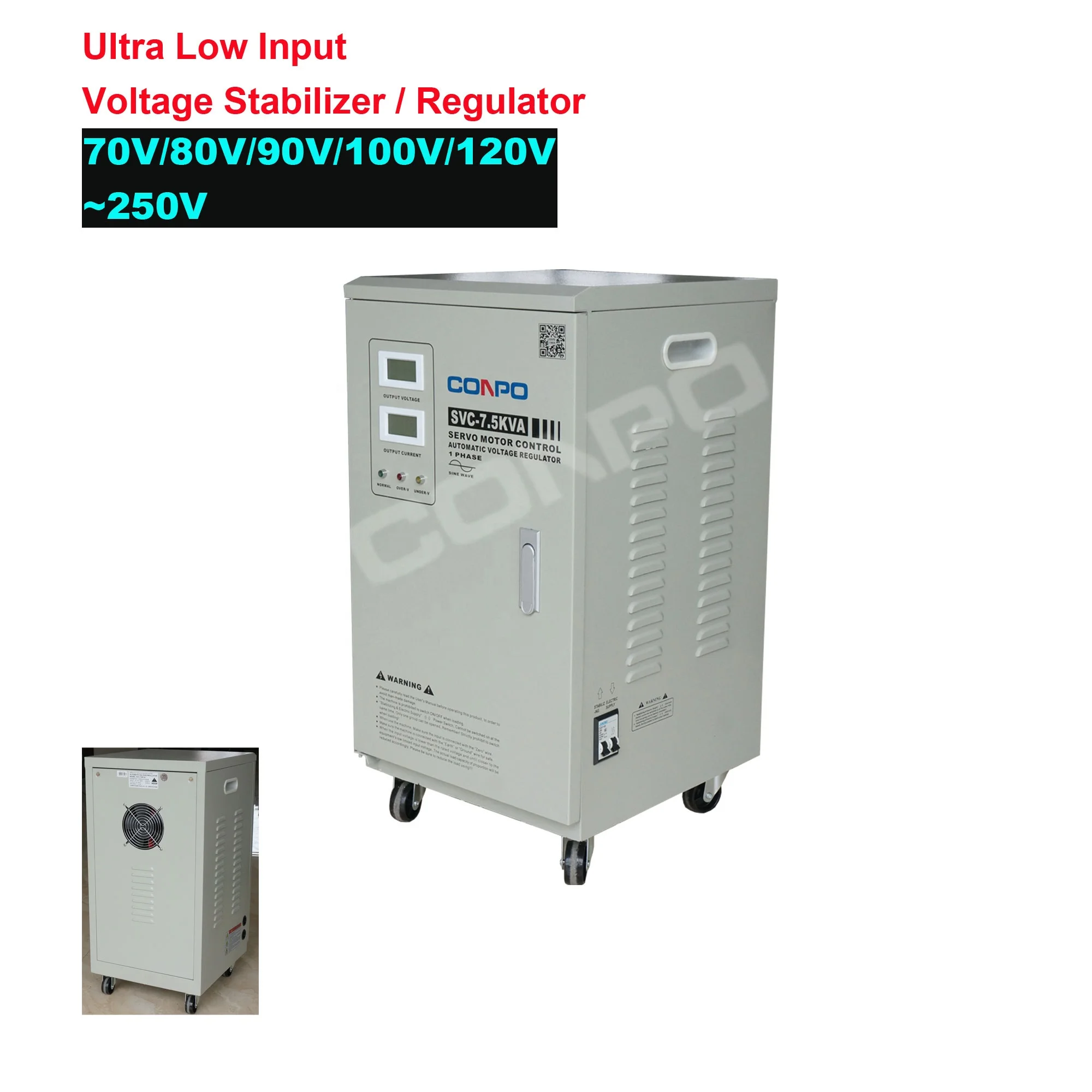

SVC-7.5KVA(Vertical type)	7.5KVA	39*43*75CM	1UNIT/PKG

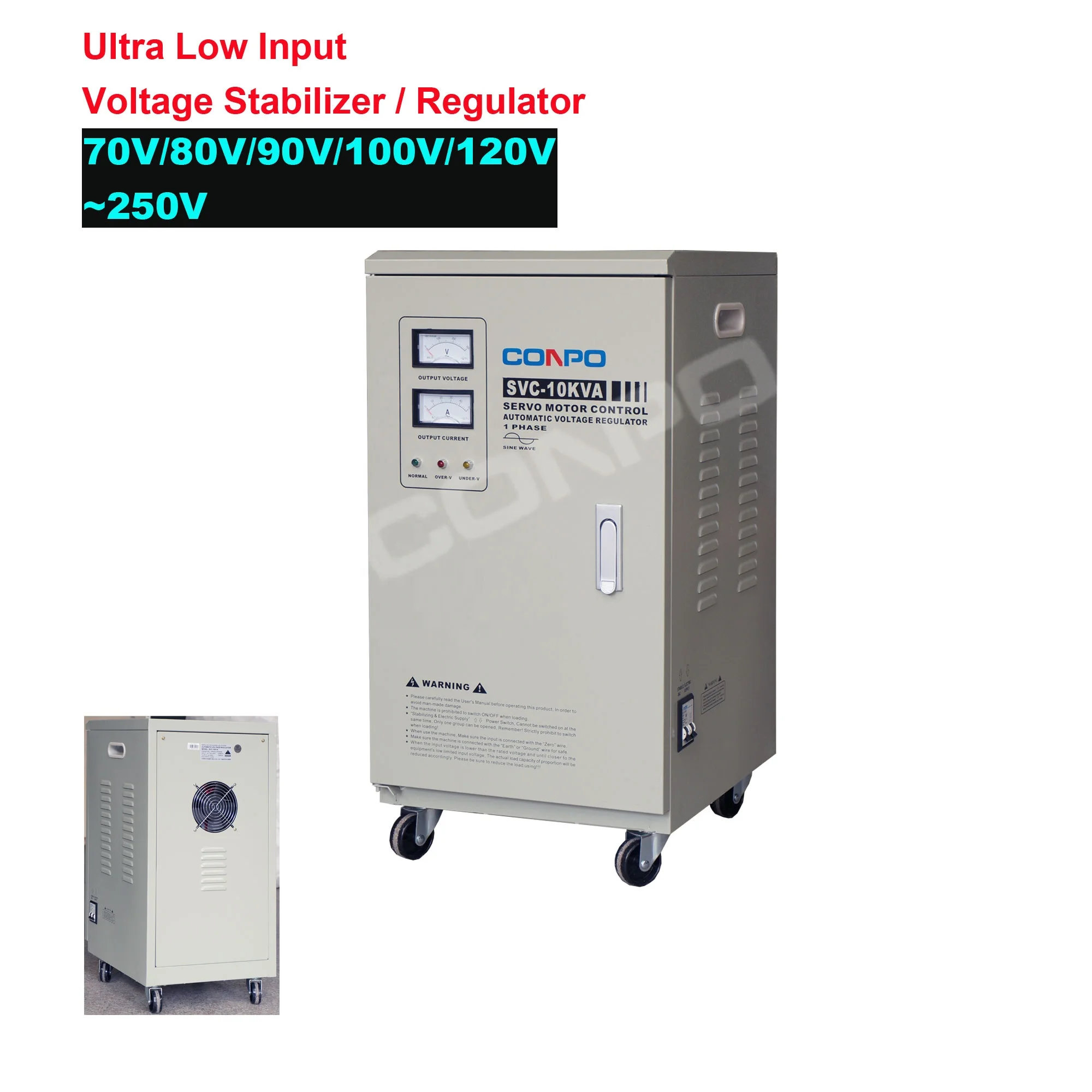

SVC-10KVA(Vertical type)	10KVA	39*43*75CM	1UNIT/PKG

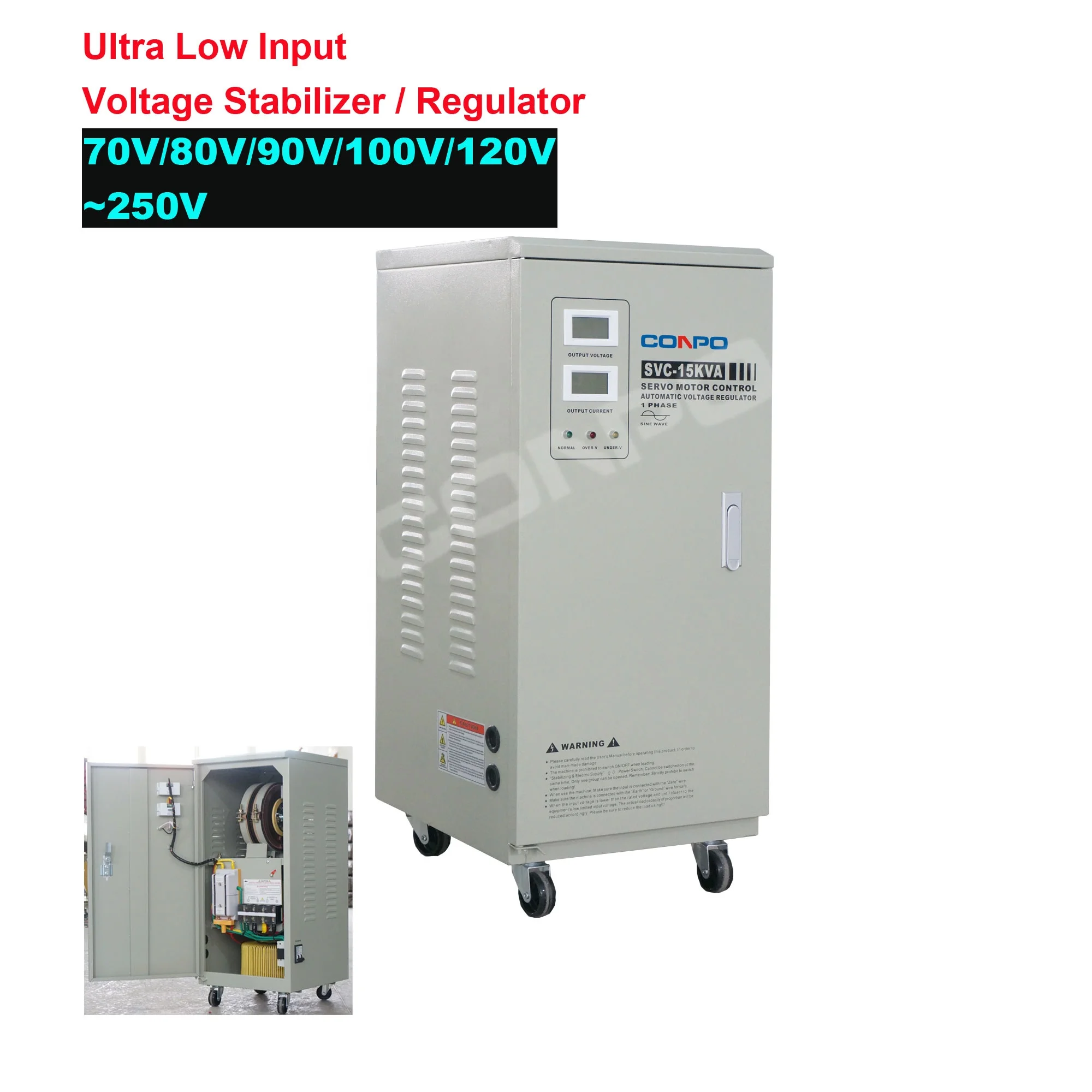

SVC-15KVA	15KVA	39*43*85CM	1UNIT/PKG

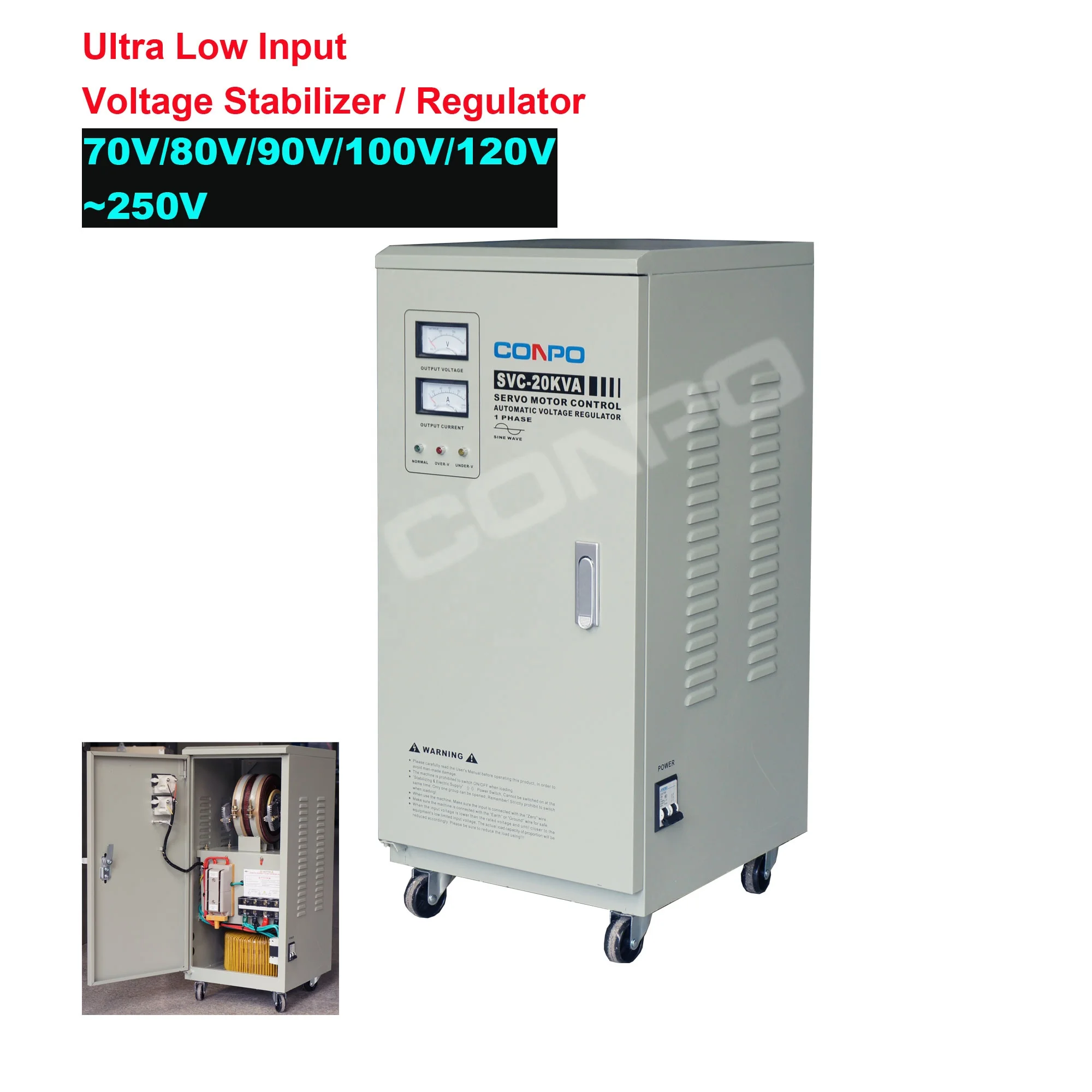

SVC-20KVA	20KVA	39*43*85CM	1UNIT/PKG
SVC-30KVA	30KVA	48*50*95CM	1UNIT/PKG
