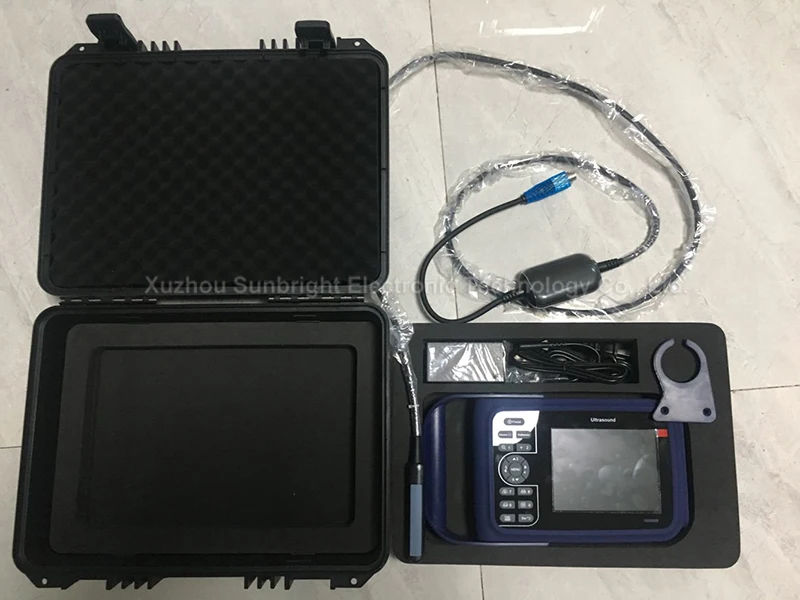

Sunbright handheld veterinary ultrasound device pregnancy ultrasound scanner for animal
- Category: >>>
- Supplier: Shanghai Sunbright Industrial Co. Ltd.
Share on (1600919982083):
Product Overview
Description
Product Description

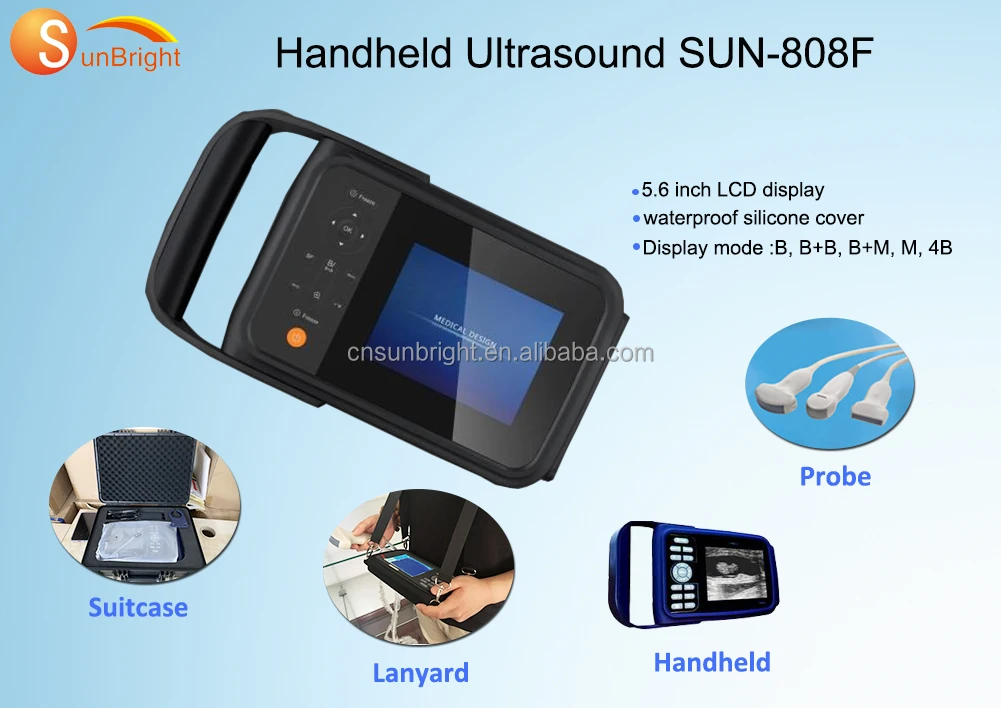

Sunbright handheld veterinary ultrasound device pregnancy ultrasound scanner for animal
l Battery
l 192-frame cineloop
l Two USB ports
l SD card
l General software, Obstetrics software and Cardiac software.
Software
l General measurement: distance, circumference, volume, angle, heart rate and etc.
l Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus' weight, pregnancy week, fetal physiological rating according to the previous measurements.
l Cardiac measurement software. The measurement result could be shown automatically.

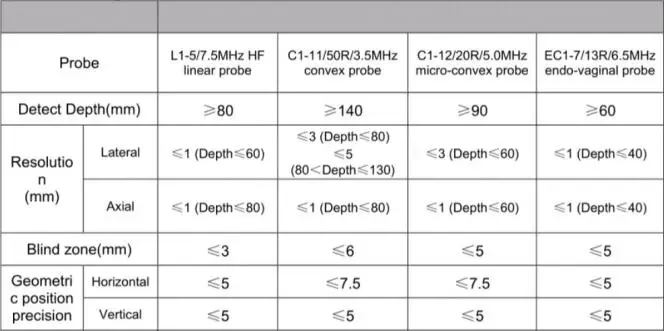

Specifications
Scanning mode | electronic linear array, electronic convex array |

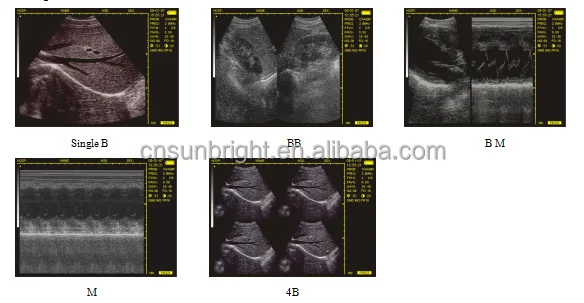

Imaging model | B, B/B, B/M, M, 4B |
Gray scale | 256 levels, four selectable gamma curve |
Transducer frequency | 2.5-8.5 MHz |
Magnification | ×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5 |
Permanent storage | 1024 |
Cine loop | >=400 frame |
Sound Power | 8 grades from 0-7 |
Dynamic Range | Adjustable from 30-75 |
USB Ports | 2 |
IP set | 8 |
Body Mark | 35 kinds |
Pseudo color | 5 kinds |
Image Processing | Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll |
Measurement | Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac |
Focus | Number and location of the focus can be adjusted |
Puncture | Puncture guide line |
TGC | Adjustable, Near field, Middle field and Far field are adjustable from 39-99 |
Body Marks | 35 |
IP set | Hospital's name, Date, Time, Formula of Fetus' weight and Pseudo color |
Image store format | BMP, DICOM |
Formula of Fetus' weight | OSAKA, TOKYO1, TOKYO2, MERZ |
Image | Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture |
Voltage | AC85V-265V |

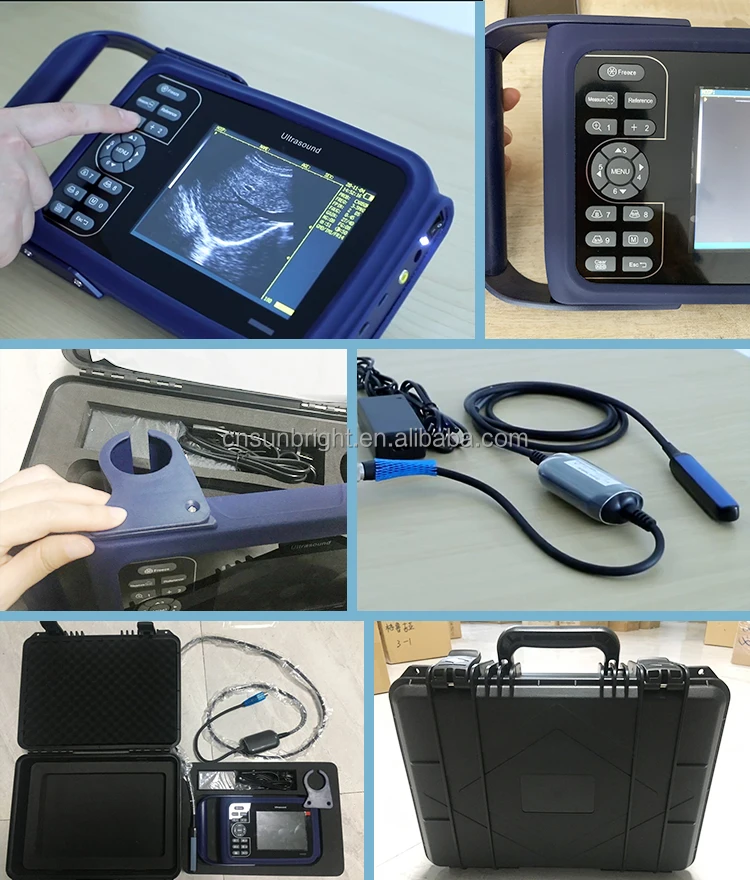

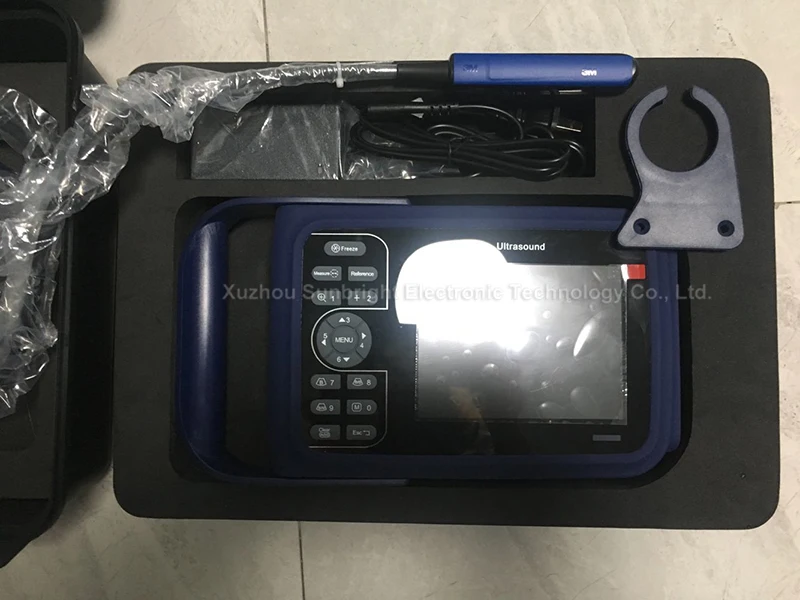

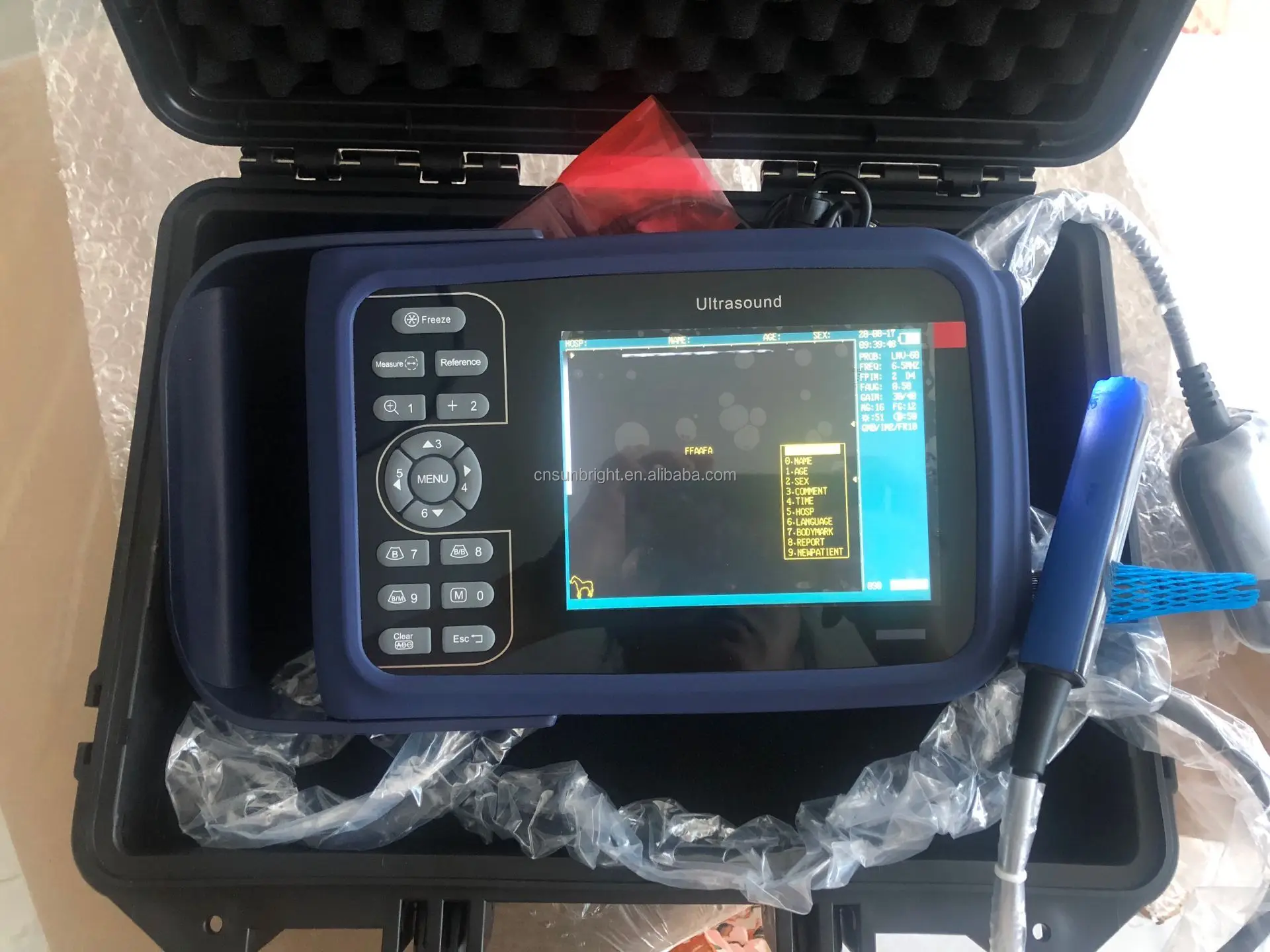

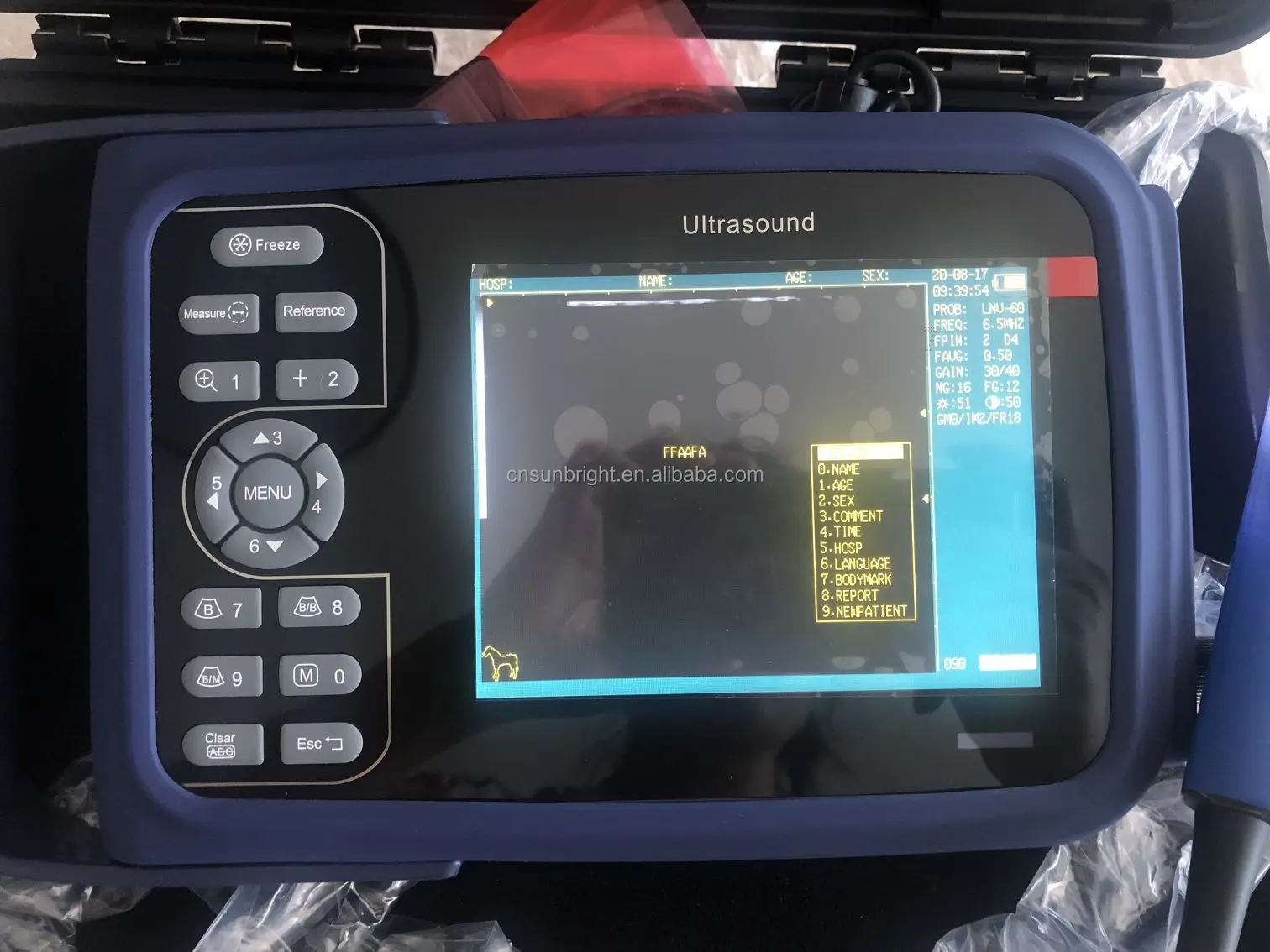

Detailed Images
Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
