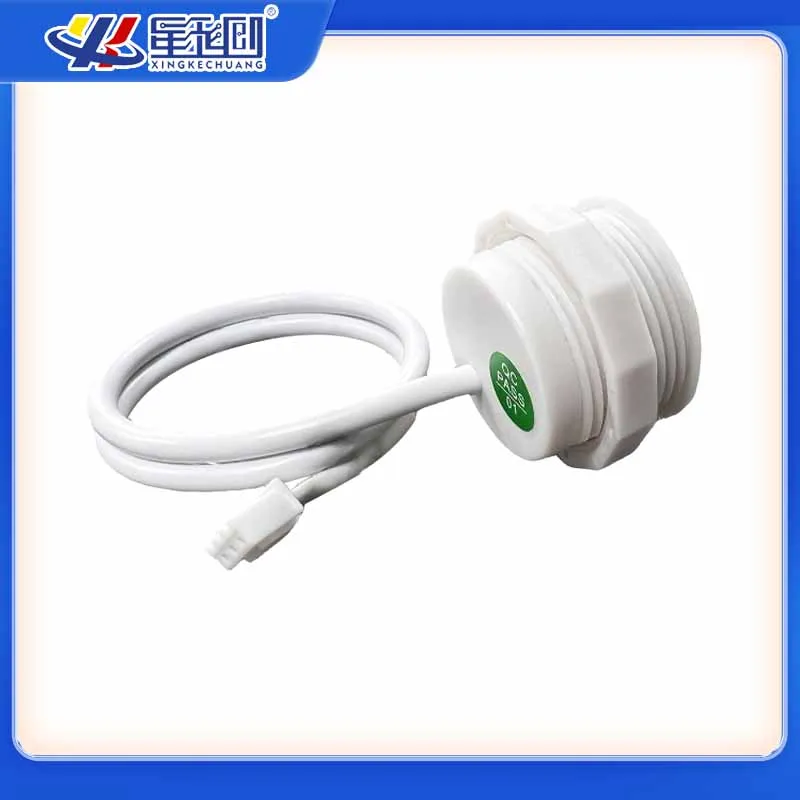

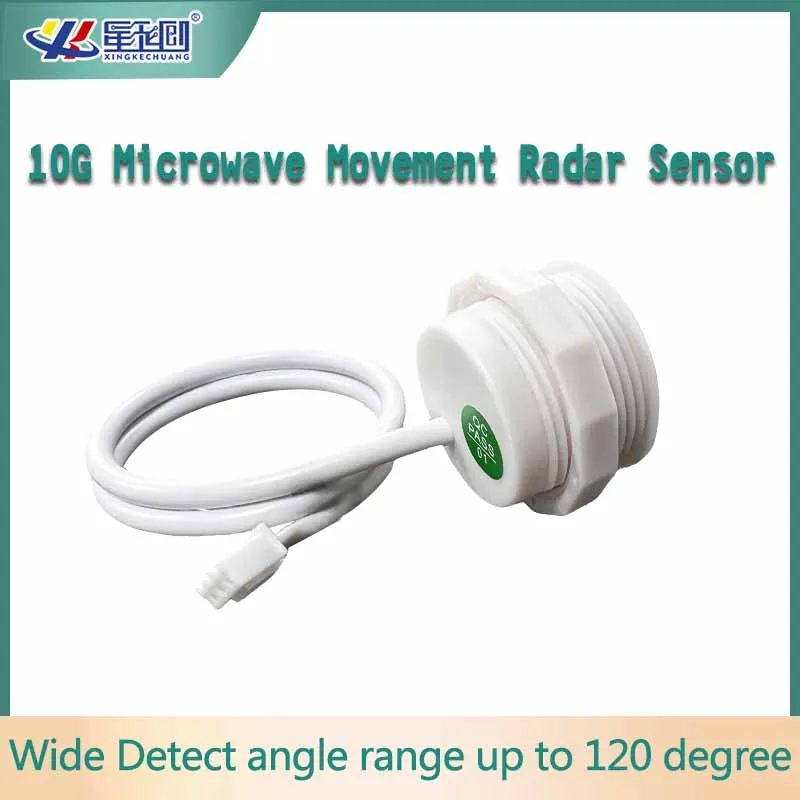

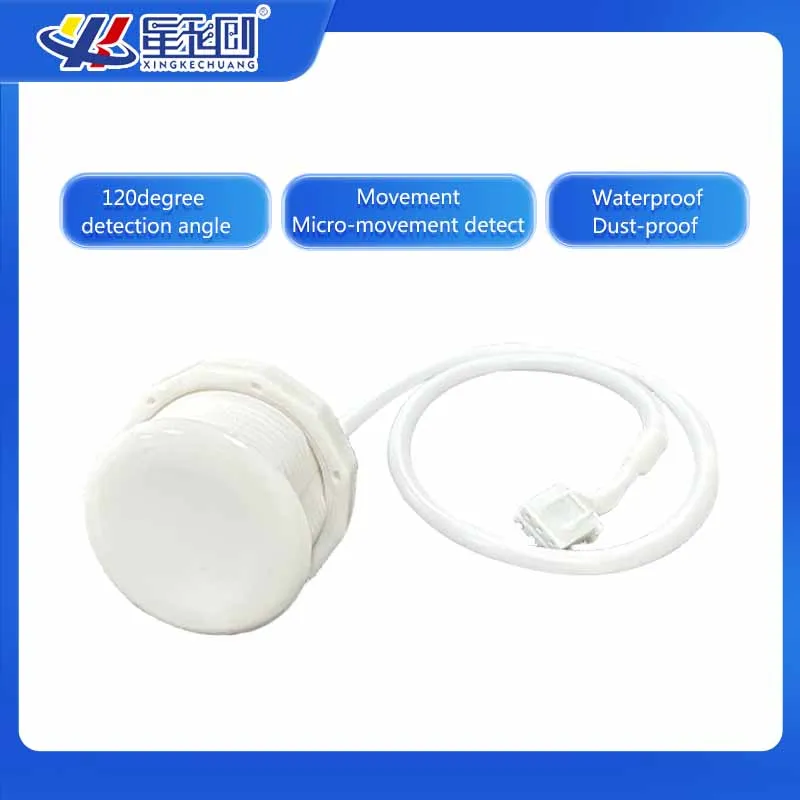

XKC LD500A sensitive LED light microwave radar sensor movement presence detect motion sensor for human and object detection
- Category: >>>
- Supplier: Shenzhen Xingkechuang Technology Co. Ltd.
Share on (1600919983683):
Product Overview
Description
Product Description

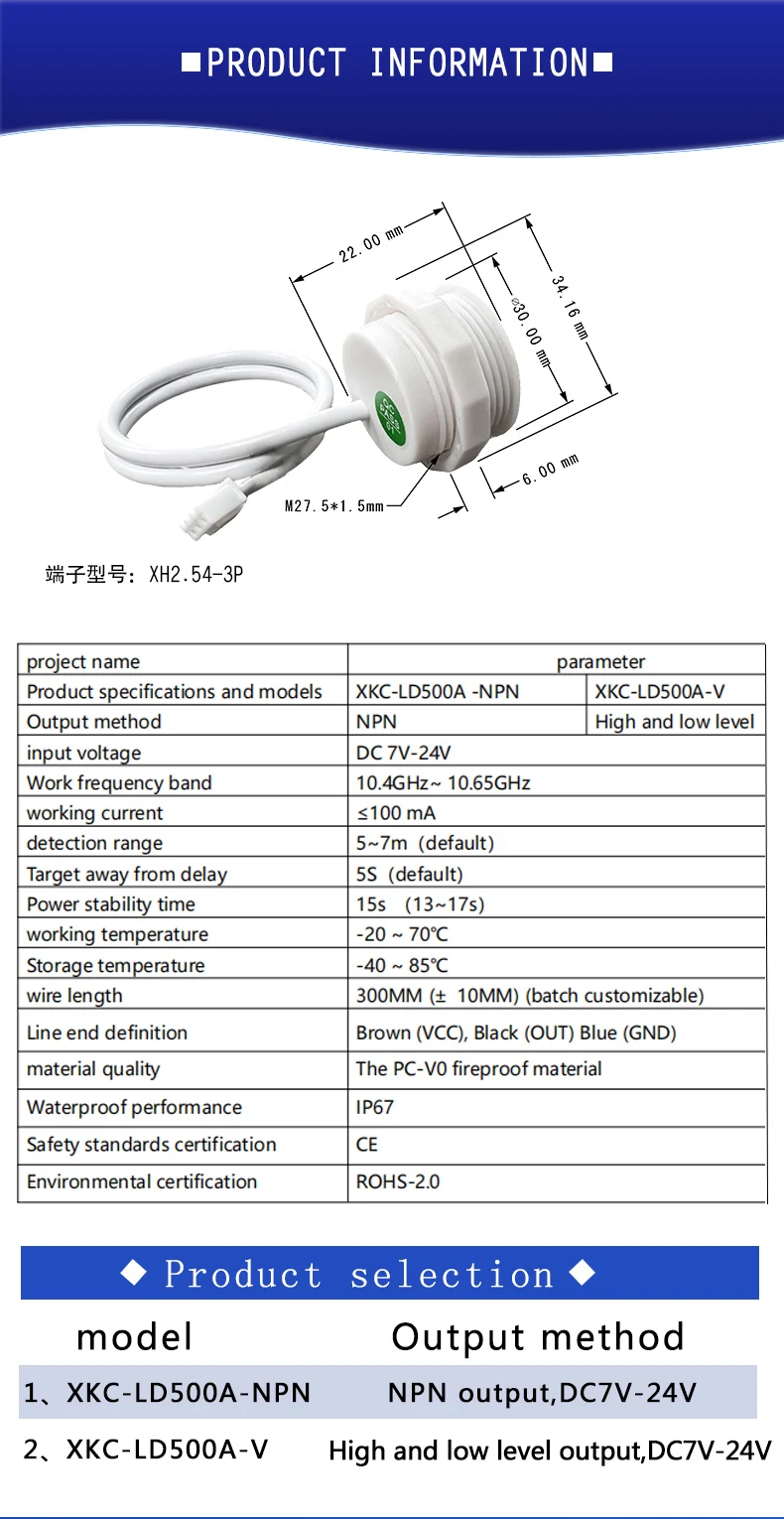

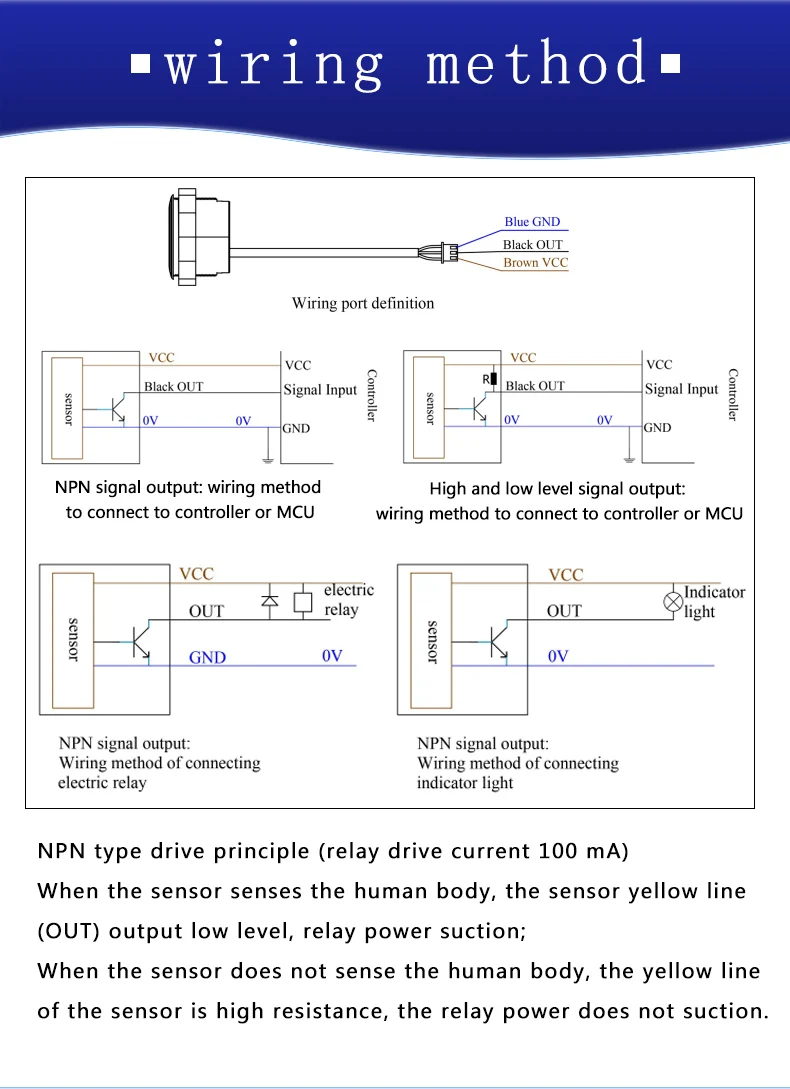

| LD500A-V | LD500A-NPN |
| detect,send high;no detect,send low 0V | NPN output |
Product overview:
XKC-LD500A is mainly used in indoor scenes to perceive whether there is movement or micro
human body in the area, and output the detection results in real time. The maximum induction distance

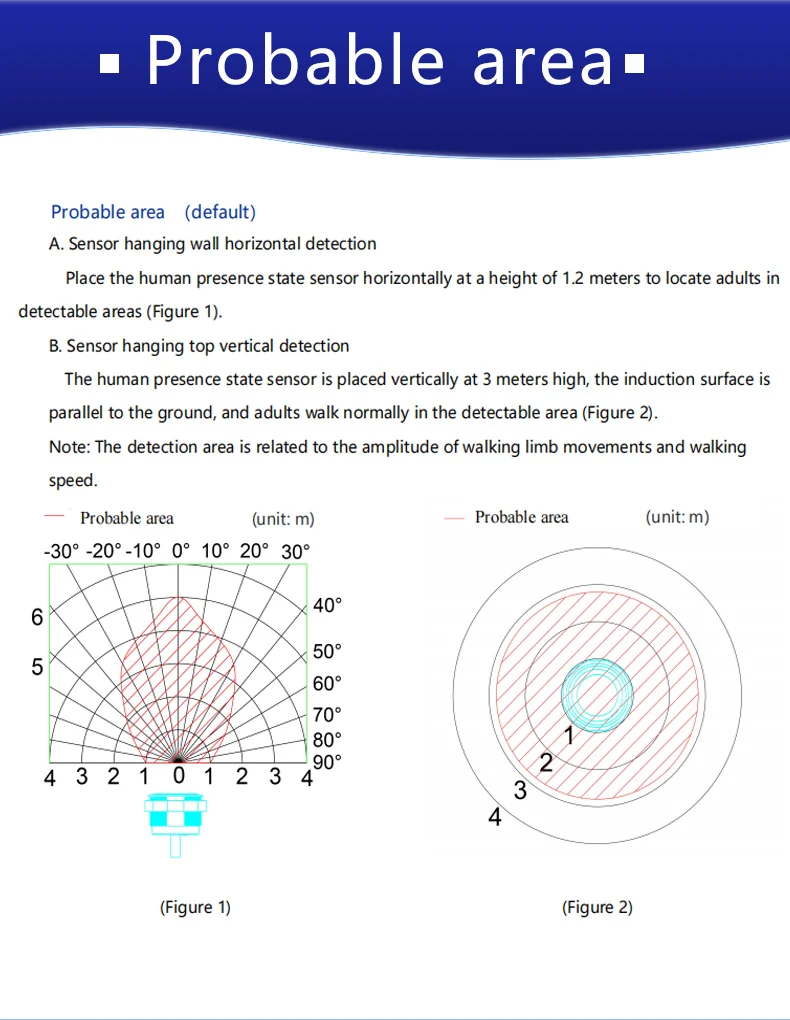

is up to 5 meters (the detection distance is related to the direction of the sensor installation). Can be
widely used in various scenarios of AIoT, often used in human induction light control, advertising screen
and other devices human induction wake, life safety protection, intelligent home appliances, intelligent
security, etc.

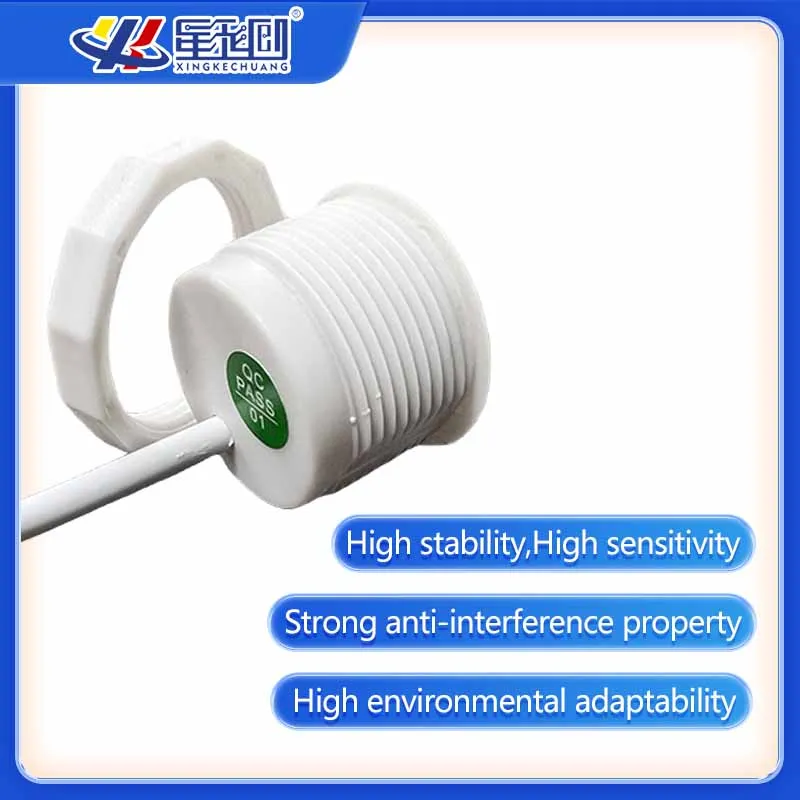

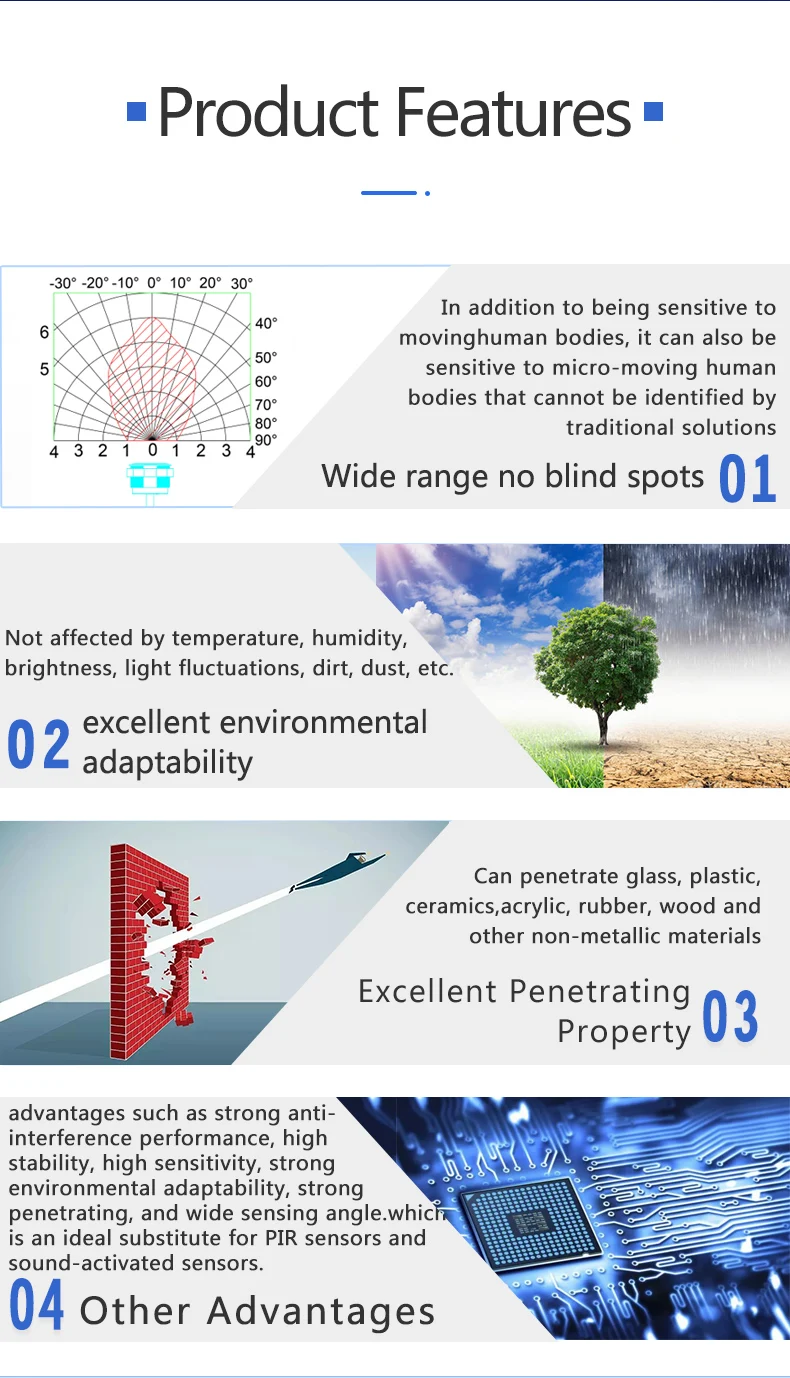

Product features:
1. In addition to the movement of the human body induction sensitive, for the traditional scheme can
not identify the micro human body can also be sensitive induction;
2. Have good environmental adaptability, the induction effect is not affected by the temperature,
brightness, humidity and light fluctuations and other surrounding environment;
3. Not easy to be affected by dirt, dust and other cover interference;
4. Can pass through the glass, plastic, ceramic, acrylic, rubber, wood board and other non-metallic
materials;
5. The maximum induction distance is up to 5 meters;

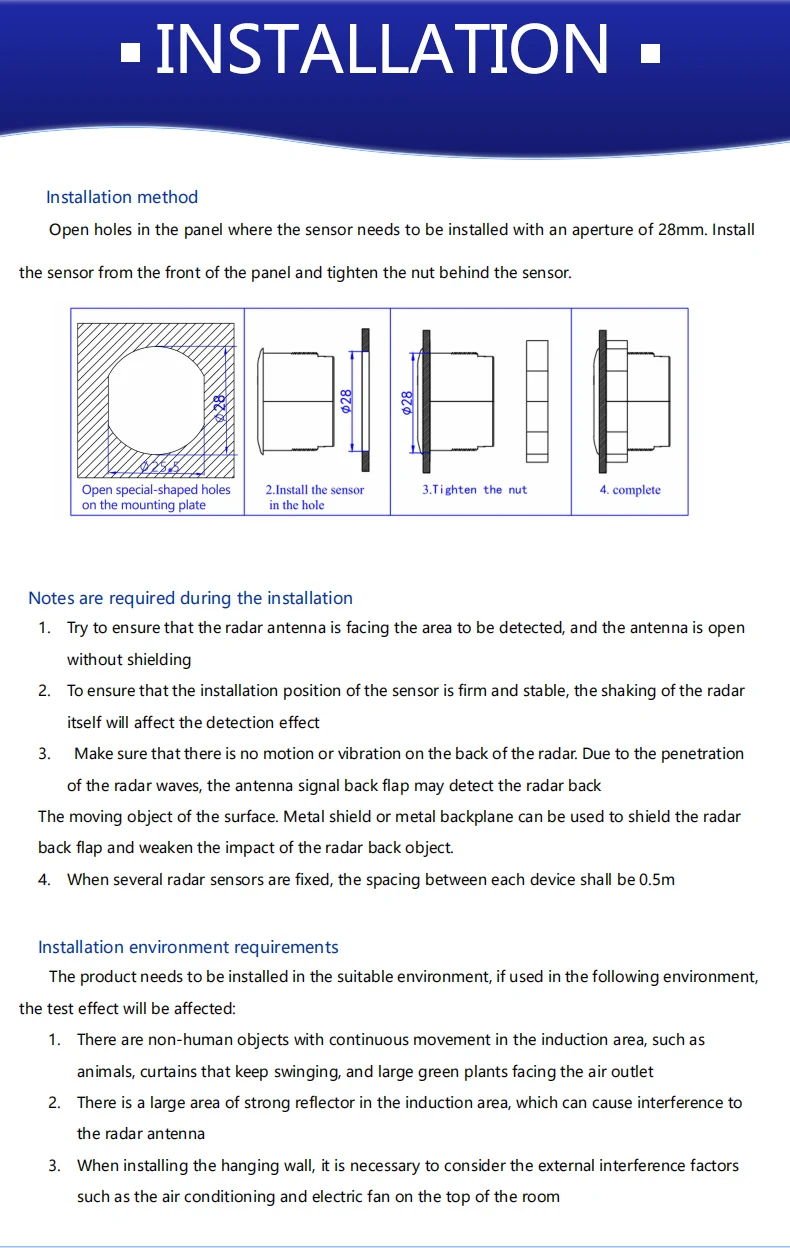

6. Support the hanging roof, hanging the wall and other installation methods;
Operational principle:
The XKC-LD500A is a human presence state sensor designed based on the X-band radar, with a
center frequency of 10.525GHz. The sensor based on the principle of doppler radar, the fixed frequency,
directional transmission and receiving antenna (1T1R), integrated intermediate frequency
demodulation, signal amplification and digital processing, to detect the human target in the space,
combined with radar signal processing, accurate human induction algorithm, achieve high sensitivity of
human body state induction, can identify the motion and dynamic state of the human body.
