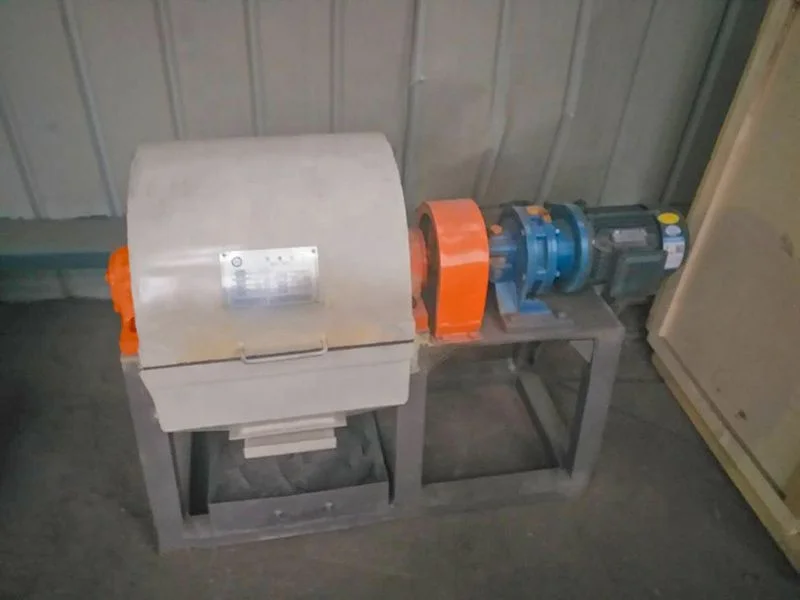

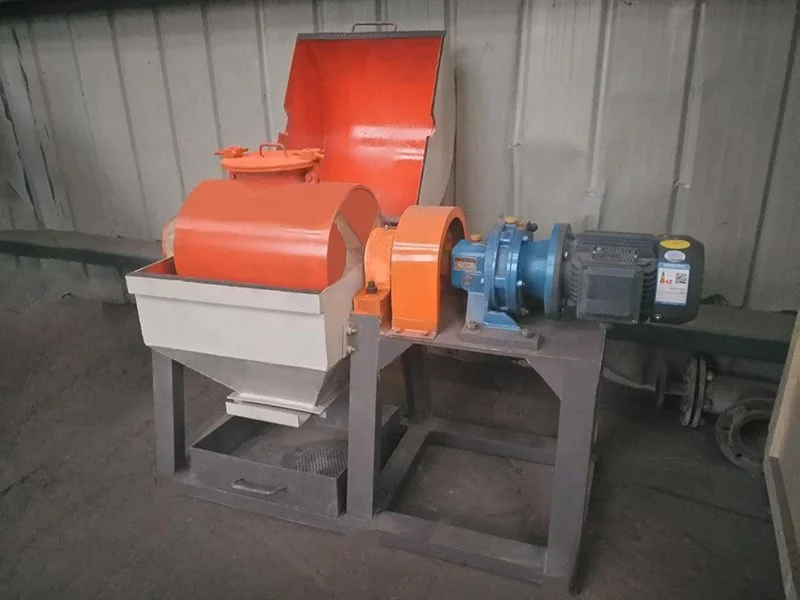

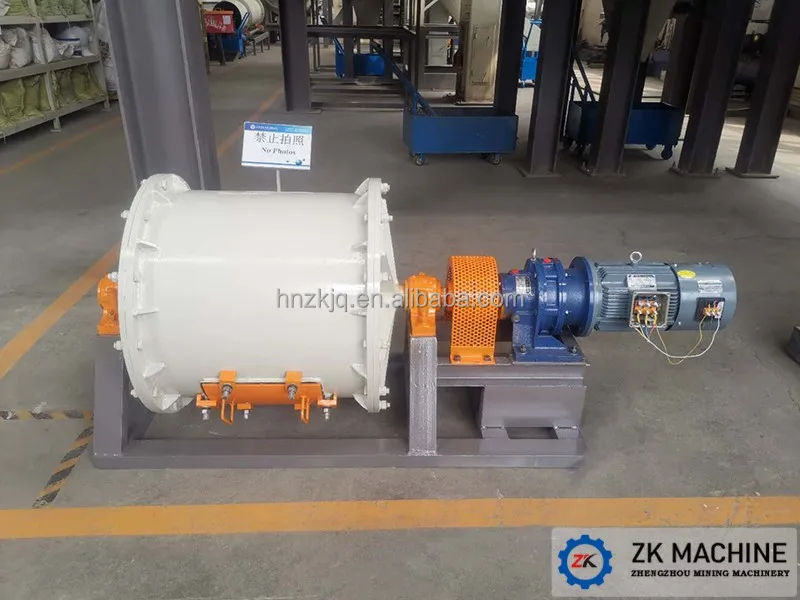

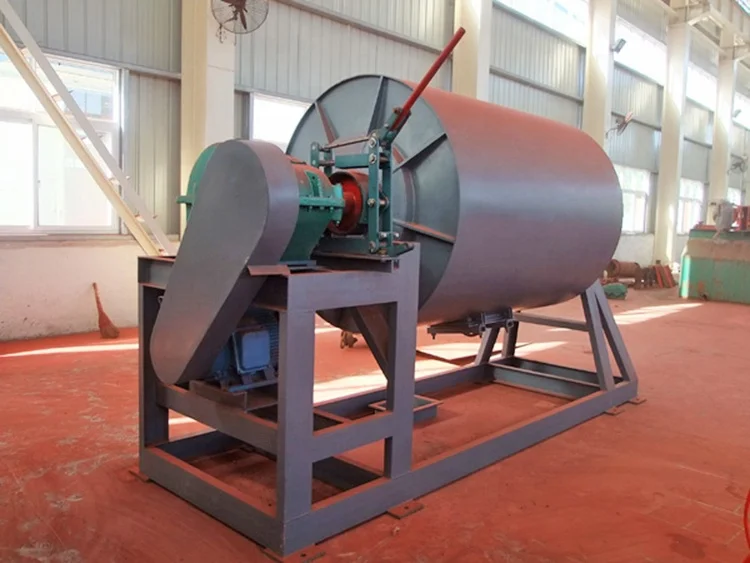

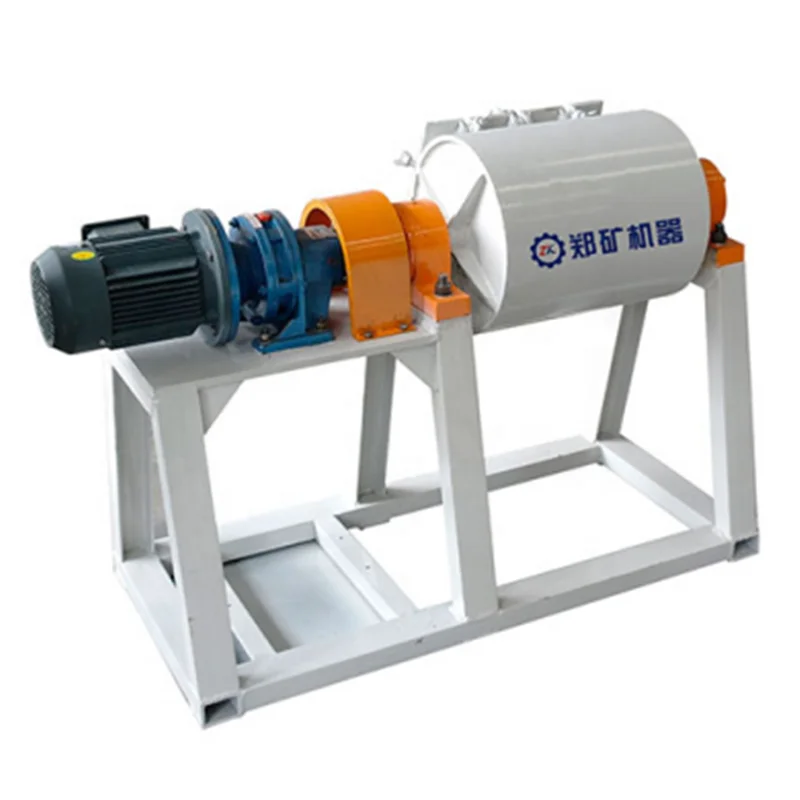

High Efficient Low Cost Small Capacity Intermittent Ball Mill
High Efficient Low Cost Small Capacity Intermittent Ball Mill
High Efficient Low Cost Small Capacity Intermittent Ball Mill
High Efficient Low Cost Small Capacity Intermittent Ball Mill
High Efficient Low Cost Small Capacity Intermittent Ball Mill
High Efficient Low Cost Small Capacity Intermittent Ball Mill
High Efficient Low Cost Small Capacity Intermittent Ball Mill

High Efficient Low Cost Small Capacity Intermittent Ball Mill

Share on (1600920046352):


Price:$1,700.00

Quantity:


Product Overview

Description



Products Description

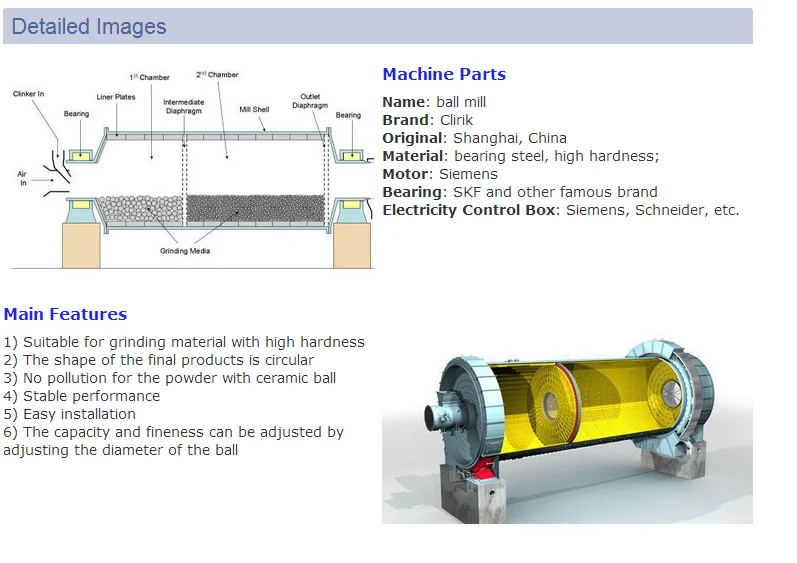

Ball mill is a type of grinder, is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints. Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used as media, including ceramic balls, flint pebbles andstainless steel balls. An internal cascading effect reduces the material to a fine powder. Industrial ball mills can operate continuously, fed at one end and discharged at the other end. Large to medium-sized ball mills are mechanically rotated on their axis, but small ones normally consist of a cylindrical capped container that sits on two drive shafts (pulleys and belts are used to transmit rotary motion). A rock tumbler functions on the same principle. Ball mills are also used in pyrotechnics and the manufacture of black powder, but cannot be used in the preparation of some pyrotechnic mixtures such as flash powder because of their sensitivity to impact. High-quality ball mills are potentially expensive and can grind mixture particles to as small as 5 nm, enormously increasing surface area and reaction rates. The grinding works on the principle of critical speed. The critical speed can be understood as that speed after which the steel balls (which are responsible for the grinding of particles) start rotating along the direction of the cylindrical device; thus causing no further grinding.




Appliction of ball mill
Ball mills are used extensively in the mechanical alloying process in which they are not only used for grinding but for cold welding as well, with the purpose of producing alloys from powders.

The ball mill is a key piece of equipment for grinding crushed materials, and it is widely used in production lines for powders such as cement, silicates, refractory material, fertilizer, glass ceramics, etc. as well as for ore dressing of both ferrous non-ferrous metals. The ball mill can grind various ores and other materials either wet or dry. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material. There are many types of grinding media suitable for use in a ball mill, each material having its own specific properties and advantages. Key properties of grinding media are size, density, hardness, and composition.








Technical Parameter


Model
Loading Capacity (tons/time)
Rotating Speed (r/min)
Reference Power (kW)
600*700
0.05
50
2.2
800*600
0.075
42
3
900*1200
0.2
38.5
5.5
1300*1500
0.5
33
7.5
1500*1800
1.2
28.5
11
1800*2000
1.5
24
15
2600*2800
5
16.5
37
3000*3800
10
14.5
57.2
3200*4600
15
13.5
75
Ceramic, silica, rubber, metal (supporting power will vary depending on the material of the liner and the grinding material)

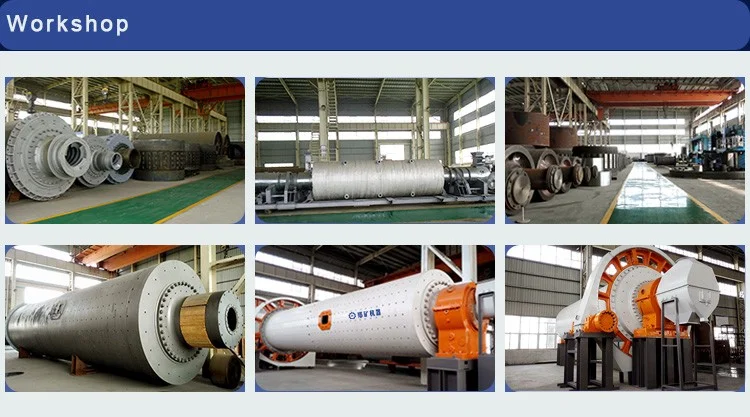

Company Profile

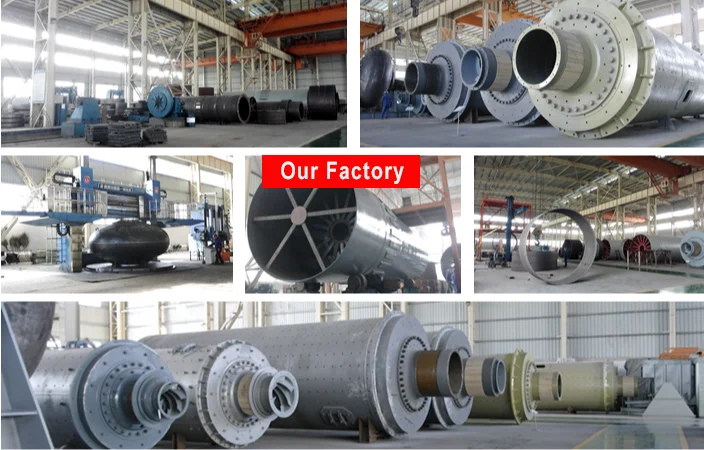

Henan Zhengzhou Mining Machinery Co., Ltd. was founded in 1956, area of 70000 square meters, plant construction area of 40000 square meters with six modern workshops, two heavy machinery workshops, one Municipal Technology Center and more than 260 sets of machining, assembling, welding and other equipments.It is appointed as the fixed equipment-providing factory by Chinese Ministry of Machine Building and HENAN Mechanical Electronic Bureau.

The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.








Abroad Installation


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

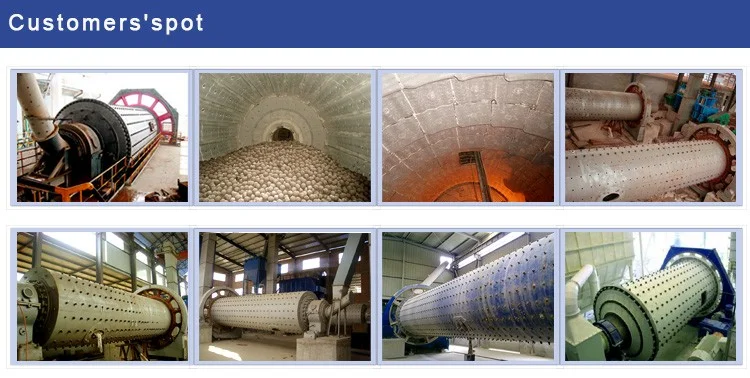

Successful Cases



Country: Indonesia
Ball Mill Size: 3×12m
Requirement: Capacity: 20ton/hour,Feeding size: 2mm Discharge size: 325 mesh, >90%.



Country: Zambia
Ball Mill Size: 2.7x4.5m
Capacity:500tpd
Process: two stages one close-circuit crushing, one stage one-circuit grinding and classification, one roughing-two scavenging-ten cleaning.


Country: Iran
Ball Mill Size: 1.45x3.6m
Processing capacity: 5t/h





Packing&shipping


Packing.
1.ZK CORP will make proper packing for different machine, which is suitable for sea transport and land transport.
2.Main part will be in nude. Small parts will be packed in wooden box.
Transport.
1. ZK CORP can afford transport directly to destination port or destination place.
2. Customer can arrange both land transport and sea transport by themselves if convenient.




FAQ


To help us provide you the first-rate service, could please kindly answer the following questions before sending an inquiry?

♥ How many tons do you want to produce per hour?

♥ What are your raw material to process?

♥ What are output sizes you want? like 150-300 meshes

May i have your email or whapp? So that our manager can contact you and quote.

Send Message or Chat Now for Detailed quotation !!!
↓↓↓
