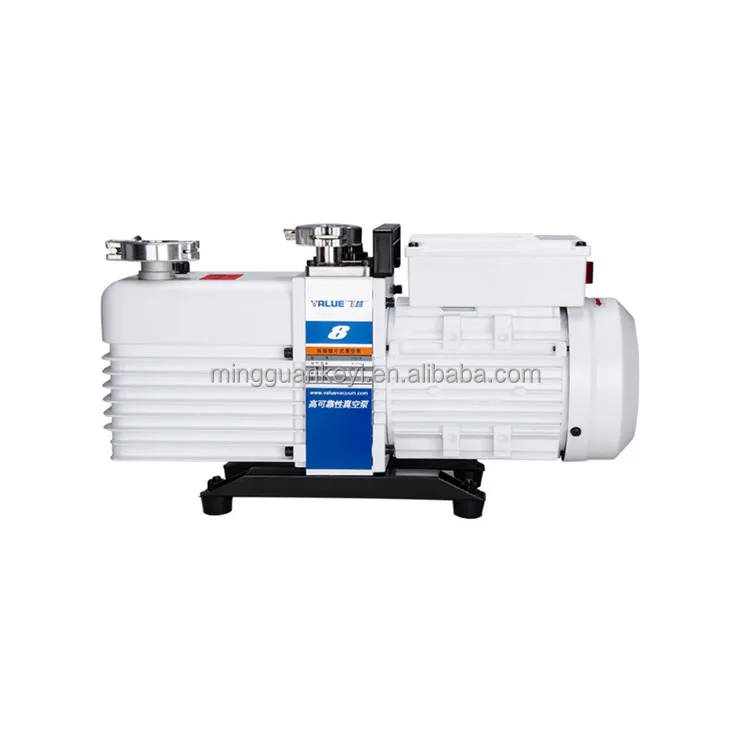

2.2 L/s Double Stage Rotary Vane Vacuum Pump with Exhaust Filter for lab coating machine VRD 8
- Category: >>>
- Supplier: Henan Mingguan Scientific Instruments Co. Ltd.
Share on (1600920053582):
Product Overview
Description
2.2 L/s Double Stage Rotary Vane Vacuum Pump with Exhaust Filter for lab coating machine -VRD-8
Product Description
Features:
- Special material adopted for excellent corrosion resistance.
- Two-Shift adjustable gas ballast valve satisfies different requirements of condensable vapor (such as water vapor) to be exhausted out of pump in different processes.
- Dual protection of oil anti-suck back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
- Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
- Less components are used, easy to maintain and repair.

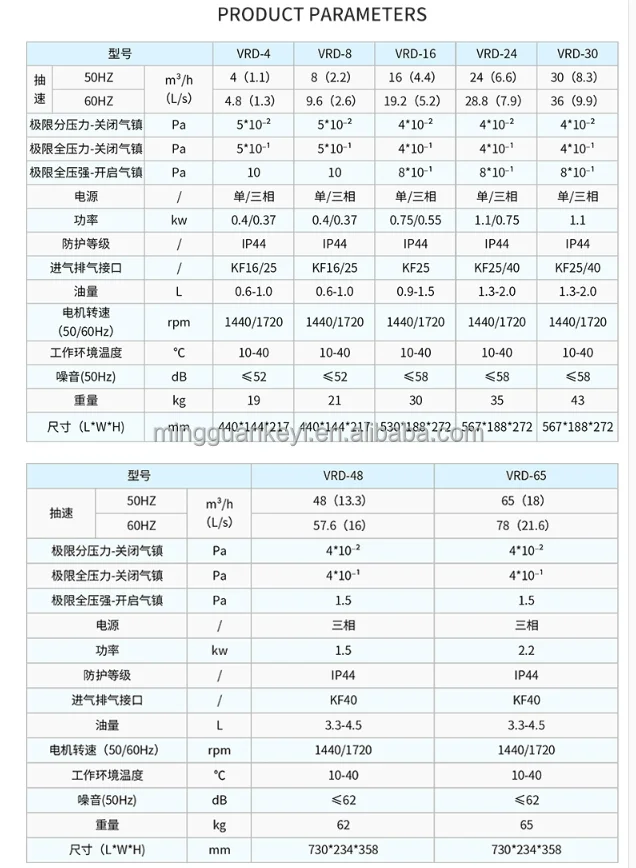

Specifications:
Voltage / Frequency | AC 100~120V/60Hz or AC 208~240V/50/60Hz |
Rate (m3/h) | · 50Hz: 8 m³/h (2.2 L/s) · 60Hz: 9.6 m³/h (2.6 L/s) |
Body Material | Stainless Steel |
Maximum Pressure | ≤4E-4Torr (5E-2Pa) |
Power (HP) | 0.4KW / 0.37KW |
| · 50Hz: 1440 rpm · 60Hz: 1720 rpm |
Volume of Oil (ml) | 1000 |
Working Temperature | 5-40℃ |
Vacuum port | Built in KF25D standard Inlet / outlet port |

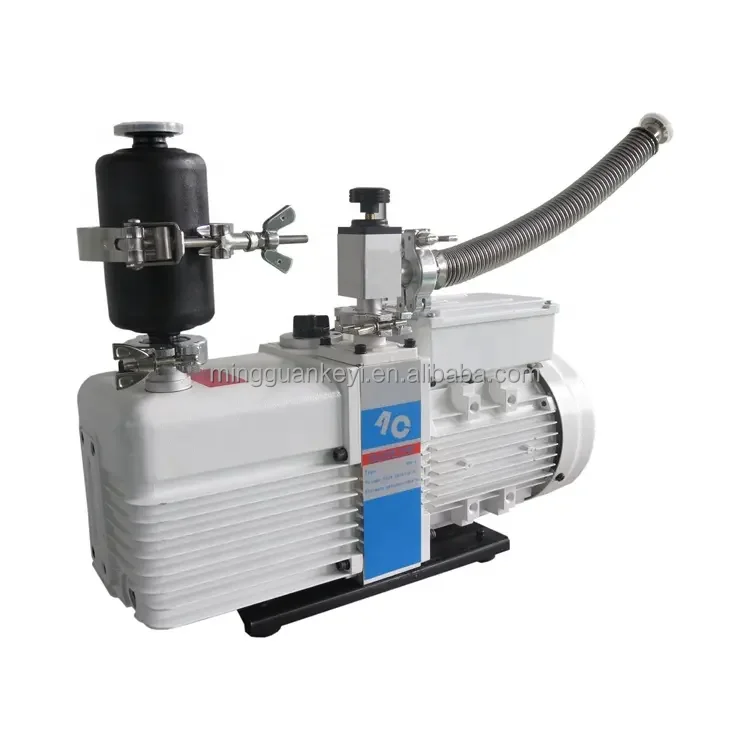

| · 32 Oz high-quality oil is included for immediate use ( click picture below left to order spare) · One Exhaust filter is included to o Eliminates pump oil fumes o Returns used oil to vacuum pump o Traps Particles to 0.3 microns o Replaceable coalescing element |
| · Must use a Vacuum filter or cold trap to protect vacuum pump if use the pump for CVD. · Please choose a vacuum gauge |
Dimension (mm) | 6.5" X 18" X 9.5" |
Weight | 21 kg (47 lbs) |
| One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially: · Pumping of corrosive or explosive media. · Pumping of condensing vapors. · Pumping of liquids. · Pumping of dust. · Operation with improper high levels of insulated heat input. · Operation in potentially explosive areas. |
Application note | · To protect the environment & human health, please use Traps & Filters to minimize exhaust. · To protect vacuum pump from damage by condensed vapors or small particles, please connect a cold trap or particle trap to the Inlet Foreline Trap |

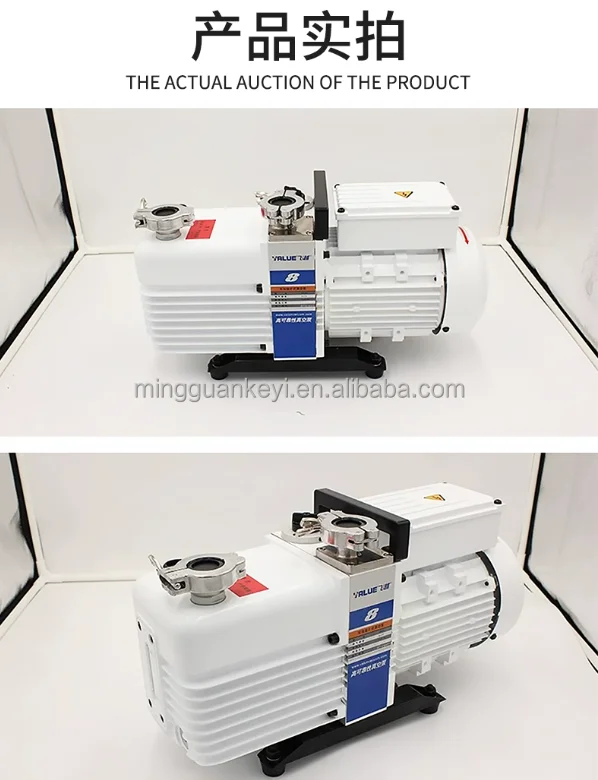

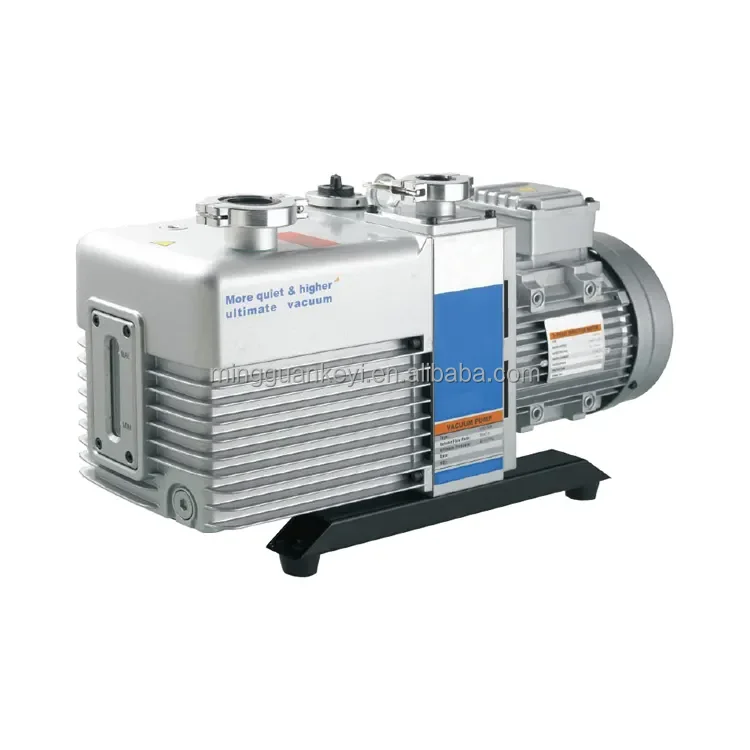

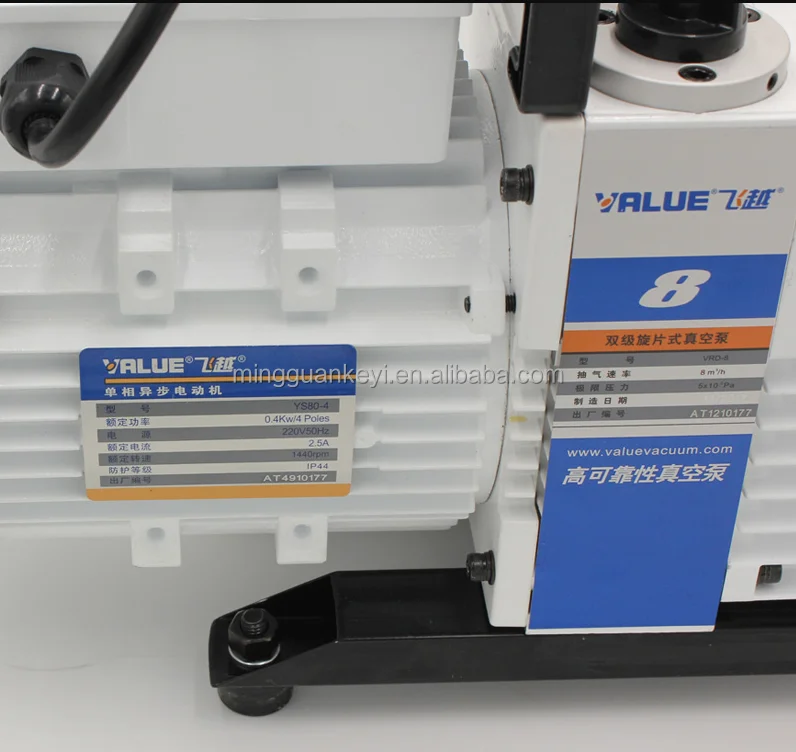

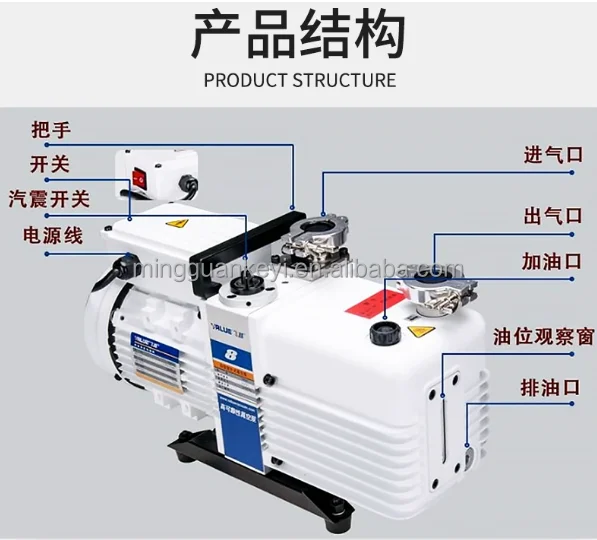

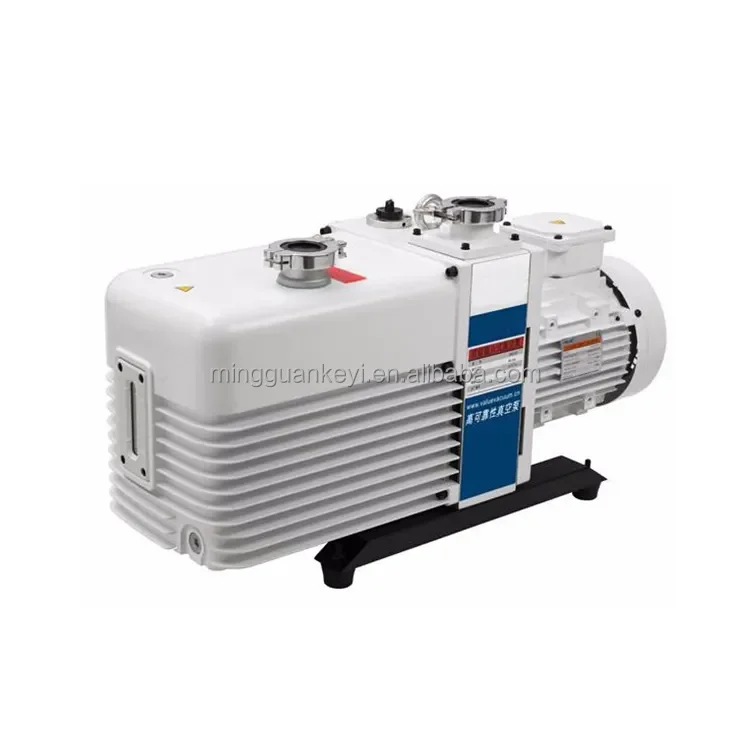

Product pictures
