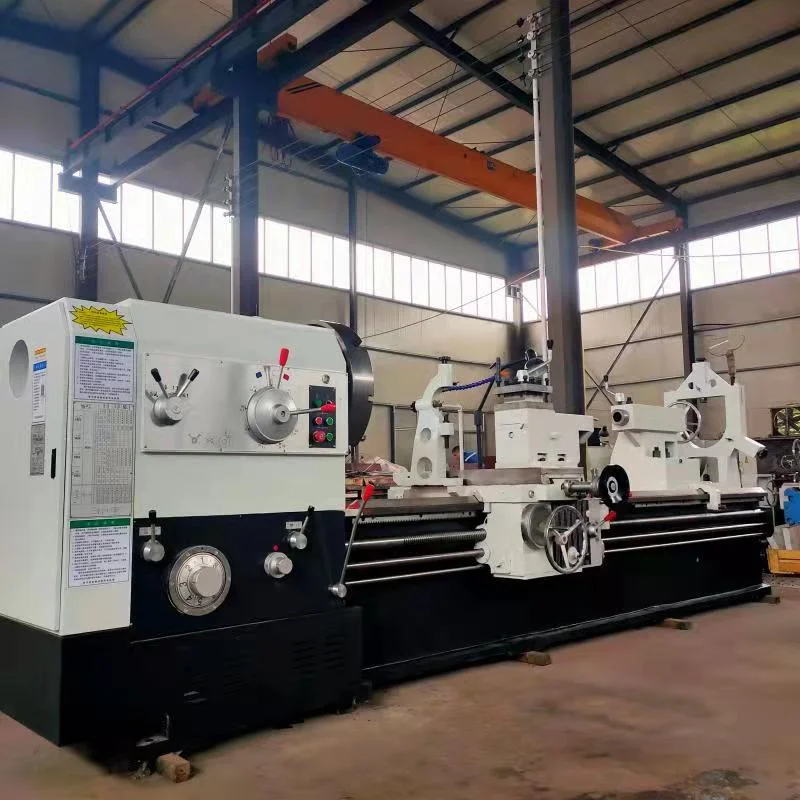

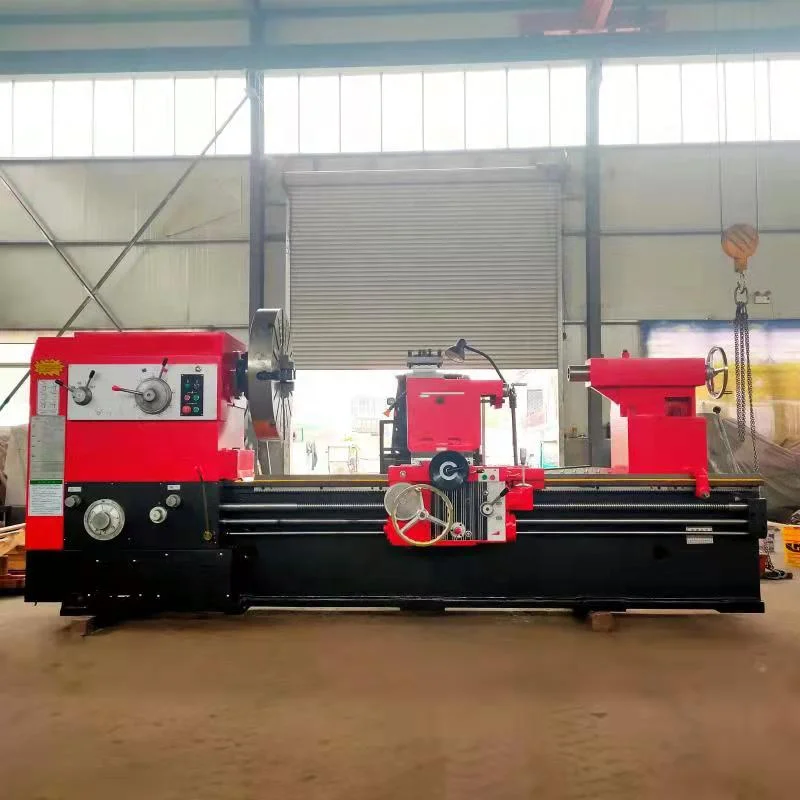

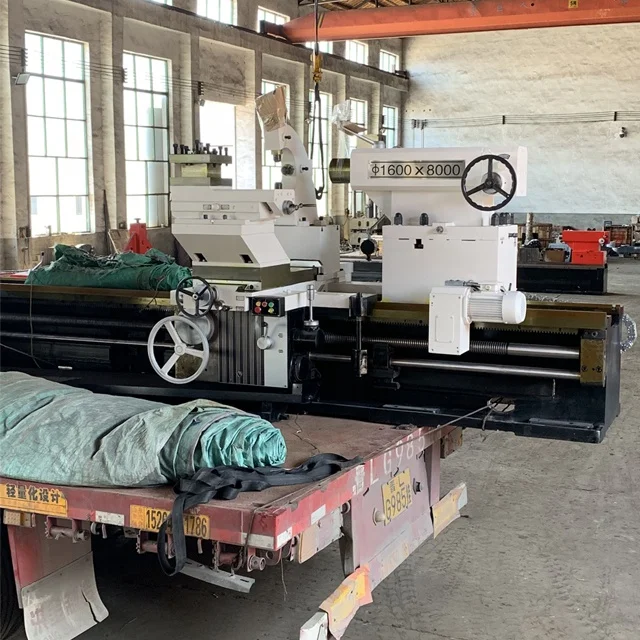

manual lathe machine 2 meter CW6180 Lathe Machine Price Brake Disc Lathe
- Category: >>>
- Supplier: Shandong ACR Machine Tool Co. Ltd.
Share on (1600920067531):
Product Overview
Description
Recommend Products
Product Paramenters
Project | Unit | CW61(2)80 | ||||||
Rail width | mm | 550 | 600 | |||||
swing over bed | mm | 800 | ||||||
Maximum turning diameter of tool holder | mm | 520 | 480 | |||||
Maximum swing diameter on the saddle | mm | 1000 | ||||||
Maximum workpiece length | mm | 1500/2000/3000/4000/5000/6000 | ||||||
Maximum turning length | mm | 1350/1850/2850/3850/4850/5850 | ||||||
Load bearing | kg | 2500 | 3000 | |||||
Spindle bore diameter | mm | Φ105 Optional 130 | ||||||
Taper of spindle hole front end | 120#Metric system | |||||||
Tip taper | MT5# | |||||||
Spindle nose model | C11 | |||||||
Speed series range | r/min | 18、7.5-800 | 18、7.5-720 | |||||
X axis feed stepsl/range | mm/r | 64/0.05-12.15 | ||||||
Z axis feed stepsl/range | mm/r | 64/0.1-24.3 | ||||||
X-axis rapid traverse rate | mm/min | 2300 | ||||||
Z-axis rapid traverse rate | mm/min | 4000 | ||||||
Range of Metric Thread Types | mm | 50/1-240 | ||||||
Inch thread type range | TPI | 26/14-1 | ||||||
Range of Modulus Thread Types | mm | 53/0.5-120 | ||||||
Diameter pitch thread type range | DP | 24/28-1 | ||||||
X-axis travel | mm | 420 | ||||||
Z-axis travel | mm | 1350/1850/2850/3850/4850/5850 | ||||||
Tailstock sleeve diameter | mm | Φ100 | Φ120 | |||||
Tailstock sleeve stroke | mm | 250 | ||||||
Taper hole of tailstock sleeve | MT5# | MT6# | ||||||
Main motor power | kw | 11 | ||||||
Fast motor power | kw | 1.1 | ||||||
Machine tool outline dimension x1500 | mm | 4000*1600*1750 4000*1750*1800 | ||||||
X2000 | mm | 4500*1600*1750 4500*1750*1800 | ||||||
X3000 | mm | 5500*1600*1750 5500*1750*1800 | ||||||
X4000 | mm | 6500*1600*1750 6500*1750*1800 | ||||||
X5000 | mm | 7500*1600*1750 7500*1750*1800 | ||||||
X6000 | mm | 8500*1600*1750 8500*1750*1800 | ||||||
Weight x1500 | kg | 4100 5000 | ||||||
X2000 | kg | 4500 5400 | ||||||
X3000 | kg | 5200 6100 | ||||||
X4000 | kg | 5900 6800 | ||||||
X5000 | kg | 6600 7500 | ||||||
X6000 | kg | 7300 8200 | ||||||
Company Profile

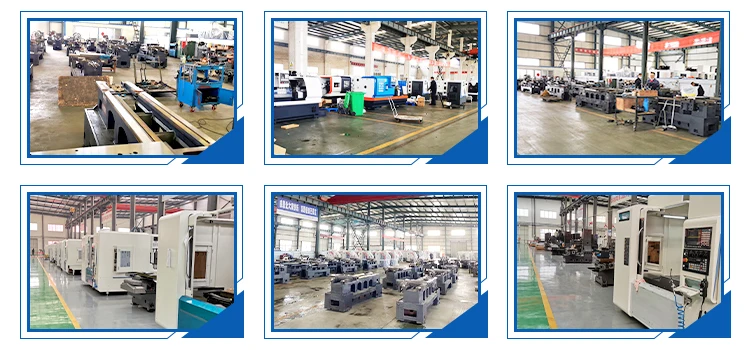

Workshop

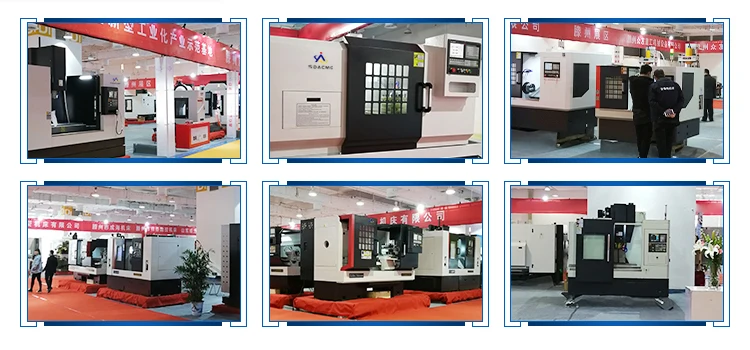

Exhibition
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
